DACIA LODGY 2022 Repair Manual

JauneNoir Noir texte
1.55
ENG_UD29917_2
Eclairages et signalisations extérieures (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
EXTERIOR LIGHTING AND SIGNALS (2/2)
eTurning off the fog
lights
Turn centre ring 3 on the stalk until the
symbol faces mark 2.
The corresponding indicator light goes
out on the instrument panel.
The front and rear fog lights switch off
when the exterior lights are switched
off.
gFront fog lights
Turn centre ring 3 on the stalk
until the symbol faces mark 2.
The fog lights only light up if the exterior
lights have been switched on. An indi-
cator light on the instrument panel then
lights up.
Do not forget to switch off the fog lights
when they are no longer needed, to
avoid inconveniencing other road
users.
hRear fog lights
Turn centre ring 3 on the
stalk until the symbol faces mark 2.
The fog lights only light up if the exterior
lights have been switched on. An indi-
cator light on the instrument panel then
lights up.
Remember to switch off the these
lights when they are no longer required
to avoid inconveniencing other road
users.
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.
32
23

JauneNoir Noir texte
1.56
ENG_UD29272_2
Réglage de la hauteur des faisceaux (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
HEADLIGHT BEAM ADJUSTMENT
Control A is used to adjust the height
of the headlight beams according to the
load.
Turn control A anticlockwise to lower
the beams and clockwise to raise them.
A
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.
Examples of positions for adjusting control A according to the load
Driver alone or with front passenger 0
Driver with one front passenger and
one rear passenger 1
Do not use 2
Driver with one front passenger and
two or three rear passengers 3
Driver with one front passenger,
three rear passengers and luggage 3

JauneNoir Noir texte
1.57
ENG_UD24422_1
Avertisseurs sonore et lumineux (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
AUDIBLE AND VISUAL SIGNALS
Horn
Press the end of the stalk 1.
Headlight flasher
Pull stalk 1 towards you to flash the
headlights.
Direction indicatorsMove stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
One-touch mode
When driving, it is possible that the
steering wheel may not be turned suf-
ficiently to return the stalk automatically
to its starting position.
In this case, briefly turn stalk 1 to the in-
termediate position, then release it: the
stalk returns to its original point and the
indicator light flashes three times.éHazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
It must only be used in an emergency to
warn drivers of other vehicles that you
have had to stop in an area where stop-
ping is prohibited or unexpected, or that
you are obliged to drive under special
conditions.
1
1
2

JauneNoir Noir texte
1.58
ENG_UD24423_1
Essuie-vitre / Lave-vitre avant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
WINDSCREEN WASH/WIPE
nWindscreen wiper
With the ignition on, move
stalk 1 around the steering wheel:
A Park.
B Intermittent wiping.
The wipers will pause for several
seconds between sweeps.
C Normal wiping speed.
D Fast wiping speed.
sWindscreen wiper
With the ignition on, pull stalk 1
towards you.
A brief pull will trigger a single sweep
of the wipers, in addition to the wind-
screen washer.
A longer pull will trigger three sweeps
of the wipers, in addition to the wind-
screen washer.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(risk of motor overheating).
Keep an eye on the condition of the
blades. They should be replaced as
soon as they become less efficient.
This will occur approximately once
a year. Clean your windscreen reg-
ularly.
If you switch off the ignition before
switching off the windscreen wiper
(position A) the blades will stop at
random on the windscreen.
After switching the ignition back on,
simply move stalk 1 to position A to
place them in the park position.
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.
C
D1
D
C
B
A
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park). Risk
of injury.

JauneNoir Noir texte
1.59
ENG_UD24424_1
Essuie-vitre / Lave-vitre arrière / Dégivrage (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
REAR SCREEN WASH/WIPE, DE-ICING
YRear screen wiper(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
pRear screen washer/
wiper
(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
When the stalk is released, it returns to
the rear wipe position.
VHeated rear screen
This function de-ices/demists
the rear screen and rearview mirrors
(depending on the vehicle).
With the engine running, press
switch 3. The indicator light in the
switch lights up.
Depending on the vehicle, the function
is stopped:
– automatically after 12 minutes of op- eration;
– by pressing button 3 again.
The integrated indicator light goes off.
Before using the rear wiper, check
that no object is obstructing the
travel of the blade.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(to avoid the risk of the motor over-
heating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
Regularly clean your rear screen.
21
3

JauneNoir Noir texte
1.60
ENG_UD33442_2
Réservoir carburant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
FUEL TANK (1/5)
Petrol and diesel versions
Capacity of the fuel tank: 50 litres ap-
proximately.
The cap A can be unlocked with the ig-
nition key.
For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
There is a cap holder 1 on the fuel filler
flap for holding the cap when the tank is
being filled.Fuel filler cap: this is spe-
cific to the vehicle type. If
you have to replace it, make
sure the new cap is of the
same type. Contact an approved
dealer.
Never place the cap near a source
of heat or flame.
Do not wash the filler area with a
high-pressure washer.
Fuel grade
Use a high-grade fuel that complies
with the legislation in force in each
country. It must conform to the specifi-
cations given on label B inside the fuel
filler flap.
Refer to the “Engine specifications”
table in Section 6.
Vehicles running on ethanol-based
fuel
Always use unleaded petrol or fuel
containing a maximum of 85 percent
ethanol (E85).
In very cold conditions it may be difficult
or even impossible to start the engine.
To avoid this problem, use unleaded
petrol.
Note: you may notice an increase in
fuel consumption with this type of fuel.
When the fuel is changed the engine
must adjust, which may cause minor in-
conveniences for a few minutes (longer
starting times, cutting out, etc.).
1
A
Do not mix even small
amounts of petrol (un-
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
Do not add any additives to the fuel,
you risk damaging the engine.
Do not wash the filler
area with a high-pressure
washer.
B

JauneNoir Noir texte
1.61
ENG_UD33442_2
Réservoir carburant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
FUEL TANK (2/5)
Petrol version
It is essential to use unleaded petrol.
The octane rating (RON) should match
the information given on the label B lo-
cated inside the fuel filler flap.
Diesel versions
It is essential to use diesel fuel that
conforms to the specifications given on
the label inside fuel flap B.Filling with fuel
With the ignition off, insert the nozzle to
open the valve and insert it fully before
turning it on to fill the fuel tank (risk of
splashing).
Keep the nozzle in this position
throughout the entire filling operation.
When the pump cuts out automatically
at the end of the filling procedure, a
maximum of two further filling attempts
may be made, as there must be suffi-
cient space in the fuel tank to allow for
expansion.
Make sure that no water enters the fuel
tank during filling. The valve and its sur-
round must remain clean.
Petrol versions
Using leaded petrol will damage the
antipollution system and may lead to a
loss of warranty.
To ensure that the fuel tank is not filled
with leaded petrol, the fuel tank filler
neck contains a restrictor fitted with a
foolproof system which only allows
the nozzle for unleaded petrol to be
used (at the pump).
Persistent fuel odour
If you notice a persistent
fuel odour you should:
– stop the vehicle as soon as traf- fic conditions allow and switch off
the ignition;
– switch on the hazard warning lights and ask your passengers to
leave the vehicle and stay clear
of the traffic;
– contact an approved Dealer.

JauneNoir Noir texte
1.62
ENG_UD33442_2
Réservoir carburant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1

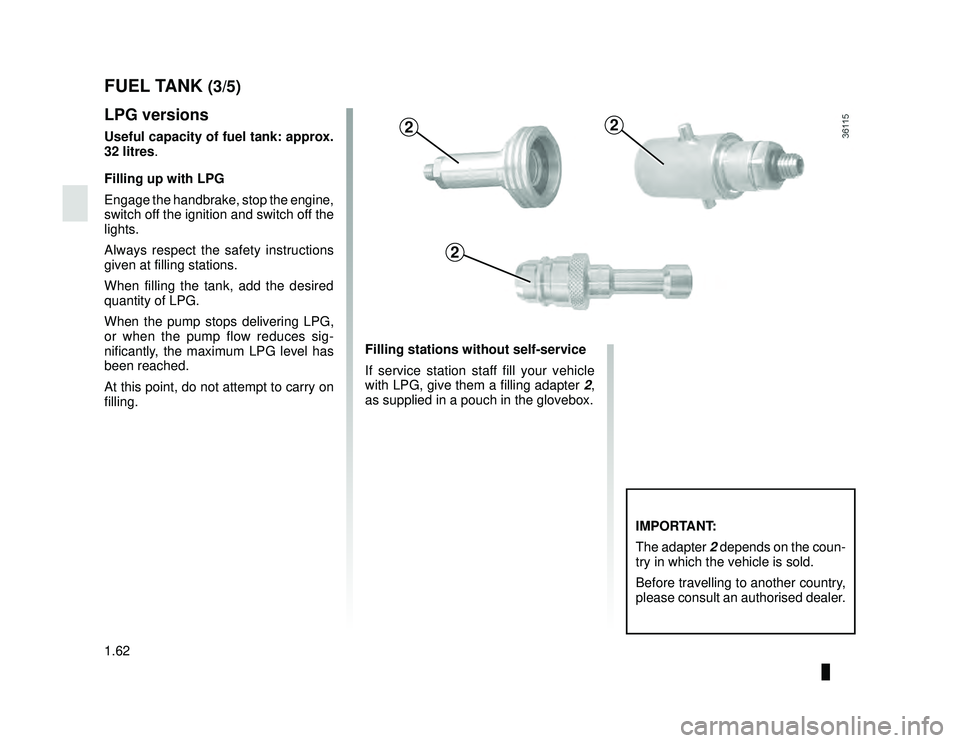

FUEL TANK (3/5)
LPG versions
Useful capacity of fuel tank: approx.
32 litres.
Filling up with LPG
Engage the handbrake, stop the engine,
switch off the ignition and switch off the
lights.
Always respect the safety instructions
given at filling stations.
When filling the tank, add the desired
quantity of LPG.
When the pump stops delivering LPG,
or when the pump flow reduces sig-
nificantly, the maximum LPG level has
been reached.
At this point, do not attempt to carry on
filling. Filling stations without self-service
If service station staff fill your vehicle
with LPG, give them a filling adapter
2,
as supplied in a pouch in the glovebox.
IMPORTANT:
The adapter 2 depends on the coun-
try in which the vehicle is sold.
Before travelling to another country,
please consult an authorised dealer.
22
2

JauneNoir Noir texte
1.63
ENG_UD33442_2
Réservoir carburant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
FUEL TANK (4/5)
Filling stations with self-service
We recommend that you wear gloves
when handling the LPG pistol.
Open your vehicle’s tank cover and un-
screw the cap 3 from the end piece of
the LPG filler 4.
Carefully follow the information explain-
ing how to refill using the LPG distribu-
tor.
When the pump finishes or if it has dif-
ficulties operating, this means that the
maximum tank fill level (80%) has been
reached.
The filling will stop as soon as you re-
lease the button. Release the stop
lever (a small amount of gas may be re-
leased), lift the pistol and place it on the
distributor.
Replace the cap 3 to avoid any water
or foreign bodies from entering the
system.
4
3

JauneNoir Noir texte
1.64
ENG_UD33442_2
Réservoir carburant (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
FUEL TANK (5/5)
Running out of fuel on diesel
versions
Vehicles with priming pump 5
After a breakdown caused by com-
pletely running out of fuel, the system
must be reprimed before the engine is
restarted:
Operate priming bulb 5 until the fuel
flows through the hose 6.
If the engine does not start after several
attempts, contact an approved dealer.
The engine may be hot
when working in close prox-
imity. In addition, the engine
cooling fan may come on at
any moment.
Risk of injury.
No modifications what-
soever are permitted on
any part of the fuel supply
system (computers, wiring,
fuel circuit, injector, protection
covers, etc.) as this may be danger-
ous (such work must be undertaken
by qualified Network personnel).
5
6
Vehicles without manual priming
pump
Put the ignition key in “Ignition On” (M)
position and wait a few minutes before
starting. This will enable the fuel circuit
to be primed. If the engine does not
start, repeat the procedure.
