DACIA SANDERO 2012 1.G Owners Manual

practical advice ..................................... (up to the end of the DU)
tyres ...................................................... (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
5.11
ENG_UD19769_10
Pneumatiques (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)ENG_NU_817-9_B90_Dacia_5
Tyres (tyre and wheel safety, use in winter)

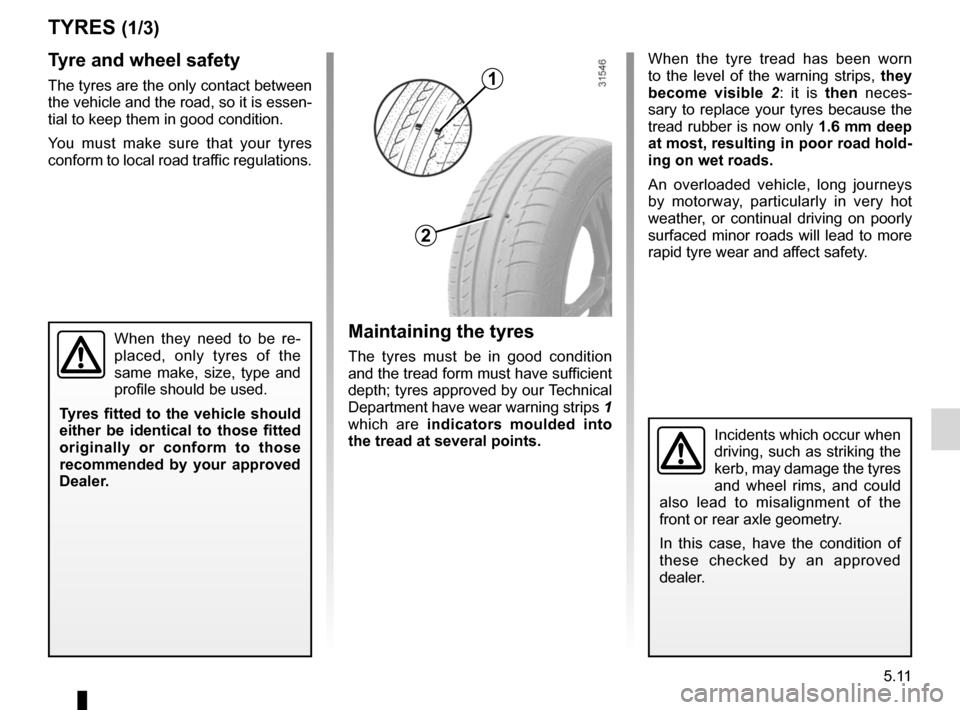

TYRES (1/3)
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
Tyres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
Dealer.Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
which are indicators moulded into
the tread at several points. When the tyre tread has been worn
to the level of the warning strips, they
become visible
2: it is then neces -
sary to replace your tyres because the
tread rubber is now only 1.6 mm deep
at most, resulting in poor road hold -
ing on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry.
In this case, have the condition of
these checked by an approved
dealer.
1
2

tyre pressure.......................................................... (current page)

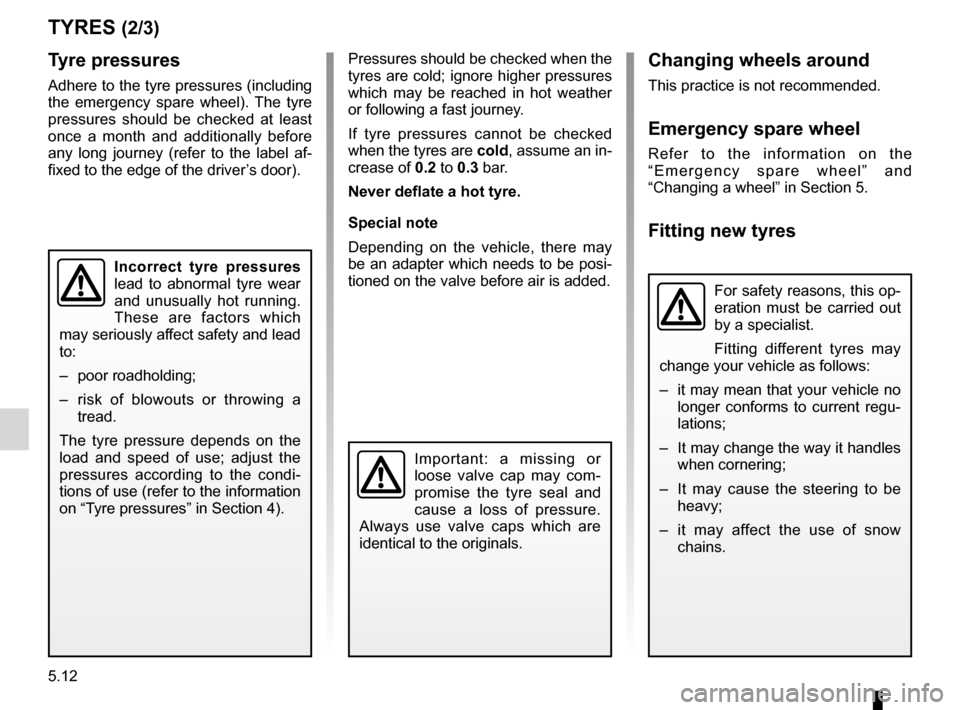

5.12
ENG_UD19769_10
Pneumatiques (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on the
“ E m e r g e n c y s p a r e w h e e l ” a n d
“Changing a wheel” in Section 5.
Fitting new tyres
TYRES (2/3)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door).
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor roadholding;
– risk of blowouts or throwing a
tread.
The tyre pressure depends on the
load and speed of use; adjust the
pressures according to the condi -
tions of use (refer to the information
on “Tyre pressures” in Section 4).
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar.
Never deflate a hot tyre.
Special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– it may affect the use of snow
chains.
Important: a missing or
loose valve cap may com -
promise the tyre seal and
cause a loss of pressure.
Always use valve caps which are
identical to the originals.

JauneNoirNoir texte

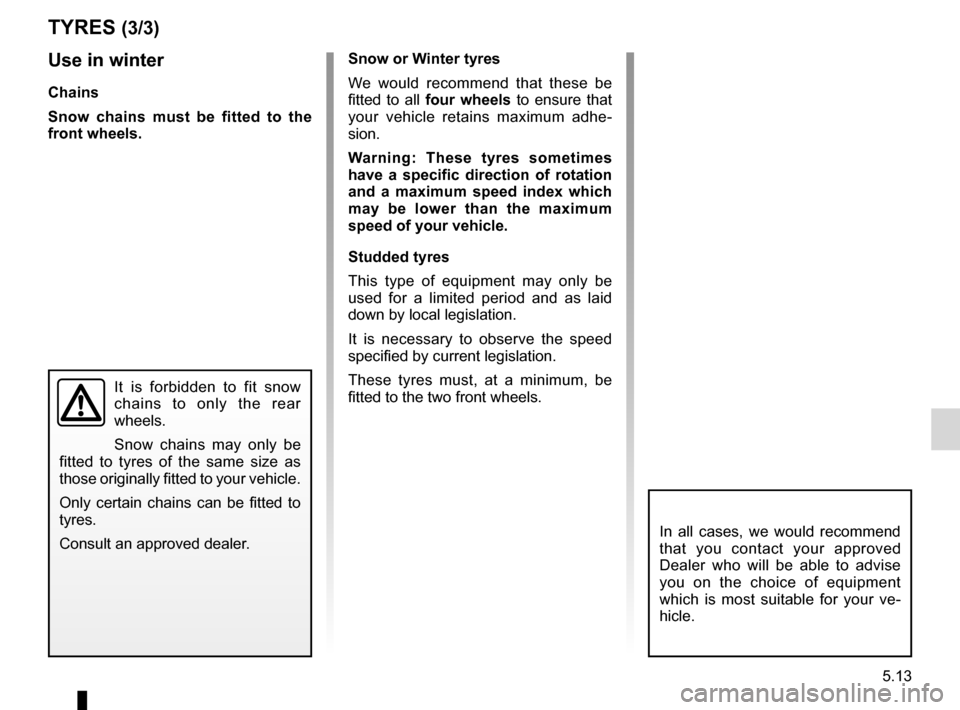

5.13
ENG_UD19769_10
Pneumatiques (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)ENG_NU_817-9_B90_Dacia_5
Use in winter
Chains
Snow chains must be fitted to the
front wheels.
TYRES (3/3)
It is forbidden to fit snow
chains to only the rear
wheels.
Snow chains may only be
fitted to tyres of the same size as
those originally fitted to your vehicle.
Only certain chains can be fitted to
tyres.
Consult an approved dealer.
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
Dealer who will be able to advise
you on the choice of equipment
which is most suitable for your ve -
hicle.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators ............................................................... (current page)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: side lights ........................................ (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD25198_4
Feux avant : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

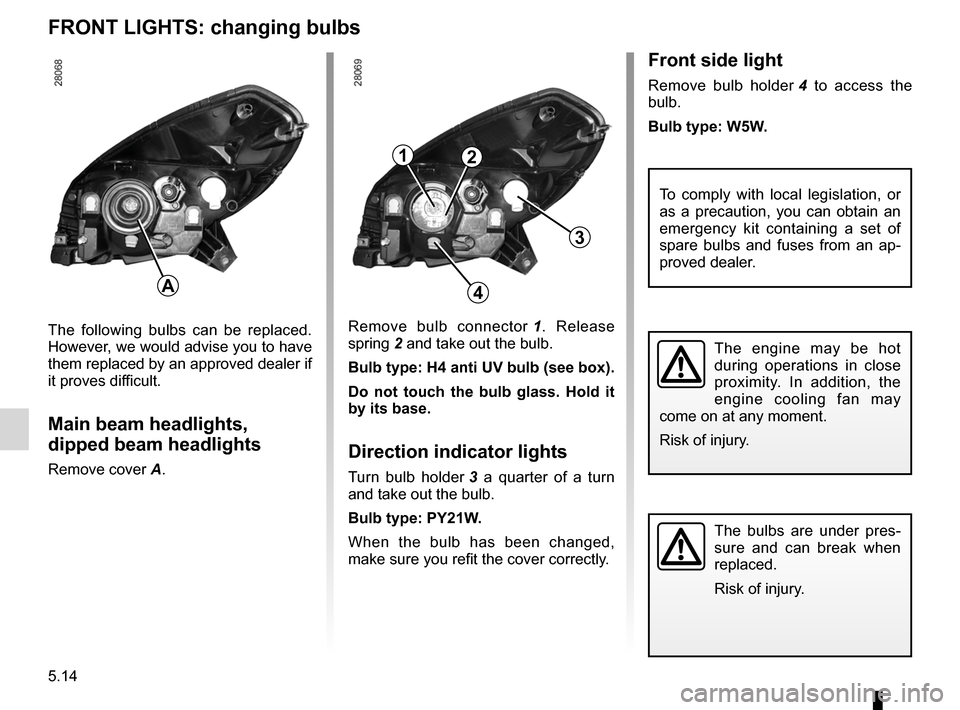

Front side light
Remove bulb holder 4 to access the
bulb.
Bulb type: W5W.
Changing bulbs Front lights
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
Main beam headlights,
dipped beam headlights
Remove cover A.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
FRONT LIGHTS: changing bulbs
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved dealer.
A
3
4
Remove bulb connector 1 . Release
spring 2 and take out the bulb.
Bulb type: H4 anti UV bulb (see box).
Do not touch the bulb glass. Hold it
by its base.
Direction indicator lights
Turn bulb holder 3 a quarter of a turn
and take out the bulb.
Bulb type: PY21W.
When the bulb has been changed,
make sure you refit the cover correctly.
21

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
5.15
ENG_UD17928_3
Projecteurs antibrouillard : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

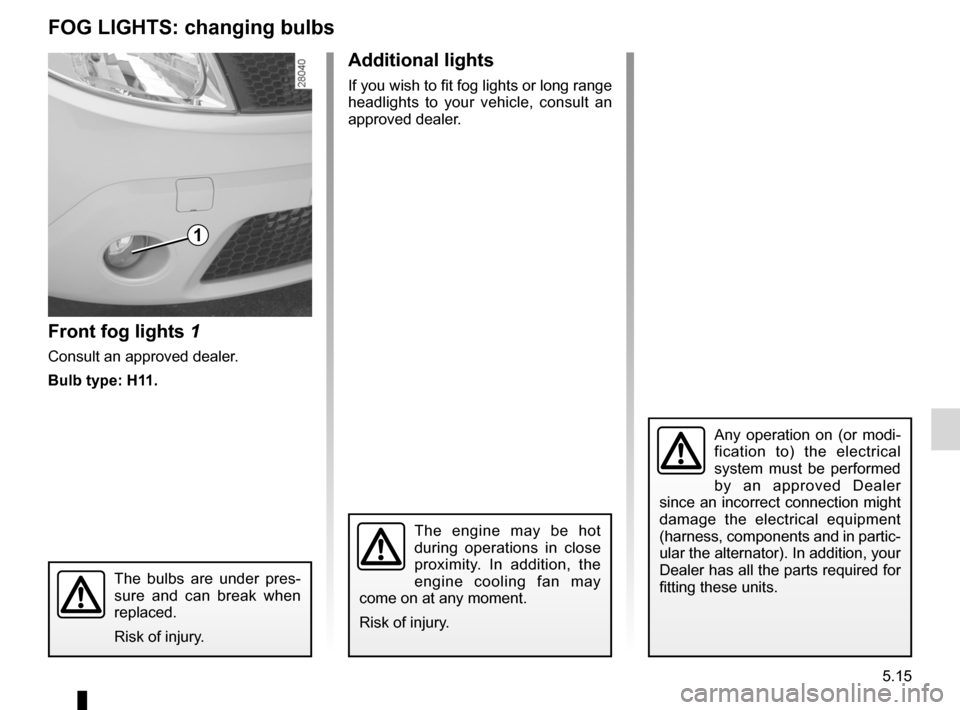

Fog lights
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H11.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
1
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.16
ENG_UD17929_4
Feux arrière : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte

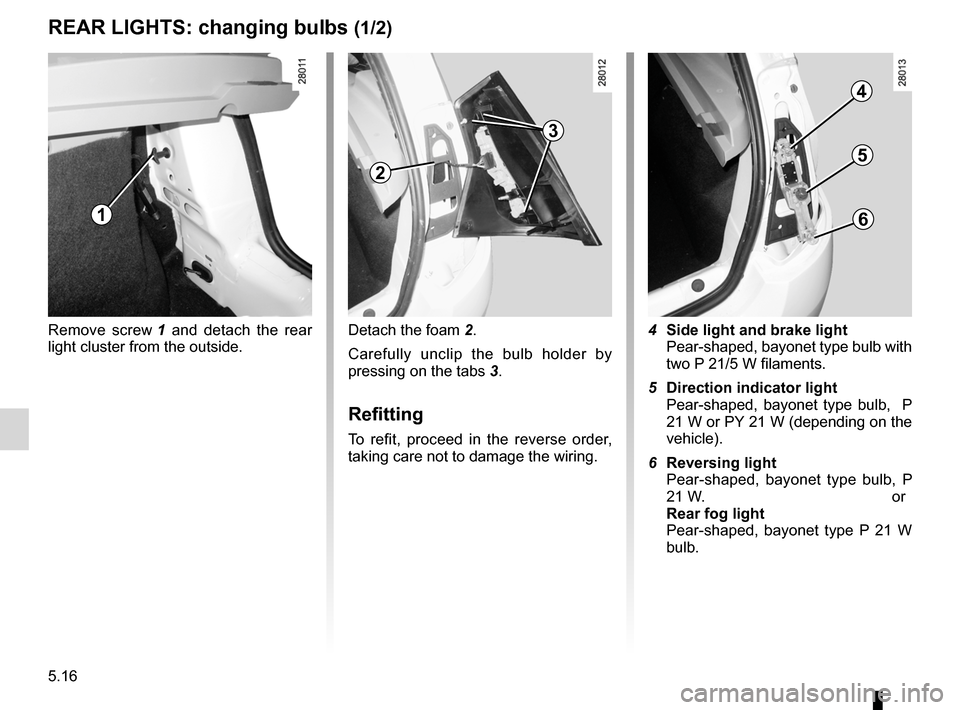

Rear lights
Remove screw 1 and detach the rear
light cluster from the outside. Detach the foam 2.
Carefully unclip the bulb holder by
pressing on the tabs
3.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring. 4
Side light and brake light
Pear-shaped, bayonet type bulb with
two P 21/5 W filaments.
5 Direction indicator light
Pear-shaped, bayonet type bulb, P
21 W or PY 21 W (depending on the
vehicle).
6 Reversing light
Pear-shaped, bayonet type bulb, P
21 W. or
Rear fog light
Pear-shaped, bayonet type P 21 W
bulb.
REAR LIGHTS: changing bulbs (1/2)
1
2
3
4
5
6

lights:reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
JauneNoirNoir texte
5.17
ENG_UD17929_4
Feux arrière : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

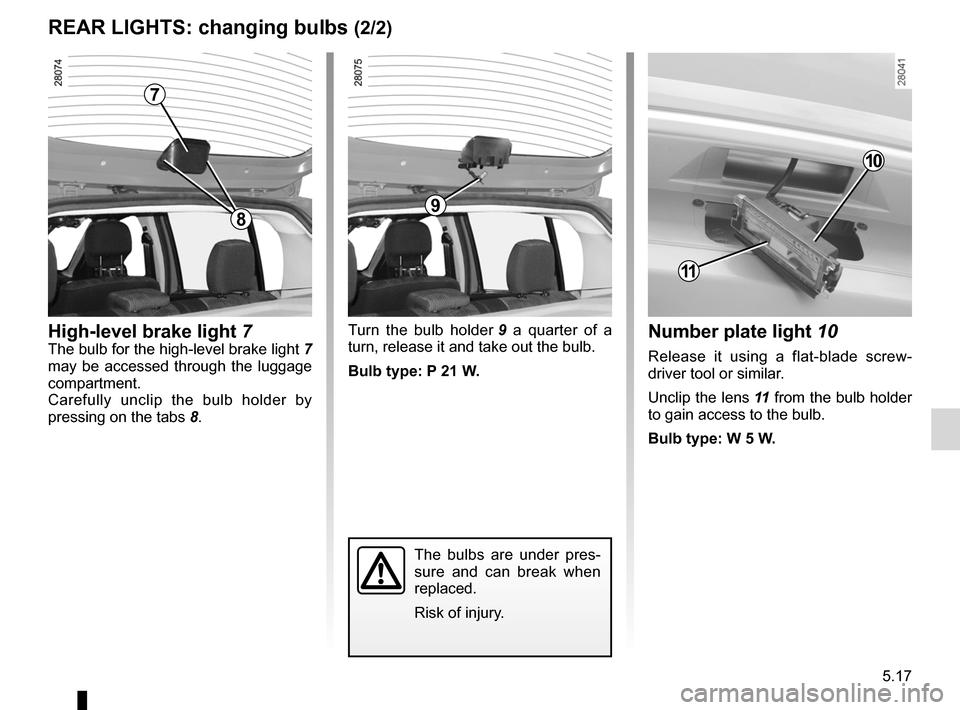

Turn the bulb holder 9 a quarter of a
turn, release it and take out the bulb.
Bulb type: P 21 W.
REAR LIGHTS: changing bulbs (2/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
High-level brake light 7The bulb for the high-level brake light 7
may be accessed through the luggage
compartment.
Carefully unclip the bulb holder by
pressing on the tabs 8. Number plate light 10
Release it using a flat-blade screw -
driver tool or similar.
Unclip the lens 11 from the bulb holder
to gain access to the bulb.
Bulb type: W 5 W.
7
89
11
10

5.18
ENG_UD17931_4
Répétiteurs latéraux : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

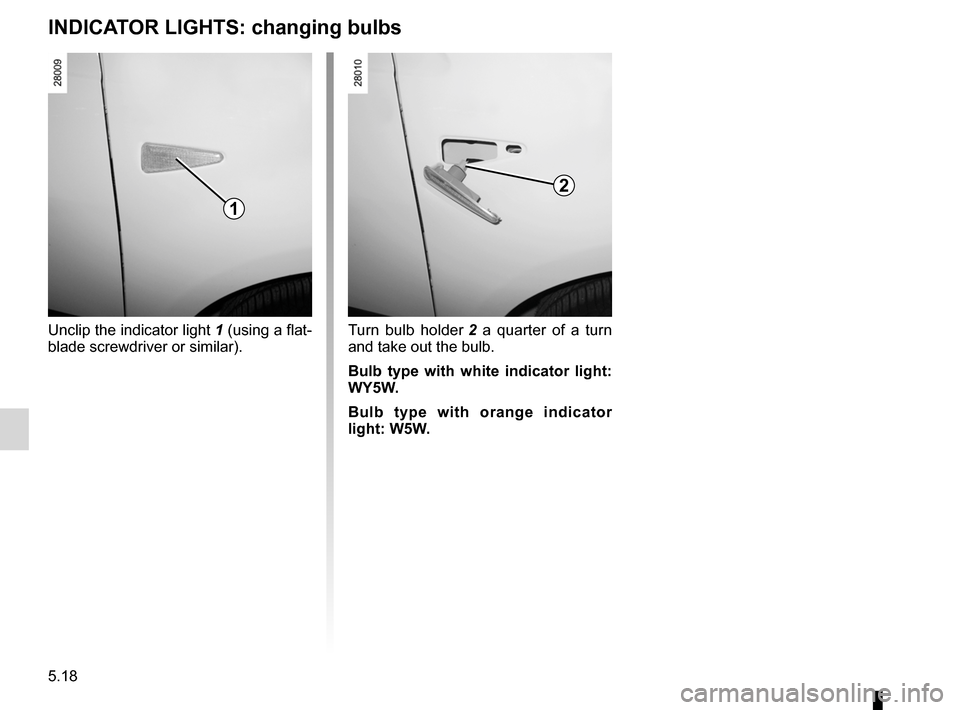

Side indicator lights
INDICATOR LIGHTS: changing bulbs
Unclip the indicator light 1 (using a flat-
blade screwdriver or similar). Turn bulb holder
2 a quarter of a turn
and take out the bulb.
Bulb type with white indicator light:
WY5W.
Bulb type with orange indicator
light: W5W.
1
2

changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.19
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Interior lights

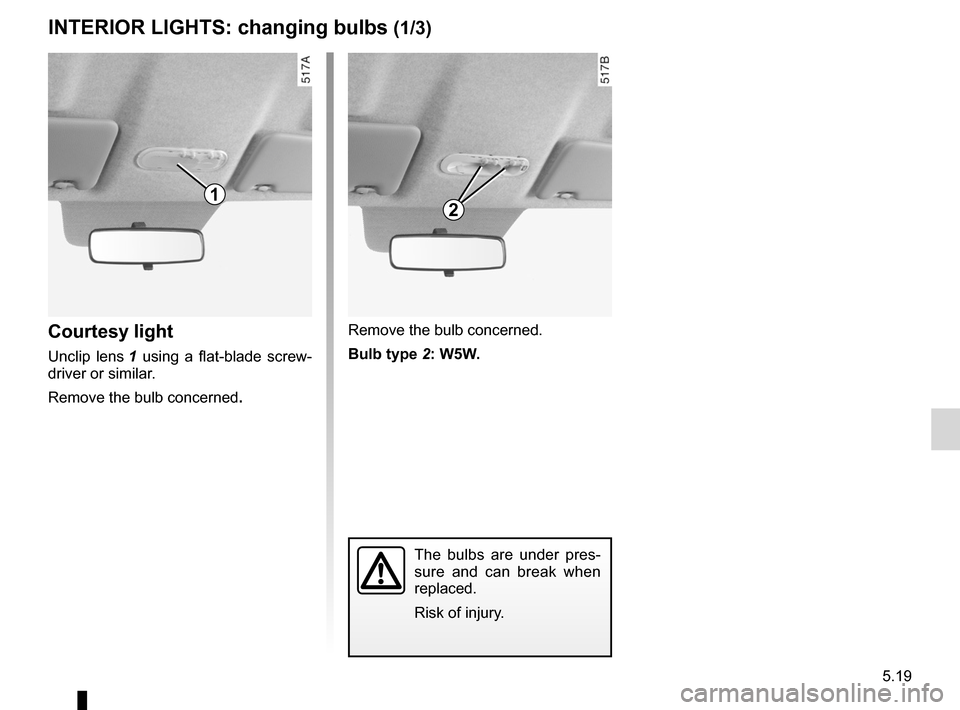

INTERIOR LIGHTS: changing bulbs (1/3)
12
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Courtesy light
Unclip lens 1 using a flat-blade screw -
driver or similar.
Remove the bulb concerned .Remove the bulb concerned.
Bulb type 2: W5W.

5.20
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte

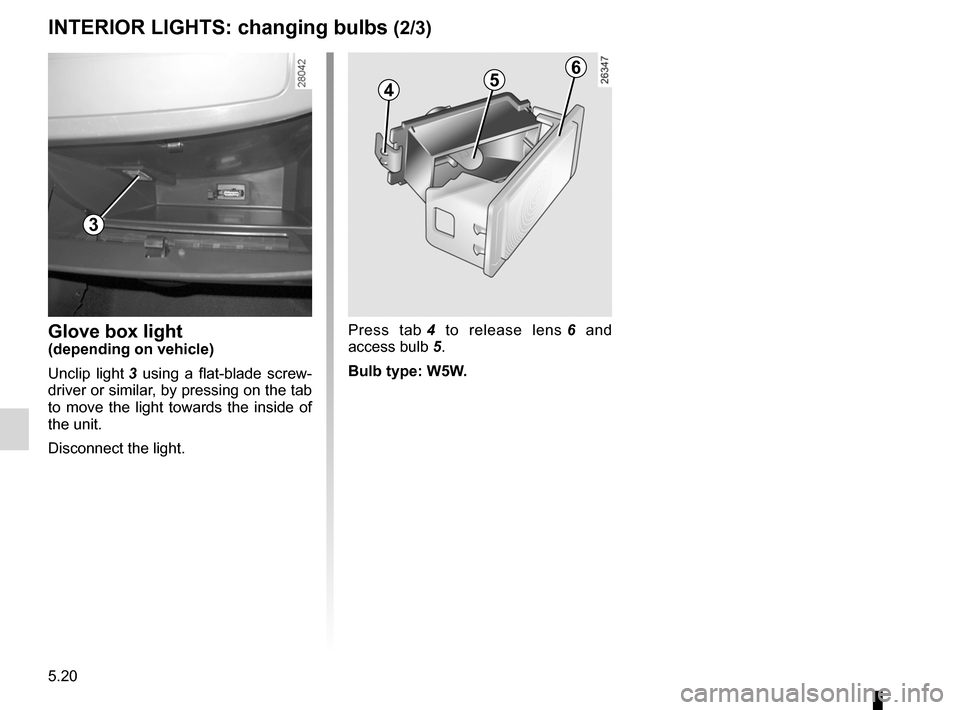

INTERIOR LIGHTS: changing bulbs (2/3)
Press tab 4 to release lens 6 and
access bulb 5.
Bulb type: W5W.
4
3
Glove box light(depending on vehicle)
Unclip light 3 using a flat-blade screw -
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light.
56
