Page 6 of 146
keys ......................................................(up to the end of the DU)remote control door locking unit ............................(current page)
1.2
ENG_UD7223_2Clés / télécommande à radiofréquence (B90 - L90 - F90 - \
U90 - R90 - L90 Ph2 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Clés / Télécommande à radiofréquence
KEYS/RADIO FREQUENCY REMOTE CONTROL
Radio frequency remote
control unit
A
Remote control A locks and unlocks the doors and tailgate.
It is powered by a battery which must be replaced every two years (refer to the information on the “Radio frequency remote control: battery” in Section 5).
Driver’s responsibility
Never leave your vehicle with the keys inside when leaving a child (or animal) in the car, even for a short period.
The reason for this is that the child may endanger himself or others by starting the engine, activating equip- ment such as the window winders for example, or locking the doors.
Risk of serious injury.
2
3
A
1 Coded key for ignition switch, doors and fuel filler cap.
1
Page 8 of 146
children .................................................(up to the end of the DU)doors.....................................................(up to the end of the DU)child safety............................................(up to the end of the DU)
1.4
ENG_UD5542_1Ouverture des portes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Portes
OPENING THE DOORS
Driver’s responsibility
Never leave your vehi- cle with the key inside and never leave a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine, activating equipment such as the electric windows or by locking the doors.
Risk of serious injury.
Opening manually
from the outside
Depending on the vehicle, the key locks and unlocks the driver’s door or all four doors.
Front: use the key to unlock one of
the front door locks 2. Place your hand
behind handle 1 and pull it towards you.
Rear: lift unlocking button 3 from the inside and pull the door handle.
Opening manually
from the inside
Front: pull the handle 4
Rear: from the inside, lift unlocking
button 3 and pull the door handle 4.
Lights-on reminder buzzer
If you have left the lights on after switch- ing off the ignition, a warning buzzer will sound when a front door is opened (to prevent the battery from discharging, etc.).
21
3
4
Page 41 of 146
JauneNoirNoir texte
1.37
ENG_UD5559_1tableau de bord : Témoins lumineux (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
INSTRUMENT PANEL: warning lights (continued)
êEngine immobiliser system warning light
This light performs several functions.
Refer to the information on the “Engine immobiliser” in Section 1.
6
Electronic fault or preheat- ing warning light
Preheating warning light
This light should come on when the ig- nition key is in position M; it indicates that the heater plugs are in operation.
It goes out when preheating is complete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you are driving, it indicates an electrical or electronic fault. Contact an approved Dealer as soon as possible.
ÚBattery charge warning light
It should go out as soon as the engine starts.
If it comes on when you are driving, it indicates that the circuit is overcharging or has discharged. Stop and contact an approved Dealer.
ÄToxic Fume Filter System
w arning Light
On equipped vehicles, the light comes on when the ignition is switched on then goes out.
– If it lights up continuously, consult
your approved Dealer as soon as possible.
– If it flashes, reduce the engine
speed until the light stops flashing. Contact an approved Dealer as soon as possible.
Refer to the information “Advice on antipollution, fuel economy and driving” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn- ing light
This goes out as soon as the engine starts. If it comes on when driving, it in- dicates an increase in coolant tempera- ture. Stop and let the engine idle for a minute or two; the temperature should fall. Otherwise, stop the engine, let it cool and check the coolant level.
If the level is normal, the indicator light is being lit by something else. Contact an approved Dealer.
ÀOil pressure warning light
It goes out as soon as the engine starts; if it lights up when you are driving, it is essential to stop and switch off the ignition. Check the oil level.
If the level is normal, the indicator light is being lit by something else. Contact an approved Dealer.
Page 119 of 146
keysreplacing the battery .......................(up to the end of the DU)practical advice .....................................(up to the end of the DU)battery (remote control) ........................(up to the end of the DU)
5.19
ENG_UD5520_1Télécommande à radiofréquence : piles (U90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Télécommande à radiofréquence : pile

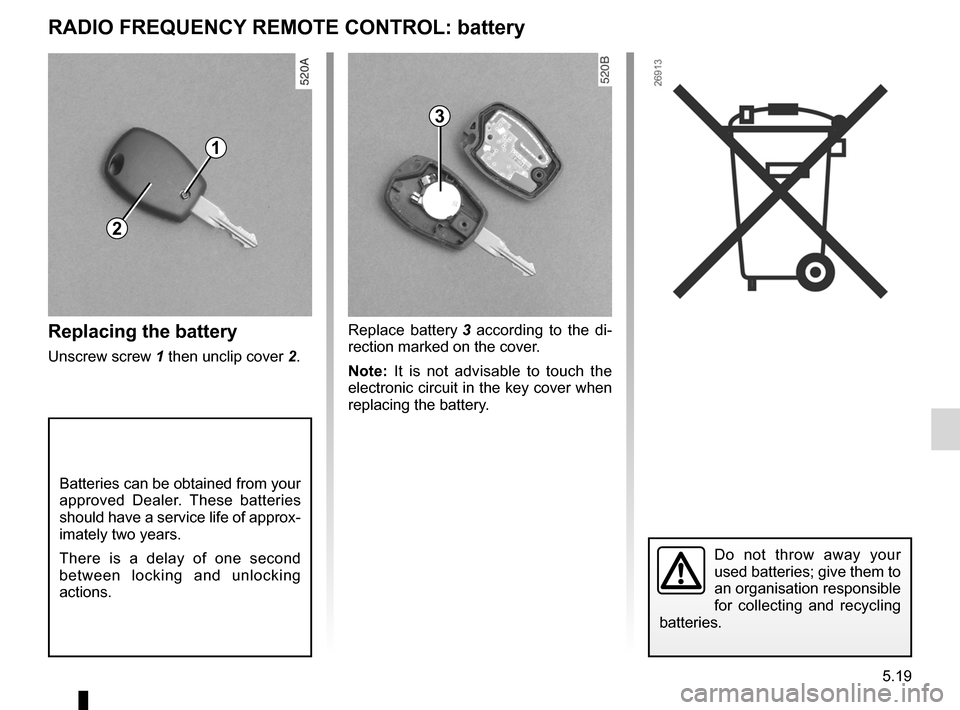

RADIO FREQUENCY REMOTE CONTROL: battery
Replacing the battery
Unscrew screw 1 then unclip cover 2. Replace battery
3 according to the di- rection marked on the cover.
Note: It is not advisable to touch the electronic circuit in the key cover when replacing the battery.
Batteries can be obtained from your approved Dealer. These batteries should have a service life of approx- imately two years.
There is a delay of one second between locking and unlocking actions.
Do not throw away your used batteries; give them to an organisation responsible for collecting and recycling batteries.
2
1
3
Page 130 of 146
operating faults .....................................(up to the end of the DU)practical advice .....................................(up to the end of the DU)faultsoperating faults ...............................(up to the end of the DU)
5.30
ENG_UD5616_1Anomalies de fonctionnement (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
JauneNoirNoir texte
Anomalies de fonctionnement

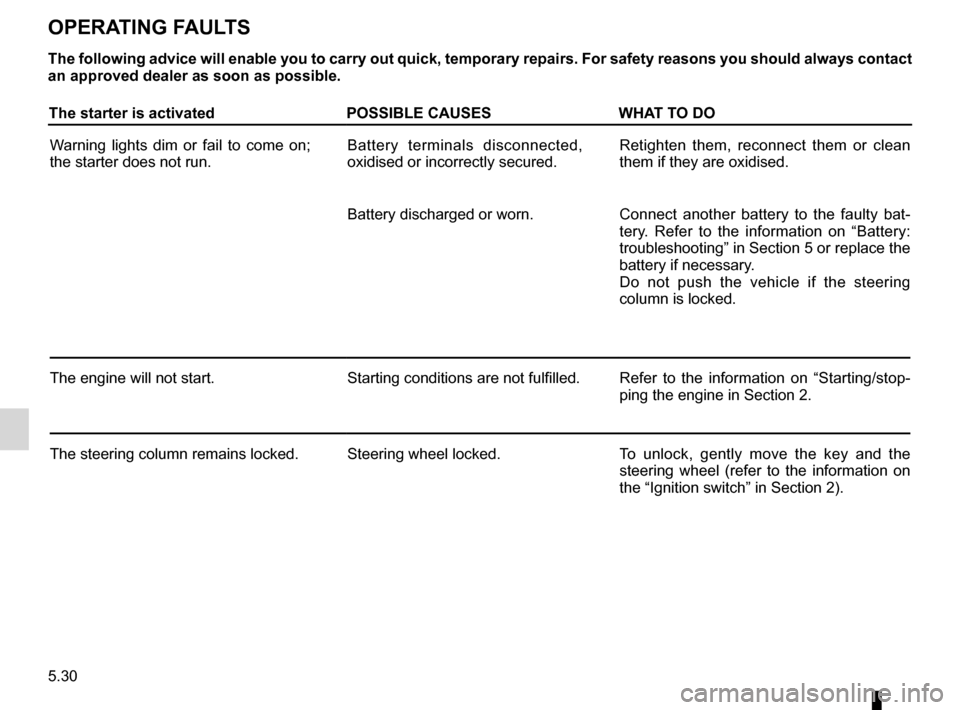

OPERATING FAULTS
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact an approved dealer as soon as possible.
The starter is activatedPOSSIBLE CAUSESWHAT TO DO
Warning lights dim or fail to come on; the starter does not run.Battery terminals disconnected, oxidised or incorrectly secured.Retighten them, reconnect them or clean them if they are oxidised.
Battery discharged or worn.Connect another battery to the faulty bat- tery. Refer to the information on “Battery: troubleshooting” in Section 5 or replace the battery if necessary.Do not push the vehicle if the steering column is locked.
The engine will not start.Starting conditions are not fulfilled.Refer to the information on “Starting/stop- ping the engine in Section 2.
The steering column remains locked.Steering wheel locked.To unlock, gently move the key and the steering wheel (refer to the information on the “Ignition switch” in Section 2).
Page 144 of 146
7.2
FRA_UD8707_2Index (B90 - Dacia)ENG_NU_817-2_NU_Dacia_7
JauneNoirNoir texte
iignition switch ......................................................................2.2indicator lights....................................................................5.15indicators ..................................................................1.49, 5.11indicators:direction indicators .......................................................1.49instrument panel ....................................................1.36 → 1.40interior trimmaintenance ................................................................4.12
Jjack ........................................................................\
.......5.3, 5.6
Kkeys ........................................................................\
.... 1.2 – 1.3replacing the battery ....................................................5.19
llevels ........................................................................\
.4.3 → 4.8lifting the vehiclechanging a wheel .................................................5.2 → 5.6lighting:exterior ......................................... 1.46 – 1.47, 5.11 → 5.15interior ....................................................... 3.9, 5.16 → 5.18lights ......................................................................1.46 → 1.48additional .....................................................................5.12adjustment ...................................................................1.48lights:adjusting ......................................................................1.48brake lights ....................................................... 5.13 – 5.14dipped beam headlights ......................................1.46, 5.11direction indicators ..............................................1.49, 5.11fog lights .............................................................1.47, 5.12hazard warning ............................................................1.49main beam headlights .........................................1.46, 5.11reversing lights .................................................. 5.13 – 5.14
diesel filter ....................................................................5.27oil filter ........................................................................\
...4.5fitting a radio ......................................................................5.28fittings ..................................................................... 3.13 – 3.14fog lights ........................................................................\
....1.47front passenger air bag deactivation .................................1.30front seat adjustment .........................................................1.10front seatsadjustment ...................................................................1.10fueladvice on fuel economy .......................................2.6 → 2.8filling ........................................................................\
.....1.53grade .....................................................................1.52, 6.4
fuel economy .............................................................2.6 → 2.8fuel filler cap ......................................................................1.52fuel grade........................................................................\
...1.52fuel level ........................................................................\
....1.40fuel tank .................................................................. 1.52 – 1.53fuel tank capacity ...............................................................1.52fuses ......................................................................5.22 → 5.24
Ggear lever........................................................................\
...2.10glove box ........................................................................\
...3.13grab handle........................................................................\
3.11
hhandbrake........................................................................\
..2.11hazard warning lights signal ..............................................1.49headlight beam adjustment ...............................................1.48headlight flashers ..............................................................1.49headrest...................................................................... 1.8 – 1.9heating and air conditioning system ..........................3.2 → 3.8heating system ..........................................................3.2 → 3.8horn ........................................................................\
...........1.49
AlphABEtiCAl inDEx (continued)
