SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Driver’s and passenger air
bags
These may be provided for the driver
and the front passenger seats.
The presence of this equipment is in-
dicated by the words “Air bag” on the
steering wheel and the dashboard, and
a label on the base of the windscreen or
on the sun visor.
Each air bag system consists of:
–
a
n air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
–
an
electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
–
a special tell-tale light å;
–
remote sensors.
Load limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
Page 23 of 174
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child seats............................................. (up to the end of the DU)
child booster seat ................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
child safety............................................ (up to the end of the DU)
1.21
ENG_UD24012_11
Sécurite enfants : généralités (B90 - F90 - U90 - R90 - F90\
Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Child safety: general information
CHILD SAFETY: General information (1/2)
Carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin-
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10
metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX fittings checked.
Never leave a child unat-
tended in the vehicle.
Check that your child is
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
To prevent the doors being
opened, use the childproof
locks (refer to the informa-
tion on “Locking/unlocking
the doors” in Section 1).
Page 28 of 174
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety............................................ (up to the end of the DU)
child seats............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.26
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
fitting a child seat
CHILD SAFETY: Fitting a child seat (1/6)
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
–
d
eactivate the front passenger air
bag;
–
lower
the seat belt as far as possible;
–
move
the seat as far back as possi-
ble;
–
g
ently tilt the seatback away from
vertical (approximately 25°).
Do not change these settings after the
child seat is installed.
R I S K O F D E AT H O R
SERIOUS INJURY: before
fitting a child seat in this
seat, check that the air bag
has been deactivated (refer to the in-
formation on “Deactivating the front
passenger air bag” in Section
1).
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
Page 30 of 174
1.28
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
CHILD SAFETY: Fitting a child seat (3/6)
² Seat not suitable for fitting child
seats.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Only
if the seat is equipped with an
inertia-reel belt.
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
R I S K O F D E AT H O R
SERIOUS INJURY: before
installing a child/baby seat
on the front passenger seat,
check that the air bag has been de-
activated (refer to “Deactivating the
front passenger air bag” at the end
of the paragraph).

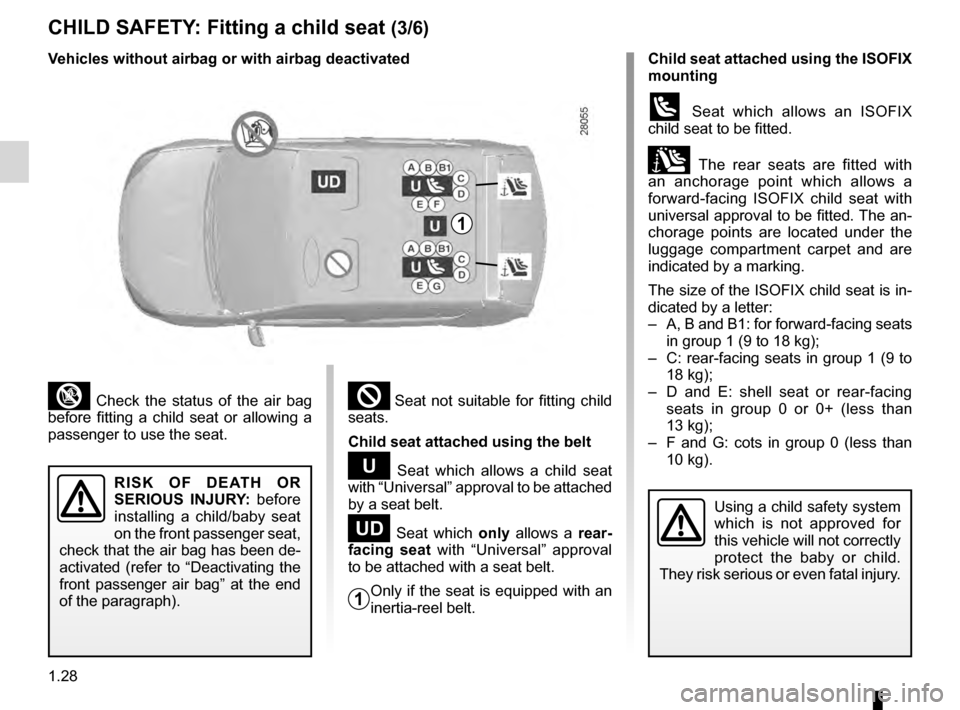

Vehicles without airbag or with airbag deactivated
1
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located under the
luggage compartment carpet and are
indicated by a marking.
The size of the ISOFIX child seat is in-
dicated by a letter:
–
A,
B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
–
C:
rear-facing seats in group 1 (9 to
18 kg);
–
D
and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13
kg);
–
F
and G: cots in group 0 (less than
10 kg).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
1
Page 32 of 174
1.30
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
CHILD SAFETY: Fitting a child seat (5/6)
(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a child seat on the front passenger seat, check that the air
bag has been deactivated (refer to the information on “Deactivating \
the front passenger air bag” in Section 1).
(6) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat to this seat.
The table below summarises the information already shown on the diagram on the previous pages, to ensure the regula-
tions in force are respected.

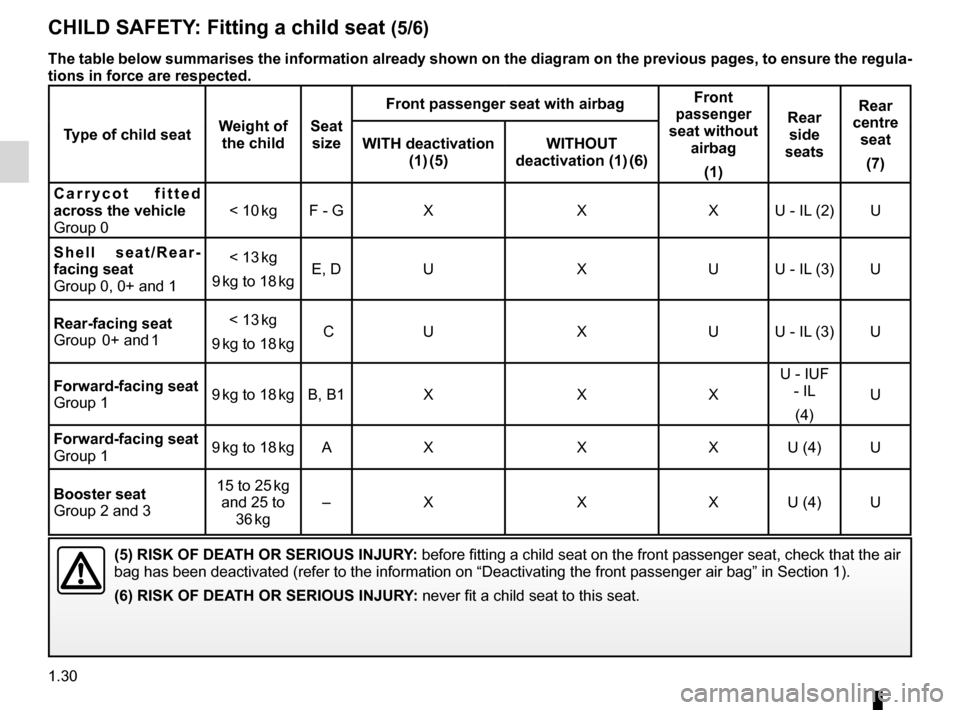

Type of child seat Weight of
the child Seat
size Front passenger seat with airbag
Front
passenger
seat without airbag
(1) Rear
side
seats Rear
centre seat
(7)
WITH deactivation
(1)
(5)WITHOUT
deactivation (1)
(6)
C
a r r y c o t f i t t e d
across the vehicle
Group 0 < 10
kg F - GXXX U - IL
(2) U
S h e l l s e a t / R e a r -
facing seat
Group 0, 0+ and 1 < 13
kg
9
kg to 18
kgE, D
U XU U - IL
(3) U
Rear-facing seat
Group
0+ and
1< 13
kg
9
kg to 18
kg C
U XU U - IL
(3) U
Forward-facing seat
Group 1 9
kg to 18
kg B, B1X XXU - IUF
- IL
(4) U
Forward-facing seat
Group 1 9
kg to 18
kg AX XX U (4) U
Booster seat
Group 2 and 3 15 to 25
kg
and 25 to 36
kg–
X XX U (4) U
Page 33 of 174
JauneNoirNoir texte
1.31
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
CHILD SAFETY: Fitting a child seat (6/6)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to b e installed using a seat belt; check that it can be fitted.
IUF =
Seat
which, on equipped vehicles, allows forward-facing child seats with “Universal” approval to be attached by the ISOFIX
system; check that it can be fitted.
IL =
Seat
which, on equipped vehicles, allows child seats with “Semi-Universal” or “Specific to vehicle” approval to be attached by
the ISOFIX system; check that it can be fitted.
Refer to the brochure “Child safety equipment” available from the Network to choose the seat suited to your child and
recommended for your vehicle.
(1)
Only
a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2)
A
carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(3)
Move
the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4)
Forward-facing
child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not
recline the seatback more than 25°.
(7)
Only if the seat is equipped with an inertia-reel belt.
Page 42 of 174
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
1.40
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_1
Jaune NoirNoir texte
xAnti-lock braking warning
light
This light comes on when the ignition is
switched on and goes out within three
seconds. If it lights up when you are
driving, it indicates a fault in the anti-
lock braking system. Braking will then
be as normal, without the ABS system:
contact an approved dealer urgently.
]Front passenger air bag de-
activation warning light.
Refer to the information on “Child
Safety” in Section 1.
çSeat belt reminder light
This warning light goes out to
let you know that the seat belt has been
correctly fastened.
Warning lights
mDipped beam headlight tell-
tale light
oMain beam headlight tell-tale
light
#Engine oil change warning
light
This lights up on the instrument panel
when an oil change is required.
Change the oil or have it changed as
soon as possible.
Only the distance travelled between two
oil changes is taken into account; the
time interval between two oil changes
is not.
The oil should always be changed
when the first threshold is reached, i.e.
either the distance travelled or the inter-
val specified in your vehicle’s mainte-
nance document. This means you may
have to change the oil before the warn-
ing light comes on.
Refer to the information on the “Oil
change” in Section 4.
WARNING LIGHTS (1/3)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Instrument panel A
The û warning light re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
Page 43 of 174
JauneNoirNoir texte
1.41
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_1
WARNING LIGHTS (2/3)
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or preheat-
ing warning light
Preheating warning light
This light should come on when the ig-
nition key is in position M; it indicates
that the heater plugs are in operation.
It goes out when preheating is com-
plete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible
VRear screen de-icing/de-
misting indicator light
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ÄToxic Fume Filter System
Warning Light
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
–
I
f it comes on continuously, consult
an approved dealer as soon as pos-
sible.
–
If
it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv-
ing” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn-
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it
indicates an increase in the coolant
temperature. Stop and let the engine
idle for a minute or two; the tempera-
ture should fall. If it does not fall, stop
the engine and allow it to cool before
checking the coolant level. If the level is
normal, there is another cause. Consult
an approved dealer.
ÀOil pressure warning light
It should go out as soon as the
engine starts; if it comes on when you
are driving, stop at once and switch off
the ignition. Check the oil level.
If the level is normal, the indicator light
is being lit by something else. Contact
an approved Dealer.
dDirection indicator tell-tale light
Page 44 of 174
rear screendemisting ......................................................... (current page)
1.42
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_1
WARNING LIGHTS (3/3)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
DHandbrake on and brake cir-
cuit incident warning light
If it lights up, check that the hand brake
is fully released. If not, it indicates that
the fluid level is low in one of the cir-
cuits. It may be dangerous to continue
driving, contact an approved dealer.
fRear fog light tell-tale
gFront fog light tell-tale
ÅDoor status warning light
ûSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started.
LLow fuel level warning light
It comes on when the engine
is started then goes out after three sec-
onds. If it stays on, fill up with fuel as
soon as possible.
îLPG mode indicator
Refer to the document for the
LPG system for vehicles which are
equipped with it.
åAir bag warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it does not light up when the ignition
is switched on, or lights up when the
engine is running, there is a fault in the
system.
Refer to the information on “Systems
in addition to the front seat belts” in
Section 1.
Contact an approved dealer as soon as
possible.
^Water in the diesel filter
warning light
If it remains lit or comes on while driv-
ing, it indicates that water is present in
the diesel filter. Contact an approved
dealer as soon as possible.
A
Instrument panel A
The û warning light re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
Page 45 of 174
overspeed buzzer .................................................. (current page)
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
1.43
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Displays and indicators
Rev counter 1 (rpm × 1 000) Speedometer 2 (km or miles
per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the ve-
hicle is travelling in excess of 72 mph
(120 km/h).
Speedometer 2 Dual speed
scale (miles per hour and km
per hour)
(depending on vehicle)
2
DISPLAYS AND INDICATORS (1/2)
1
