engine immobiliser DACIA SANDERO STEPWAY 2016 2.G Owners Manual

1.1
ENG_UD26894_12
Sommaire 1 (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5
Opening and closing the doors
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.6
Engine immobiliser system
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.7
Front headrests

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.9
Steering wheel, Clock
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.10
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1

1
Methods of restraint in addition to the front seat belts


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.15
Side protection devices


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.19
Additional methods of restraint
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.20
Child safety: general information


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.21
mounting a child seat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.24
fitting a child seat


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.26
deactivating, activating the front passenger airbag
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.32
Rear-view mirrors
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.35
Driving position
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.36
W

arning lights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.40
Displays and indicators
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.43
On-board computer


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.45
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .
1.49
Adjusting the headlight beam height


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.51
Audible and visual signals


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.52
Windscreen washer/wiper

, De-icing
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.53
Fuel tank (filling with fuel)
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.56

engine immobiliser................................ (up to the end of the DU)
engine immobiliser................................ (up to the end of the DU)
1.7
ENG_UD18225_4
Système antidémarrage (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)\
ENG_NU_817-10_B90_Dacia_1
Engine immobiliser
ENGINE IMMOBILISER
This prevents the vehicle being
driven by anyone not in possession
of the vehicle’s coded ignition key.
Operating principle
The vehicle is automatically protected
a few seconds after the ignition is
switched off.
If the vehicle does not recognise the
coded ignition key, tell-tale light
1

will
flash continuously and the engine
cannot be started.
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be dan-
gerous. Work must be carried out
by qualified personnel.
System operation
When the ignition is switched on, tell-
tale
1 lights up continuously for approx-
imately three seconds and then goes
out. The vehicle has recognised the
code. You can then start the engine.
Vehicle protection
A few seconds after the ignition has
been switched off, tell-tale light
1

will
flash constantly.
The vehicle will only be protected after
the ignition has been switched off. Operating faults
After the ignition has been switched
on, if warning light
1 continues to flash
or remains continuously lit, there is a
system operating fault.
In all cases, it is essential to contact
an approved dealer as only they are
qualified to repair the engine immobi-
liser.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).
1

JauneNoirNoir texte
1.41
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-10_B90_Dacia_1
WARNING LIGHTS (2/3)
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or preheat-
ing warning light
Preheating warning light
This light should come on when the ig-
nition key is in position M; it indicates
that the heater plugs are in operation.
It goes out when preheating is com-
plete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible
VRear screen de-icing/de-
misting indicator light
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ÄToxic Fume Filter System
Warning Light
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
–

I

f it comes on continuously, consult
an approved dealer as soon as pos-
sible.
–

If

it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv-
ing” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn-
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it
indicates an increase in the coolant
temperature. Stop and let the engine
idle for a minute or two; the tempera-
ture should fall. If it does not fall, stop
the engine and allow it to cool before
checking the coolant level. If the level is
normal, there is another cause. Consult
an approved dealer.
ÀOil pressure warning light
It should go out as soon as the
engine starts; if it comes on when you
are driving, stop at once and switch off
the ignition. Check the oil level.
If the level is normal, the indicator light
is being lit by something else. Contact
an approved Dealer.
dDirection indicator tell-tale light

running in ............................................................... (current page)
ignition switch ........................................................ (current page)
engine immobiliser (switch) ................................... (current page)
driving .................................................................... (current page)
starting ................................................................... (current page)
2.2
ENG_UD18236_9
Rodage / Contacteur de démarrage (B90 - U90 - L90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_2

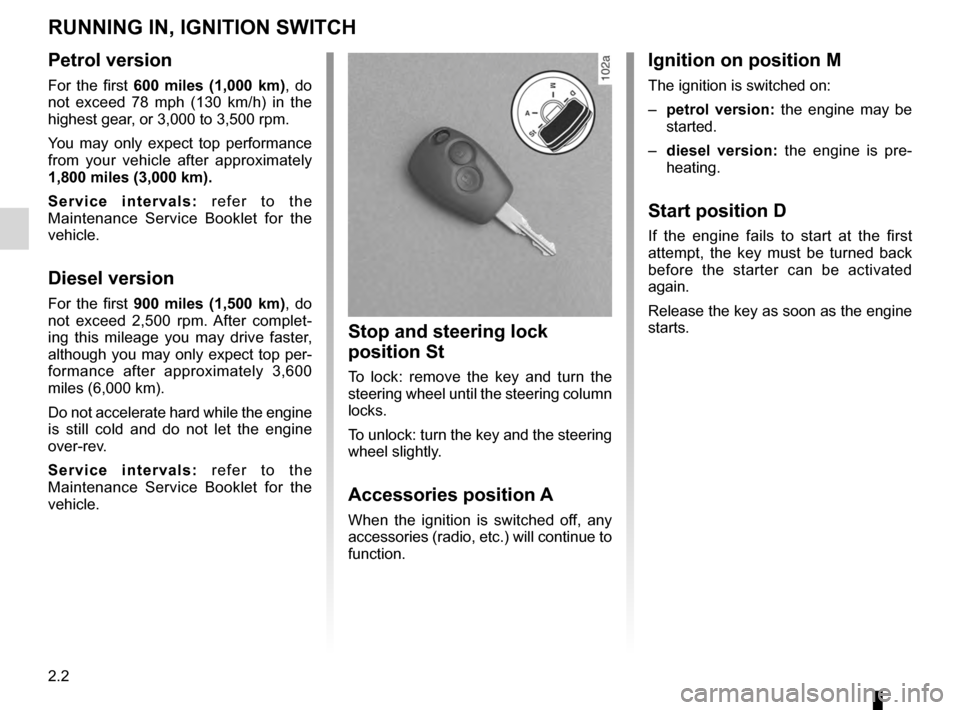

Running in, Ignition switch
RUNNING IN, IGNITION SWITCH
Petrol version
For the first 600 miles (1,000 km), do
not exceed 78 mph (130 km/h) in the
highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Diesel version
For the first 900 miles (1,500 km), do
not exceed 2,500 rpm. After complet-
ing this mileage you may drive faster,
although you may only expect top per-
formance after approximately 3,600
miles (6,000 km).
Do not accelerate hard while the engine
is still cold and do not let the engine
over-rev.
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Stop and steering lock
position St
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
Accessories position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
Ignition on position M
The ignition is switched on:
–

p
etrol version: the engine may be
started.
–

d
iesel version: the engine is pre-
heating.
Start position D
If the engine fails to start at the first
attempt, the key must be turned back
before the starter can be activated
again.
Release the key as soon as the engine
starts.

driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD18206_6
Démarrage, Arrêt du moteur (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-10_B90_Dacia_2
Vehicle equipped with an automatic
gearbox
Before starting, move the lever to posi-
tion N or P.
Refer to the information on the
“Automatic gearbox” in Section 2.
Petrol injection
Engine warm or cold
–

A
ctivate the starter without de-
pressing the accelerator.
–

R
elease the key as soon as the
engine starts.ÉDiesel injection
T

urn the ignition key to ignition “On” po-
sition M, and hold this position until the
preheating warning light goes out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Make sure the engine immobiliser is not
activated. Refer to the information on
the “Engine immobiliser” in Section 1.
Starting/stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.

5.24
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_5

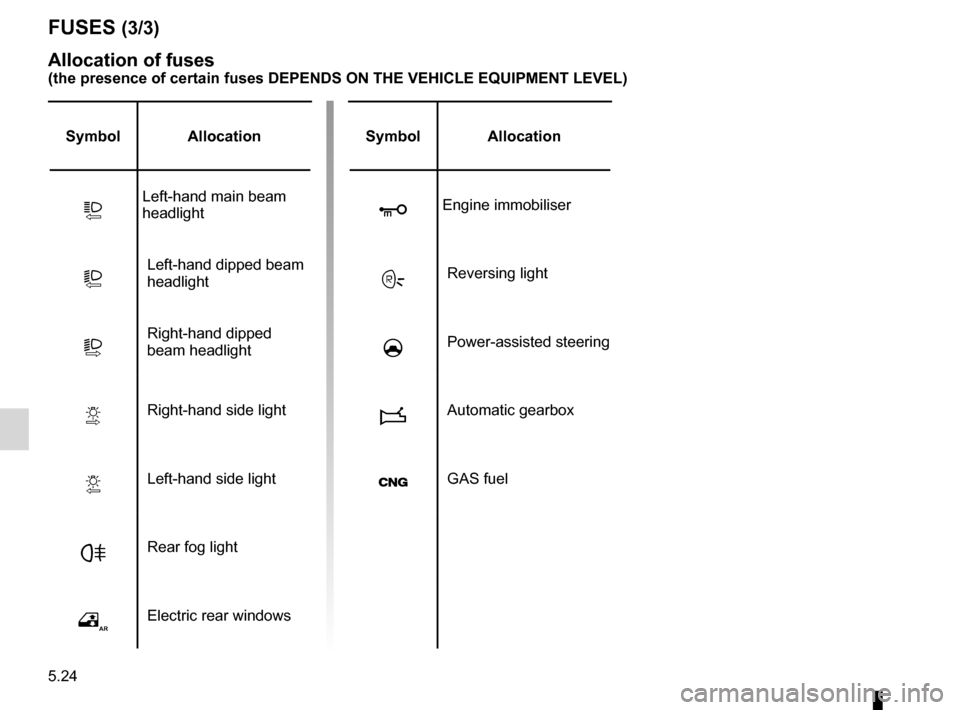

FUSES (3/3)
Allocation of fuses
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
Symbol Allocation
QLeft-hand main beam
headlight
LLeft-hand dipped beam
headlight
TRight-hand dipped
beam headlight
VRight-hand side light
YLeft-hand side light
FRear fog light
ḼElectric rear windows
Symbol Allocation
qEngine immobiliser
ËReversing light
uPower-assisted steering
iAutomatic gearbox
GAS fuel

7.1
FRA_UD26899_12
Index (B90 - Dacia)
ENG_NU_817-10_B90_Dacia_7

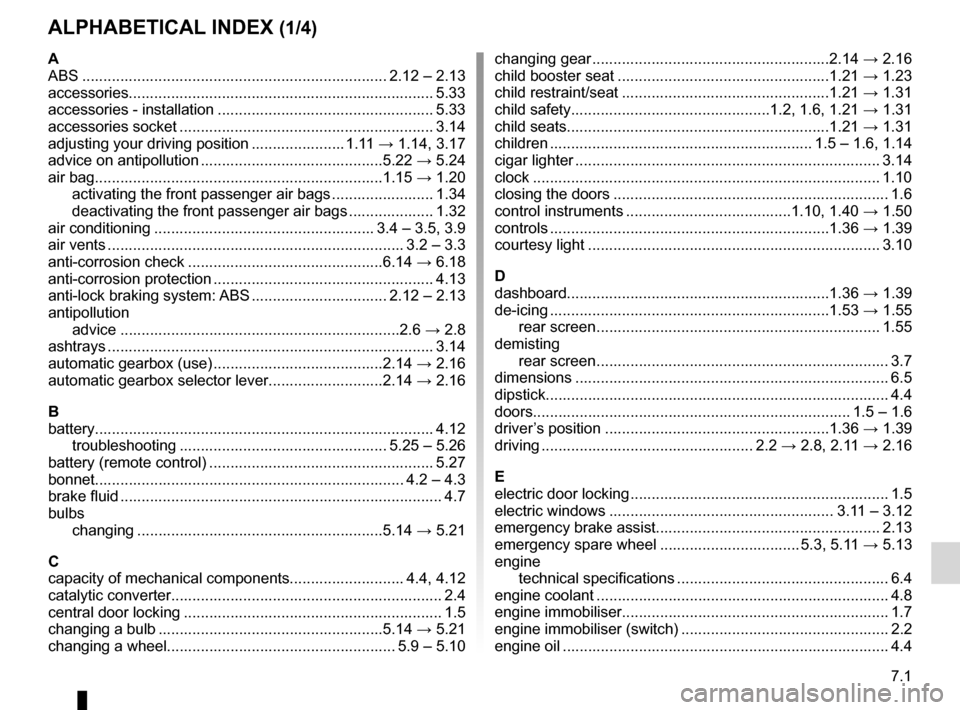

AlphAbeticAl index (1/4)
A
ABS
........................................................................\
2.12 – 2.13
accessories.............................................................\
........... 5.33
accessories - installation
................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.1

1 → 1.14,   3.17
advice on antipollution
........................................... 5.22 → 5.24
air bag.................................................................... 1.15 → 1.20
activating the front passenger air bags
.......

................. 1.34
deactivating the front passenger air bags
.......

............. 1.32
air conditioning
.................................................... 3.4 – 3.5,

  3.9
air vents

...................................................................... 3.2
– 3.3
anti-corrosion check
.............................................. 6.14 → 6.18
anti-corrosion protection .................................................... 4.13
anti-lock braking system:

ABS
................................ 2.12
– 2.13
antipollution advice
......

............................................................ 2.6 → 2.8
ashtrays

........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever...........................

2.14 → 2.16
bbattery........................................................................\
........ 4.12troubleshooting ......

........................................... 5.25 – 5.26
battery (remote control)
..................................................... 5.27
bonnet........................................................................\
. 4.2

– 4.3
brake fluid
........................................................................\
.... 4.7
bulbs changing
......

.................................................... 5.14 → 5.21
ccapacity of mechanical components........................... 4.4,

  4.12
catalytic converter................................................................ 2.4
central door locking
............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel...................................................... 5.9

– 5.10changing gear ........................................................
2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety............................................... 1.2,

  1.6,   1.21 → 1.31
child seats.............................................................. 1.21 → 1.31
children
.............................................................. 1.5 – 1.6,

  1.14
cigar lighter
........................................................................\
3.14
clock


........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10,

  1.40 → 1.50
controls

..................................................................1.36 → 1.39
courtesy light ..................................................................... 3.10
ddashboard.............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen .......

............................................................ 1.55
demisting rear screen
.......

.............................................................. 3.7
dimensions
........................................................................\
.. 6.5
dipstick

........................................................................\
......... 4.4
doors........................................................................\
... 1.5
– 1.6
driver’s position
..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.8,

  2.11 → 2.16
eelectric door locking ............................................................. 1.5
electric windows ..................................................... 3.1

1 – 3.12
emergency brake assist..................................................... 2.13 emergency spare wheel
................................. 5.3,

  5.11 → 5.13
engine technical specifications
......

............................................ 6.4
engine coolant
..................................................................... 4.8
engine immobiliser

............................................................... 1.7
engine immobiliser (switch)
................................................. 2.2
engine oil ........................................................................\
..... 4.4
