Page 811 of 1184
MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 29
DAEWOO M-150 BL2
D10B703A
COMPRESSOR OVERHAUL
Tools Required
DW--610--010 Clutch Hub Holding Tool
Disassembly Procedure
1.Remove the compressor. Refer to “Compressor” in
this section.
2. Remove the clutch drive plate.
DUse the clutch hub holding tool DW--610--010 to
keep the clutch drive plate (1).
DRemove the shaft bolt (2).
D18B704A
3. Remove the compressor pulley.
DRemove the snap ring using a ring pryer (1).
DRemove the pulley (2).
D18B705A
4. Disconnect the wiring harness holder and remove the
electromagnetic clutch.
a. Electromagnetic clutch
D18B706B
Assembly Procedure
1. Connect the wiring harness holder and install the
clutch coil.
2. Install the snap ring and compressor pulley.
3. Use the clutch hub holding tool DW--610--010, install
the clutch drive plate with the shaft bolt.
Tighten
Tighten the shaft bolt to 13 NSm(115lb-in).
4. Install the compressor. Refer to “Compressor” in this
section.
Page 812 of 1184
7B -- 30 MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM
DAEWOO M-150 BL2

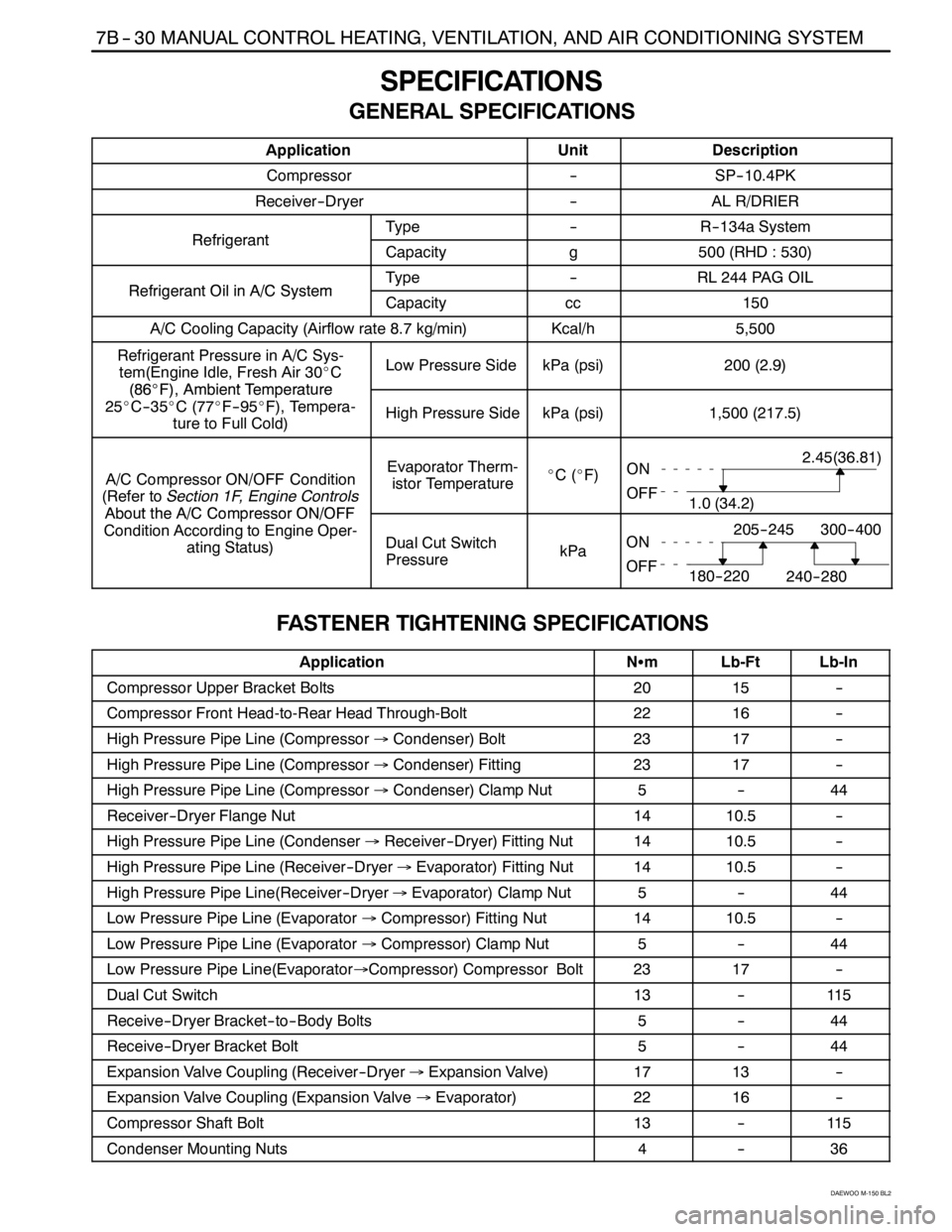

SPECIFICATIONS
GENERAL SPECIFICATIONS
Application
Unit
Description
Compressor
--
SP--10.4PK
Receiver--Dryer
--
AL R/DRIER
Refrigerant
Type
--
R--134a System
Refrigerant
Capacity
g
500 (RHD : 530)
RefrigerantOilinA/CSystem
Type
--
RL 244 PAG OIL RefrigerantOilinA/CSystem
Capacity
cc
150
A/C Cooling Capacity (Airflow rate 8.7 kg/min)
Kcal/h
5,500
Refrigerant Pressure in A/C Sys-
tem(Engine Idle, Fresh Air 30_C
(86_F)AmbientTemperature
Low Pressure Side
kPa (psi)
200 (2.9)
(86_F),AmbientTemperature
25_C--35_C(77_F--95_F), Tempera-
ture to Full Cold)
High Pressure Side
kPa (psi)
1,500 (217.5)
A/C Compressor ON/OFF Condition
(Refer toSection 1F, Engine Controls
AbouttheA/CCompressorON/OFF
Evaporator Therm-
istor Temperature
_C(_F)
2.45(36.81)
1.0 (34.2)
ON
OFF
About theA/CCompressorON/OFF
Condition According to Engine Oper-
ating Status)
Dual Cut Switch
Pressure
kPa
205--245
180--220
ON
OFF300--400
240--280
FASTENER TIGHTENING SPECIFICATIONS
Application
NSm
Lb-Ft
Lb-In
Compressor Upper Bracket Bolts
20
15
--
Compressor Front Head-to-Rear Head Through-Bolt
22
16
--
High Pressure Pipe Line (Compressor→Condenser) Bolt
23
17
--
High Pressure Pipe Line (Compressor→Condenser) Fitting
23
17
--
High Pressure Pipe Line (Compressor→Condenser) Clamp Nut
5
--
44
Receiver--Dryer Flange Nut
14
10.5
--
High Pressure Pipe Line (Condenser→Receiver--Dryer) Fitting Nut
14
10.5
--
High Pressure Pipe Line (Receiver--Dryer→Evaporator) Fitting Nut
14
10.5
--
High Pressure Pipe Line(Receiver--Dryer→Evaporator) Clamp Nut
5
--
44
Low Pressure Pipe Line (Evaporator→Compressor) Fitting Nut
14
10.5
--
Low Pressure Pipe Line (Evaporator→Compressor) Clamp Nut
5
--
44
Low Pressure Pipe Line(Evaporator→Compressor) Compressor Bolt
23
17
--
Dual Cut Switch
13
--
11 5
Receive--Dryer Bracket--to--Body Bolts
5
--
44
Receive--Dryer Bracket Bolt
5
--
44
Expansion Valve Coupling (Receiver--Dryer→Expansion Valve)
17
13
--
Expansion Valve Coupling (Expansion Valve→Evaporator)
22
16
--
Compressor Shaft Bolt
13
--
11 5
Condenser Mounting Nuts
4
--
36
Page 813 of 1184
MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 31
DAEWOO M-150 BL2
SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS TABLE
D108B101
DW -- 610 -- 010
Clutch Hub
Holding Tool
Page 814 of 1184
7B -- 32 MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM
DAEWOO M-150 BL2
SCHEMATIC AND ROUTING DIAGRAMS
A/C DIAGRAMS
D18B201B
Page 815 of 1184
MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 33
DAEWOO M-150 BL2
A/C AIRFLOW
(Left -- Hand Drive Shown, Right -- Hand Drive Similar)
D108B202
A/C SYSTEM
(Left -- Hand Drive Shown, Right -- Hand Drive Similar)
D18B203A
Page 816 of 1184
DAEWOO M-150 BL2
SECTION 8A
SEAT BELTS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in B unless otherwise
noted.
TABLE OF CONTENTS
Description and Operation 8A-2. . . . . . . . . . . . . . . . . .
Driver Seat Belt Warning 8A-2. . . . . . . . . . . . . . . . . . .
Three-Point Pretensioner Front Seat Belt
(W/EUROPE Only) 8A-2. . . . . . . . . . . . . . . . . . . . . .
Three-Point WLR Front Seat Belt 8A-2. . . . . . . . . . . .
Three-Point ELR Front Seat Belt 8A-2. . . . . . . . . . . .
Three-Point ELR Rear Outboard Seat Belt 8A-2. . . .
Two-Point Lap Rear Center Seat Belt 8A-2. . . . . . . .
Operational and Functional Checks 8A-2. . . . . . . . . .
Component Locator 8A-3. . . . . . . . . . . . . . . . . . . . . . . .
Front and Rear Seat Belt 8A-3. . . . . . . . . . . . . . . . . . .
Diagnostic Information and Procedures 8A-4. . . . .
Seat Belt Warning Lamp is Inoperative 8A-4. . . . . . . Repair Instructions 8A-5. . . . . . . . . . . . . . . . . . . . . . . . .
On-Vehicle Service 8A-5. . . . . . . . . . . . . . . . . . . . . . . . . .
Three-Point WLR/ELR Front Seat Belt 8A-5. . . . . . .
Three-Point Pretensioner Front Seat Belt
(W/EUROPE Only) 8A-6. . . . . . . . . . . . . . . . . . . . . .
Front Seat Belt Buckle 8A-8. . . . . . . . . . . . . . . . . . . . .
Three–Point ELR Rear Outboard Seat Belt 8A-8. . .
Two-Point Lap Rear Center Seat Belt 8A-10. . . . . . .
Specifications 8A-11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fastener Tightening Specifications 8A-11. . . . . . . . . .
Schematic and Routing Diagrams 8A-12. . . . . . . . . .
Driver Seat Belt Warning 8A-12. . . . . . . . . . . . . . . . . .
Page 817 of 1184
8A –2 SEAT BELTS
DAEWOO M-150 BL2
DESCRIPTION AND OPERATION
DRIVER SEAT BELT WARNING
The driver’s safety belt incorporates a safety belt re-
minder light in the instrument cluster to remind the driver
if the safety belt is not fastened when the ignition is
turned ON.
THREE-POINT PRETENSIONER
FRONT SEAT BELT (W/EUROPE
ONLY)
The pretensioner front seat belt is optional. It contains a
electrically-controlled pyrotechnical retractor, which re-
duces seat belt slack when it is activated in a head-on or
angled front collision. The pretensioner front seat belt
must be replaced after an accident that causes its ac-
tivation.
THREE-POINT WLR FRONT SEAT
BELT
The three-point web locking retractor (WLR) seat belt
will limit the movement of the driver and offer better
protection in an accident.
THREE-POINT ELR FRONT SEAT
BELT
The three-point emergency locking retractor (ELR) front
seat belt is always unlocked, allowing the passenger
freedom of movement, except in emergencies (rapid de-
celeration, rapid acceleration, or hard cornering maneu-
vers).
THREE-POINT ELR REAR
OUTBOARD SEAT BELT
The rear outboard seating positions use the three-point
emergency locking retractor (ELR) seat belts. The
three-point emergency locking retractor (ELR) seat beltis always unlocked, allowing the passenger freedom of
movement, except in emergencies (rapid deceleration,
rapid acceleration, or hard cornering maneuvers).
TWO-POINT LAP REAR CENTER
SEAT BELT
The two-point lap rear center seat belt is a single contin-
uous length of webbing. The webbing is routed from the
anchor through a latch plate and into a single retractor.
OPERATIONAL AND FUNCTIONAL
CHECKS
Caution:
Keep sharp objects and potentially damaging ob-
jects away from the seat belts.
Avoid bending or damaging any portion of the
buckle or the latch plate.
Do not bleach or dye the belt webbing. Use only
mild soap and water in order to clean the belts.
When installing the seat belt anchor bolts and
the screws, start the bolts and the screws by
hand in order to prevent crossthreading.
Do not attempt any repairs on the retractor mech-
anisms or the covers. Replace any defective as-
semblies with new assemblies.
Replace any belts that are cut or damaged in any
way.
1. Inspect all seat belt anchor bolts and the screws in or-
der to verify that they are secure.
2. Inspect the seat belt buckle. The buckle must lock
and unlock easily.
3. After inserting the latch into the buckle, tug sharply on
the belt. The buckle must remain locked.
4. Fully extend the shoulder belt portion to make sure
that there is no twisting or tears in the belt.
5. Let the shoulder belt retract fully. The belt should re-
tract easily.
Page 818 of 1184
SEAT BELTS 8A–3
DAEWOO M-150 BL2
COMPONENT LOCATOR
FRONT AND REAR SEAT BELT
D1AA401B
1. Front Seat Belt
2. Front Seat Belt Buckle
3. Rear Seat Belt (Three–Point)
4. Rear Seat Belt (Two–Point) / Buckle (Three–Point)
5. Rear Seat Belt Buckle (Three–Point/Two–Point)
Page 819 of 1184
8A –4 SEAT BELTS
DAEWOO M-150 BL2
DIAGNOSTIC INFORMATION AND PROCEDURES
SEAT BELT WARNING LAMP IS INOPERATIVE
ConditionProbable CauseCorrection
Seat Belt WarningFuse F1 is blown.Replace the fuse F1.
Lamp is InoperativeSeat belt warning lamp wiring harness is
open circuit or a short circuit.Repair the wiring harness.
The continuity between the two terminals at
the switch side of the connector is fail.Replace the seat belt switch.
The continuity between the terminal for the
BLK wire and ground is fail.Repair the open ground.
The warning lamp bulb in the instrument
cluster is blown.Replace the warning lamp bulb.
Page 820 of 1184
SEAT BELTS 8A–5
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D110A501
THREE–POINT WLR/ELR FRONT
SEAT BELT
Removal Procedure
1. Slide the front seat forward and fold the seatback.
2. Remove the bolt on the lower B–pillar.
Remove the bolt (1).
Remove the spacer and the fiber washer (2).
Remove the plastic protector on the seat belt an-
chor.
D11A502A
3. Remove the lower B–pillar trim panel. Refer to Sec-
tion 9G, Interior Trim.
4. Remove the bolt on the upper B–pillar.
Using a flathead screwdriver, open the bolt cap (1).
Remove the bolt (2).
Remove the spacer and the fiber washer (3).
D110A503
5. Remove the seat belt retractor bolt.
Remove the floor carpet to be seen the retractor.
Remove the bolt (1).
Remove the fiber washer (2).
Remove the seat belt retractor.
