ENGINE CONTROLS 1F–9
DAEWOO M-150 BL2
appropriate wiring diagram. Refer to “ECM Wiring Dia-
grams” in this Section.
9591
Terminal 49GroundOpen
STRATEGY-BASED DIAGNOSTICS
Strategy-Based Diagnostics
The strategy-based diagnostic is a uniform approach to
repair all Electrical/Electronic (E/E) systems. The diag-
nostic flow can always be used to resolve an E/E system
problem and is a starting point when repairs are neces-
sary. The following steps will instruct the technician on
how to proceed with a diagnosis:
Verify the customer complaint. To verify the customer
complaint, the technician should know the normal op-
eration of the system.
Perform preliminary checks as follows:
Conduct a thorough visual inspection.
Review the service history.
Detect unusual sounds or odors.
Gather Diagnostic Trouble Code (DTC) information to
achieve an effective repair.
Check bulletins and other service information. This
includes videos, newsletters, etc.
Refer to service information (manual) system
check(s).
Refer to service diagnostics.
No Trouble Found
This condition exists when the vehicle is found to oper-
ate normally. The condition described by the customer
may be normal. Verify the customer complaint against
another vehicle that is operating normally. The condition
may be intermittent. Verify the complaint under the con-
ditions described by the customer before releasing the
vehicle.
Re-examine the complaints.
When the complaints cannot be successfully found or
isolated, a re-evaluation is necessary. The complaint
should be re-verified and could be intermittent as de-
fined in “intermittents,” or could be normal.
After isolating the cause, the repairs should be made.
Validate for proper operation and verify that the symp-
tom has been corrected. This may involve road testing
or other methods to verify that the complaint has re-
solved under following conditions:
Conditions noted by the customer.
If a DTC was diagnosed, verify the repair be duplicat-
ing conditions present when the DTC was set as
noted in Failure Records or Freeze Frame data.
Verifying Vehicle Repair
Verification of the vehicle repair will be more compre-
hensive for vehicles with Euro On-Board Diagnostic
(EOBD) system diagnostics. Following a repair, the
technician should perform the following steps:
Important: Follow the steps below when you verify re-
pairs on EOBD systems. Failure to follow these steps
could result in unnecessary repairs.
Review and record the Failure Records and the
Freeze Frame data for the DTC which has been diag-
nosed (Freeze Fame data will only be stored for an A,
B and E type diagnostic and only if the Malfunction
Indicator Lamp has been requested).
Clear the DTC(s).
Operate the vehicle within conditions noted in the
Failure Records and Freeze Frame data.
Monitor the DTC status information for the specific
DTC which has been diagnosed until the diagnostic
test associated with that DTC runs.
EOBD SERVICEABILITY ISSUES
Based on the knowledge gained from Euro On-Board
Diagnostic (OBD) experience in the 1994 and 1995
model years in United Status, this list of non-vehicle
faults that could affect the performance of the Euro On-
Board Diagnostic (EOBD) system has been compiled.
These non-vehicle faults vary from environmental condi-
tions to the quality of fuel used. With the introduction of
EOBD across the entire passenger car, illumination of
the Malfunction Indicator Lamp (MIL) due to a non-ve-
hicle fault could lead to misdiagnosis of the vehicle, in-
creased warranty expense and customer
dissatisfaction. The following list of non-vehicle faults
does not include every possible fault and may not apply
equally to all product lines.
Fuel Quality
Fuel quality is not a new issue for the automotive indus-
try, but its potential for turning on the MIL with EOBD
systems is new.
Fuel additives such as “dry gas” and “octane enhancers”
may affect the performance of the fuel. If this results in
an incomplete combustion or a partial burn, it will set
Diagnostic Trouble Code (DTC) P0300. The Reed Vapor
Pressure of the fuel can also create problems in the fuel
system, especially during the spring and fall months
when severe ambient temperature swings occur. A high
Reed Vapor Pressure could show up as a Fuel Trim
DTC due to excessive canister loading.
Using fuel with the wrong octane rating for your vehicle
may cause driveability problems. Many of the major fuel
companies advertise that using “premium” gasoline will
improve the performance of your vehicle. Most premium
Page 108 of 1184
1F–10 ENGINE CONTROLS
DAEWOO M-150 BL2
fuels use alcohol to increase the octane rating of the
fuel. Although alcohol-enhanced fuels may raise the oc-
tane rating, the fuel’s ability to turn into vapor in cold
temperatures deteriorates. This may affect the starting
ability and cold driveability of the engine.
Low fuel levels can lead to fuel starvation, lean engine
operation, and eventually engine misfire.
Non-OEM Parts
The EOBD system has been calibrated to run with Origi-
nal Equipment Manufacturer (OEM) parts. Something
as simple as a high performance-exhaust system that
affects exhaust system back pressure could potentially
interfere with the operation of the Electric Exhaust Gas
Recirculation (EEGR) valve and thereby turn on the
MIL. Small leaks in the exhaust system near the heated
oxygen sensor (HO2S) can also cause the MIL to turn
on.
Aftermarket electronics, such as cellular phones, ster-
eos, and anti-theft devices, may radiate Electromagnet-
ic Interference (EMI) into the control system if they are
improperly installed. This may cause a false sensor
reading and turn on the MIL.
Environment
Temporary environmental conditions, such as localized
flooding, will have an effect on the vehicle ignition sys-
tem. If the ignition system is rain-soaked, it can tempo-
rarily cause engine misfire and turn on the MIL.
Vehicle Marshaling
The transportation of new vehicles from the assembly
plant to the dealership can involve as many as 60 key
cycles within 2 to 3 miles of driving. This type of opera-
tion contributes to the fuel fouling of the spark plugs and
will turn on the MIL with a set DTC P0300.
Poor Vehicle Maintenance
The sensitivity of the EOBD will cause the MIL to turn on
if the vehicle is not maintained properly. Restricted air fil-
ters, fuel filters, and crankcase deposits due to lack of oil
changes or improper oil viscosity can trigger actual ve-
hicle faults that were not previously monitored prior to
EOBD. Poor vehicle maintenance can not be classified
as a “non-vehicle fault,” but with the sensitivity of the
EOBD, vehicle maintenance schedules must be more
closely followed.
Severe Vibration
The Misfire diagnostic measures small changes in the
rotational speed of the crankshaft. Severe driveline
vibrations in the vehicle, such as caused by an exces-
sive amount of mud on the wheels, can have the same
effect on crankshaft speed as misfire and, therefore,
may set DTC P0300.
Related System Faults
Many of the EOBD system diagnostics will not run if the
Engine Control Module (ECM) detects a fault on a re-
lated system or component. One example would be thatif the ECM detected a Misfire fault, the diagnostics on
the catalytic converter would be suspended until the
Misfire fault was repaired. If the Misfire fault is severe
enough, the catalytic converter can be damaged due to
overheating and will never set a Catalyst DTC until the
Misfire fault is repaired and the Catalyst diagnostic is al-
lowed to run to completion. If this happens, the custom-
er may have to make two trips to the dealership in order
to repair the vehicle.
SERIAL DATA COMMUNICATIONS
Keyword 2000 Serial Data
Communications
Government regulations require that all vehicle
manufacturers establish a common communication sys-
tem. This vehicle utilizes the “Keyword 2000” commu-
nication system. Each bit of information can have one of
two lengths: long or short. This allows vehicle wiring to
be reduced by transmitting and receiving multiple sig-
nals over a single wire. The messages carried on Key-
word 2000 data streams are also prioritized. If two
messages attempt to establish communications on the
data line at the same time, only the message with higher
priority will continue. The device with the lower priority
message must wait. The most significant result of this
regulation is that it provides scan tool manufacturers
with the capability to access data from any make or
model vehicle that is sold.
The data displayed on the other scan tool will appear the
same, with some exceptions. Some scan tools will only
be able to display certain vehicle parameters as values
that are a coded representation of the true or actual val-
ue. On this vehicle, the scan tool displays the actual val-
ues for vehicle parameters. It will not be necessary to
perform any conversions from coded values to actual
values.
EURO ON-BOARD DIAGNOSTIC
(EOBD)
Euro On-Board Diagnostic Tests
A diagnostic test is a series of steps, the result of which
is a pass or fail reported to the diagnostic executive.
When a diagnostic test reports a pass result, the diag-
nostic executive records the following data:
The diagnostic test has been completed since the last
ignition cycle.
The diagnostic test has passed during the current
ignition cycle.
The fault identified by the diagnostic test is not cur-
rently active.
When a diagnostic test reports a fail result, the diagnos-
tic executive records the following data:
The diagnostic test has been completed since the last
ignition cycle.
Page 110 of 1184
1F–12 ENGINE CONTROLS
DAEWOO M-150 BL2
The enable criteria for each diagnostic is listed on the
first page of the Diagnostic Trouble Code (DTC) descrip-
tion under the heading “Conditions for Setting the DTC.”
Enable criteria varies with each diagnostic and typically
includes, but is not limited to the following items:
Engine speed.
Vehicle speed
Engine Coolant Temperature (ECT)
Manifold Absolute Pressure (MAP)
Barometric Pressure (BARO)
Intake Air Temperature (IAT)
Throttle Position (TP)
High canister purge
Fuel trim
A/C on
Trip
Technically, a trip is a key-on run key-off cycle in which
all the enable criteria for a given diagnostic are met, al-
lowing the diagnostic to run. Unfortunately, this concept
is not quite that simple. A trip is official when all the en-
able criteria for a given diagnostic are met. But because
the enable criteria vary from one diagnostic to another,
the definition of trip varies as well. Some diagnostics are
run when the vehicle is at operating temperature, some
when the vehicle first starts up; some require that the
vehicle cruise at a steady highway speed, some run only
when the vehicle is at idle. Some run only immediately
following a cold engine start-up.
A trip then, is defined as a key-on run-key off cycle in
which the vehicle is operated in such a way as to satisfy
the enable criteria for a given diagnostic, and this diag-
nostic will consider this cycle to be one trip. However,
another diagnostic with a different set of enable criteria
(which were not met) during this driving event, would not
consider it a trip. No trip will occur for that particular
diagnostic until the vehicle is driven in such a way as to
meet all the enable criteria.
Diagnostic Information
The diagnostic charts and functional checks are de-
signed to locate a faulty circuit or component through a
process of logical decisions. The charts are prepared
with the requirement that the vehicle functioned correct-
ly at the time of assembly and that there are not multiple
faults present.
There is a continuous self-diagnosis on certain control
functions. This diagnostic capability is complimented by
the diagnostic procedures contained in this manual. The
language of communicating the source of the malfunc-
tion is a system of diagnostic trouble codes. When a
malfunction is detected by the control module, a DTC is
set, and the Malfunction Indicator Lamp (MIL) is illumi-
nated.
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) is required by
Euro On-Board Diagnostics (EOBD) to illuminate under
a strict set of guidelines.
Basically, the MIL is turned on when the Engine Control
Module (ECM) detects a DTC that will impact the vehicle
emissions.
The MIL is under the control of the Diagnostic Execu-
tive. The MIL will be turned on if an emissions-related
diagnostic test indicates a malfunction has occurred. It
will stay on until the system or component passes the
same test for three consecutive trips with no emissions
related faults.
Extinguishing the MIL
When the MIL is on, the Diagnostic Executive will turn
off the MIL after three consecutive trips that a “test
passed” has been reported for the diagnostic test that
originally caused the MIL to illuminate. Although the MIL
has been turned off, the DTC will remain in the ECM
memory (both Freeze Frame and Failure Records) until
forty (40) warm-up cycles after no faults have been com-
pleted.
If the MIL was set by either a fuel trim or misfire-related
DTC, additional requirements must be met. In addition
to the requirements stated in the previous paragraph,
these requirements are as follows:
The diagnostic tests that are passed must occur with
375 rpm of the rpm data stored at the time the last
test failed.
Plus or minus ten percent of the engine load that was
stored at the time the last test failed. Similar engine
temperature conditions (warmed up or warming up)
as those stored at the time the last test failed.
Meeting these requirements ensures that the fault which
turned on the MIL has been corrected.
The MIL is on the instrument panel and has the following
functions:
It informs the driver that a fault affecting the vehicle’s
emission levels has occurred and that the vehicle
should be taken for service as soon as possible.
As a system check, the MIL will come on with the key
ON and the engine not running. When the engine is
started, the MIL will turn OFF.
When the MIL remains ON while the engine is run-
ning, or when a malfunction is suspected due to a
driveability or emissions problem, an EOBD System
Check must be performed. The procedures for these
checks are given in EOBD System Check. These
checks will expose faults which may not be detected
if other diagnostics are performed first.
Page 112 of 1184
1F–14 ENGINE CONTROLS
DAEWOO M-150 BL2
termittent fault will also be erased from memory. If the
fault that caused the DTC to be stored into memory has
been corrected, the Diagnostic Executive will begin to
count the ‘‘warm-up” cycles with no further faults de-
tected, the DTC will automatically be cleared from the
Engine Control Module (ECM) memory.
To clear DTCs, use the diagnostic scan tool.
It can’t cleared DTCs without the diagnostic scan tool.
So you must use the diagnostic scan tool.
Notice: To prevent system damage, the ignition key
must be OFF when disconnecting or reconnecting bat-
tery power.
The power source to the control module. Examples:
fuse, pigtail at battery ECM connectors, etc.
The negative battery cable. (Disconnecting the nega-
tive battery cable will result in the loss of other Euro
On-Board memory data, such as preset radio tuning.)
DTC Modes
On Euro On-Board Diagnostic (EOBD) passenger cars
there are five options available in the scan tool DTC
mode to display the enhanced information available. A
description of the new modes, DTC Info and Specific
DTC, follows. After selecting DTC, the following menu
appears:
DTC Info.
Specific DTC.
Freeze Frame.
Fail Records (not all applications).
Clear Info.
The following is a brief description of each of the sub
menus in DTC Info and Specific DTC. The order in
which they appear here is alphabetical and not neces-
sarily the way they will appear on the scan tool.
DTC Information Mode
Use the DTC info mode to search for a specific type of
stored DTC information. There are seven choices. The
service manual may instruct the technician to test for
DTCs in a certain manner. Always follow published ser-
vice procedures.
To get a complete description of any status, press the
‘‘Enter” key before pressing the desired F-key. For ex-
ample, pressing ‘‘Enter” then an F-key will display a defi-
nition of the abbreviated scan tool status.
DTC Status
This selection will display any DTCs that have not run
during the current ignition cycle or have reported a test
failure during this ignition up to a maximum of 33 DTCs.
DTC tests which run and pass will cause that DTC num-
ber to be removed from the scan tool screen.
Fail This Ign. (Fail This Ignition)
This selection will display all DTCs that have failed dur-
ing the present ignition cycle.
History
This selection will display only DTCs that are stored in
the ECM’s history memory. It will not display Type B
DTCs that have not requested the Malfunction Indicator
Lamp (MIL). It will display all type A, B and E DTCs that
have requested the MIL and have failed within the last
40 warm-up cycles. In addition, it will display all type C
and type D DTCs that have failed within the last 40
warm-up cycles.
Last Test Fail
This selection will display only DTCs that have failed the
last time the test ran. The last test may have run during
a previous ignition cycle if a type A or type B DTC is dis-
played. For type C and type D DTCs, the last failure
must have occurred during the current ignition cycle to
appear as Last Test Fail.
MIL Request
This selection will display only DTCs that are requesting
the MIL. Type C and type D DTCs cannot be displayed
using this option. This selection will report type B and E
DTCs only after the MIL has been requested.
Not Run SCC (Not Run Since Code Clear)
This option will display up to 33 DTCs that have not run
since the DTCs were last cleared. Since the displayed
DTCs have not run, their condition (passing or failing) is
unknown.
Test Fail SCC (Test Failed Since Code
Clear)
This selection will display all active and history DTCs
that have reported a test failure since the last time DTCs
were cleared. DTCs that last failed more than 40 warm-
up cycles before this option is selected will not be dis-
played.
Specific DTC Mode
This mode is used to check the status of individual diag-
nostic tests by DTC number. This selection can be ac-
cessed if a DTC has passed, failed or both. Many EOBD
DTC mode descriptions are possible because of the ex-
tensive amount of information that the diagnostic execu-
tive monitors regarding each test. Some of the many
possible descriptions follow with a brief explanation.
The “F2” key is used, in this mode, to display a descrip-
tion of the DTC. The “Ye s” and “No” keys may also be
used to display more DTC status information. This
selection will only allow entry of DTC numbers that are
supported by the vehicle being tested. If an attempt is,
Page 114 of 1184
1F–16 ENGINE CONTROLS
DAEWOO M-150 BL2
the obstruction of the reference air and degrade the O2S
performance.
Misfire Monitor Diagnostic Operation
The misfire monitor diagnostic is based on crankshaft
rotational velocity (reference period) variations. The En-
gine Control Module (ECM) determines crankshaft rota-
tional velocity using the Crankshaft Position (CKP)
sensor and the Camshaft Position (CMP) sensor. When
a cylinder misfires, the crankshaft slows down momen-
tarily. By monitoring the CKP and CMP sensor signals,
the ECM can calculate when a misfire occurs.
For a non-catalyst damaging misfire, the diagnostic will
be required to monitor a misfire present for between
1000–3200 engine revolutions.
For catalyst-damaging misfire, the diagnostic will re-
spond to misfire within 200 engine revolutions.
Rough roads may cause false misfire detection. A rough
road will cause torque to be applied to the drive wheels
and drive train. This torque can intermittently decrease
the crankshaft rotational velocity. This may be falsely
detected as a misfire.
A rough road sensor, or “G sensor,” works together with
the misfire detection system. The rough road sensor
produces a voltage that varies along with the intensity of
road vibrations. When the ECM detects a rough road,
the misfire detection system is temporarily disabled.
Misfire Counters
Whenever a cylinder misfires, the misfire diagnostic
counts the misfire and notes the crankshaft position at
the time the misfire occurred. These “misfire counters”
are basically a file on each engine cylinder. A current
and a history misfire counter are maintained for each
cylinder. The misfire current counters (Misfire Current
#1–4) indicate the number of firing events out of the last
200 cylinder firing events which were misfires. The mis-
fire current counter will display real time data without a
misfire DTC stored. The misfire history counters (Misfire
Histtory #1–4) indicate the total number of cylinder firing
events which were misfires. The misfire history counters
will display 0 until the misfire diagnostic has failed and a
DTC P0300 is set. Once the misfire DTC P0300 is set,
the misfire history counters will be updated every 200
cylinder firing events. A misfire counter is maintained for
each cylinder.
If the misfire diagnostic reports a failure, the diagnostic
executive reviews all of the misfire counters before re-
porting a DTC. This way, the diagnostic executive re-
ports the most current information.
When crankshaft rotation is erratic, a misfire condition
will be detected. Because of this erratic condition, the
data that is collected by the diagnostic can sometimes
incorrectly identify which cylinder is misfiring.
Use diagnostic equipment to monitor misfire counter
data on EOBD compliant vehicles. Knowing which spe-
cific cylinder(s) misfired can lead to the root cause, evenwhen dealing with a multiple cylinder misfire. Using the
information in the misfire counters, identify which cylin-
ders are misfiring. If the counters indicate cylinders
numbers 1 and 4 misfired, look for a circuit or compo-
nent common to both cylinders number 1 and 4.
The misfire diagnostic may indicate a fault due to a tem-
porary fault not necessarily caused by a vehicle emis-
sion system malfunction. Examples include the following
items:
Contaminated fuel.
Low fuel.
Fuel-fouled spark plugs.
Basic engine fault.
Fuel Trim System Monitor Diagnostic
Operation
This system monitors the averages of short-term and
long-term fuel trim values. If these fuel trim values stay
at their limits for a calibrated period of time, a malfunc-
tion is indicated. The fuel trim diagnostic compares the
averages of short-term fuel trim values and long-term
fuel trim values to rich and lean thresholds. If either val-
ue is within the thresholds, a pass is recorded. If both
values are outside their thresholds, a rich or lean DTC
will be recorded.
The fuel trim system diagnostic also conducts an intru-
sive test. This test determines if a rich condition is being
caused by excessive fuel vapor from the controlled char-
coal canister. In order to meet EOBD requirements, the
control module uses weighted fuel trim cells to deter-
mine the need to set a fuel trim DTC. A fuel trim DTC
can only be set if fuel trim counts in the weighted fuel
trim cells exceed specifications. This means that the ve-
hicle could have a fuel trim problem which is causing a
problem under certain conditions (i.e., engine idle high
due to a small vacuum leak or rough idle due to a large
vacuum leak) while it operates fine at other times. No
fuel trim DTC would set (although an engine idle speed
DTC or HO2S DTC may set). Use a scan tool to observe
fuel trim counts while the problem is occurring.
A fuel trim DTC may be triggered by a number of vehicle
faults. Make use of all information available (other DTCs
stored, rich or lean condition, etc.) when diagnosing a
fuel trim fault.
Fuel Trim Cell Diagnostic Weights
No fuel trim DTC will set regardless of the fuel trim
counts in cell 0 unless the fuel trim counts in the
weighted cells are also outside specifications. This
means that the vehicle could have a fuel trim problem
which is causing a problem under certain conditions (i.e.
engine idle high due to a small vacuum leak or rough
due to a large vacuum leak) while it operates fine at oth-
er times. No fuel trim DTC would set (although an en-
gine idle speed DTC or HO2S DTC may set). Use a
scan tool to observe fuel trim counts while the problem is
occurring.
Page 123 of 1184
ENGINE CONTROLS 1F–25
DAEWOO M-150 BL2
ENGINE CRANKS BUT WILL NOT RUN
Caution: Use only electrically insulated pliers when
handling ignition wires with the engine running to
prevent an electrical shock.
Caution: Do not pinch or restrict nylon fuel lines.
Damage to the lines could cause a fuel leak, result-
ing in possible fire or personal injury.Important: If a no start condition exists, ensure the fuel
cutoff switch has not been tripped prior to further diagno-
sis.
Engine Cranks But Will Not Run
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Is the check complete.
–
Go to Step 2
Go to “Euro
On-Board
Diagnostic
System Check”
2Crank the engine.
Does the engine start and continue to run?–System OkGo to Step 3
3
Perform a cylinder compression test.
Is the cylinder compression for all of the cylinders at
or above the value specified?
1250 kPa
(181 psi)
Go to Step 7Go to Step 4
4Inspect the timing belt alignment.
Is the timing belt in alignment?–Go to Step 6Go to Step 5
5Align or replace the timing belt as needed.
Is the repair complete?–Go to Step 2–
6Repair internal engine damage as needed.
Is the repair complete?–Go to Step 2–
7Inspect the fuel pump fuse.
Is the problem found?–Go to Step 8Go to Step 9
8Replace the fuse.
Is the repair complete?–Go to Step 2–
9
Check for the presence of spark from all of the
ignition wires while cranking the engine.
Is spark present from all of the ignition wires?
–
Go to Step 23Go to Step 10
10
1. Measure the resistance of the ignition wires.
2. Replace any of the ignition wire(s) with a
resistance above the value specified.
3. Check for the presence of spark from all of the
ignition wire.
Is spark present from all of the ignition wires?
5 kΩGo to Step 2Go to Step 11
11
1. Turn the ignition OFF.
2. Disconnect the crankshaft position (CKP) sensor
connector.
3. Turn the ignition ON.
4. Measure the voltage between following terminals:
Terminal 1 and 3 of the CKP sensor connector.
Terminal 2 and 3 of the CKP sensor connector.
Terminal 1 of the CKP sensor connector and
ground.
Terminal 2 of the CKP sensor connector and
ground.
Are the voltage measure within the value specified?
≈ 0.4 VGo to Step 13Go to Step 12
Page 179 of 1184
ENGINE CONTROLS 1F–81
DAEWOO M-150 BL2
DTC P0123 – Throttle Position Sensor High Voltage
StepActionValue(s)YesNo
1
Perform an On-Board Diagnostic (EOBD) System
Check.
Was the check performed?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
1. Install a scan tool to the Data Link Connector
(DLC).
2. Turn the ignition ON.
Is the Throttle Position (TP) sensor voltage greater
than the specified value?
1.0 VGo to Step 4Go to Step 3
3
1. Turn the ignition ON.
2. Review the Freeze Frame data and note the
parameters.
3. Operate the vehicle within the Freeze Frame
conditions and Conditions for Setting the DTC as
noted.
Is the TP sensor voltage greater than the specified
value?
3.9 VGo to Step 4Go to Step 12
4
1. Turn the ignition OFF.
2. Disconnect the TP sensor connector.
3. Turn the ignition ON.
Is the TP sensor voltage less than the specified
value?
0.2 VGo to Step 5Go to Step 6
5
Probe the TP sensor ground circuit, terminal A at the
TP sensor connector with a test light connected to
B+.
Does the test light illuminate?
–
Go to Step 7Go to Step 9
6
Check the TP sensor signal circuit for an short to
voltage and repair as needed.
Is the repair complete?
–
Go to Step 12Go to Step 11
7
Check the 5 volt reference circuit for a short to B+
and repair as needed.
Is the repair complete?
–
Go to Step 12Go to Step 8
8
Check the TP sensor electric connector for a poor
connection and repair as needed.
Is the repair complete?
–
Go to Step 12Go to Step 10
9
Check the TP sensor ground circuit for an open and
repair as needed.
Is the repair complete?
–
Go to Step 12Go to Step 11
10Replace the throttle body assembly.
Is the action complete?–Go to Step 12–
11
1. Turn the ignition switch OFF.
2. Replace the Engine Control Module (ECM).
Is the action complete?
–
Go to Step 12
–
12
1. Using the scan tool, clear the Diagnostic Trouble
Codes (DTCs).
2. Start the engine and idle at normal operating
temperature.
3. Operate the vehicle within the Conditions for
setting this DTC as specified in the supporting
text.
Does the scan tool indicate that this diagnostic has
run and passed?
–
Go to Step 13Go to Step 2
Page 199 of 1184
ENGINE CONTROLS 1F–101
DAEWOO M-150 BL2
DTC P0140 – Heated Oxygen Sensor No Activity
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Is the system check complete?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
1. Run the engine to above the specified operating
temperature.
2. Install a scan tool.
3. Operate the engine above the specified rpm for
2minuets.
Does the scan tool the indicate Closed Loop?
80°C(176°F)
1,200 rpm
Go to Step 3Go to Step 4
3
1. Turn the Turn the ignition switch to ON.
2. Review the Freeze Frame data and note the
parameters.
3. Operate the vehicle within the freeze frame
conditions and Conditions for Setting the DTC as
noted?
Does the scan tool the indicate Closed Loop?
–
Go to Step 12Go to Step 4
4
Disconnect the Heated O2 sensor connector and
jumper the Heated O2 sensor low circuit, terminal 4
to ground.
Is the HO2 voltage below the specified value and
does the scan tool indicate the heated oxygen
sensor heater voltage within the specified value?
0.5VGo to Step 5Go to Step 6
5
Check the Heated O2 sensor connector for
malfunction terminals or poor connection and repair
as necessary.
Is repair necessary?
–
Go to Step 12Go to Step 9
6
1. Turn the ignition switch to On.
2. Remove the jumper wire.
3. Using a digital voltmeter(DVM), measure the
voltage between the Heated O2 sensor signal
circuit, terminal 3 to ground.
Does the Heated O2 sensor voltage measure above
the specified value?
0.6VGo to Step 10Go to Step 9
7Does the Heated O2 sensor voltage measure below
the specified value?
0.3VGo to Step 11Go to Step 8
8
Check the Heated O2 sensor ground circuit, terminal
4 for an open or poor connection and repair as
necessary.
Is repair necessary?
–
Go to Step 12Go to Step 8
11
Check the Heated O2 sensor signal circuit, terminal
3 for an open or poor connection and repair as
necessary.
Is repair necessary?
–
Go to Step 12Go to Step 8
10
1. If disconnected, reconnect Heated O2 sensor
connector.
2. Using the scan tool, clear the DTCs.
3. Start the engine and idle at normal operating
temperature.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the supporting
text.
Does the scan tool indicated that this diagnostic has
run and passed?
–
Go to Step 13Go to Step 2
Page 241 of 1184
ENGINE CONTROLS 1F–143
DAEWOO M-150 BL2

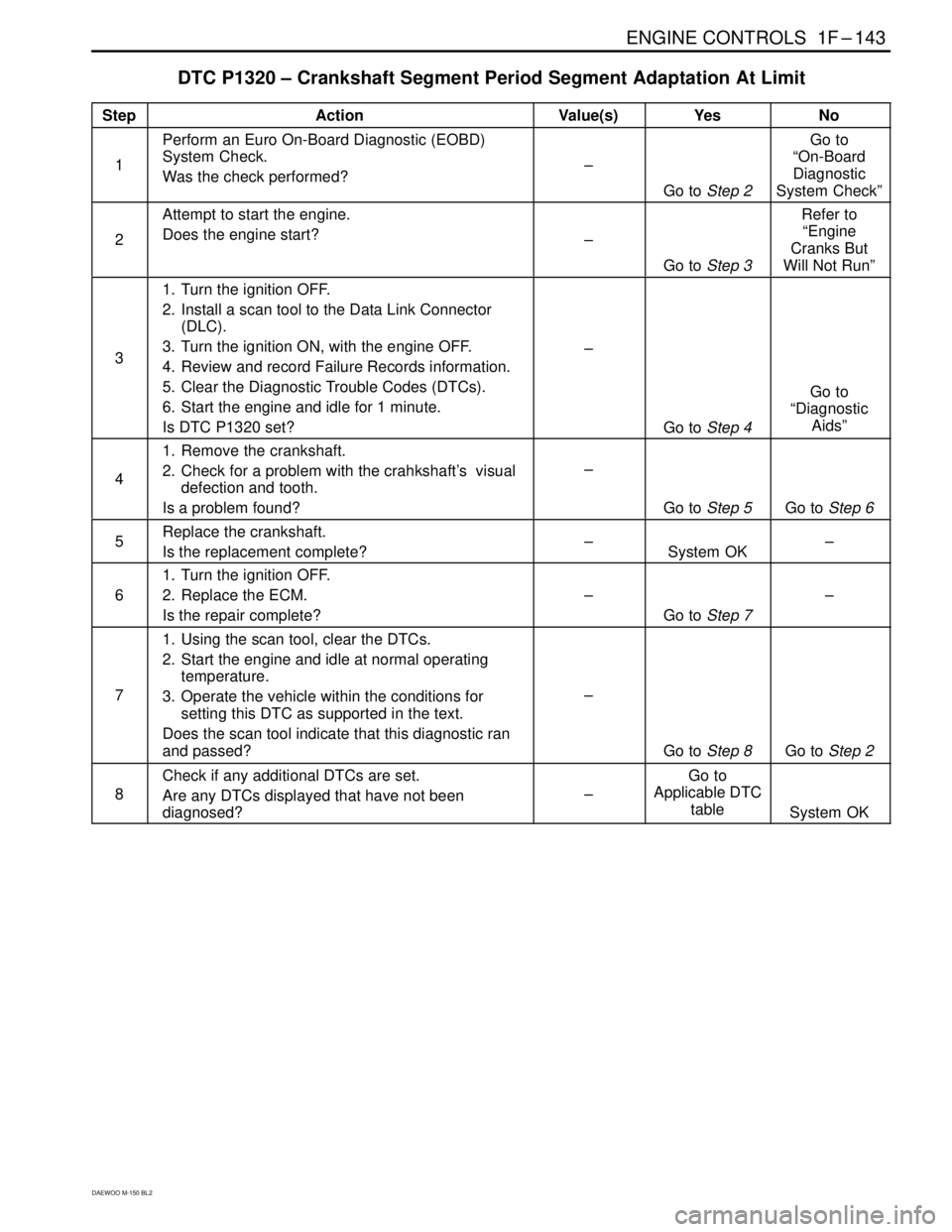

DTC P1320 – Crankshaft Segment Period Segment Adaptation At Limit
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Was the check performed?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
Attempt to start the engine.
Does the engine start?
–
Go to Step 3
Refer to
“Engine
Cranks But
Will Not Run”
3
1. Turn the ignition OFF.
2. Install a scan tool to the Data Link Connector
(DLC).
3. Turn the ignition ON, with the engine OFF.
4. Review and record Failure Records information.
5. Clear the Diagnostic Trouble Codes (DTCs).
6. Start the engine and idle for 1 minute.
Is DTC P1320 set?
–
Go to Step 4
Go to
“Diagnostic
Aids”
4
1. Remove the crankshaft.
2. Check for a problem with the crahkshaft’s visual
defection and tooth.
Is a problem found?
–
Go to Step 5Go to Step 6
5Replace the crankshaft.
Is the replacement complete?–System OK–
6
1. Turn the ignition OFF.
2. Replace the ECM.
Is the repair complete?
–
Go to Step 7
–
7
1. Using the scan tool, clear the DTCs.
2. Start the engine and idle at normal operating
temperature.
3. Operate the vehicle within the conditions for
setting this DTC as supported in the text.
Does the scan tool indicate that this diagnostic ran
and passed?
–
Go to Step 8Go to Step 2
8
Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?
–
Go to
Applicable DTC
table
System OK
Page 243 of 1184
ENGINE CONTROLS 1F–145
DAEWOO M-150 BL2
DTC P1321 – Crankshaft Segment Period Tooth Error
StepActionValue(s)YesNo
1
Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Was the check performed?
–
Go to Step 2
Go to
“On-Board
Diagnostic
System Check”
2
Attempt to start the engine.
Does the engine start?
–
Go to Step 3
Refer to
“Engine
Cranks But
Will Not Run”
3
1. Turn the ignition OFF.
2. Install a scan tool to the Data Link Connector
(DLC)
3. Turn the ignition ON, with the engine OFF.
4. Review and record Failure Records information.
5. Clear the Diagnostic Trouble Codes (DTCs).
6. Start the engine and idle for 1 minute.
Is DTC P1321 set?
–
Go to Step 4
Go to
“Diagnostic
Aids”
4
1. Remove the crankshaft.
2. Check for a problem with the crahkshaft’s visual
defection and tooth.
Is a problem found?
–
Go to Step 5Go to Step 6
5Replace the crankshaft.
Is the replacement complete?–System OK–
6
1. Turn the ignition OFF.
2. Replace the ECM.
Is the repair complete?
–
Go to Step 7
–
7
1. Using the scan tool, clear the DTCs.
2. Start the engine and idle at normal operating
temperature.
3. Operate the vehicle within the conditions for
setting this DTC as supported in the text.
Does the scan tool indicate that this diagnostic ran
and passed?
–
Go to Step 8Go to Step 2
8
Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?
–
Go to
Applicable DTC
table
System OK
