Page 101 of 473
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Editcan be used to add another phone
number to a name entry that already exists in the phone-
book. For example, the entry John Doe may have a mobileand a home number, but you can add ”John Doe’s” work
number later using thePhonebook Editfeature.
Delete UConnectPhonebook Entry
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can sayList
Namesto hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the UConnectsystem is playing the desired
entry and sayDelete.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

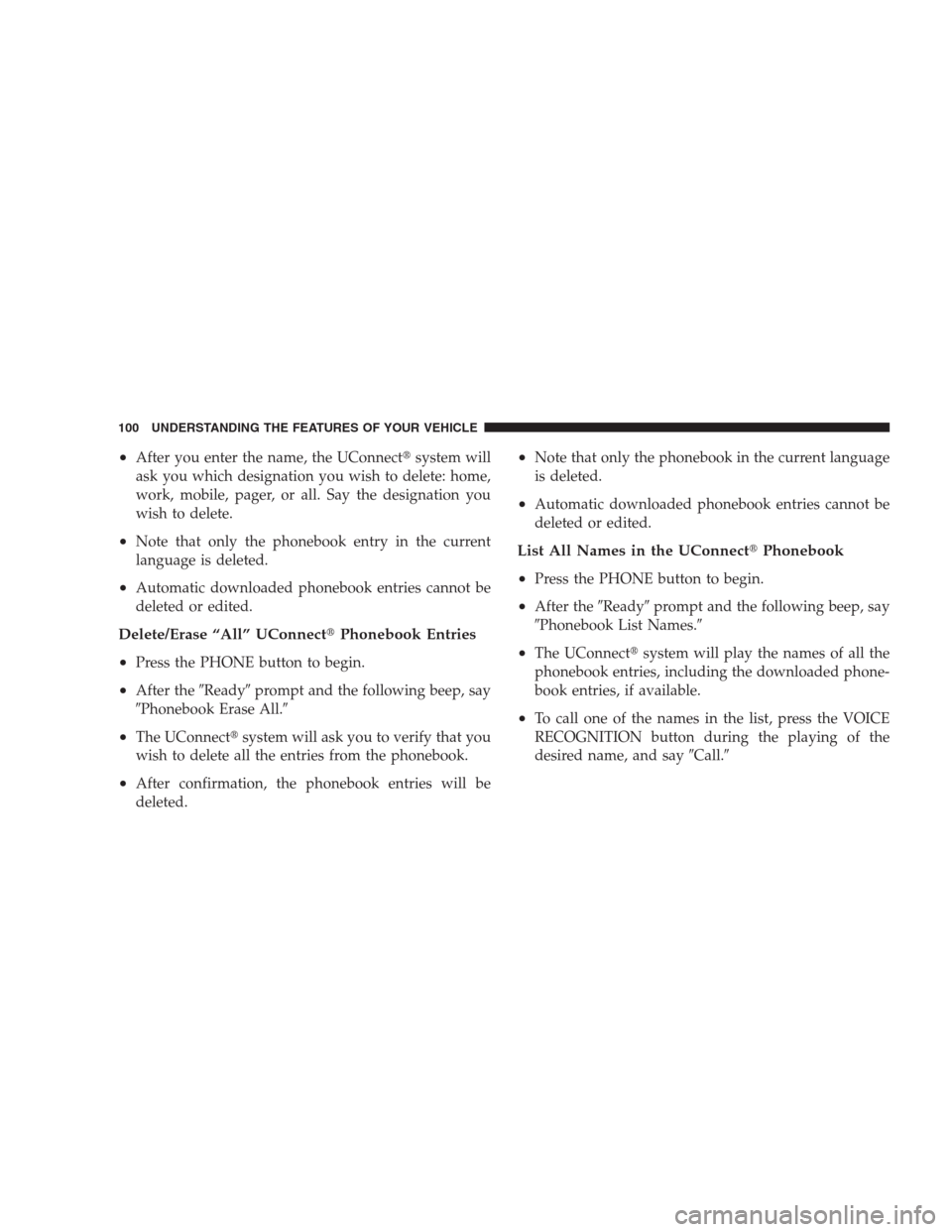

Page 102 of 473
•After you enter the name, the UConnectsystem will
ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
Delete/Erase “All” UConnectPhonebook Entries
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Erase All.
•The UConnectsystem will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
List All Names in the UConnectPhonebook
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook List Names.
•The UConnectsystem will play the names of all the
phonebook entries, including the downloaded phone-
book entries, if available.
•To call one of the names in the list, press the VOICE
RECOGNITION button during the playing of the
desired name, and sayCall.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 103 of 473
NOTE:The user can also exerciseEditorDelete
operations at this point.
•The UConnectsystem will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnectsystem if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnectsystem. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnectsystem will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the PHONE button to accept the call. To reject
the call, press and hold the PHONE button until you hear
a single beep, indicating that the incoming call was
rejected.
Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
cellular phone. Press the PHONE button to place the
current call on hold and answer the incoming call.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101
3
Page 104 of 473
NOTE:The UConnectsystem compatible phones in
the market today do not support rejecting an incoming
call when another call is in progress. Therefore, the user
can only answer an incoming call or ignore it.
Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the VOICE RECOGNITION button and sayDial
orCallfollowed by the phone number or phonebook
entry you wish to call. The first call will be on hold while
the second call is in progress. To go back to the first call,
refer toToggling Between Callsin this section. To
combine two calls, refer toConference Callin this
section.
Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.
Three-Way Calling
To initiate three-way calling, press the VOICE RECOG-
NITION button while a call is in progress, and make a
second phone call, as described underMaking a Second
Call While Current Call is in Progress.After the second
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

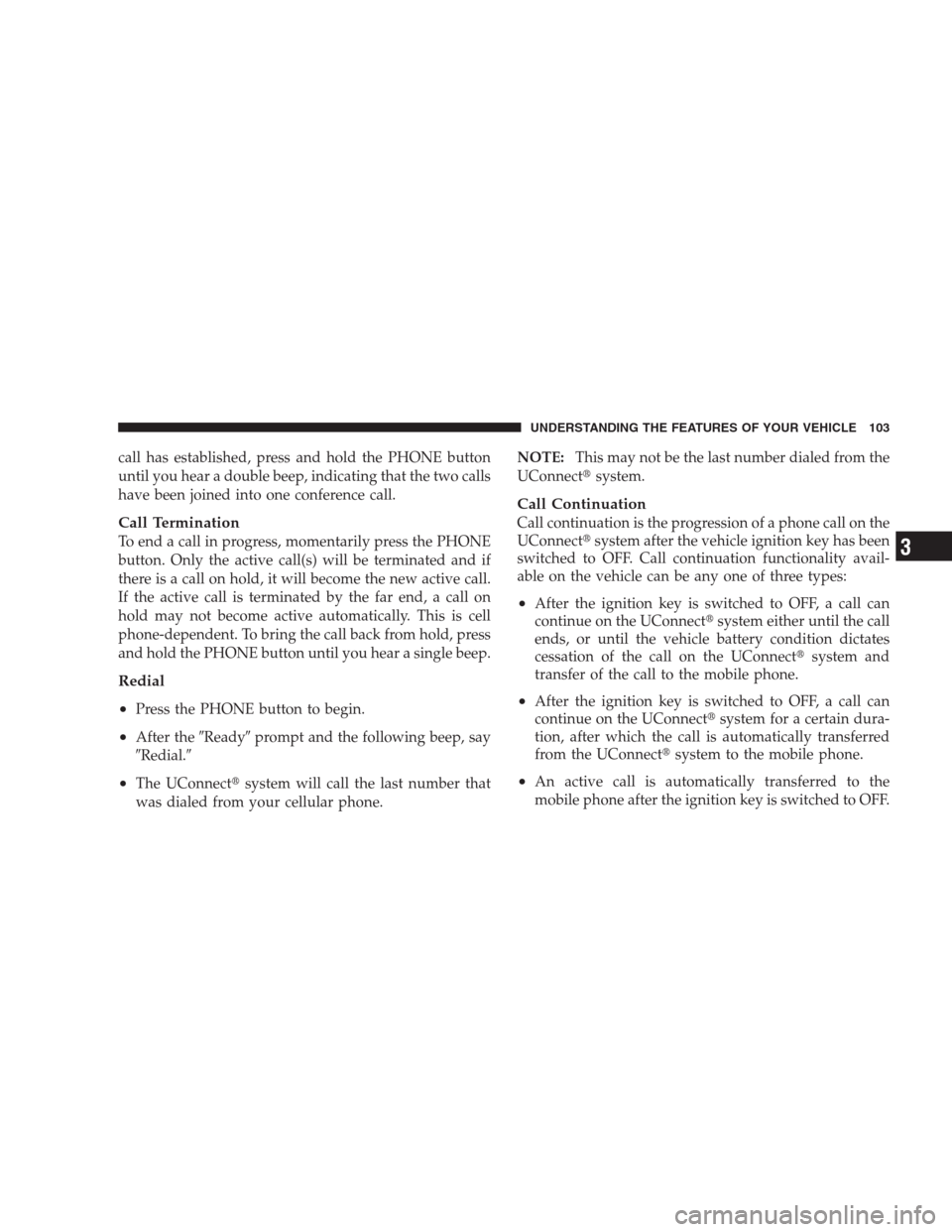

Page 105 of 473
call has established, press and hold the PHONE button
until you hear a double beep, indicating that the two calls
have been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on
hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.
Redial
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Redial.
•The UConnectsystem will call the last number that
was dialed from your cellular phone.NOTE:This may not be the last number dialed from the
UConnectsystem.
Call Continuation
Call continuation is the progression of a phone call on the
UConnectsystem after the vehicle ignition key has been
switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:
•After the ignition key is switched to OFF, a call can
continue on the UConnectsystem either until the call
ends, or until the vehicle battery condition dictates
cessation of the call on the UConnectsystem and
transfer of the call to the mobile phone.
•After the ignition key is switched to OFF, a call can
continue on the UConnectsystem for a certain dura-
tion, after which the call is automatically transferred
from the UConnectsystem to the mobile phone.
•An active call is automatically transferred to the
mobile phone after the ignition key is switched to OFF.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103
3
Page 106 of 473
UConnectSystem Features
Language Selection
To change the language that the UConnectsystem is
using:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
the name of the language you wish to switch to
English, Espanol, or Francais.
•Continue to follow the system prompts to complete
the language selection.
After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:After every UConnectlanguage change opera-
tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnectsystem
is operational, you may reach the emergency number as
follows:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Emergencyand the UConnectsystem will instruct
the paired cellular phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 107 of 473
NOTE:
•The emergency number dialed is based on the country
where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available cellular service
and area.
•If supported, this number may be programmable on
some systems. To do this, press the PHONE button
and say ‘Setup’, followed by ‘Emergency’.
•The UConnectsystem does slightly lower your
chances of successfully making a phone call as to that
for the cell phone directly.
WARNING!
Your phone must be turned on and paired to the
UConnectsystem to allow use of this vehicle feature
in emergency situations, when the cell phone has
network coverage and stays paired to the UConnect
system.
Towing Assistance
If you need towing assistance:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Towing Assistance.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3
Page 108 of 473
NOTE:
•The towing assistance number dialed is based on the
country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-
3454 for Mexico City and 1-800-712-3040 for outside
Mexico City in Mexico).
•If supported, this number may be programmable on
some systems. To do this, press the PHONE button
and say “Setup”’, followed by “Towing Assistance”.
Paging
To learn how to page, refer toWorking with Automated
Systems.Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the UConnectsystem.
Voice Mail Calling
To learn how to access your voice mail, refer toWorking
with Automated Systems.
Working with Automated Systems
This method is used in instances where one generally has
to press numbers on the cellular phone keypad while
navigating through an automated telephone system.
You can use your UConnectsystem to access a voice
mail system or an automated service, such as a paging
service or automated customer service line. Some ser-
vices require immediate response selection. In some
instances, that may be too quick for use of the UConnect
system.
When calling a number with your UConnectsystem
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can press
the VOICE RECOGNITION button and say the sequence
you wish to enter, followed by the wordSend.For
example, if required to enter your PIN followed with a
pound, (3746#),youcanpresstheVOICE RECOGNI-
TION button and say,3746#Send.Saying a number,
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 109 of 473
or sequence of numbers, followed bySend,is also to be
used for navigating through an automated customer
service center menu structure, and to leave a number on
a pager.
You can also send stored UConnectphonebook entries
as tones for fast and easy access to voice mail and pager
entries. To use this feature, dial the number you wish to
call and then press the VOICE RECOGNITION button
and say, “Send.” The system will prompt you to enter the
name or number and say the name of the phonebook
entry you wish to send. The UConnectsystem will then
send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations. This is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is askingWould you like to pair a phone, clear
a...,you could press the VOICE RECOGNITION button
and say,Pair a Phoneto select that option without
having to listen to the rest of the voice prompt.
Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnectsys-
tem will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
3
Page 110 of 473
•After theReadyprompt and the following beep, say
Setup Confirmations.The UConnectsystem will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cellular phone, the UConnectsystem will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect. The status is given for roaming, net-
work signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnectsystem (while dial-
ing via the cellular phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetoothcellularphone, the audio will be played through your vehicle’s
audio system. The UConnectsystem will work the same
as if you dial the number using voice recognition.
NOTE:Certain brands of cellular phones do not send
the dial ring to the UConnectsystem to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
Mute/Un-Mute (Mute OFF)
When you mute the UConnectsystem, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the UConnectsystem:
•Press the VOICE RECOGNITION button.
•Following the beep, sayMute.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
