Page 131 of 473

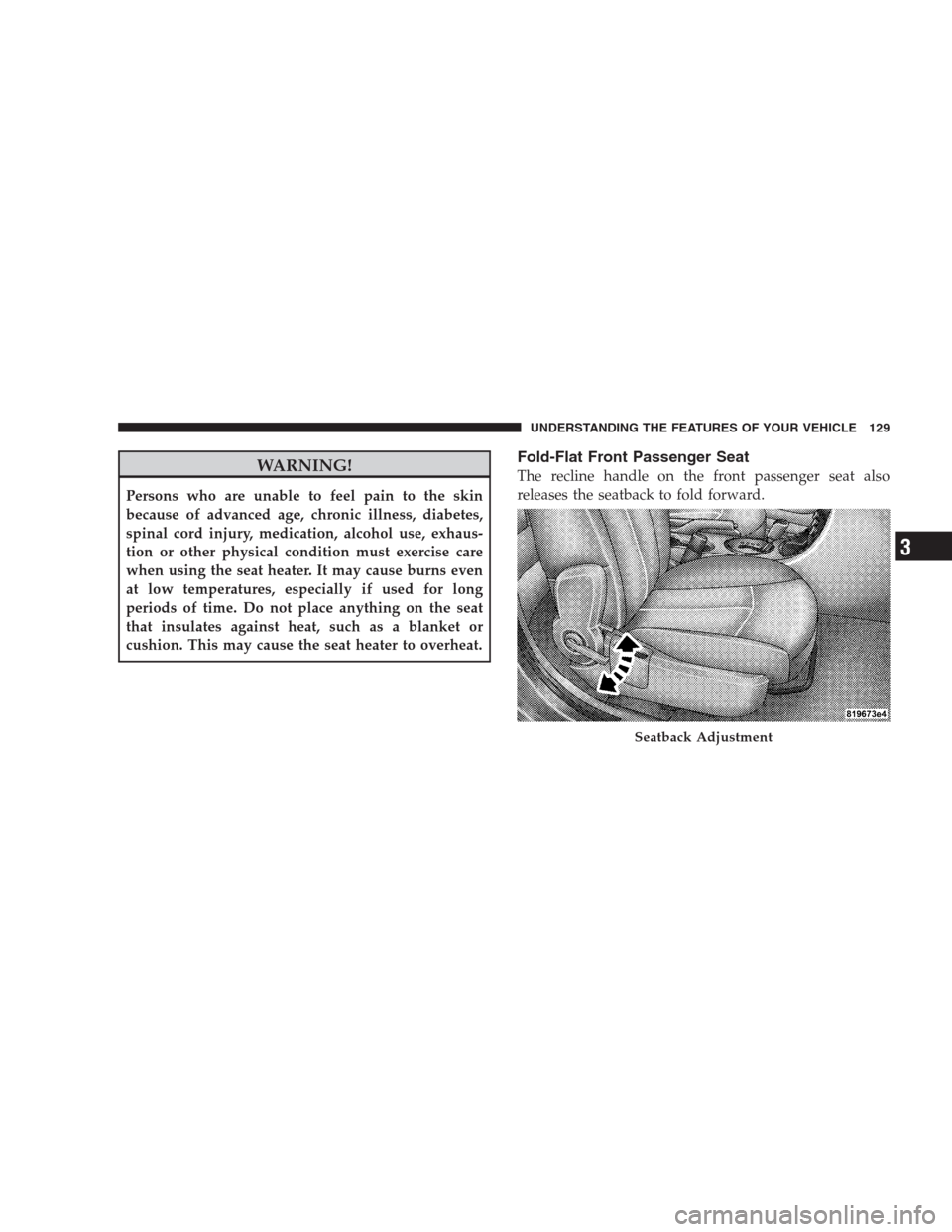

WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. Do not place anything on the seat
that insulates against heat, such as a blanket or
cushion. This may cause the seat heater to overheat.
Fold-Flat Front Passenger Seat
The recline handle on the front passenger seat also
releases the seatback to fold forward.
Seatback Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3
Page 132 of 473

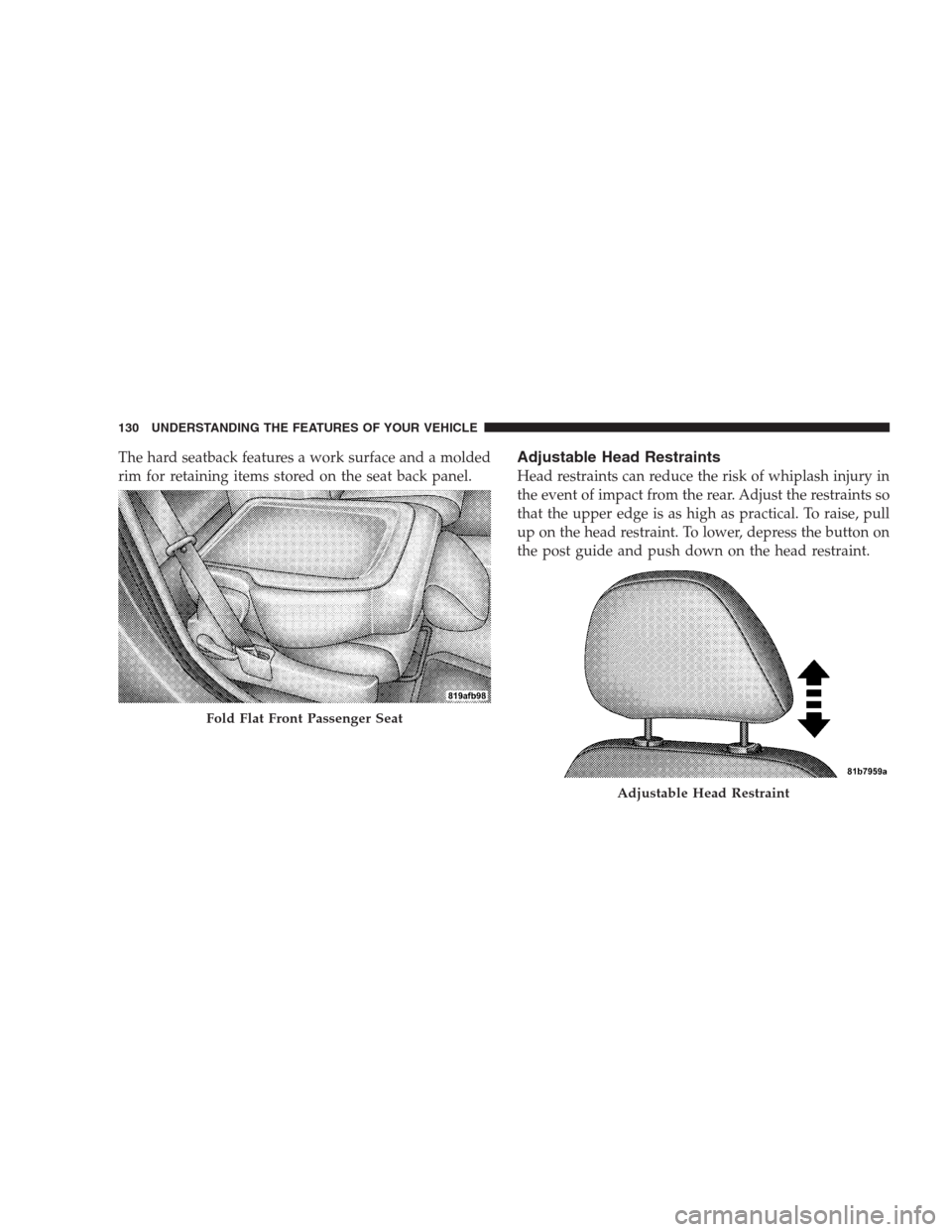

The hard seatback features a work surface and a molded
rim for retaining items stored on the seat back panel.Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Adjust the restraints so
that the upper edge is as high as practical. To raise, pull
up on the head restraint. To lower, depress the button on
the post guide and push down on the head restraint.
Fold Flat Front Passenger Seat
Adjustable Head Restraint
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 133 of 473

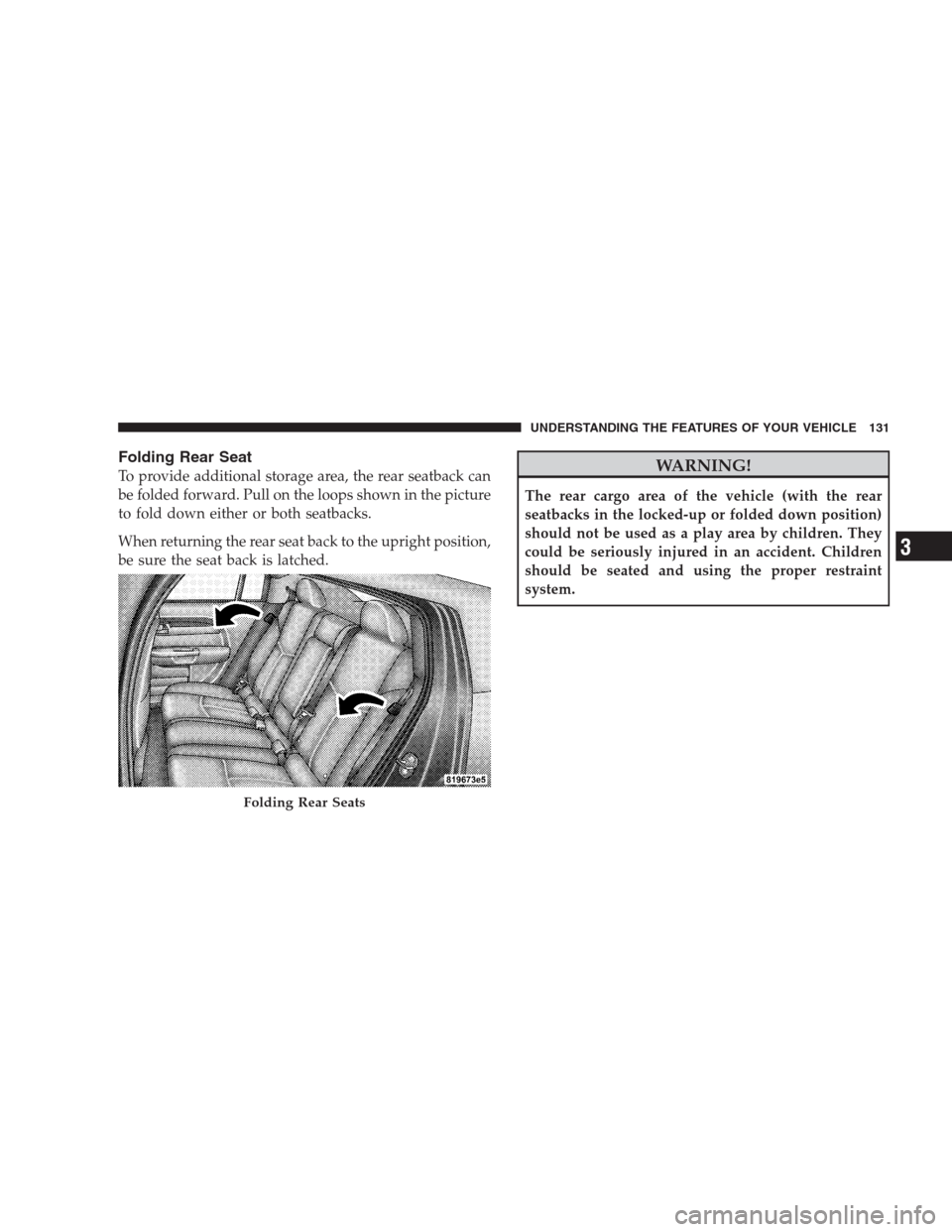

Folding Rear Seat
To provide additional storage area, the rear seatback can
be folded forward. Pull on the loops shown in the picture
to fold down either or both seatbacks.
When returning the rear seat back to the upright position,
be sure the seat back is latched.WARNING!
The rear cargo area of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children. They
could be seriously injured in an accident. Children
should be seated and using the proper restraint
system.
Folding Rear Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3
Page 134 of 473

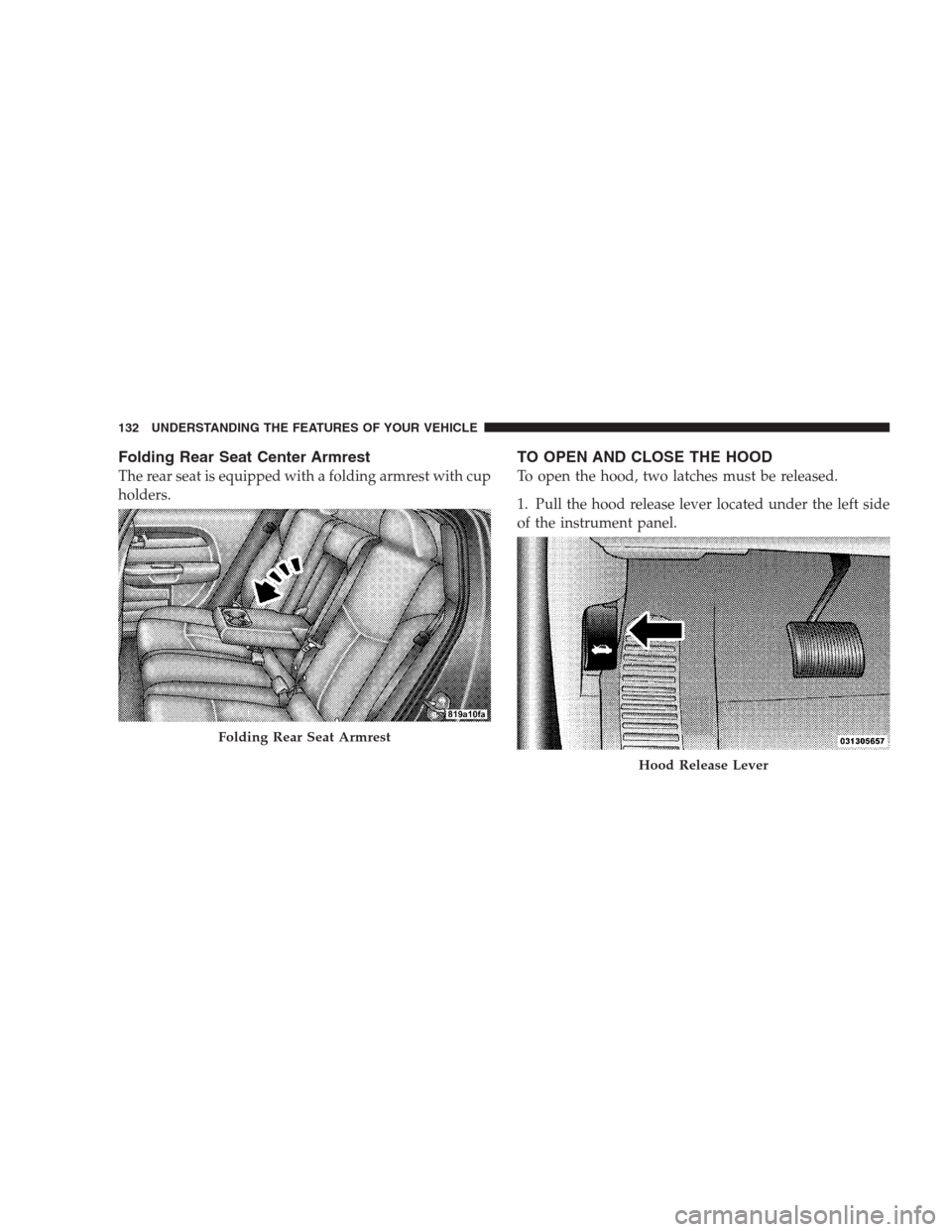

Folding Rear Seat Center Armrest
The rear seat is equipped with a folding armrest with cup
holders.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located under the left side
of the instrument panel.
Folding Rear Seat Armrest
Hood Release Lever
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 135 of 473
2. Lift the secondary latch located under the front edge
of the hood, near the center and raise the hood.
Use the hood prop rod to secure the hood in the open
position. Place the upper end of the prop rod in the hole
on the left underside of the hood.Before closing the hood, make sure to stow the prop rod
in its proper location. To prevent possible damage, do not
slam the hood to close it. Use a firm downward push at
the center of the hood to ensure that both latches engage.
Hood Safety Catch
Hood Prop Rod Hole Location
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3
Page 136 of 473

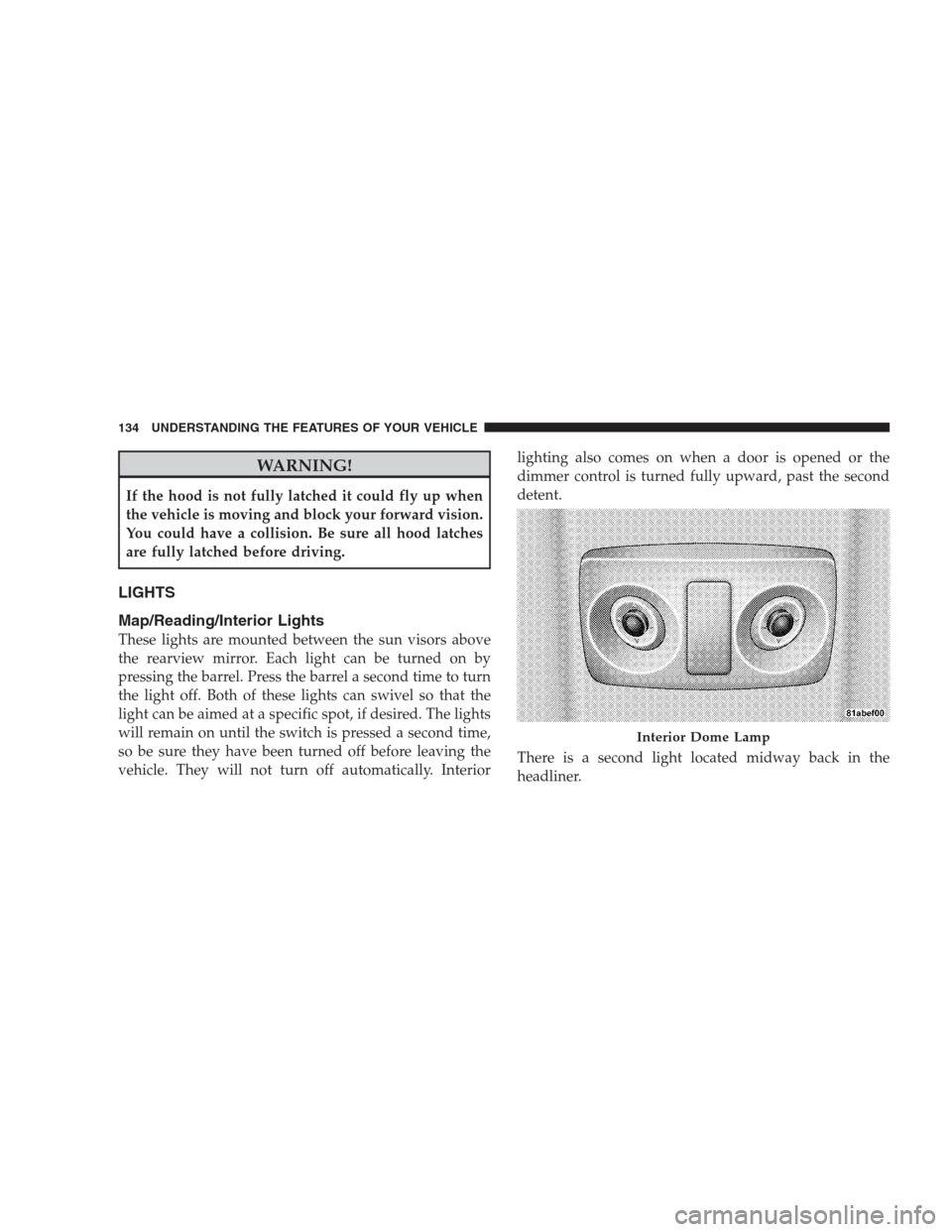

WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Map/Reading/Interior Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light can be turned on by
pressing the barrel. Press the barrel a second time to turn
the light off. Both of these lights can swivel so that the
light can be aimed at a specific spot, if desired. The lights
will remain on until the switch is pressed a second time,
so be sure they have been turned off before leaving the
vehicle. They will not turn off automatically. Interiorlighting also comes on when a door is opened or the
dimmer control is turned fully upward, past the second
detent.
There is a second light located midway back in the
headliner.
Interior Dome Lamp
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 137 of 473

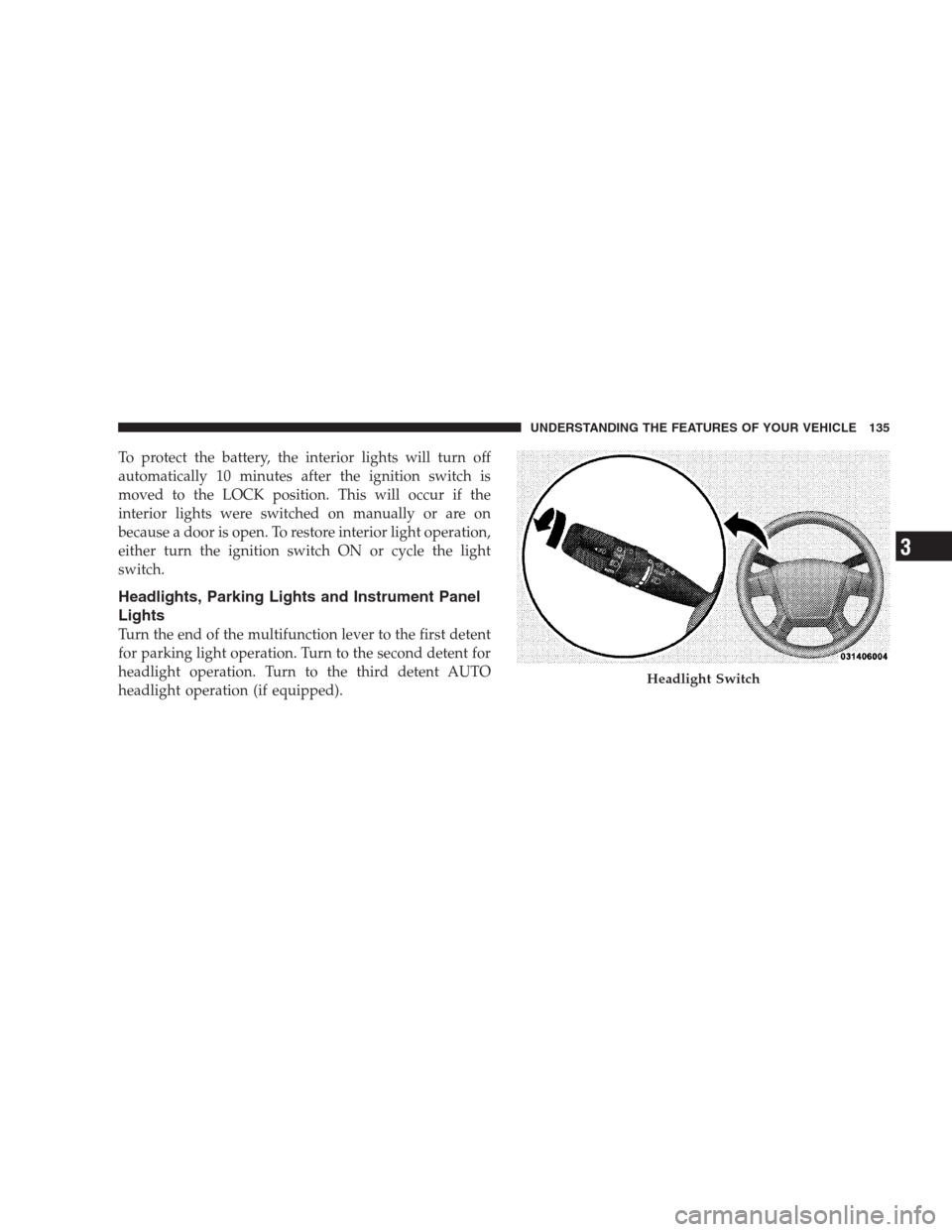

To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
Headlights, Parking Lights and Instrument Panel
Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation. Turn to the third detent AUTO
headlight operation (if equipped).
Headlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3
Page 138 of 473

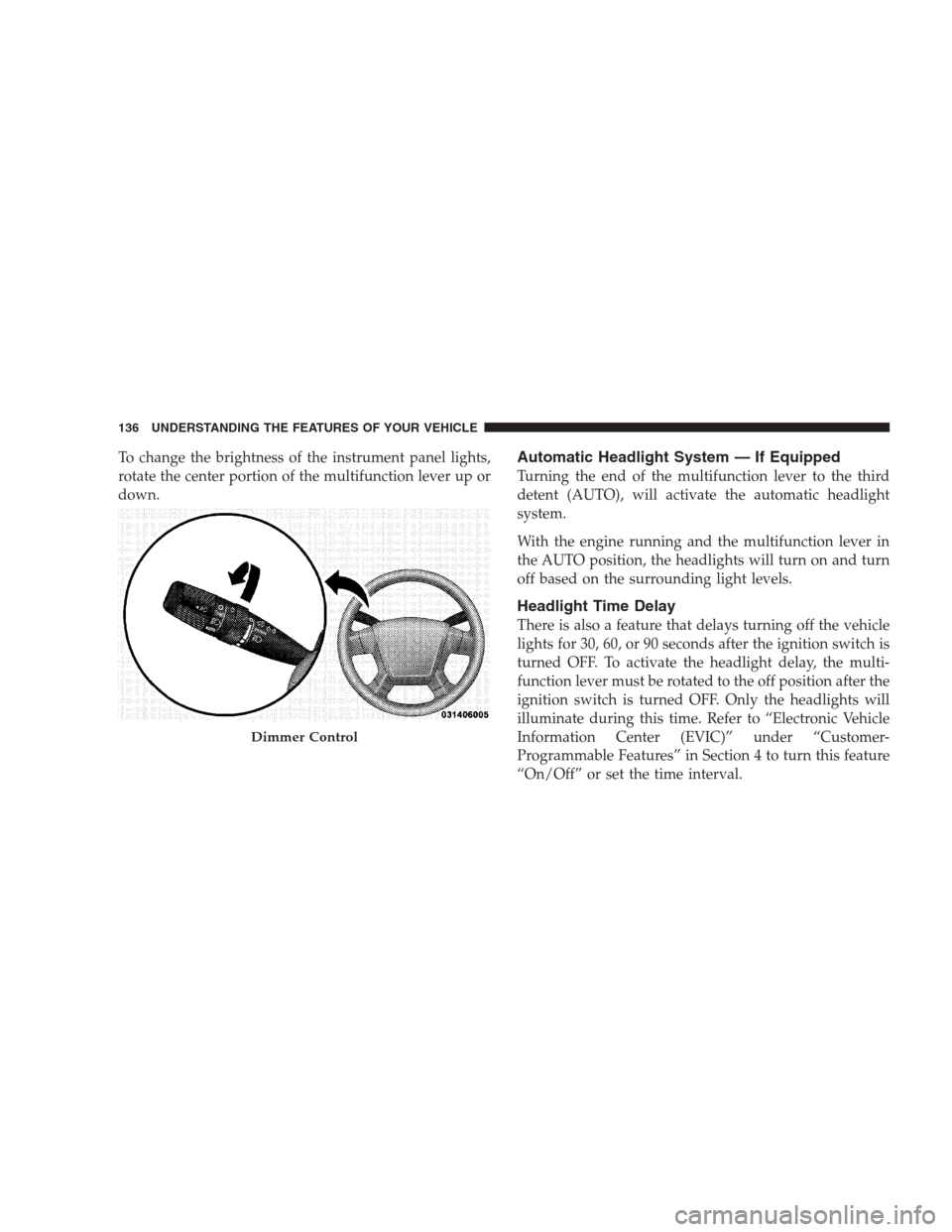

To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.Automatic Headlight System — If Equipped
Turning the end of the multifunction lever to the third
detent (AUTO), will activate the automatic headlight
system.
With the engine running and the multifunction lever in
the AUTO position, the headlights will turn on and turn
off based on the surrounding light levels.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60, or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multi-
function lever must be rotated to the off position after the
ignition switch is turned OFF. Only the headlights will
illuminate during this time. Refer to “Electronic Vehicle
Information Center (EVIC)” under “Customer-
Programmable Features” in Section 4 to turn this feature
“On/Off” or set the time interval.
Dimmer Control
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 139 of 473
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the lever is released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.
Daytime Running Lights (DRL) — If Equipped
The high beam lights will come on as DRL at DRL
intensity (lower), whenever the ignition is ON, the engine
is running, the headlight switch is off, the parking brake
is off, the turn signal is off, and the shift lever is in any
position except PARK.NOTE:On this vehicle, the DRL will automatically turn
off when the turn signal is in operation and automatically
turn back on when the turn signal is not operating.
Lights On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3
Page 140 of 473

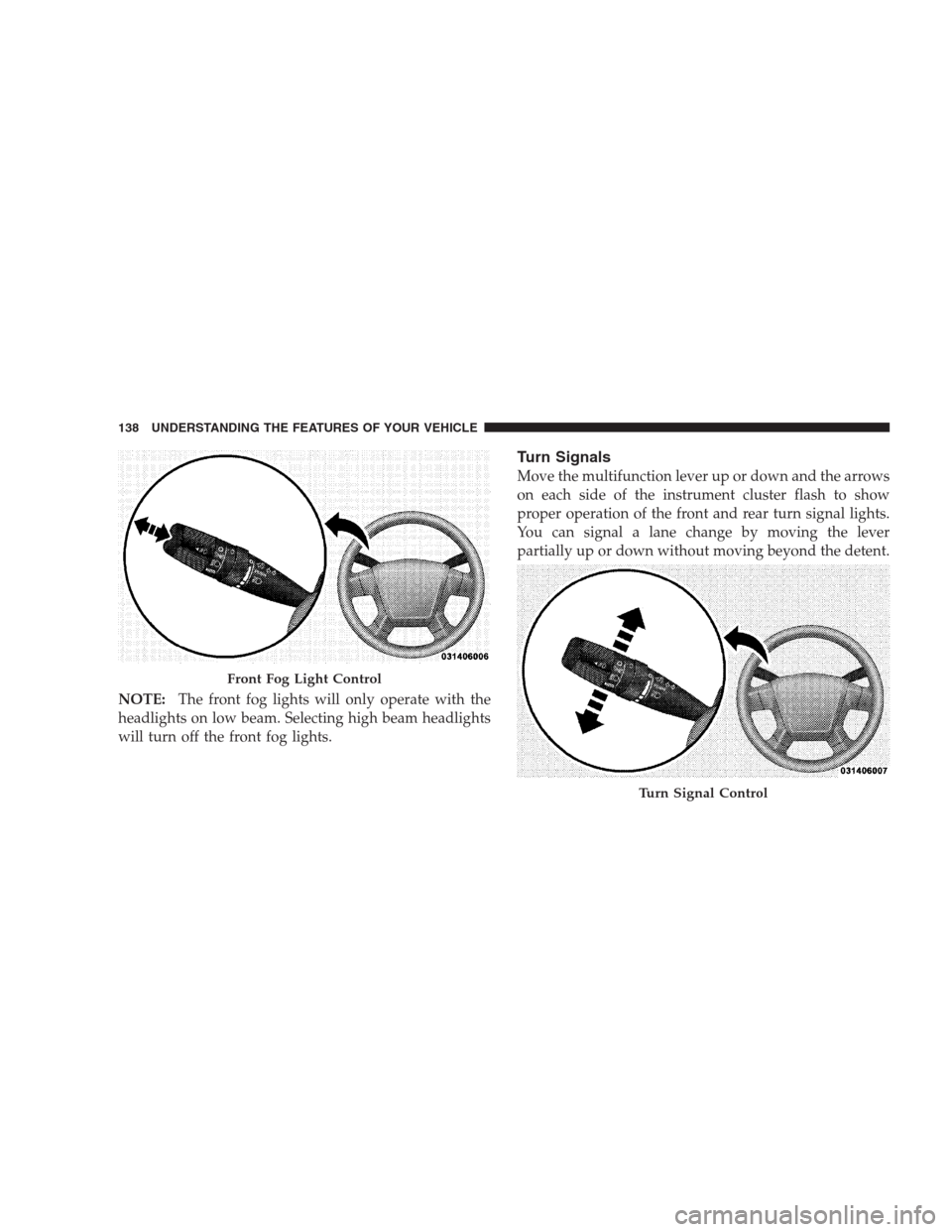

NOTE:The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
Front Fog Light Control
Turn Signal Control
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
