Page 431 of 494

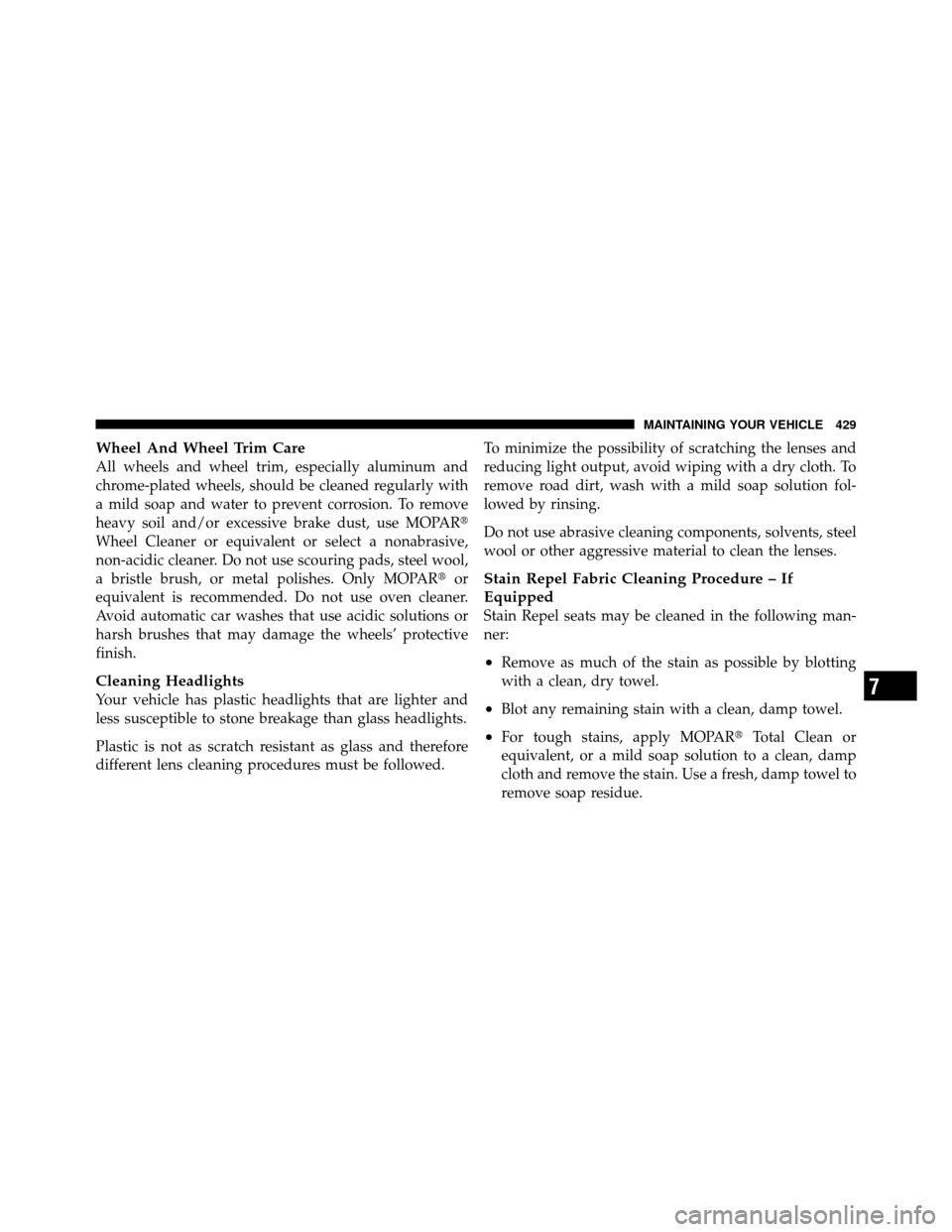

DODGE AVENGER 2011 2.G Owners Manual Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil and

Page 432 of 494

DODGE AVENGER 2011 2.G Owners Manual •For grease stains, apply MOPARMulti-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or a

Page 433 of 494

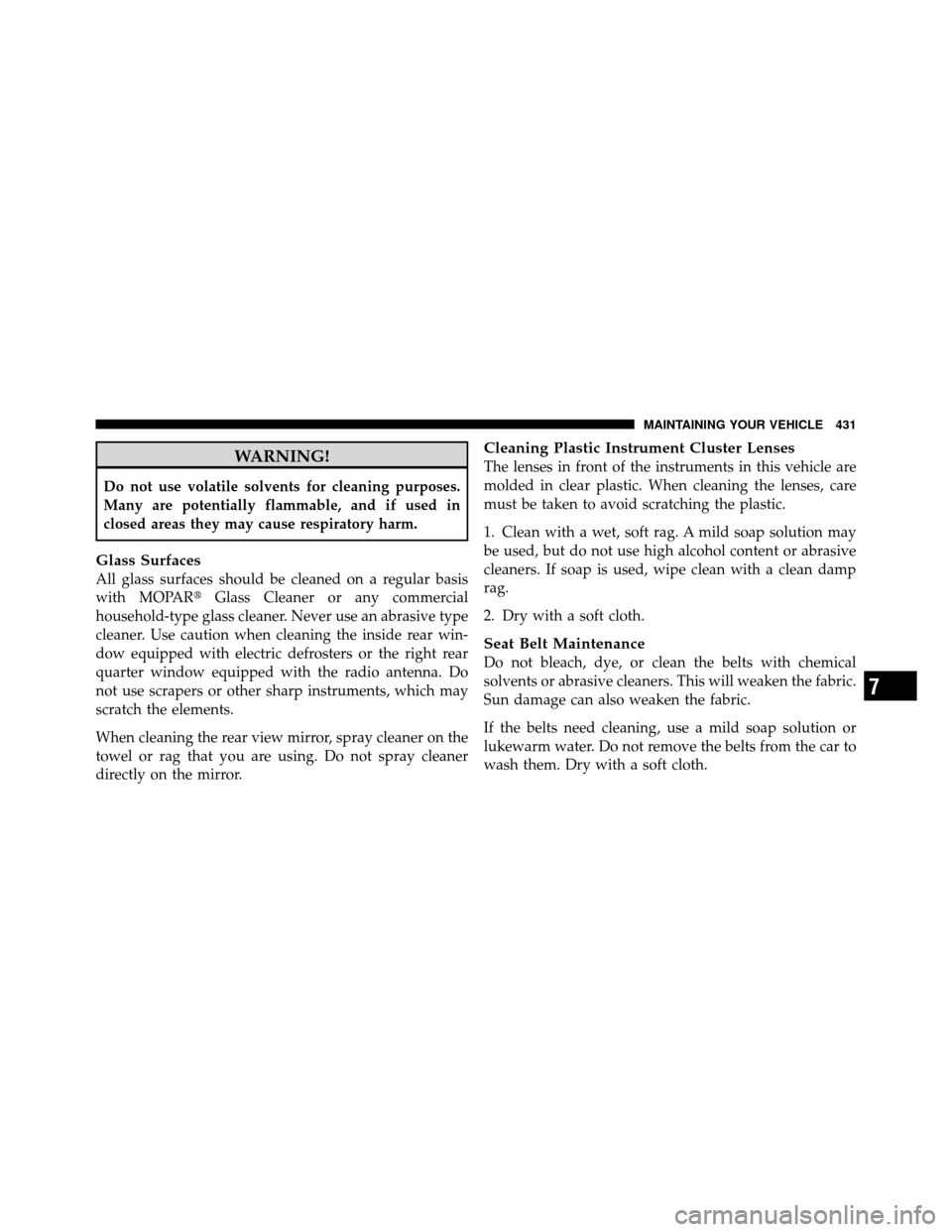

DODGE AVENGER 2011 2.G Owners Manual WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cl

Page 434 of 494

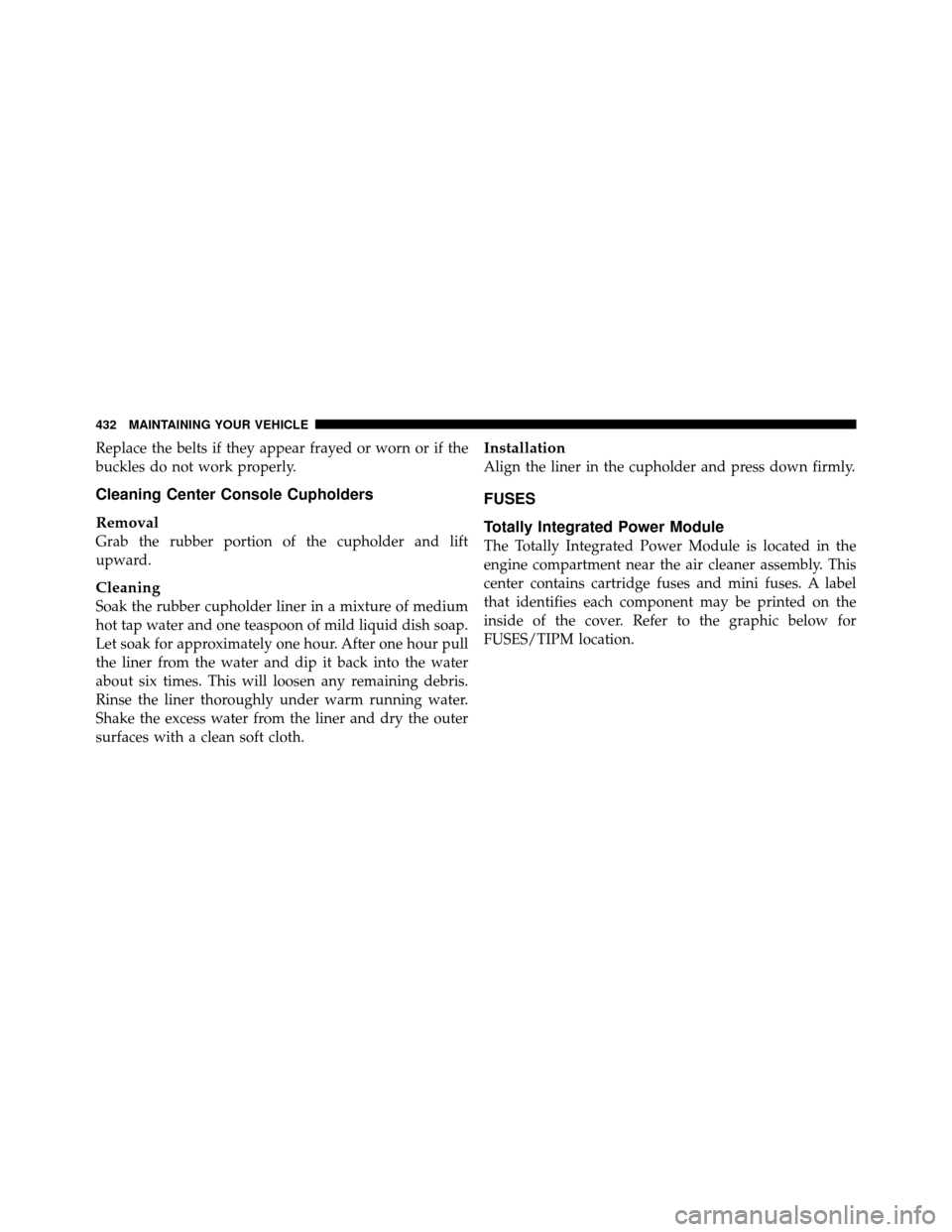

DODGE AVENGER 2011 2.G Owners Manual Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift
upward.
Cleaning
So

Page 435 of 494

DODGE AVENGER 2011 2.G Owners Manual CavityCartridge
Fuse Mini
Fuse Description
1 40 Amp
Green —Power Top Module –
If Equipped
2— 20 Amp
Yellow AWD Module
3— 10 Amp
Red Center High
Mounted Stop Light
(CHMSL)/Brake
Switch
4— 10

Page 436 of 494

DODGE AVENGER 2011 2.G Owners Manual CavityCartridge
Fuse Mini
Fuse Description
8— 30 Amp
Green Ignition Off Draw
(IOD) Sense 2
9 40 Amp
Green Battery Feed – Power
Seats – If Equipped/
PZEV Air Pump – If
Equipped
10 — 20 Amp
Ye

Page 437 of 494

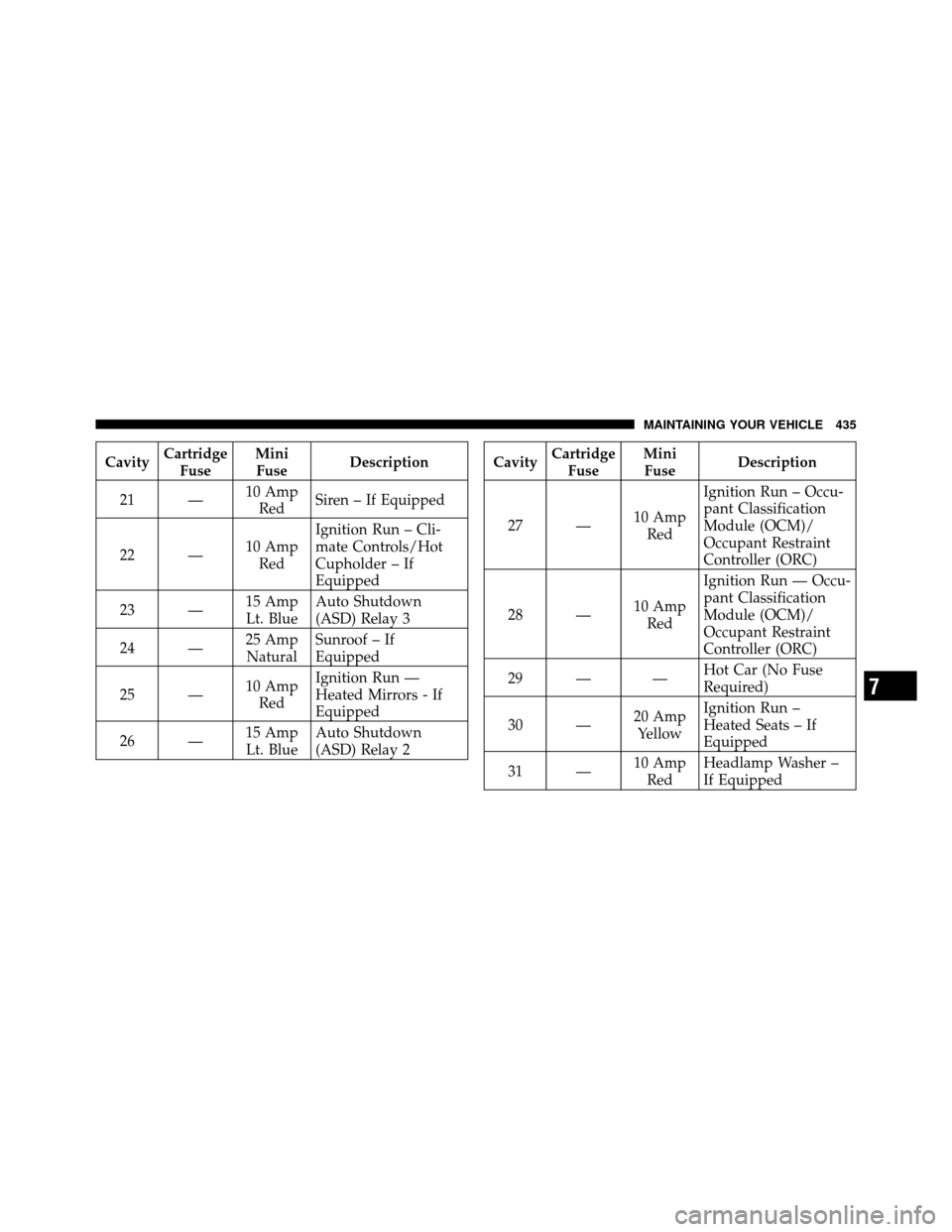

DODGE AVENGER 2011 2.G Owners Manual CavityCartridge
Fuse Mini
Fuse Description
21 — 10 Amp
Red Siren – If Equipped
22 — 10 Amp
Red Ignition Run – Cli-
mate Controls/Hot
Cupholder – If
Equipped
23 — 15 Amp
Lt. Blue Auto Shutd

Page 438 of 494

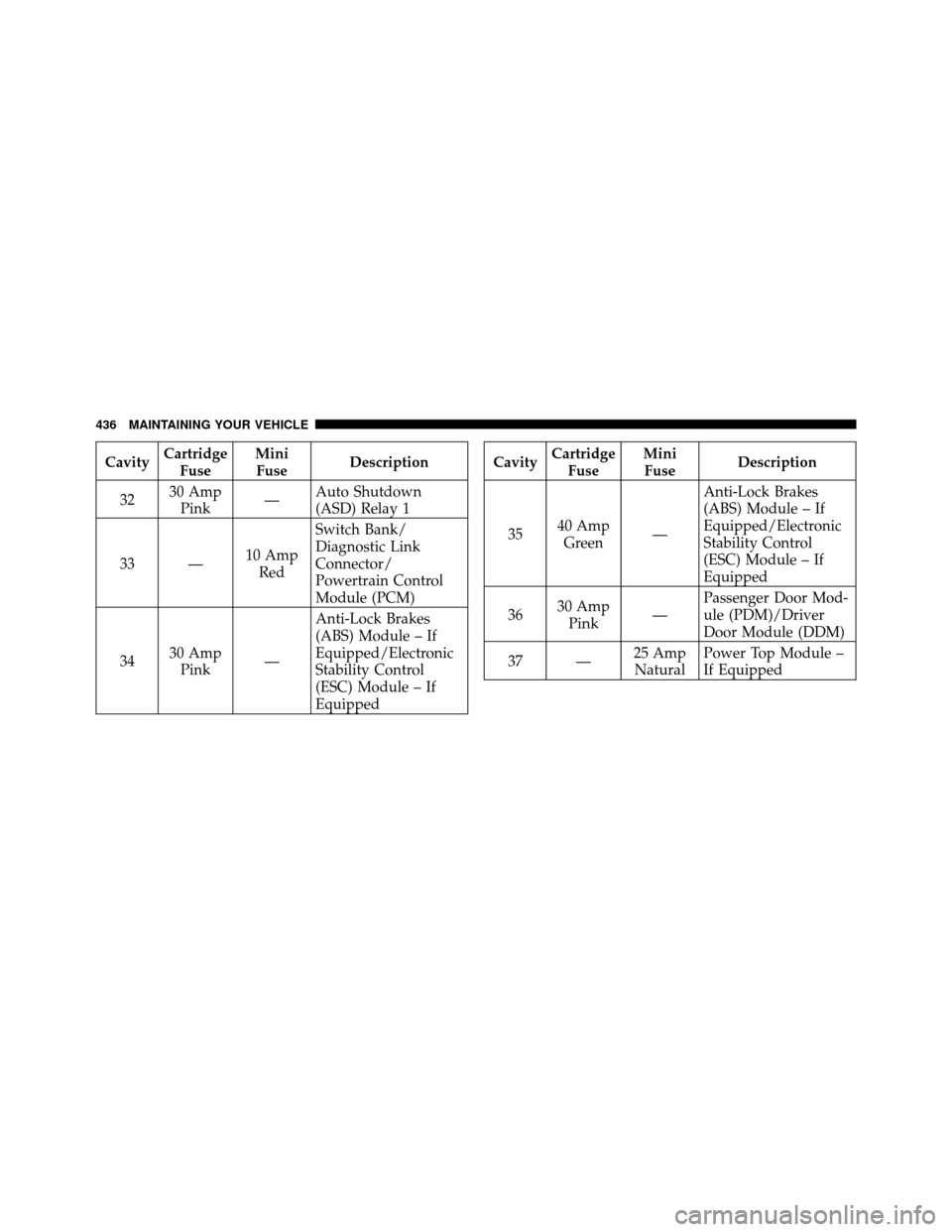

DODGE AVENGER 2011 2.G Owners Manual CavityCartridge
Fuse Mini
Fuse Description
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay 1
33 — 10 Amp
Red Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp
Pink —Ant

Page 439 of 494

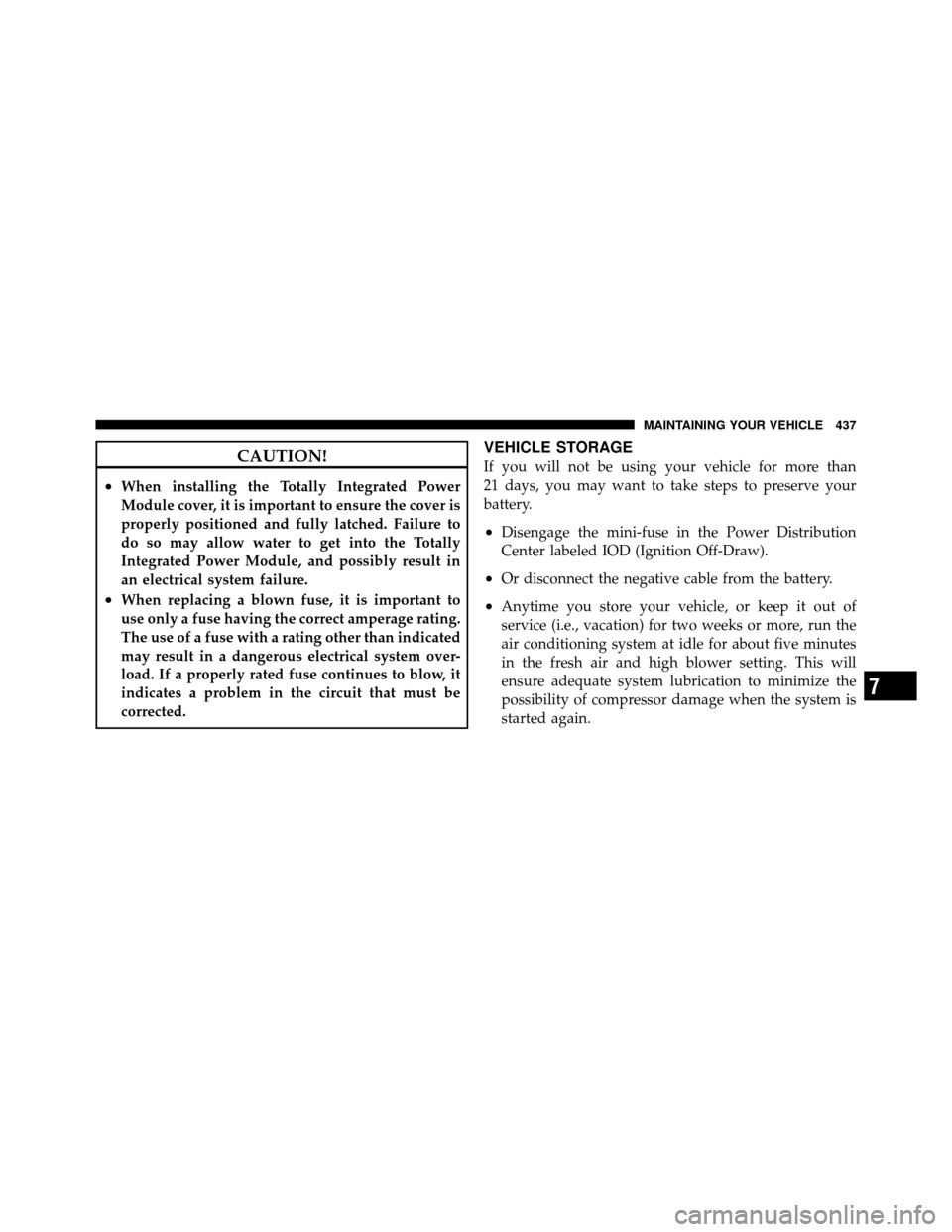

DODGE AVENGER 2011 2.G Owners Manual CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the To

Page 440 of 494

DODGE AVENGER 2011 2.G Owners Manual REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Read
