Page 441 of 494

DODGE AVENGER 2011 2.G Owners Manual NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.

Page 442 of 494

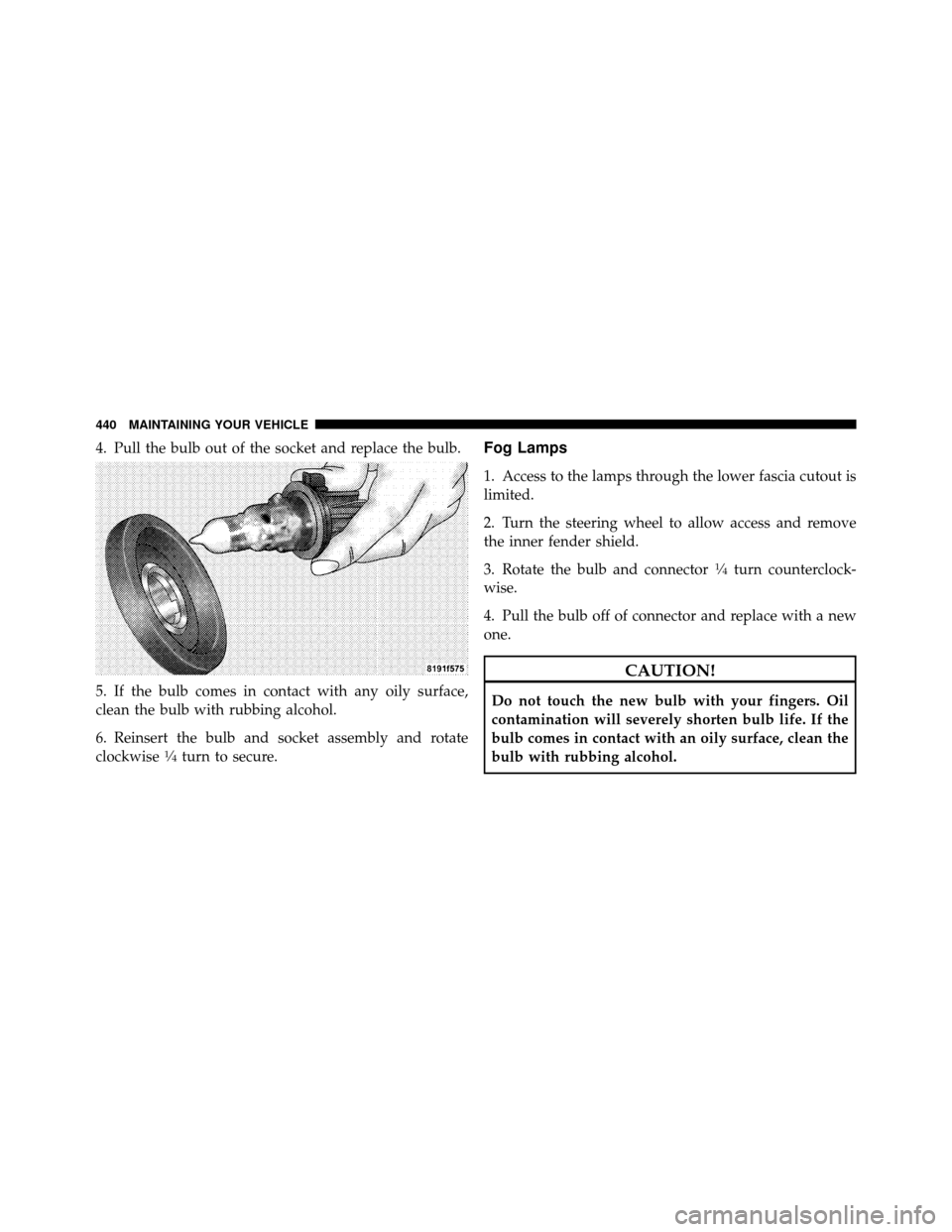

DODGE AVENGER 2011 2.G Owners Manual 4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate

Page 443 of 494

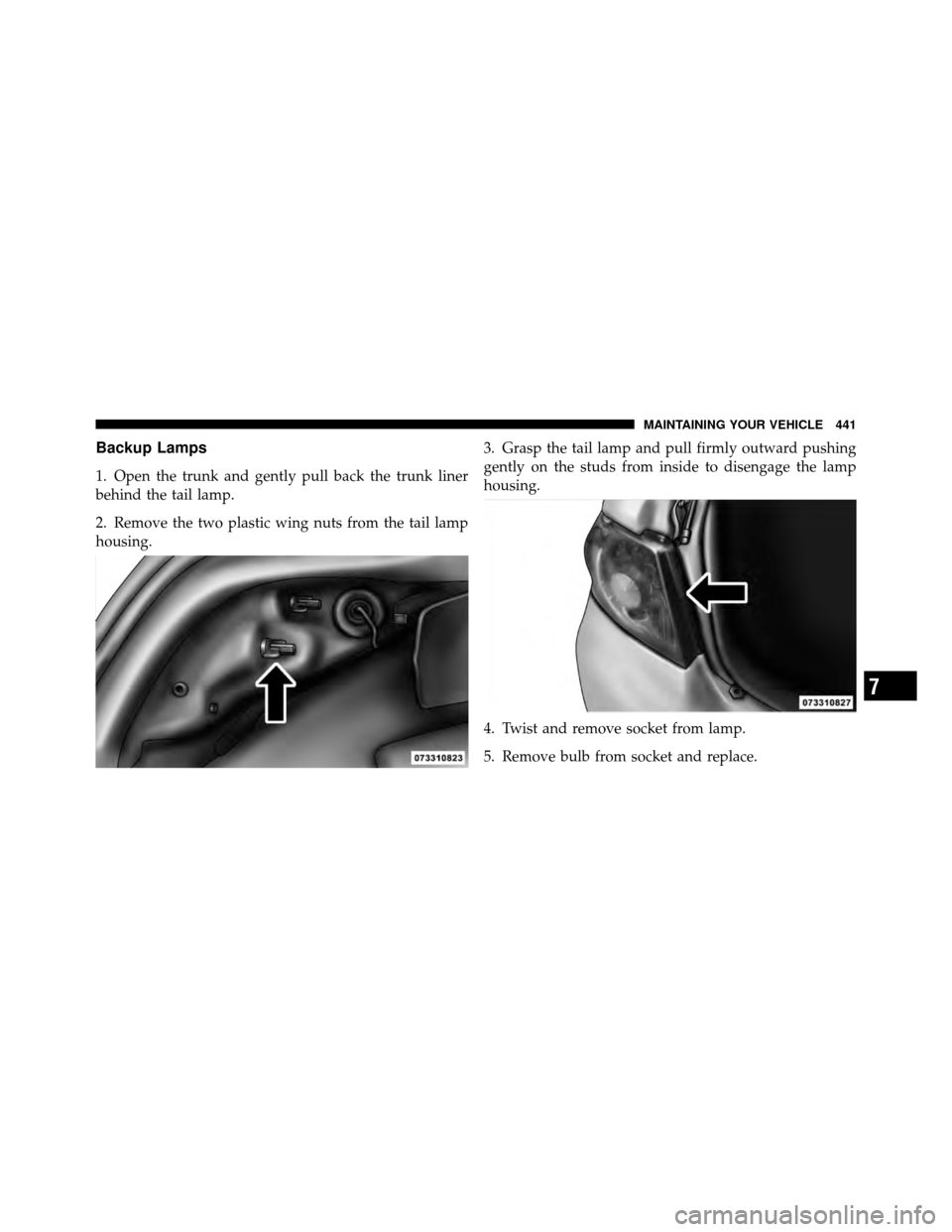

DODGE AVENGER 2011 2.G Owners Manual Backup Lamps
1. Open the trunk and gently pull back the trunk liner
behind the tail lamp.
2. Remove the two plastic wing nuts from the tail lamp
housing.3. Grasp the tail lamp and pull firmly outward

Page 444 of 494

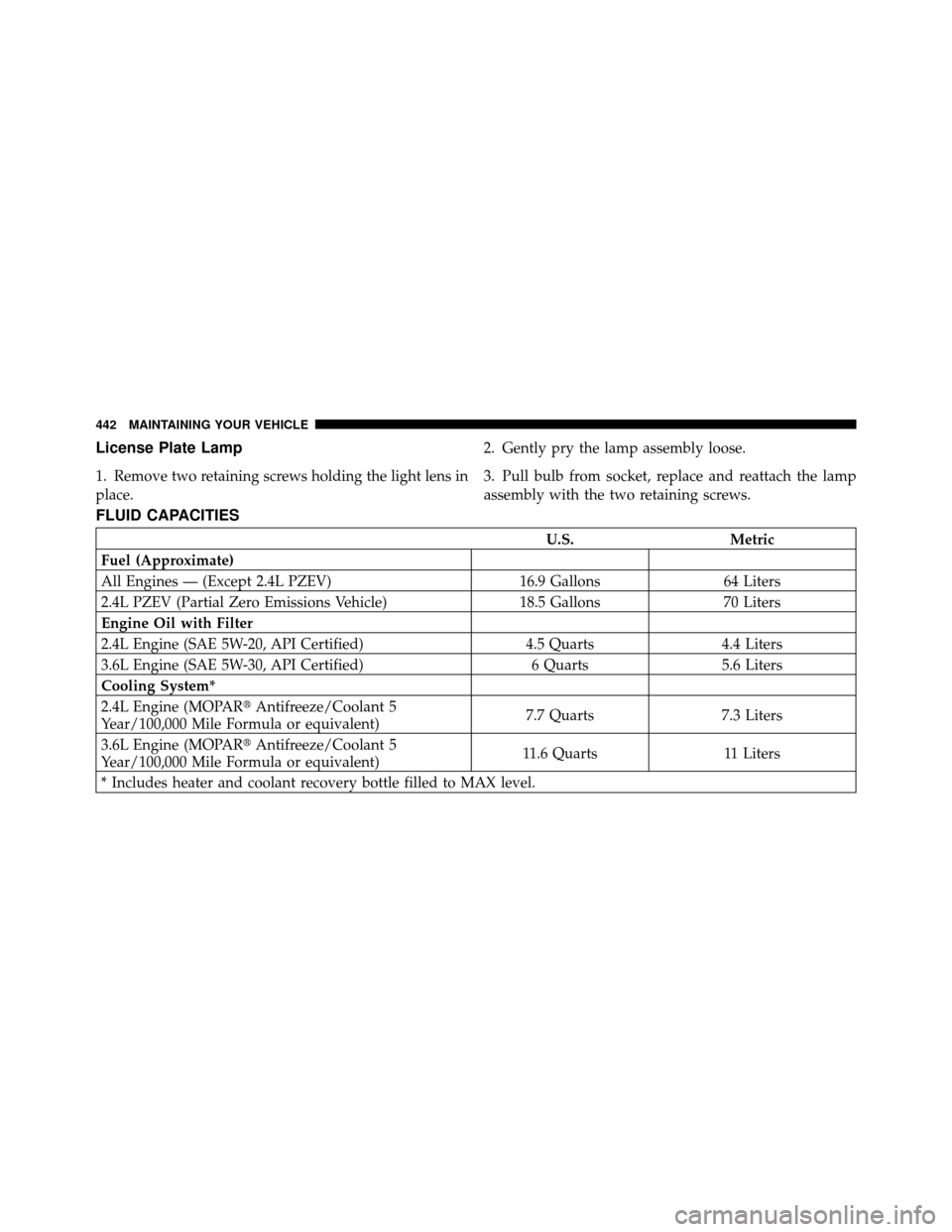

DODGE AVENGER 2011 2.G Owners Manual License Plate Lamp
1. Remove two retaining screws holding the light lens in
place.2. Gently pry the lamp assembly loose.
3. Pull bulb from socket, replace and reattach the lamp
assembly with the two r

Page 445 of 494

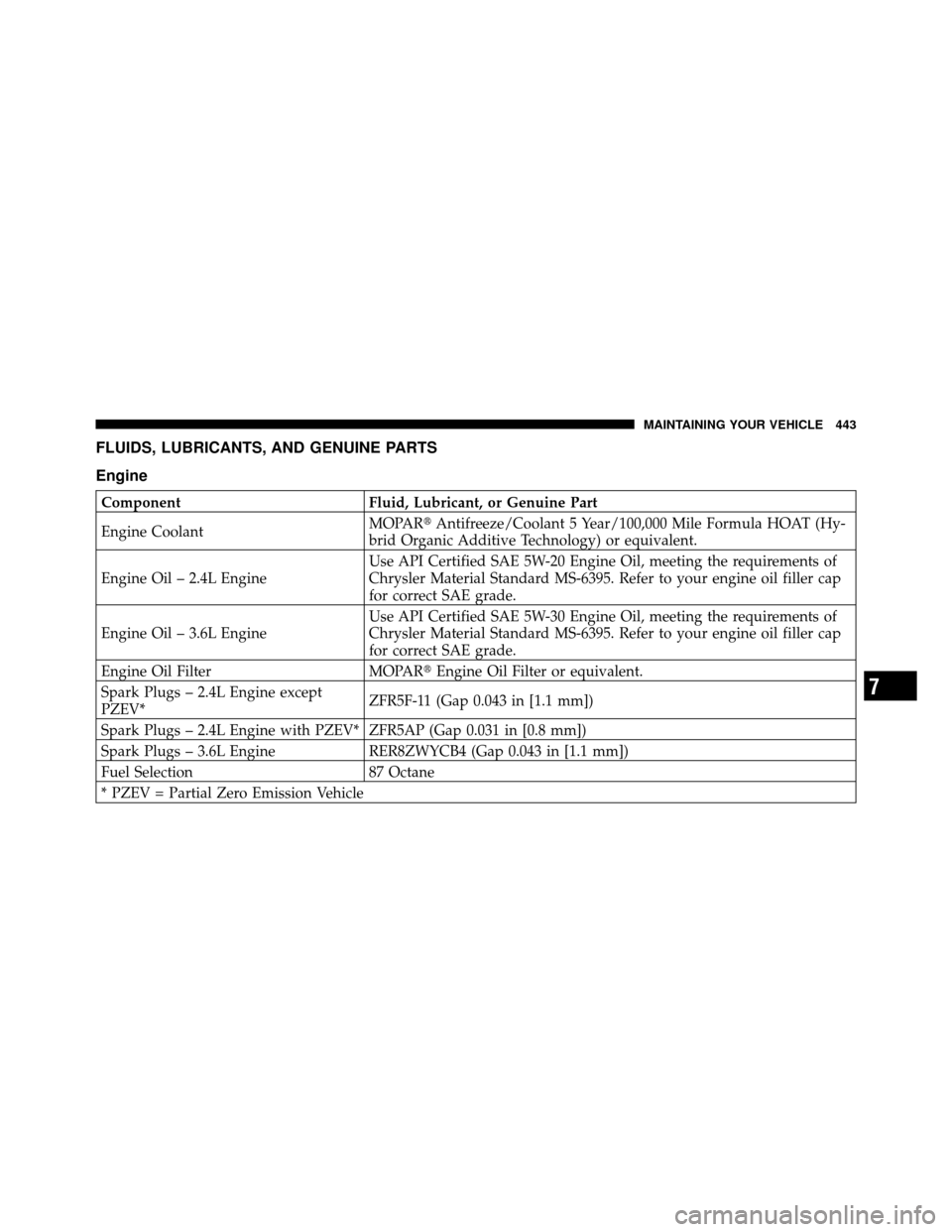

DODGE AVENGER 2011 2.G Owners Manual FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology)

Page 446 of 494

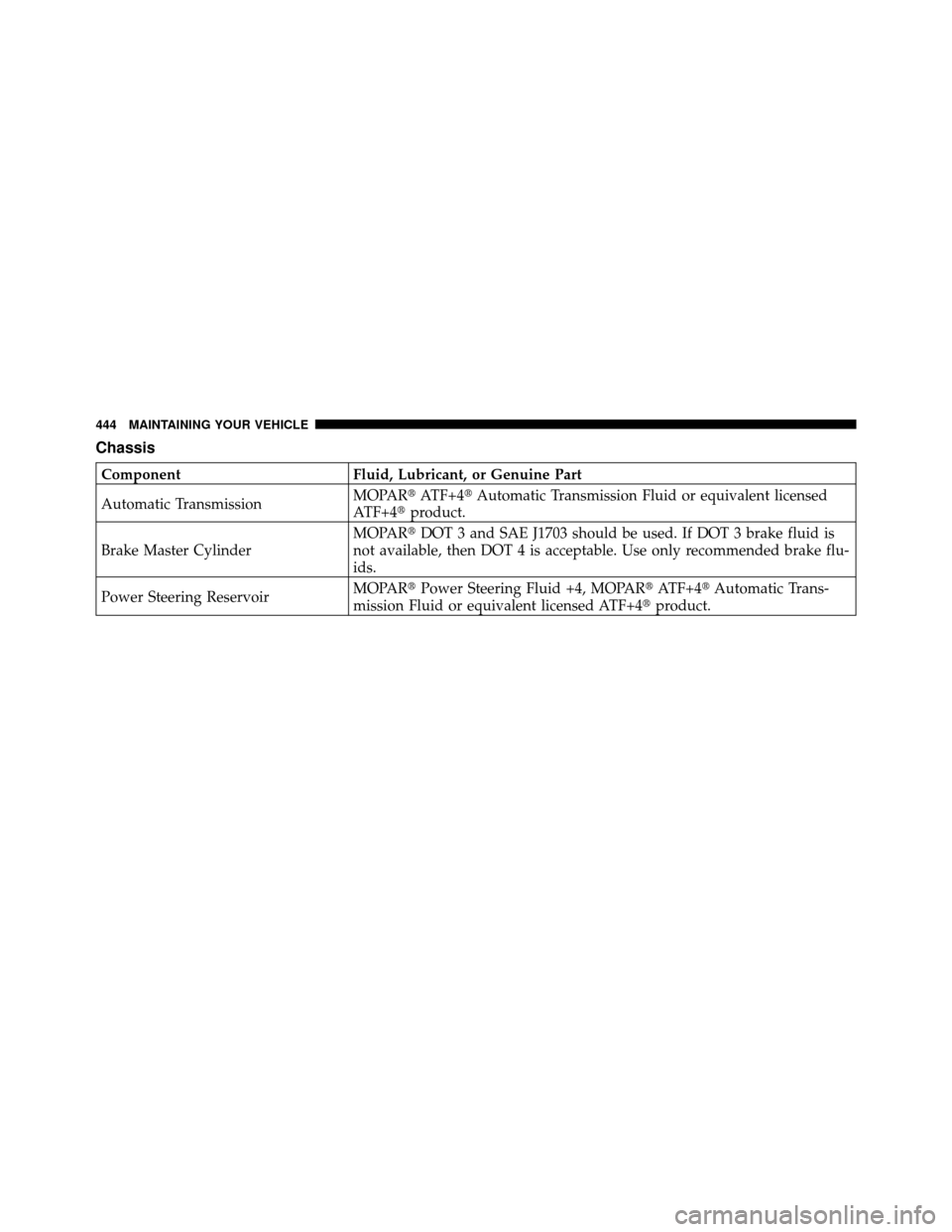

DODGE AVENGER 2011 2.G Owners Manual Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPAR
DOT 3 and SAE J1

Page 447 of 494

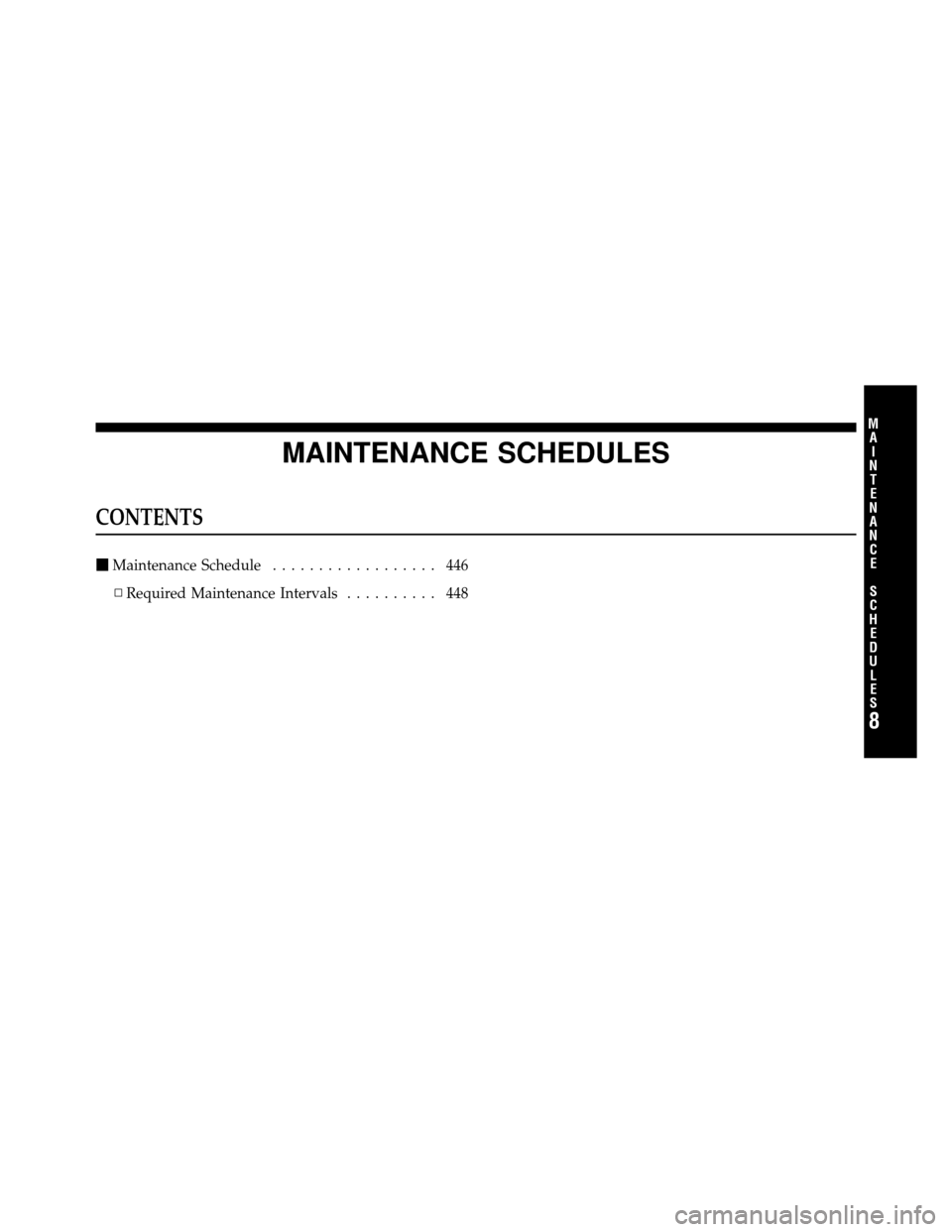

DODGE AVENGER 2011 2.G Owners Manual MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 446
▫ Required Maintenance Intervals .......... 448
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Page 448 of 494

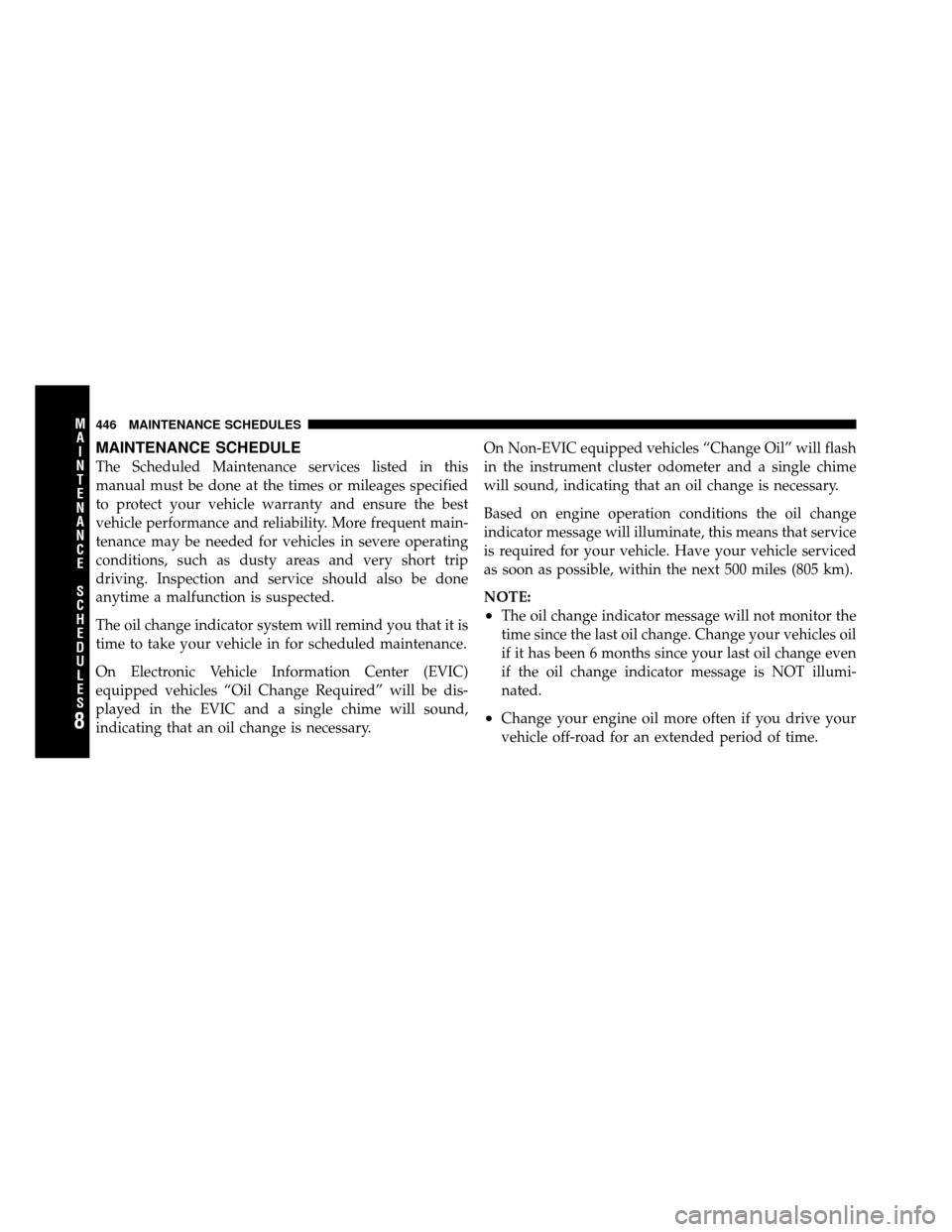

DODGE AVENGER 2011 2.G Owners Manual MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance a

Page 449 of 494

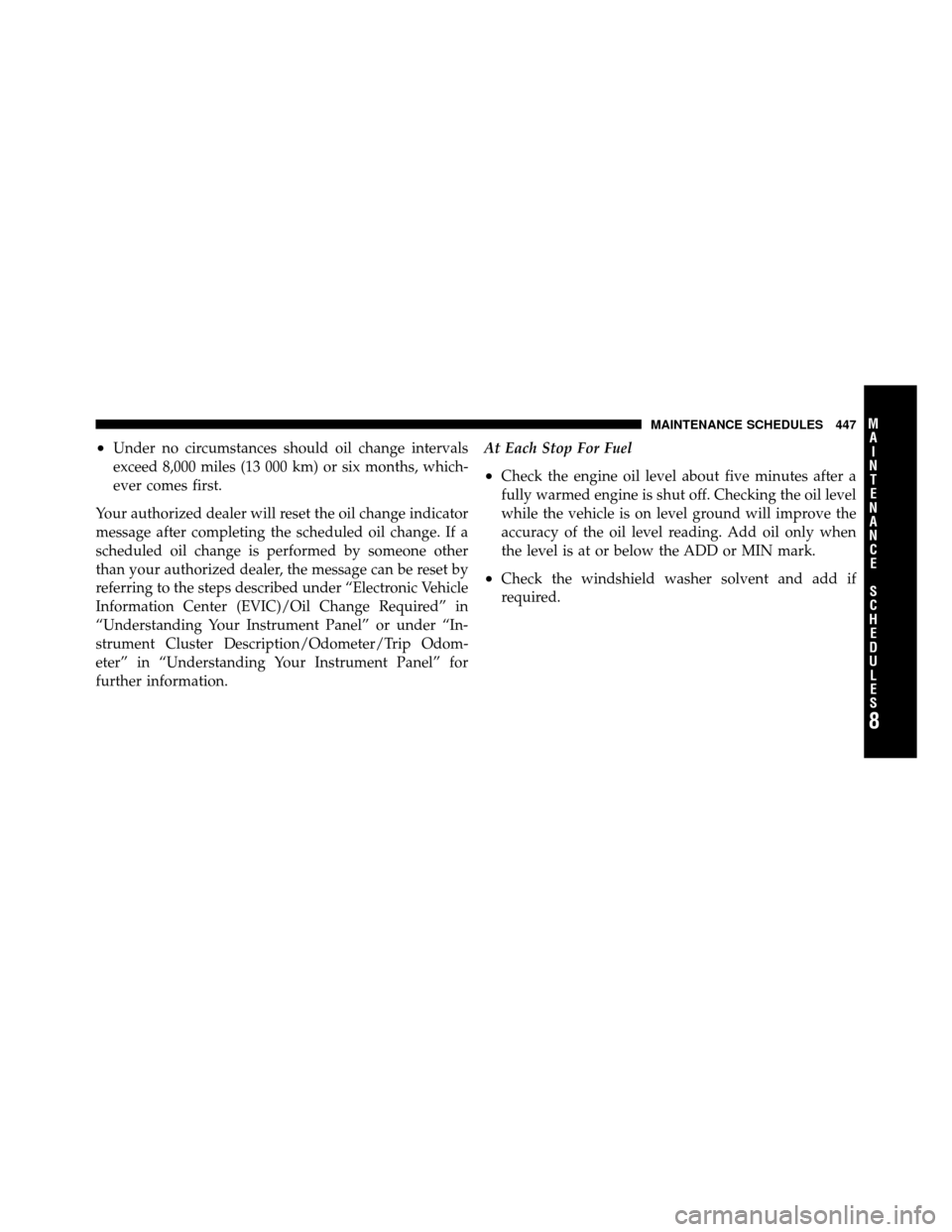

DODGE AVENGER 2011 2.G Owners Manual •Under no circumstances should oil change intervals
exceed 8,000 miles (13 000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after co

Page 450 of 494

DODGE AVENGER 2011 2.G Owners Manual Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
m
