Page 471 of 519
Bulb Number
Shift Indicator Lamp A6220
Rear Compartment
(Trunk) Lamp IKLE14140
NOTE: For lighted switches, see your authorized
dealer for replacement.
Exterior Bulbs
Bulb Number
Low Beam Headlamp 9006
High Beam Headlamp 9005
Front Park/Turn Signal
Lamp 3457A
Front Fog Lamp H11
Front Side Marker Lamp WY5W
Bulb Number
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at
Authorized Dealer)
Rear Tail/Stop/Turn
Signal Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 921
License Lamp W5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 469
Page 472 of 519
Headlamp
1. Raise the hood and locate the connector behind theheadlamp.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the lamp assembly and grasp the connector.
3. Rotate bulb and connector ¼ turn and pull outwardfrom assembly.
470 MAINTAINING YOUR VEHICLE
Page 473 of 519
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
4. Pull the bulb out of the socket and replace the bulb. 5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate clockwise ¼ turn to secure.
7
MAINTAINING YOUR VEHICLE 471
Page 474 of 519
Fog Lamps
1. Access to the lamps through the lower fascia cutout islimited.
2. Turn the steering wheel to allow access and remove the inner fender shield.
3. Rotate the bulb and connector ¼ turn counterclock- wise.
4. Pull the bulb off of connector and replace with a new one.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
Backup Lamps
1. Open the trunk and gently pull back the trunk linerbehind the tail lamp.
2. Remove the two plastic wing nuts from the tail lamp housing.
472 MAINTAINING YOUR VEHICLE
Page 475 of 519
3. Grasp the tail lamp and pull firmly outward pushinggently on the studs from inside to disengage the lamp
housing.
4. Twist and remove socket from lamp.
5. Remove bulb from socket and replace.License Plate Lamp
1. Remove two retaining screws holding the light lens in place.
2. Gently pry the lamp assembly loose.
3. Pull bulb from socket, replace and reattach the lamp assembly with the two retaining screws.
7
MAINTAINING YOUR VEHICLE 473
Page 476 of 519
FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
3.6L Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
474 MAINTAINING YOUR VEHICLE
Page 477 of 519

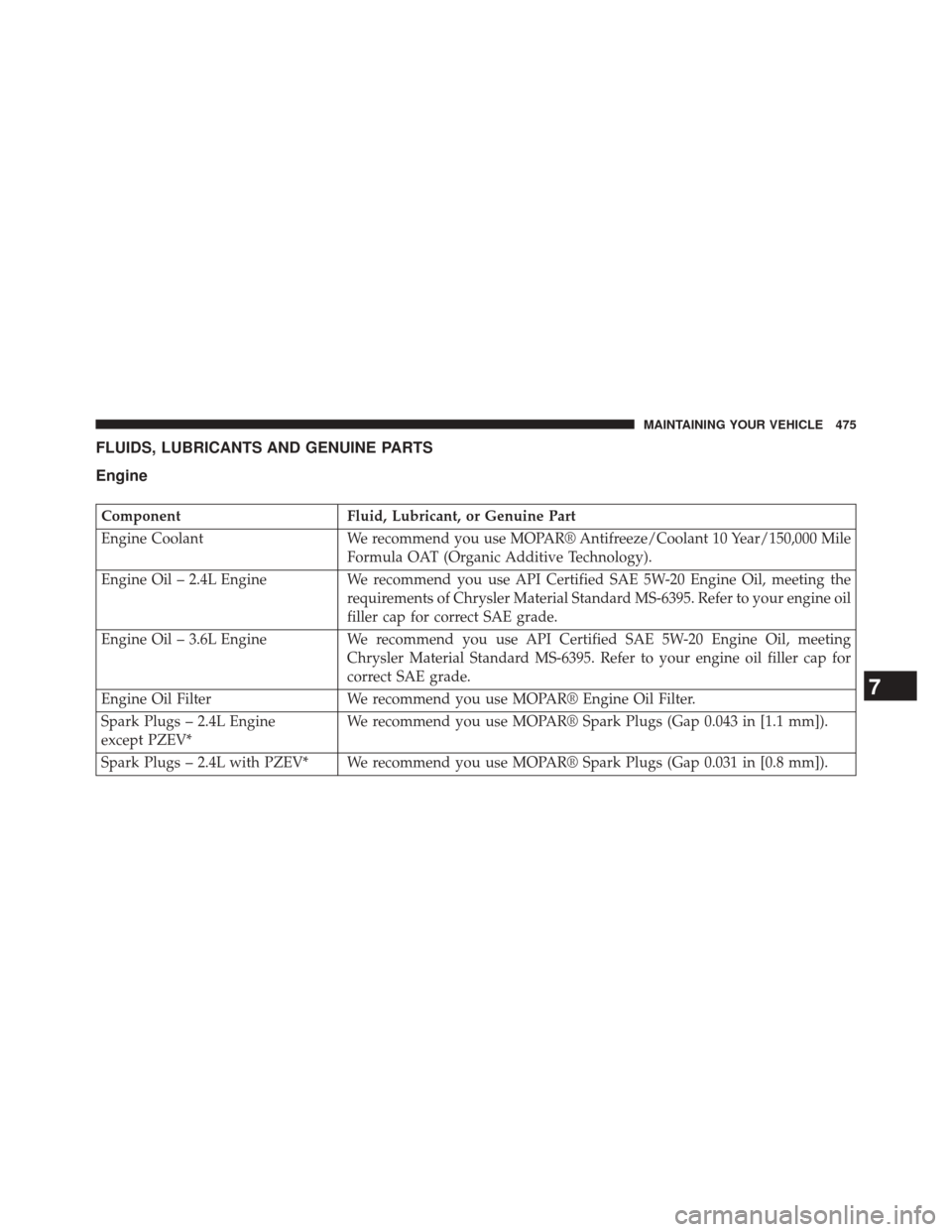

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology).
Engine Oil – 2.4L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395. Refer to your engine oil
filler cap for correct SAE grade.
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filter.
Spark Plugs – 2.4L Engine
except PZEV* We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Spark Plugs – 2.4L with PZEV* We recommend you use MOPAR® Spark Plugs (Gap 0.031 in [0.8 mm]).
7
MAINTAINING YOUR VEHICLE 475
Page 478 of 519
ComponentFluid, Lubricant, or Genuine Part
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Fuel Selection 87 Octane
* PZEV = Partial Zero Emission Vehicle
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission Use only ATF+4® Automatic Transmission Fluid. Failure to use ATF+4® fluid
may affect the function or performance of your transmission. We recommend
MOPAR® ATF+4® fluid.
Brake Master Cylinder We recommend you use MOPAR® DOT 3 and SAE J1703. If DOT 3 brake
fluid is not available, then DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR® Power Steering Fluid +4, MOPAR®
ATF+4® Automatic Transmission Fluid.
476 MAINTAINING YOUR VEHICLE
Page 479 of 519

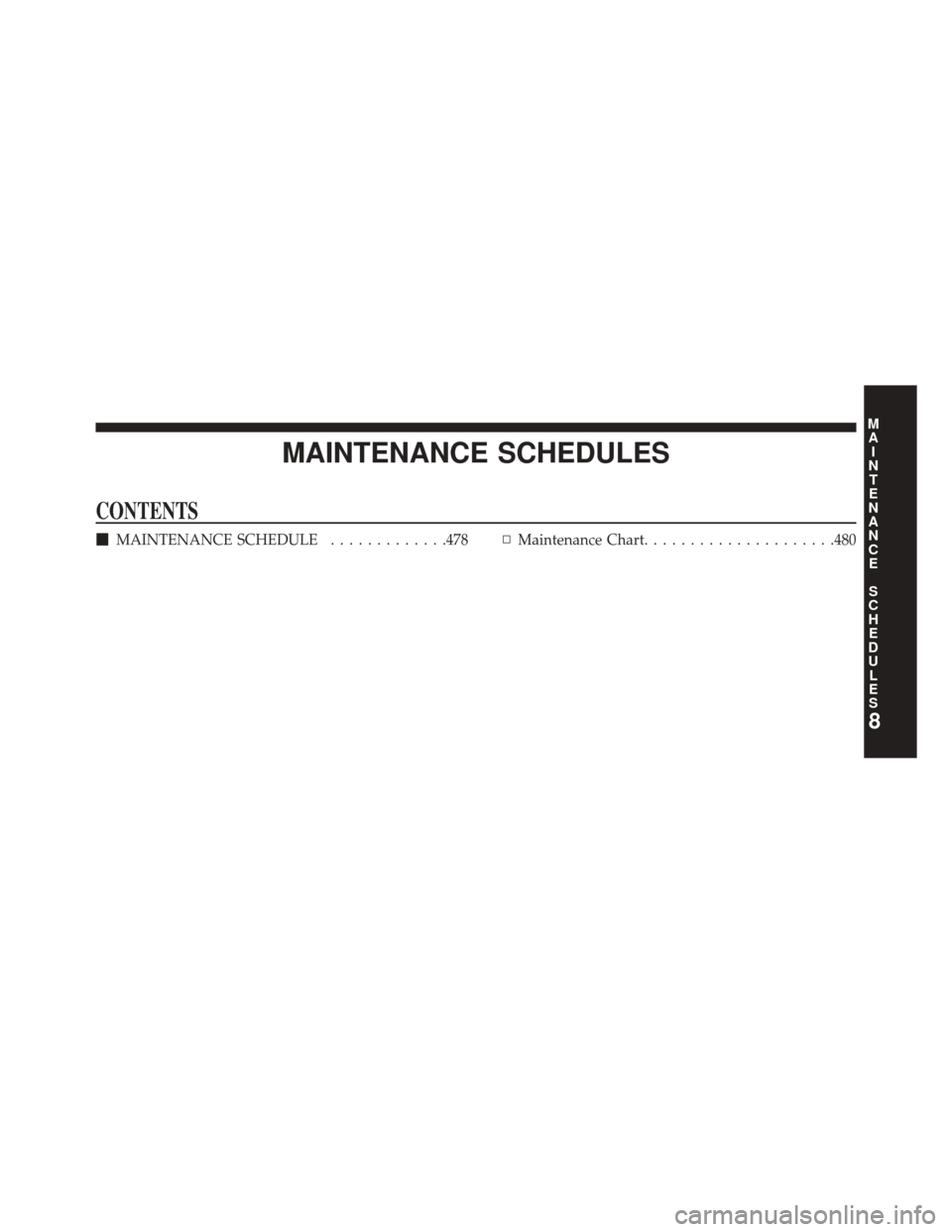

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............478▫Maintenance Chart .....................480
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S
Page 480 of 519

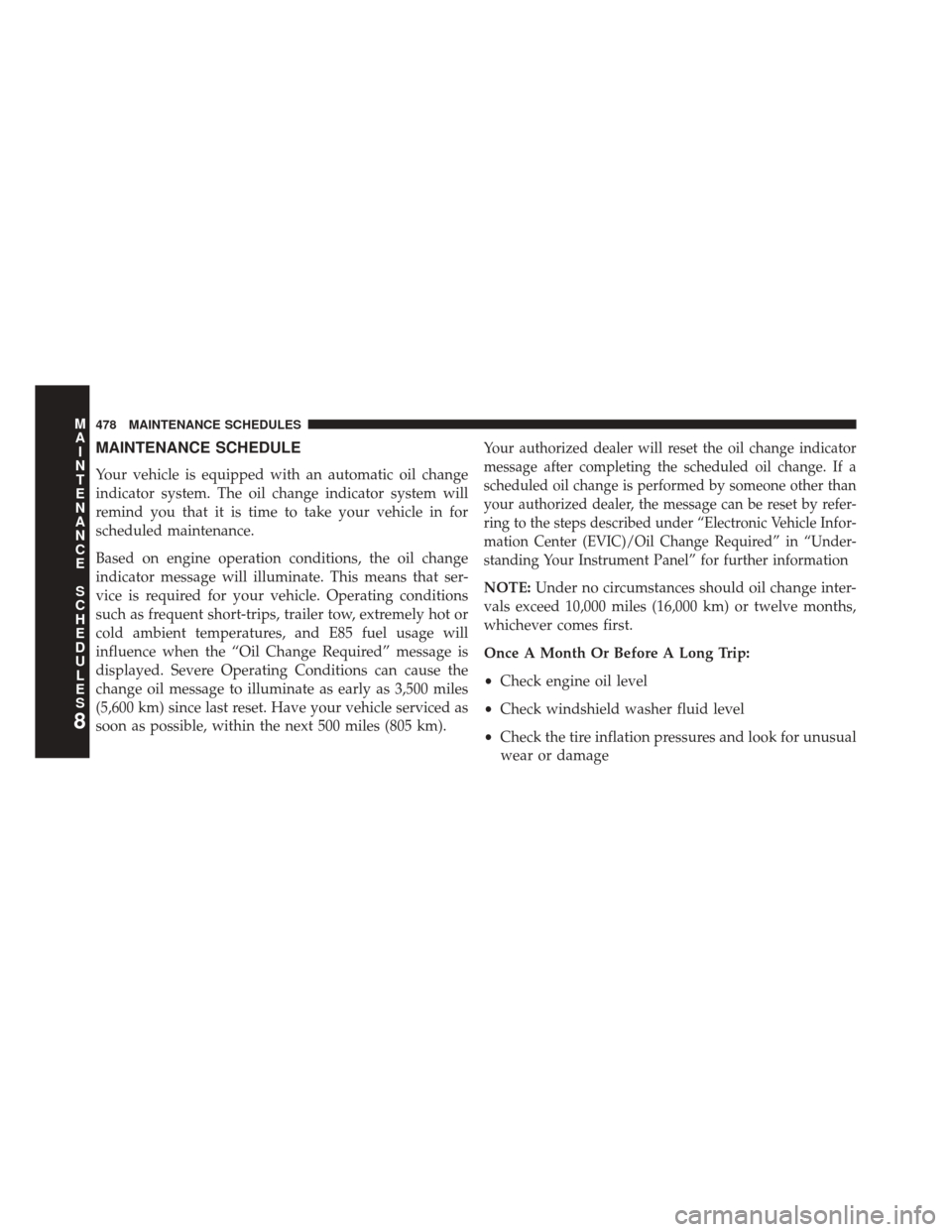

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by refer-
ring to the steps described under “Electronic Vehicle Infor-
mation Center (EVIC)/Oil Change Required” in “Under-
standing Your Instrument Panel” for further information
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S478 MAINTENANCE SCHEDULES
