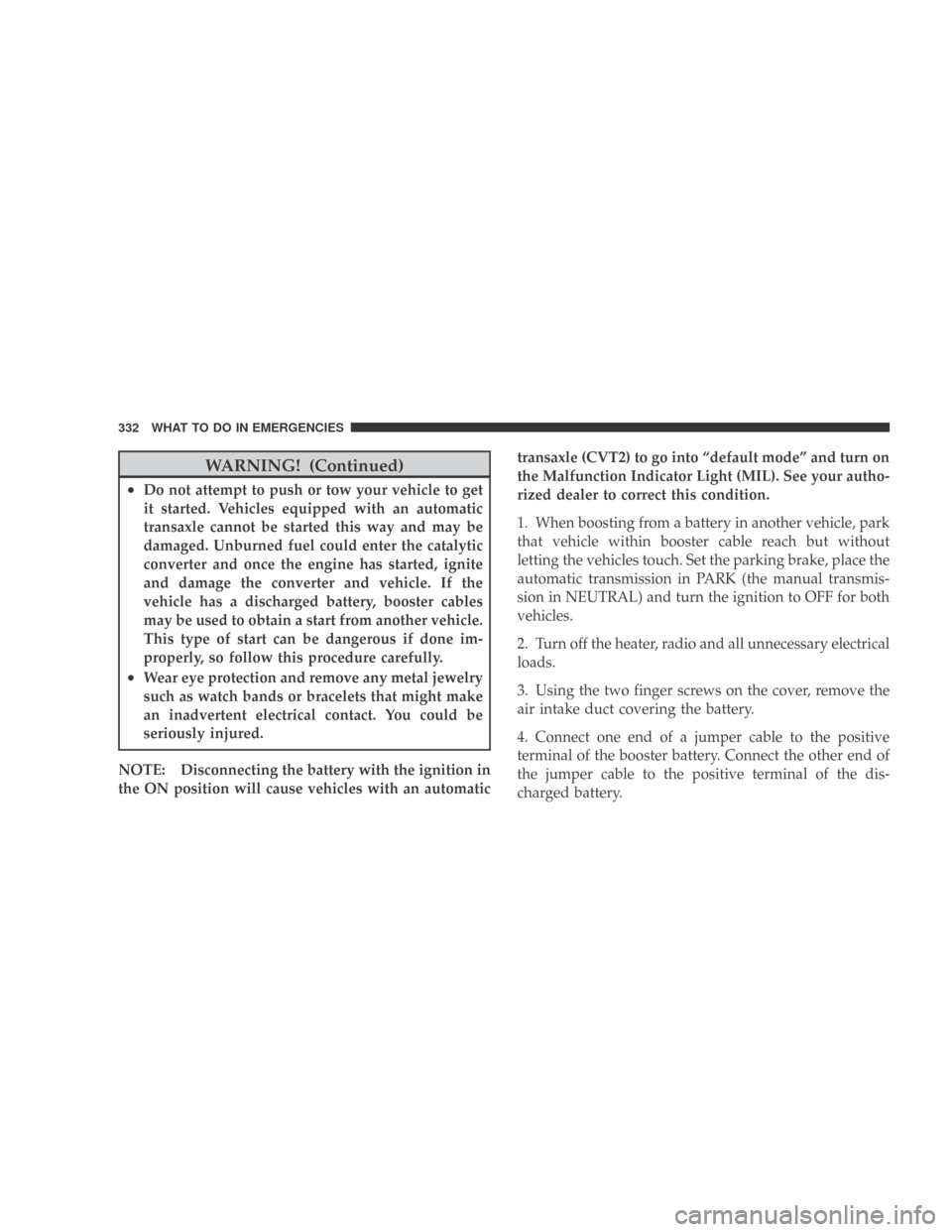

WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transaxle cannot be started this way and may be
damaged. Unburned fuel could enter the catalytic
converter and once the engine has started, ignite
and damage the converter and vehicle. If the
vehicle has a discharged battery, booster cables
may be used to obtain a start from another vehicle.
This type of start can be dangerous if done im-
properly, so follow this procedure carefully.
•Wear eye protection and remove any metal jewelry
such as watch bands or bracelets that might make
an inadvertent electrical contact. You could be
seriously injured.
NOTE: Disconnecting the battery with the ignition in
the ON position will cause vehicles with an automatic transaxle (CVT2) to go into “default mode” and turn on
the Malfunction Indicator Light (MIL). See your autho-
rized dealer to correct this condition.
1. When boosting from a battery in another vehicle, park
that vehicle within booster cable reach but without
letting the vehicles touch. Set the parking brake, place the
automatic transmission in PARK (the manual transmis-
sion in NEUTRAL) and turn the ignition to OFF for both
vehicles.
2. Turn off the heater, radio and all unnecessary electrical
loads.
3. Using the two finger screws on the cover, remove the
air intake duct covering the battery.
4. Connect one end of a jumper cable to the positive
terminal of the booster battery. Connect the other end of
the jumper cable to the positive terminal of the dis-
charged battery.
332 WHAT TO DO IN EMERGENCIES

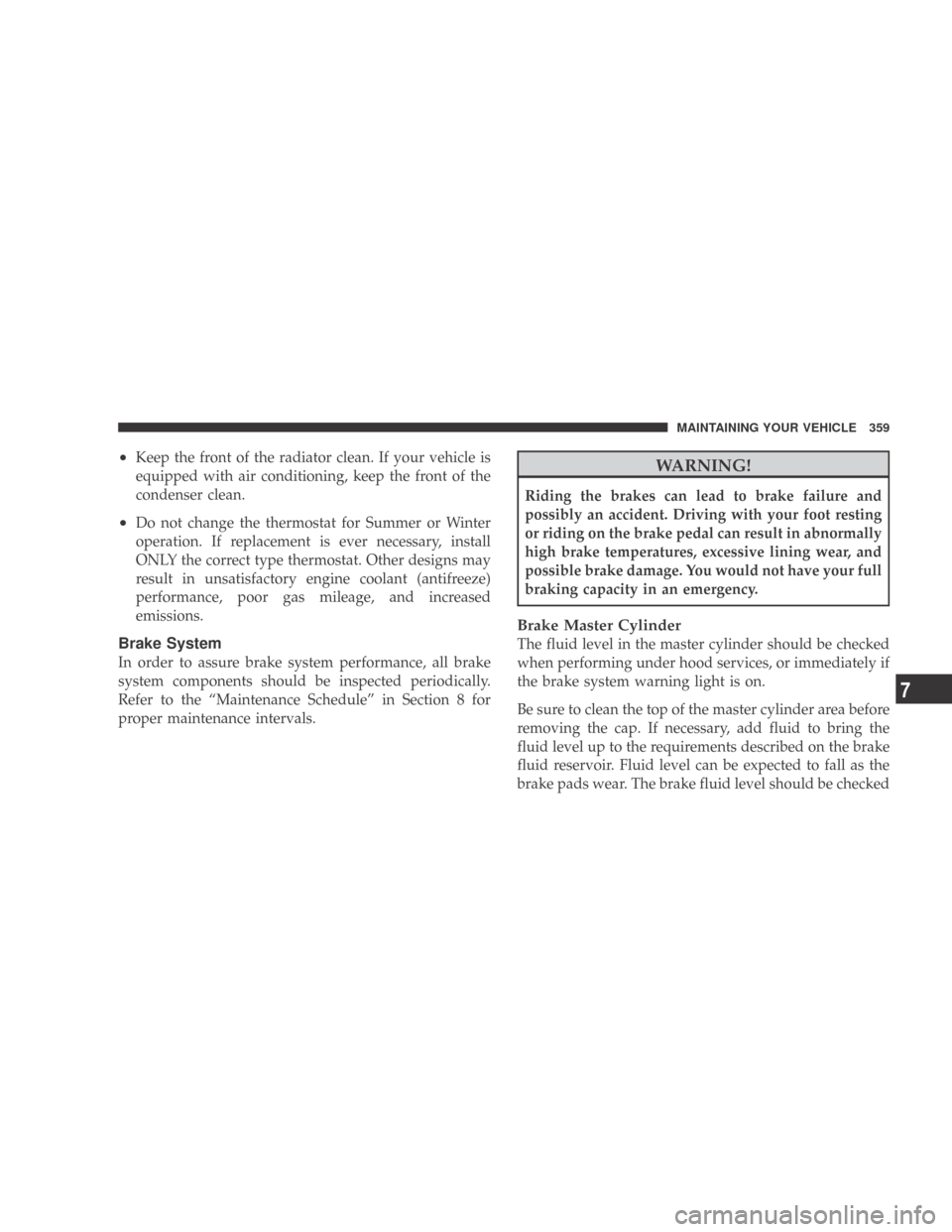

•Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine coolant (antifreeze)
performance, poor gas mileage, and increased
emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the brake system warning light is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. Fluid level can be expected to fall as the
brake pads wear. The brake fluid level should be checked
MAINTAINING YOUR VEHICLE 359
7

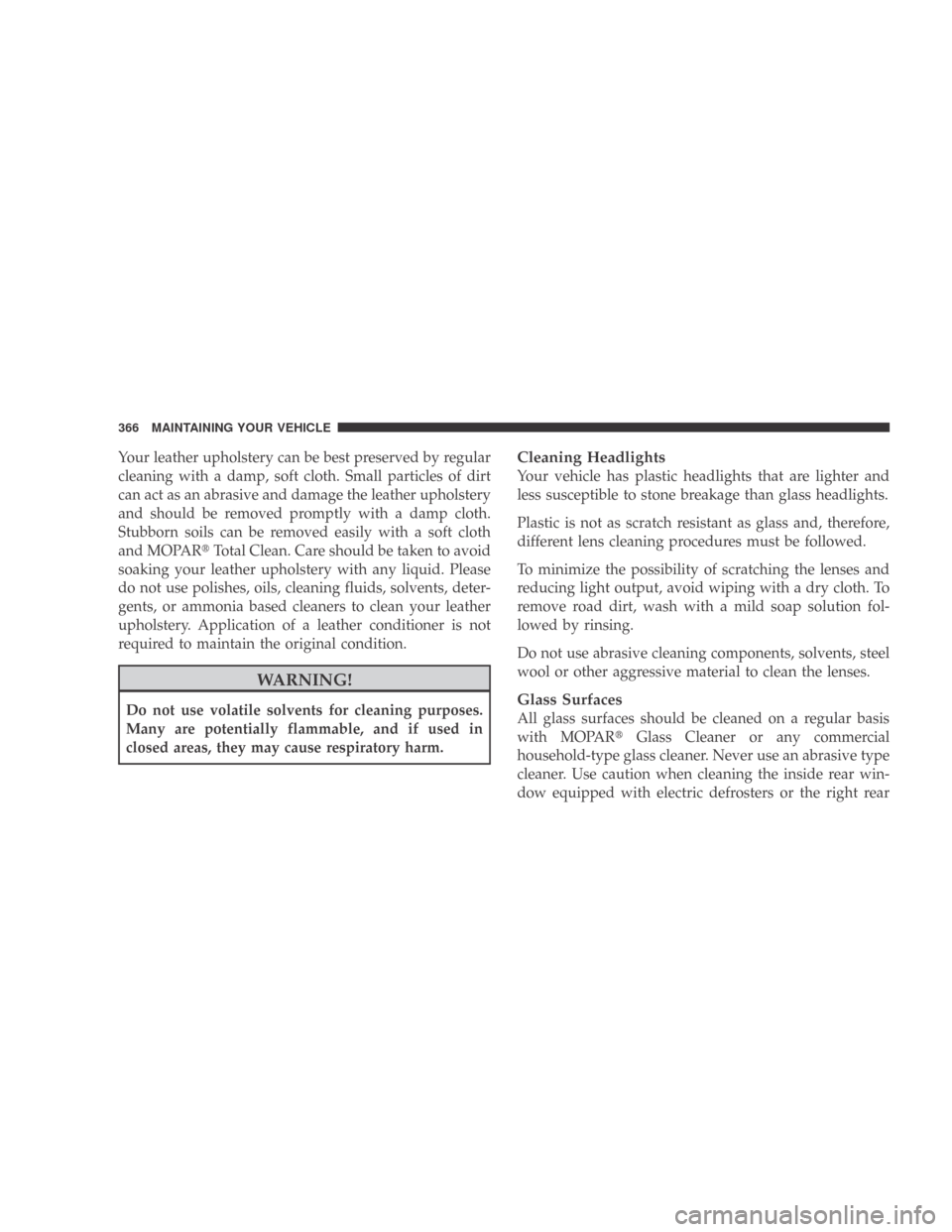

Your leather upholstery can be best preserved by regular
cleaning with a damp, soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPARTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and, therefore,
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
366 MAINTAINING YOUR VEHICLE

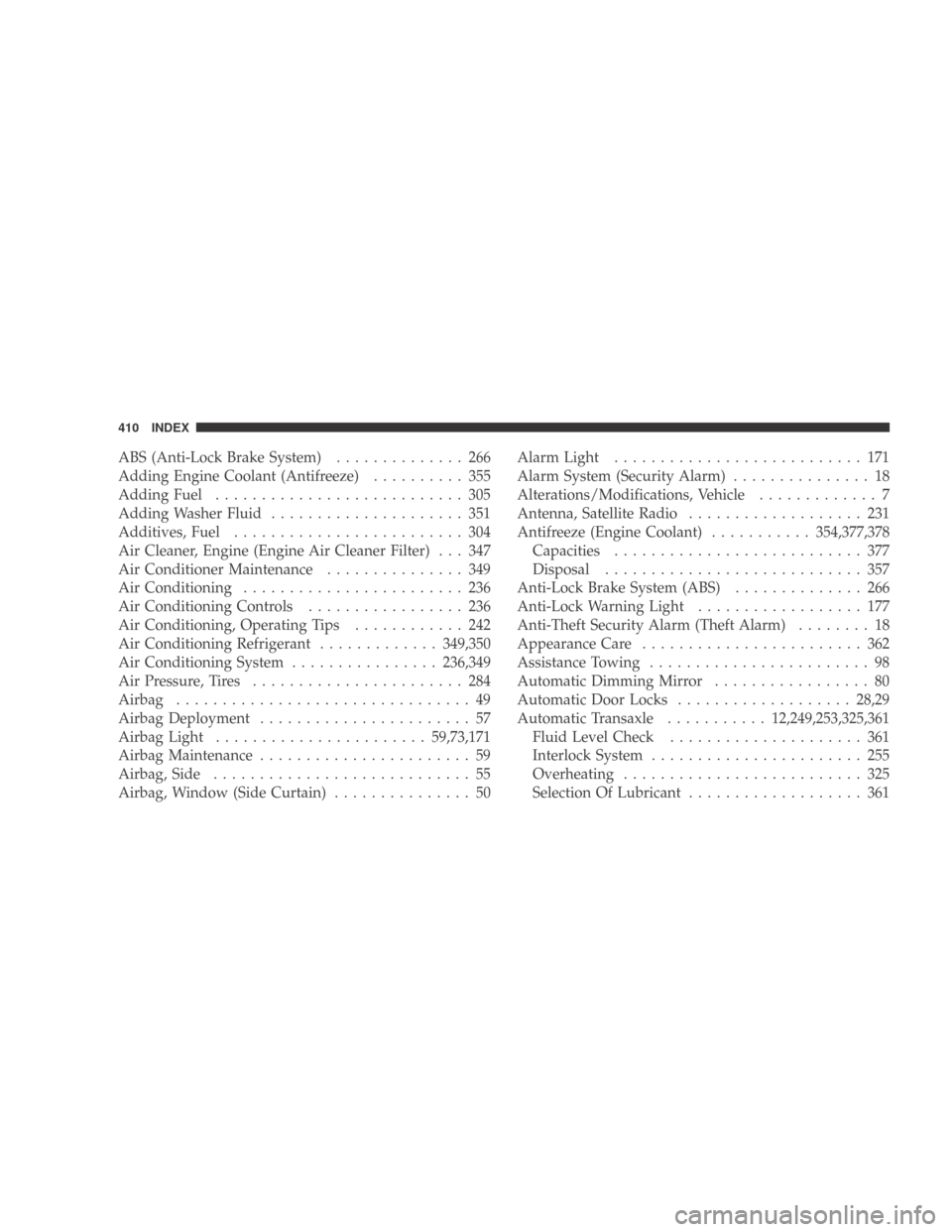

ABS (Anti-Lock Brake System).............. 266
Adding Engine Coolant (Antifreeze) .......... 355
Adding Fuel ........................... 305
Adding Washer Fluid ..................... 351
Additives, Fuel ......................... 304
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 347
Air Conditioner Maintenance ............... 349
Air Conditioning ........................ 236
Air Conditioning Controls ................. 236
Air Conditioning, Operating Tips ............ 242
Air Conditioning Refrigerant .............349,350
Air Conditioning System ................236,349
Air Pressure, Tires ....................... 284
Airbag ................................ 49
Airbag Deployment ....................... 57
Airbag Light ....................... 59,73,171
Airbag Maintenance ....................... 59
Airbag, Side ............................ 55
Airbag, Window (Side Curtain) ............... 50AlarmLight ........................... 171
Alarm System (Security Alarm)
............... 18
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 231
Antifreeze (Engine Coolant) ...........354,377,378
Capacities ........................... 377
Disposal ............................ 357
Anti-Lock Brake System (ABS) .............. 266
Anti-Lock Warning Light .................. 177
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 362
Assistance Towing ........................ 98
AutomaticDimmingMirror ................. 80
Automatic Door Locks ................... 28,29
Automatic Transaxle ........... 12,249,253,325,361
Fluid Level Check ..................... 361
Interlock System ....................... 255
Overheating .......................... 325
Selection Of Lubricant ................... 361
410 INDEX

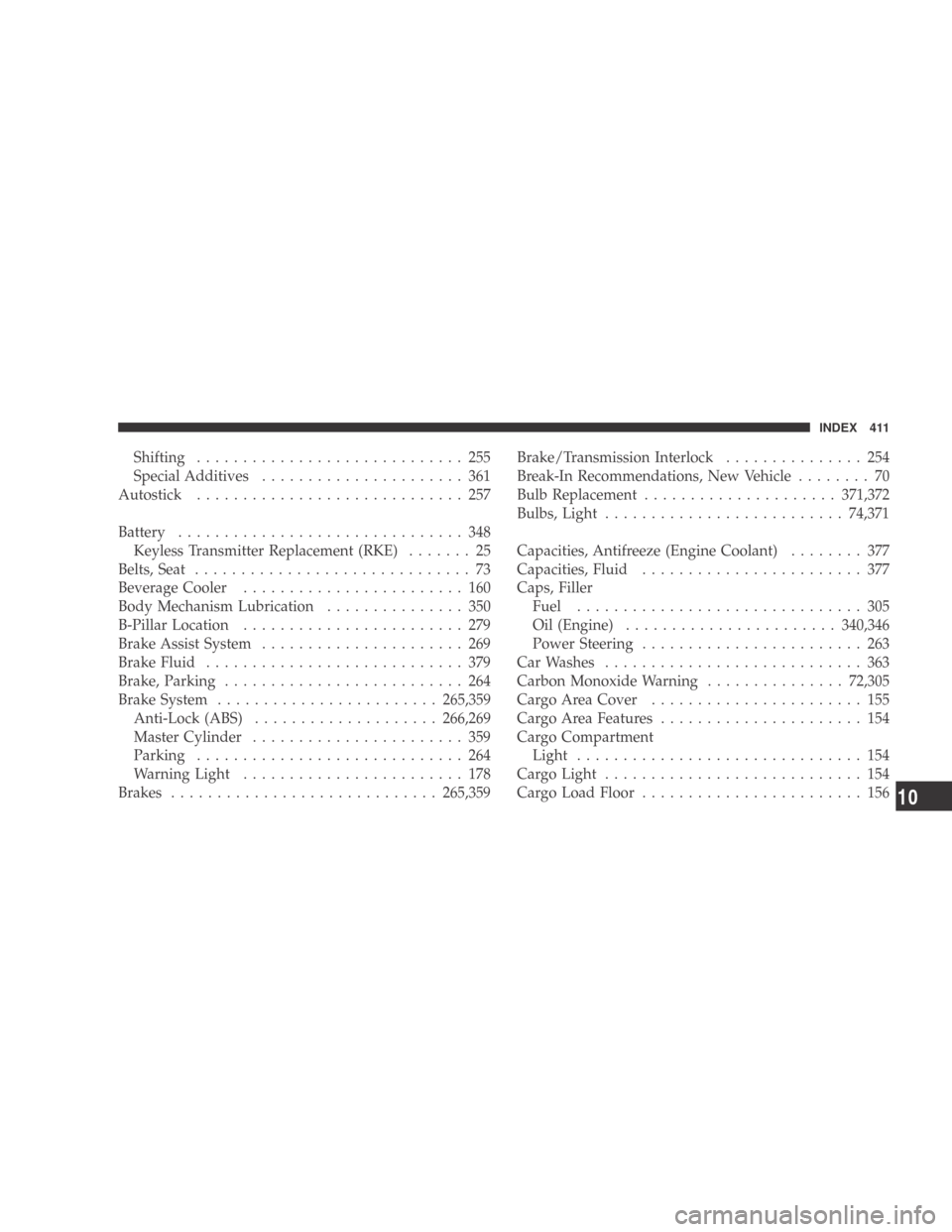

Shifting ............................. 255
Special Additives...................... 361
Autostick ............................. 257
Battery ............................... 348
Keyless Transmitter Replacement (RKE) ....... 25
Belts, Seat .............................. 73
Beverage Cooler ........................ 160
Body Mechanism Lubrication ............... 350
B-Pillar Location ........................ 279
Brake Assist System ...................... 269
Brake Fluid ............................ 379
Brake, Parking .......................... 264
Brake System ........................ 265,359
Anti-Lock (ABS) .................... 266,269
Master Cylinder ....................... 359
Parking ............................. 264
Warning Light ........................ 178
Brakes ............................. 265,359Brake/Transmission Interlock
............... 254
Break-In Recommendations, New Vehicle ........ 70
Bulb Replacement ..................... 371,372
Bulbs,Light .......................... 74,371
Capacities, Antifreeze (Engine Coolant) ........ 377
Capacities, Fluid ........................ 377
Caps, Filler Fuel ............................... 305
Oil (Engine) ....................... 340,346
Power Steering ........................ 263
Car Washes ............................ 363
Carbon Monoxide Warning ............... 72,305
Cargo Area Cover ....................... 155
Cargo Area Features ...................... 154
Cargo Compartment Light ............................... 154
CargoLight ............................ 154
Cargo Load Floor ........................ 156
INDEX 411
10

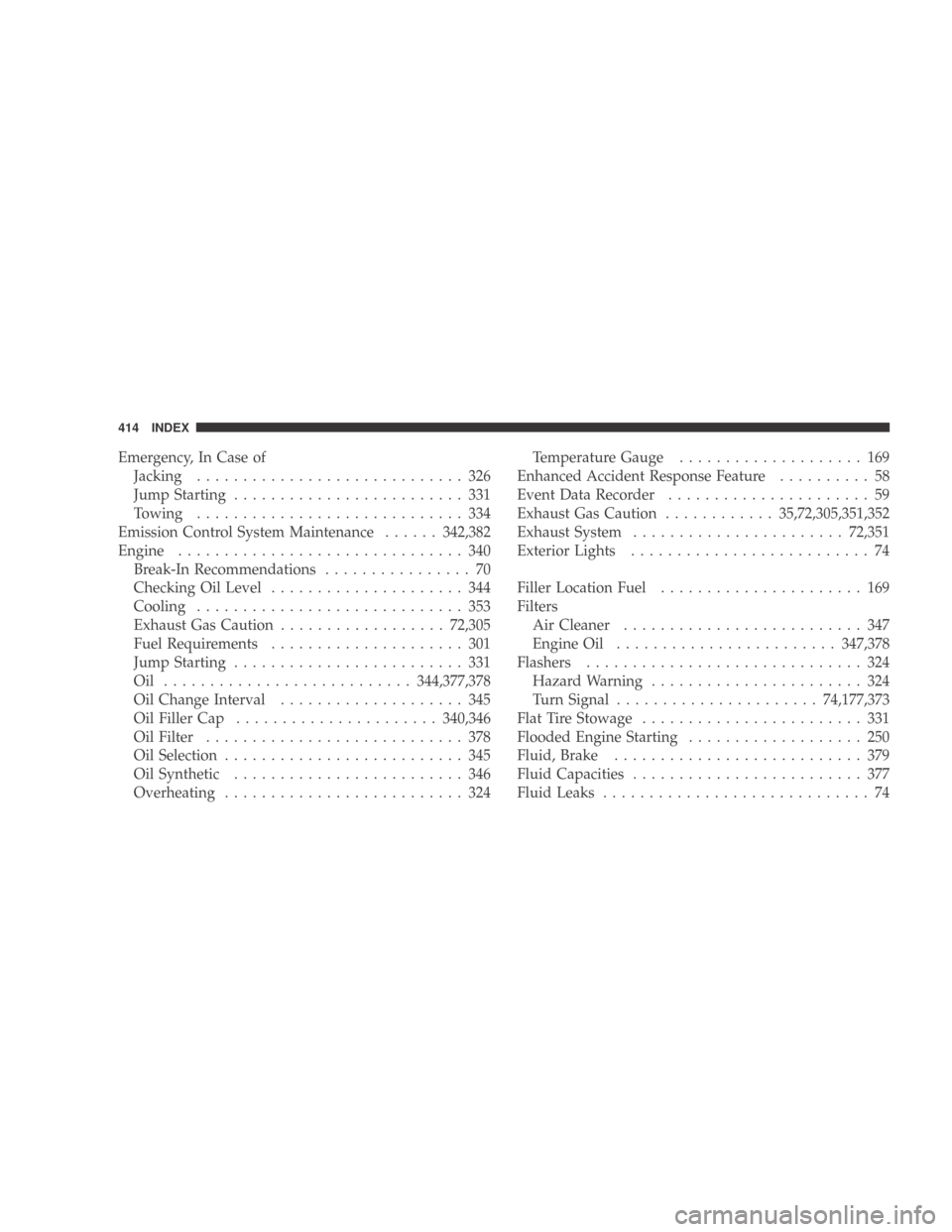

Emergency, In Case ofJacking ............................. 326
Jump Starting ......................... 331
Towing ............................. 334
Emission Control System Maintenance ......342,382
Engine ............................... 340
Break-In Recommendations ................ 70
Checking Oil Level ..................... 344
Cooling ............................. 353
Exhaust Gas Caution .................. 72,305
Fuel Requirements ..................... 301
Jump Starting ......................... 331
Oil ........................... 344,377,378
Oil Change Interval .................... 345
Oil Filler Cap ...................... 340,346
OilFilter ............................ 378
Oil Selection .......................... 345
Oil Synthetic ......................... 346
Overheating .......................... 324 Temperature Gauge
.................... 169
Enhanced Accident Response Feature .......... 58
Event Data Recorder ...................... 59
Exhaust Gas Caution ............ 35,72, 305,351,352
Exhaust System ....................... 72,351
ExteriorLights .......................... 74
Filler Location Fuel ...................... 169
Filters Air Cleaner .......................... 347
Engine Oil ........................ 347,378
Flashers .............................. 324
Hazard Warning ....................... 324
Turn Signal ...................... 74, 177,373
Flat Tire Stowage ........................ 331
Flooded Engine Starting ................... 250
Fluid, Brake ........................... 379
Fluid Capacities ......................... 377
Fluid Leaks ............................. 74
414 INDEX

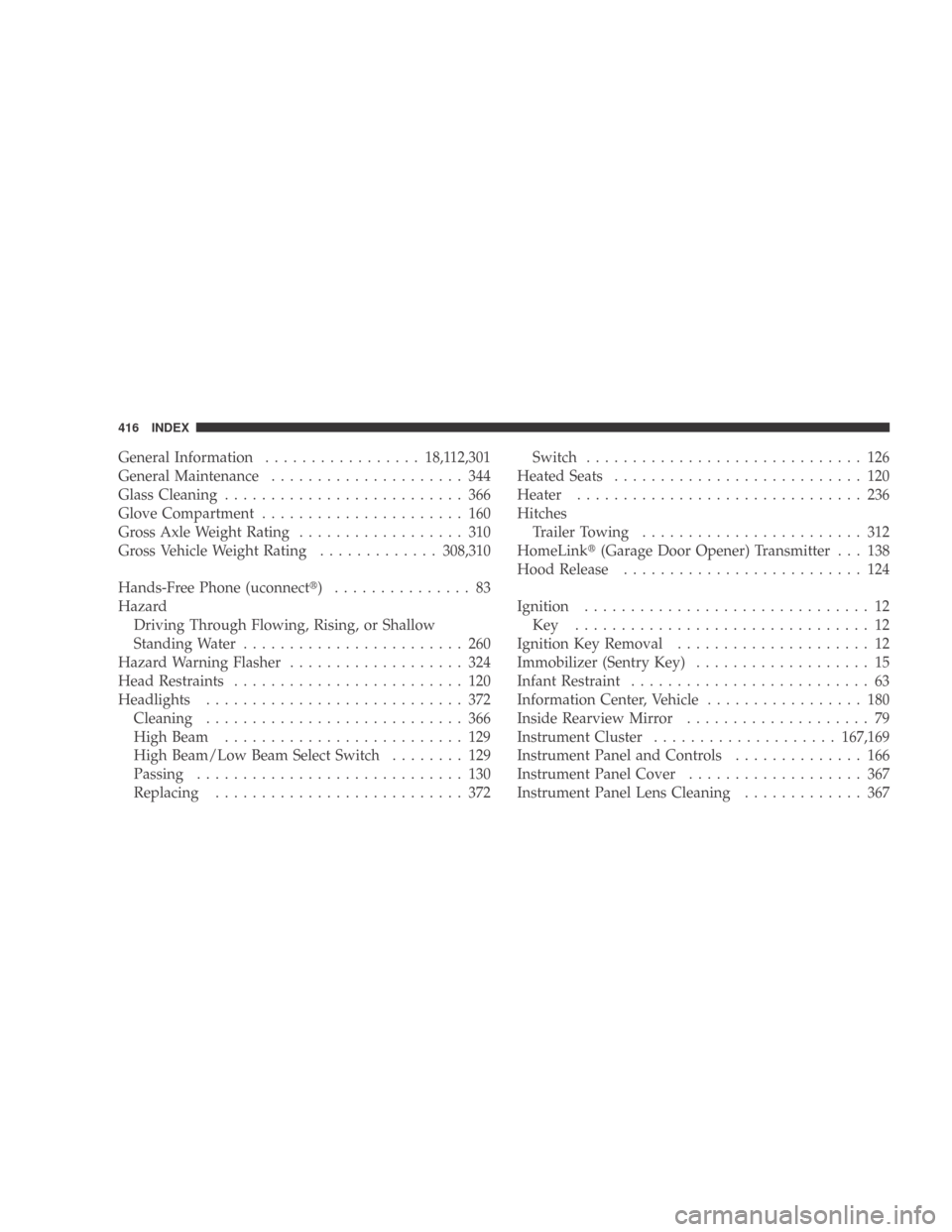

General Information................. 18,112,301
General Maintenance ..................... 344
Glass Cleaning .......................... 366
Glove Compartment ...................... 160
Gross Axle Weight Rating .................. 310
Gross Vehicle Weight Rating .............308,310
Hands-Free Phone (uconnect) ............... 83
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 260
Hazard Warning Flasher ................... 324
Head Restraints ......................... 120
Headlights ............................ 372
Cleaning ............................ 366
High Beam .......................... 129
High Beam/Low Beam Select Switch ........ 129
Passing ............................. 130
Replacing ........................... 372 Switch .............................. 126
Heated Seats ........................... 120
Heater ............................... 236
Hitches TrailerTowing ........................ 312
HomeLink (Garage Door Opener) Transmitter . . . 138
Hood Release .......................... 124
Ignition ............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Immobilizer (Sentry Key) ................... 15
Infant Restraint .......................... 63
Information Center, Vehicle ................. 180
Inside Rearview Mirror .................... 79
Instrument Cluster .................... 167,169
Instrument Panel and Controls .............. 166
Instrument Panel Cover ................... 367
Instrument Panel Lens Cleaning ............. 367

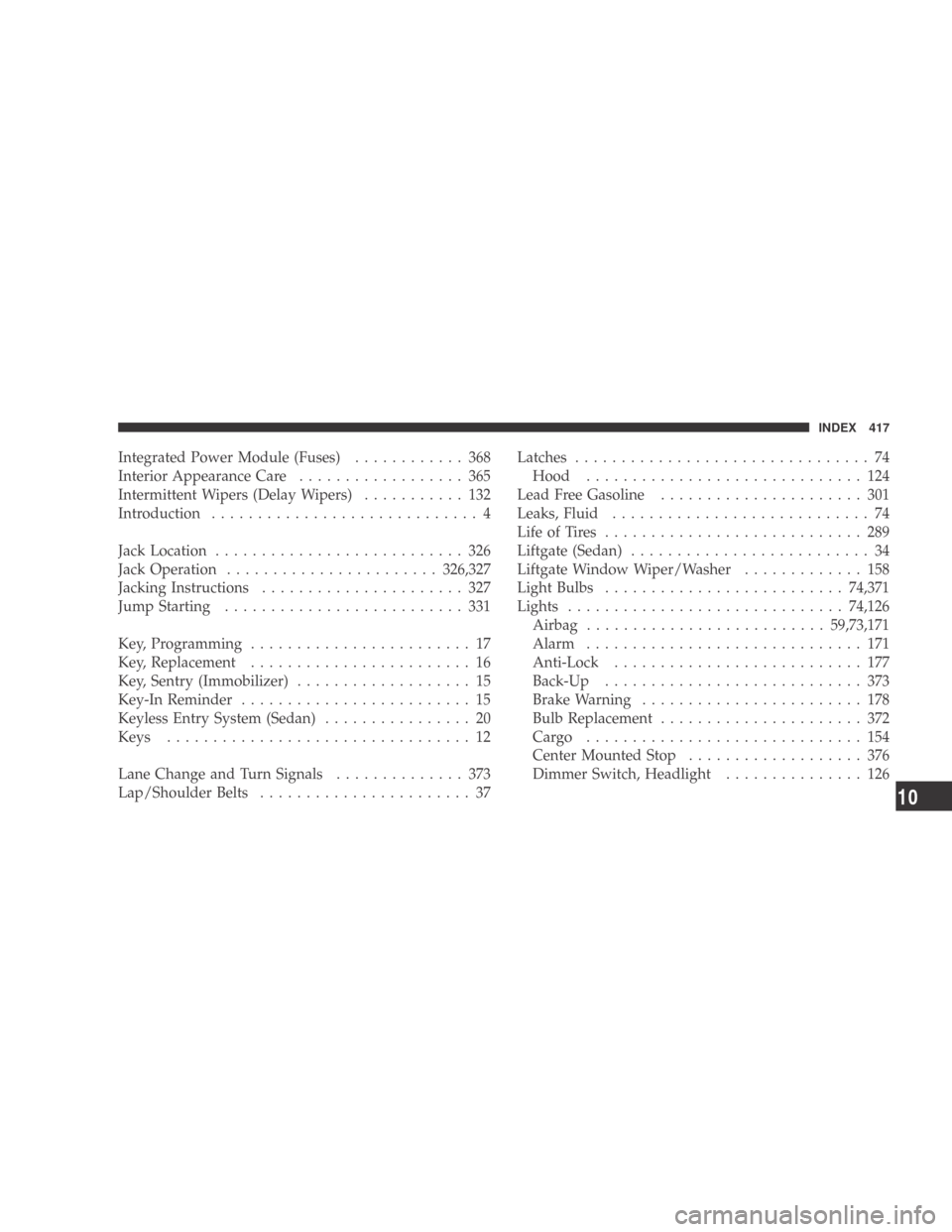

416 INDEX

Integrated Power Module (Fuses)............ 368
Interior Appearance Care .................. 365
Intermittent Wipers (Delay Wipers) ........... 132
Introduction ............................. 4
Jack Location ........................... 326
Jack Operation ....................... 326,327
Jacking Instructions ...................... 327
Jump Starting .......................... 331
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 15
Keyless Entry System (Sedan) ................ 20
Keys ................................. 12
Lane Change and Turn Signals .............. 373
Lap/Shoulder Belts ....................... 37 Latches
................................ 74
Hood .............................. 124
Lead Free Gasoline ...................... 301
Leaks, Fluid ............................ 74
LifeofTires ............................ 289
Liftgate (Sedan) .......................... 34
Liftgate Window Wiper/Washer ............. 158
LightBulbs .......................... 74,371
Lights .............................. 74,126 Airbag .......................... 59,73,171
Alarm .............................. 171
Anti-Lock ........................... 177
Back-Up ............................ 373
Brake Warning ........................ 178
Bulb Replacement ...................... 372
Cargo .............................. 154
Center Mounted Stop ................... 376
Dimmer Switch, Headlight ............... 126
INDEX 417
10

Electronic Stability Program (ESP)
Indicator......................... 271,273
Engine Temperature Warning .............. 172
Exterior .............................. 74
Fog .......................... 128,177,372
Headlight Switch ...................... 126
Headlights ........................... 126
High Beam Indicator .................... 178
Instrument Cluster ..................... 126
License ............................. 375
Lights On Reminder .................... 127
Low Fuel ............................ 170
Malfunction Indicator (Check Engine) ........ 175
Map Reading ......................... 130
Oil Pressure .......................... 171
Seat Belt Reminder ..................... 171
Security Alarm (Theft Alarm) ............ 19,171
Service Engine Soon (Malfunction Indicator) . . . 175
Theft Alarm (Security Alarm) .............. 171Tire Pressure Monitoring (TPMS)
........... 172
Traction Control ....................... 271
Turn Signal ................... 74, 126,128,373
Voltage ............................. 170
Warning (Instrument Cluster Description) ..... 169
Loading Vehicle ...................... 307,309
Capacities ........................... 309
Tires ............................... 279
Locks Child Protection ........................ 31
Door ................................ 26
Power Door ........................... 27
Lubrication, Body ....................... 350
Lumbar Support ........................ 119
Maintenance Free Battery .................. 348
Maintenance, General ..................... 344
Maintenance Procedures ................... 344
Maintenance Schedule .................... 382
418 INDEX

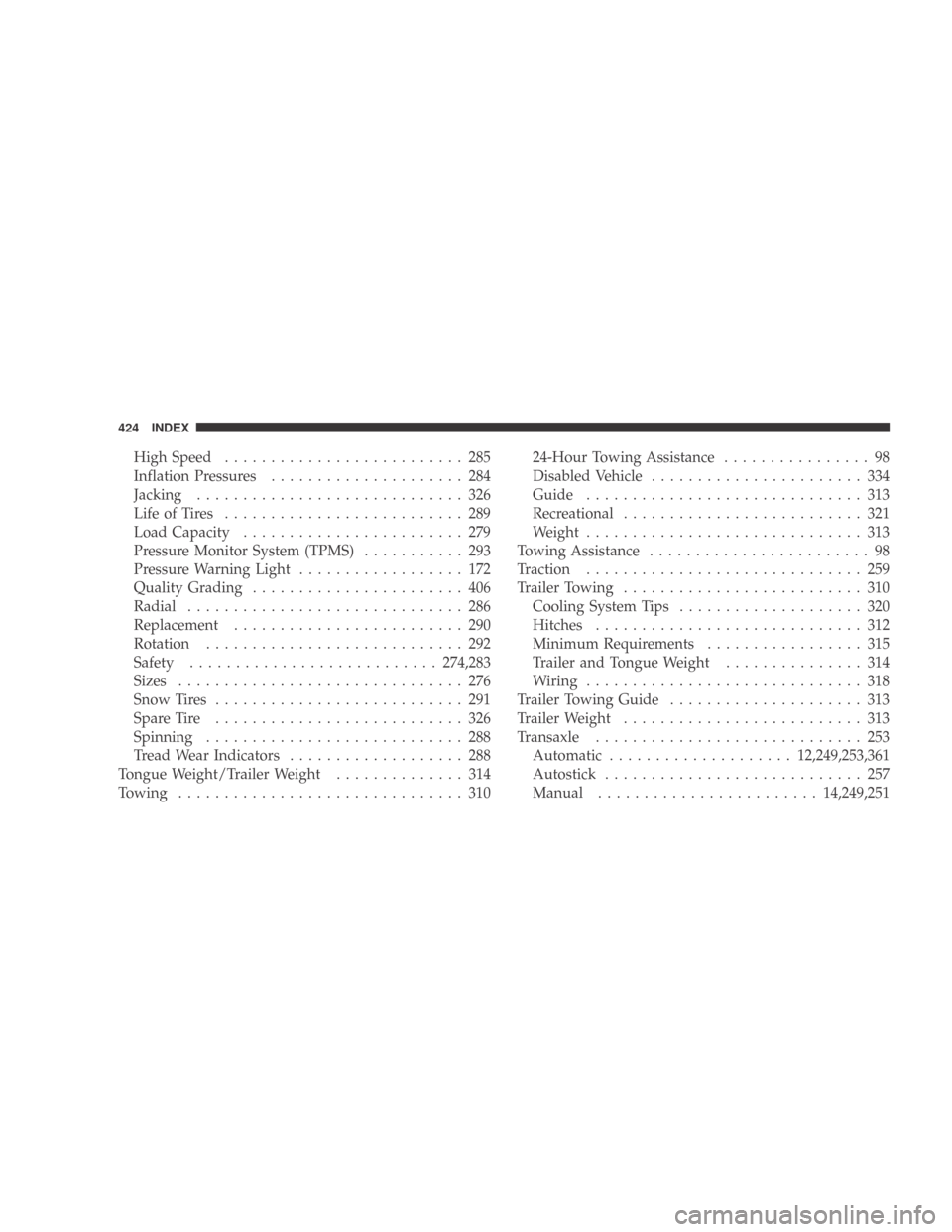

High Speed.......................... 285
Inflation Pressures ..................... 284
Jacking ............................. 326
LifeofTires .......................... 289
Load Capacity ........................ 279
Pressure Monitor System (TPMS) ........... 293
Pressure Warning Light .................. 172
Quality Grading ....................... 406
Radial .............................. 286
Replacement ......................... 290
Rotation ............................ 292
Safety ........................... 274,283
Sizes ............................... 276
Snow Tires ........................... 291
Spare Tire ........................... 326
Spinning ............................ 288
Tread Wear Indicators ................... 288
Tongue Weight/Trailer Weight .............. 314
Towing ............................... 310 24-Hour Towing Assistance
................ 98
Disabled Vehicle ....................... 334
Guide .............................. 313
Recreational .......................... 321
Weight .............................. 313
Towing Assistance ........................ 98
Traction .............................. 259
TrailerTowing .......................... 310 Cooling System Tips .................... 320
Hitches ............................. 312
Minimum Requirements ................. 315
Trailer and Tongue Weight ............... 314
Wiring .............................. 318
TrailerTowingGuide ..................... 313
TrailerWeight .......................... 313
Transaxle ............................. 253
Automatic .................... 12, 249,253,361
Autostick ............................ 257
Manual ........................ 14, 249,251
424 INDEX
