DODGE CALIBER 2012 1.G Owners Manual

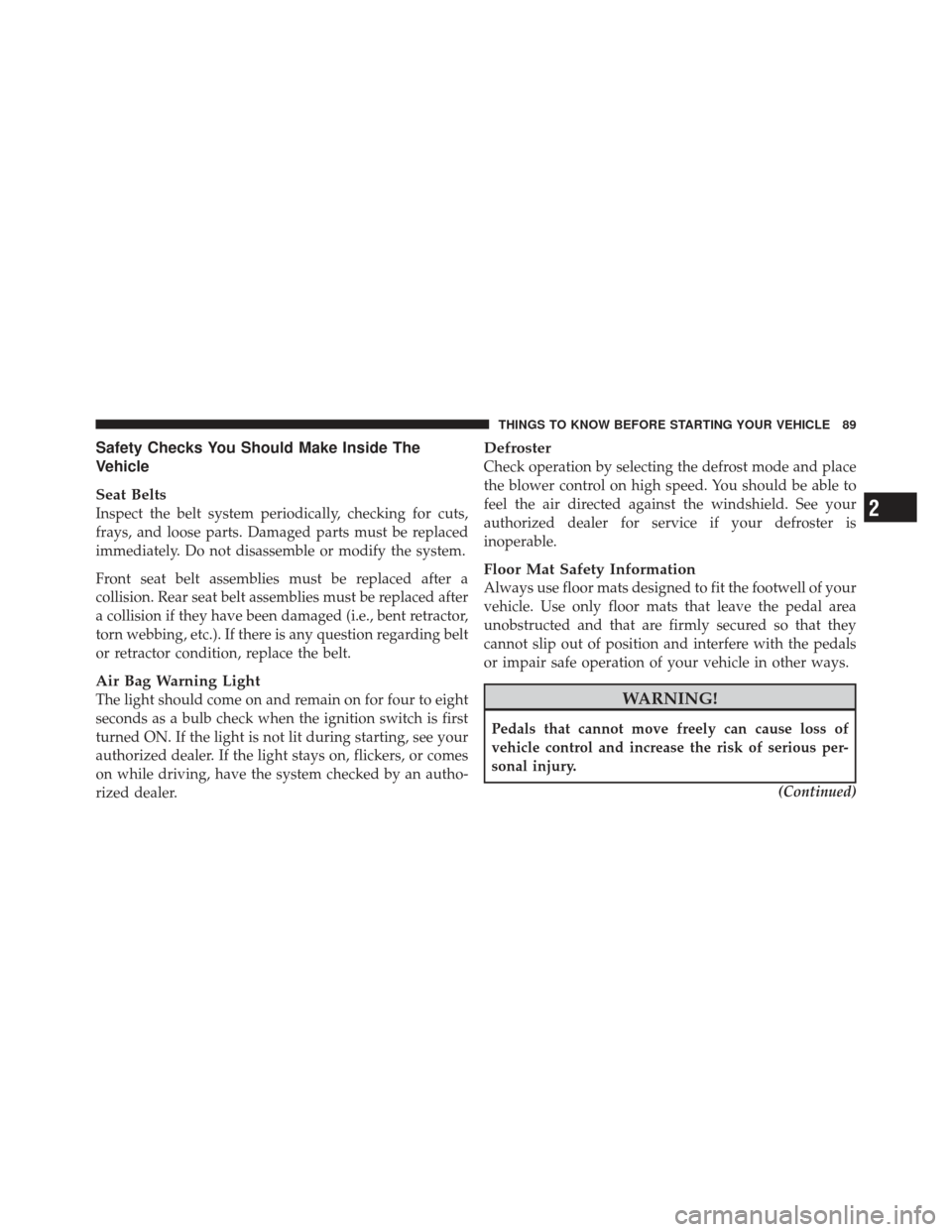

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Air Bag Warning Light
The light should come on and remain on for four to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89

WARNING! (Continued)
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and inter-
fering with the pedals or the ability to control the
vehicle.
•Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.
•Check mounting of mats on a regular basis. Al-
ways properly reinstall and secure floor mats that
have been removed for cleaning.(Continued)
WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91

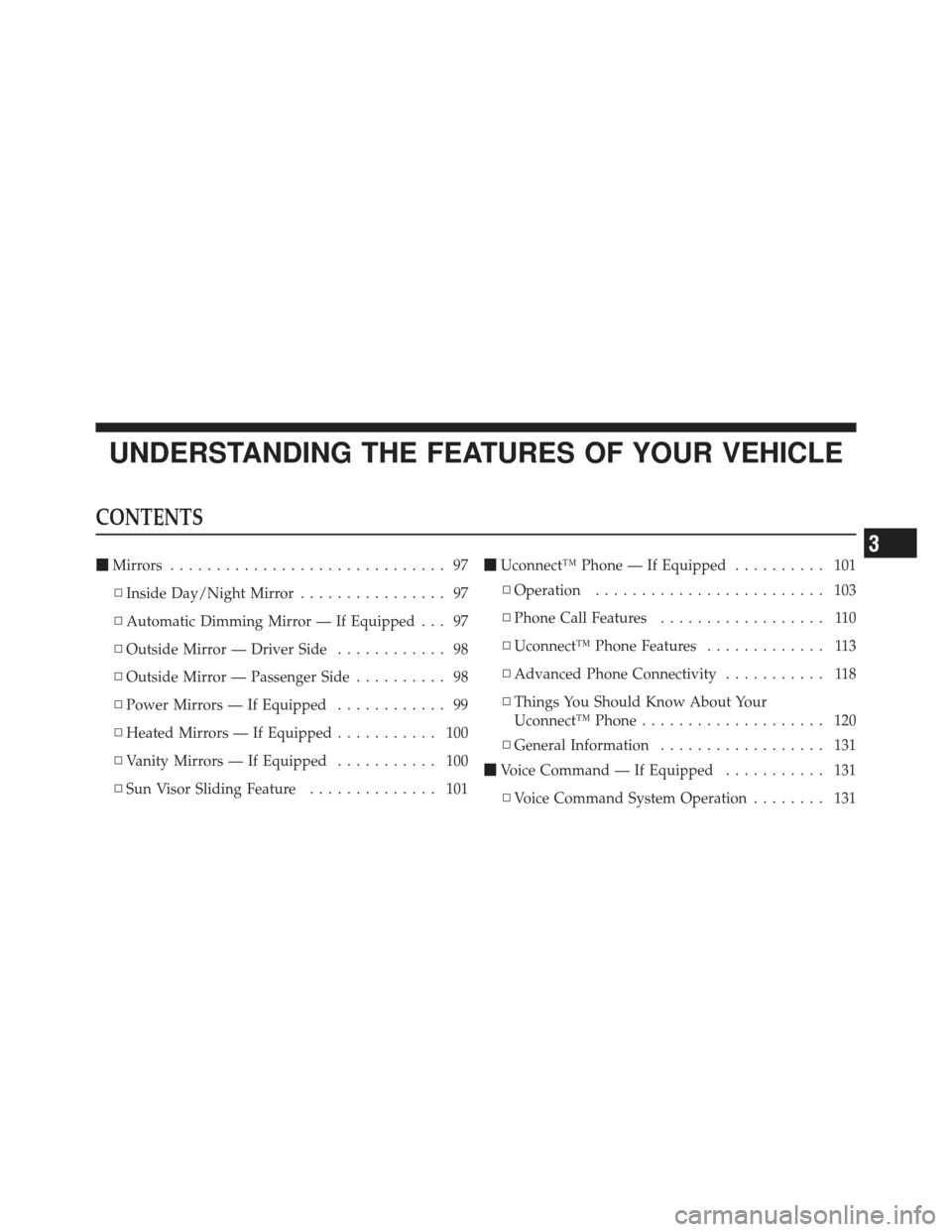

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 97
▫ Inside Day/Night Mirror ................ 97
▫ Automatic Dimming Mirror — If Equipped . . . 97
▫ Outside Mirror — Driver Side ............ 98
▫ Outside Mirror — Passenger Side .......... 98
▫ Power Mirrors — If Equipped ............ 99
▫ Heated Mirrors — If Equipped ........... 100
▫ Vanity Mirrors — If Equipped ........... 100
▫ Sun Visor Sliding Feature .............. 101
Uconnect™ Phone — If Equipped .......... 101
▫ Operation ......................... 103
▫ Phone Call Features .................. 110
▫ Uconnect™ Phone Features ............. 113
▫ Advanced Phone Connectivity ........... 118
▫ Things You Should Know About Your
Uconnect™ Phone .................... 120
▫ General Information .................. 131
 Voice Command — If Equipped ........... 131
▫ Voice Command System Operation ........ 131
3

▫Commands ........................ 132
▫ Voice Training ...................... 136
 Seats .............................. 136
▫ Power Seats — If Equipped ............. 137
▫ Heated Seats — If Equipped ............ 138
▫ Manual Front Seat Forward/Rearward
Adjustment ........................ 140
▫ Manual Seat Height Adjustment — If
Equipped .......................... 141
▫ Manual Lumbar — If Equipped .......... 141
▫ Driver’s Seatback Recline ............... 142
▫ Fold-Flat Front Passenger Seat ........... 143
▫ Head Restraints ..................... 144
▫ Folding Rear Seat .................... 147 ▫
Reclining Rear Seat — If Equipped ........ 148
 To Open And Close The Hood ............ 150
 Lights ............................. 152
▫ Multifunction Lever .................. 152
▫ Headlights And Parking Lights .......... 153
▫ Daytime Running Lights — If Equipped .... 153
▫ Lights-On Reminder .................. 154
▫ Fog Lights — If Equipped .............. 154
▫ Turn Signals ........................ 155
▫ High/Low Beam Switch ............... 155
▫ Flash-To-Pass ....................... 155
▫ Instrument Panel Dimmer .............. 156
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

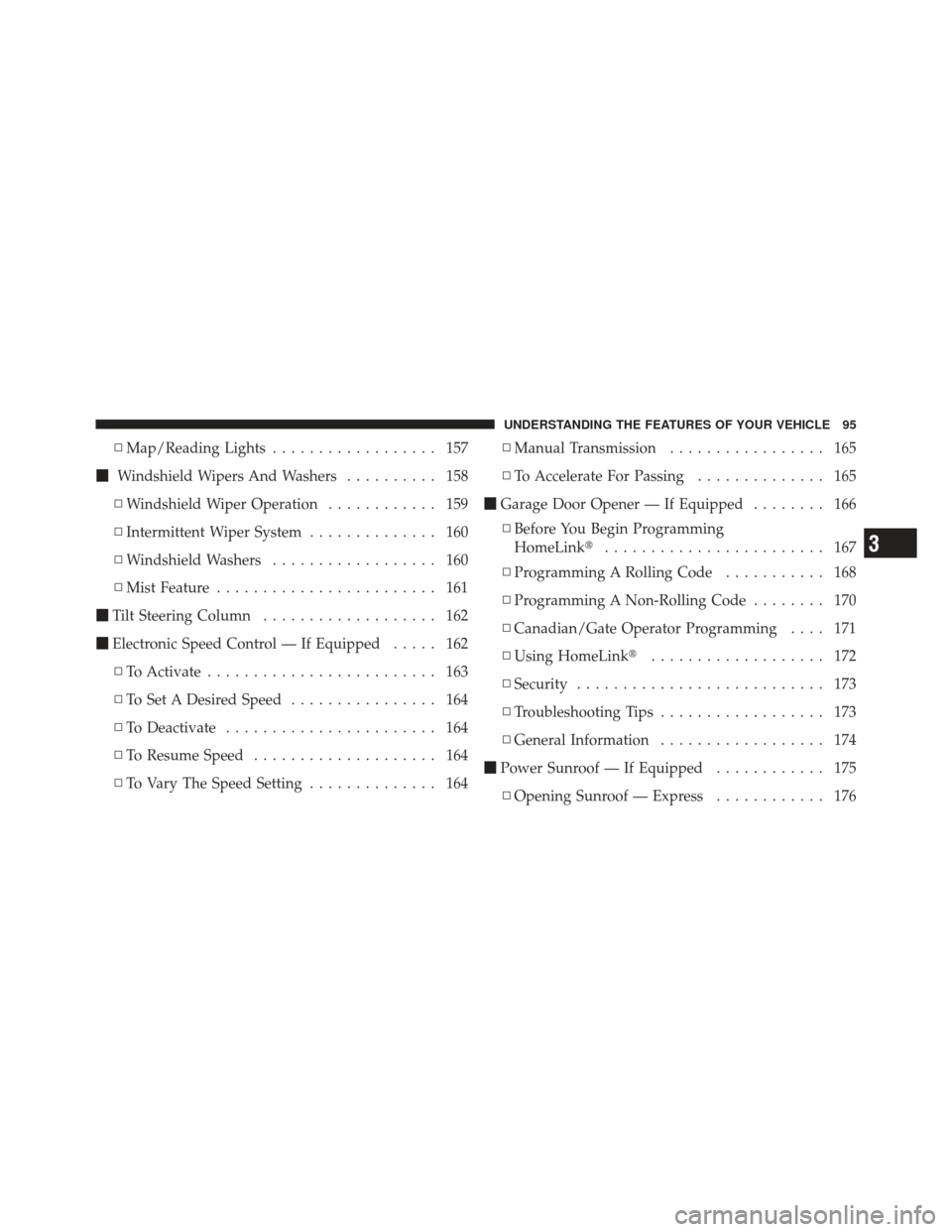

▫Map/Reading Lights .................. 157
 Windshield Wipers And Washers .......... 158
▫ Windshield Wiper Operation ............ 159
▫ Intermittent Wiper System .............. 160
▫ Windshield Washers .................. 160
▫ Mist Feature ........................ 161
 Tilt Steering Column ................... 162
 Electronic Speed Control — If Equipped ..... 162
▫ To Activate ......................... 163
▫ To Set A Desired Speed ................ 164
▫ To Deactivate ....................... 164
▫ To Resume Speed .................... 164
▫ To Vary The Speed Setting .............. 164 ▫
Manual Transmission ................. 165
▫ To Accelerate For Passing .............. 165
 Garage Door Opener — If Equipped ........ 166
▫ Before You Begin Programming
HomeLink ........................ 167
▫ Programming A Rolling Code ........... 168
▫ Programming A Non-Rolling Code ........ 170
▫ Canadian/Gate Operator Programming .... 171
▫ Using HomeLink ................... 172
▫ Security ........................... 173
▫ Troubleshooting Tips .................. 173
▫ General Information .................. 174
 Power Sunroof — If Equipped ............ 175
▫ Opening Sunroof — Express ............ 176
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

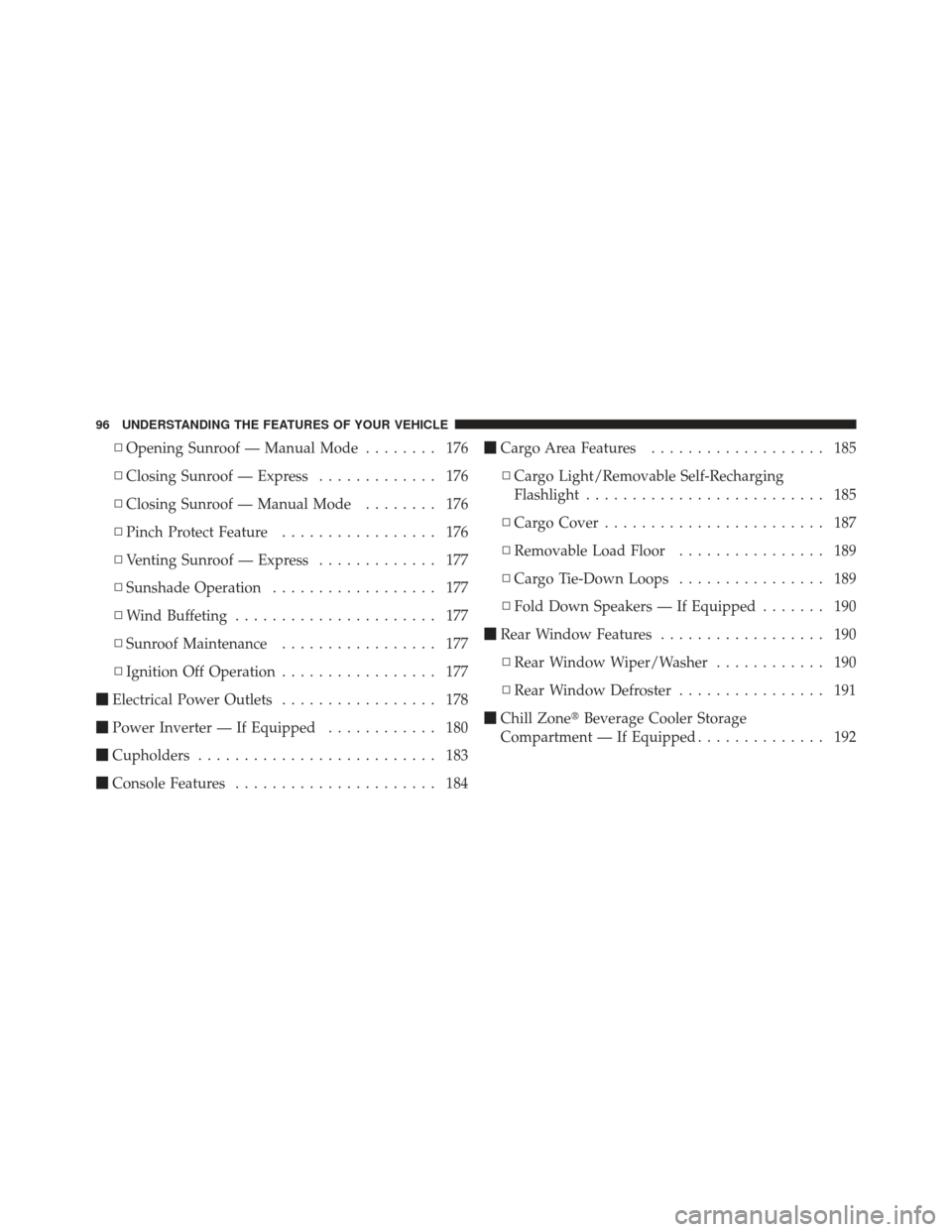

▫Opening Sunroof — Manual Mode ........ 176
▫ Closing Sunroof — Express ............. 176
▫ Closing Sunroof — Manual Mode ........ 176
▫ Pinch Protect Feature ................. 176
▫ Venting Sunroof — Express ............. 177
▫ Sunshade Operation .................. 177
▫ Wind Buffeting ...................... 177
▫ Sunroof Maintenance ................. 177
▫ Ignition Off Operation ................. 177
 Electrical Power Outlets ................. 178
 Power Inverter — If Equipped ............ 180
 Cupholders .......................... 183
 Console Features ...................... 184
Cargo Area Features ................... 185
▫ Cargo Light/Removable Self-Recharging
Flashlight .......................... 185
▫ Cargo Cover ........................ 187
▫ Removable Load Floor ................ 189
▫ Cargo Tie-Down Loops ................ 189
▫ Fold Down Speakers — If Equipped ....... 190
 Rear Window Features .................. 190
▫ Rear Window Wiper/Washer ............ 190
▫ Rear Window Defroster ................ 191
 Chill Zone Beverage Cooler Storage
Compartment — If Equipped .............. 192
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

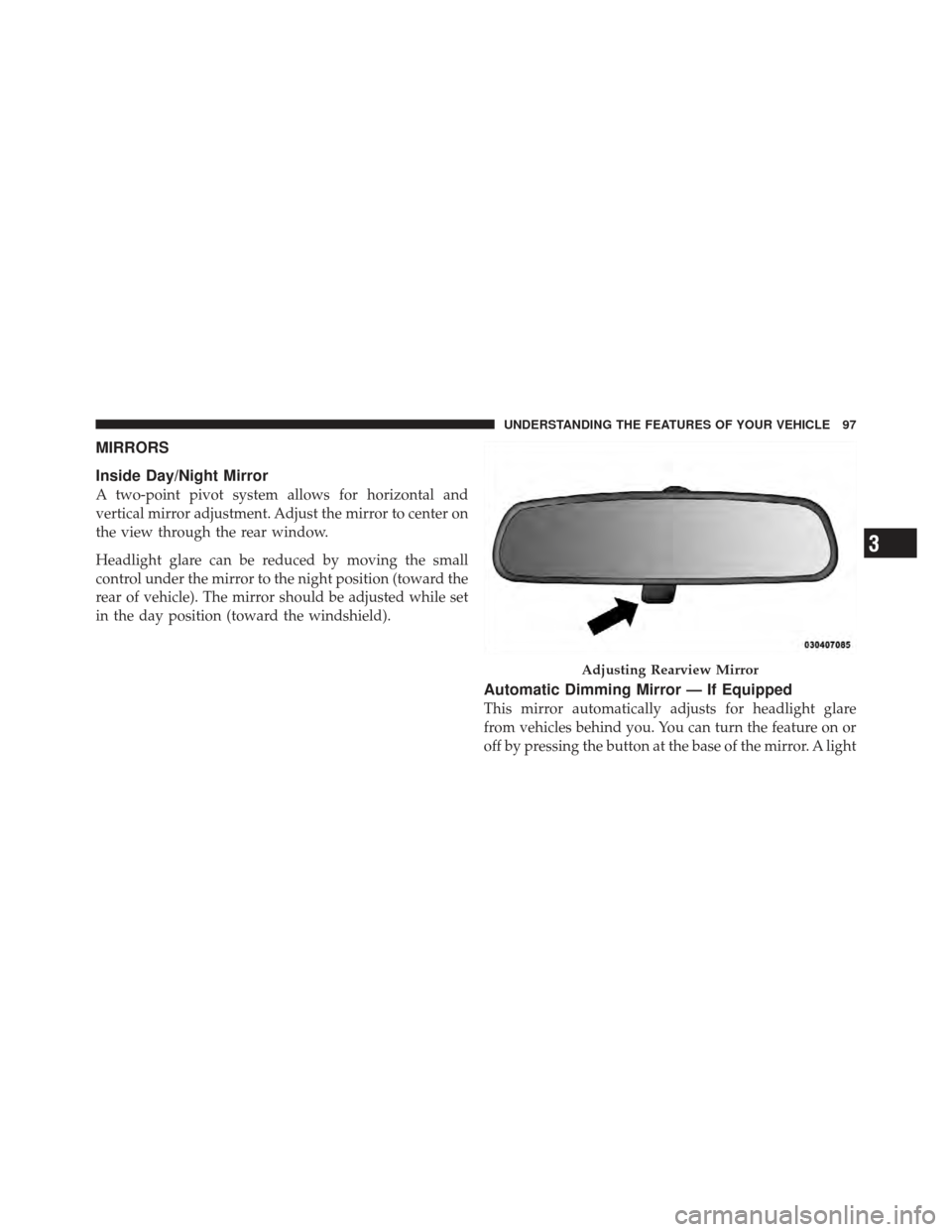

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirror — Driver Side
Adjust the flat outside mirror so you can just see the side
of your vehicle in the part of the mirror closest to the
vehicle with your head close to the door glass.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle with your head close to the center of the vehicle.
Automatic Dimming Mirror
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
