Page 401 of 506

DODGE CALIBER 2012 1.G Owners Manual 3. Align the valve notch in the wheel cover with the
valve stem on the wheel. Install the cover by hand,snapping the cover over the two lug nuts. Do not use a
hammer or excessive force to install the

Page 402 of 506

DODGE CALIBER 2012 1.G Owners Manual each lug nut is 100 ft/lbs (135 N·m). If in doubt about the
correct tightness, have them checked with a torque
wrench by your authorized dealer or service station.
7. After 25 miles (40 km) check the

Page 403 of 506

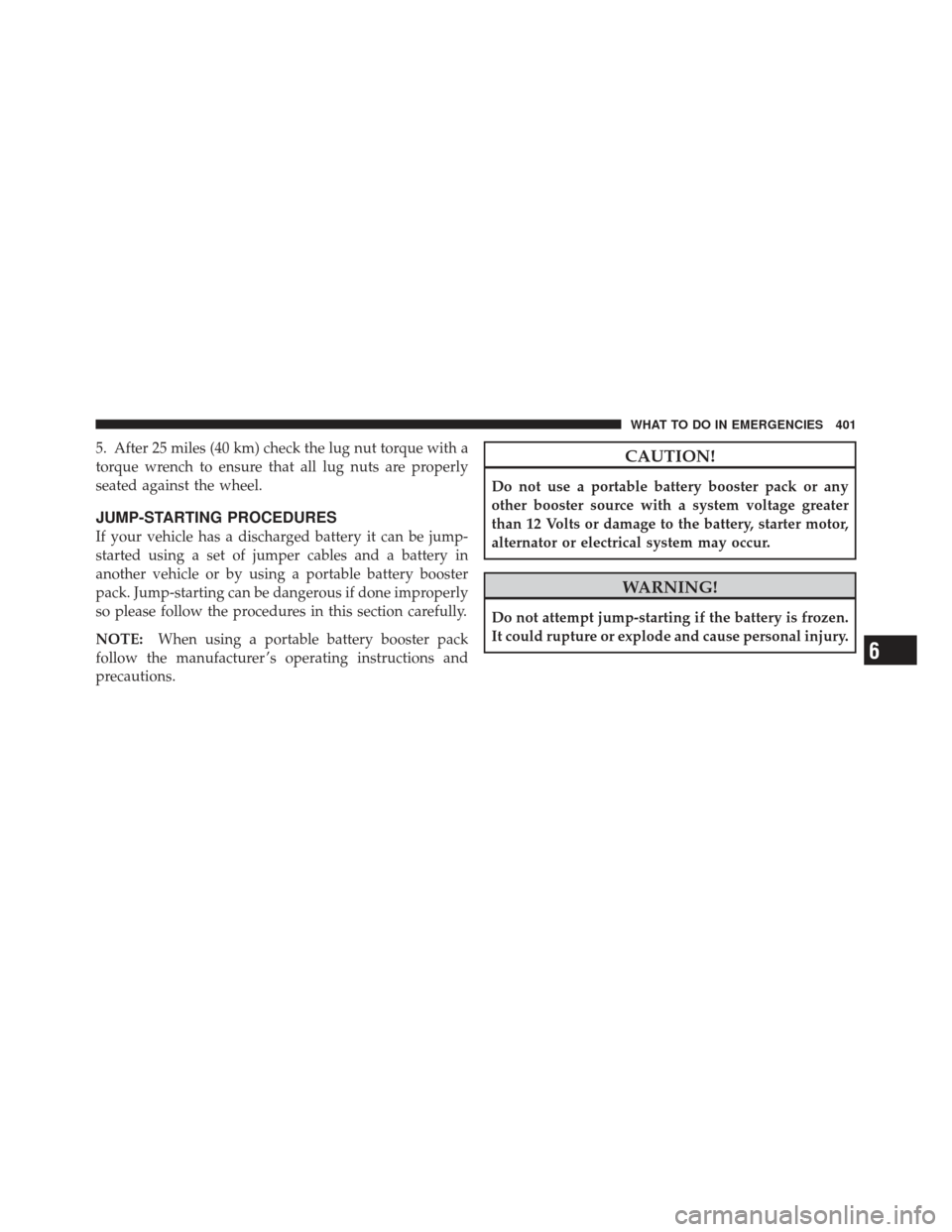

DODGE CALIBER 2012 1.G Owners Manual 5. After 25 miles (40 km) check the lug nut torque with a
torque wrench to ensure that all lug nuts are properly
seated against the wheel.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged bat

Page 404 of 506

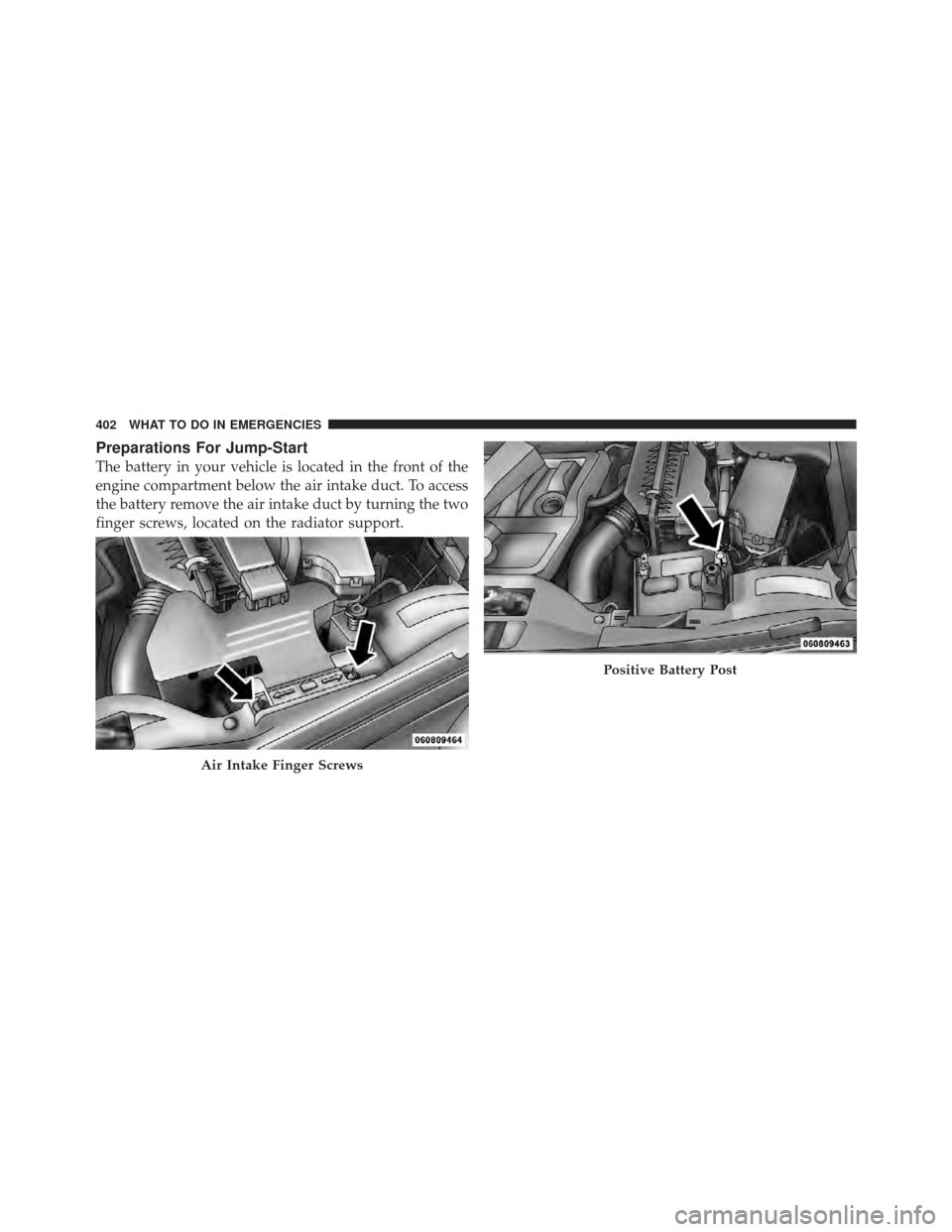

DODGE CALIBER 2012 1.G Owners Manual Preparations For Jump-Start
The battery in your vehicle is located in the front of the
engine compartment below the air intake duct. To access
the battery remove the air intake duct by turning the two

Page 405 of 506

DODGE CALIBER 2012 1.G Owners Manual WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewe

Page 406 of 506

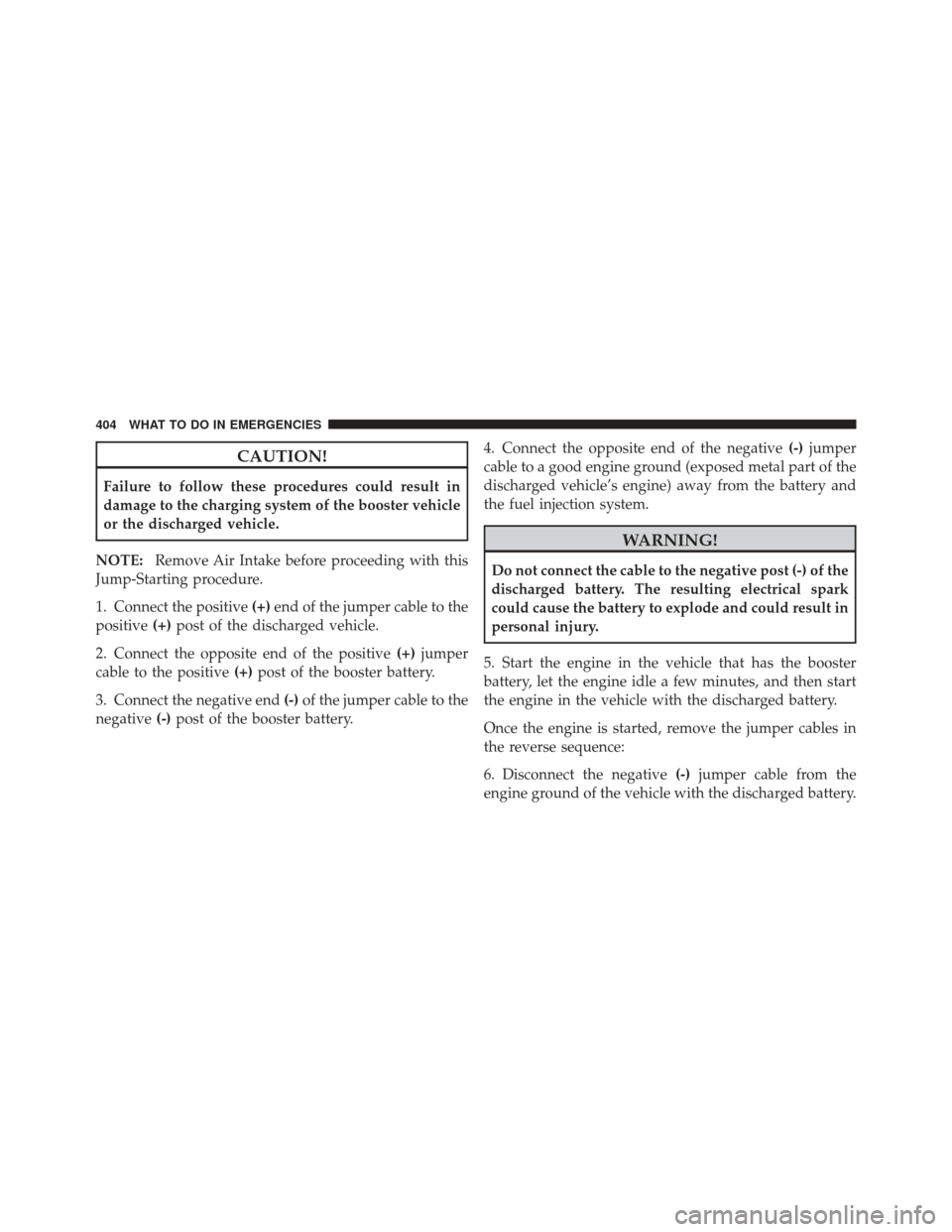

DODGE CALIBER 2012 1.G Owners Manual CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
NOTE: Remove Air Intake before proceeding with this
Jump-Sta

Page 407 of 506

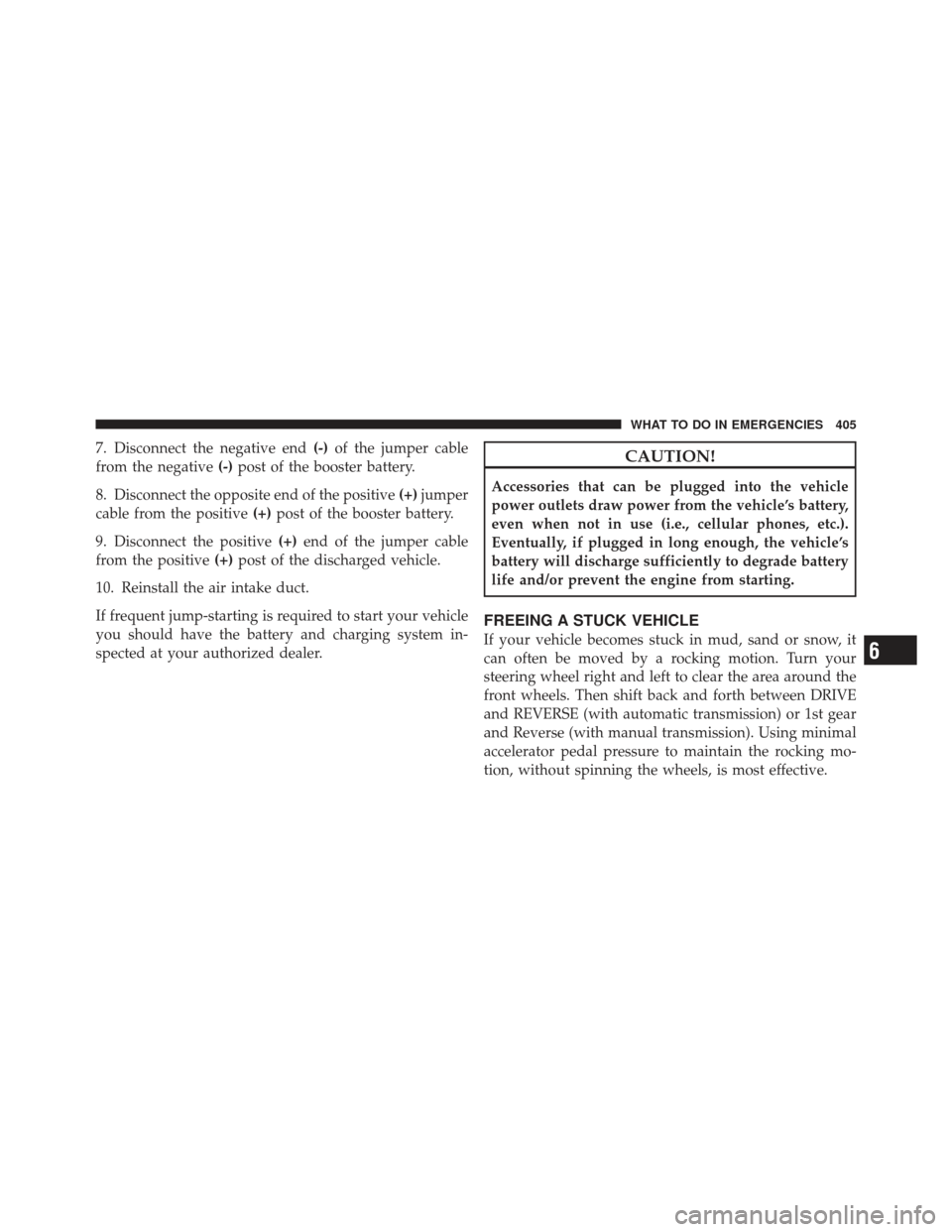

DODGE CALIBER 2012 1.G Owners Manual 7. Disconnect the negative end(-)of the jumper cable
from the negative (-)post of the booster battery.
8. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the b

Page 408 of 506

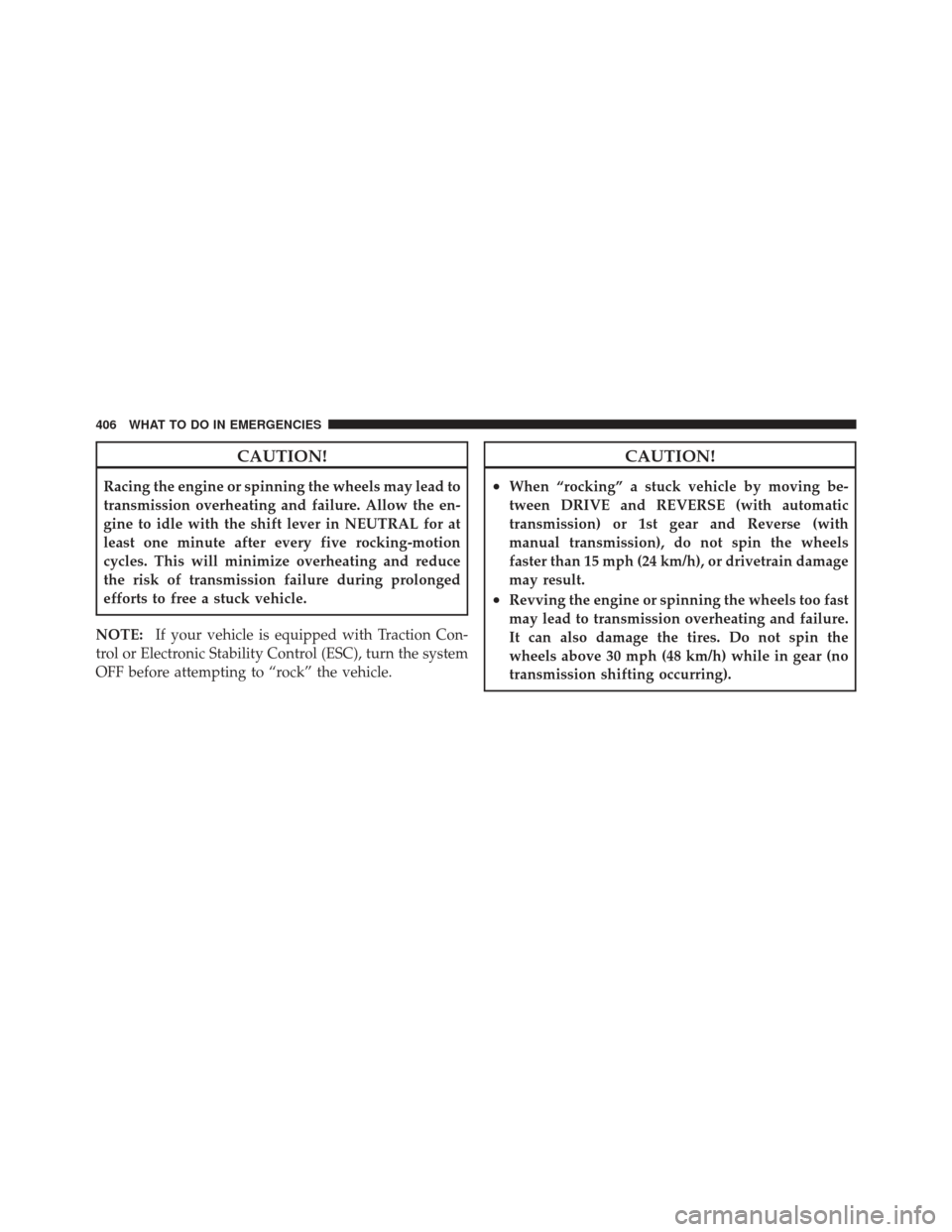

DODGE CALIBER 2012 1.G Owners Manual CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the shift lever in NEUTRAL for at
least one minute after every five

Page 409 of 506

DODGE CALIBER 2012 1.G Owners Manual WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not sp

Page 410 of 506

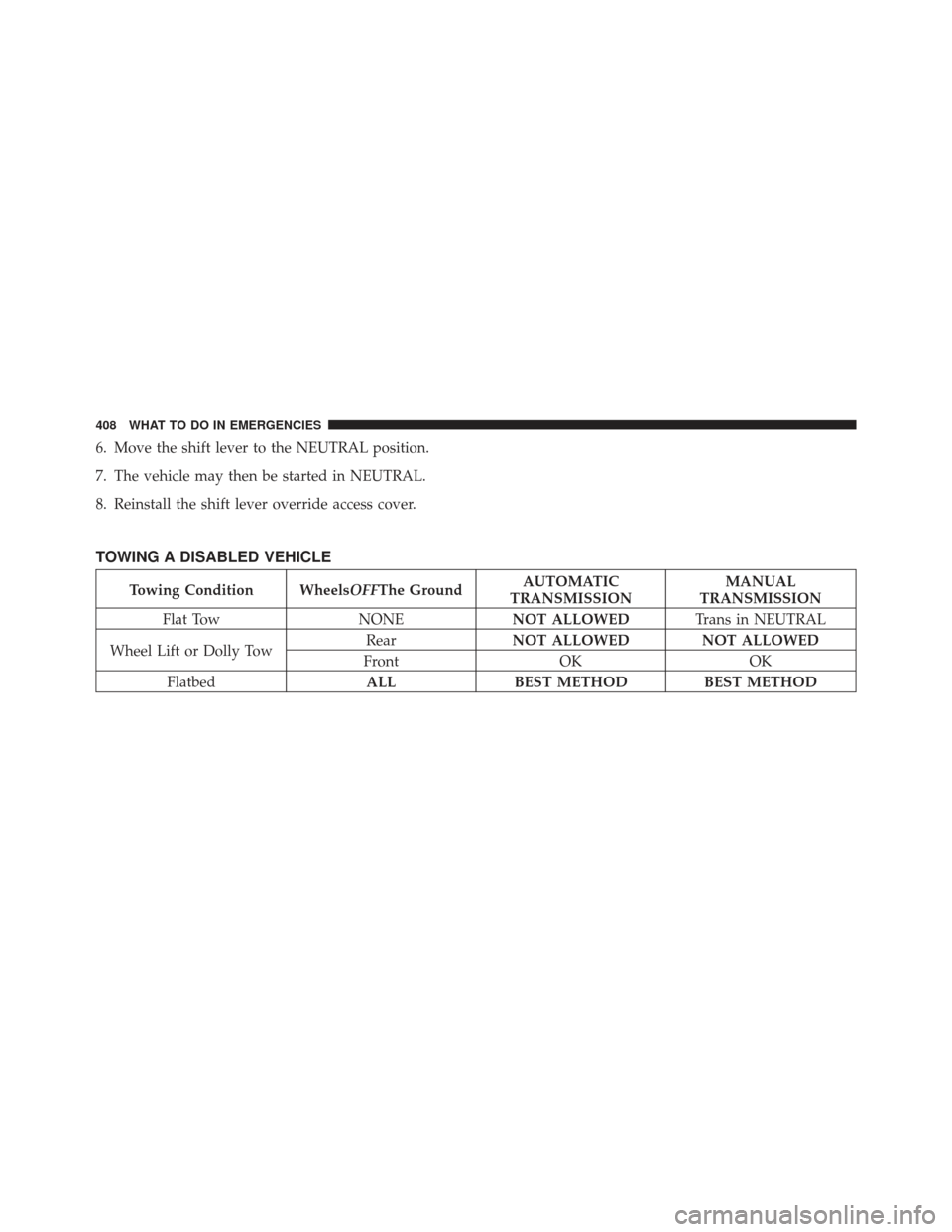

DODGE CALIBER 2012 1.G Owners Manual 6. Move the shift lever to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover.
TOWING A DISABLED VEHICLE
Towing Condition WheelsOFF
