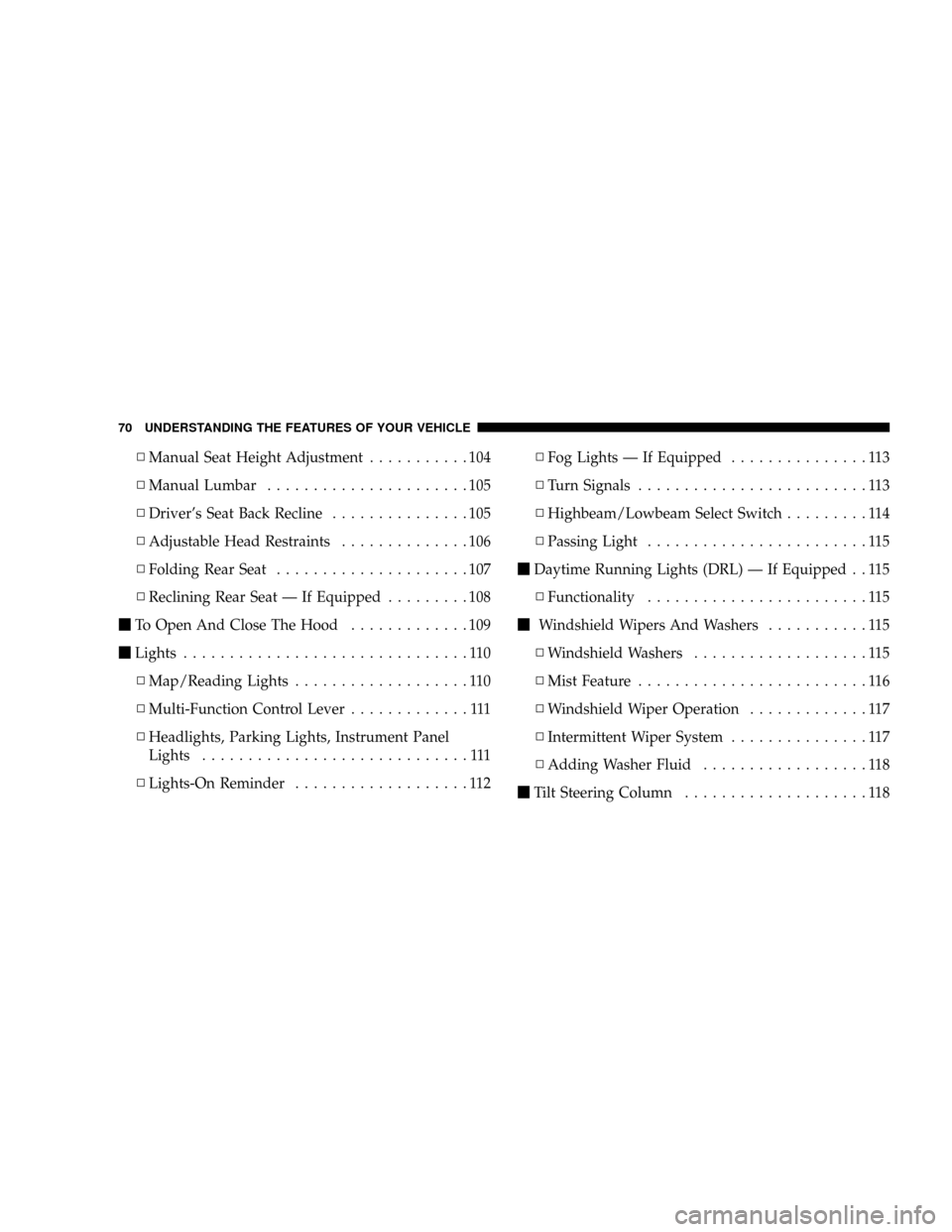

NManual Seat Height Adjustment...........104
NManual Lumbar......................105
NDriver's Seat Back Recline...............105
NAdjustable Head Restraints..............106
NFolding Rear Seat.....................107
NReclining Rear Seat Ð If Equipped.........108
mTo Open And Close The Hood.............109
mLights...............................110
NMap/Reading Lights...................110
NMulti-Function Control Lever.............111
NHeadlights, Parking Lights, Instrument Panel
Lights.............................111
NLights-On Reminder...................112NFog Lights Ð If Equipped...............113
NTurn Signals.........................113
NHighbeam/Lowbeam Select Switch.........114
NPassing Light........................115
mDaytime Running Lights (DRL) Ð If Equipped . . 115
NFunctionality........................115
mWindshield Wipers And Washers...........115
NWindshield Washers...................115
NMist Feature.........................116
NWindshield Wiper Operation.............117
NIntermittent Wiper System...............117
NAdding Washer Fluid..................118
mTilt Steering Column....................118
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

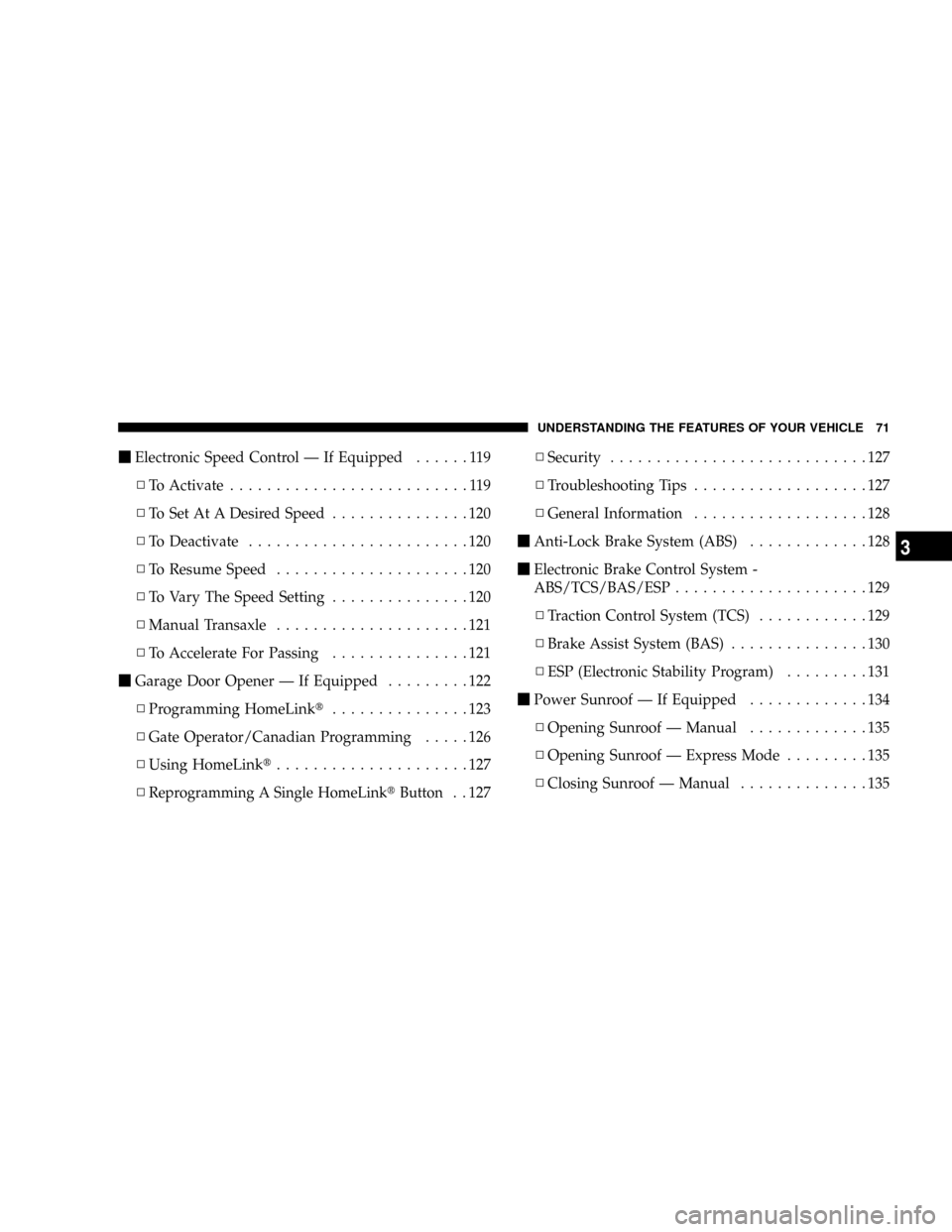

mElectronic Speed Control Ð If Equipped......119
NTo Activate..........................119
NTo Set At A Desired Speed...............120
NTo Deactivate........................120
NTo Resume Speed.....................120
NTo Vary The Speed Setting...............120
NManual Transaxle.....................121
NTo Accelerate For Passing...............121
mGarage Door Opener Ð If Equipped.........122
NProgramming HomeLinkt...............123
NGate Operator/Canadian Programming.....126
NUsing HomeLinkt.....................127
N
Reprogramming A Single HomeLinktButton. . 127NSecurity............................127
NTroubleshooting Tips...................127
NGeneral Information...................128
mAnti-Lock Brake System (ABS).............128
mElectronic Brake Control System -
ABS/TCS/BAS/ESP.....................129
NTraction Control System (TCS)............129
NBrake Assist System (BAS)...............130
NESP (Electronic Stability Program).........131
mPower Sunroof Ð If Equipped.............134
NOpening Sunroof Ð Manual.............135
NOpening Sunroof Ð Express Mode.........135
NClosing Sunroof Ð Manual..............135
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

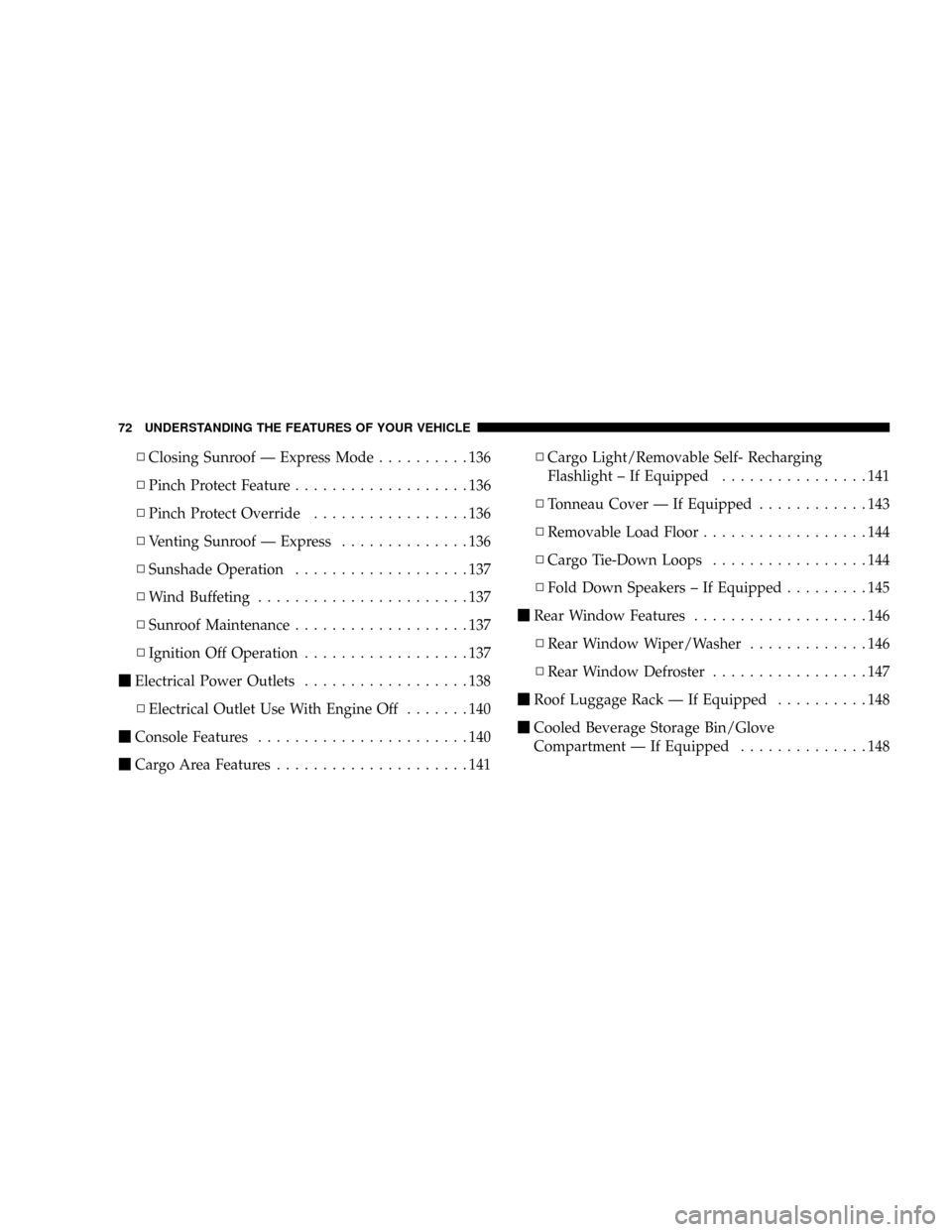

NClosing Sunroof Ð Express Mode..........136
NPinch Protect Feature...................136
NPinch Protect Override.................136
NVenting Sunroof Ð Express..............136
NSunshade Operation...................137
NWind Buffeting.......................137
NSunroof Maintenance...................137
NIgnition Off Operation..................137
mElectrical Power Outlets..................138
NElectrical Outlet Use With Engine Off.......140
mConsole Features.......................140
mCargo Area Features.....................141NCargo Light/Removable Self- Recharging
Flashlight ± If Equipped................141
NTonneau Cover Ð If Equipped............143
NRemovable Load Floor..................144
NCargo Tie-Down Loops.................144
NFold Down Speakers ± If Equipped.........145
mRear Window Features...................146
NRear Window Wiper/Washer.............146
NRear Window Defroster.................147
mRoof Luggage Rack Ð If Equipped..........148
mCooled Beverage Storage Bin/Glove
Compartment Ð If Equipped..............148
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

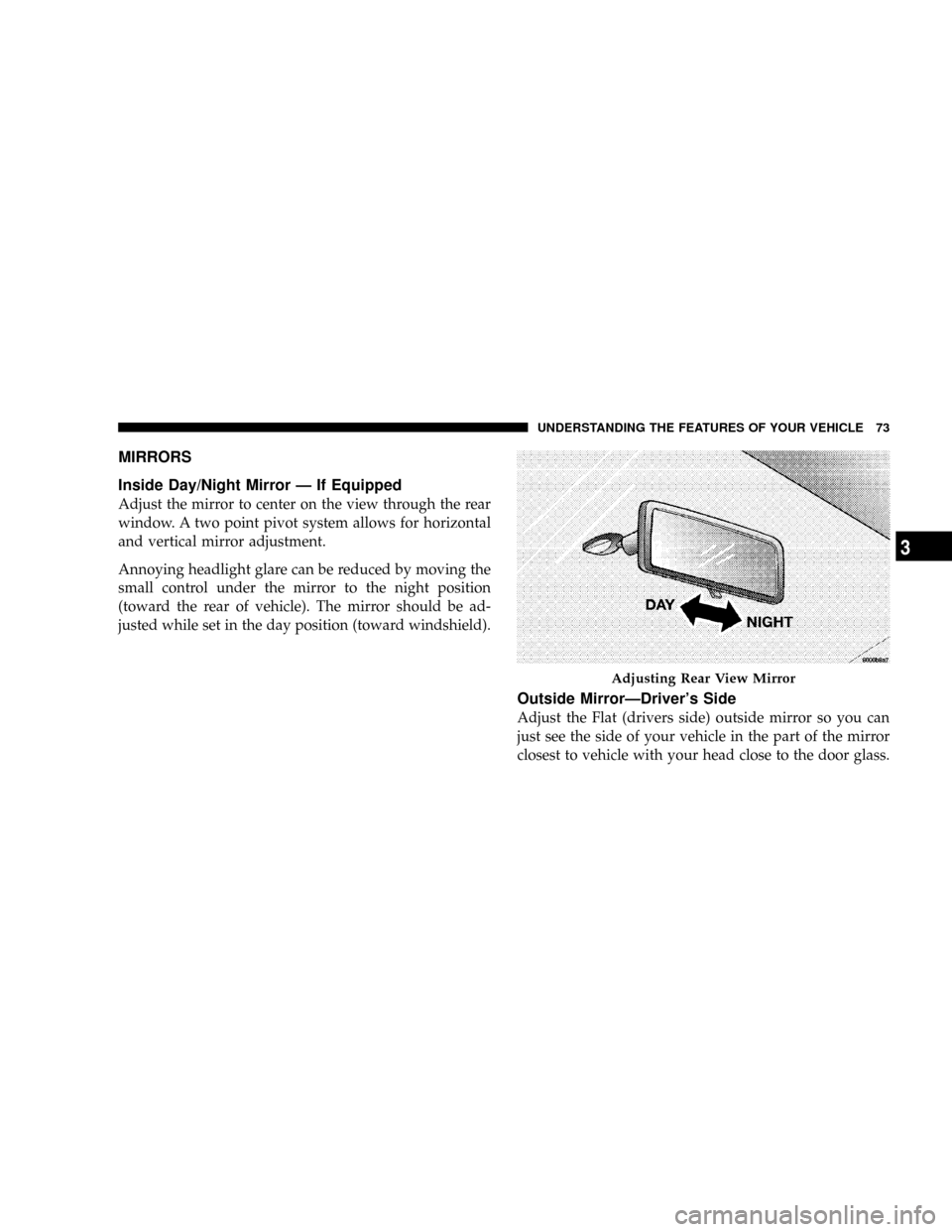

MIRRORS
Inside Day/Night Mirror Ð If Equipped
Adjust the mirror to center on the view through the rear
window. A two point pivot system allows for horizontal
and vertical mirror adjustment.
Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward the rear of vehicle). The mirror should be ad-
justed while set in the day position (toward windshield).
Outside MirrorÐDriver's Side
Adjust the Flat (drivers side) outside mirror so you can
just see the side of your vehicle in the part of the mirror
closest to vehicle with your head close to the door glass.
Adjusting Rear View Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

Outside MirrorÐPassenger's Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle with your head close to the center of the vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Power Remote Control Mirrors Ð If Equipped
The controls for the power mirrors are located on the
driver's door trim panel.
Remote Control Mirrors Switch
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

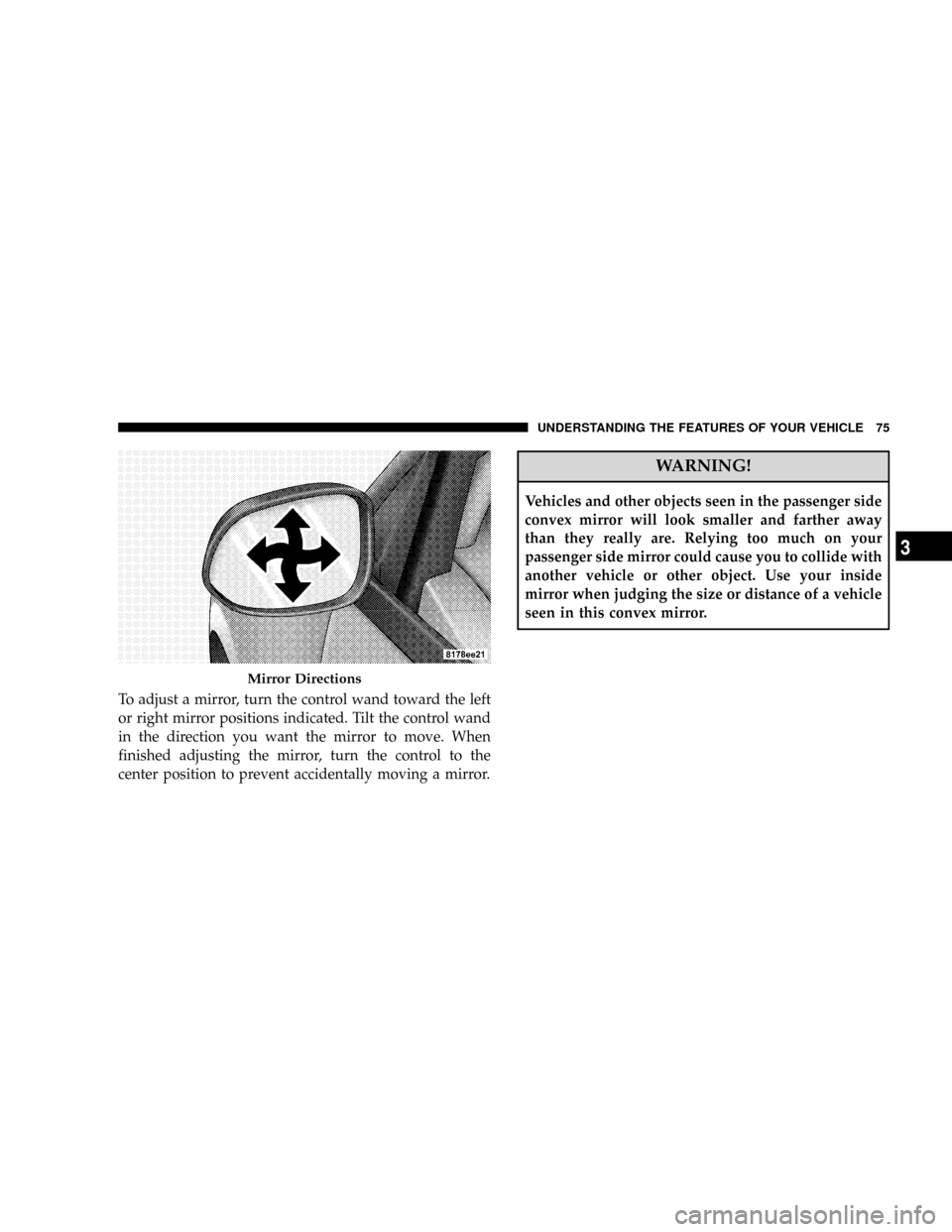

To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Mirror Directions
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

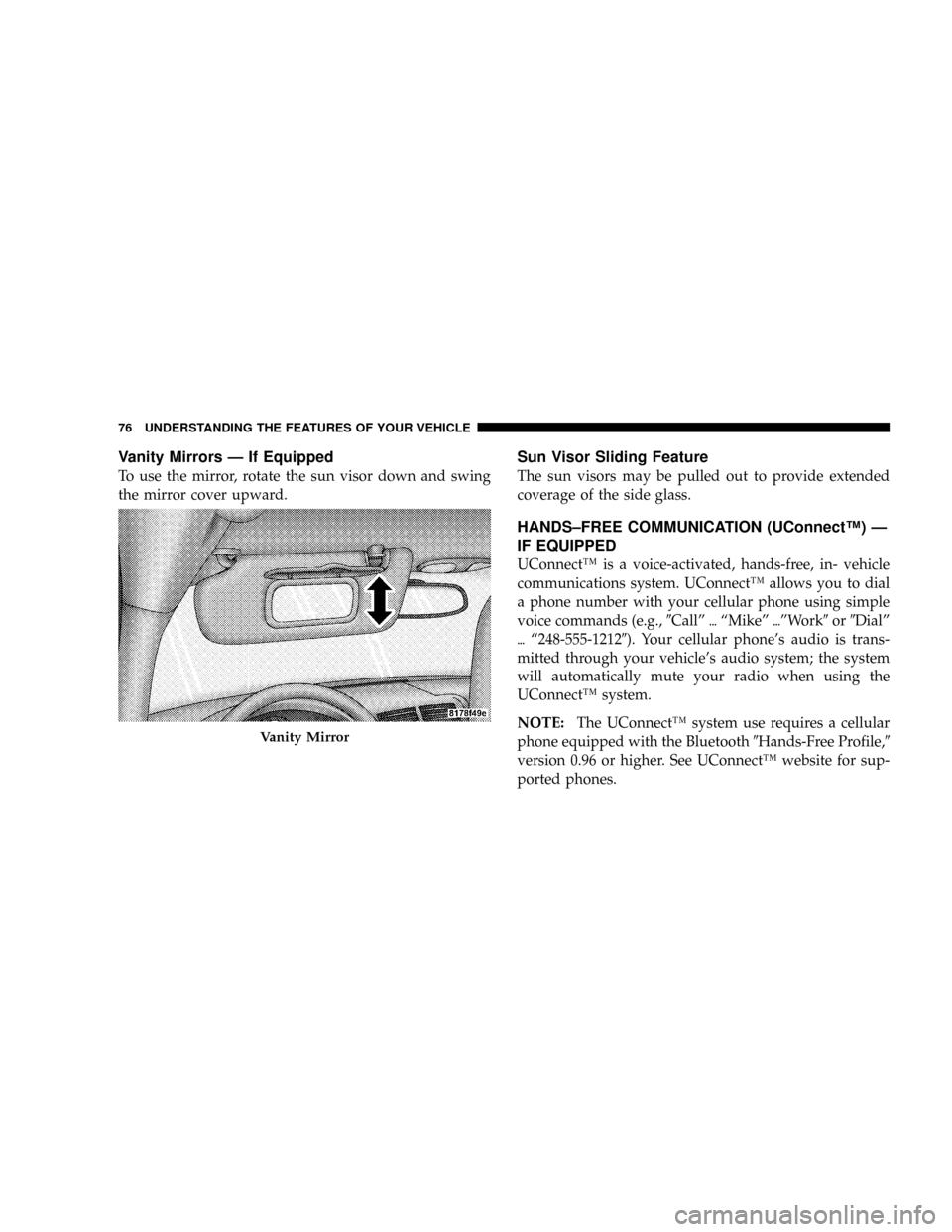

Vanity Mirrors Ð If Equipped
To use the mirror, rotate the sun visor down and swing
the mirror cover upward.
Sun Visor Sliding Feature
The sun visors may be pulled out to provide extended
coverage of the side glass.
HANDS±FREE COMMUNICATION (UConnectŸ) Ð
IF EQUIPPED
UConnectŸ is a voice-activated, hands-free, in- vehicle
communications system. UConnectŸ allows you to dial
a phone number with your cellular phone using simple
voice commands (e.g.,9Callº{ªMikeº{ºWork9or9Dialº
{ª248-555-12129). Your cellular phone's audio is trans-
mitted through your vehicle's audio system; the system
will automatically mute your radio when using the
UConnectŸ system.
NOTE:The UConnectŸ system use requires a cellular
phone equipped with the Bluetooth9Hands-Free Profile,9
version 0.96 or higher. See UConnectŸ website for sup-
ported phones.
Vanity Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

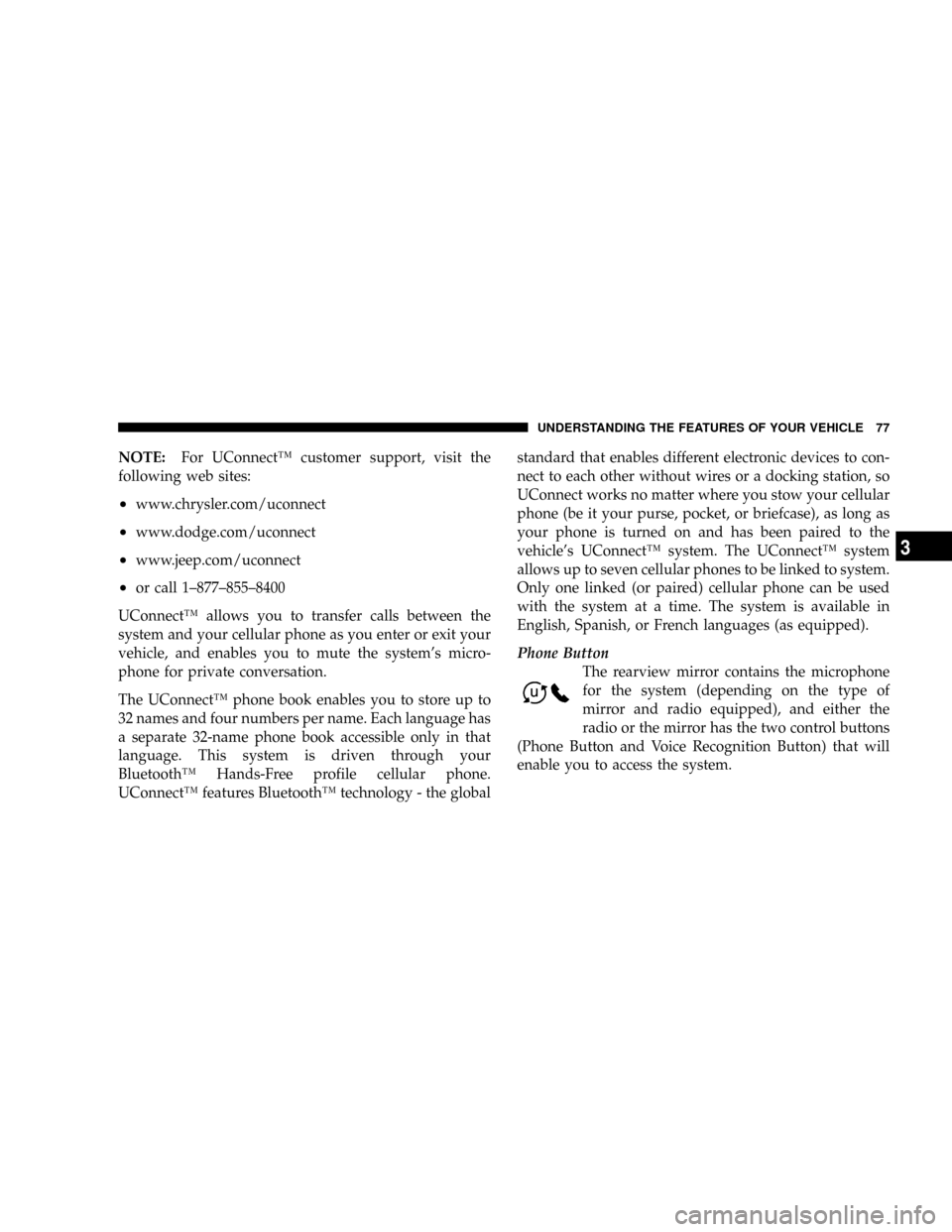

NOTE:For UConnectŸ customer support, visit the
following web sites:
²www.chrysler.com/uconnect
²www.dodge.com/uconnect
²www.jeep.com/uconnect
²or call 1±877±855±8400
UConnectŸ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system's micro-
phone for private conversation.
The UConnectŸ phone book enables you to store up to
32 names and four numbers per name. Each language has
a separate 32-name phone book accessible only in that
language. This system is driven through your
BluetoothŸ Hands-Free profile cellular phone.
UConnectŸ features BluetoothŸ technology - the globalstandard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle's UConnectŸ system. The UConnectŸ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(Phone Button and Voice Recognition Button) that will
enable you to access the system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

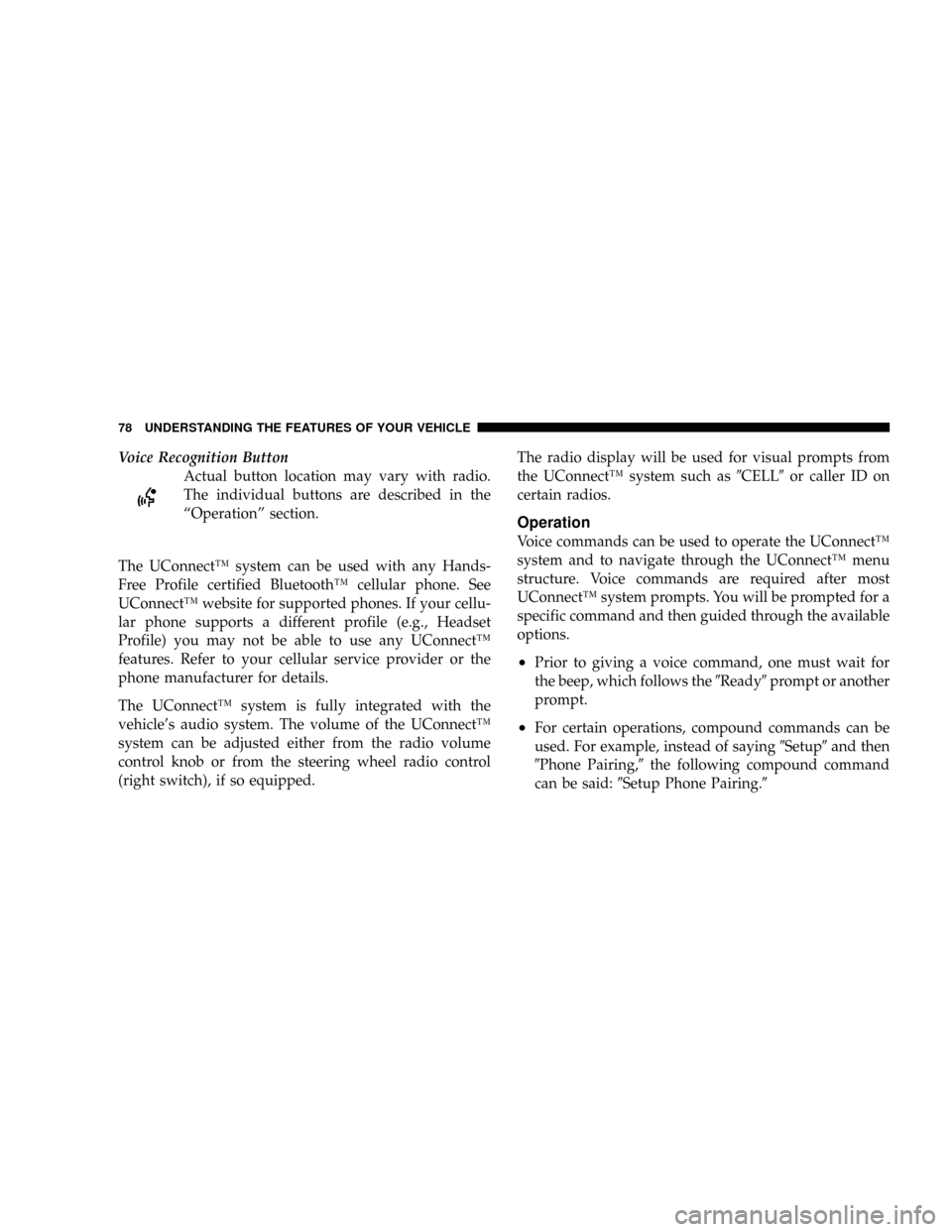

Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
ªOperationº section.
The UConnectŸ system can be used with any Hands-
Free Profile certified BluetoothŸ cellular phone. See
UConnectŸ website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnectŸ
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnectŸ system is fully integrated with the
vehicle's audio system. The volume of the UConnectŸ
system can be adjusted either from the radio volume
control knob or from the steering wheel radio control
(right switch), if so equipped.The radio display will be used for visual prompts from
the UConnectŸ system such as9CELL9or caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnectŸ
system and to navigate through the UConnectŸ menu
structure. Voice commands are required after most
UConnectŸ system prompts. You will be prompted for a
specific command and then guided through the available
options.
²Prior to giving a voice command, one must wait for
the beep, which follows the9Ready9prompt or another
prompt.
²For certain operations, compound commands can be
used. For example, instead of saying9Setup9and then
9Phone Pairing,9the following compound command
can be said:9Setup Phone Pairing.9
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

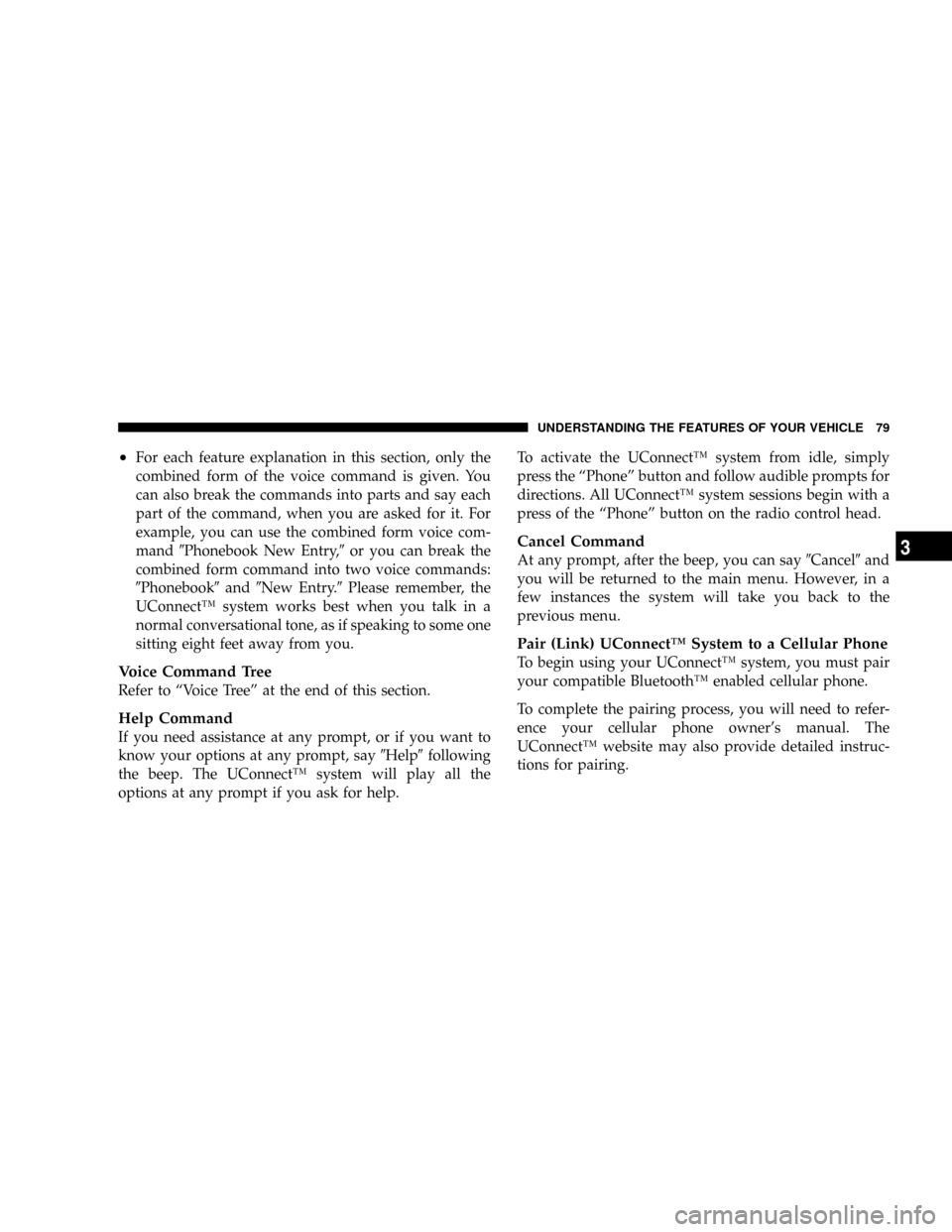

²For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For
example, you can use the combined form voice com-
mand9Phonebook New Entry,9or you can break the
combined form command into two voice commands:
9Phonebook9and9New Entry.9Please remember, the
UConnectŸ system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.
Voice Command Tree
Refer to ªVoice Treeº at the end of this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say9Help9following
the beep. The UConnectŸ system will play all the
options at any prompt if you ask for help.To activate the UConnectŸ system from idle, simply
press the ªPhoneº button and follow audible prompts for
directions. All UConnectŸ system sessions begin with a
press of the ªPhoneº button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say9Cancel9and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnectŸ System to a Cellular Phone
To begin using your UConnectŸ system, you must pair
your compatible BluetoothŸ enabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone owner's manual. The
UConnectŸ website may also provide detailed instruc-
tions for pairing.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
