DODGE CALIBER SRT 2009 1.G Owners Manual

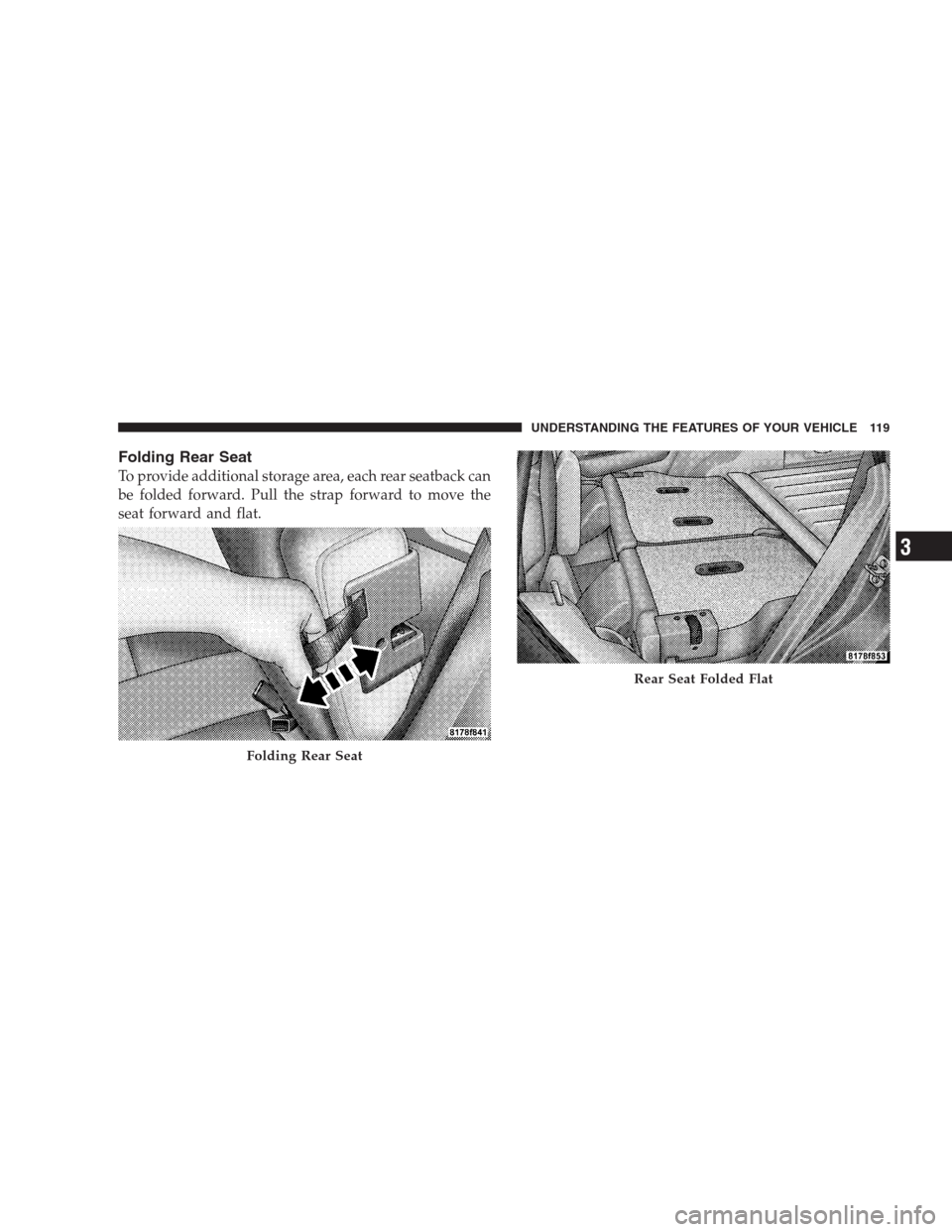

Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. Pull the strap forward to move the
seat forward and flat.
Folding Rear Seat
Rear Seat Folded Flat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

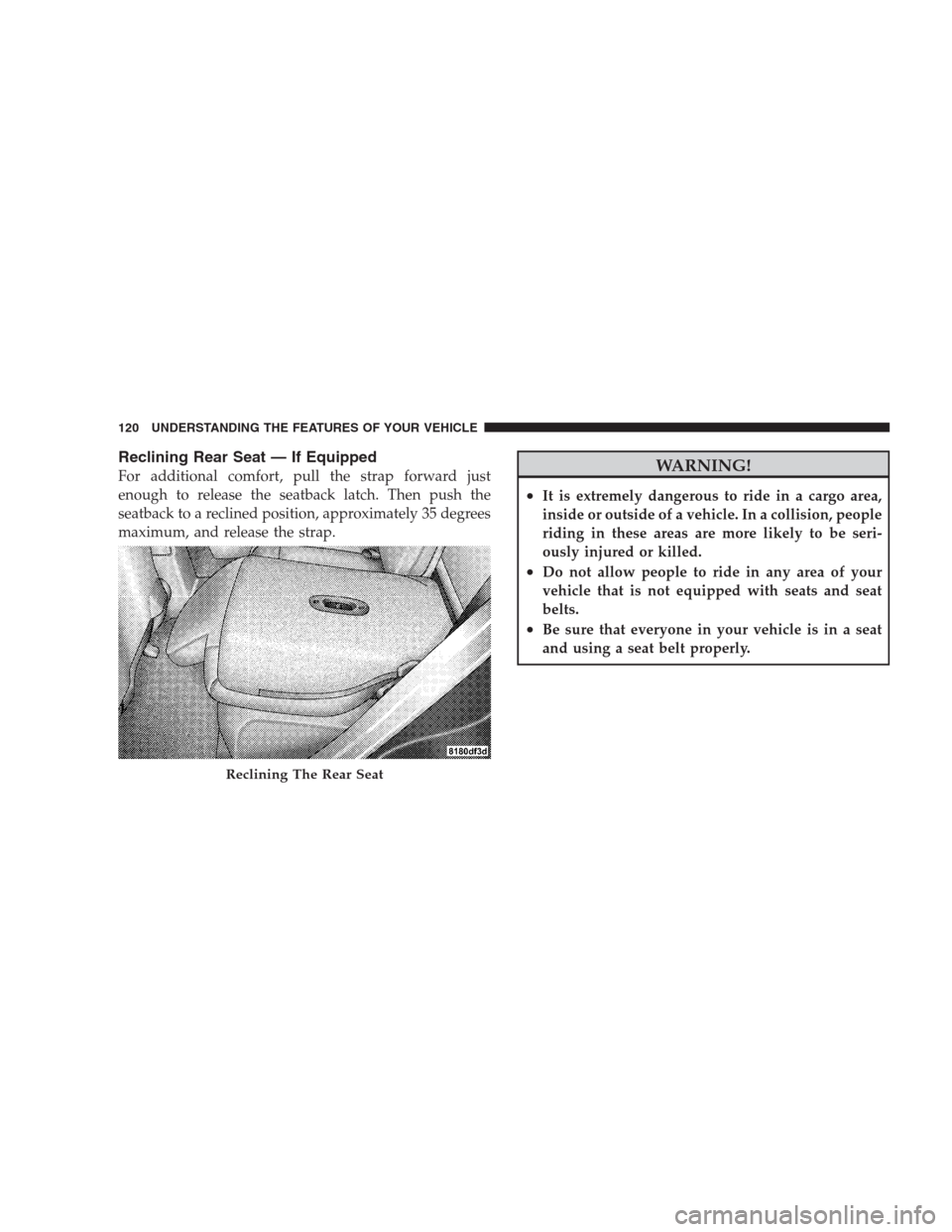

Reclining Rear Seat — If Equipped
For additional comfort, pull the strap forward just
enough to release the seatback latch. Then push the
seatback to a reclined position, approximately 35 degrees
maximum, and release the strap.WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.
Reclining The Rear Seat
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

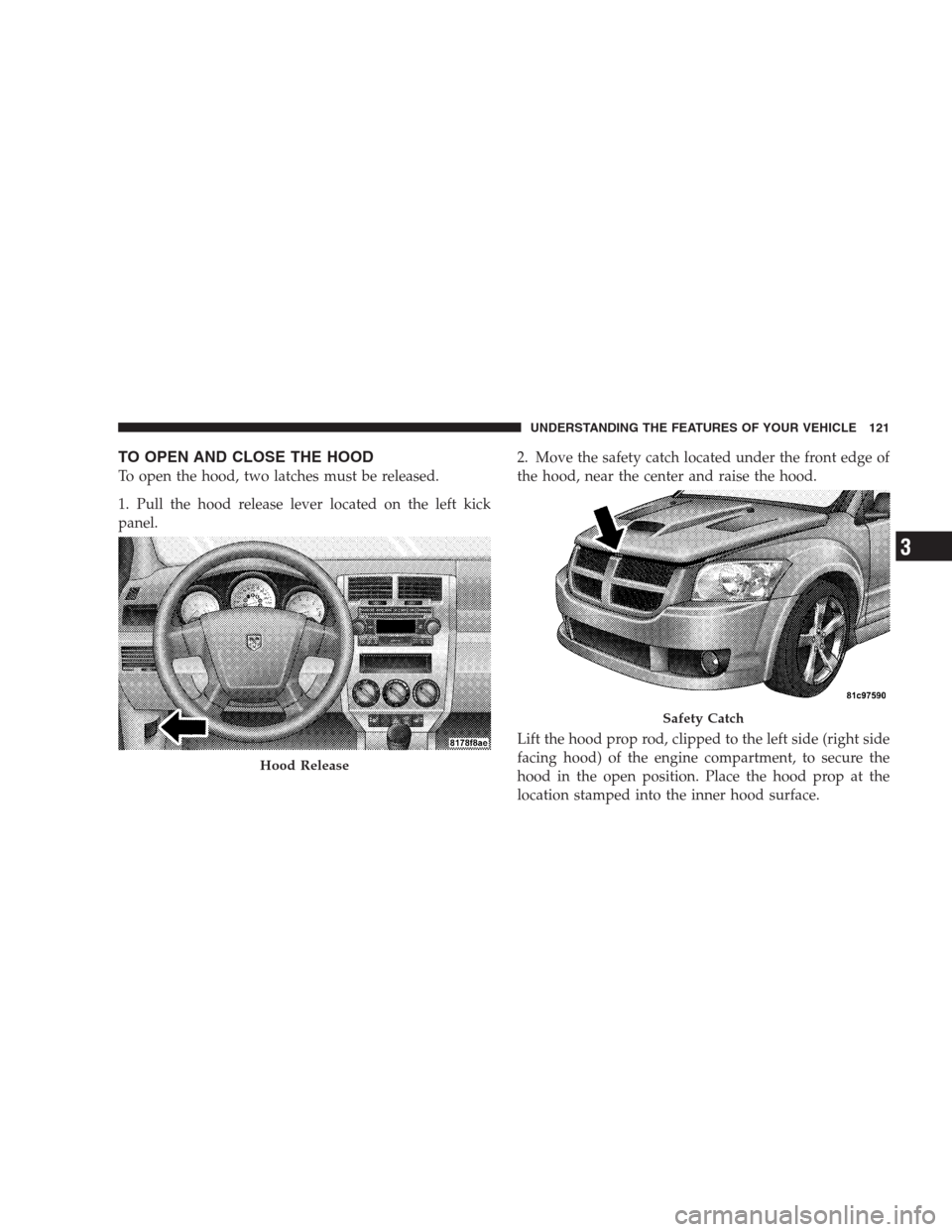

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located on the left kick
panel.2. Move the safety catch located under the front edge of
the hood, near the center and raise the hood.
Lift the hood prop rod, clipped to the left side (right side
facing hood) of the engine compartment, to secure the
hood in the open position. Place the hood prop at the
location stamped into the inner hood surface.
Hood Release
Safety Catch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately
8 in (20 cm) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection, instrument panel light dimming, interior lights,
the passing lights and fog lights. The multifunction lever
is located on the left side of the steering column.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

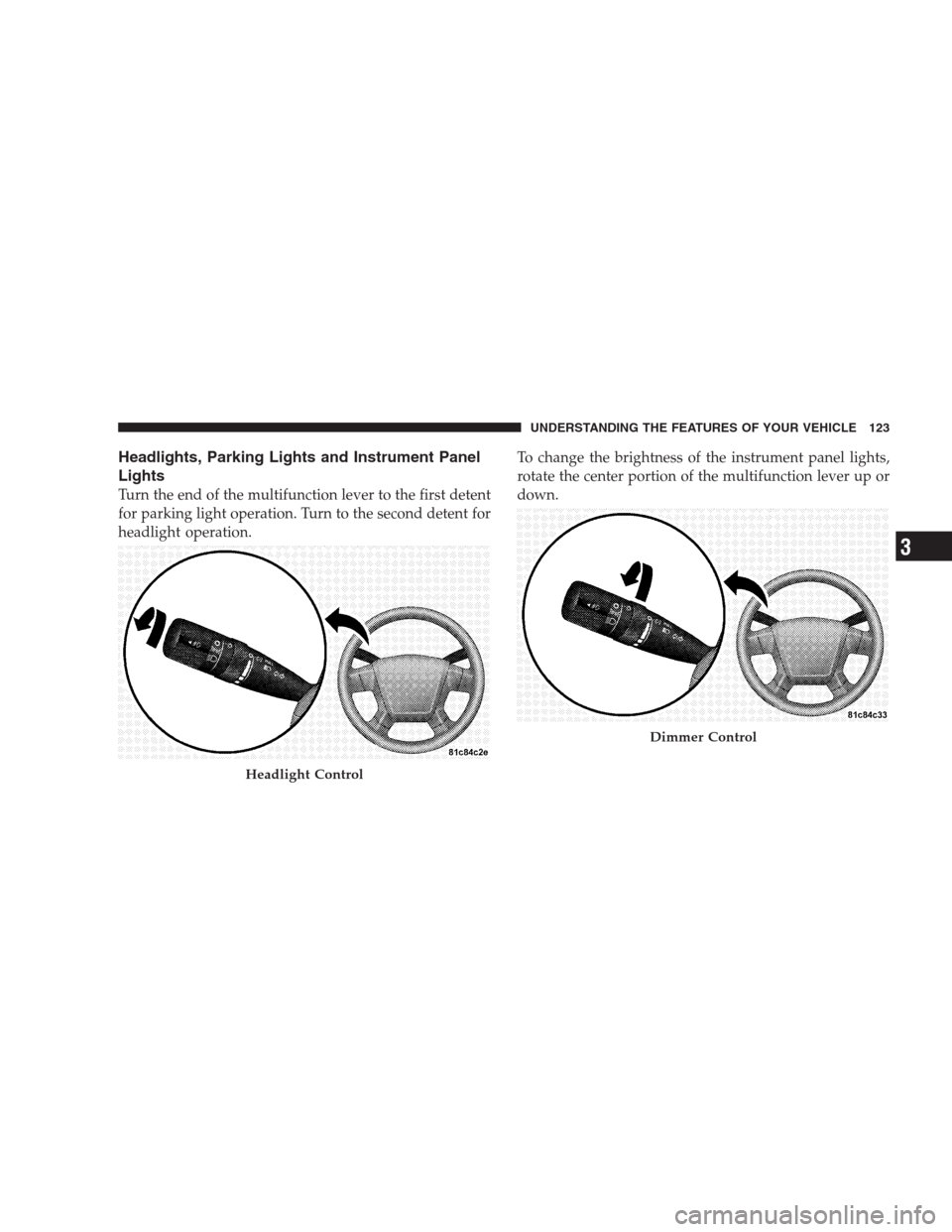

Headlights, Parking Lights and Instrument Panel
Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation.To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.
Headlight Control
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is on the multifunction lever.
To activate the front fog lights, turn on the parking
lights or the Low beam headlights and pull out the
end of the control lever.
NOTE:The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
Fog Light Control
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

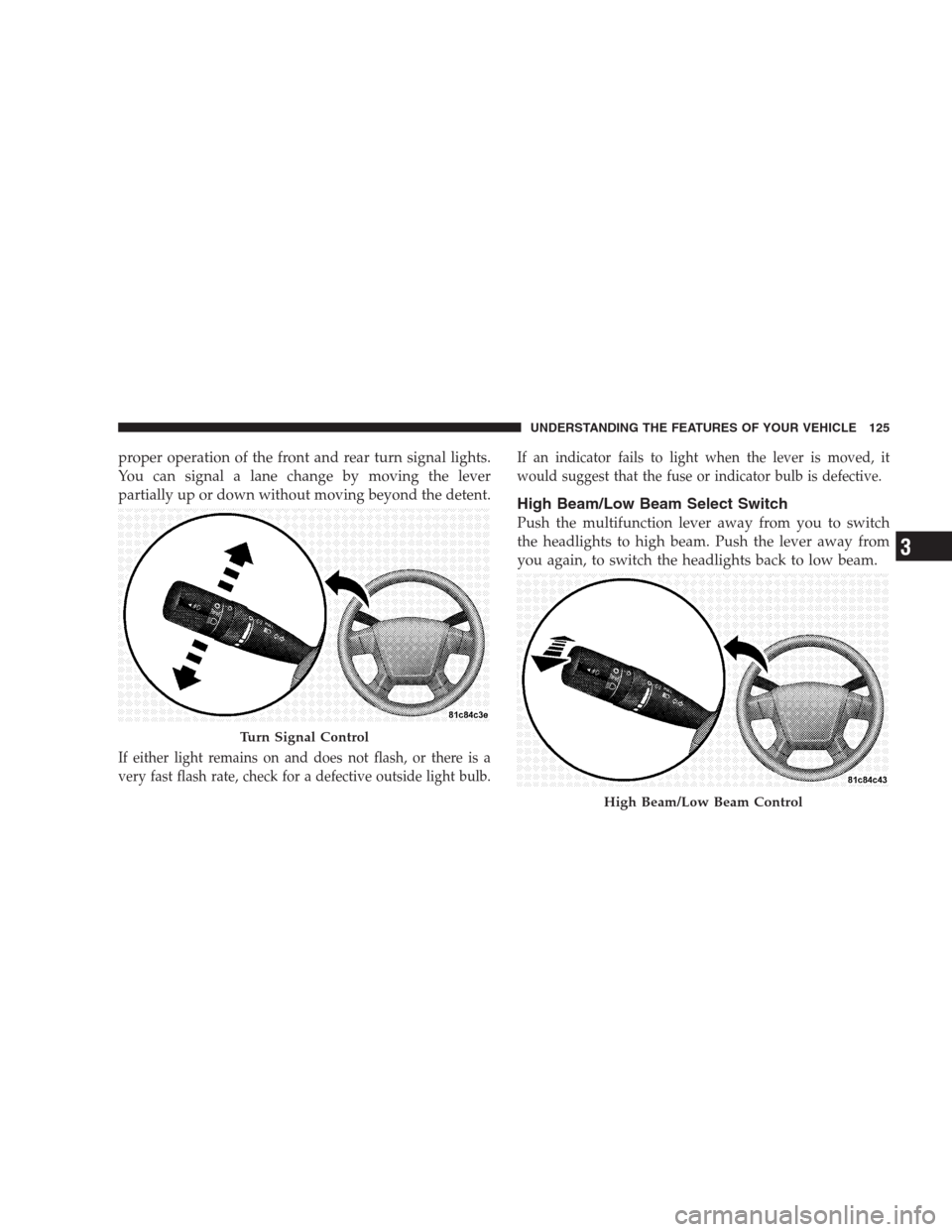

proper operation of the front and rear turn signal lights.
You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light bulb.If an indicator fails to light when the lever is moved, it
would suggest that the fuse or indicator bulb is defective.
High Beam/Low Beam Select Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Push the lever away from
you again, to switch the headlights back to low beam.
Turn Signal Control
High Beam/Low Beam Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

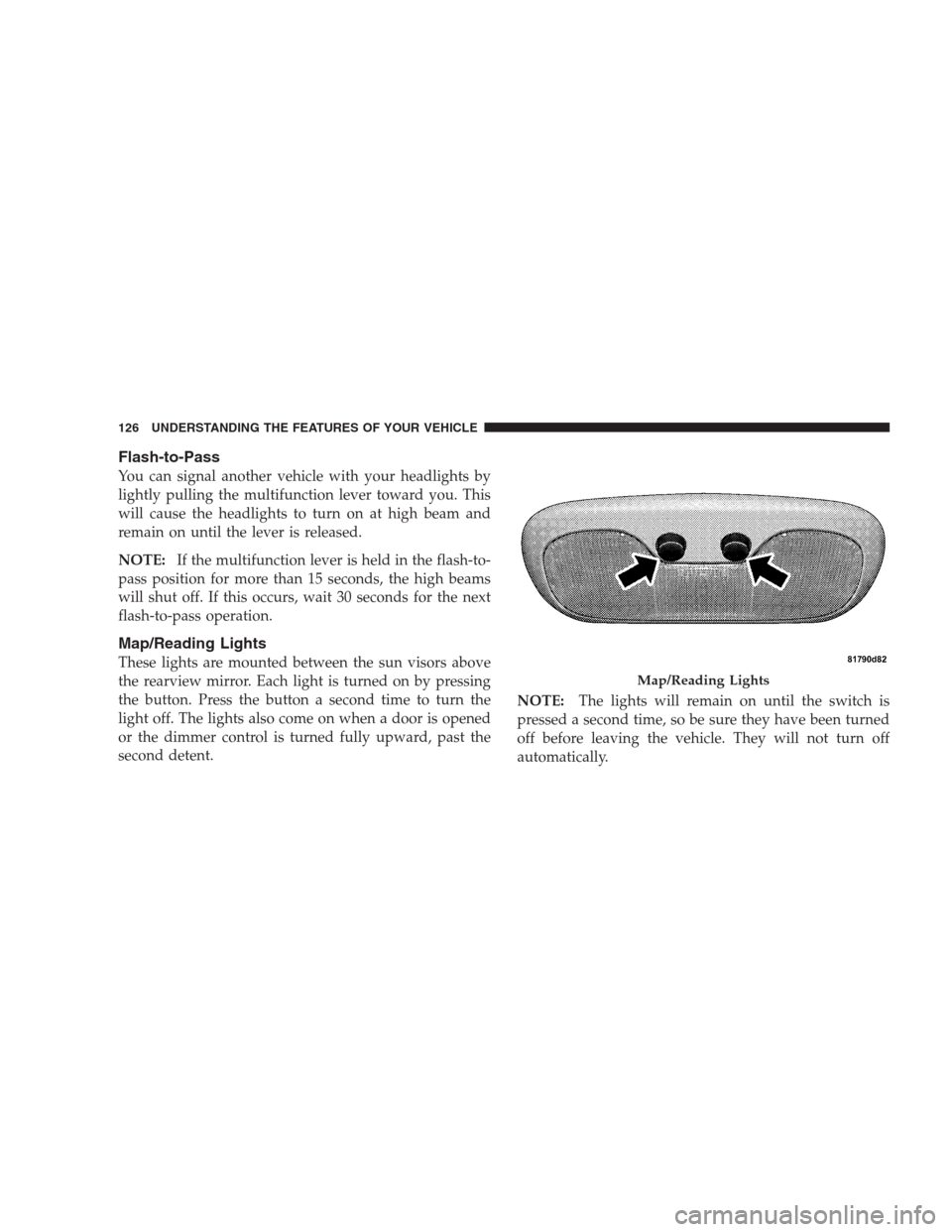

Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the lever is released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.
Map/Reading Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light is turned on by pressing
the button. Press the button a second time to turn the
light off. The lights also come on when a door is opened
or the dimmer control is turned fully upward, past the
second detent.NOTE:The lights will remain on until the switch is
pressed a second time, so be sure they have been turned
off before leaving the vehicle. They will not turn off
automatically.
Map/Reading Lights
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

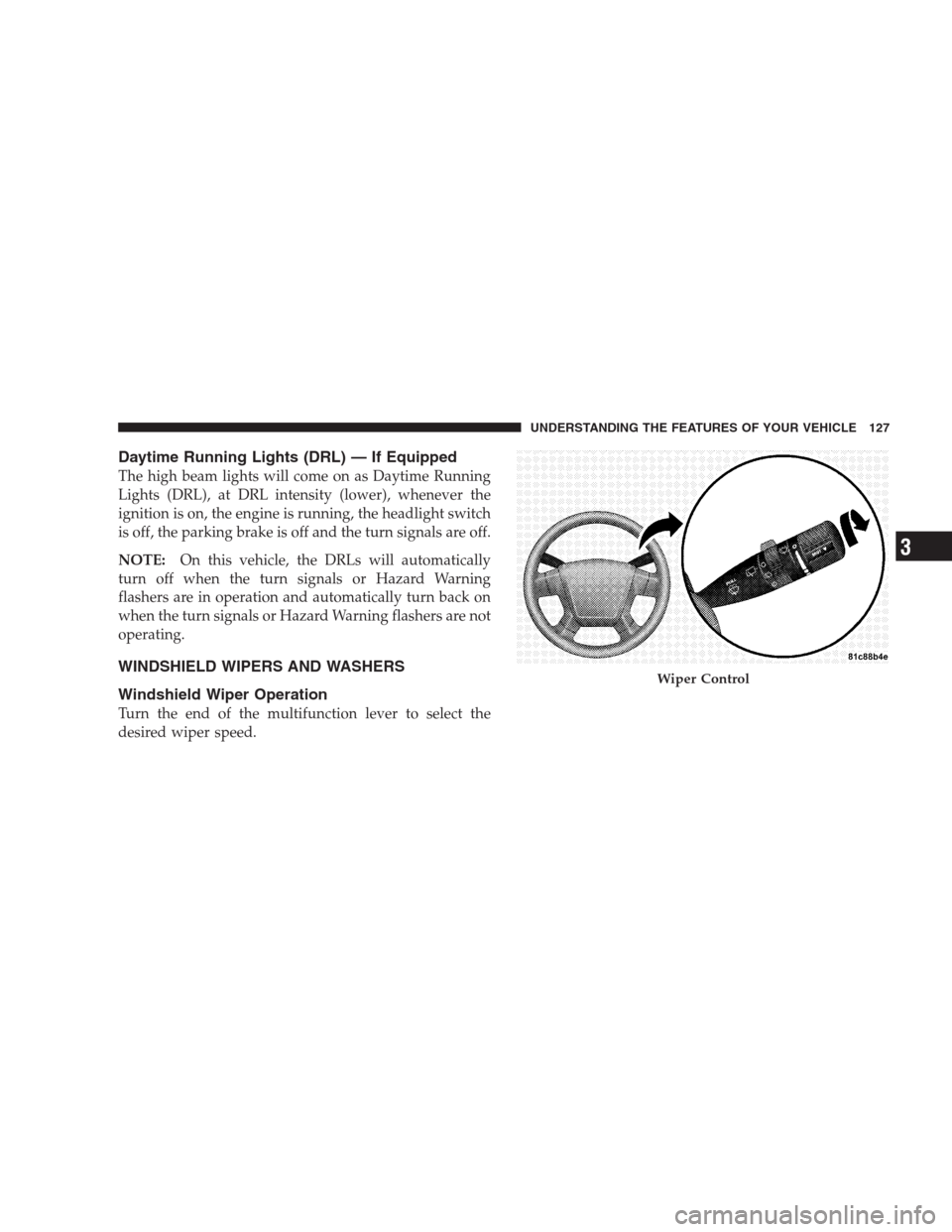

Daytime Running Lights (DRL) — If Equipped
The high beam lights will come on as Daytime Running
Lights (DRL), at DRL intensity (lower), whenever the
ignition is on, the engine is running, the headlight switch
is off, the parking brake is off and the turn signals are off.
NOTE:On this vehicle, the DRLs will automatically
turn off when the turn signals or Hazard Warning
flashers are in operation and automatically turn back on
when the turn signals or Hazard Warning flashers are not
operating.
WINDSHIELD WIPERS AND WASHERS
Windshield Wiper Operation
Turn the end of the multifunction lever to select the
desired wiper speed.
Wiper Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

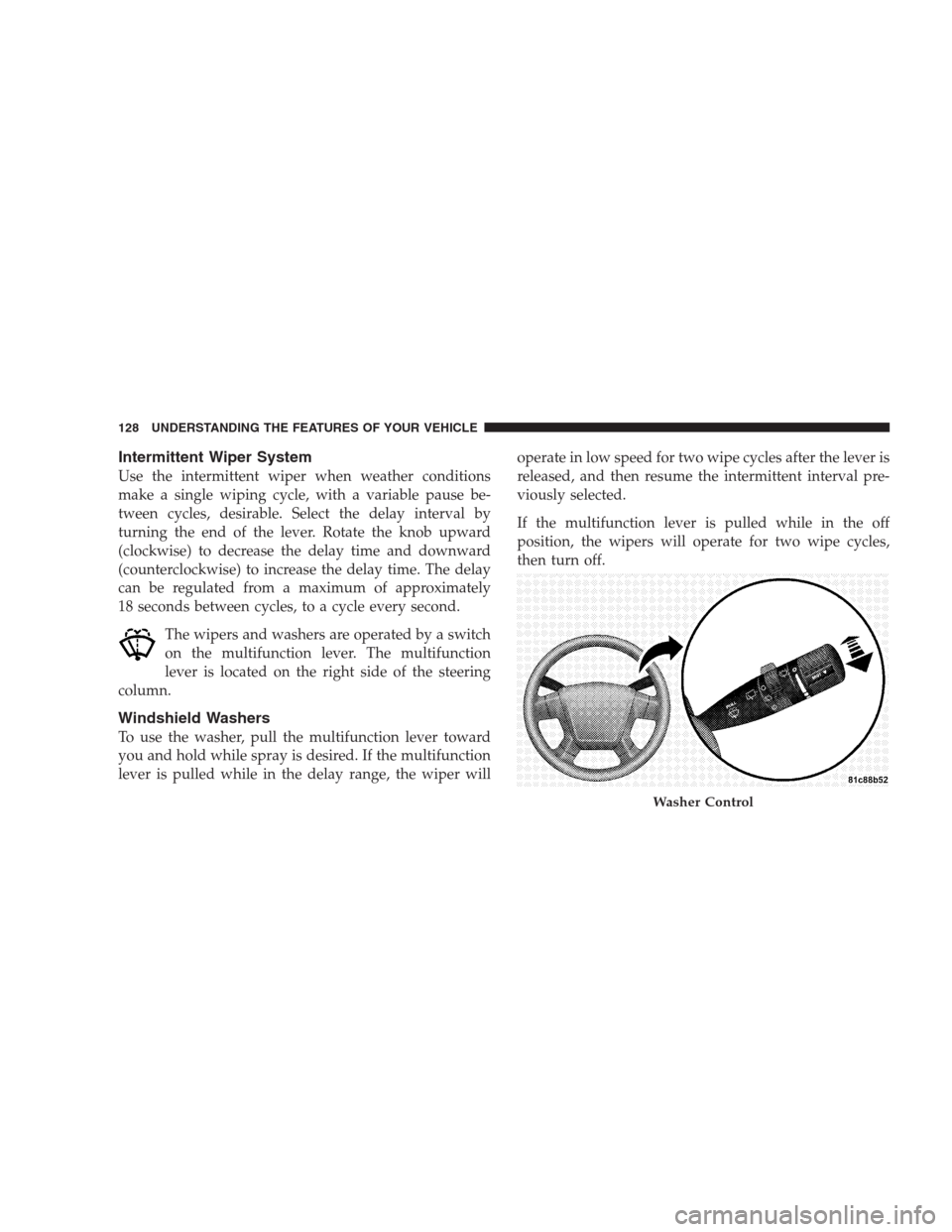

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Select the delay interval by
turning the end of the lever. Rotate the knob upward
(clockwise) to decrease the delay time and downward
(counterclockwise) to increase the delay time. The delay
can be regulated from a maximum of approximately
18 seconds between cycles, to a cycle every second.
The wipers and washers are operated by a switch
on the multifunction lever. The multifunction
lever is located on the right side of the steering
column.
Windshield Washers
To use the washer, pull the multifunction lever toward
you and hold while spray is desired. If the multifunction
lever is pulled while in the delay range, the wiper willoperate in low speed for two wipe cycles after the lever is
released, and then resume the intermittent interval pre-
viously selected.
If the multifunction lever is pulled while in the off
position, the wipers will operate for two wipe cycles,
then turn off.
Washer Control
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
