DODGE CARAVAN 2009 Owners Manual

FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
J18 20 Amp
Yellow— Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp
Yellow— Radiator Fan
J20 30 Amp
Pink— Front Wiper LO/HI
J21 20 Amp
Yellow— Front/Rear Washer
J22 25 Amp
Natural— Sunroof Module
M1 — 15 Amp
BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 — 20 Amp
YellowTrailer Lighting
M3 — 20 Amp
Yellow—
FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M4 — 10 Amp
RedTrailer Tow
M5 — 25 Amp
NaturalInverter
M6 — 20 Amp
Yellow—
M7 — 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
M8 — 20 Amp
YellowFront Heated Seat (If
Equipped)
M9 — 20 Amp
YellowRear Heated Seat (If
Equipped)
MAINTAINING YOUR VEHICLE 469
7
ProCarManuals.com

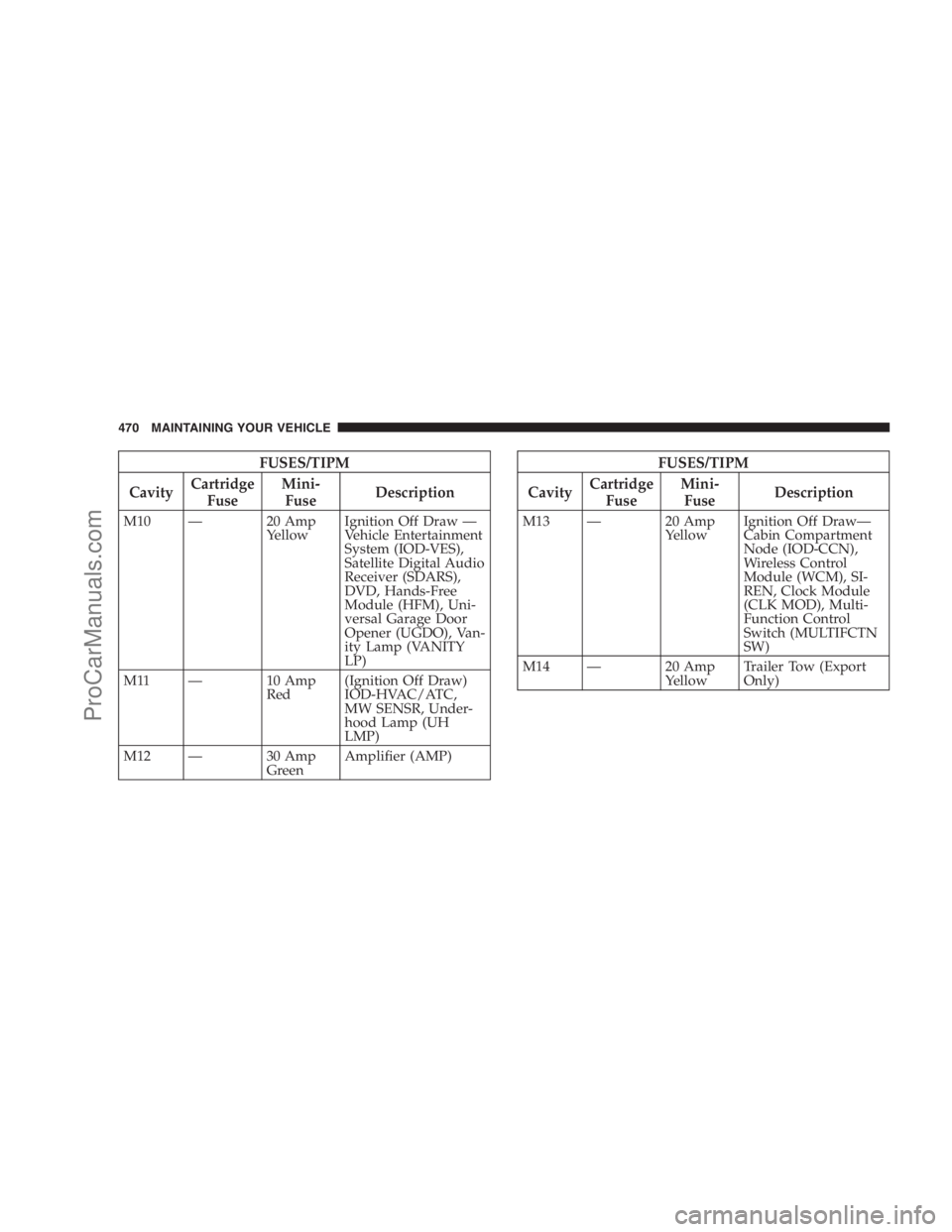

FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M10 — 20 Amp
YellowIgnition Off Draw —
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), Uni-
versal Garage Door
Opener (UGDO), Van-
ity Lamp (VANITY
LP)
M11 — 10 Amp
Red(Ignition Off Draw)
IOD-HVAC/ATC,
MW SENSR, Under-
hood Lamp (UH
LMP)
M12 — 30 Amp
GreenAmplifier (AMP)
FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M13 — 20 Amp
YellowIgnition Off Draw—
Cabin Compartment
Node (IOD-CCN),
Wireless Control
Module (WCM), SI-
REN, Clock Module
(CLK MOD), Multi-
Function Control
Switch (MULTIFCTN
SW)
M14 — 20 Amp
YellowTrailer Tow (Export
Only)
470 MAINTAINING YOUR VEHICLE
ProCarManuals.com

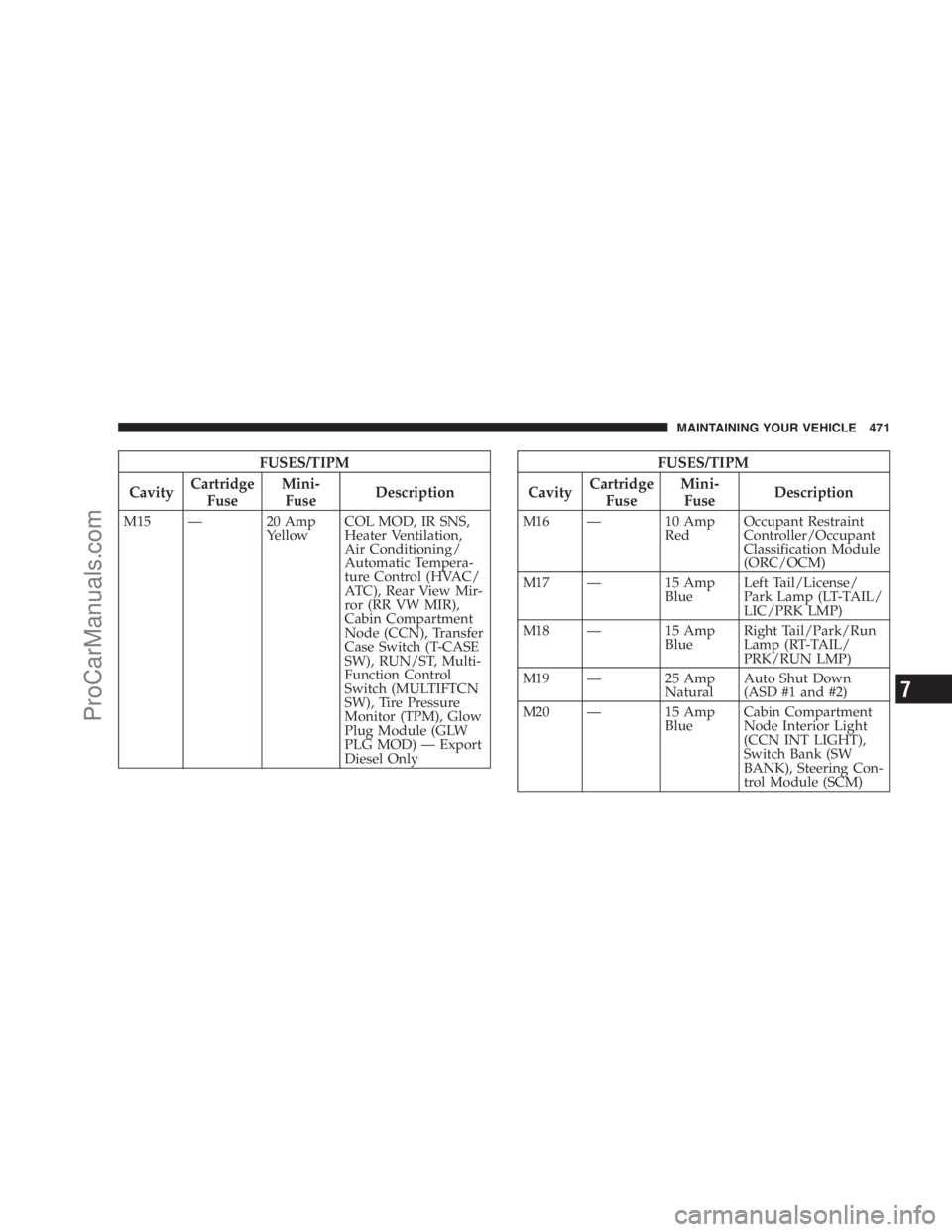

FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M15 — 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation,
Air Conditioning/
Automatic Tempera-
ture Control (HVAC/
ATC), Rear View Mir-
ror (RR VW MIR),
Cabin Compartment
Node (CCN), Transfer
Case Switch (T-CASE
SW), RUN/ST, Multi-
Function Control
Switch (MULTIFTCN
SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW
PLG MOD) — Export
Diesel Only
FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M16 — 10 Amp
RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
M17 — 15 Amp
BlueLeft Tail/License/
Park Lamp (LT-TAIL/
LIC/PRK LMP)
M18 — 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/
PRK/RUN LMP)
M19 — 25 Amp
NaturalAuto Shut Down
(ASD #1 and #2)
M20 — 15 Amp
BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK), Steering Con-
trol Module (SCM)
MAINTAINING YOUR VEHICLE 471
7
ProCarManuals.com

FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M21 — 20 Amp
YellowAuto Shut Down
(ASD #3)
M22 — 10 Amp
RedRight Horn (RT
HORN (HI/LOW)
M23 — 10 Amp
RedLeft Horn (LT HORN
(HI/LOW)
M24 — 25 Amp
NaturalRear Wiper (REAR
WIPER)
M25 — 20 Amp
YellowFuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT
PUMP) — Export
Only
M26 — 10 Amp
RedPower Mirror Switch
(PWR MIRR SW),
Driver Window
Switch (DRVR WIND
SW)
FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M27 — 10 Amp
RedIgnition Switch (IGN
SW), Window Module
(WIN MOD)
M28 — 10 Amp
RedNext Generation Con-
troller (NGC), Trans-
mission Feed (TRANS
FEED), J1962
M29 — 10 Amp
RedOccupant Classifica-
tion Module (OCM)
M30 — 15 Amp
BlueRear Wiper Module
(RR WIPER MOD),
Power Folding Mirror
(PWR FOLD MIR)
M31 — 20 Amp
YellowBack-Up Lamps (B/U
LAMPS)
M32 — 10 Amp
RedOccupant Restraint
Controller (ORC), TT
EUROPE
472 MAINTAINING YOUR VEHICLE
ProCarManuals.com

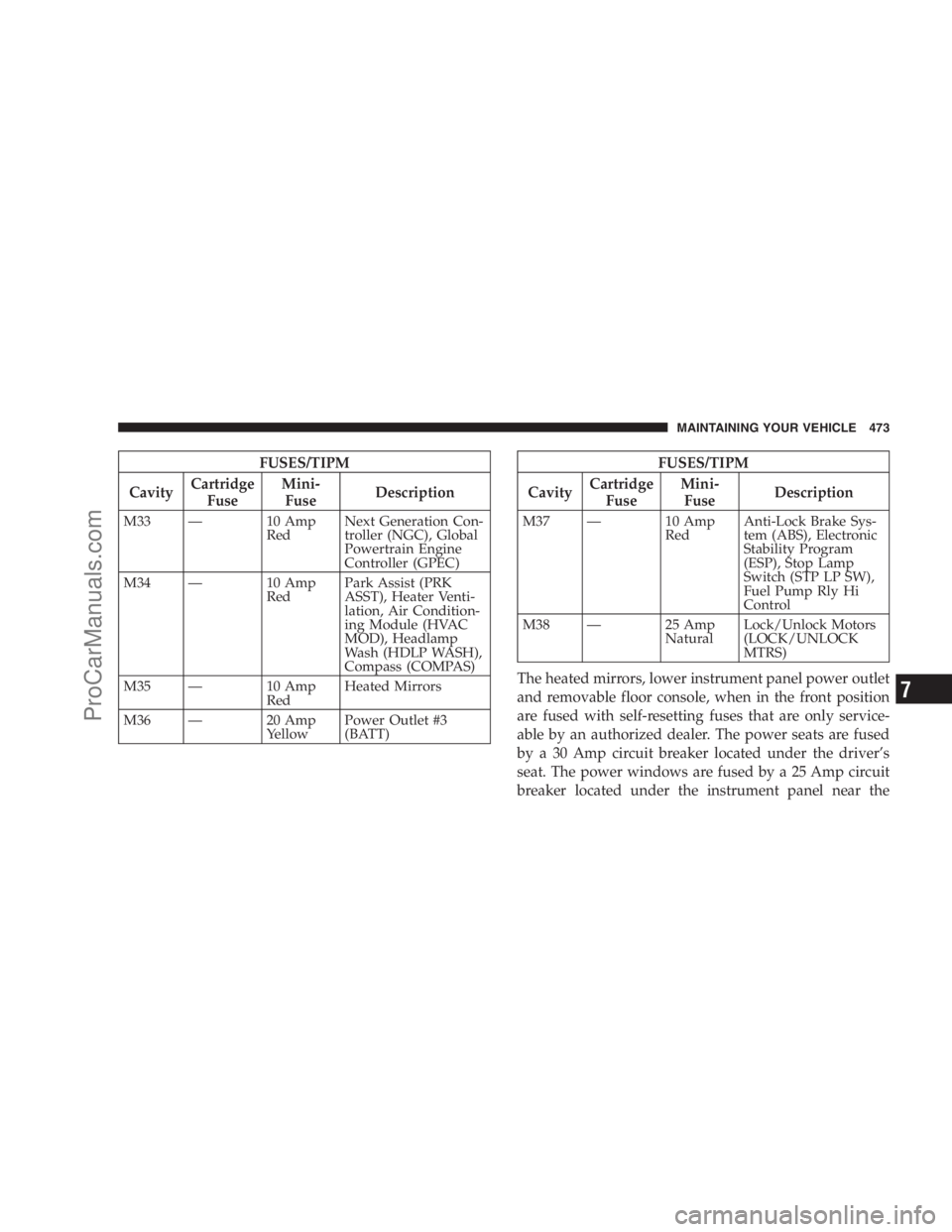

FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M33 — 10 Amp
RedNext Generation Con-
troller (NGC), Global
Powertrain Engine
Controller (GPEC)
M34 — 10 Amp
RedPark Assist (PRK
ASST), Heater Venti-
lation, Air Condition-
ing Module (HVAC
MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS)
M35 — 10 Amp
RedHeated Mirrors
M36 — 20 Amp
YellowPower Outlet #3
(BATT)
FUSES/TIPM
CavityCartridge
FuseMini-
FuseDescription
M37 — 10 Amp
RedAnti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
M38 — 25 Amp
NaturalLock/Unlock Motors
(LOCK/UNLOCK
MTRS)
The heated mirrors, lower instrument panel power outlet
and removable floor console, when in the front position
are fused with self-resetting fuses that are only service-
able by an authorized dealer. The power seats are fused
by a 30 Amp circuit breaker located under the driver’s
seat. The power windows are fused by a 25 Amp circuit
breaker located under the instrument panel near the
MAINTAINING YOUR VEHICLE 473
7
ProCarManuals.com

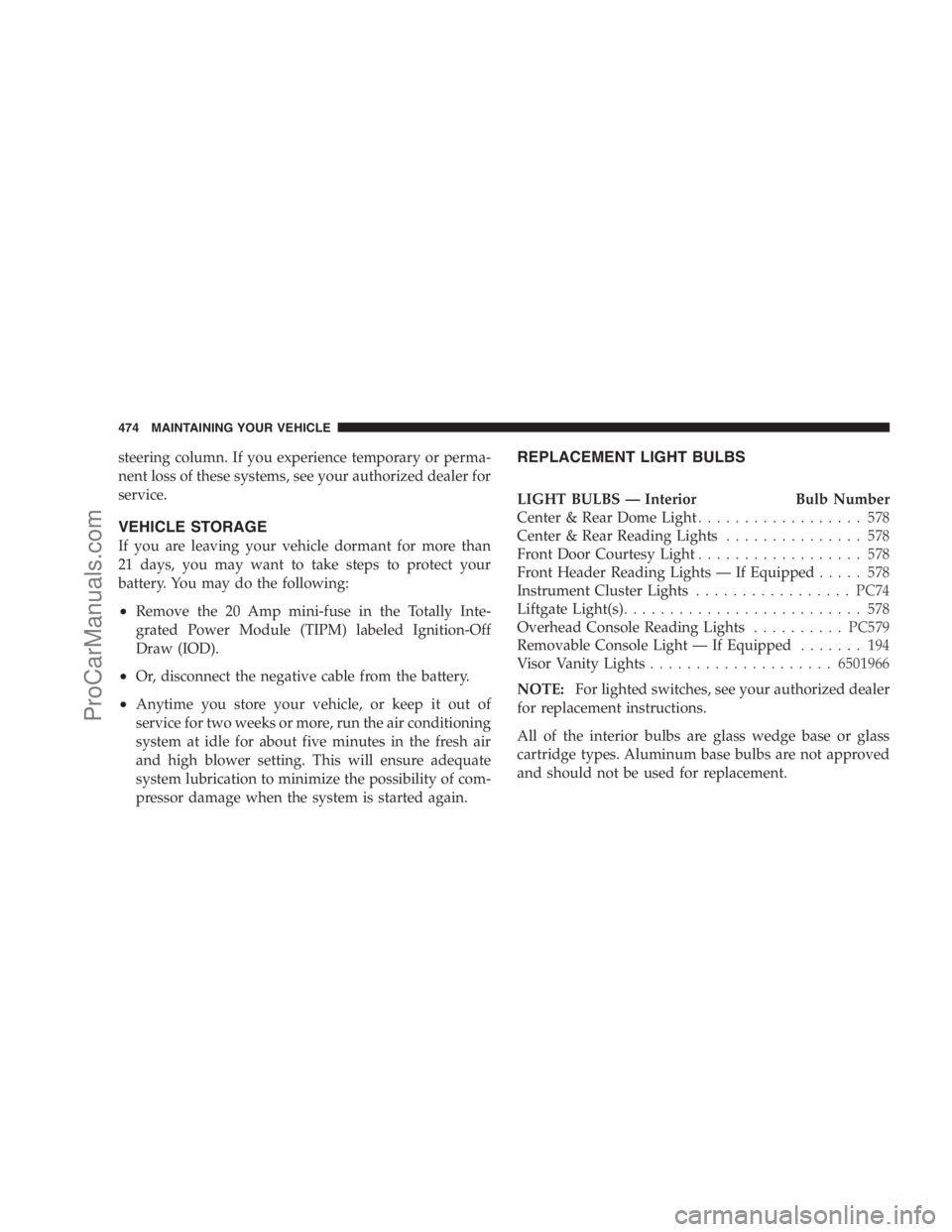

steering column. If you experience temporary or perma-
nent loss of these systems, see your authorized dealer for
service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
•Remove the 20 Amp mini-fuse in the Totally Inte-
grated Power Module (TIPM) labeled Ignition-Off
Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Center & Rear Dome Light.................. 578
Center & Rear Reading Lights............... 578
Front Door Courtesy Light.................. 578
Front Header Reading Lights — If Equipped..... 578
Instrument Cluster Lights.................PC74
Liftgate Light(s).......................... 578
Overhead Console Reading Lights..........PC579
Removable Console Light — If Equipped....... 194
Visor Vanity Lights....................6501966
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
474 MAINTAINING YOUR VEHICLE
ProCarManuals.com

LIGHT BULBS — Exterior Bulb Number
Backup, Tail, Stop Light...................3157
Center High-Mounted Stop Light. . . LED (See Note 1)
Fog Light — If Equipped..................9145
Front Side Marker, Park/Turn
Signal........................ P27/7Wor3157
Headlight............................. H13
License................................ 168
Note 1: The Center High-Mounted Stop Light (CHMSL)
uses LED lights that are not serviceable separately. The
CHMSL must be replaced as an assembly see your
authorized dealer.BULB REPLACEMENT
Headlights
1. Raise the hood to access the rear of the headlight
housing.
2. Slide the red lock tab rearward on the connector, then
depress the tab and remove the connector from the bulb.
3. Twist the headlight bulb and pull the bulb from the
headlight housing.
4. Install the new headlight bulb and twist until locked
into the headlight housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
MAINTAINING YOUR VEHICLE 475
7
ProCarManuals.com

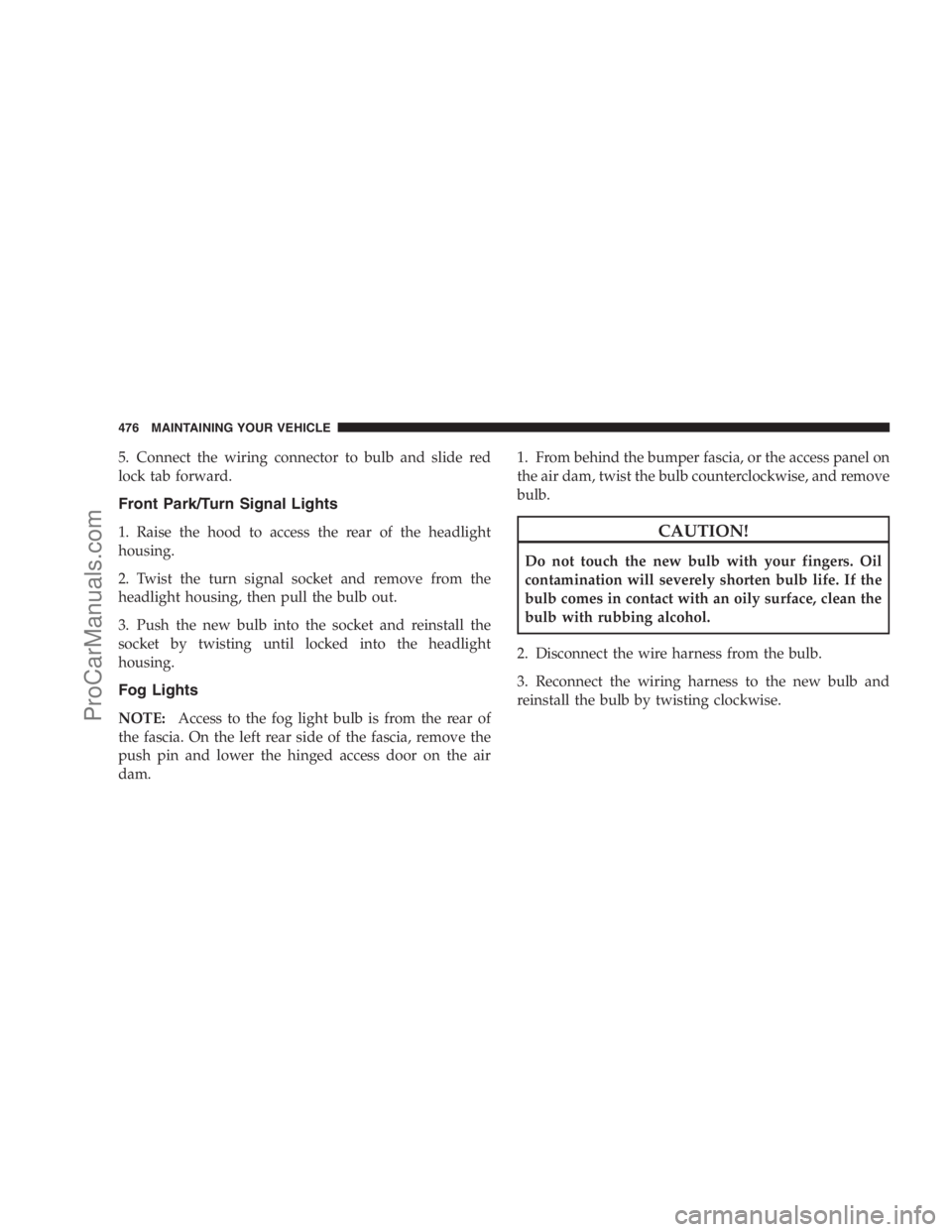

5. Connect the wiring connector to bulb and slide red
lock tab forward.
Front Park/Turn Signal Lights
1. Raise the hood to access the rear of the headlight
housing.
2. Twist the turn signal socket and remove from the
headlight housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlight
housing.
Fog Lights
NOTE:Access to the fog light bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam.1. From behind the bumper fascia, or the access panel on
the air dam, twist the bulb counterclockwise, and remove
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
2. Disconnect the wire harness from the bulb.
3. Reconnect the wiring harness to the new bulb and
reinstall the bulb by twisting clockwise.
476 MAINTAINING YOUR VEHICLE
ProCarManuals.com

Rear Tail, Stop, Turn Signal, Side Marker and
Backup Lights
1. Raise the liftgate.
2. Remove the tail light assembly by removing the two
screws from the inboard side. Use a fiber stick or similar
tool to gently pry the light on the outboard side to
disengage the two ball studs.
NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
•The PRY location is best closest to the studs while
dislodging them separately.
Removing Tail Light Assembly
MAINTAINING YOUR VEHICLE 477
7
ProCarManuals.com

3. Twist the socket and remove from the light assembly.
4. Pull the bulb to remove it from the socket.
5. Replace the bulb, reinstall the socket, and reattach the
light assembly.
Center High-Mounted Stop Light (CHMSL)
The CHMSL uses LED lights that are not serviceable
separately. The CHMSL must be replaced as an assembly.
See your authorized dealer.
License Light
The light for the license plate light is located under the
tailgate light bar and above the license plate.
1. Using a small screwdriver, press inward the locking
tab on the outboard side of the light assembly and pull
down on the light assembly for removal.
2. Twist and remove the socket from the light assembly
and pull the bulb out to remove.
3. Push the bulb into the socket, twist the socket into the
light assembly and reinstall the light assembly into place
ensuring the locking tab is secure.
1 — Stop, Tail, Turn Signal
Bulb Combo2 — Backup Bulb 478 MAINTAINING YOUR VEHICLE
