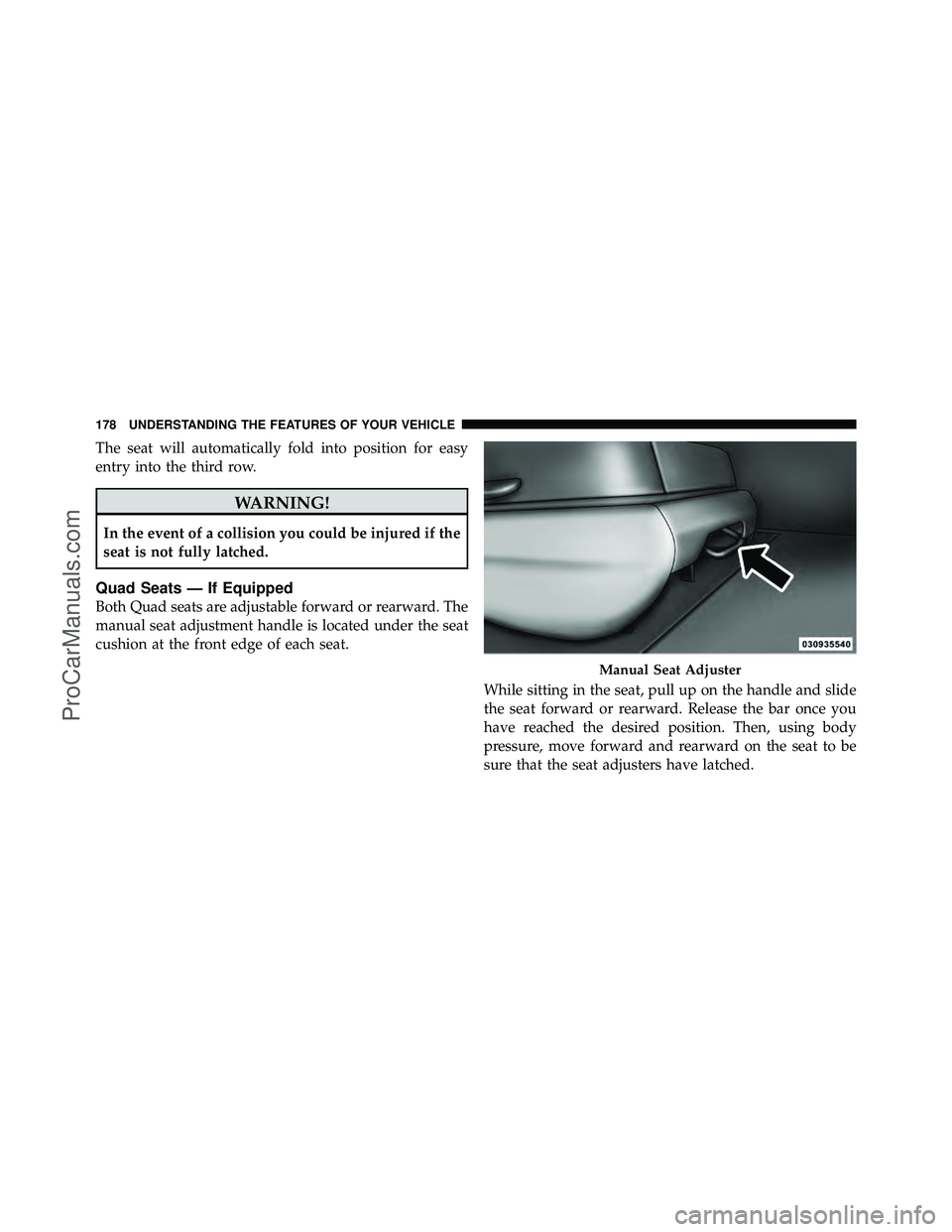

The seat will automatically fold into position for easy
entry into the third row.
WARNING!
In the event of a collision you could be injured if the
seat is not fully latched.
Quad Seats — If Equipped
Both Quad seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
Manual Seat Adjuster
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

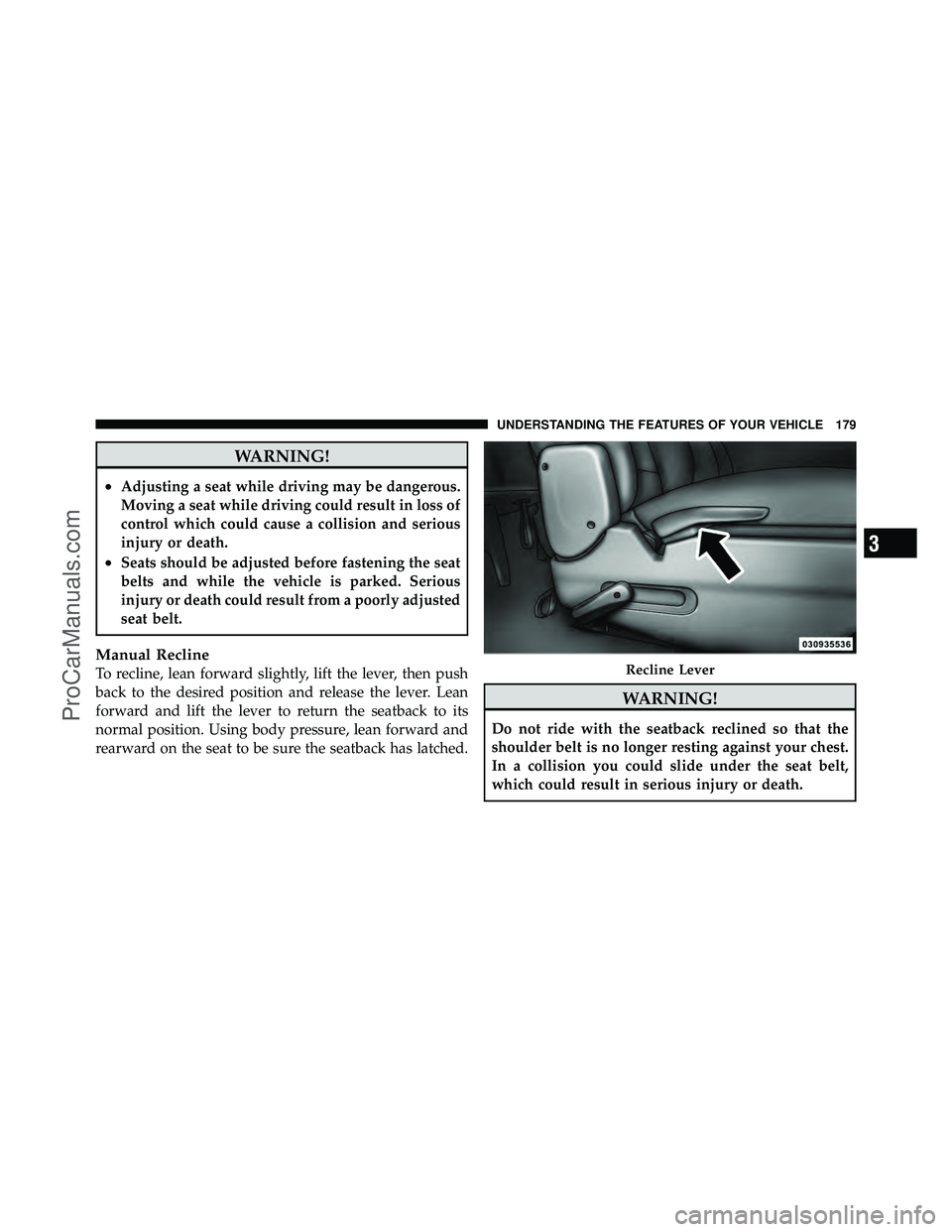

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Manual Recline
To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Recline Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
ProCarManuals.com

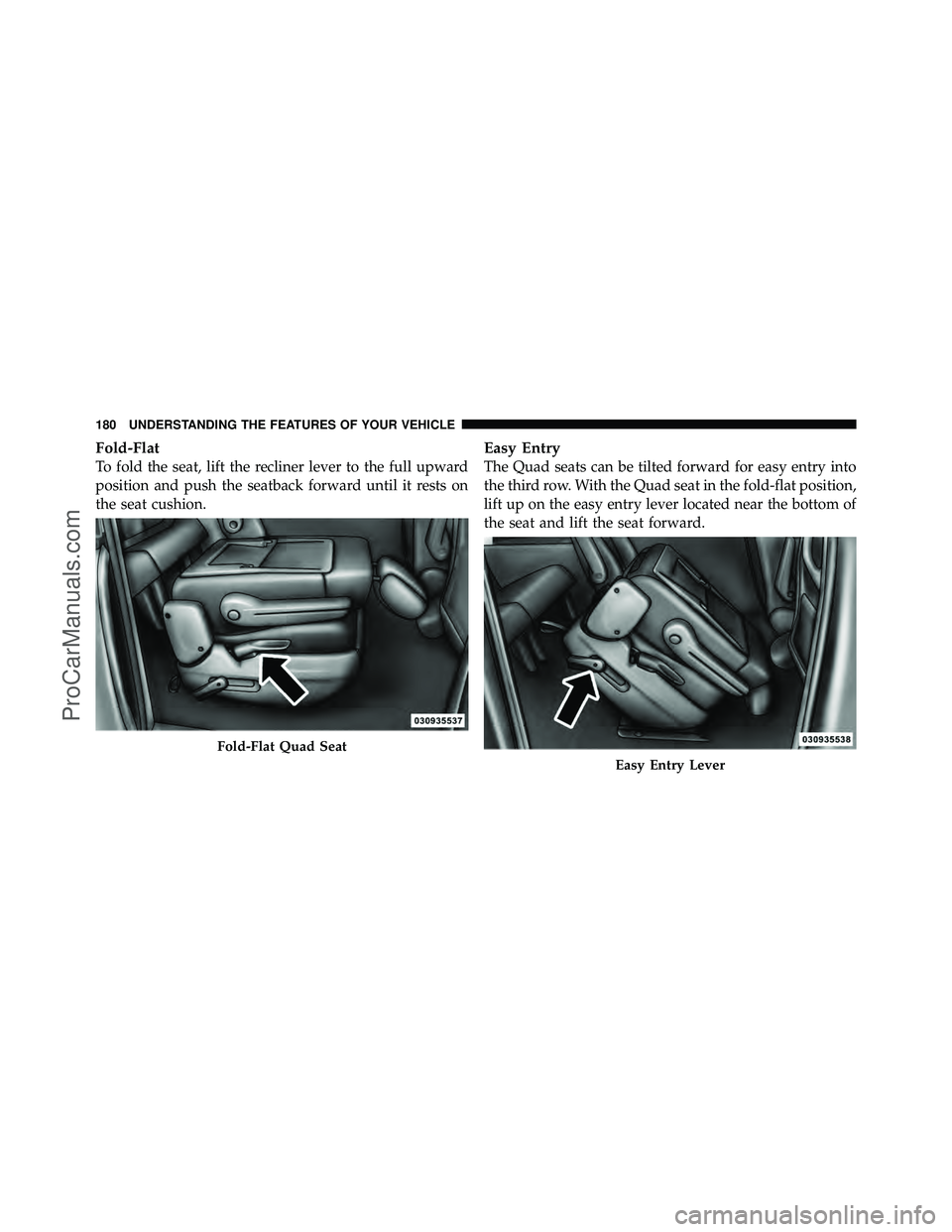

Fold-Flat
To fold the seat, lift the recliner lever to the full upward
position and push the seatback forward until it rests on
the seat cushion.
Easy Entry
The Quad seats can be tilted forward for easy entry into
the third row. With the Quad seat in the fold-flat position,
lift up on the easy entry lever located near the bottom of
the seat and lift the seat forward.
Fold-Flat Quad Seat
Easy Entry Lever
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

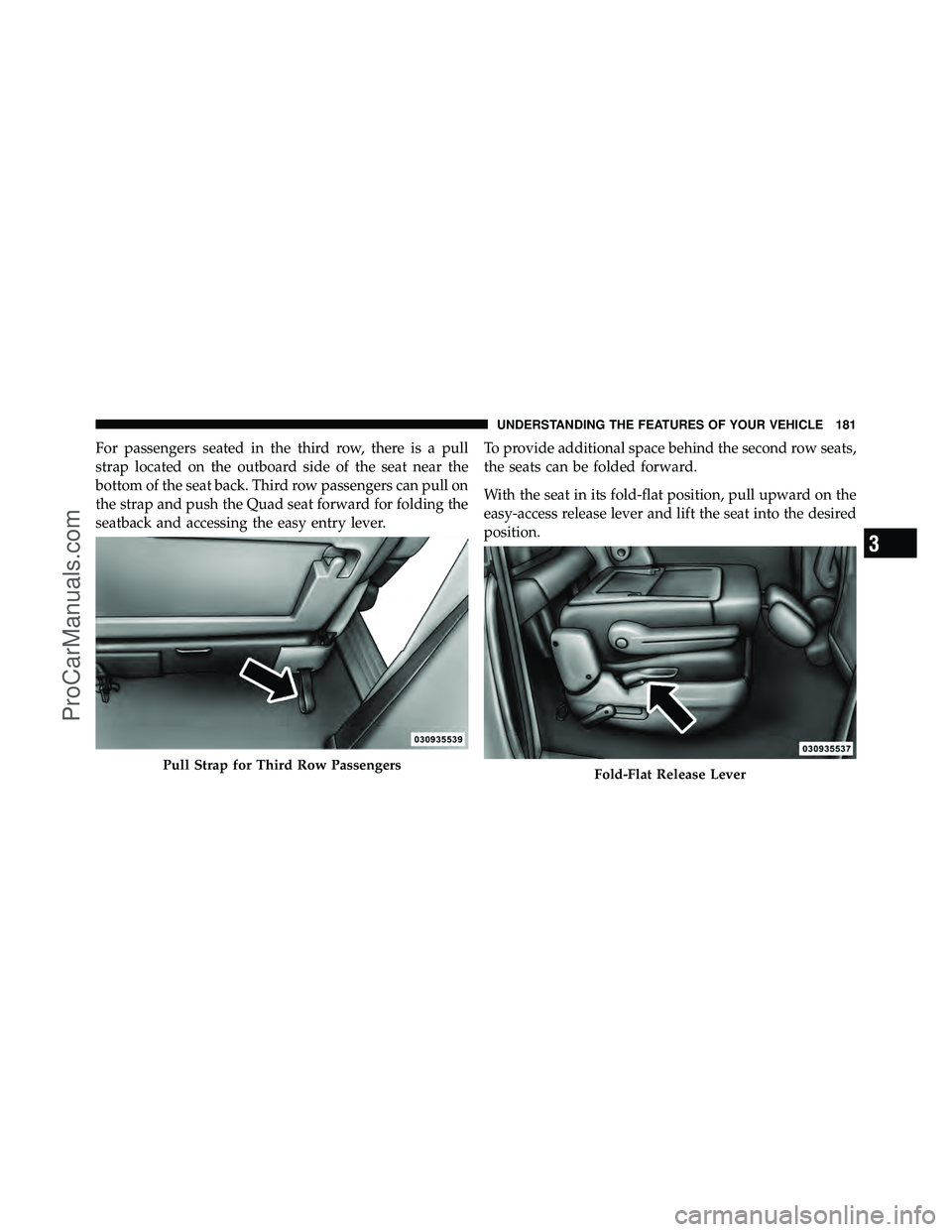

For passengers seated in the third row, there is a pull
strap located on the outboard side of the seat near the
bottom of the seat back. Third row passengers can pull on
the strap and push the Quad seat forward for folding the
seatback and accessing the easy entry lever.To provide additional space behind the second row seats,
the seats can be folded forward.
With the seat in its fold-flat position, pull upward on the
easy-access release lever and lift the seat into the desired
position.
Pull Strap for Third Row PassengersFold-Flat Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
ProCarManuals.com

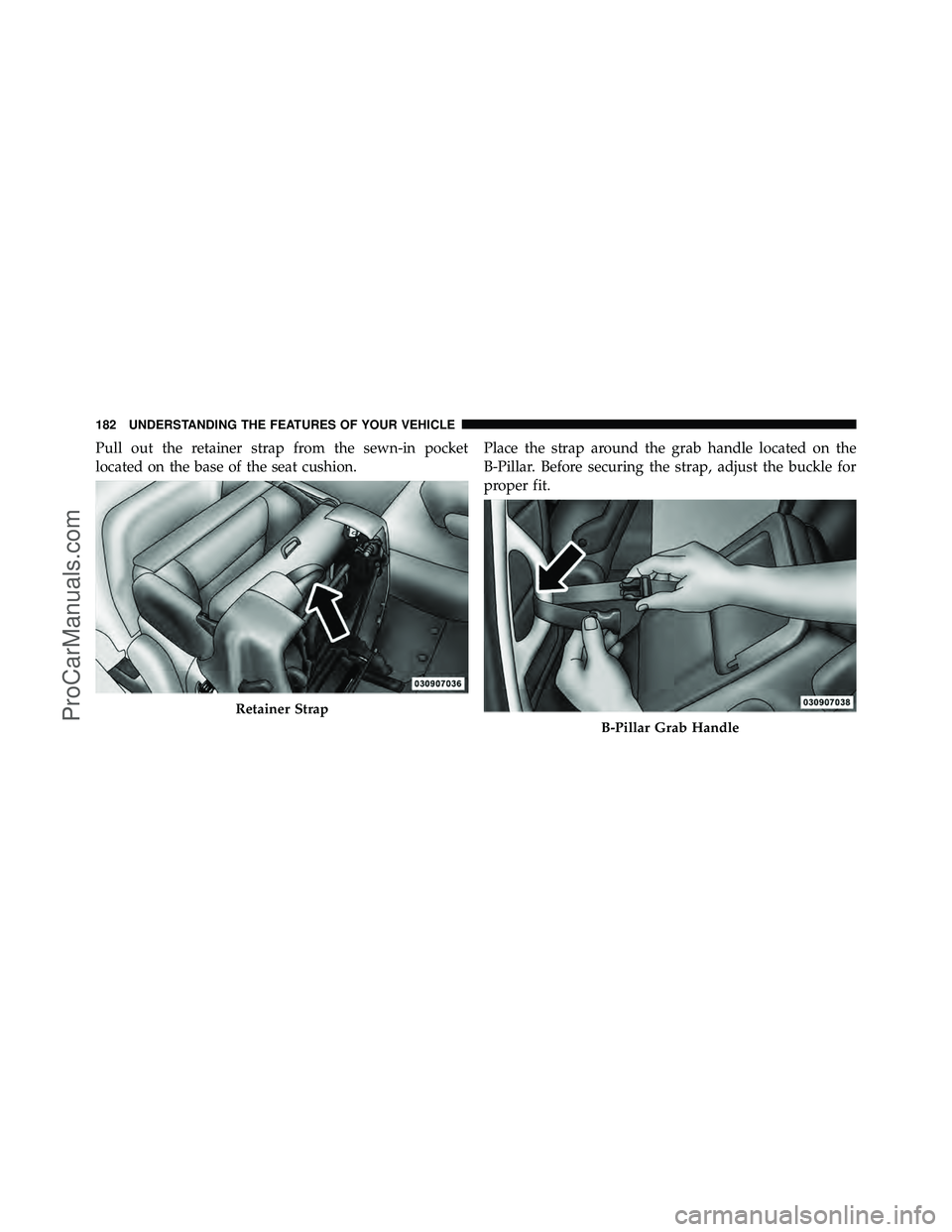

Pull out the retainer strap from the sewn-in pocket
located on the base of the seat cushion.Place the strap around the grab handle located on the
B-Pillar. Before securing the strap, adjust the buckle for
proper fit.
Retainer Strap
B-Pillar Grab Handle
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

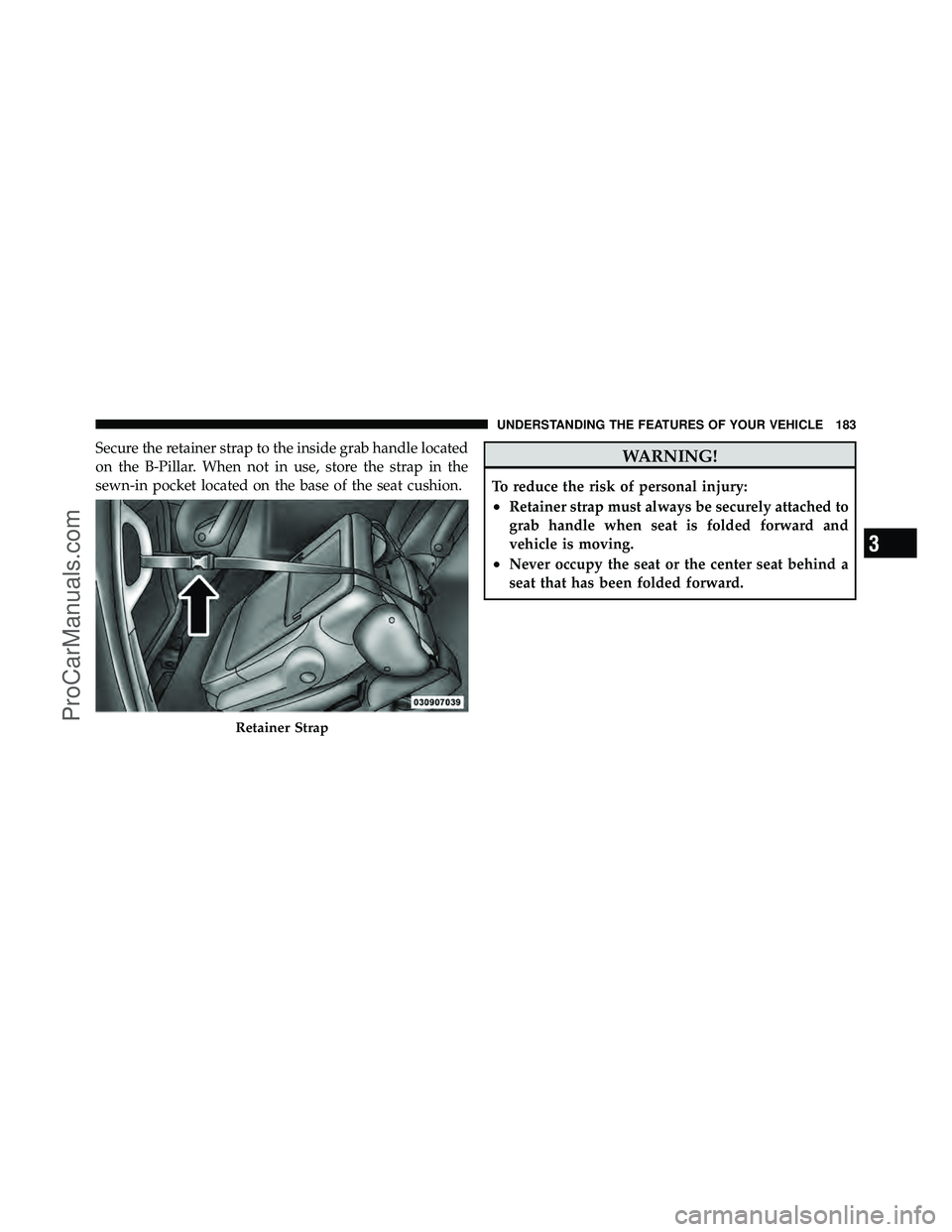

Secure the retainer strap to the inside grab handle located
on the B-Pillar. When not in use, store the strap in the
sewn-in pocket located on the base of the seat cushion.WARNING!
To reduce the risk of personal injury:
•Retainer strap must always be securely attached to
grab handle when seat is folded forward and
vehicle is moving.
•Never occupy the seat or the center seat behind a
seat that has been folded forward.
Retainer Strap
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183
ProCarManuals.com

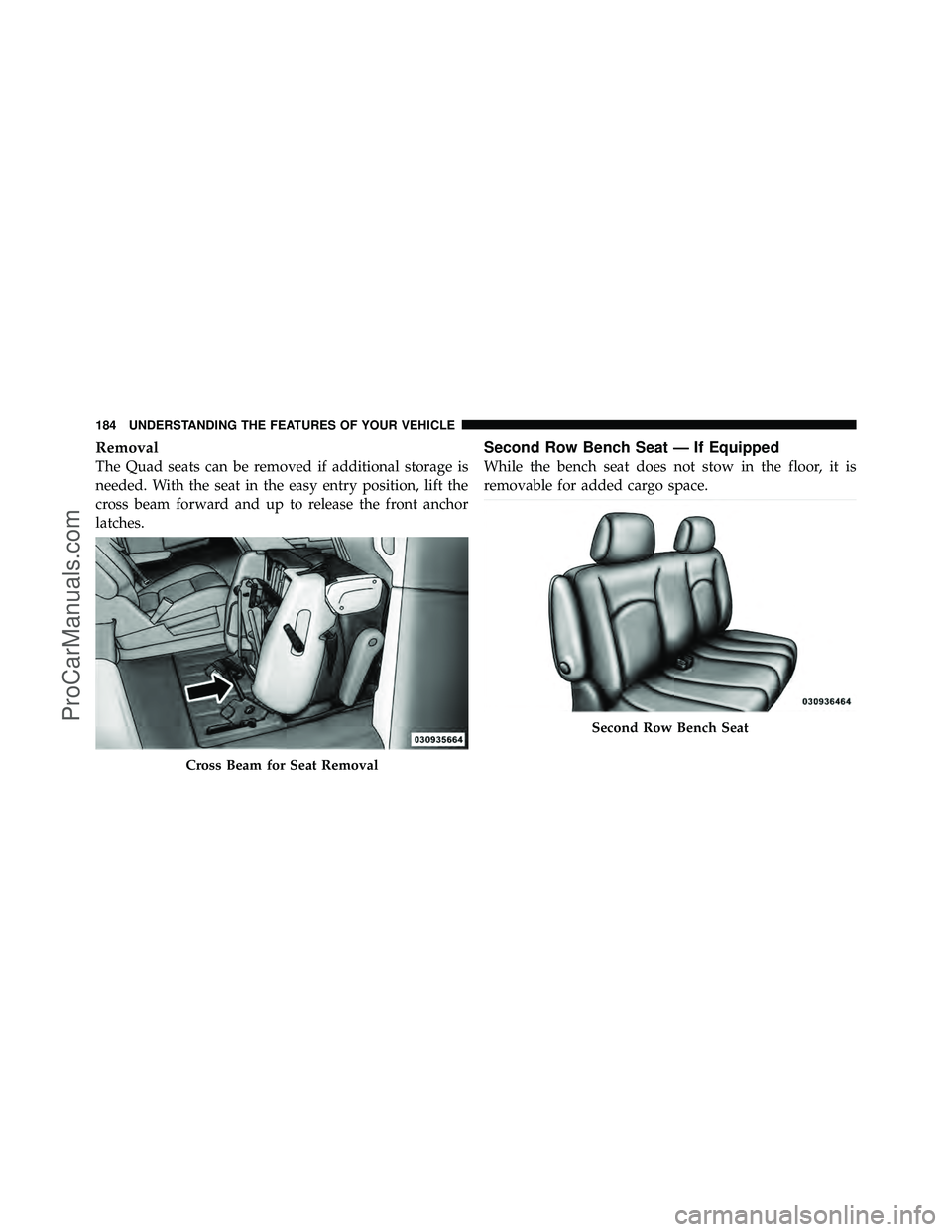

Removal
The Quad seats can be removed if additional storage is
needed. With the seat in the easy entry position, lift the
cross beam forward and up to release the front anchor
latches.
Second Row Bench Seat — If Equipped
While the bench seat does not stow in the floor, it is
removable for added cargo space.
Cross Beam for Seat Removal
Second Row Bench Seat
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

Release levers are located on the rear leg assemblies, near
the floor. To remove the seat, squeeze each release handle
and rotate downwards to deploy the wheels. A lock
indicator button pops up when the seat is unlocked. The
seat assembly can now be removed from the vehicle and
moved on its Easy OutRollers. To reinstall the seat, align the seat into the detent posi-
tions on the floor. Squeeze the release handle and rotate
upward until the lock indicator button returns into the
handle.
WARNING!
If not properly latched, the bench seats could become
loose. Personal injuries could result. After reinstall-
ing these seats, be sure the red indicator button on
the release handles return into the handles.
Release Handles
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
ProCarManuals.com

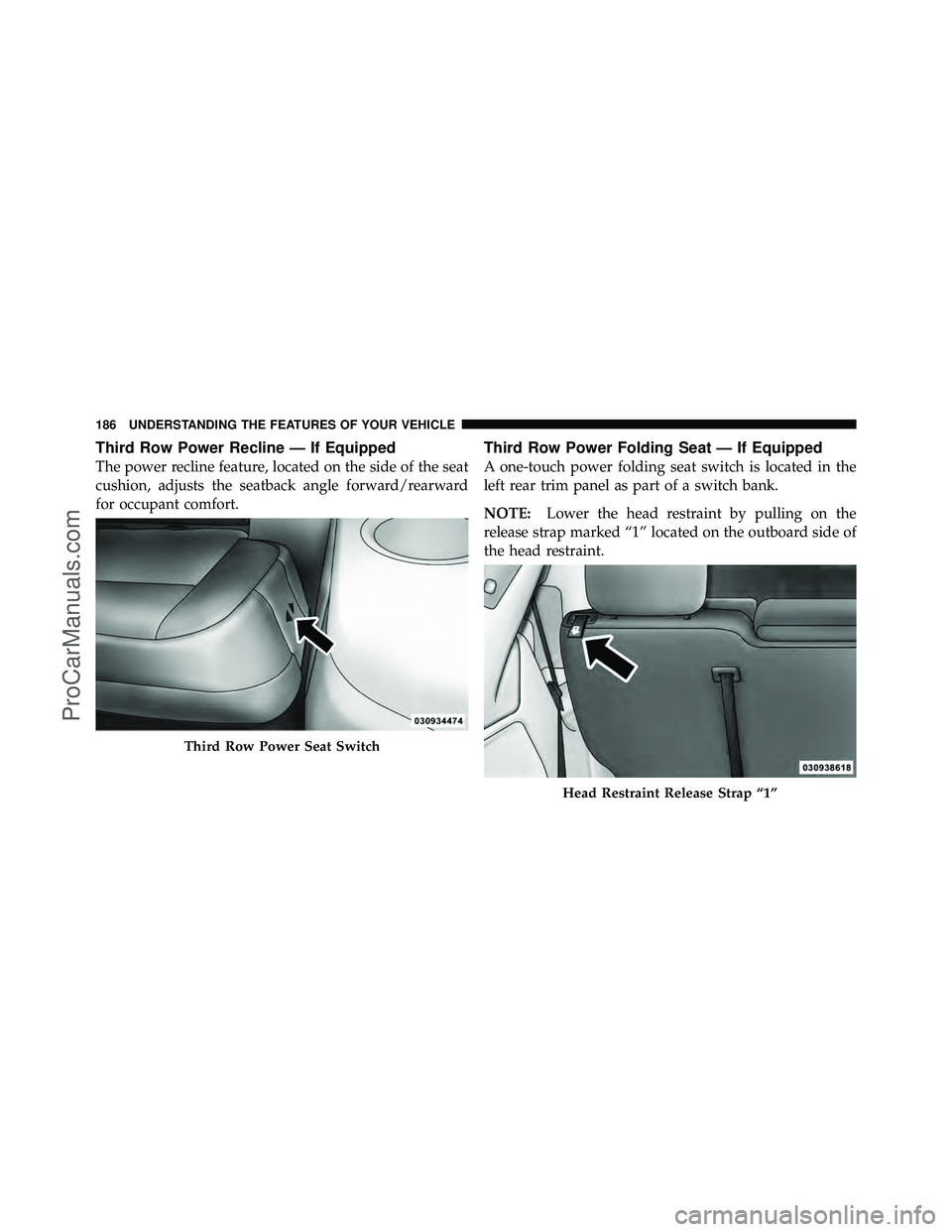

Third Row Power Recline — If Equipped
The power recline feature, located on the side of the seat
cushion, adjusts the seatback angle forward/rearward
for occupant comfort.
Third Row Power Folding Seat — If Equipped
A one-touch power folding seat switch is located in the
left rear trim panel as part of a switch bank.
NOTE:Lower the head restraint by pulling on the
release strap marked “1” located on the outboard side of
the head restraint.
Third Row Power Seat Switch
Head Restraint Release Strap “1”
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

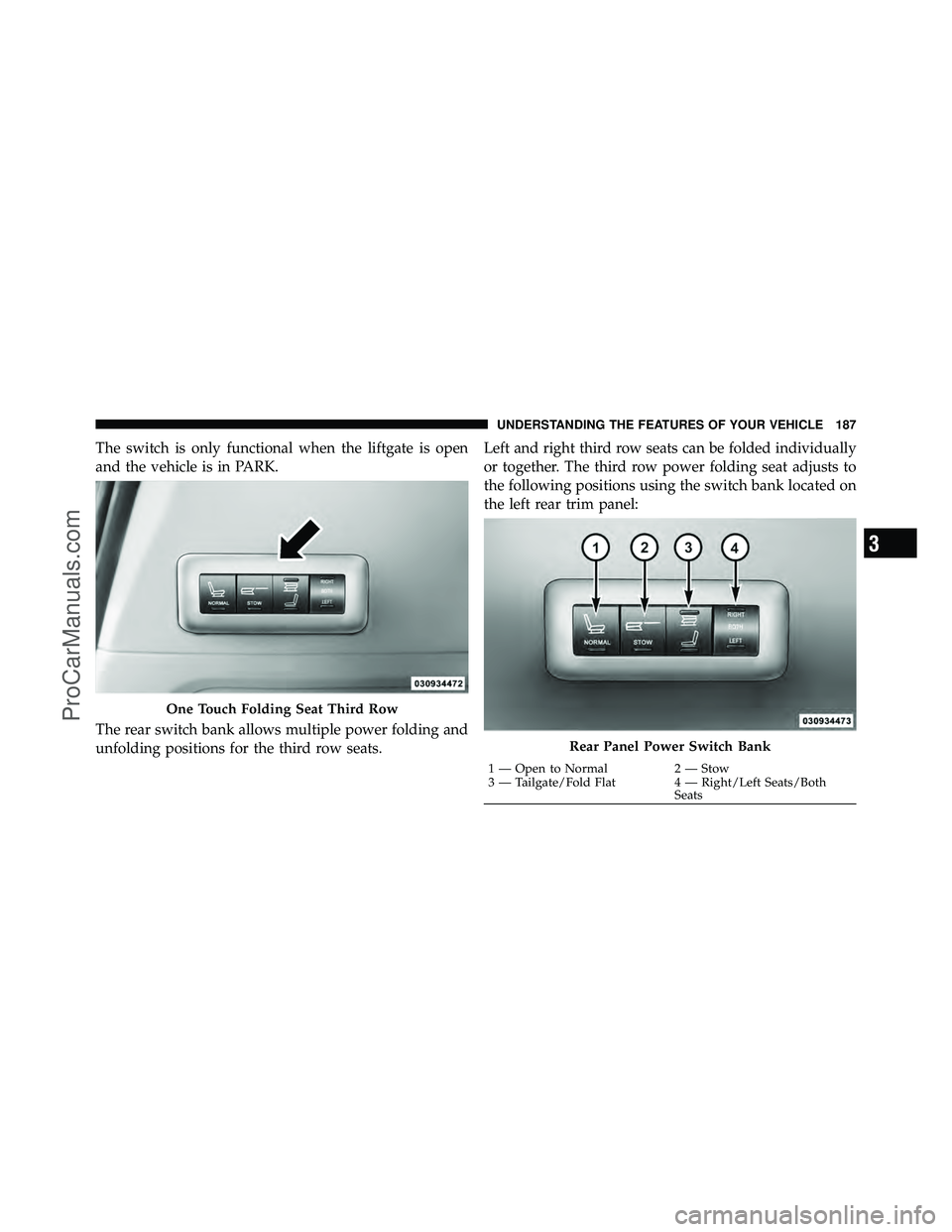

The switch is only functional when the liftgate is open
and the vehicle is in PARK.
The rear switch bank allows multiple power folding and
unfolding positions for the third row seats.Left and right third row seats can be folded individually
or together. The third row power folding seat adjusts to
the following positions using the switch bank located on
the left rear trim panel:
One Touch Folding Seat Third Row
Rear Panel Power Switch Bank
1 — Open to Normal
2 — Stow
3 — Tailgate/Fold Flat 4 — Right/Left Seats/Both Seats
3
