Traction Control......................... 443
Traction Control Switch ................... 443
Trailer Towing .......................... 495
Cooling System Tips .................. 508
Hitches ............................ 500
Minimum Requirements ................ 503
Trailer and Tongue Weight .............. 502
Wiring ............................ 506
Trailer Towing Guide ..................... 501
Trailer Weight .......................... 501
Transaxle Selection of Lubricant ................. 591
Transmission ........................... 569
Automatic ....................... 422,569
Fluid .......................... 570,591
Transmitter Battery Service
(Remote Keyless Entry) .................... 26
Transmitter, Garage Door Opener (HomeLink®) . . 231
Transmitter, Remote Keyless Entry (RKE) ........ 20Transporting Pets
........................ 95
Tread Wear Indicators .................... 468
Trip Odometer .......................... 286
Turn Signals ................... 203,286,587,588
UCI Connector ......................... 346
Uconnect™ (Hands-Free Phone) ............. 125
Umbrella Holder ........................ 256
Uniform Tire Quality Grades ................ 617
Universal Consumer Interface (UCI) Connector . . . 346
Universal Transmitter ..................... 231
Unleaded Gasoline ....................... 482
Upholstery Care ........................ 574
Vanity Mirrors .......................... 116
Variance, Compass ....................... 314
Vehicle Certification Label ................. 492
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 458,492,494
10
INDEX 637
ProCarManuals.com

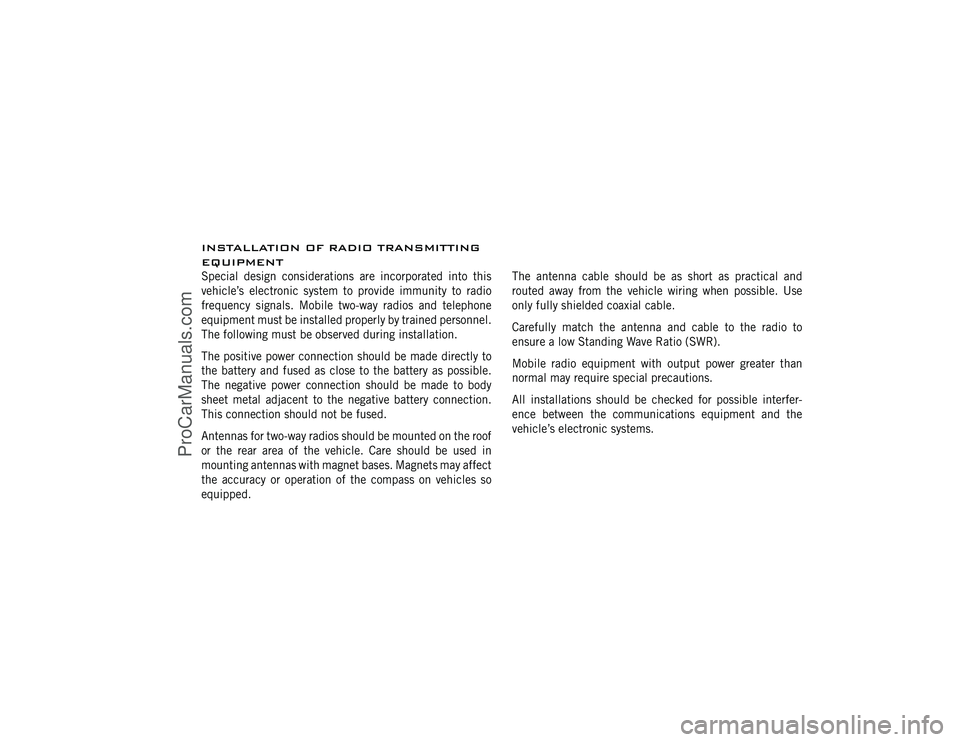

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENTSpecial design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained personnel.
The following must be observed during installation.
The positive power connection should be made directly to
the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the roof
or the rear area of the vehicle. Care should be used in
mounting antennas with magnet bases. Magnets may affect
the accuracy or operation of the compass on vehicles so
equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
