battery DODGE CARAVAN 2012 Service Manual

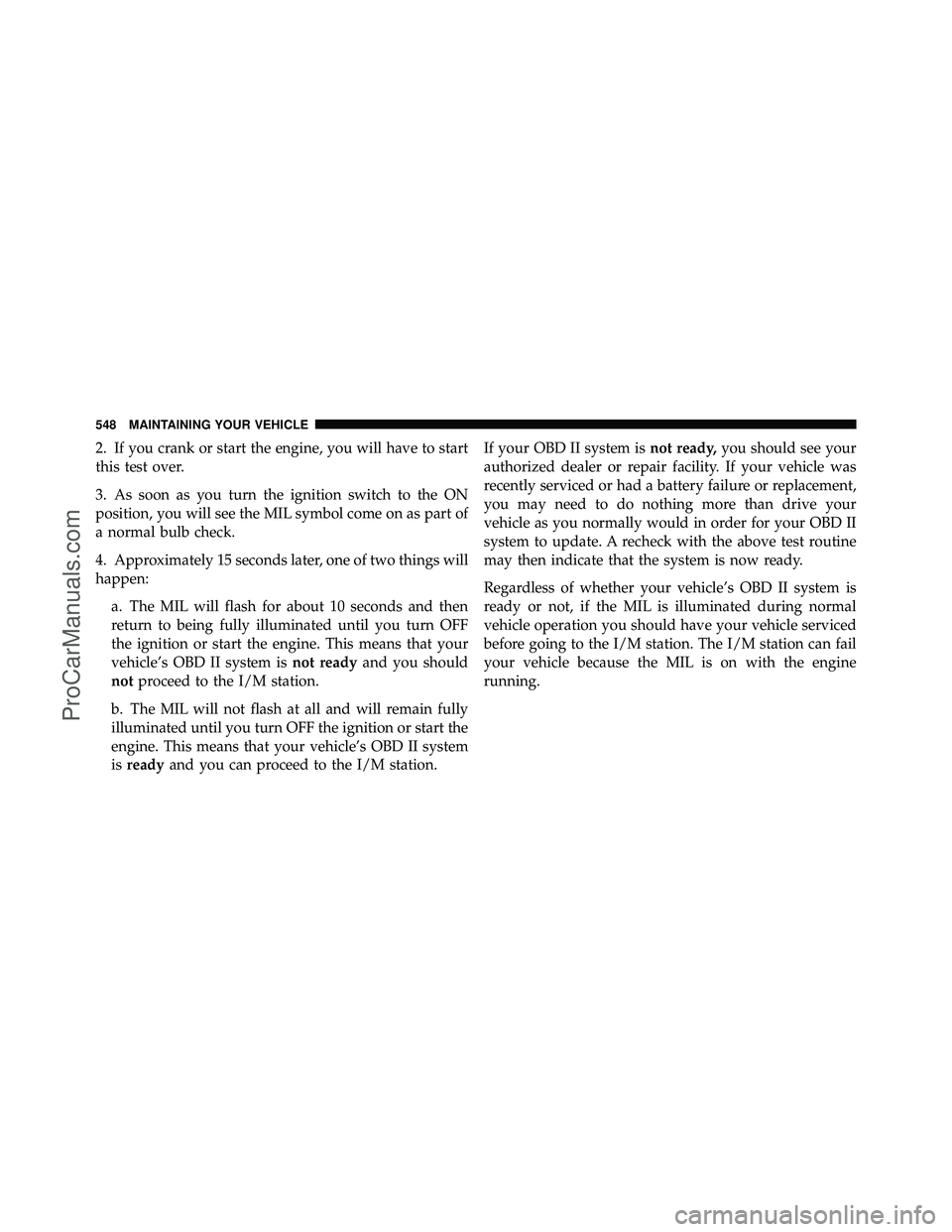

2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
4. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station. If your OBD II system is
not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
548 MAINTAINING YOUR VEHICLE
ProCarManuals.com

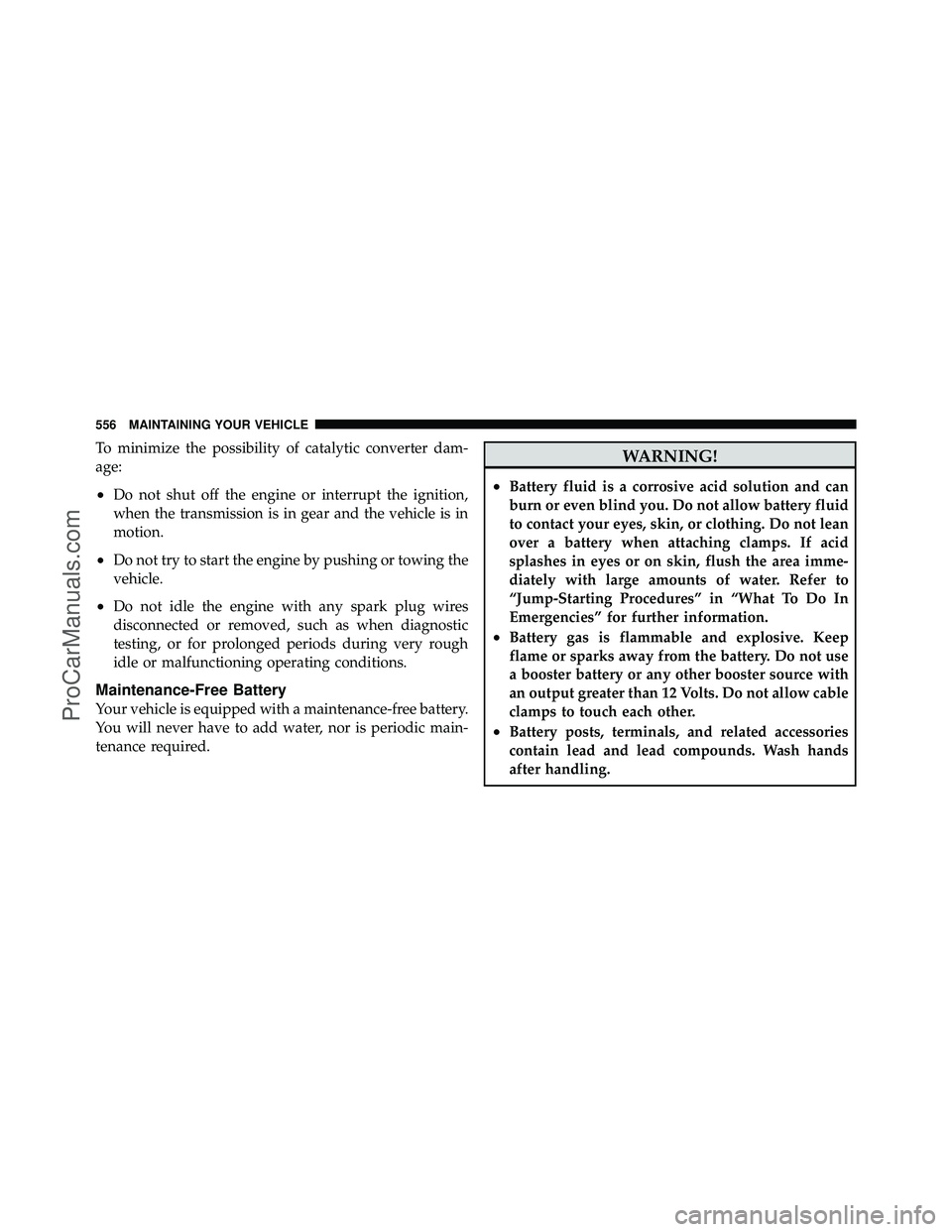

To minimize the possibility of catalytic converter dam-
age:
•Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle.
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
WARNING!
•Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water. Refer to
“Jump-Starting Procedures” in “What To Do In
Emergencies” for further information.
•Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.
•Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.
556 MAINTAINING YOUR VEHICLE
ProCarManuals.com

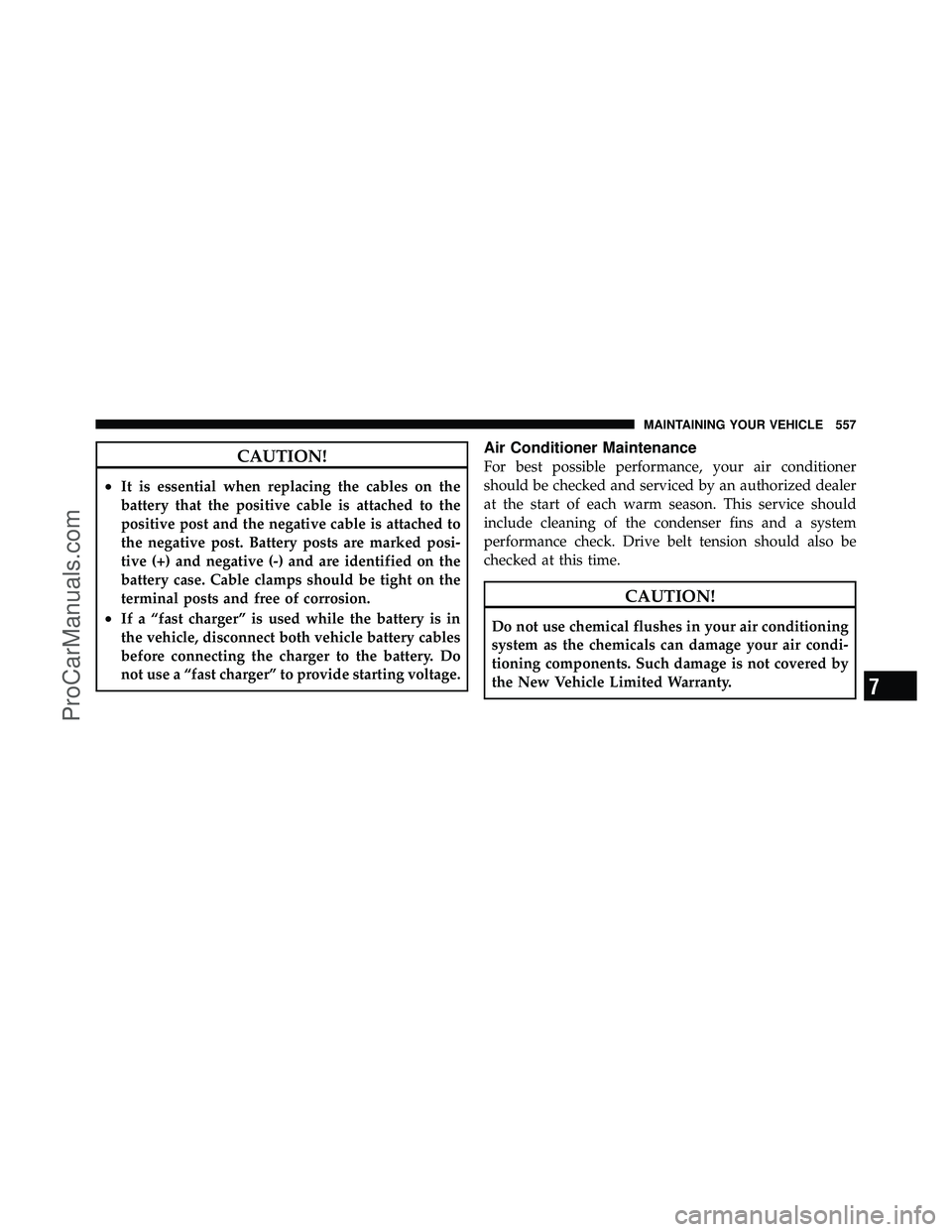

CAUTION!
•It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked posi-
tive (+) and negative (-) and are identified on the
battery case. Cable clamps should be tight on the
terminal posts and free of corrosion.
•If a “fast charger” is used while the battery is in
the vehicle, disconnect both vehicle battery cables
before connecting the charger to the battery. Do
not use a “fast charger” to provide starting voltage.
Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a system
performance check. Drive belt tension should also be
checked at this time.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condi-
tioning components. Such damage is not covered by
the New Vehicle Limited Warranty.
7
MAINTAINING YOUR VEHICLE 557
ProCarManuals.com

FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the battery. Refer to the appli-
cable “Engine Compartment” illustration in this section.
This center contains cartridge fuses and mini-fuses. A
label that identifies each component may be printed or
embossed on the inside of the cover.
Totally Integrated Power Module
578 MAINTAINING YOUR VEHICLE
ProCarManuals.com

CavityCartridge
Fuse Mini-
Fuse Description
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake Switch
M2 — 20 Amp YellowTrailer Lighting, Front
Fog Lamps, Intelli-
gent Battery Sensor
(IBS)
M3 — 20 Amp YellowFront/Rear Axle
Locker, Vacuum
Pump Motor
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverterCavity
Cartridge
Fuse Mini-
Fuse Description
M6 — 20 Amp YellowPower Outlet #1
(ACC), Rain Sensor,
Cigar Lighter (Instru-
ment Panel or with
Console Rear)
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC SELECT)
– Center Seat or with
Console Rear
M8 — 20 Amp YellowFront Heated Seat – If
Equipped
M9 — 20 Amp YellowRear Heated Seat – If
Equipped
7
MAINTAINING YOUR VEHICLE 581
ProCarManuals.com

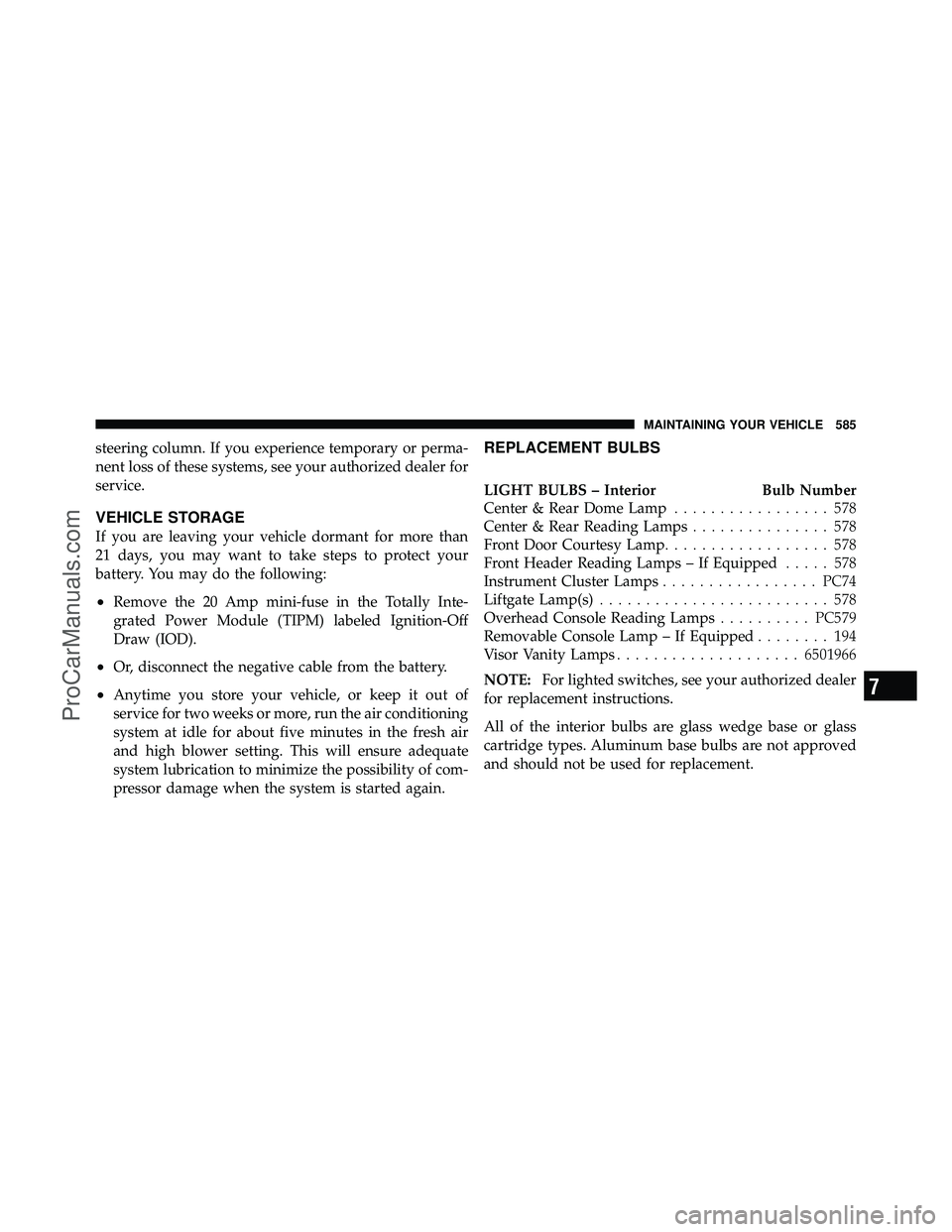

steering column. If you experience temporary or perma-
nent loss of these systems, see your authorized dealer for
service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
•Remove the 20 Amp mini-fuse in the Totally Inte-
grated Power Module (TIPM) labeled Ignition-Off
Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb Number
Center & Rear Dome Lamp ................. 578
Center & Rear Reading Lamps ............... 578
Front Door Courtesy Lamp .................. 578
Front Header Reading Lamps – If Equipped ..... 578
Instrument Cluster Lamps .................PC74
Liftgate Lamp(s) ......................... 578
Overhead Console Reading Lamps ..........PC579
Removable Console Lamp – If Equipped ........ 194
Visor Vanity Lamps .................... 6501966
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
7
MAINTAINING YOUR VEHICLE 585
ProCarManuals.com

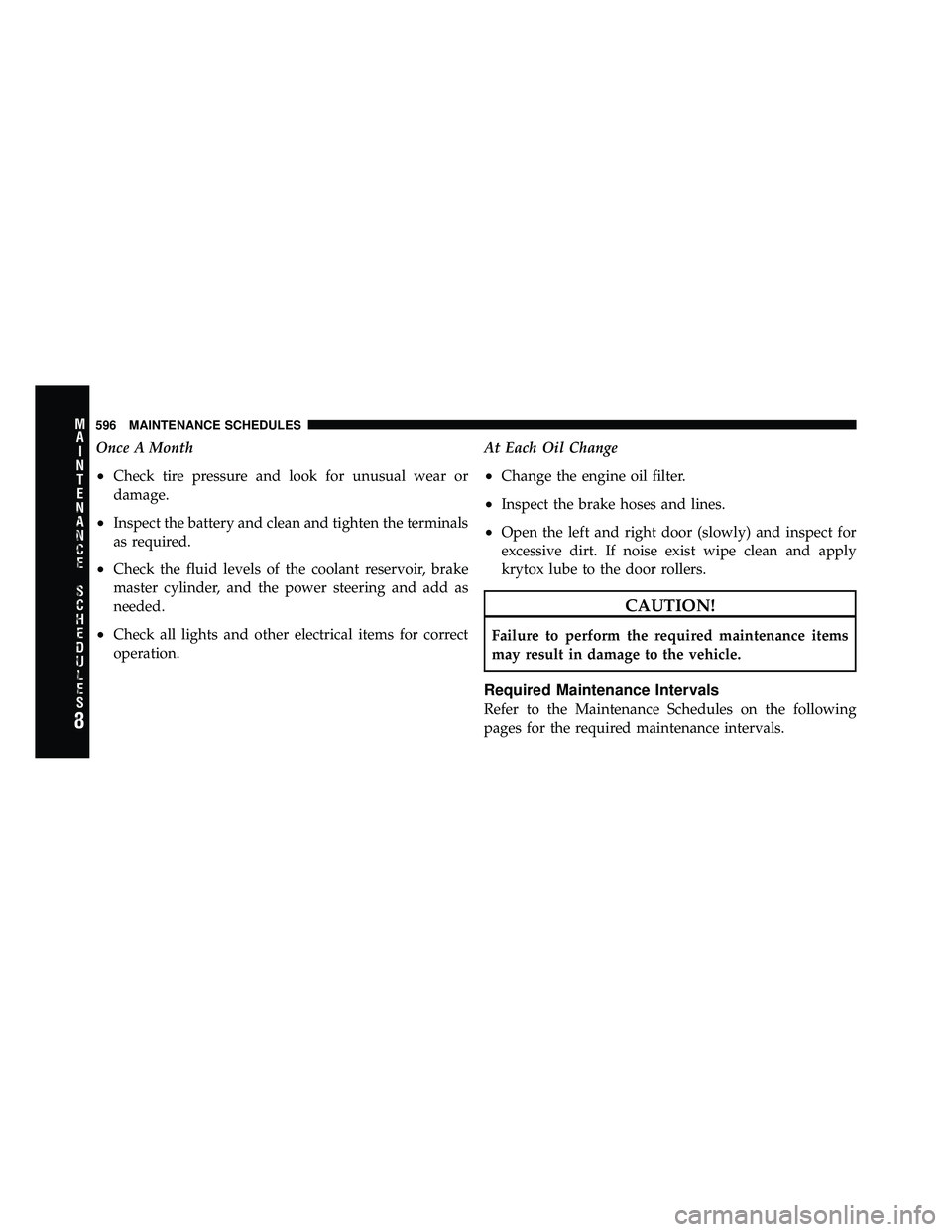

Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of the coolant reservoir, brake
master cylinder, and the power steering and add as
needed.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Open the left and right door (slowly) and inspect for
excessive dirt. If noise exist wipe clean and apply
krytox lube to the door rollers.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S596 MAINTENANCE SCHEDULES
ProCarManuals.com

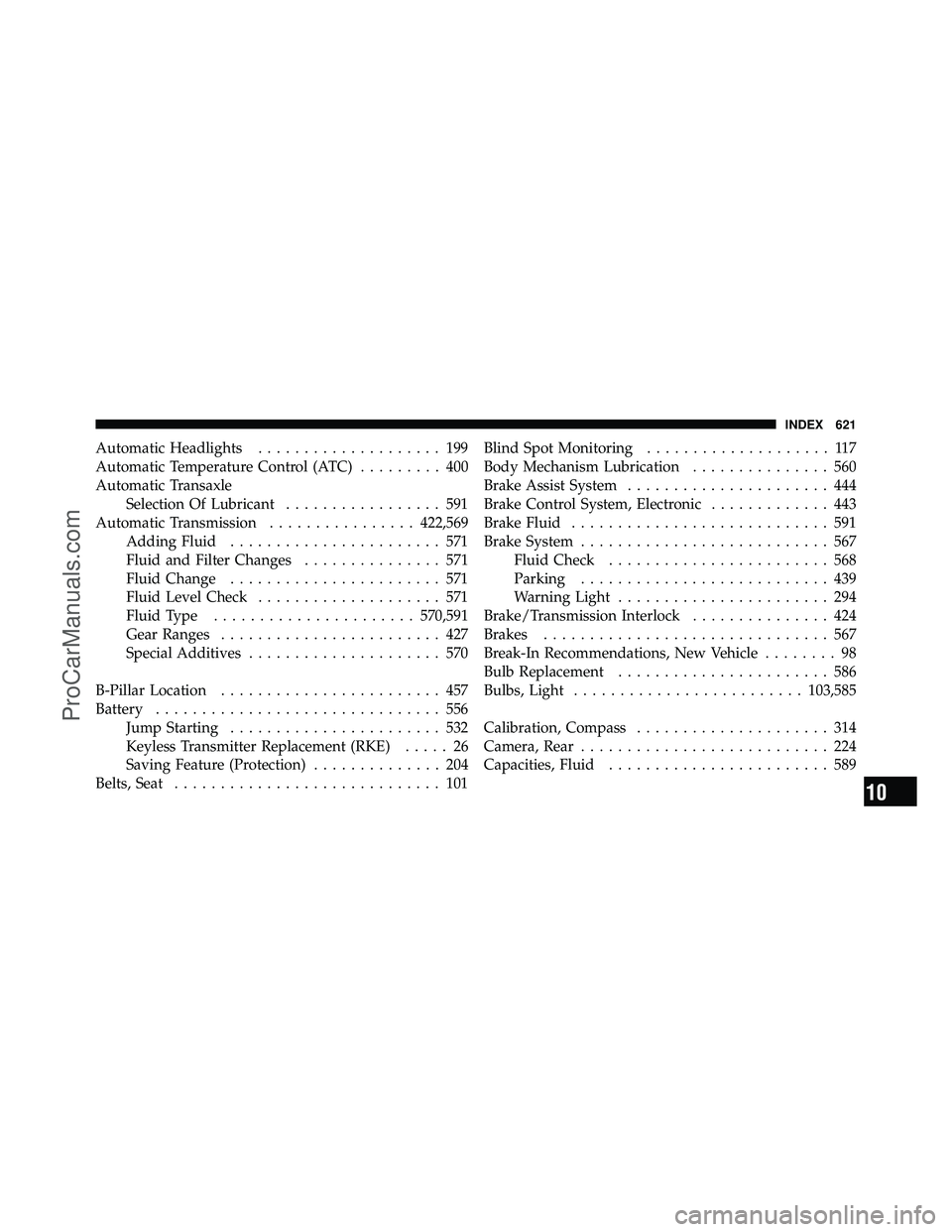

Automatic Headlights.................... 199
Automatic Temperature Control (ATC) ......... 400
Automatic Transaxle Selection Of Lubricant ................. 591
Automatic Transmission ................422,569
Adding Fluid ....................... 571
Fluid and Filter Changes ............... 571
Fluid Change ....................... 571
Fluid Level Check .................... 571
Fluid Type ...................... 570,591
Gear Ranges ........................ 427
Special Additives ..................... 570
B-Pillar Location ........................ 457
Battery ............................... 556
Jump Starting ....................... 532
Keyless Transmitter Replacement (RKE) ..... 26
Saving Feature (Protection) .............. 204
Belts, Seat ............................. 101 Blind Spot Monitoring
.................... 117
Body Mechanism Lubrication ............... 560
Brake Assist System ...................... 444
Brake Control System, Electronic ............. 443
Brake Fluid ............................ 591
Brake System ........................... 567
Fluid Check ........................ 568
Parking ........................... 439
Warning Light ....................... 294
Brake/Transmission Interlock ............... 424
Brakes ............................... 567
Break-In Recommendations, New Vehicle ........ 98
Bulb Replacement ....................... 586
Bulbs, Light ......................... 103,585
Calibration, Compass ..................... 314
Camera, Rear ........................... 224
Capacities, Fluid ........................ 589
10
INDEX 621
ProCarManuals.com

LATCH
(Lower Anchors and Tether for CHildren)....... 90
Latches ............................... 103
Hood ............................. 196
Lead Free Gasoline ...................... 482
Leaks, Fluid ........................... 103
Life of Tires ............................ 468
Liftgate ................................ 48
Light Bulbs ............................ 103
Lights ............................. 103,198
Airbag ..................... 77,83,101,293
Alarm ............................ 294
Anti-Lock .......................... 289
Automatic Headlights ................. 199
Back-Up ........................... 588
Battery Saver ....................... 204
Brake Assist Warning .................. 448
Brake Warning ...................... 294
Bulb Replacement ................. 585,586Center Mounted Stop
.................. 588
Daytime Running .................... 200
Dimmer Switch, Headlight .............. 201
Electronic Stability Program (ESP) Indicator . . 448
Engine Temperature Warning ............ 298
Exterior ........................... 103
Fog ......................... 200,286,587
Hazard Warning Flasher ............... 513
Headlights ......................... 586
Headlights On Reminder ............... 200
High Beam Indicator .................. 286
High Beam/Low Beam Select ............ 204
Illuminated Entry ..................... 19
Interior ............................ 201
License ............................ 589
Lights On Reminder .................. 200
Low Fuel ....................... 297,306
Malfunction Indicator (Check Engine) ...... 291
Oil Pressure ........................ 297
10
INDEX 629
ProCarManuals.com

Park.............................. 587
Passing ............................ 204
Reading ........................... 228
Rear Servicing ....................... 588
Rear Tail ........................... 588
Seat Belt Reminder ................... 296
Security Alarm (Theft Alarm) ............ 294
Service ......................... 585,586
Service Engine Soon
(Malfunction Indicator) ................ 291
Side Marker ........................ 588
Theft Alarm (Security Alarm) ............ 294
Tire Pressure Monitoring (TPMS) ......... 289
Traction Control ..................... 448
Turn Signal ................... 103,587,588
Voltage ............................ 297
Warning (Instrument Cluster Description) . . . 286
Load Leveling System .................... 270 Loading Vehicle
................... 260,492,494
Capacities .......................... 494
Tires .............................. 457
Locks Automatic Door ...................... 35
Door .............................. 32
Lower Anchors and Tether for
CHildren (LATCH) ....................... 90
Lubrication, Body ....................... 560
Luggage Rack (Roof Rack) ................. 271
Maintenance Free Battery .................. 556
Maintenance Procedures ................... 549
Maintenance Schedule .................... 594
Maintenance, Sunroof ..................... 244
Malfunction Indicator Light (Check Engine) . . 291,547
Manual, Service ......................... 615
Map/Reading Lights ..................... 228
Memory Feature (Memory Seat) ............. 192
630 INDEX
ProCarManuals.com
