DODGE CHALLENGER 2008 User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys ..................12
▫ Wireless Ignition Node (WIN) .............12
▫ FOB With Integrated Key .................13
▫ Ignition Key Removal ...................14
▫ Key-In-Ignition Reminder ................15

Sentry Key ...........................15
▫ Replacement Keys ......................16
▫ Customer Key Programming ..............17
▫ General Information ....................18

Security Alarm System ....................18
▫ Rearming Of The System .................18
▫ To Arm The System .....................19
▫ To Disarm The System ...................19

Illuminated Entry System ..................20

Remote Keyless Entry .....................21
▫ To Unlock The Doors ...................21
▫ To Lock The Doors .....................23
▫ Express Down Window Feature ............24
2
ProCarManuals.com

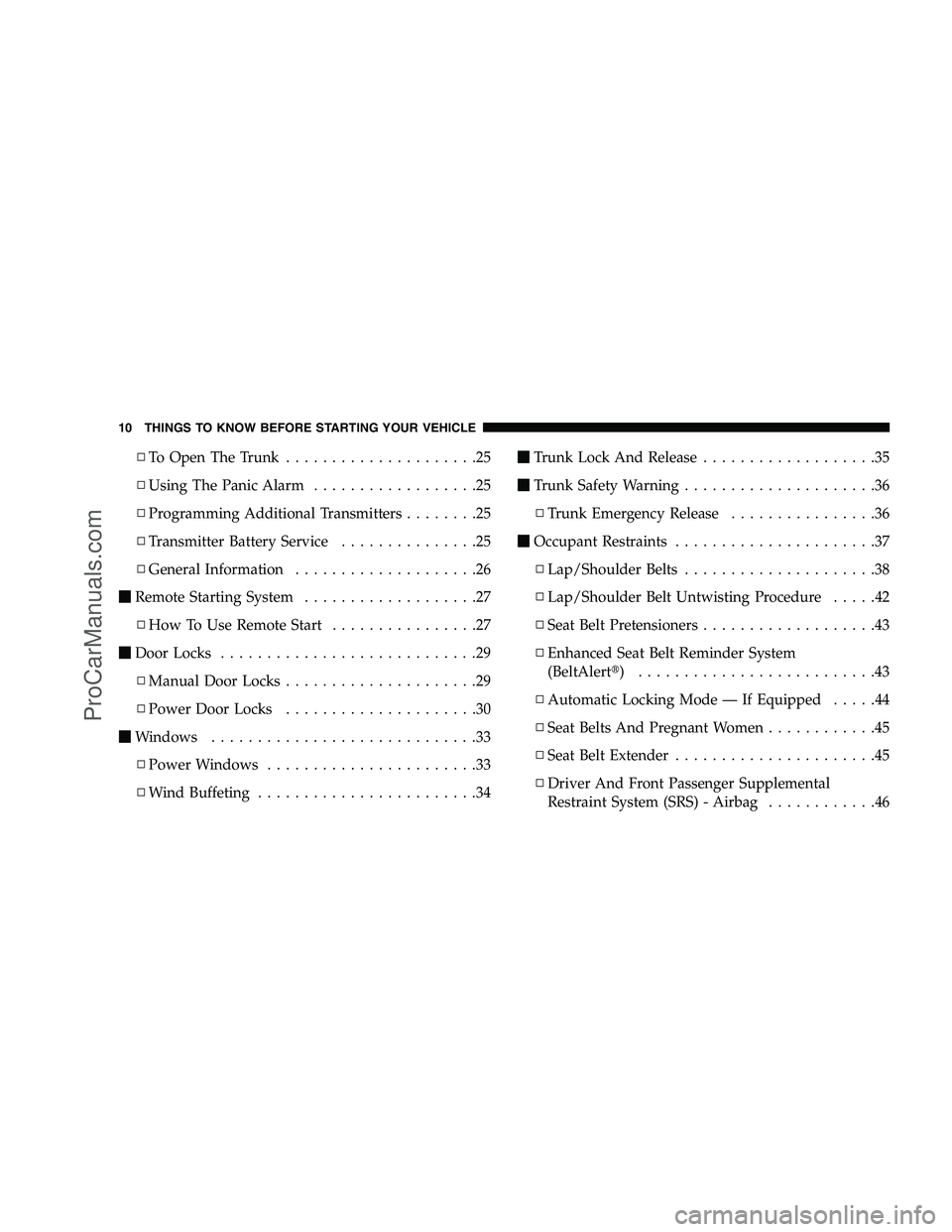

▫To Open The Trunk .....................25
▫ Using The Panic Alarm ..................25
▫ Programming Additional Transmitters ........25
▫ Transmitter Battery Service ...............25
▫ General Information ....................26

Remote Starting System ...................27
▫ How To Use Remote Start ................27

Door Locks ............................29
▫ Manual Door Locks .....................29
▫ Power Door Locks .....................30

Windows .............................33
▫ Power Windows .......................33
▫ Wind Buffeting ........................34

Trunk Lock And Release ...................35

Trunk Safety Warning .....................36
▫ Trunk Emergency Release ................36

Occupant Restraints ......................37
▫ Lap/Shoulder Belts .....................38
▫ Lap/Shoulder Belt Untwisting Procedure .....42
▫ Seat Belt Pretensioners ...................43
▫ Enhanced Seat Belt Reminder System
(BeltAlert ) ..........................43
▫ Automatic Locking Mode — If Equipped .....44
▫ Seat Belts And Pregnant Women ............45
▫ Seat Belt Extender ......................45
▫ Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag ............46
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

▫Event Data Recorder (EDR) ...............56
▫ Child Restraint ........................58

Engine Break-In Recommendations ...........67

Safety Tips ............................68
▫ Transporting Passengers .................68
▫ Lock Your Vehicle ......................68 ▫
Exhaust Gas ..........................68
▫ Safety Checks You Should Make Inside
TheVehicle ..........................69
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................70
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2
ProCarManuals.com

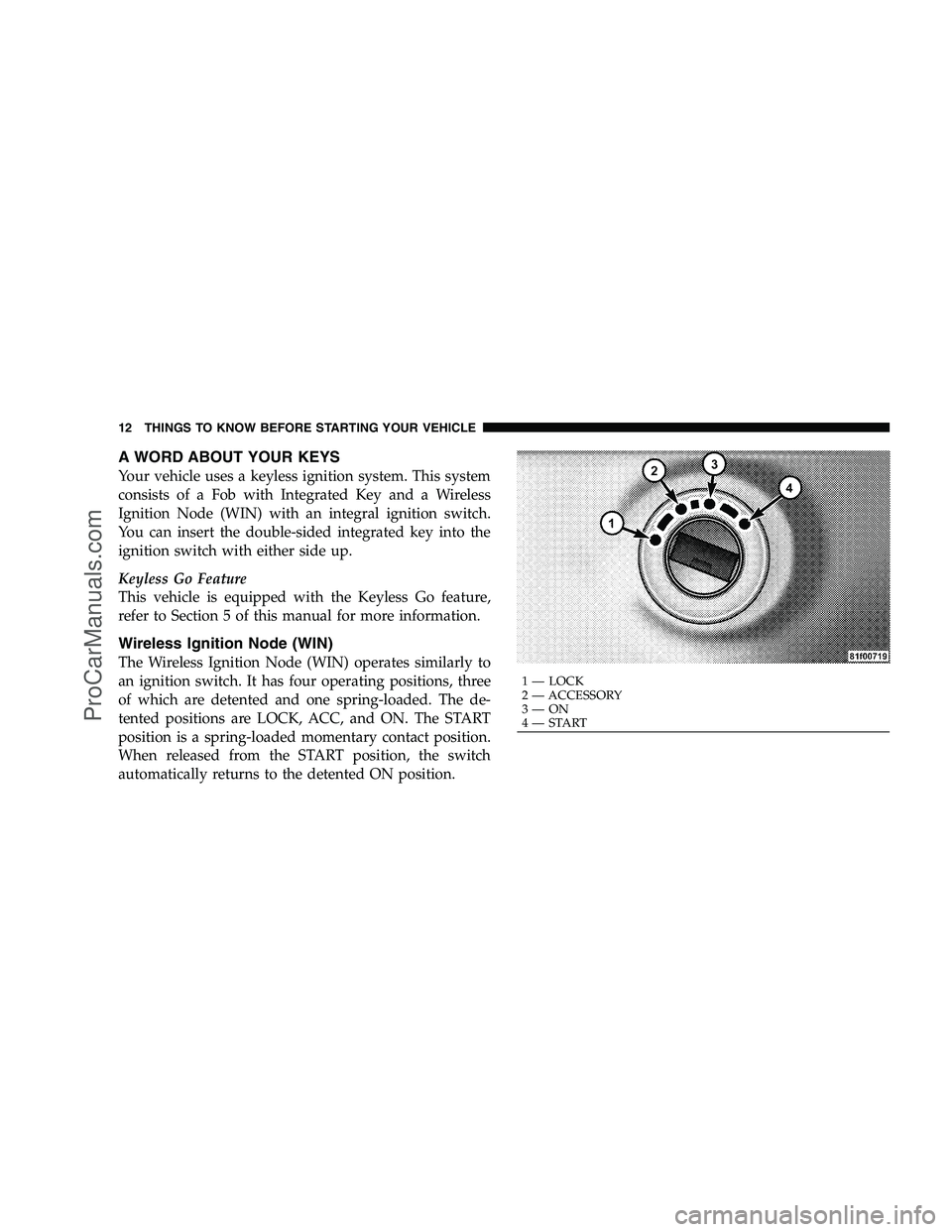

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Fob with Integrated Key and a Wireless
Ignition Node (WIN) with an integral ignition switch.
You can insert the double-sided integrated key into the
ignition switch with either side up.
Keyless Go Feature
This vehicle is equipped with the Keyless Go feature,
refer to Section 5 of this manual for more information.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
of which are detented and one spring-loaded. The de-
tented positions are LOCK, ACC, and ON. The START
position is a spring-loaded momentary contact position.
When released from the START position, the switch
automatically returns to the detented ON position.
1 — LOCK
2 — ACCESSORY
3—ON
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

Fob With Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. The valet key is
also for locking the glove box. You can keep the valet key
with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.NOTE:You can insert the double-sided valet key into
the lock cylinders with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2
ProCarManuals.com

Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.
NOTE:The power window switches, radio, power
sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either door will cancel this feature. The time for this
feature is programmable. Refer to “Delay Power Off to
Accessories Until Exit,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Alarm Indicator Light will turn on for
three seconds for a bulb check. If the light remains on
after the bulb check, it indicates that there is a problem
with the electronics. This condition will result in the
engine being shut off after two seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2
ProCarManuals.com

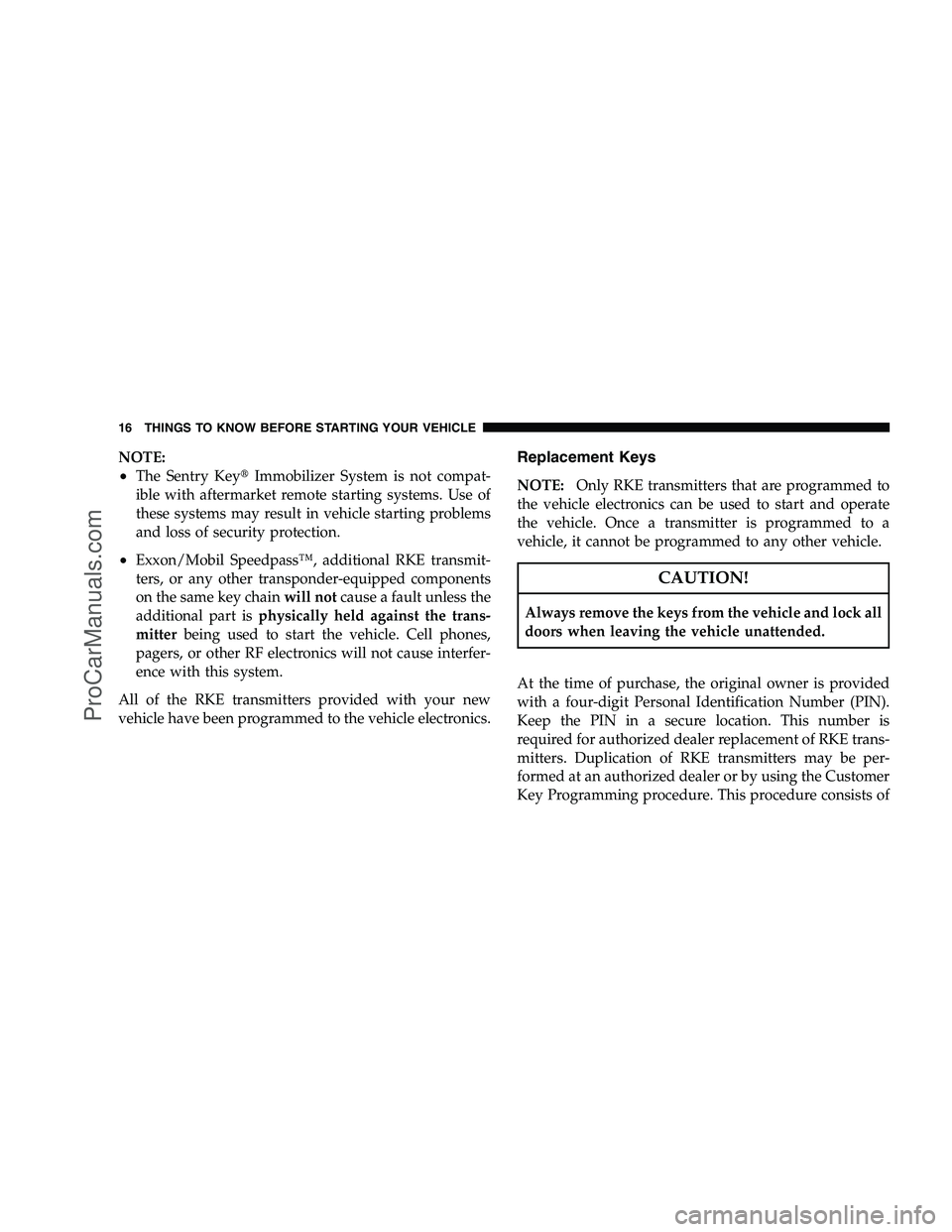

NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chain will notcause a fault unless the
additional part is physically held against the trans-
mitter being used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com

programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.
NOTE:When having the Sentry Key Immobilizer
System serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds. After 10 seconds, a chime will sound and the Vehicle
Security Alarm Indicator Light will begin to flash. Turn
the ignition switch to the LOCK position and remove the
second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound and
the Vehicle Security Alarm Indicator Light will stop
flashing, turn on again for three seconds, and then turn
off.
The new integrated key is programmed.
The RKE trans-
mitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
ProCarManuals.com

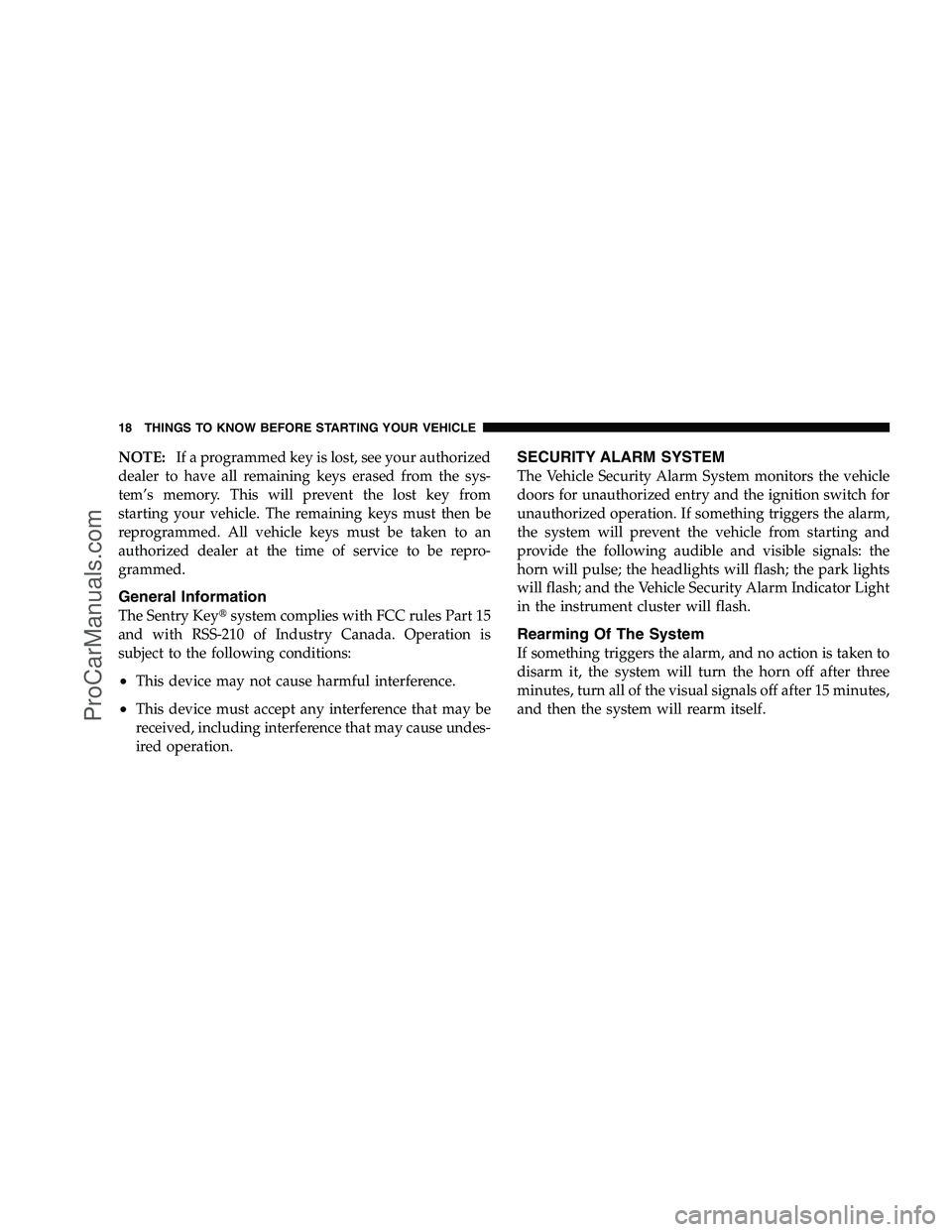

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM
The Vehicle Security Alarm System monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. If something triggers the alarm,
the system will prevent the vehicle from starting and
provide the following audible and visible signals: the
horn will pulse; the headlights will flash; the park lights
will flash; and the Vehicle Security Alarm Indicator Light
in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn the horn off after three
minutes, turn all of the visual signals off after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
ProCarManuals.com
