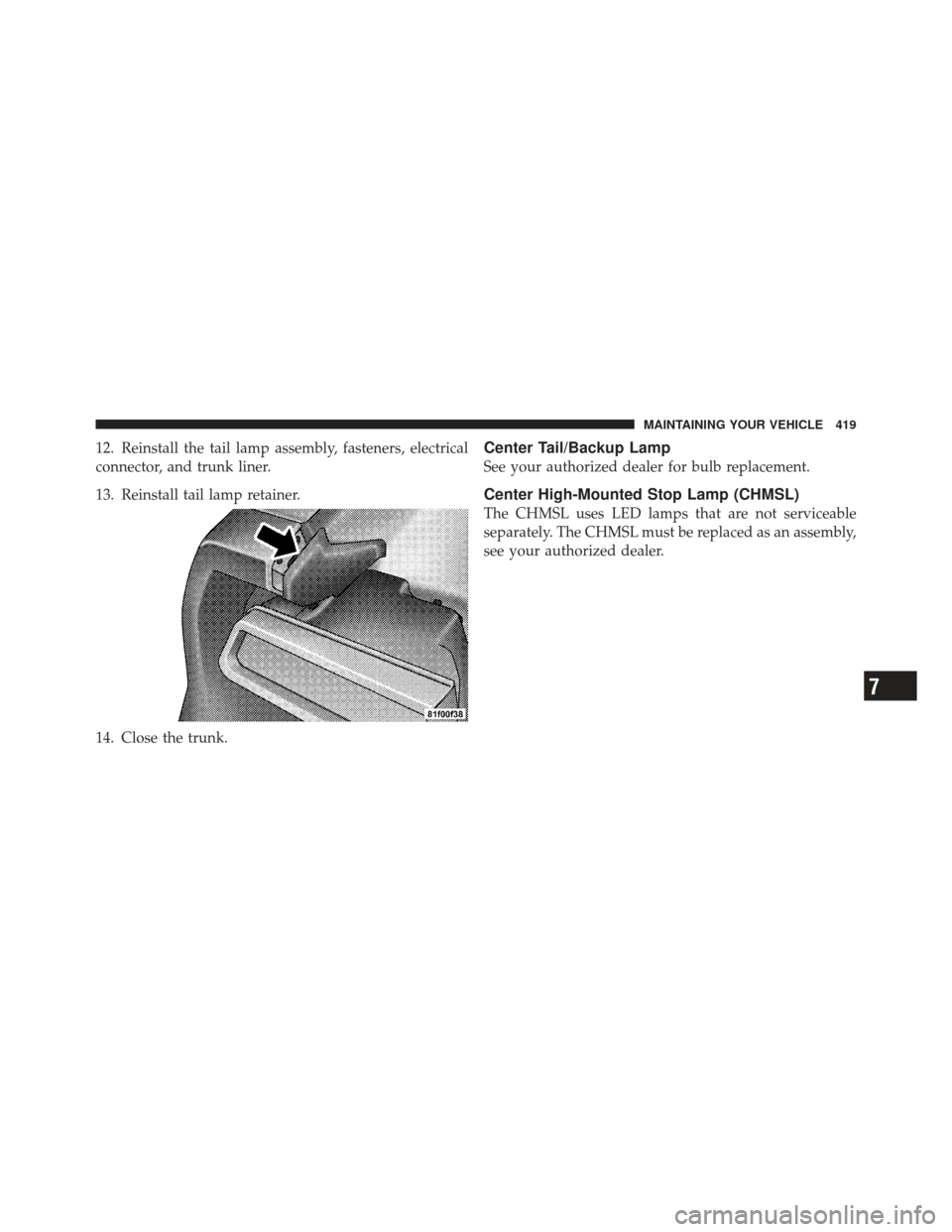

12. Reinstall the tail lamp assembly, fasteners, electrical
connector, and trunk liner.
13. Reinstall tail lamp retainer.
14. Close the trunk.Center Tail/Backup Lamp
See your authorized dealer for bulb replacement.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 419

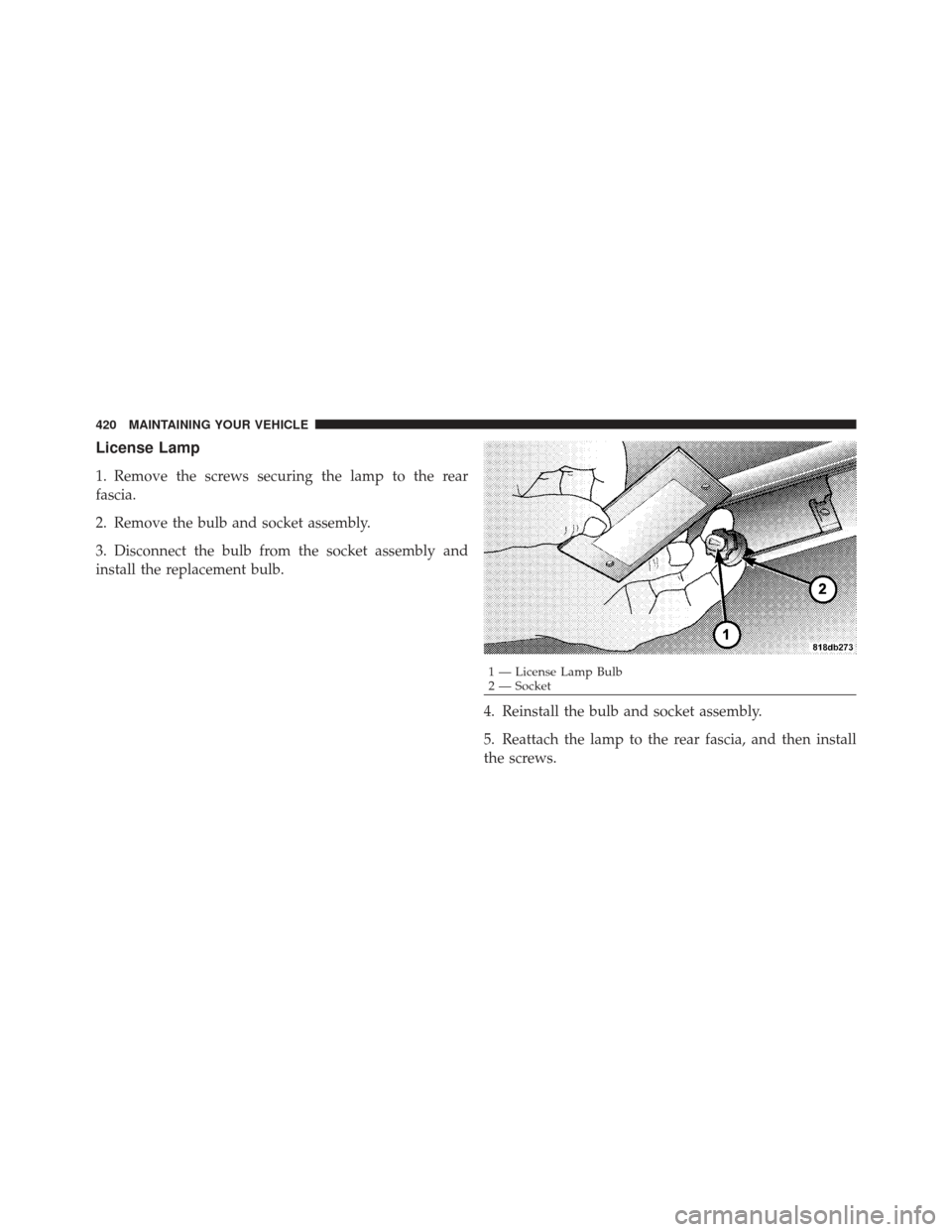

License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
420 MAINTAINING YOUR VEHICLE

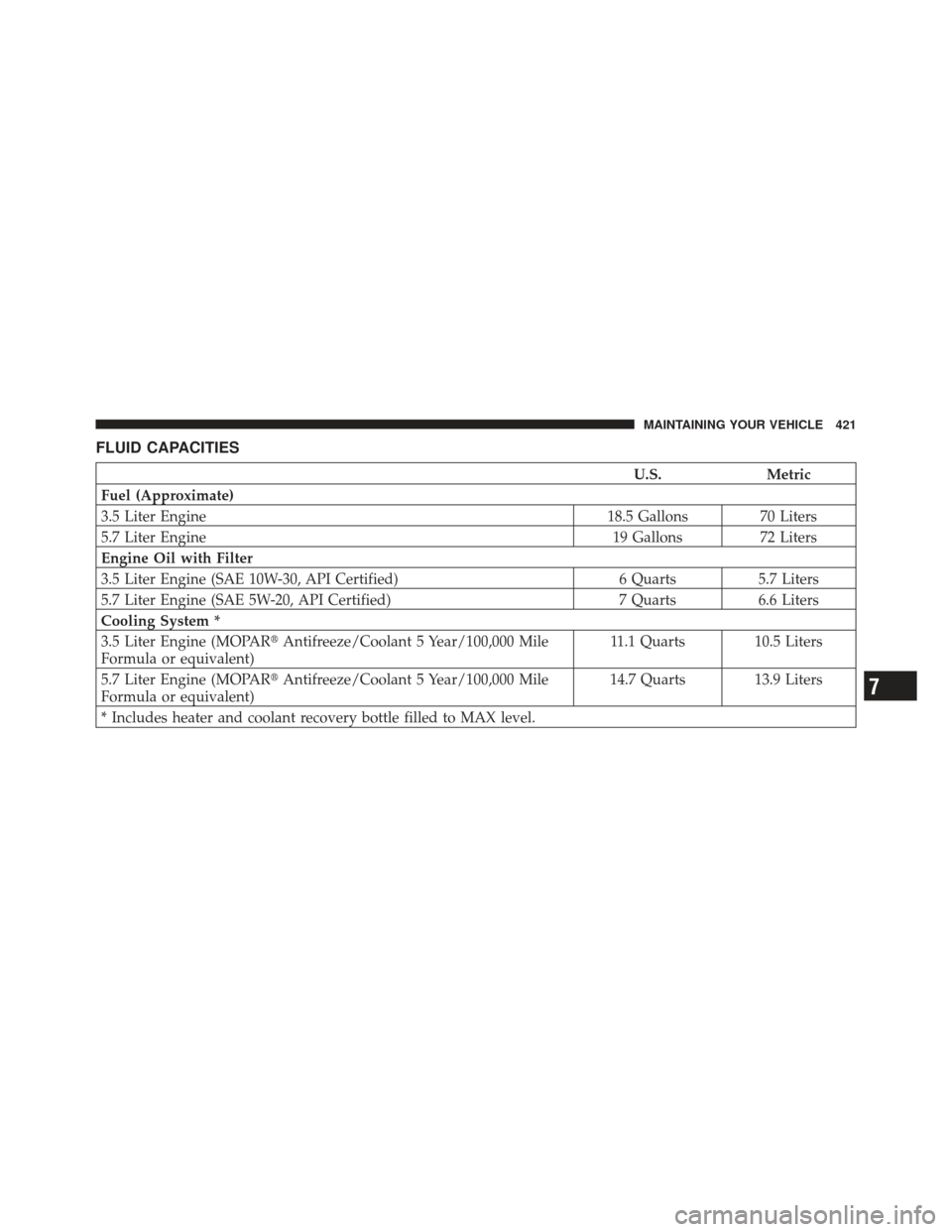

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
3.5 Liter Engine 18.5 Gallons 70 Liters
5.7 Liter Engine 19 Gallons72 Liters
Engine Oil with Filter
3.5 Liter Engine (SAE 10W-30, API Certified) 6 Quarts5.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
Cooling System *
3.5 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 11.1 Quarts 10.5 Liters
5.7 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 14.7 Quarts 13.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 421

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil – 3.5L Engine Use API Certified SAE 10W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.5L Engine ZFR5LP–13G (Gap 0.050 in [1.27 mm])
Spark Plugs – 5.7L Engine LZFR5C–11 (Gap 0.043 in [1.1 mm])
Fuel Selection (3.5L and 5.7L Engine
– Automatic Transmission) 87 Octane Acceptable — 89 Octane Recommended
Fuel Selection (5.7L Engine –
Manual Transmission) 91 Octane
422 MAINTAINING YOUR VEHICLE

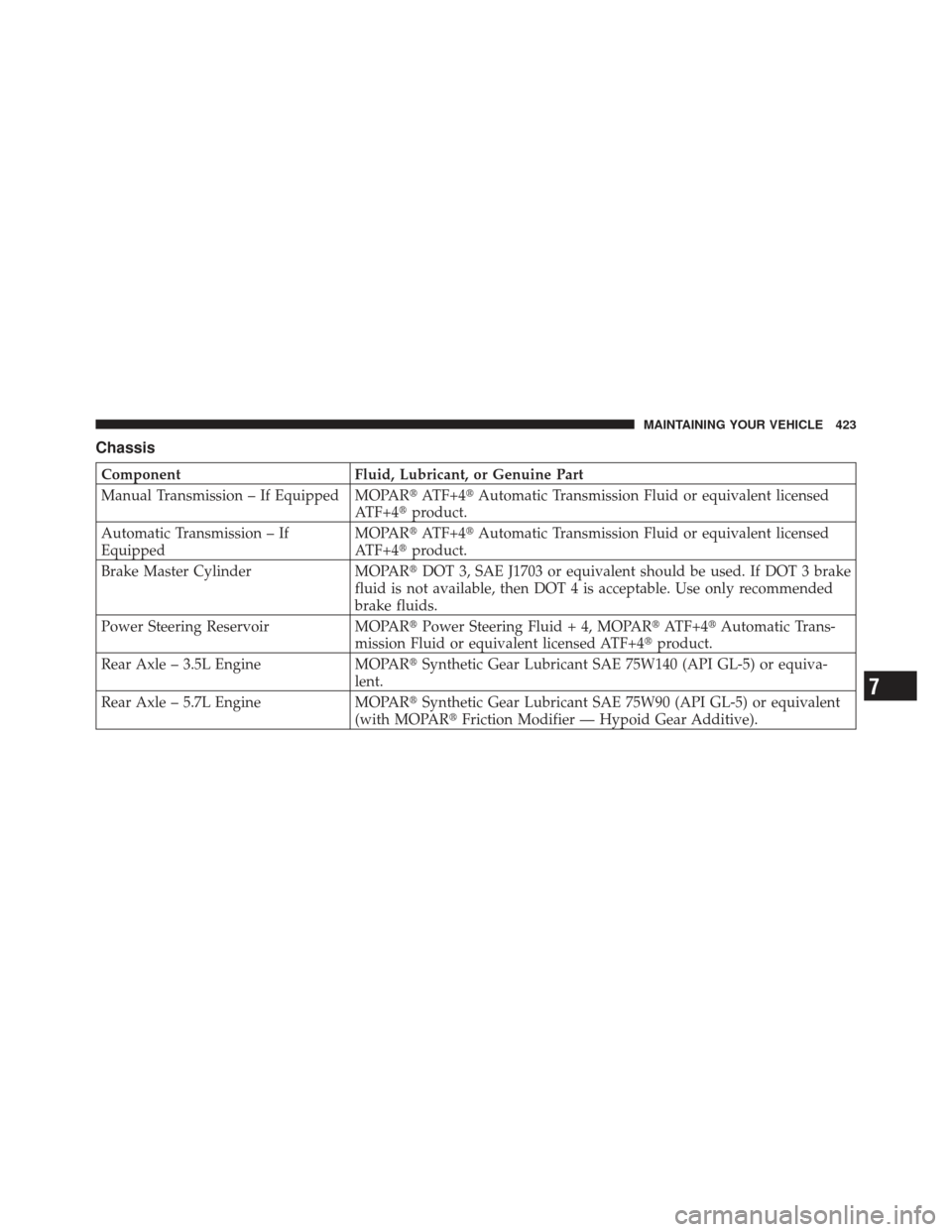

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Automatic Transmission – If
Equipped MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 or equivalent should be used. If DOT 3 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPAR ATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
Rear Axle – 3.5L Engine MOPARSynthetic Gear Lubricant SAE 75W140 (API GL-5) or equiva-
lent.
Rear Axle – 5.7L Engine MOPARSynthetic Gear Lubricant SAE 75W90 (API GL-5) or equivalent
(with MOPAR Friction Modifier — Hypoid Gear Additive).
7
MAINTAINING YOUR VEHICLE 423

MAINTENANCE SCHEDULES
CONTENTS
Emission Control System Maintenance ...... 426
 Maintenance Schedule .................. 426 ▫
Required Maintenance Intervals .......... 428
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

EMISSION CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emission Control
System. These, and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S426 MAINTENANCE SCHEDULES

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in “Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
At Each Stop for Fuel
•Check the engine oil level. Refer to “Maintenance
Procedures/Engine Oil” in “Maintaining Your Ve-
hicle” for further information.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean and tighten the terminals
as required.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 427

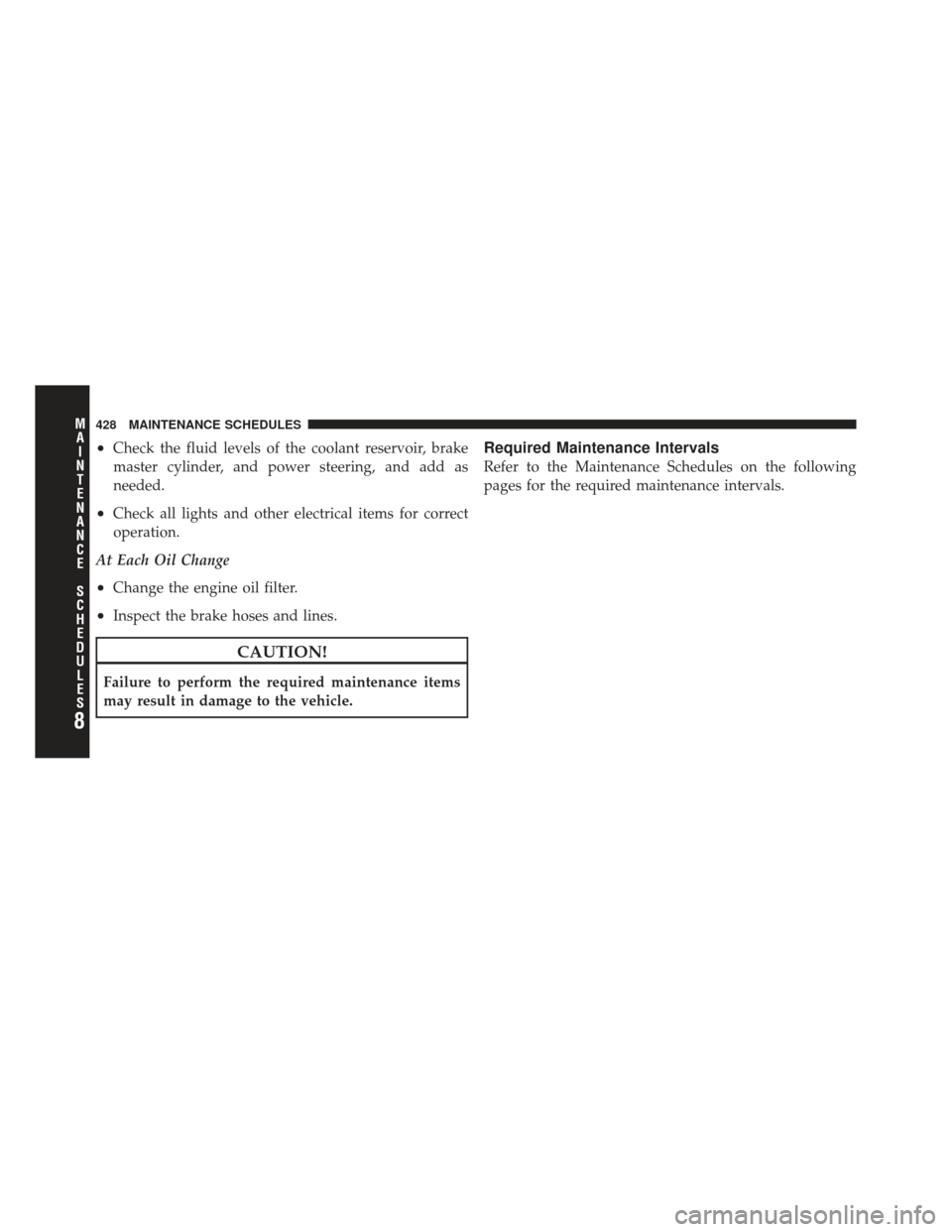

•Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering, and add as
needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
