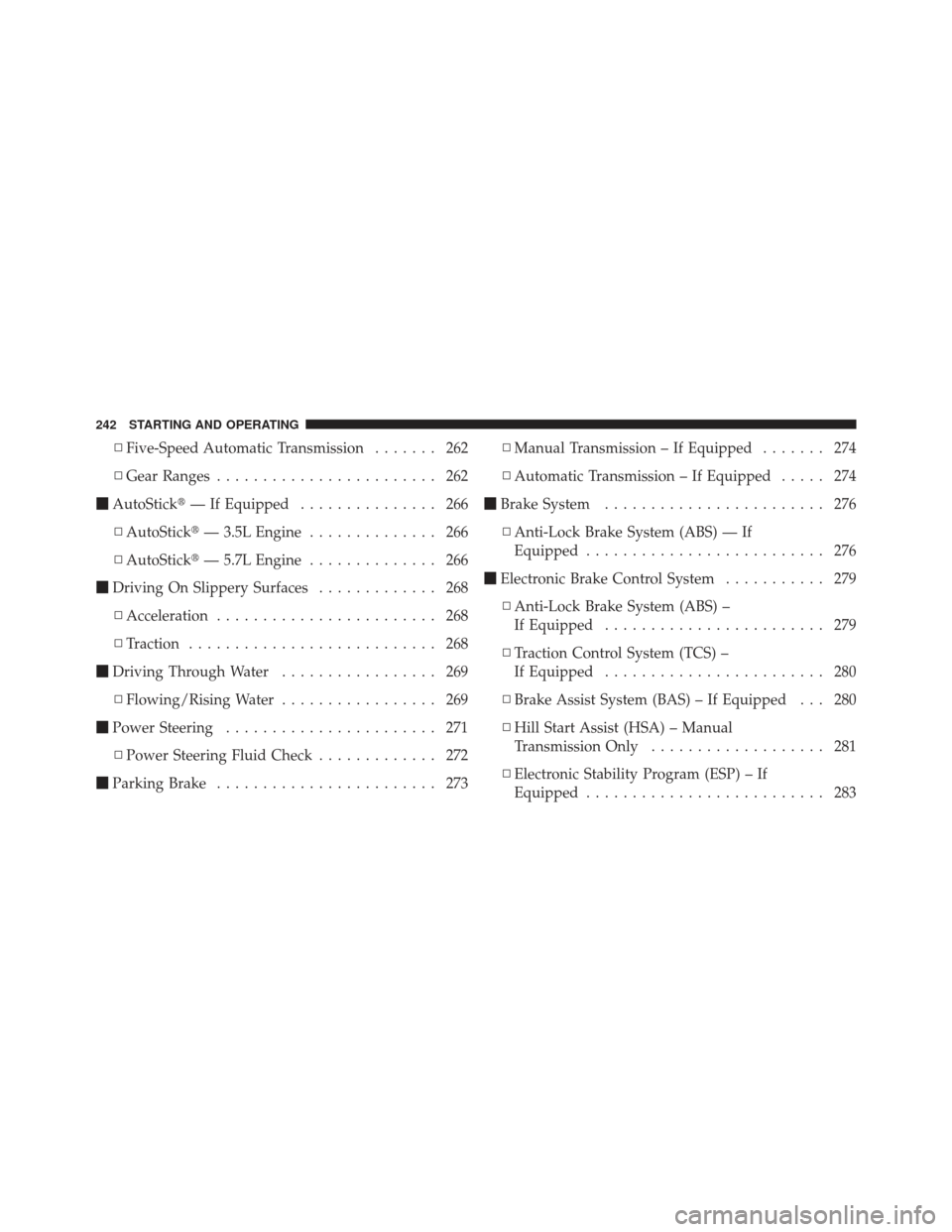

▫Five-Speed Automatic Transmission ....... 262
▫ Gear Ranges ........................ 262
 AutoStick — If Equipped ............... 266
▫ AutoStick — 3.5L Engine .............. 266
▫ AutoStick — 5.7L Engine .............. 266
 Driving On Slippery Surfaces ............. 268
▫ Acceleration ........................ 268
▫ Traction ........................... 268
 Driving Through Water ................. 269
▫ Flowing/Rising Water ................. 269
 Power Steering ....................... 271
▫ Power Steering Fluid Check ............. 272
 Parking Brake ........................ 273 ▫
Manual Transmission – If Equipped ....... 274
▫ Automatic Transmission – If Equipped ..... 274
 Brake System ........................ 276
▫ Anti-Lock Brake System (ABS) — If
Equipped .......................... 276
 Electronic Brake Control System ........... 279
▫ Anti-Lock Brake System (ABS) –
If Equipped ........................ 279
▫ Traction Control System (TCS) –
If Equipped ........................ 280
▫ Brake Assist System (BAS) – If Equipped . . . 280
▫ Hill Start Assist (HSA) – Manual
Transmission Only ................... 281
▫ Electronic Stability Program (ESP) – If
Equipped .......................... 283
242 STARTING AND OPERATING

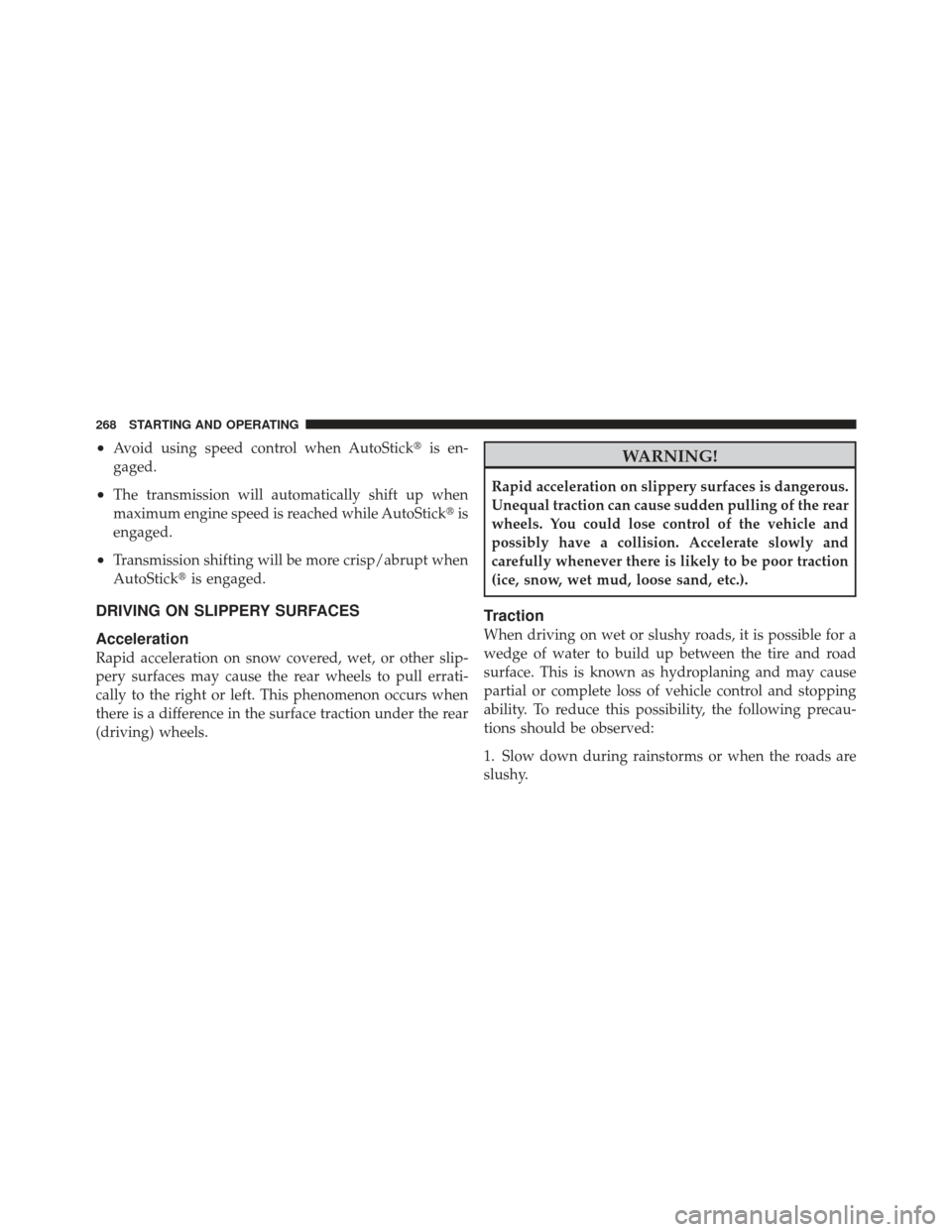

•Avoid using speed control when AutoStickis en-
gaged.
•The transmission will automatically shift up when
maximum engine speed is reached while AutoStick is
engaged.
•Transmission shifting will be more crisp/abrupt when
AutoStick is engaged.
DRIVING ON SLIPPERY SURFACES
Acceleration
Rapid acceleration on snow covered, wet, or other slip-
pery surfaces may cause the rear wheels to pull errati-
cally to the right or left. This phenomenon occurs when
there is a difference in the surface traction under the rear
(driving) wheels.
WARNING!
Rapid acceleration on slippery surfaces is dangerous.
Unequal traction can cause sudden pulling of the rear
wheels. You could lose control of the vehicle and
possibly have a collision. Accelerate slowly and
carefully whenever there is likely to be poor traction
(ice, snow, wet mud, loose sand, etc.).
Traction
When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is known as hydroplaning and may cause
partial or complete loss of vehicle control and stopping
ability. To reduce this possibility, the following precau-
tions should be observed:
1. Slow down during rainstorms or when the roads are
slushy.
268 STARTING AND OPERATING

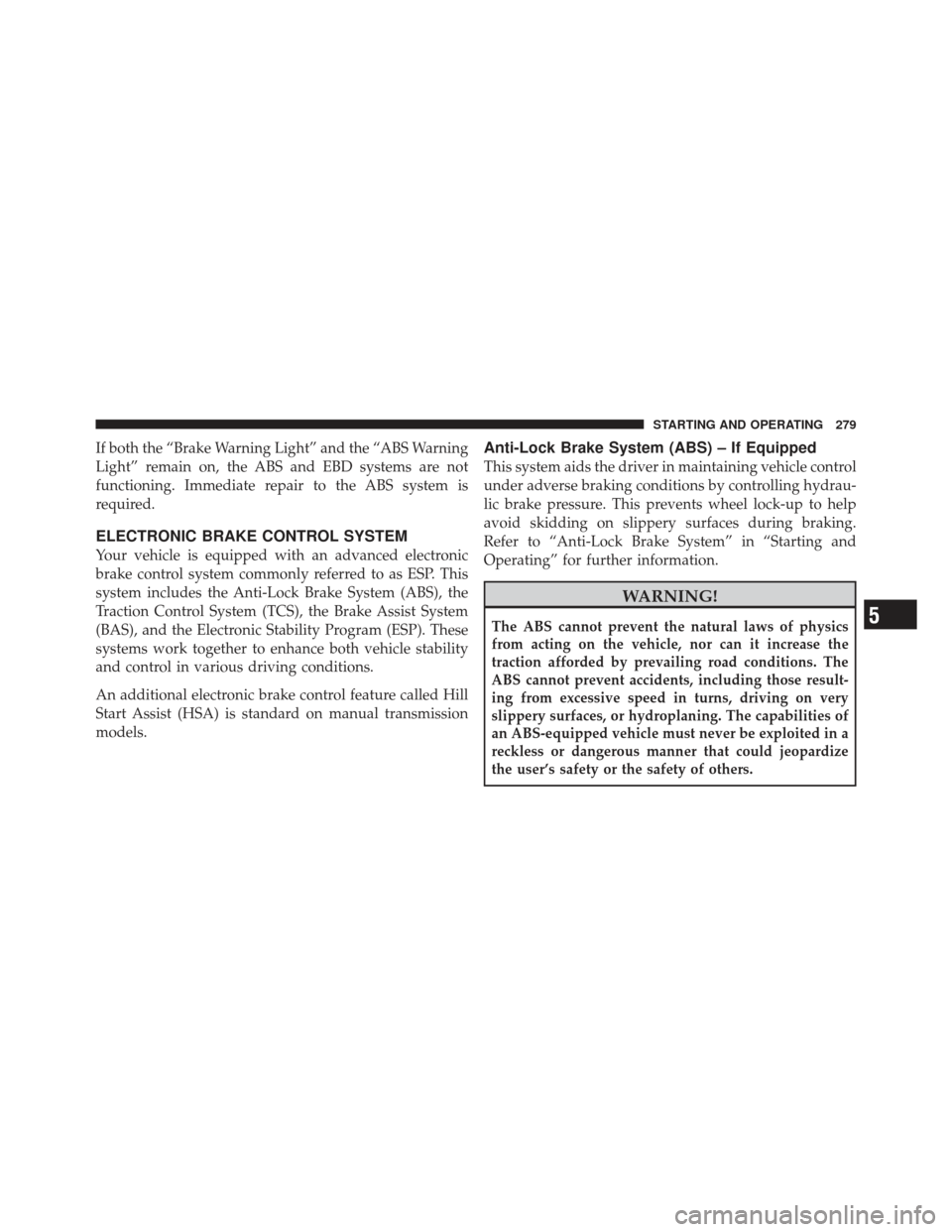

If both the “Brake Warning Light” and the “ABS Warning
Light” remain on, the ABS and EBD systems are not
functioning. Immediate repair to the ABS system is
required.
ELECTRONIC BRAKE CONTROL SYSTEM
Your vehicle is equipped with an advanced electronic
brake control system commonly referred to as ESP. This
system includes the Anti-Lock Brake System (ABS), the
Traction Control System (TCS), the Brake Assist System
(BAS), and the Electronic Stability Program (ESP). These
systems work together to enhance both vehicle stability
and control in various driving conditions.
An additional electronic brake control feature called Hill
Start Assist (HSA) is standard on manual transmission
models.
Anti-Lock Brake System (ABS) – If Equipped
This system aids the driver in maintaining vehicle control
under adverse braking conditions by controlling hydrau-
lic brake pressure. This prevents wheel lock-up to help
avoid skidding on slippery surfaces during braking.
Refer to “Anti-Lock Brake System” in “Starting and
Operating” for further information.
WARNING!
The ABS cannot prevent the natural laws of physics
from acting on the vehicle, nor can it increase the
traction afforded by prevailing road conditions. The
ABS cannot prevent accidents, including those result-
ing from excessive speed in turns, driving on very
slippery surfaces, or hydroplaning. The capabilities of
an ABS-equipped vehicle must never be exploited in a
reckless or dangerous manner that could jeopardize
the user’s safety or the safety of others.5
STARTING AND OPERATING 279

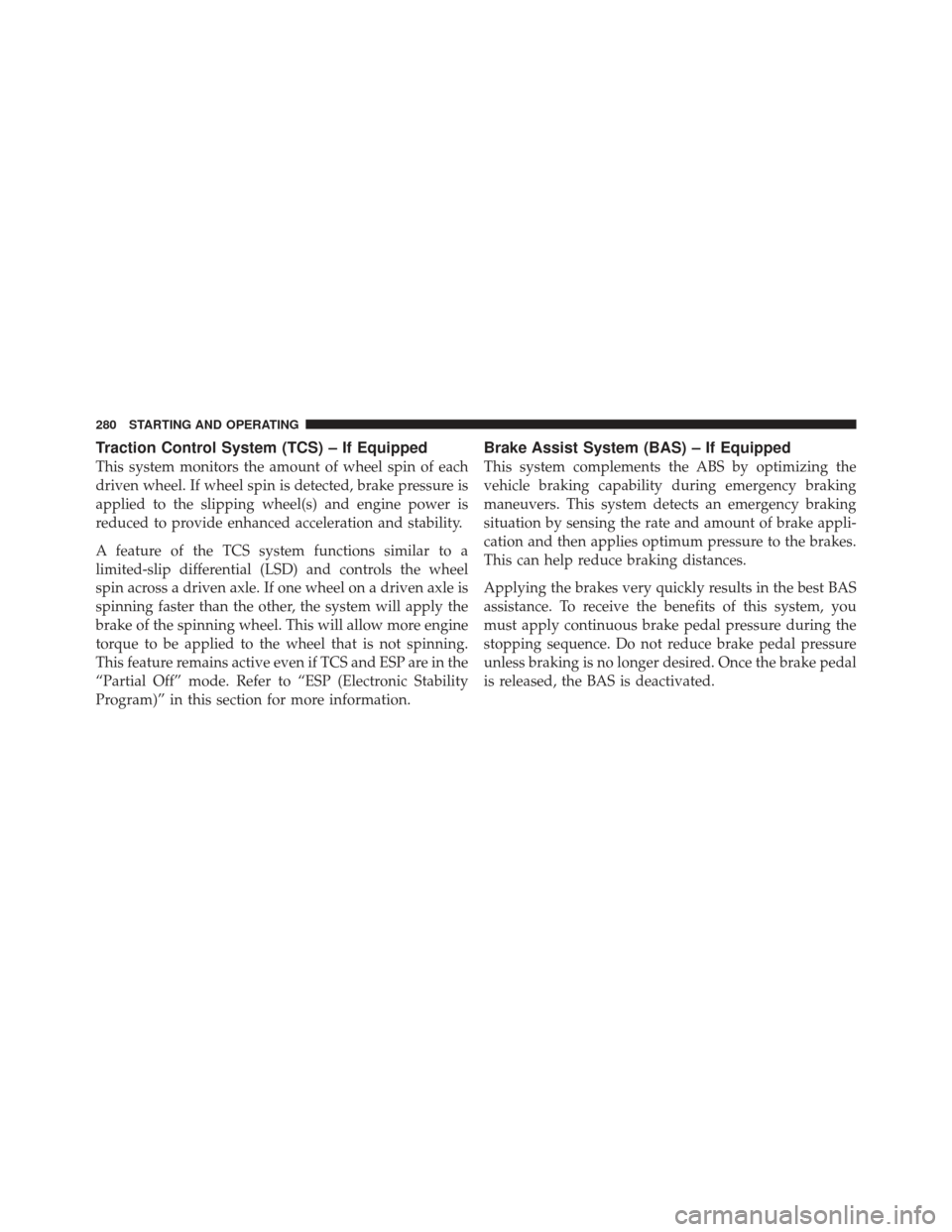

Traction Control System (TCS) – If Equipped
This system monitors the amount of wheel spin of each
driven wheel. If wheel spin is detected, brake pressure is
applied to the slipping wheel(s) and engine power is
reduced to provide enhanced acceleration and stability.
A feature of the TCS system functions similar to a
limited-slip differential (LSD) and controls the wheel
spin across a driven axle. If one wheel on a driven axle is
spinning faster than the other, the system will apply the
brake of the spinning wheel. This will allow more engine
torque to be applied to the wheel that is not spinning.
This feature remains active even if TCS and ESP are in the
“Partial Off” mode. Refer to “ESP (Electronic Stability
Program)” in this section for more information.
Brake Assist System (BAS) – If Equipped
This system complements the ABS by optimizing the
vehicle braking capability during emergency braking
maneuvers. This system detects an emergency braking
situation by sensing the rate and amount of brake appli-
cation and then applies optimum pressure to the brakes.
This can help reduce braking distances.
Applying the brakes very quickly results in the best BAS
assistance. To receive the benefits of this system, you
must apply continuous brake pedal pressure during the
stopping sequence. Do not reduce brake pedal pressure
unless braking is no longer desired. Once the brake pedal
is released, the BAS is deactivated.
280 STARTING AND OPERATING

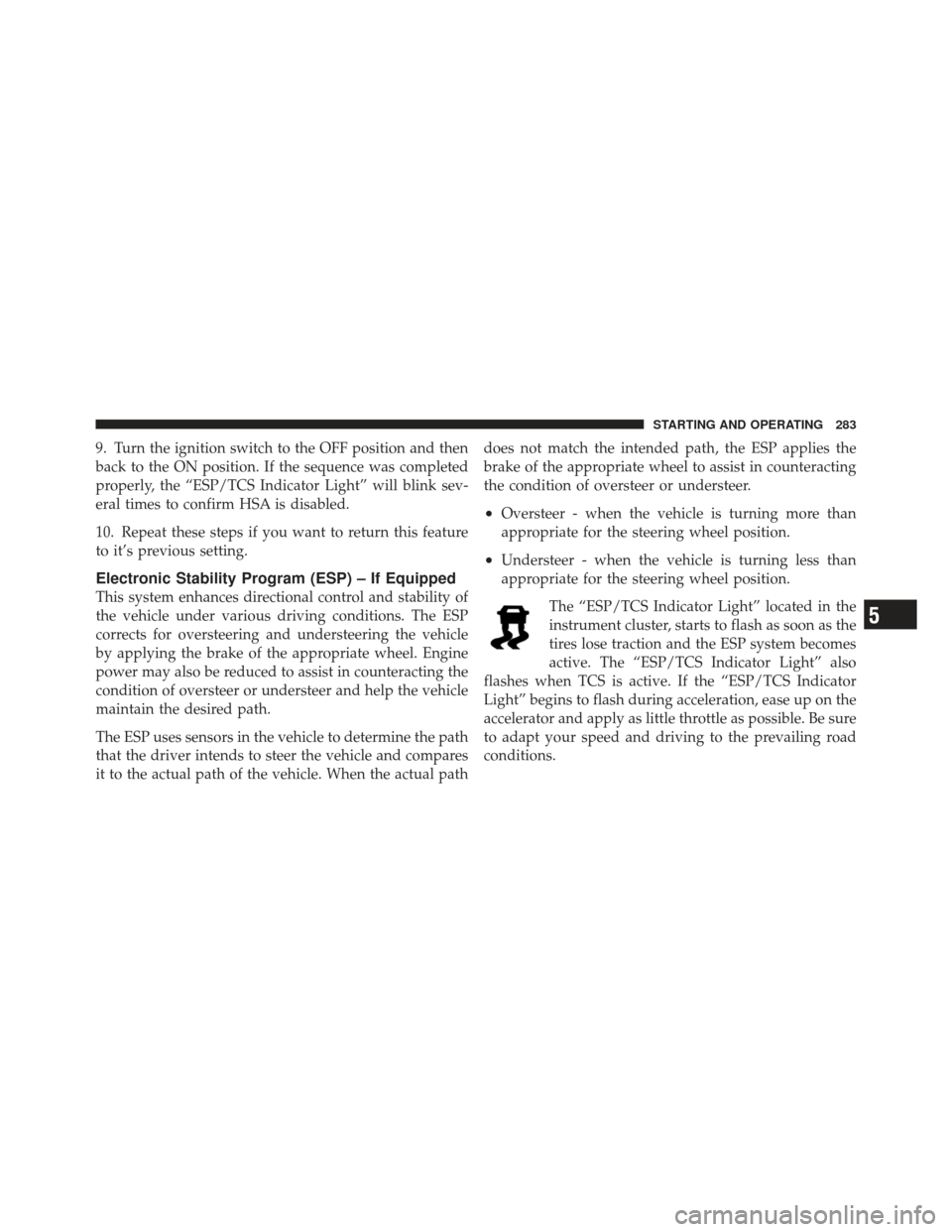

9. Turn the ignition switch to the OFF position and then
back to the ON position. If the sequence was completed
properly, the “ESP/TCS Indicator Light” will blink sev-
eral times to confirm HSA is disabled.
10. Repeat these steps if you want to return this feature
to it’s previous setting.
Electronic Stability Program (ESP) – If Equipped
This system enhances directional control and stability of
the vehicle under various driving conditions. The ESP
corrects for oversteering and understeering the vehicle
by applying the brake of the appropriate wheel. Engine
power may also be reduced to assist in counteracting the
condition of oversteer or understeer and help the vehicle
maintain the desired path.
The ESP uses sensors in the vehicle to determine the path
that the driver intends to steer the vehicle and compares
it to the actual path of the vehicle. When the actual pathdoes not match the intended path, the ESP applies the
brake of the appropriate wheel to assist in counteracting
the condition of oversteer or understeer.
•Oversteer - when the vehicle is turning more than
appropriate for the steering wheel position.
•Understeer - when the vehicle is turning less than
appropriate for the steering wheel position.
The “ESP/TCS Indicator Light” located in the
instrument cluster, starts to flash as soon as the
tires lose traction and the ESP system becomes
active. The “ESP/TCS Indicator Light” also
flashes when TCS is active. If the “ESP/TCS Indicator
Light” begins to flash during acceleration, ease up on the
accelerator and apply as little throttle as possible. Be sure
to adapt your speed and driving to the prevailing road
conditions.
5
STARTING AND OPERATING 283

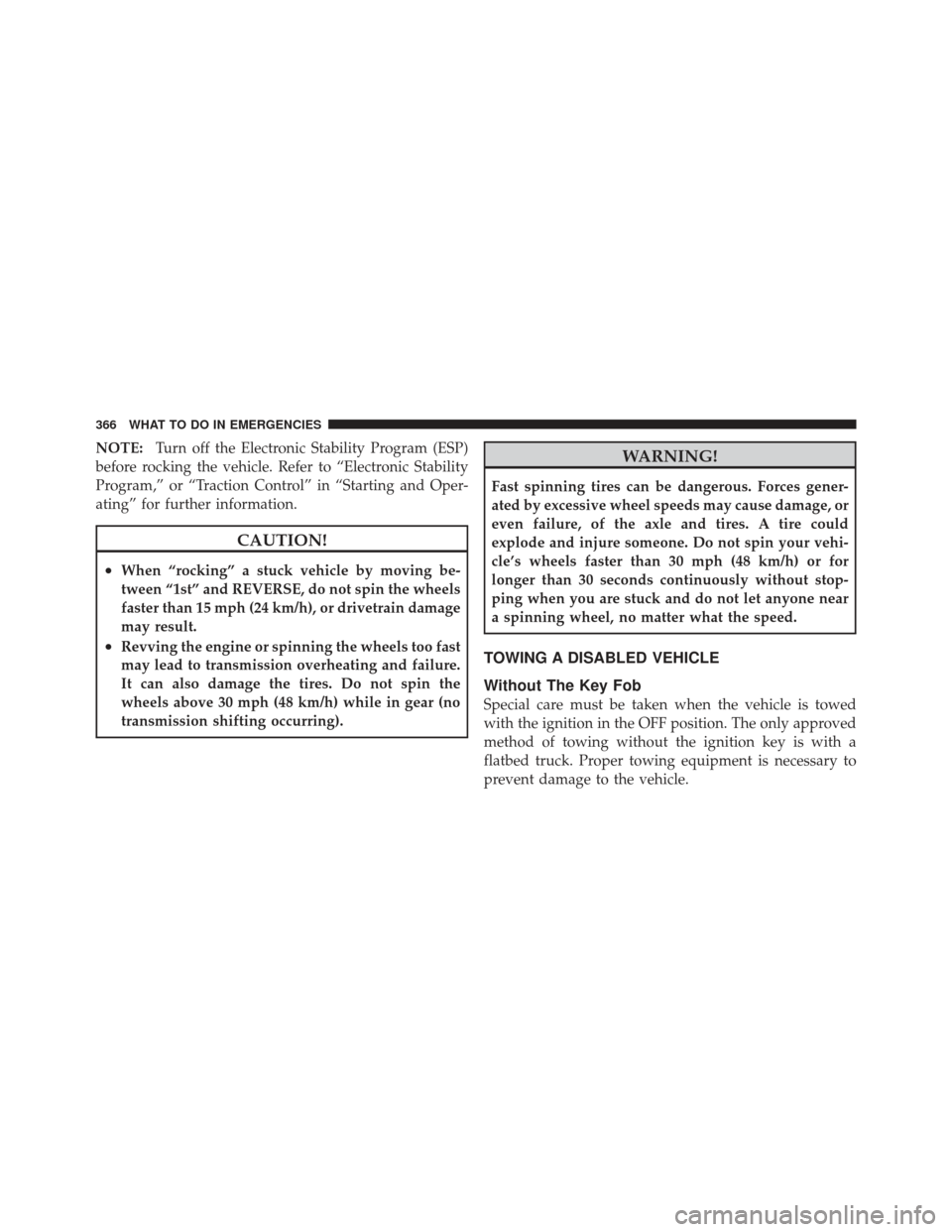

NOTE:Turn off the Electronic Stability Program (ESP)
before rocking the vehicle. Refer to “Electronic Stability
Program,” or “Traction Control” in “Starting and Oper-
ating” for further information.
CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween “1st” and REVERSE, do not spin the wheels
faster than 15 mph (24 km/h), or drivetrain damage
may result.
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h) while in gear (no
transmission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
TOWING A DISABLED VEHICLE
Without The Key Fob
Special care must be taken when the vehicle is towed
with the ignition in the OFF position. The only approved
method of towing without the ignition key is with a
flatbed truck. Proper towing equipment is necessary to
prevent damage to the vehicle.
366 WHAT TO DO IN EMERGENCIES

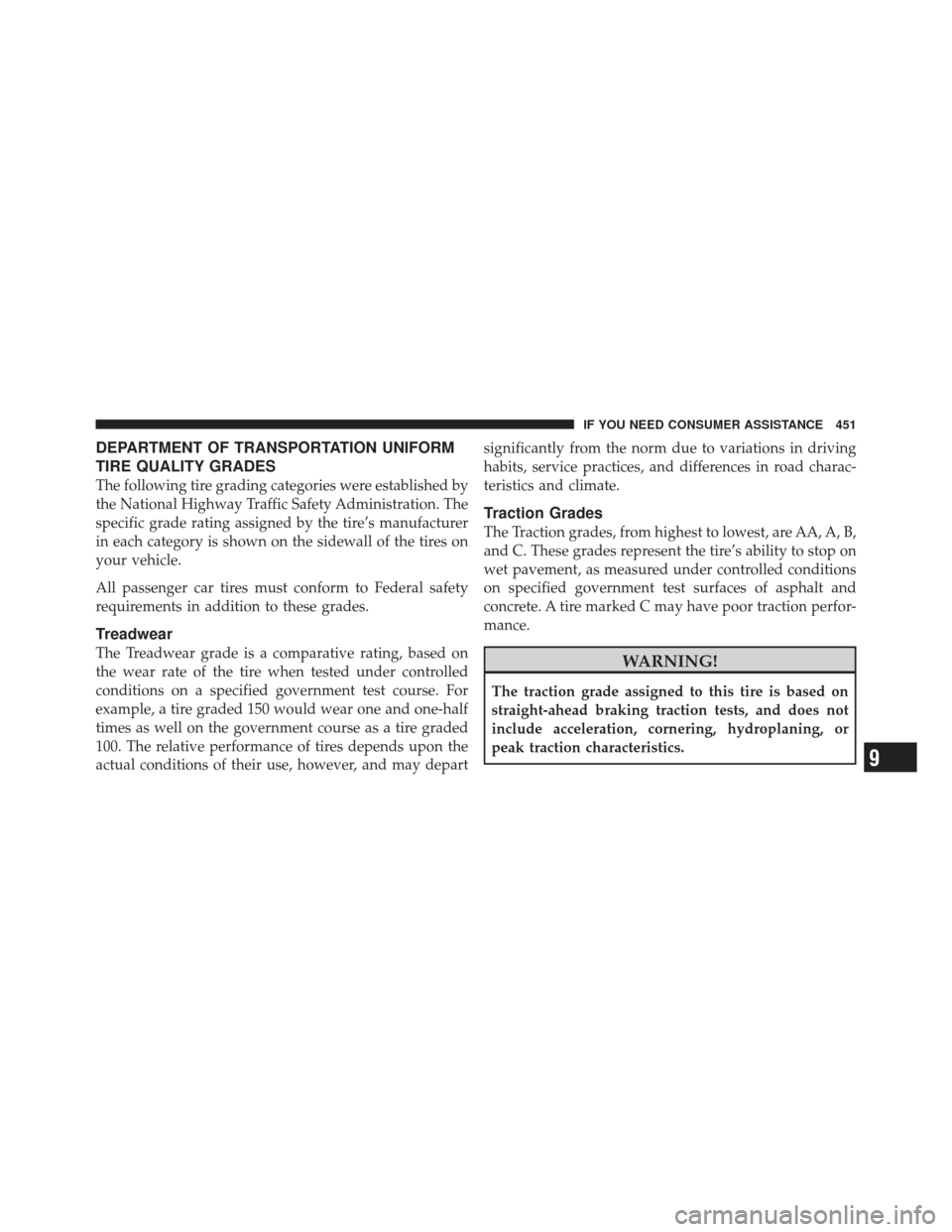

DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may departsignificantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
9
IF YOU NEED CONSUMER ASSISTANCE 451

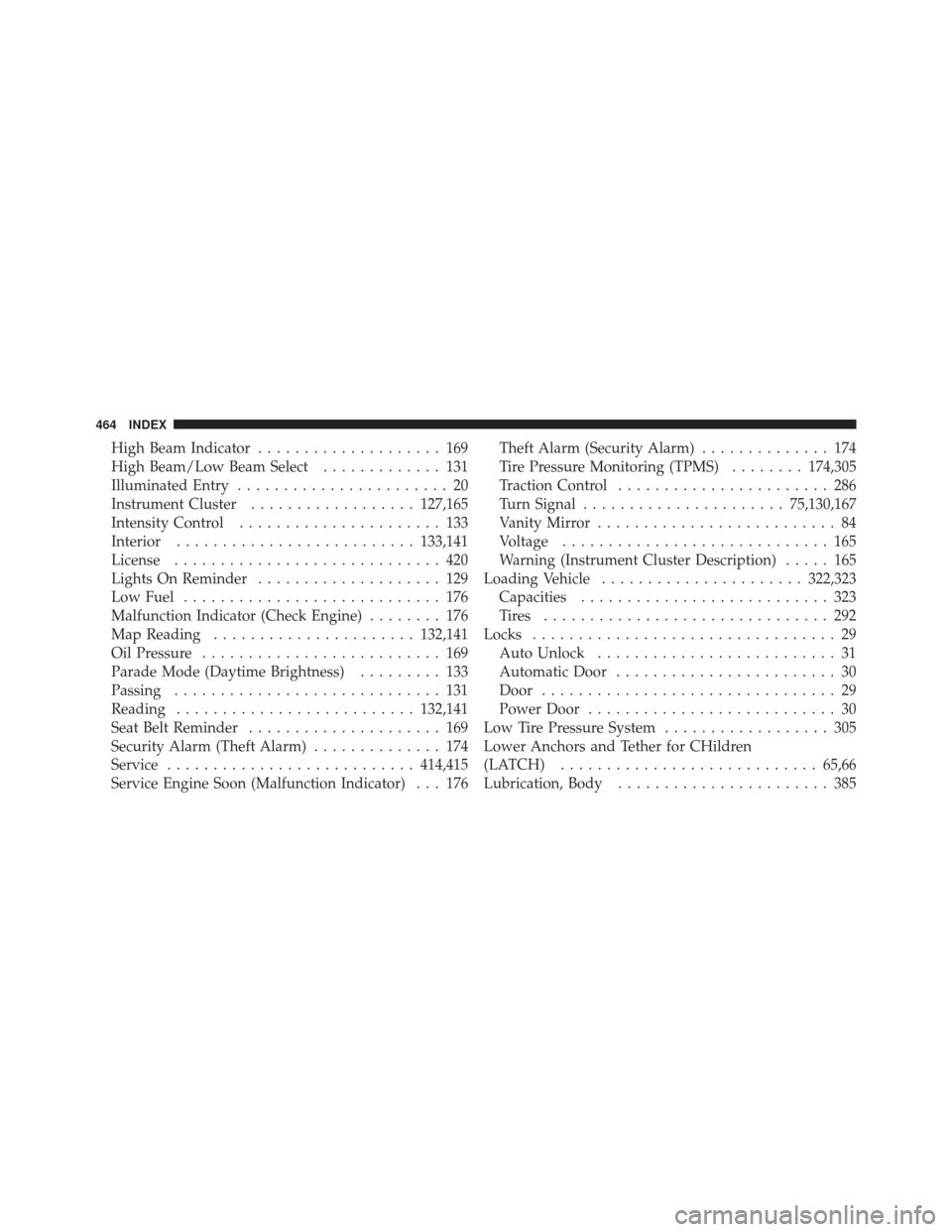

High Beam Indicator.................... 169
High Beam/Low Beam Select ............. 131
Illuminated Entry ....................... 20
Instrument Cluster .................. 127,165
Intensity Control ...................... 133
Interior .......................... 133,141
License ............................. 420
Lights On Reminder .................... 129
Low Fuel ............................ 176
Malfunction Indicator (Check Engine) ........ 176
Map Reading ...................... 132,141
Oil Pressure .......................... 169
Parade Mode (Daytime Brightness) ......... 133
Passing ............................. 131
Reading .......................... 132,141
Seat Belt Reminder ..................... 169
Security Alarm (Theft Alarm) .............. 174
Service ........................... 414,415
Service Engine Soon (Malfunction Indicator) . . . 176 Theft Alarm (Security Alarm)
.............. 174
Tire Pressure Monitoring (TPMS) ........174,305
Traction Control ....................... 286
Turn Signal ...................... 75,130,167
Vanity Mirror .......................... 84
Voltage ............................. 165
Warning (Instrument Cluster Description) ..... 165
Loading Vehicle ...................... 322,323
Capacities ........................... 323
Tires ............................... 292
Locks ................................. 29
Auto Unlock .......................... 31
Automatic Door ........................ 30
Door ................................ 29
Power Door ........................... 30
Low Tire Pressure System .................. 305
Lower Anchors and Tether for CHildren
(LATCH) ............................ 65,66
Lubrication, Body ....................... 385
464 INDEX

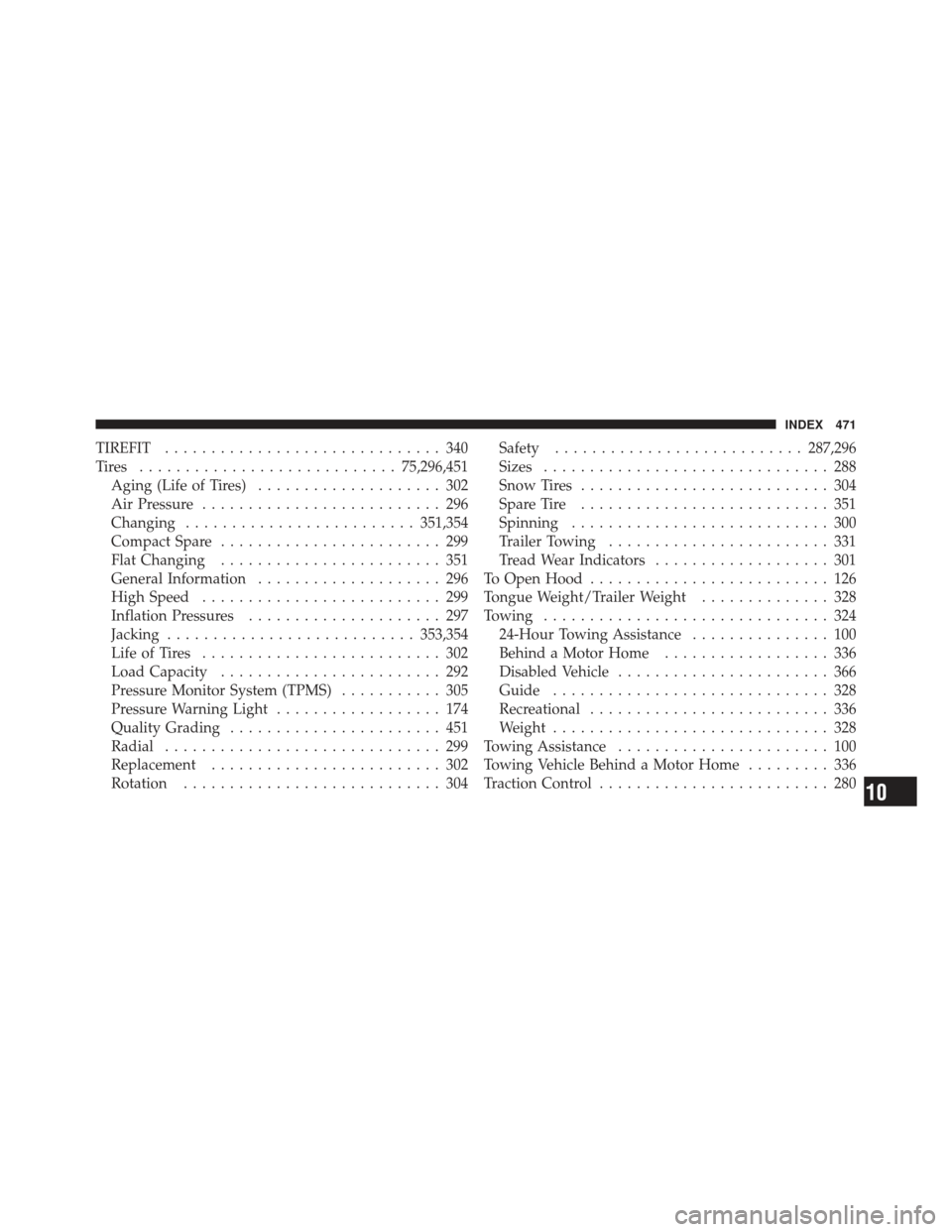

TIREFIT.............................. 340
Tires ............................ 75,296,451
Aging (Life of Tires) .................... 302
Air Pressure .......................... 296
Changing ......................... 351,354
Compact Spare ........................ 299
Flat Changing ........................ 351
General Information .................... 296
High Speed .......................... 299
Inflation Pressures ..................... 297
Jacking ........................... 353,354
Life of Tires .......................... 302
Load Capacity ........................ 292
Pressure Monitor System (TPMS) ........... 305
Pressure Warning Light .................. 174
Quality Grading ....................... 451
Radial .............................. 299
Replacement ......................... 302
Rotation ............................ 304 Safety
........................... 287,296
Sizes ............................... 288
Snow Tires ........................... 304
Spare Tire ........................... 351
Spinning ............................ 300
Trailer Towing ........................ 331
Tread Wear Indicators ................... 301
To Open Hood .......................... 126
Tongue Weight/Trailer Weight .............. 328
Towing ............................... 324
24-Hour Towing Assistance ............... 100
Behind a Motor Home .................. 336
Disabled Vehicle ....................... 366
Guide .............................. 328
Recreational .......................... 336
Weight .............................. 328
Towing Assistance ....................... 100
Towing Vehicle Behind a Motor Home ......... 336
Traction Control ......................... 280
10
INDEX 471
