trunk release DODGE CHALLENGER 2011 3.G Owners Manual

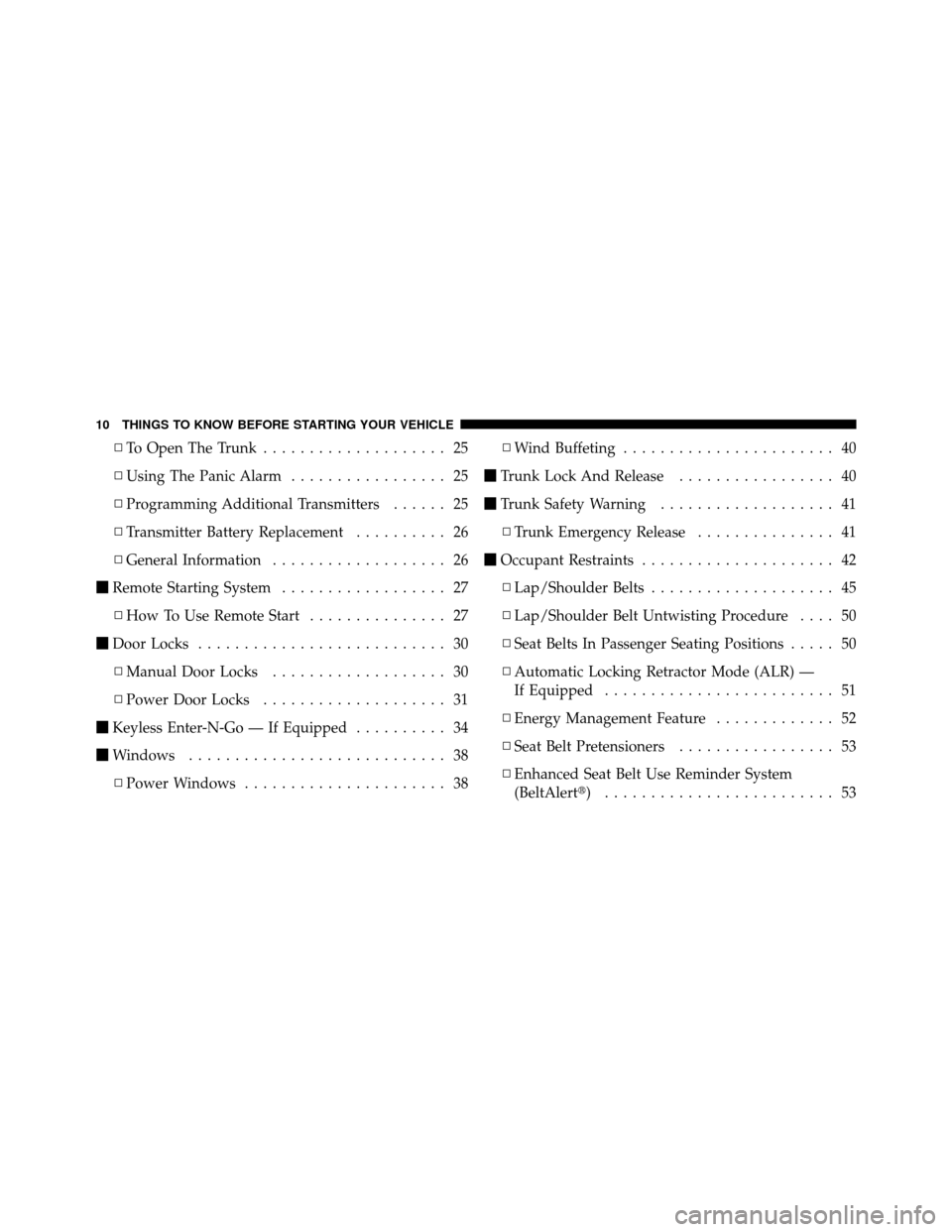

▫To Open The Trunk .................... 25
▫ Using The Panic Alarm ................. 25
▫ Programming Additional Transmitters ...... 25
▫ Transmitter Battery Replacement .......... 26
▫ General Information ................... 26
 Remote Starting System .................. 27
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 30
▫ Manual Door Locks ................... 30
▫ Power Door Locks .................... 31
 Keyless Enter-N-Go — If Equipped .......... 34
 Windows ............................ 38
▫ Power Windows ...................... 38 ▫
Wind Buffeting ....................... 40
 Trunk Lock And Release ................. 40
 Trunk Safety Warning ................... 41
▫ Trunk Emergency Release ............... 41
 Occupant Restraints ..................... 42
▫ Lap/Shoulder Belts .................... 45
▫ Lap/Shoulder Belt Untwisting Procedure .... 50
▫ Seat Belts In Passenger Seating Positions ..... 50
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 51
▫ Energy Management Feature ............. 52
▫ Seat Belt Pretensioners ................. 53
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 53
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

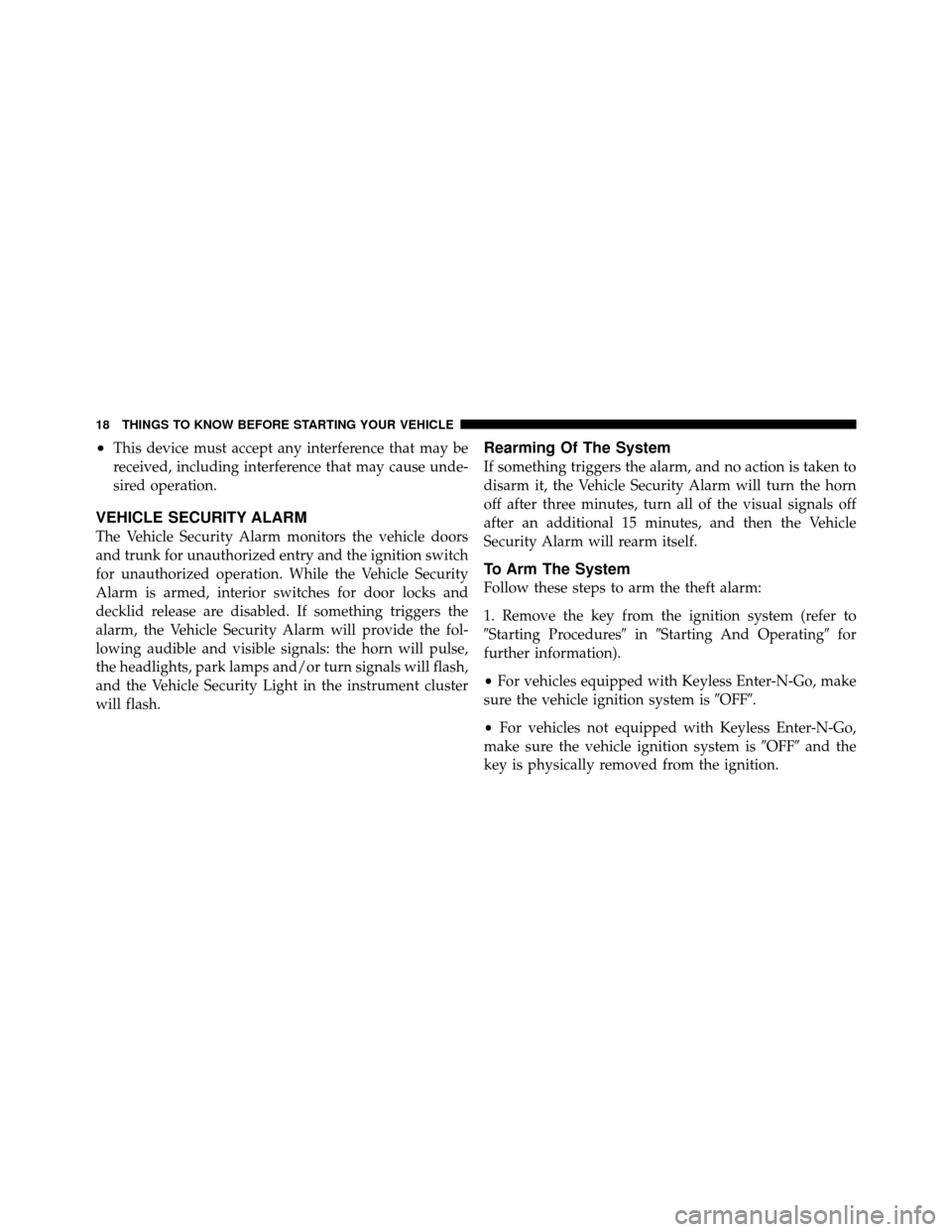

•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
and trunk for unauthorized entry and the ignition switch
for unauthorized operation. While the Vehicle Security
Alarm is armed, interior switches for door locks and
decklid release are disabled. If something triggers the
alarm, the Vehicle Security Alarm will provide the fol-
lowing audible and visible signals: the horn will pulse,
the headlights, park lamps and/or turn signals will flash,
and the Vehicle Security Light in the instrument cluster
will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after an additional 15 minutes, and then the Vehicle
Security Alarm will rearm itself.
To Arm The System
Follow these steps to arm the theft alarm:
1. Remove the key from the ignition system (refer to
Starting ProceduresinStarting And Operating for
further information).
• For vehicles equipped with Keyless Enter-N-Go, make
sure the vehicle ignition system is OFF.
• For vehicles not equipped with Keyless Enter-N-Go,
make sure the vehicle ignition system is OFFand the
key is physically removed from the ignition.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

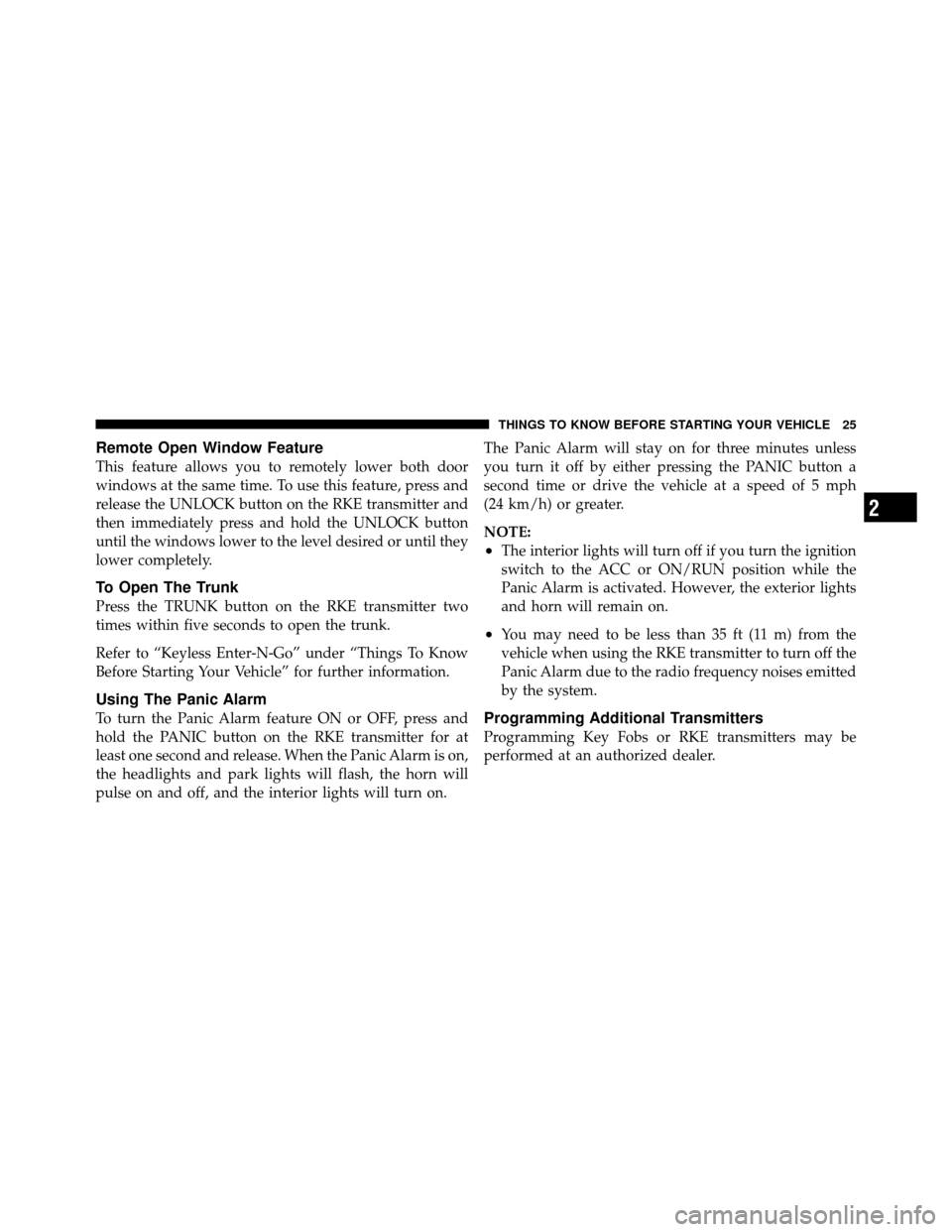

Remote Open Window Feature
This feature allows you to remotely lower both door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
To Open The Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to open the trunk.
Refer to “Keyless Enter-N-Go” under “Things To Know
Before Starting Your Vehicle” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 5 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on.
•You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

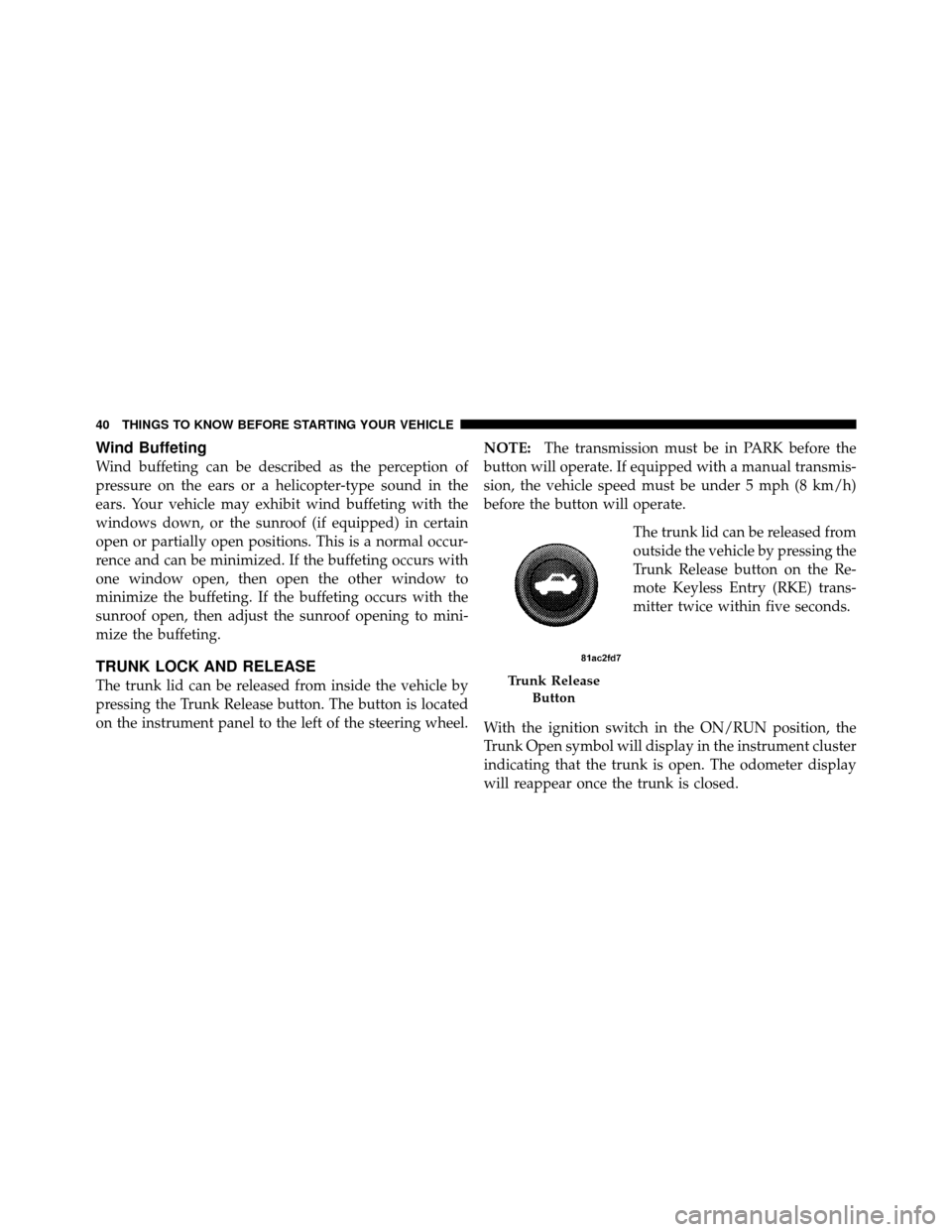

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
one window open, then open the other window to
minimize the buffeting. If the buffeting occurs with the
sunroof open, then adjust the sunroof opening to mini-
mize the buffeting.
TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the Trunk Release button. The button is located
on the instrument panel to the left of the steering wheel.NOTE:
The transmission must be in PARK before the
button will operate. If equipped with a manual transmis-
sion, the vehicle speed must be under 5 mph (8 km/h)
before the button will operate.
The trunk lid can be released from
outside the vehicle by pressing the
Trunk Release button on the Re-
mote Keyless Entry (RKE) trans-
mitter twice within five seconds.
With the ignition switch in the ON/RUN position, the
Trunk Open symbol will display in the instrument cluster
indicating that the trunk is open. The odometer display
will reappear once the trunk is closed.Trunk Release Button
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

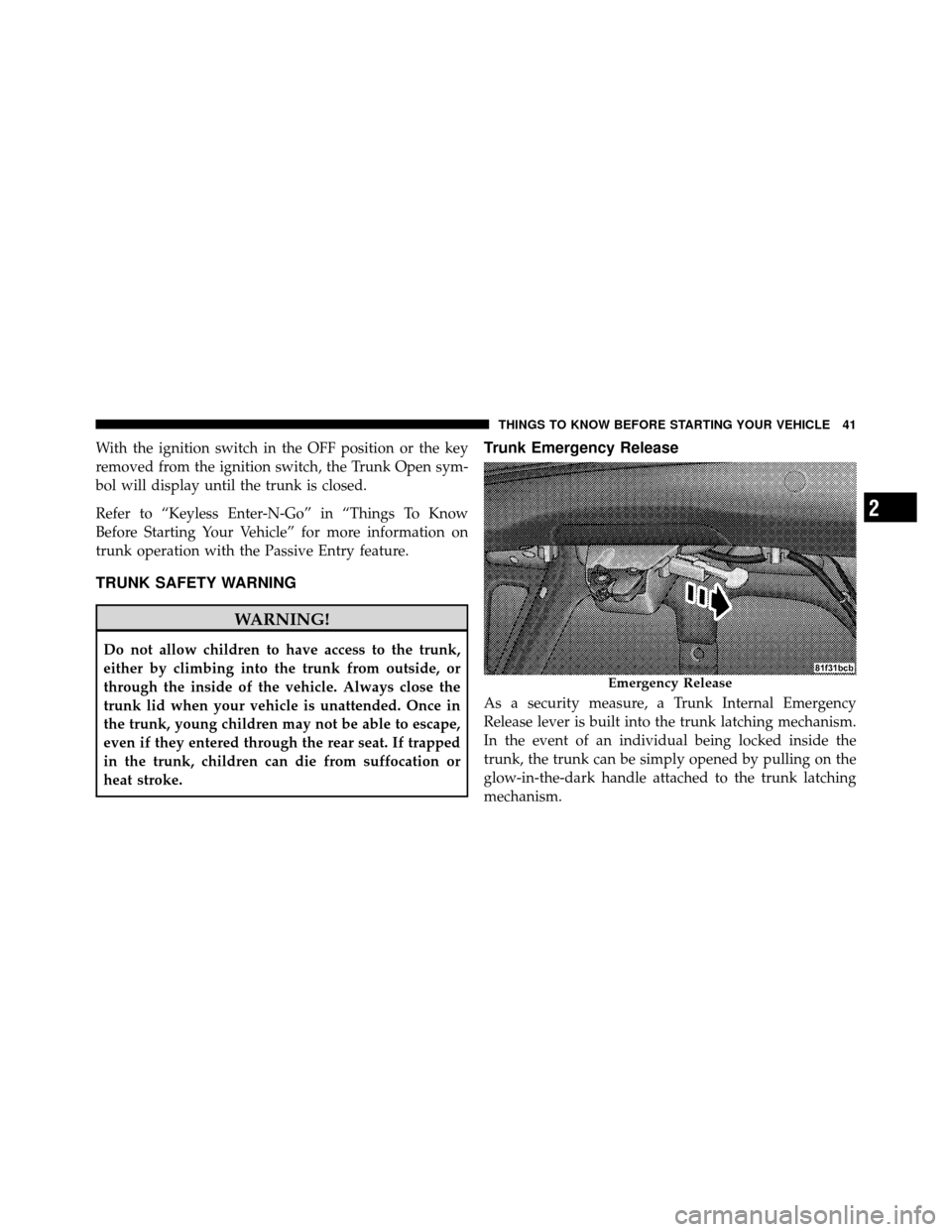

With the ignition switch in the OFF position or the key
removed from the ignition switch, the Trunk Open sym-
bol will display until the trunk is closed.
Refer to “Keyless Enter-N-Go” in “Things To Know
Before Starting Your Vehicle” for more information on
trunk operation with the Passive Entry feature.
TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
Trunk Emergency Release
As a security measure, a Trunk Internal Emergency
Release lever is built into the trunk latching mechanism.
In the event of an individual being locked inside the
trunk, the trunk can be simply opened by pulling on the
glow-in-the-dark handle attached to the trunk latching
mechanism.
Emergency Release
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41

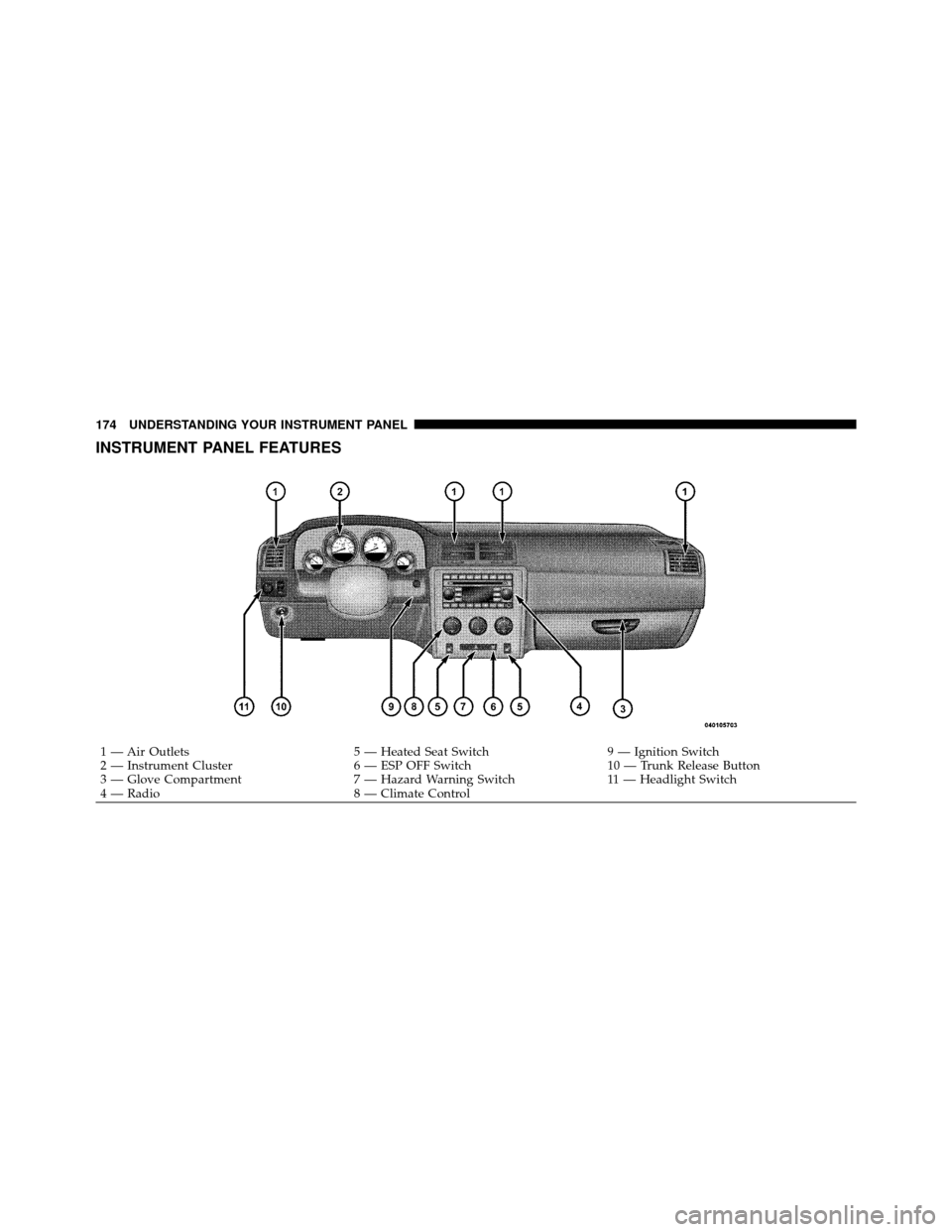

INSTRUMENT PANEL FEATURES
1 — Air Outlets5 — Heated Seat Switch9 — Ignition Switch
2 — Instrument Cluster 6 — ESP OFF Switch10 — Trunk Release Button
3 — Glove Compartment 7 — Hazard Warning Switch11 — Headlight Switch
4 — Radio 8 — Climate Control
174 UNDERSTANDING YOUR INSTRUMENT PANEL

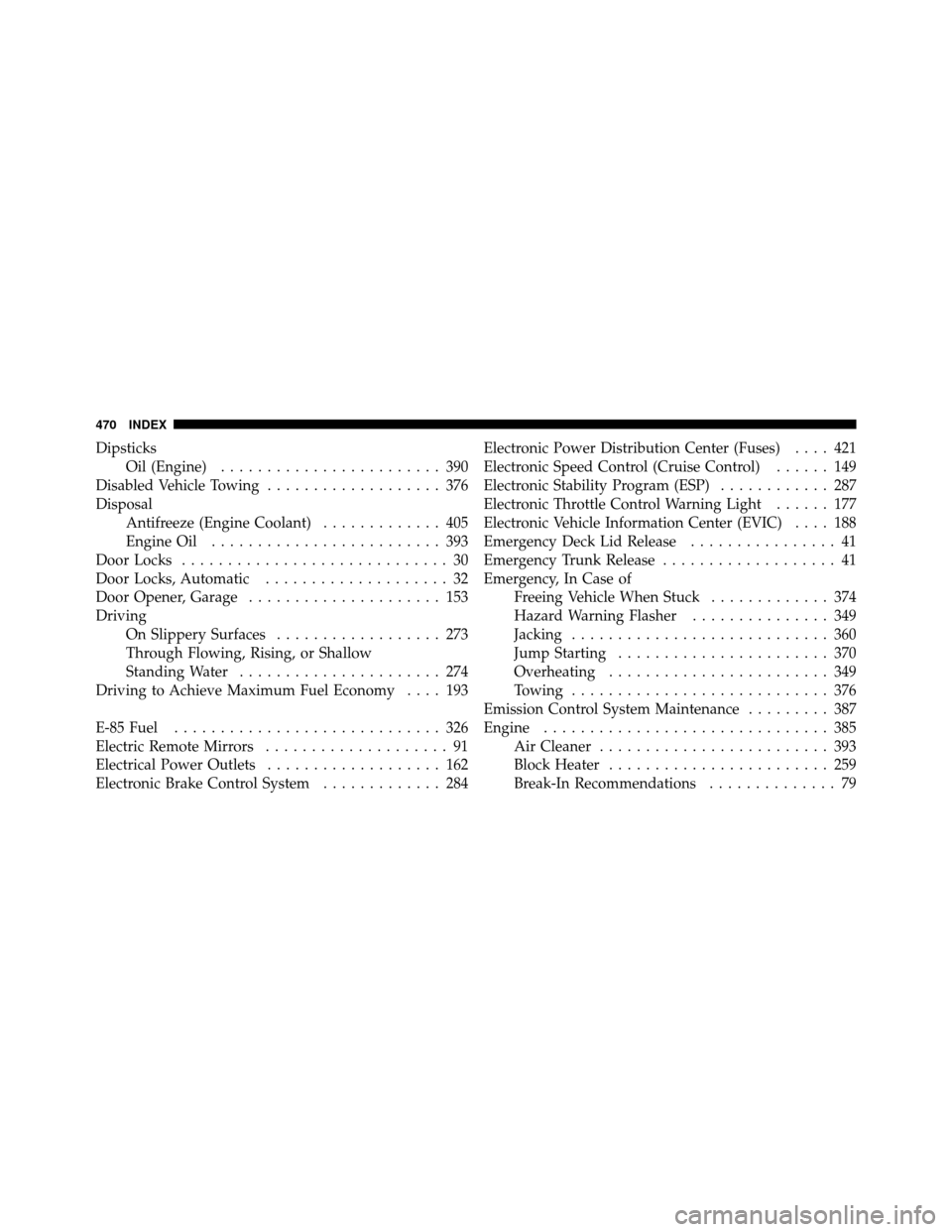

DipsticksOil (Engine) ........................ 390
Disabled Vehicle Towing ................... 376
Disposal Antifreeze (Engine Coolant) ............. 405
Engine Oil ......................... 393
Door Locks ............................. 30
Door Locks, Automatic .................... 32
Door Opener, Garage ..................... 153
Driving On Slippery Surfaces .................. 273
Through Flowing, Rising, or Shallow
Standing Water ...................... 274
Driving to Achieve Maximum Fuel Economy .... 193
E-85 Fuel ............................. 326
Electric Remote Mirrors .................... 91
Electrical Power Outlets ................... 162
Electronic Brake Control System ............. 284Electronic Power Distribution Center (Fuses)
.... 421
Electronic Speed Control (Cruise Control) ...... 149
Electronic Stability Program (ESP) ............ 287
Electronic Throttle Control Warning Light ...... 177
Electronic Vehicle Information Center (EVIC) .... 188
Emergency Deck Lid Release ................ 41
Emergency Trunk Release ................... 41
Emergency, In Case of Freeing Vehicle When Stuck ............. 374
Hazard Warning Flasher ............... 349
Jacking ............................ 360
Jump Starting ....................... 370
Overheating ........................ 349
Towing ............................ 376
Emission Control System Maintenance ......... 387
Engine ............................... 385
Air Cleaner ......................... 393
Block Heater ........................ 259
Break-In Recommendations .............. 79
470 INDEX

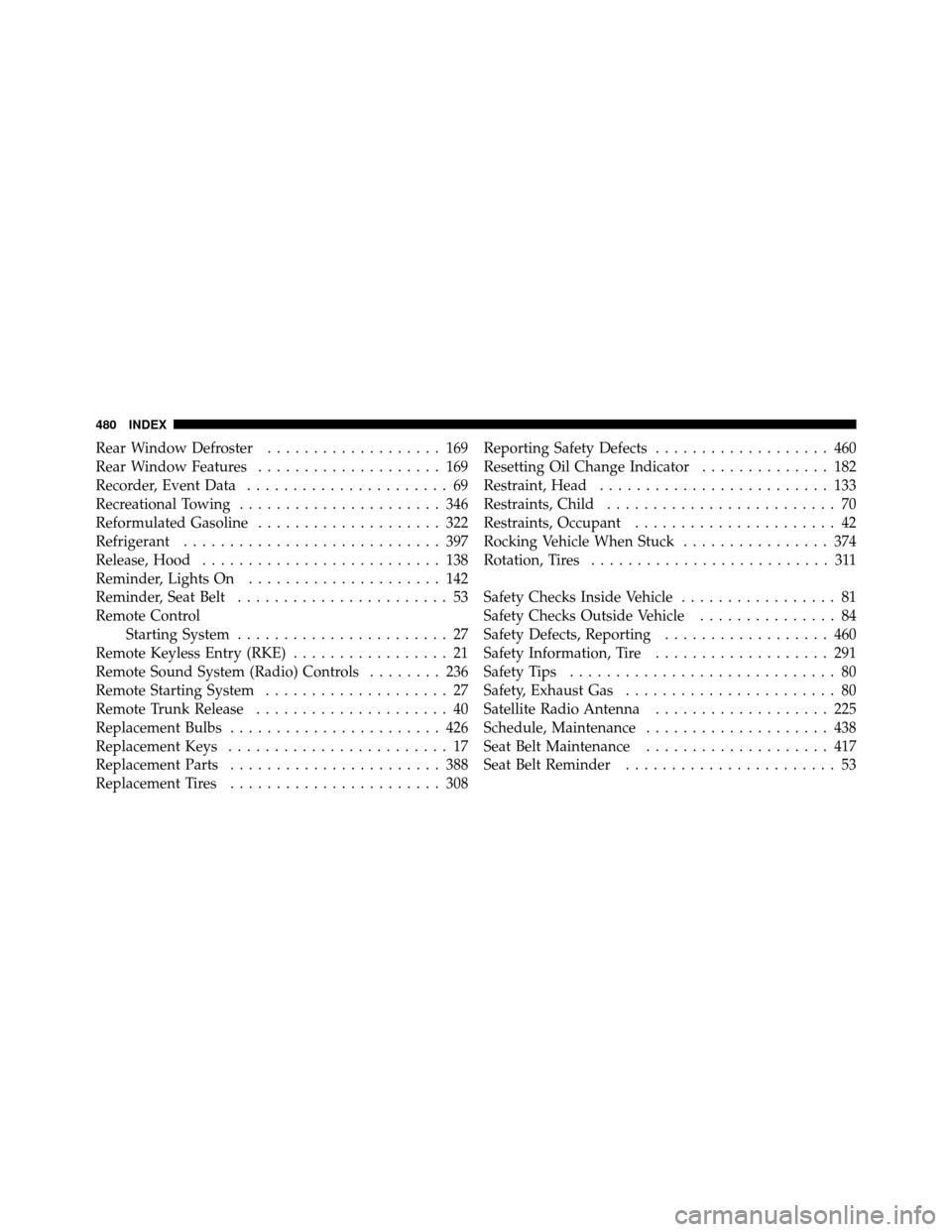

Rear Window Defroster................... 169
Rear Window Features .................... 169
Recorder, Event Data ...................... 69
Recreational Towing ...................... 346
Reformulated Gasoline .................... 322
Refrigerant ............................ 397
Release, Hood .......................... 138
Reminder, Lights On ..................... 142
Reminder, Seat Belt ....................... 53
Remote Control Starting System ....................... 27
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 236
Remote Starting System .................... 27
Remote Trunk Release ..................... 40
Replacement Bulbs ....................... 426
Replacement Keys ........................ 17
Replacement Parts ....................... 388
Replacement Tires ....................... 308 Reporting Safety Defects
................... 460
Resetting Oil Change Indicator .............. 182
Restraint, Head ......................... 133
Restraints, Child ......................... 70
Restraints, Occupant ...................... 42
Rocking Vehicle When Stuck ................ 374
Rotation, Tires .......................... 311
Safety Checks Inside Vehicle ................. 81
Safety Checks Outside Vehicle ............... 84
Safety Defects, Reporting .................. 460
Safety Information, Tire ................... 291
Safety Tips ............................. 80
Safety, Exhaust Gas ....................... 80
Satellite Radio Antenna ................... 225
Schedule, Maintenance .................... 438
Seat Belt Maintenance .................... 417
Seat Belt Reminder ....................... 53
480 INDEX

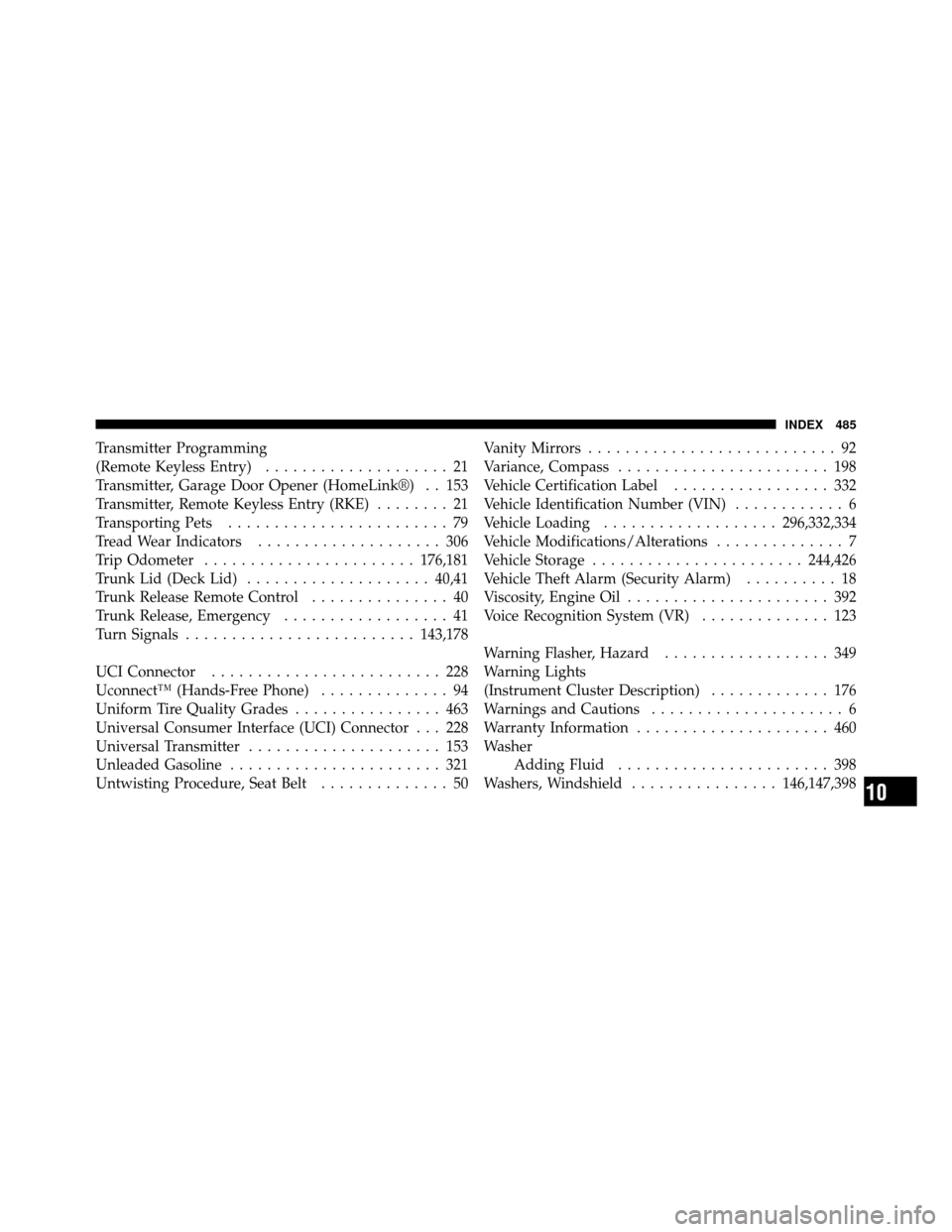

Transmitter Programming
(Remote Keyless Entry).................... 21
Transmitter, Garage Door Opener (HomeLink®) . . 153
Transmitter, Remote Keyless Entry (RKE) ........ 21
Transporting Pets ........................ 79
Tread Wear Indicators .................... 306
Trip Odometer ....................... 176,181
Trunk Lid (Deck Lid) .................... 40,41
Trunk Release Remote Control ............... 40
Trunk Release, Emergency .................. 41
Turn Signals ......................... 143,178
UCI Connector ......................... 228
Uconnect™ (Hands-Free Phone) .............. 94
Uniform Tire Quality Grades ................ 463
Universal Consumer Interface (UCI) Connector . . . 228
Universal Transmitter ..................... 153
Unleaded Gasoline ....................... 321
Untwisting Procedure, Seat Belt .............. 50Vanity Mirrors
........................... 92
Variance, Compass ....................... 198
Vehicle Certification Label ................. 332
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 296,332,334
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 244,426
Vehicle Theft Alarm (Security Alarm) .......... 18
Viscosity, Engine Oil ...................... 392
Voice Recognition System (VR) .............. 123
Warning Flasher, Hazard .................. 349
Warning Lights
(Instrument Cluster Description) ............. 176
Warnings and Cautions ..................... 6
Warranty Information ..................... 460
Washer Adding Fluid ....................... 398
Washers, Windshield ................ 146,147,398
10
INDEX 485
