WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
CAUTION!
Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights (if equipped) that are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
7
MAINTAINING YOUR VEHICLE 479
Page 482 of 543

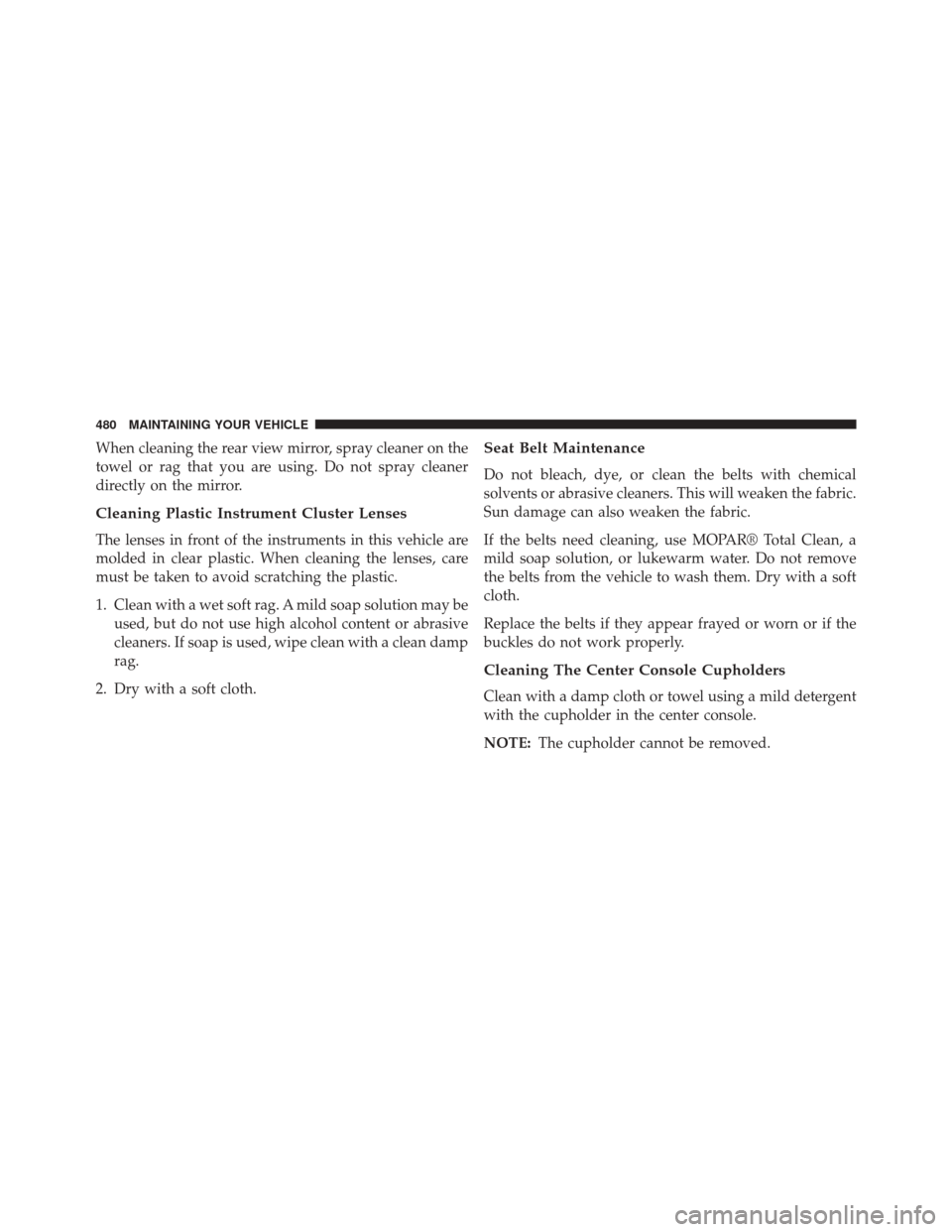

When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning The Center Console Cupholders
Clean with a damp cloth or towel using a mild detergent
with the cupholder in the center console.
NOTE: The cupholder cannot be removed.
480 MAINTAINING YOUR VEHICLE
Page 483 of 543

FUSES
Integrated Power Module
The Integrated Power Module is located in the engine
compartment. This module contains fuses and relays.
CAUTION!
•When installing the integrated power module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the integrated power mod-
ule and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 481
Page 484 of 543

Cavity Car-tridgeFuse Mini-
Fuse Description
1 — 15 Amp BlueWasher Motor
2 — 25 Amp NaturalPowertrain Control
Module (PCM)
3 — 25 Amp NaturalIgnition Run/Start
4 — 25 Amp NaturalEGR Solenoid/
Alternator
5 — 15 Amp BluePowertrain Control
Module
6 — 25 Amp NaturalIgnition Coils/
Injectors
7 — 25 Amp NaturalHeadlamp Washer
Relay – If EquippedCavity Car- tridgeFuse Mini-
Fuse Description
8 — 30 Amp GreenStarter
9—— —
10 30 Amp Pink — Windshield Wiper
11 30 Amp Pink — Anti-Lock Brake
System (ABS)Valves
12 40 Amp Green — Radiator Fan Lo/
High
13 50 Amp Red — Anti-Lock Brake
System (ABS)Pump Motor
14 — — —
482 MAINTAINING YOUR VEHICLE
Page 485 of 543

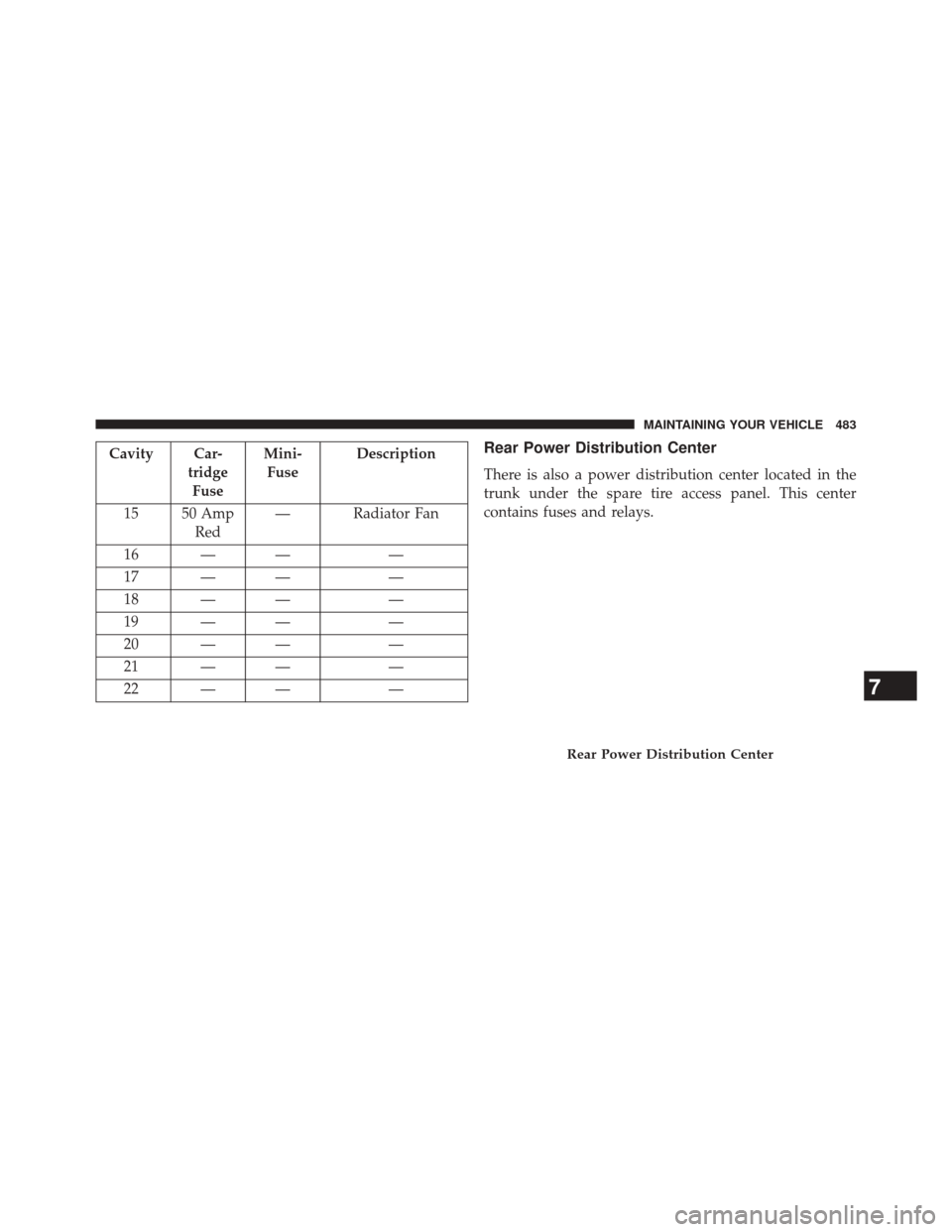

Cavity Car-tridgeFuse Mini-
Fuse Description
15 50 Amp Red — Radiator Fan
16 — — —
17 — — —
18 — — —
19 — — —
20 — — —
21 — — —
22 — — —Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 483
Page 486 of 543

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Cavity Car- tridgeFuse Mini-
Fuse Description
1 60 Amp Yellow — Ignition Off Draw
(IOD)
Cavity 1 of the
Rear Power Distri-
bution Center con- tains a black IOD fuse needed for
vehicle processing during assembly. The service re-
placement part is a 60 Amp yellowcartridge fuse.
484 MAINTAINING YOUR VEHICLE
Page 487 of 543

Cavity Car-tridgeFuse Mini-
Fuse Description
2 40 Amp Green — Integrated Power
Module (IPM)
3—— —
4 40 Amp Green — Integrated Power
Module (IPM)
5 30 Amp Pink — Heated Seats – If
Equipped
6 — 20 Amp YellowFuel Pump
7 — 15 Amp BlueAudio Amplifier –
If EquippedCavity Car- tridgeFuse Mini-
Fuse Description
8 — 15 Amp BlueDiagnostic Link
Connector (DLC)/ Wireless Control
Module (WCM)/ Wireless Ignition Node (WIN)
9 — 20 Amp YellowPower Outlet
10 — 25 Amp NaturalVacuum Pump – If
Equipped
11 * —— —
12 * —— —
13 * —— —
7
MAINTAINING YOUR VEHICLE 485
Page 488 of 543

Cavity Car-tridgeFuse Mini-
Fuse Description
14 — 10 Amp RedAC Heater
Control/Cluster/
Security Module – If Equipped
15 — 20 Amp YellowActive Damper – If
Equipped
16 — 20 Amp YellowHeated Seat Mod-
ule – If Equipped
17 — 20 Amp YellowInstrument Cluster
18 — 20 Amp YellowCigar Lighter (In-
strument Panel)
19 — 10 Amp RedStop LightsCavity Car-
tridgeFuse Mini-
Fuse Description
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
25 — — —
26 — — —
27 — 10 Amp RedOccupant Restraint
Controller (ORC)
28 — 10 Amp RedIgnition Run, AC
Heater Control/
Occupant Restraint Controller (ORC)
486 MAINTAINING YOUR VEHICLE
Page 489 of 543

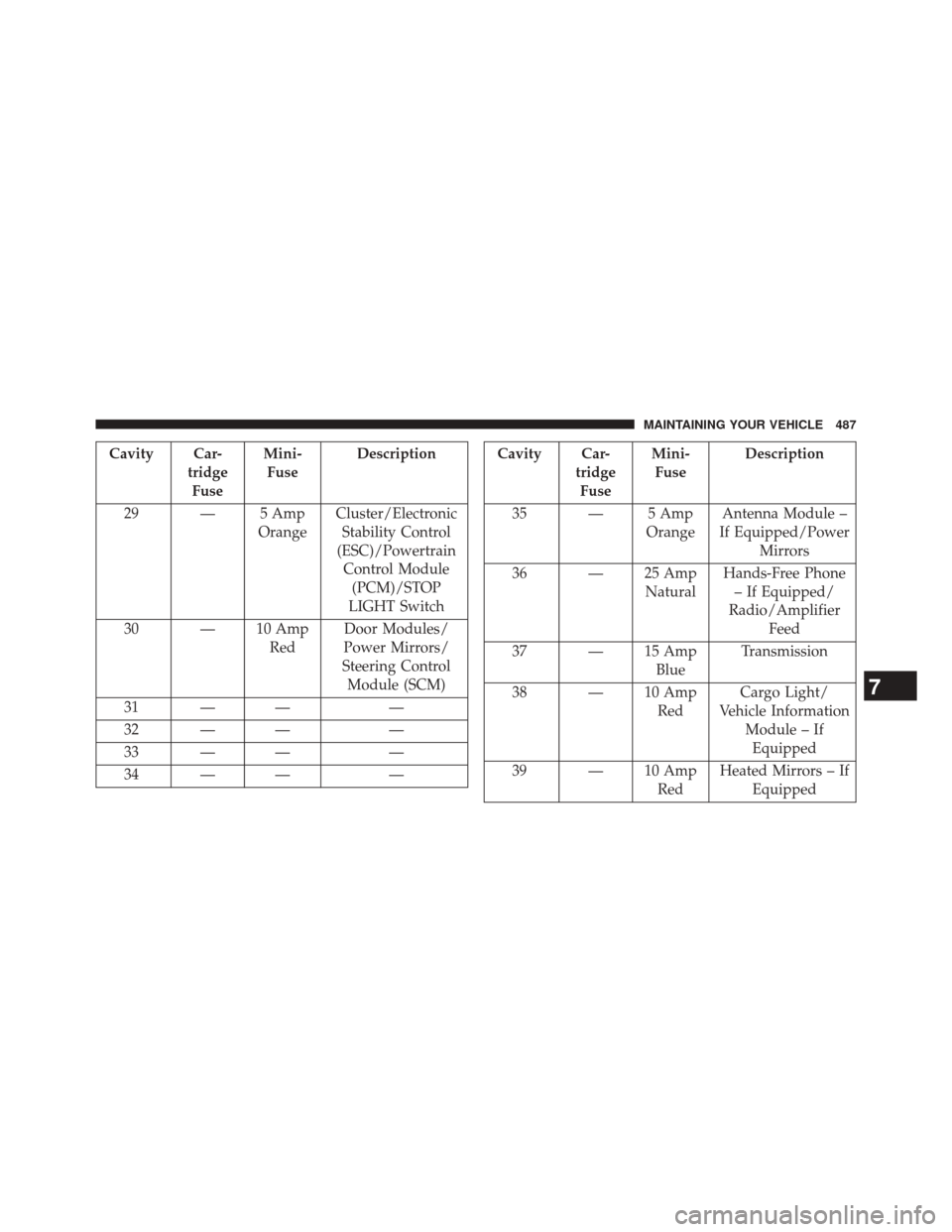

Cavity Car-tridgeFuse Mini-
Fuse Description
29 — 5 Amp OrangeCluster/Electronic
Stability Control
(ESC)/Powertrain Control Module (PCM)/STOP
LIGHT Switch
30 — 10 Amp RedDoor Modules/
Power Mirrors/
Steering Control Module (SCM)
31 — — —
32 — — —
33 — — —
34 — — —Cavity Car-
tridgeFuse Mini-
Fuse Description
35 — 5 Amp OrangeAntenna Module –
If Equipped/Power Mirrors
36 — 25 Amp NaturalHands-Free Phone
– If Equipped/
Radio/Amplifier Feed
37 — 15 Amp BlueTransmission
38 — 10 Amp RedCargo Light/
Vehicle Information Module – IfEquipped
39 — 10 Amp RedHeated Mirrors – If
Equipped
7
MAINTAINING YOUR VEHICLE 487
Page 490 of 543

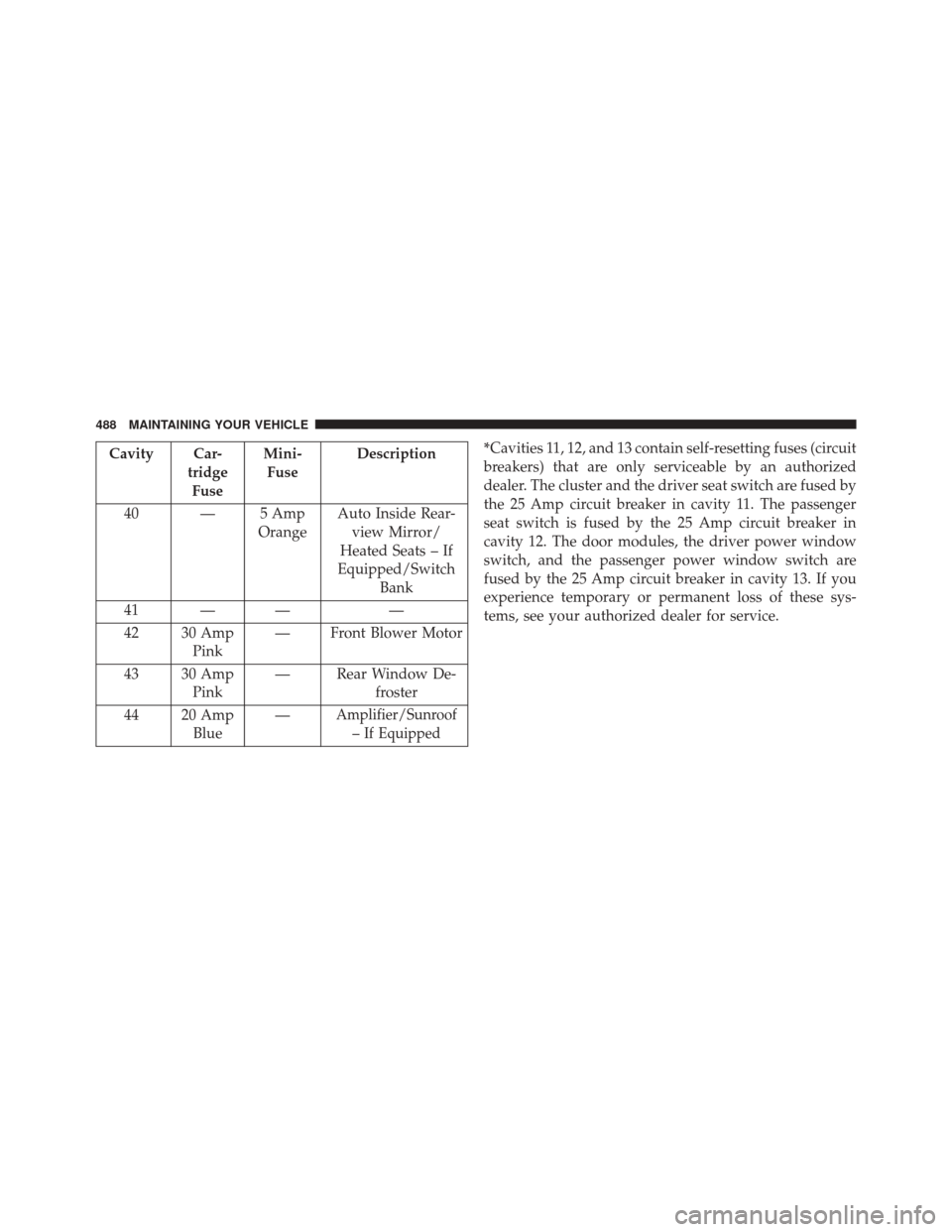

Cavity Car-tridgeFuse Mini-
Fuse Description
40 — 5 Amp OrangeAuto Inside Rear-
view Mirror/
Heated Seats – If
Equipped/Switch Bank
41 — — —
42 30 Amp Pink — Front Blower Motor
43 30 Amp Pink — Rear Window De-
froster
44 20 Amp Blue —
Amplifier/Sunroof
– If Equipped
*Cavities 11, 12, and 13 contain self-resetting fuses (circuit
breakers) that are only serviceable by an authorized
dealer. The cluster and the driver seat switch are fused by
the 25 Amp circuit breaker in cavity 11. The passenger
seat switch is fused by the 25 Amp circuit breaker in
cavity 12. The door modules, the driver power window
switch, and the passenger power window switch are
fused by the 25 Amp circuit breaker in cavity 13. If you
experience temporary or permanent loss of these sys-
tems, see your authorized dealer for service.
488 MAINTAINING YOUR VEHICLE
