TimersWhen the Timers Page is selected you will be able to
select from following “Tickets”:
•Current
Pressing the “Current” button displays a “real time”
summary of performance timers.
• Last
Pressing the “Last” button displays the last recorded run
of performance timers.
• Best
Pressing the “Best” button displays the best recorded run
of performance timers, except for braking data.
• Save
Pressing the “Save” button will let you save the current,
last or best page currently being viewed. Any saved run
Performance Pages — Timers
10 UNDERSTANDING YOUR INSTRUMENT PANEL

over 10, will overwrite the oldest saved run for Uconnect
System storage. The operation of the Save feature is listed
below:
With a USB jump drive installed, press the “USB” button
to save to the jump drive.With an SD Card installed, press the “SD Card” to save
runs to the SD Card.
Press the “Uconnect” button to save the runs to the
Owner web page.
Press the “Cancel” button to view the previously dis-
played timer “Ticket.”
The “Tickets” contain the timers listed below:
•
Reaction Time
Measures the driver’s reaction time for launching the
vehicle against a simulated a drag strip timing light
(behavior modeled after 500 Sportsman Tree) displayed
in the Driver Information Display (DID).
NOTE:
Positive values closest to zero are best, negative values
mean you have faulted the start and the value won’t be
used for best times.
Performance Pages — Save
1
UNDERSTANDING YOUR INSTRUMENT PANEL 11

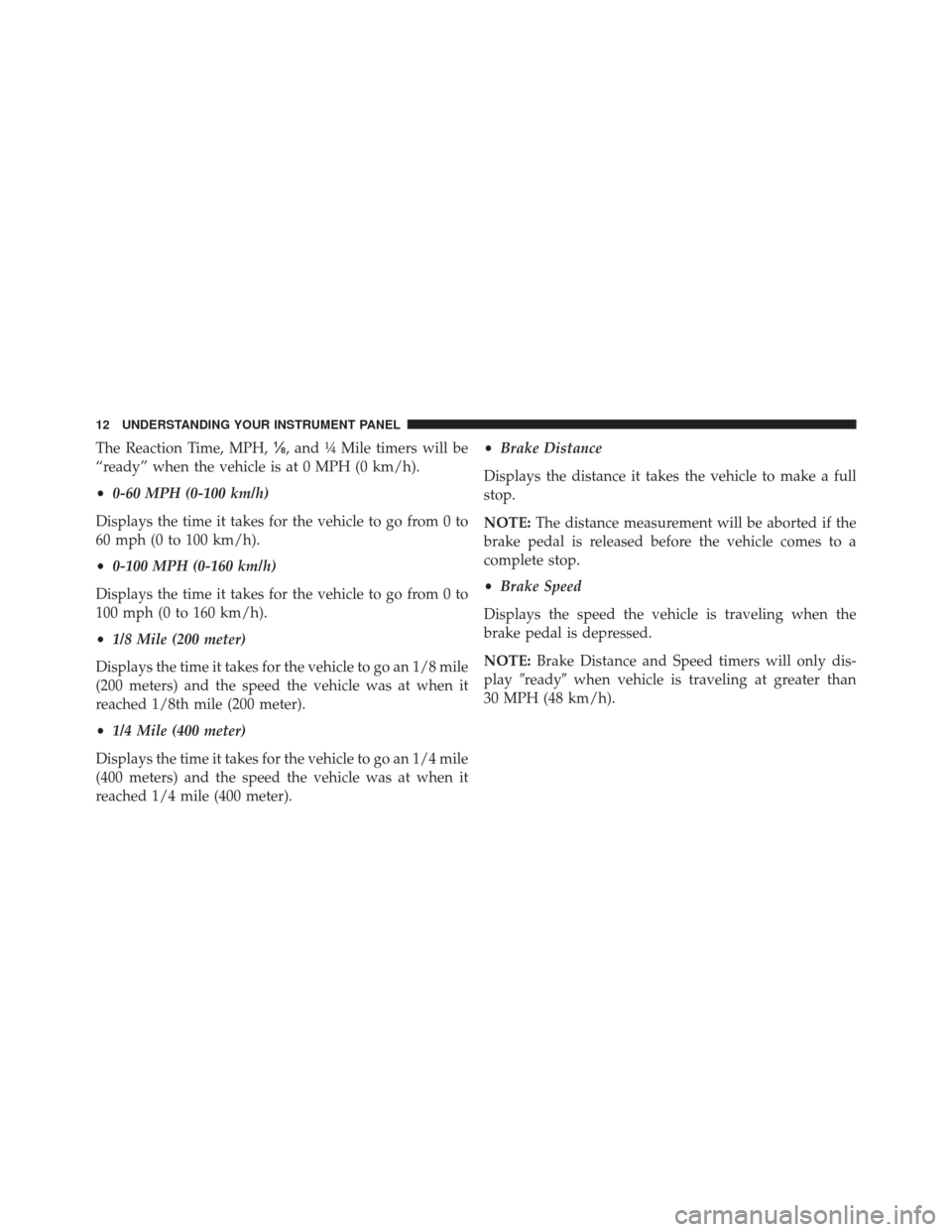

The Reaction Time, MPH,⅛, and ¼ Mile timers will be
“ready” when the vehicle is at 0 MPH (0 km/h).
• 0-60 MPH (0-100 km/h)
Displays the time it takes for the vehicle to go from 0 to
60 mph (0 to 100 km/h).
• 0-100 MPH (0-160 km/h)
Displays the time it takes for the vehicle to go from 0 to
100 mph (0 to 160 km/h).
• 1/8 Mile (200 meter)
Displays the time it takes for the vehicle to go an 1/8 mile
(200 meters) and the speed the vehicle was at when it
reached 1/8th mile (200 meter).
• 1/4 Mile (400 meter)
Displays the time it takes for the vehicle to go an 1/4 mile
(400 meters) and the speed the vehicle was at when it
reached 1/4 mile (400 meter). •
Brake Distance
Displays the distance it takes the vehicle to make a full
stop.
NOTE: The distance measurement will be aborted if the
brake pedal is released before the vehicle comes to a
complete stop.
• Brake Speed
Displays the speed the vehicle is traveling when the
brake pedal is depressed.
NOTE: Brake Distance and Speed timers will only dis-
play ready when vehicle is traveling at greater than
30 MPH (48 km/h).
12 UNDERSTANDING YOUR INSTRUMENT PANEL

Gauges 1When selected, this screen displays the following values:
•Coolant Temperature
Shows the actual coolant temperature.
• Oil Pressure
Shows the actual oil pressure.
• Oil Temperature
Shows the actual oil temperature.
Performance Pages — Gauges 1
1
UNDERSTANDING YOUR INSTRUMENT PANEL 13

Gauges 2
When selected, this screen displays the following values:
•Battery Voltage
Shows the actual battery voltage.Performance Pages — Gauges 2 (Automatic Transmission)
Performance Pages — Gauges 2 (Challenger Manual Transmission)
14 UNDERSTANDING YOUR INSTRUMENT PANEL

•Intake Air Temperature
Shows the actual intake air temperature.
• Transmission Temperature (Automatic Transmission
Only)
Shows the actual transmission temperature.G-Force
Challenger Performance Pages — G-Force
1
UNDERSTANDING YOUR INSTRUMENT PANEL 15

When G-Force is selected, the following features will be
available:
•Lateral G-Force Left and Right
The lateral g-force measures the (sideways) left and right
force of the vehicle. •
Longitudinal G-Force Fore and Aft
The longitudinal g-force measures the acceleration and
braking force of the vehicle.
• Peak G-Forces Fore Aft, Left and Right
This shows the maximum g-forces that have been
achieved since the last reset from the DID. Peak values
are maintained through ignition cycles by the DID until
they are cleared by the driver.
• Vehicle Speed
Vehicle Speed measures the current speed of the vehicle
in either mph or km/h, starting at 0 with no maximum
value.
Charger Performance Pages — G-Force
16 UNDERSTANDING YOUR INSTRUMENT PANEL

•Steering Wheel Angle
Steering Wheel Angle utilizes the steering angle sensor to
measure the degree of the steering wheel relative to zero.
The zero degree measurement indicates a steering wheel
straight ahead position. When the steering angle value is
negative, this indicates a turn to the left, and when the
steering angle value is positive, a turn to the right.Engine
When selected, this screen displays the following values:
• Vehicle Speed
Shows the actual vehicle speed.
Performance Pages — Engine
1
UNDERSTANDING YOUR INSTRUMENT PANEL 17

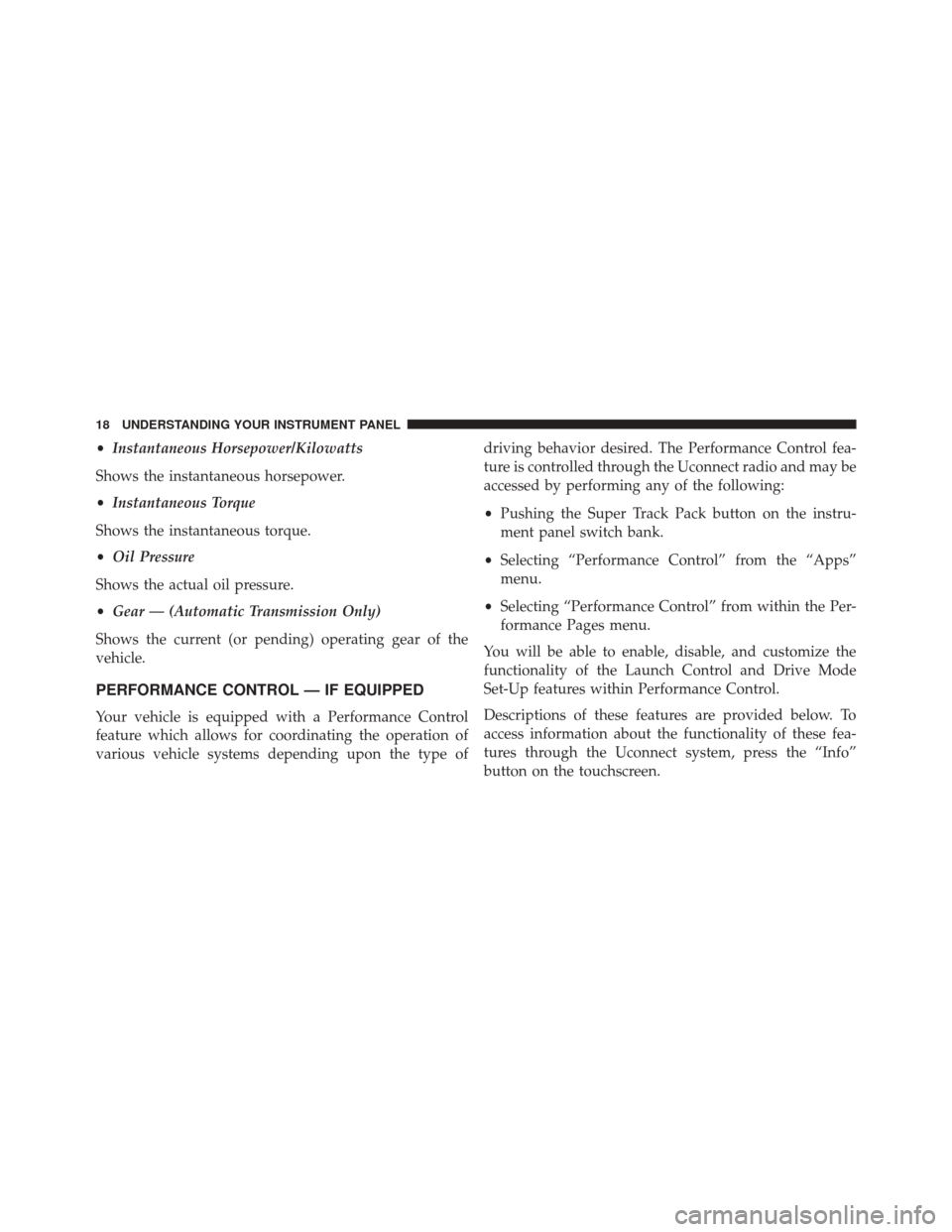

•Instantaneous Horsepower/Kilowatts
Shows the instantaneous horsepower.
• Instantaneous Torque
Shows the instantaneous torque.
• Oil Pressure
Shows the actual oil pressure.
• Gear — (Automatic Transmission Only)
Shows the current (or pending) operating gear of the
vehicle.
PERFORMANCE CONTROL — IF EQUIPPED
Your vehicle is equipped with a Performance Control
feature which allows for coordinating the operation of
various vehicle systems depending upon the type of driving behavior desired. The Performance Control fea-
ture is controlled through the Uconnect radio and may be
accessed by performing any of the following:
•
Pushing the Super Track Pack button on the instru-
ment panel switch bank.
• Selecting “Performance Control” from the “Apps”
menu.
• Selecting “Performance Control” from within the Per-
formance Pages menu.
You will be able to enable, disable, and customize the
functionality of the Launch Control and Drive Mode
Set-Up features within Performance Control.
Descriptions of these features are provided below. To
access information about the functionality of these fea-
tures through the Uconnect system, press the “Info”
button on the touchscreen.
18 UNDERSTANDING YOUR INSTRUMENT PANEL

Launch Mode
WARNING!
Launch Mode is intended for off-highway or off-road
use only and should not be used on any public
roadways. It is recommended that this feature be
used in a controlled environment, and within the
limits of the law. The capabilities of the vehicle as
measured by the performance pages must never be
exploited in a reckless or dangerous manner, which
can jeopardize the user ’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.This vehicle is equipped with a Launch Mode system that
is designed to allow the driver to achieve maximum
vehicle acceleration in a straight line. Launch Mode is a
form of traction control that manages tire slip while
launching the vehicle. This feature is intended for use
during race events on a closed course where consistent
Launch Mode
1
