DODGE CHALLENGER 2016 3.G Drive Modes Manual

TimersWhen the Timers Page is selected you will be able to
select from following “Tickets”:
•Current
Pressing the “Current” button displays a “real time”
summary of the performance timers.
• Last
Pressing the “Last” button displays the last recorded run
of performance timers.
• Best
Pressing the “Best” button displays the best recorded run
of performance timers, except for braking data.
• Save
Pressing the “Save” button will let you save the current,
last or best page currently being viewed. Any saved run
SRT Performance Pages — Timers
40 UNDERSTANDING YOUR INSTRUMENT PANEL

over 10, will overwrite the oldest saved run for Uconnect
System storage. The operation of the Save feature is listed
below:
With a USB jump drive installed, press the “USB” button
to save runs to the jump drive.With an SD Card installed, press the “SD Card” to save
runs to the SD Card.
Press the “Uconnect” button to save the runs to the
Owner web page.
Press the “Cancel” button to view the last timer “Ticket.”
The “Tickets” contain the timers listed below:
•
Reaction Time
Measures the driver’s reaction time for launching the
vehicle against a simulated drag strip timing light (be-
havior modeled after 500 Sportsman Tree) displayed in
the Driver Information Display (DID).
NOTE:
Positive values closest to zero are best, negative values
mean you have faulted the start and the value won’t be
used for best times.
SRT Performance Pages — “Save”
1
UNDERSTANDING YOUR INSTRUMENT PANEL 41

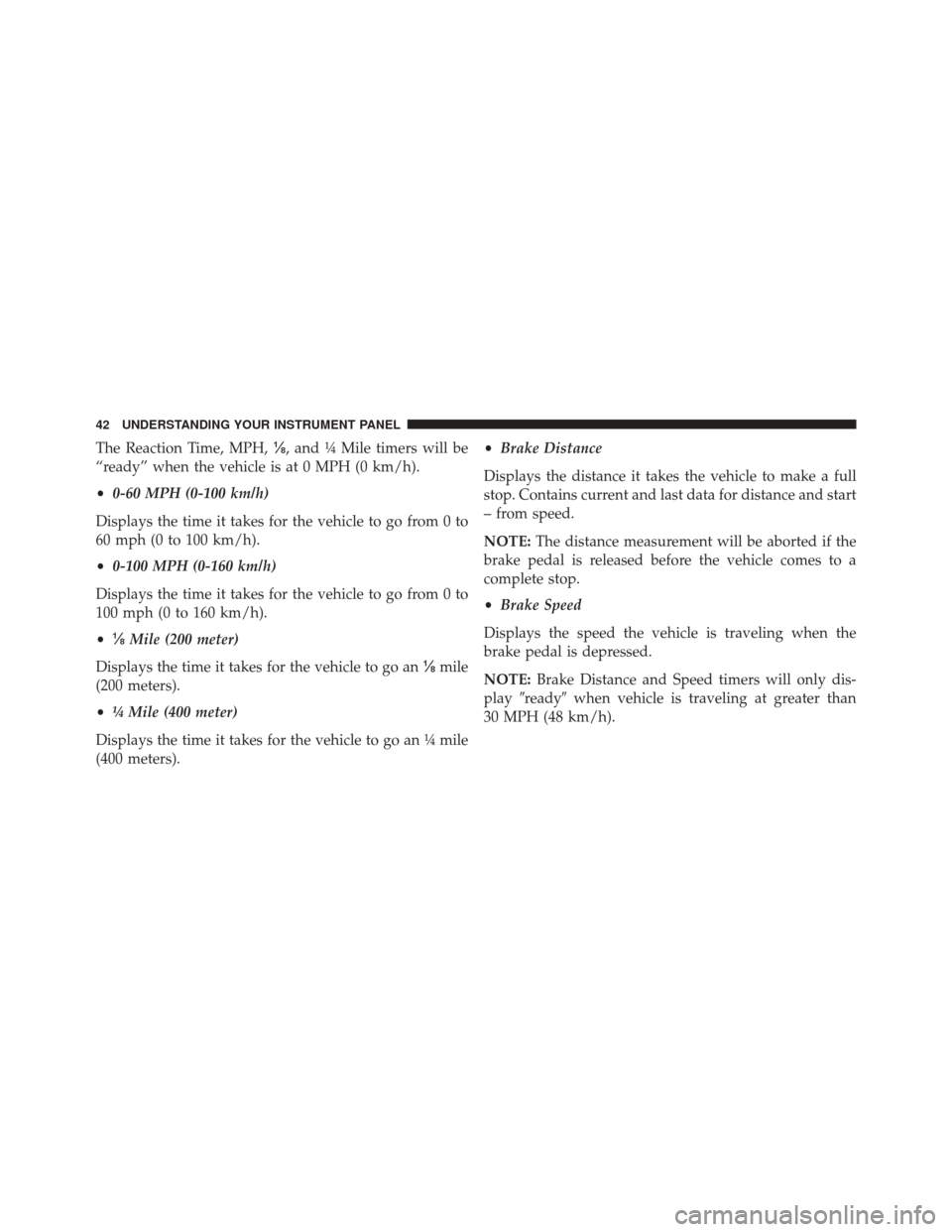

The Reaction Time, MPH,⅛, and ¼ Mile timers will be
“ready” when the vehicle is at 0 MPH (0 km/h).
• 0-60 MPH (0-100 km/h)
Displays the time it takes for the vehicle to go from 0 to
60 mph (0 to 100 km/h).
• 0-100 MPH (0-160 km/h)
Displays the time it takes for the vehicle to go from 0 to
100 mph (0 to 160 km/h).
• ⅛ Mile (200 meter)
Displays the time it takes for the vehicle to go an ⅛mile
(200 meters).
• ¼ Mile (400 meter)
Displays the time it takes for the vehicle to go an ¼ mile
(400 meters). •
Brake Distance
Displays the distance it takes the vehicle to make a full
stop. Contains current and last data for distance and start
– from speed.
NOTE: The distance measurement will be aborted if the
brake pedal is released before the vehicle comes to a
complete stop.
• Brake Speed
Displays the speed the vehicle is traveling when the
brake pedal is depressed.
NOTE: Brake Distance and Speed timers will only dis-
play ready when vehicle is traveling at greater than
30 MPH (48 km/h).
42 UNDERSTANDING YOUR INSTRUMENT PANEL

Gauges 1
When selected, this screen displays the following values:
•Coolant Temperature
Shows the actual coolant temperature.SRT Performance Pages — Gauges 1 (6.2L Challenger Manual Transmission)
SRT Performance Pages — Gauges 1 (6.2L Automatic Transmission)
1
UNDERSTANDING YOUR INSTRUMENT PANEL 43

•Oil Pressure
Shows the actual oil pressure.
• Oil Temperature
Shows the actual oil temperature.
• Battery Voltage
Shows the actual battery voltage.
• Trans Oil Temp (Auto Transmission Only)
Shows the actual automatic transmission oil temperature.
When selected, this screen displays the following values:
•Coolant Temperature
Shows the actual coolant temperature.
• Oil Temperature
Shows the actual oil temperature.
SRT Performance Pages — Gauges 1 (6.4L)
44 UNDERSTANDING YOUR INSTRUMENT PANEL

•Oil Pressure
Shows the actual oil pressure.
Gauges 2
When selected, this screen displays the following values:
• Battery Voltage
Shows the actual battery voltage.
SRT Performance Pages — Gauges 2 (6.4L Challenger Manual Transmission)
SRT Performance Pages — Gauges 2 (6.4L Automatic Transmission)
1
UNDERSTANDING YOUR INSTRUMENT PANEL 45

•Intake Air Temperature
Shows the actual intake air temperature.
• Transmission Temperature (Automatic Transmission
Only)
Shows the actual transmission temperature. When selected, this screen displays the following values:
•
Boost Pressure
Shows the current value for boost pressure.
• Air Fuel Ratio
Shows the current value for the air fuel ratio.
• Inter-Cooler (I/C) Coolant Temperature
Shows the current value for the I/C coolant temperature.
• Intake Air Temperature
Shows the actual intake air temperature.
SRT Performance Pages — Gauges 2 (6.2L)
46 UNDERSTANDING YOUR INSTRUMENT PANEL

G-Force
When selected, this screen displays all four G-Force
values (two lateral and two longitudinal) as well as
steering angle.
Challenger SRT Performance Pages — G-Force
Charger SRT Performance Pages — G-Force
1
UNDERSTANDING YOUR INSTRUMENT PANEL 47

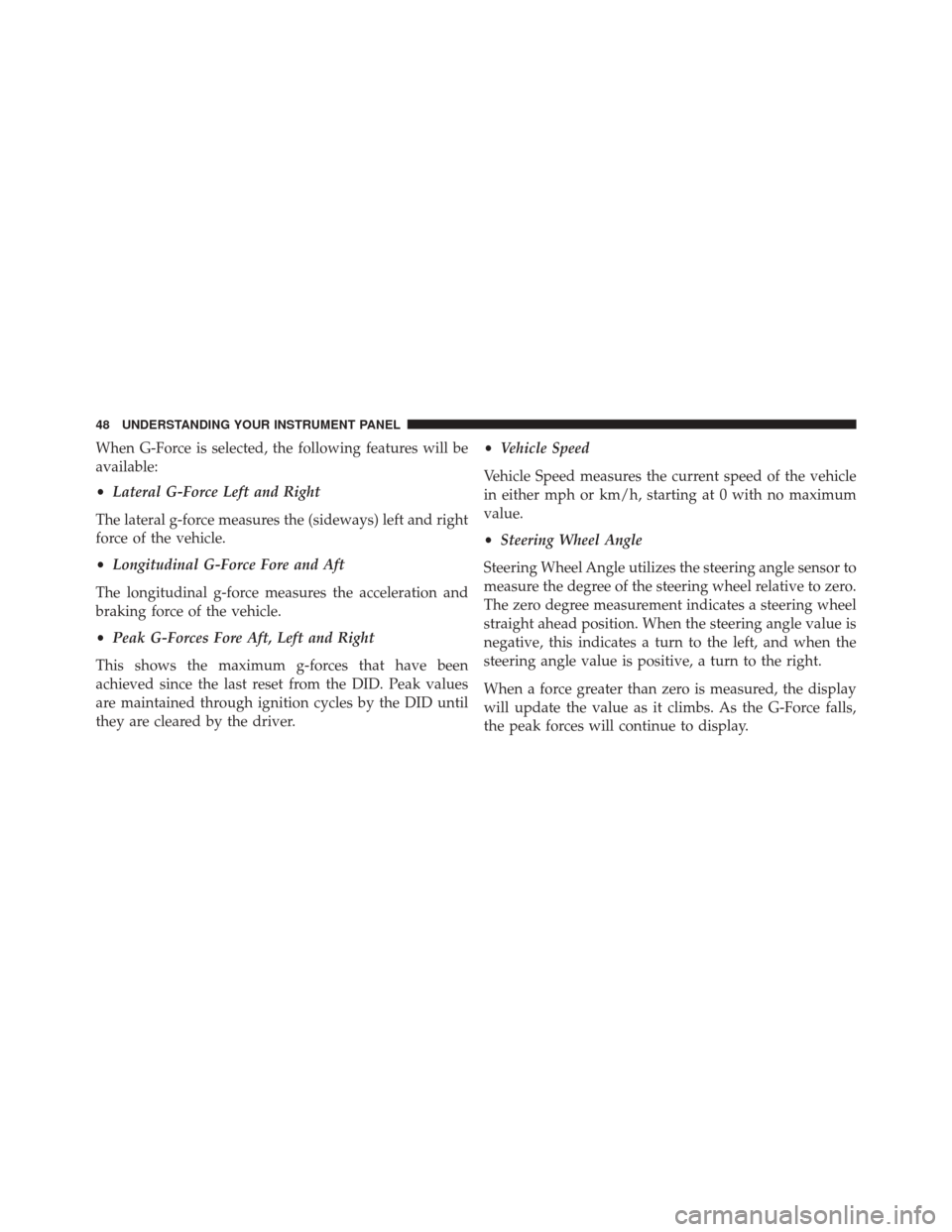

When G-Force is selected, the following features will be
available:
•Lateral G-Force Left and Right
The lateral g-force measures the (sideways) left and right
force of the vehicle.
• Longitudinal G-Force Fore and Aft
The longitudinal g-force measures the acceleration and
braking force of the vehicle.
• Peak G-Forces Fore Aft, Left and Right
This shows the maximum g-forces that have been
achieved since the last reset from the DID. Peak values
are maintained through ignition cycles by the DID until
they are cleared by the driver. •
Vehicle Speed
Vehicle Speed measures the current speed of the vehicle
in either mph or km/h, starting at 0 with no maximum
value.
• Steering Wheel Angle
Steering Wheel Angle utilizes the steering angle sensor to
measure the degree of the steering wheel relative to zero.
The zero degree measurement indicates a steering wheel
straight ahead position. When the steering angle value is
negative, this indicates a turn to the left, and when the
steering angle value is positive, a turn to the right.
When a force greater than zero is measured, the display
will update the value as it climbs. As the G-Force falls,
the peak forces will continue to display.
48 UNDERSTANDING YOUR INSTRUMENT PANEL

Engine
When selected, this screen displays the following values:
•Vehicle Speed
Shows the actual vehicle speed.SRT Performance Pages — Engine (6.4L Automatic Transmission)
SRT Performance Pages — Engine (6.2L AutomaticTransmission)
1
UNDERSTANDING YOUR INSTRUMENT PANEL 49
