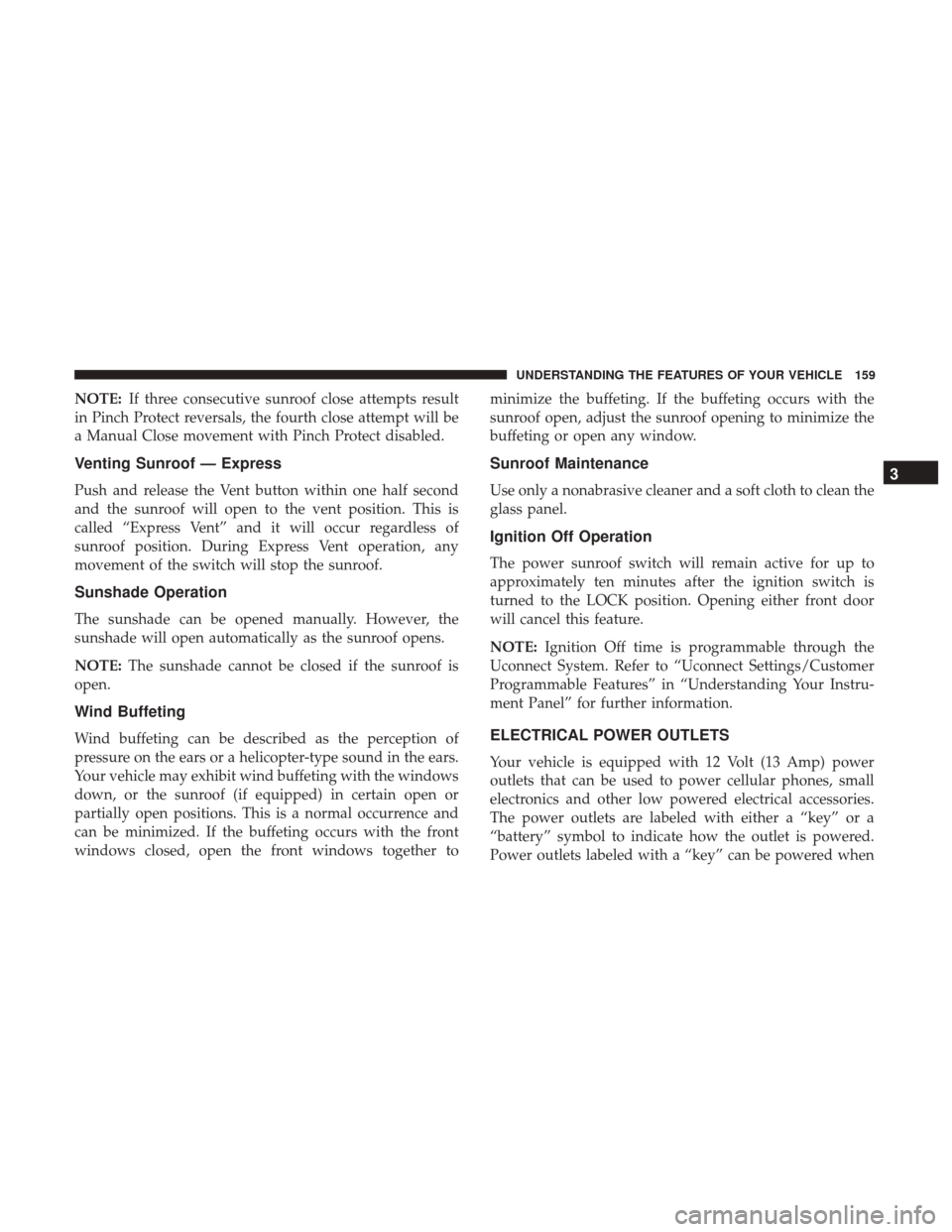

NOTE:If three consecutive sunroof close attempts result
in Pinch Protect reversals, the fourth close attempt will be
a Manual Close movement with Pinch Protect disabled.
Venting Sunroof — Express
Push and release the Vent button within one half second
and the sunroof will open to the vent position. This is
called “Express Vent” and it will occur regardless of
sunroof position. During Express Vent operation, any
movement of the switch will stop the sunroof.
Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE: The sunshade cannot be closed if the sunroof is
open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the front
windows closed, open the front windows together to minimize the buffeting. If the buffeting occurs with the
sunroof open, adjust the sunroof opening to minimize the
buffeting or open any window.
Sunroof Maintenance
Use only a nonabrasive cleaner and a soft cloth to clean the
glass panel.
Ignition Off Operation
The power sunroof switch will remain active for up to
approximately ten minutes after the ignition switch is
turned to the LOCK position. Opening either front door
will cancel this feature.
NOTE:
Ignition Off time is programmable through the
Uconnect System. Refer to “Uconnect Settings/Customer
Programmable Features” in “Understanding Your Instru-
ment Panel” for further information.
ELECTRICAL POWER OUTLETS
Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” can be powered when
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

the ignition is in the ON or ACC position, while the outlets
labeled with a “battery” are connected directly to the
battery and powered at all times.
These power outlets can also operate a conventional cigar
lighter unit.
NOTE:
•The front integrated center stack power outlet can be
changed from switched “ignition” to constant “battery”
powered all the time by moving the integrated center
stack fuse #12 in the Rear Power Distribution Center
from fuse location “IGN” to “B+.” Refer to “Fuses” in
“Maintaining Your Vehicle.”
• To ensure proper operation, a MOPAR cigar knob and
element must be used. The front power outlet is located next to the storage area on
the integrated center stack of the instrument panel.
Power Outlet — Integrated Center Stack Front
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:All accessories connected to these powered outlets
should be removed or turned off when the vehicle is not in
use to protect the battery against discharge.Uconnect 5.0 Power Outlet — Center Console
Uconnect 8.4/8.4 NAV Power Outlet — Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
• Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.
CAUTION!
• Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.
(Continued)
Power Outlet Fuse Locations1 — #12 Fuse 20A Yellow Power Outlet Integrated Center Stack
2 — #38 Fuse 20A Yellow Power Outlet Center Console 162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!(Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or long
periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.
• Power outlets are designed for accessory plugs only.
Do not hang any type of accessory or accessory
bracket from the plug. Improper use of the power
outlet can cause damage.
CUPHOLDERS
Front Cupholders
The front cupholders are located in the center console and
in the door panels.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

WARNING!
If containers of hot liquid are place in the cupholder,
they can spill when the door is closed, burning the
occupants. Be careful when closing the doors to avoid
injury.
Rear Cupholders
The rear seat cupholders are located in the center armrest
between the rear seats. The cupholders are positioned
forward in the armrest and side-by-side to provide conve-
nient access to beverage cans or bottles while maintaining
a resting place for the rear occupant’s elbows.
Door Cupholder
Rear Cupholders
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE
Glove Compartment
The glove compartment is located on the passenger side of
the instrument panel.
Console Storage
The center console has a storage compartment located
underneath the armrest. The compartment contains a 12
Volt power outlet, and a molded-in coin holder (designed
to hold various size coins). The center console may also be
equipped with an IPOD/USB/MP3 Control. This supports
Mini, 4G, Photo, Nano, 5G iPod and iPhone devices. Refer
to “IPOD/USB/MP3 Control – If Equipped” in “Under-
standing Your Instrument Panel” for further information.
Glove Compartment
Opened Glove Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a
collision.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
touchscreen or climate controls switch bank. Pushthis button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator in the
button will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off after
approximately ten minutes. For an additional five minutes
of operation, push the button a second time.
NOTE:
To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
Center Console
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

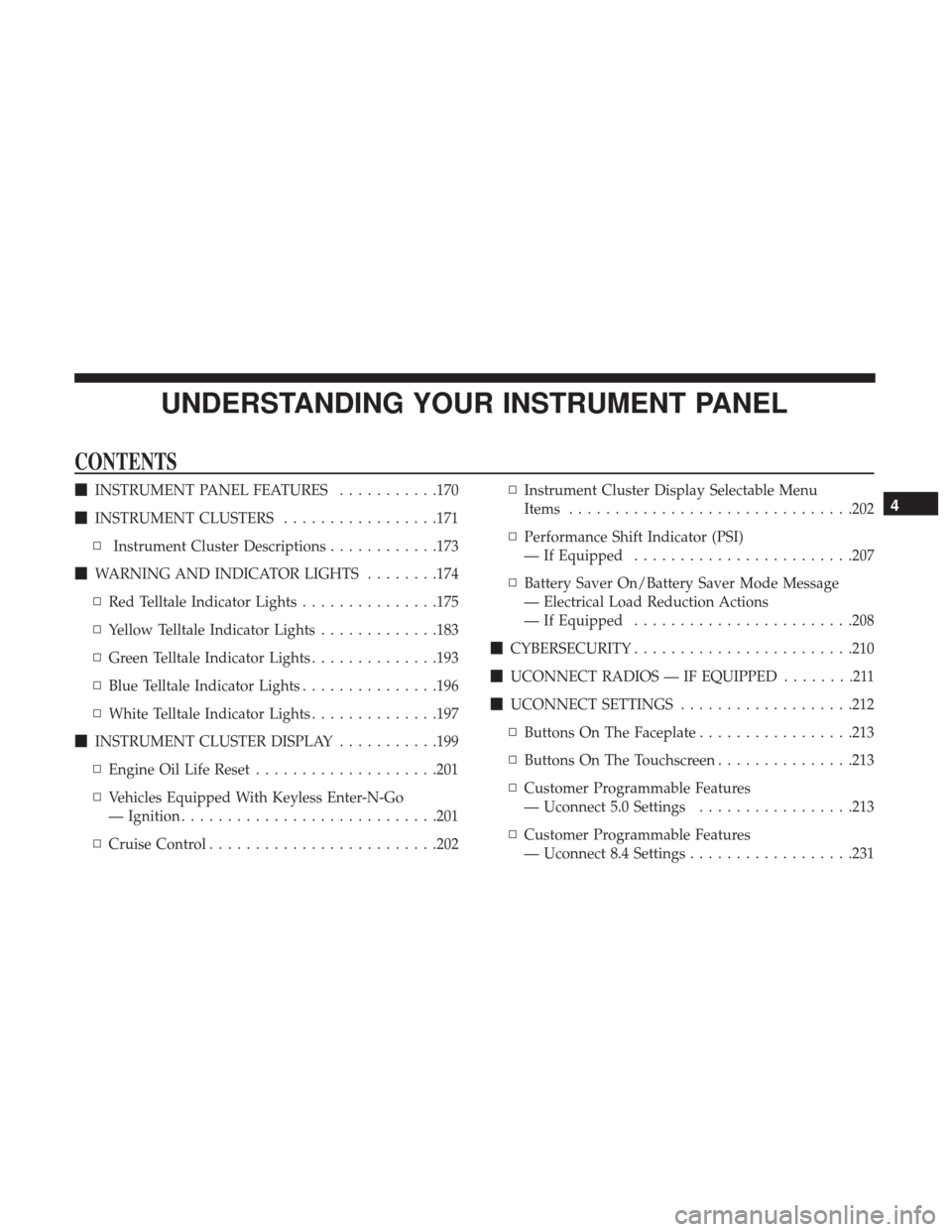

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ...........170
 INSTRUMENT CLUSTERS .................171
▫ Instrument Cluster Descriptions ............173
 WARNING AND INDICATOR LIGHTS ........174
▫ Red Telltale Indicator Lights ...............175
▫ Yellow Telltale Indicator Lights .............183
▫ Green Telltale Indicator Lights ..............193
▫ Blue Telltale Indicator Lights ...............196
▫ White Telltale Indicator Lights ..............197
 INSTRUMENT CLUSTER DISPLAY ...........199
▫ Engine Oil Life Reset ....................201
▫ Vehicles Equipped With Keyless Enter-N-Go
— Ignition ........................... .201
▫ Cruise Control ........................ .202▫
Instrument Cluster Display Selectable Menu
Items .............................. .202
▫ Performance Shift Indicator (PSI)
— If Equipped ....................... .207
▫ Battery Saver On/Battery Saver Mode Message
— Electrical Load Reduction Actions
— If Equipped ....................... .208
 CYBERSECURITY ....................... .210
 UCONNECT RADIOS — IF EQUIPPED ........211
 UCONNECT SETTINGS ...................212
▫ Buttons On The Faceplate .................213
▫ Buttons On The Touchscreen ...............213
▫ Customer Programmable Features
— Uconnect 5.0 Settings .................213
▫ Customer Programmable Features
— Uconnect 8.4 Settings ..................2314

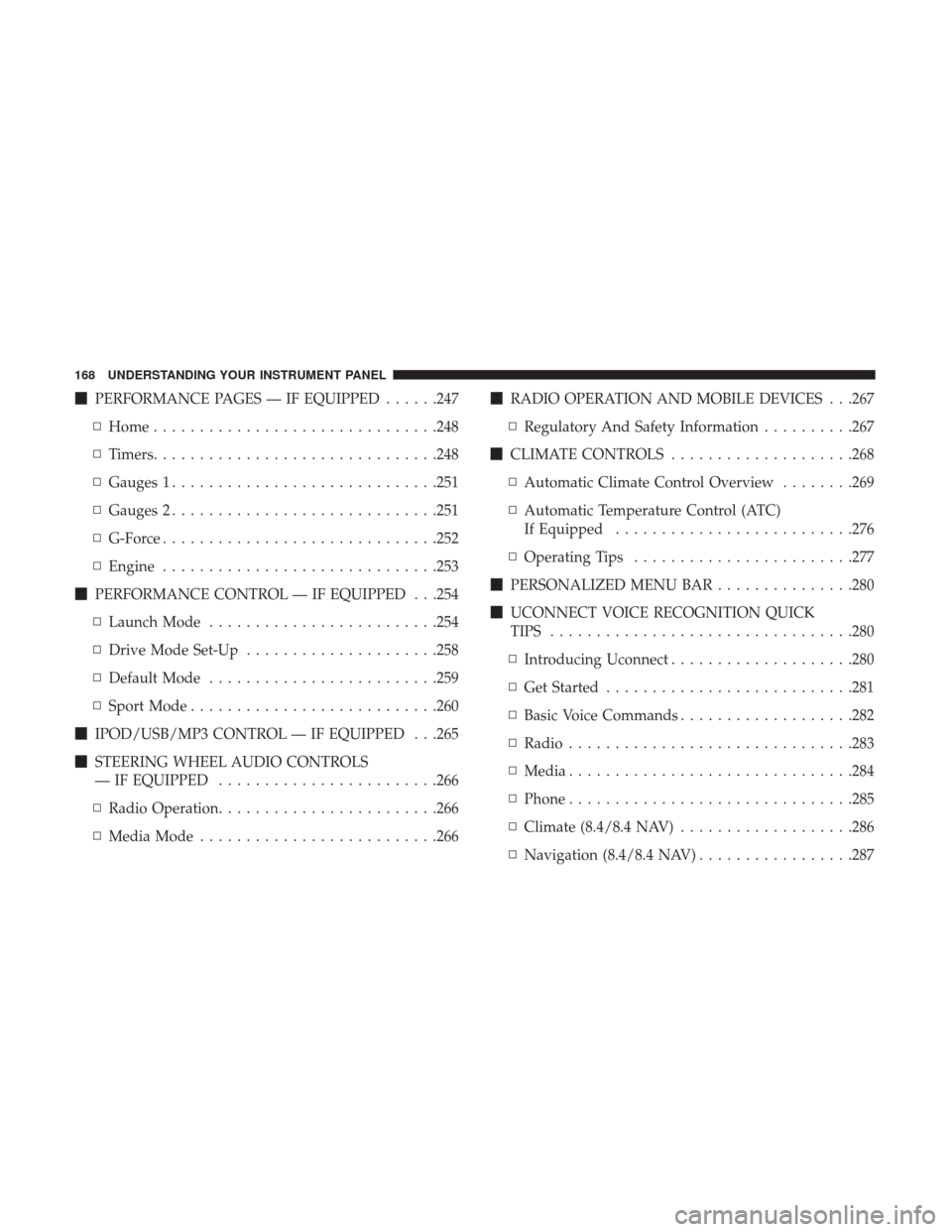

PERFORMANCE PAGES — IF EQUIPPED ......247
▫ Home .............................. .248
▫ Timers .............................. .248
▫ Gauges 1 ............................ .251
▫ Gauges 2 ............................ .251
▫ G-Force ............................. .252
▫ Engine ............................. .253
 PERFORMANCE CONTROL — IF EQUIPPED . . .254
▫ Launch Mode ........................ .254
▫ Drive Mode Set-Up .....................258
▫ Default Mode ........................ .259
▫ Sport Mode .......................... .260
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .265
 STEERING WHEEL AUDIO CONTROLS
— IF EQUIPPED ....................... .266
▫ Radio Operation ....................... .266
▫ Media Mode ......................... .266
RADIO OPERATION AND MOBILE DEVICES . . .267
▫ Regulatory And Safety Information ..........267
 CLIMATE CONTROLS ....................268
▫ Automatic Climate Control Overview ........269
▫ Automatic Temperature Control (ATC)
If Equipped ......................... .276
▫ Operating Tips ....................... .277
 PERSONALIZED MENU BAR ...............280
 UCONNECT VOICE RECOGNITION QUICK
TIPS ................................ .280
▫ Introducing Uconnect ....................280
▫ Get Started .......................... .281
▫ Basic
Voice Commands ...................282
▫ Radio .............................. .283
▫ Media .............................. .284
▫ Phone .............................. .285
▫ Climate (8.4/8.4 NAV) ...................286
▫ Navigation (8.4/8.4 NAV) .................287
