DODGE CHALLENGER 2017 3.G Owners Manual

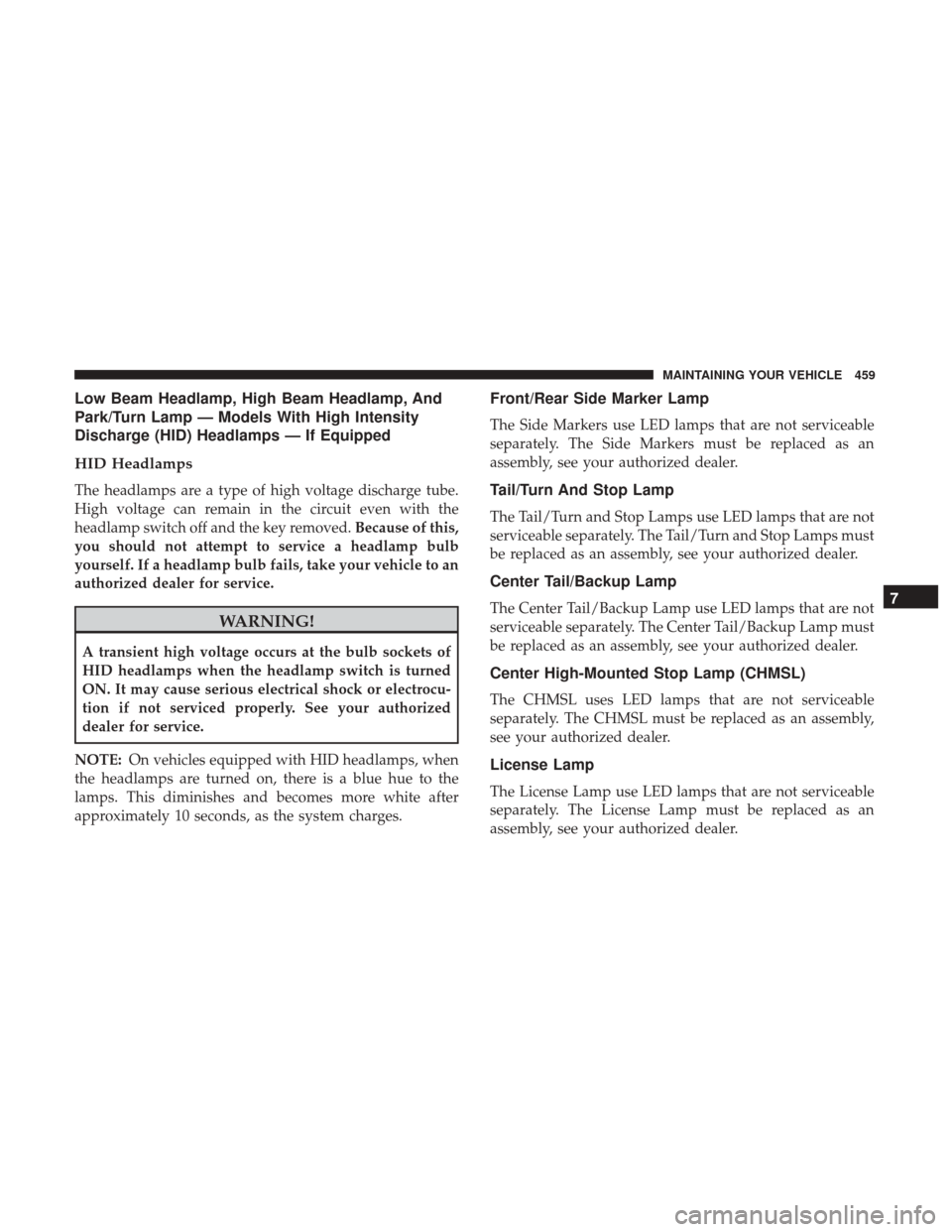

Low Beam Headlamp, High Beam Headlamp, And
Park/Turn Lamp — Models With High Intensity
Discharge (HID) Headlamps — If Equipped
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of this,
you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electrocu-
tion if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps, when
the headlamps are turned on, there is a blue hue to the
lamps. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Front/Rear Side Marker Lamp
The Side Markers use LED lamps that are not serviceable
separately. The Side Markers must be replaced as an
assembly, see your authorized dealer.
Tail/Turn And Stop Lamp
The Tail/Turn and Stop Lamps use LED lamps that are not
serviceable separately. The Tail/Turn and Stop Lamps must
be replaced as an assembly, see your authorized dealer.
Center Tail/Backup Lamp
The Center Tail/Backup Lamp use LED lamps that are not
serviceable separately. The Center Tail/Backup Lamp must
be replaced as an assembly, see your authorized dealer.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
License Lamp
The License Lamp use LED lamps that are not serviceable
separately. The License Lamp must be replaced as an
assembly, see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 459

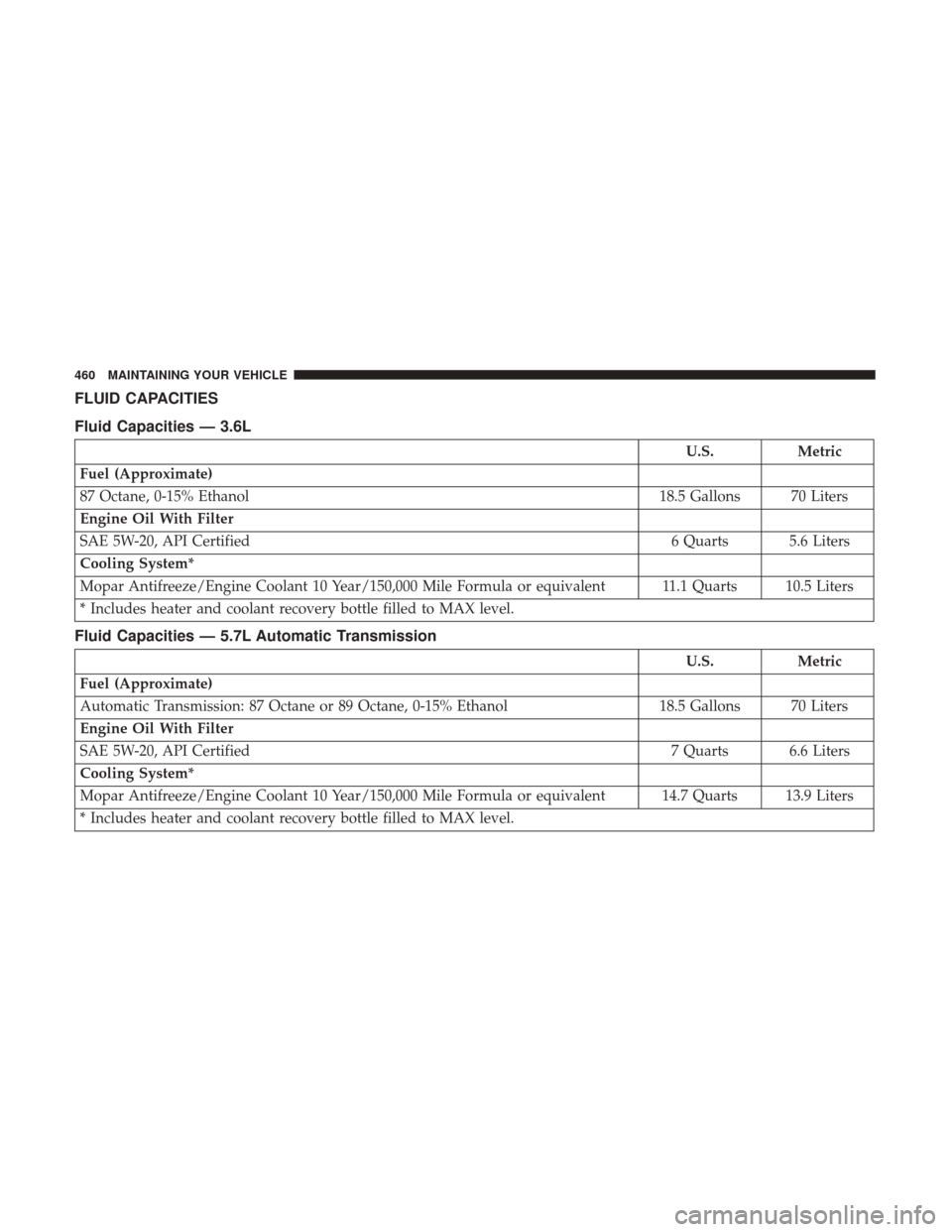

FLUID CAPACITIES
Fluid Capacities — 3.6L
U.S.Metric
Fuel (Approximate)
87 Octane, 0-15% Ethanol 18.5 Gallons 70 Liters
Engine Oil With Filter
SAE 5W-20, API Certified 6 Quarts 5.6 Liters
Cooling System*
Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or equivalent 11.1 Quarts 10.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
Fluid Capacities — 5.7L Automatic Transmission
U.S. Metric
Fuel (Approximate)
Automatic Transmission: 87 Octane or 89 Octane, 0-15% Ethanol 18.5 Gallons 70 Liters
Engine Oil With Filter
SAE 5W-20, API Certified 7 Quarts 6.6 Liters
Cooling System*
Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or equivalent 14.7 Quarts 13.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
460 MAINTAINING YOUR VEHICLE

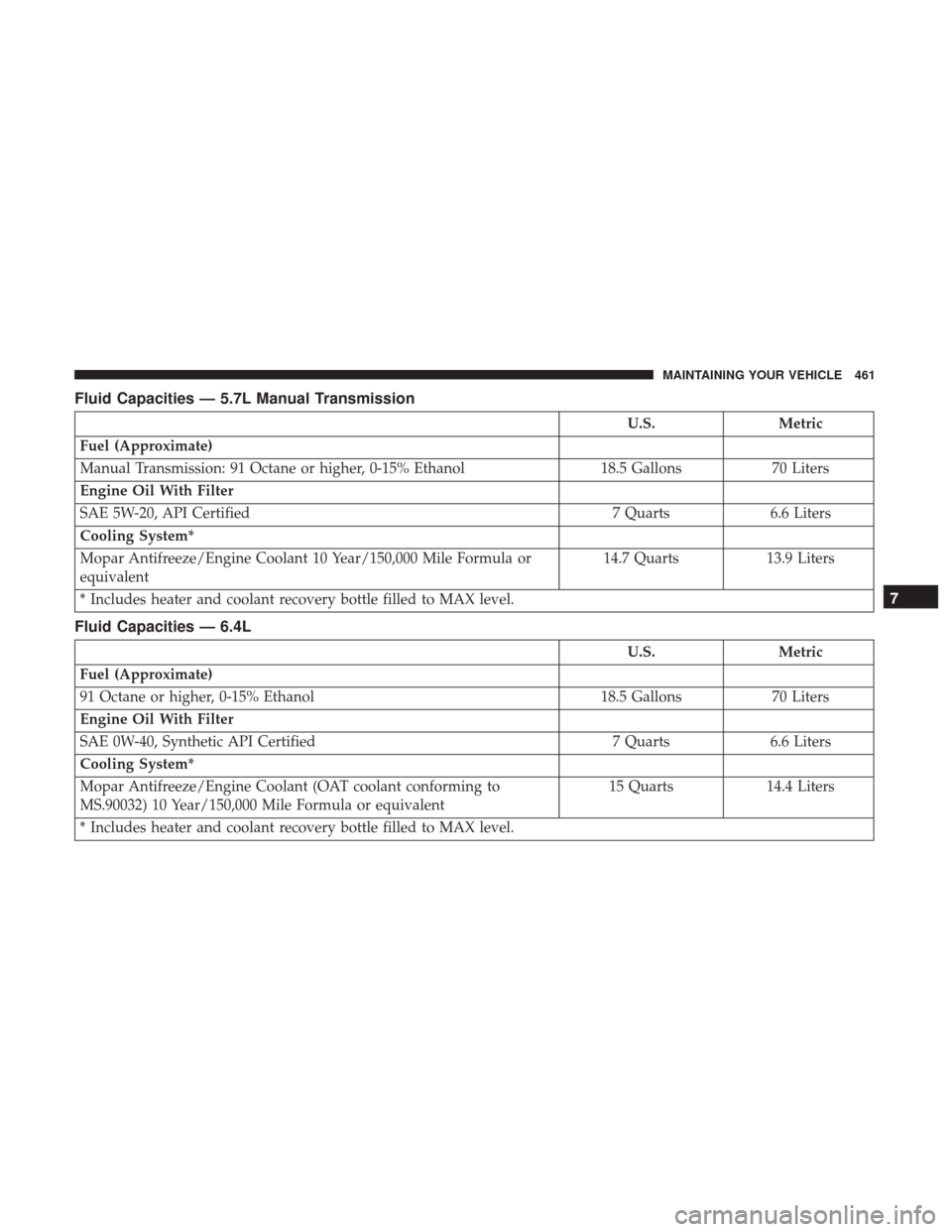

Fluid Capacities — 5.7L Manual Transmission
U.S.Metric
Fuel (Approximate)
Manual Transmission: 91 Octane or higher, 0-15% Ethanol 18.5 Gallons70 Liters
Engine Oil With Filter
SAE 5W-20, API Certified 7 Quarts6.6 Liters
Cooling System*
Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or
equivalent 14.7 Quarts
13.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
Fluid Capacities — 6.4L
U.S. Metric
Fuel (Approximate)
91 Octane or higher, 0-15% Ethanol 18.5 Gallons70 Liters
Engine Oil With Filter
SAE 0W-40, Synthetic API Certified 7 Quarts6.6 Liters
Cooling System*
Mopar Antifreeze/Engine Coolant (OAT coolant conforming to
MS.90032) 10 Year/150,000 Mile Formula or equivalent 15 Quarts
14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 461

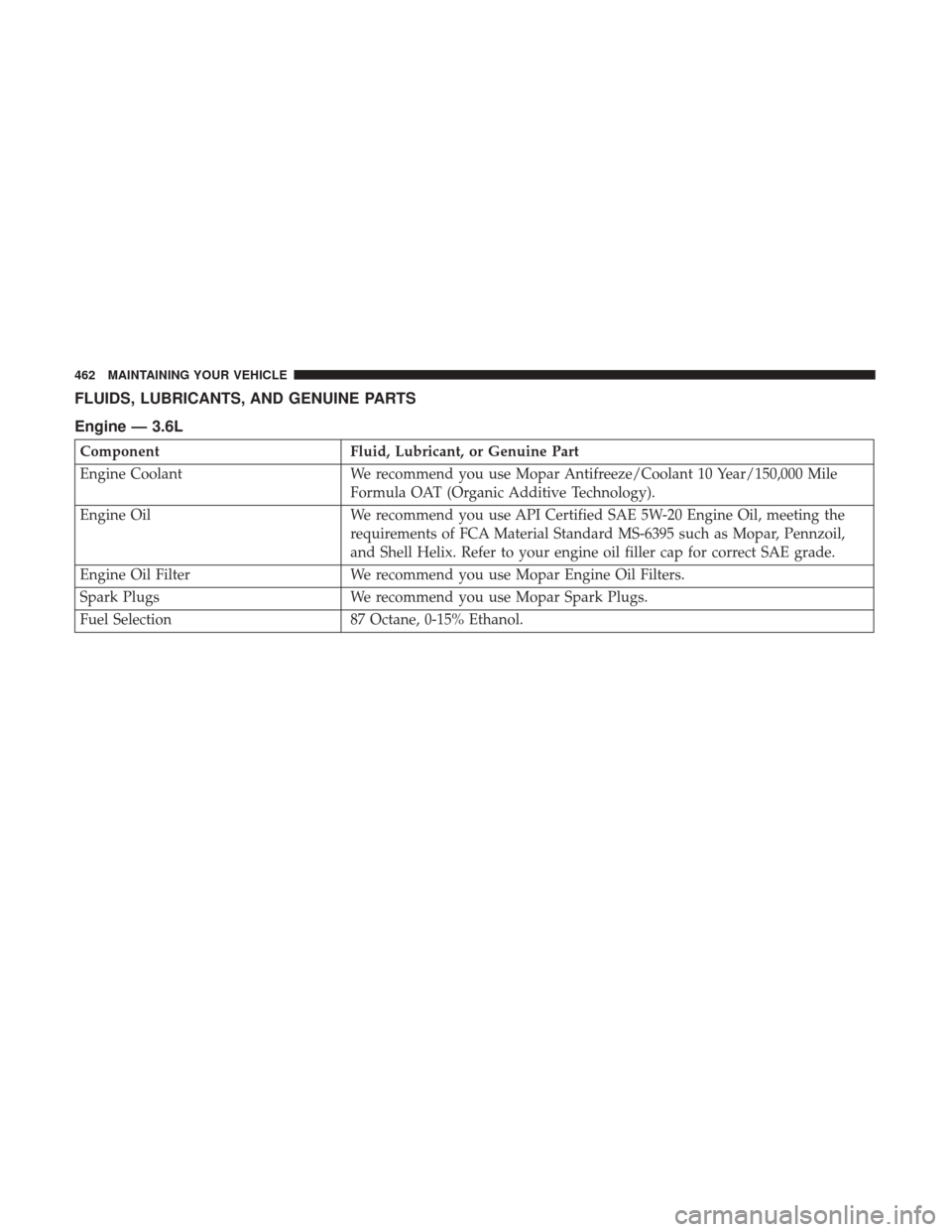

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine — 3.6L
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of FCA Material Standard MS-6395 such as Mopar, Pennzoil,
and Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use Mopar Engine Oil Filters.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
462 MAINTAINING YOUR VEHICLE

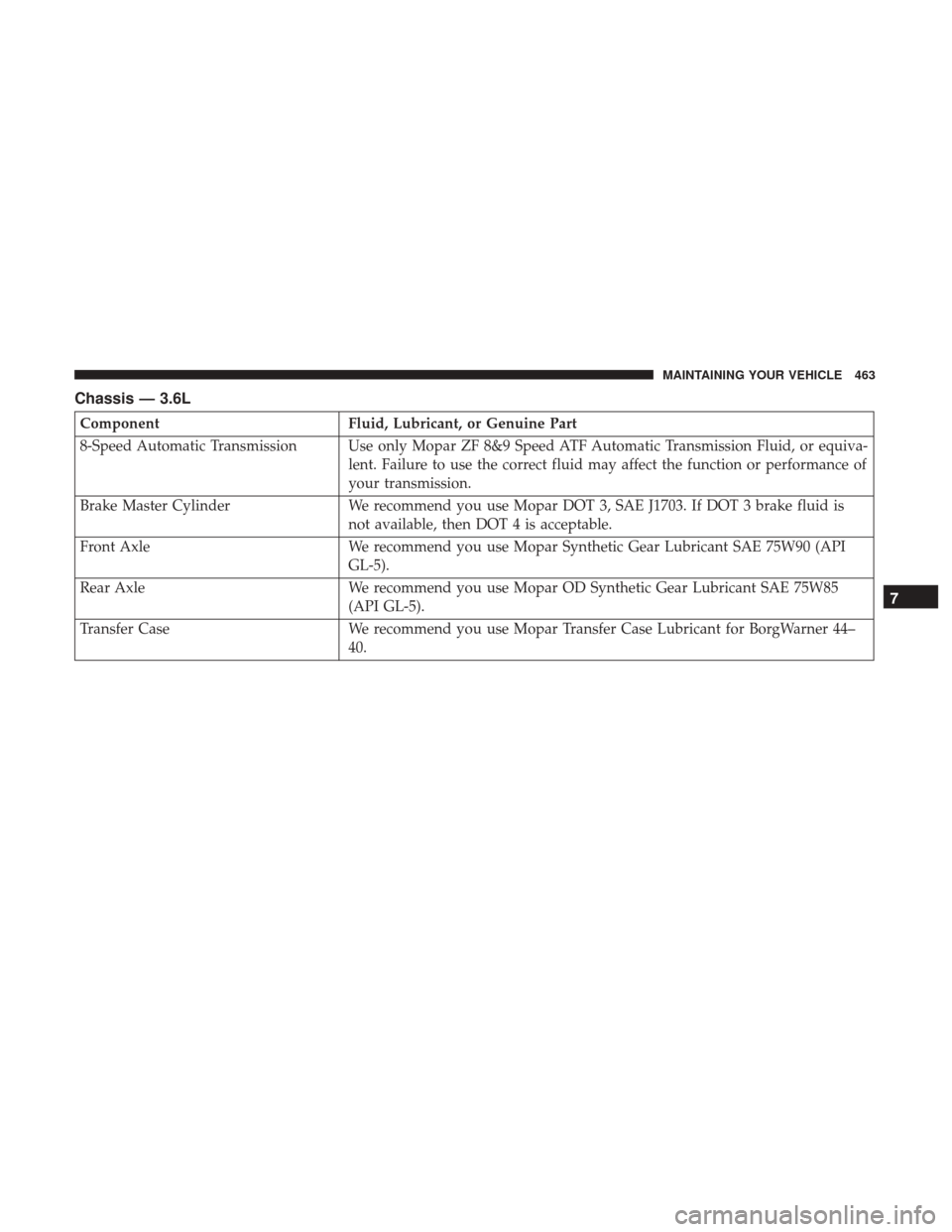

Chassis — 3.6L
ComponentFluid, Lubricant, or Genuine Part
8-Speed Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equiva- lent. Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable.
Front Axle We recommend you use Mopar Synthetic Gear Lubricant SAE 75W90 (API
GL-5).
Rear Axle We recommend you use Mopar OD Synthetic Gear Lubricant SAE 75W85
(API GL-5).
Transfer Case We recommend you use Mopar Transfer Case Lubricant for BorgWarner 44–
40.
7
MAINTAINING YOUR VEHICLE 463

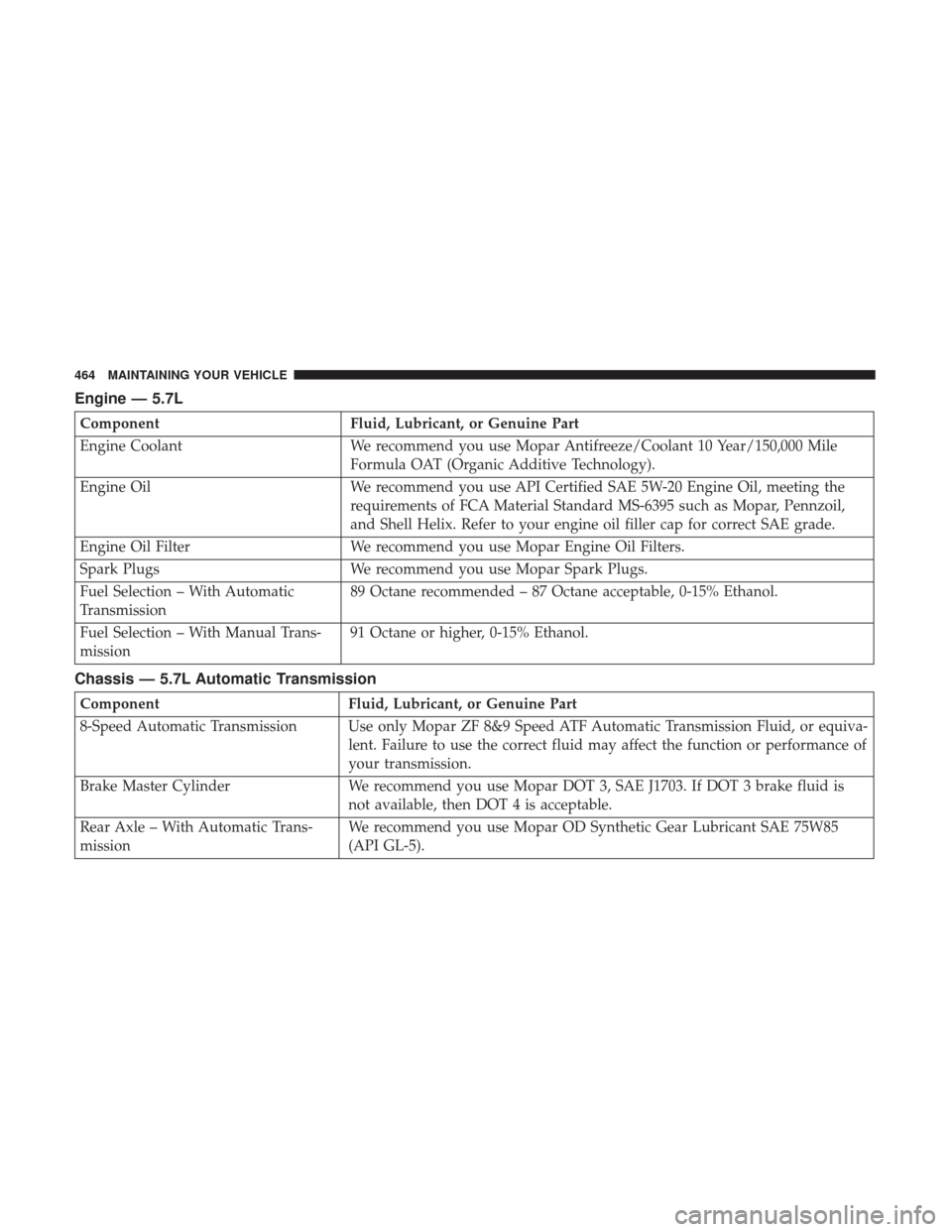

Engine — 5.7L
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of FCA Material Standard MS-6395 such as Mopar, Pennzoil,
and Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use Mopar Engine Oil Filters.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection – With Automatic
Transmission 89 Octane recommended – 87 Octane acceptable, 0-15% Ethanol.
Fuel Selection – With Manual Trans-
mission 91 Octane or higher, 0-15% Ethanol.
Chassis — 5.7L Automatic Transmission
Component
Fluid, Lubricant, or Genuine Part
8-Speed Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equiva- lent. Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable.
Rear Axle – With Automatic Trans-
mission We recommend you use Mopar OD Synthetic Gear Lubricant SAE 75W85
(API GL-5).
464 MAINTAINING YOUR VEHICLE

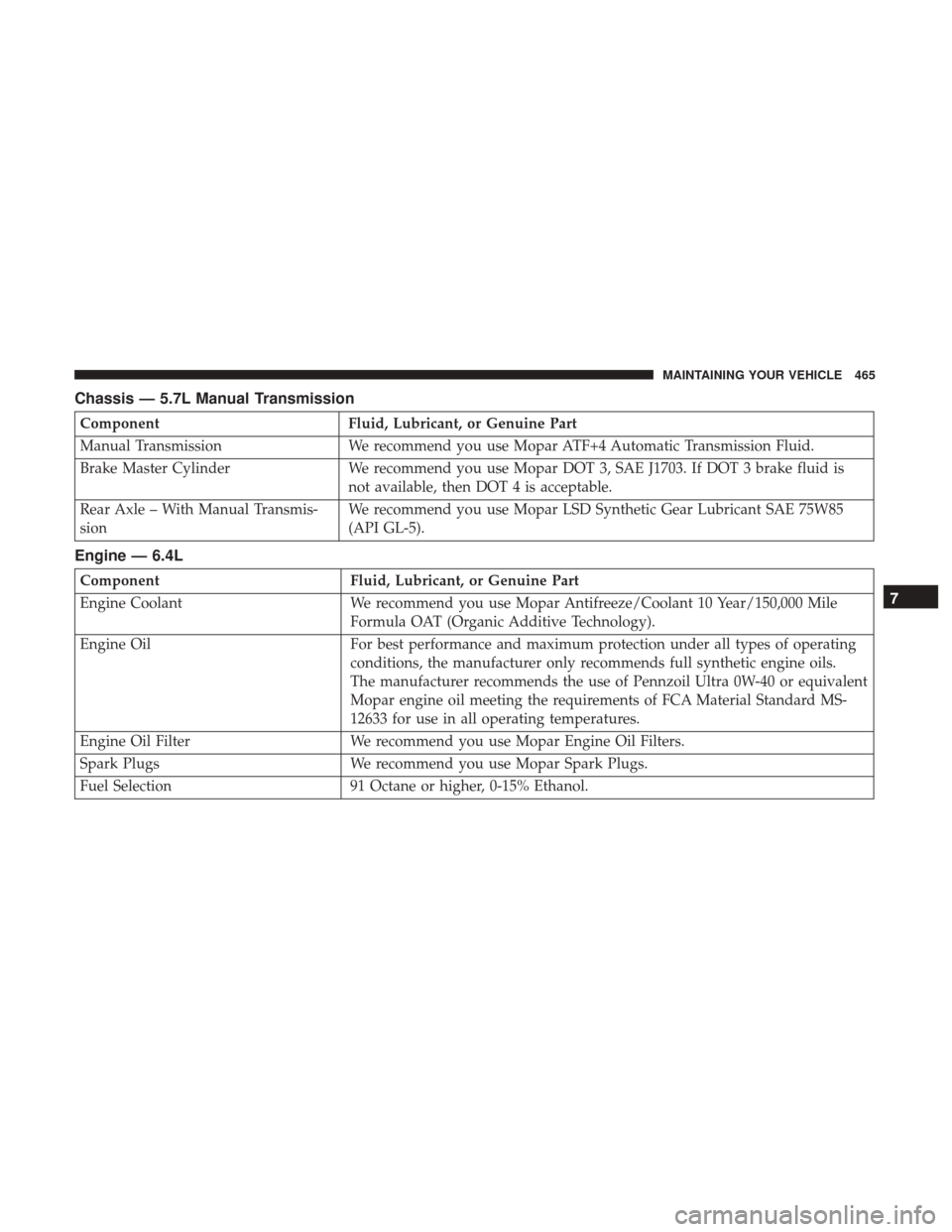

Chassis — 5.7L Manual Transmission
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission We recommend you use Mopar ATF+4 Automatic Transmission Fluid.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable.
Rear Axle – With Manual Transmis-
sion We recommend you use Mopar LSD Synthetic Gear Lubricant SAE 75W85
(API GL-5).
Engine — 6.4L
Component
Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology).
Engine Oil For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils.
The manufacturer recommends the use of Pennzoil Ultra 0W-40 or equivalent
Mopar engine oil meeting the requirements of FCA Material Standard MS-
12633 for use in all operating temperatures.
Engine Oil Filter We recommend you use Mopar Engine Oil Filters.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection 91 Octane or higher, 0-15% Ethanol.
7
MAINTAINING YOUR VEHICLE 465

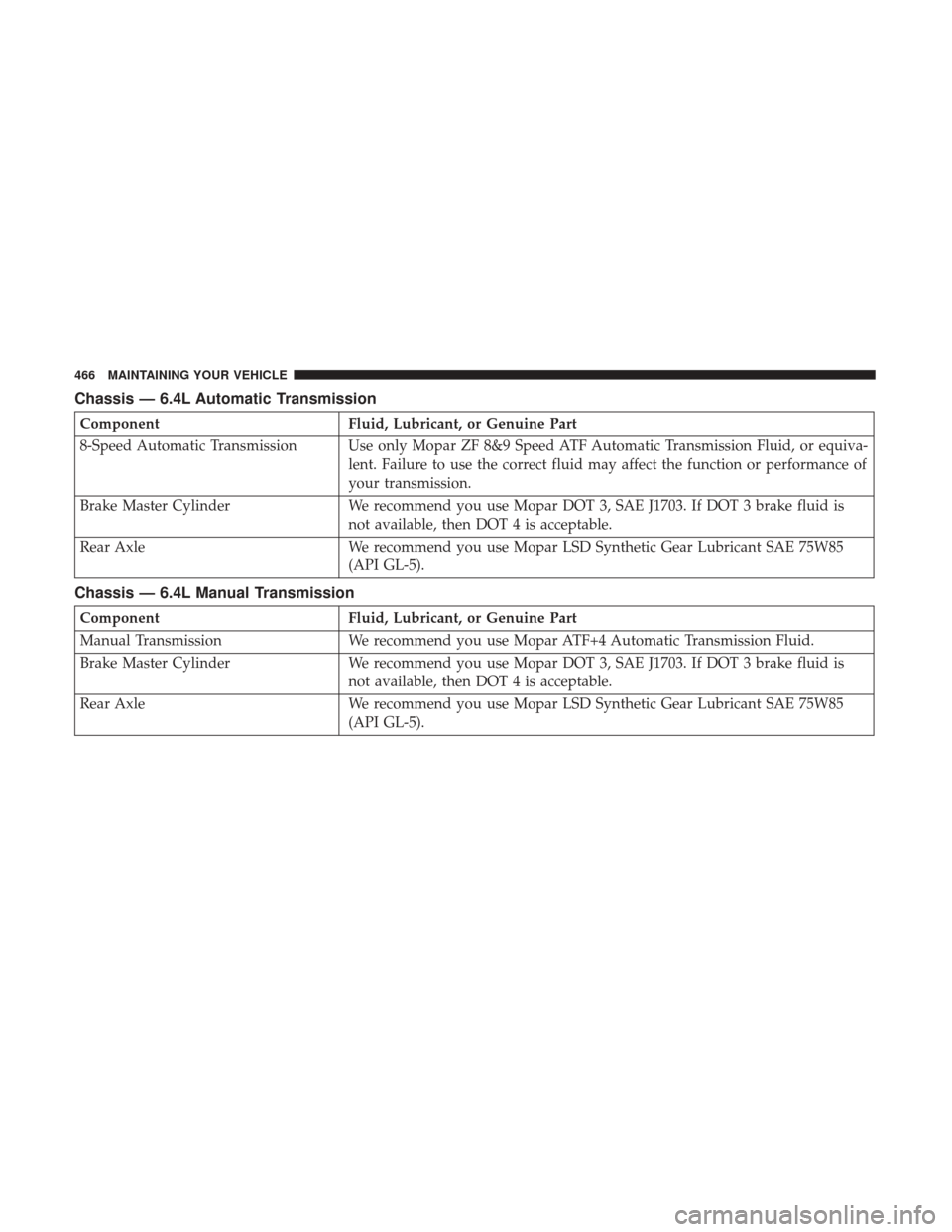

Chassis — 6.4L Automatic Transmission
ComponentFluid, Lubricant, or Genuine Part
8-Speed Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equiva- lent. Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable.
Rear Axle We recommend you use Mopar LSD Synthetic Gear Lubricant SAE 75W85
(API GL-5).
Chassis — 6.4L Manual Transmission
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission We recommend you use Mopar ATF+4 Automatic Transmission Fluid.
Brake Master Cylinder We recommend you use Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is
not available, then DOT 4 is acceptable.
Rear Axle We recommend you use Mopar LSD Synthetic Gear Lubricant SAE 75W85
(API GL-5).
466 MAINTAINING YOUR VEHICLE

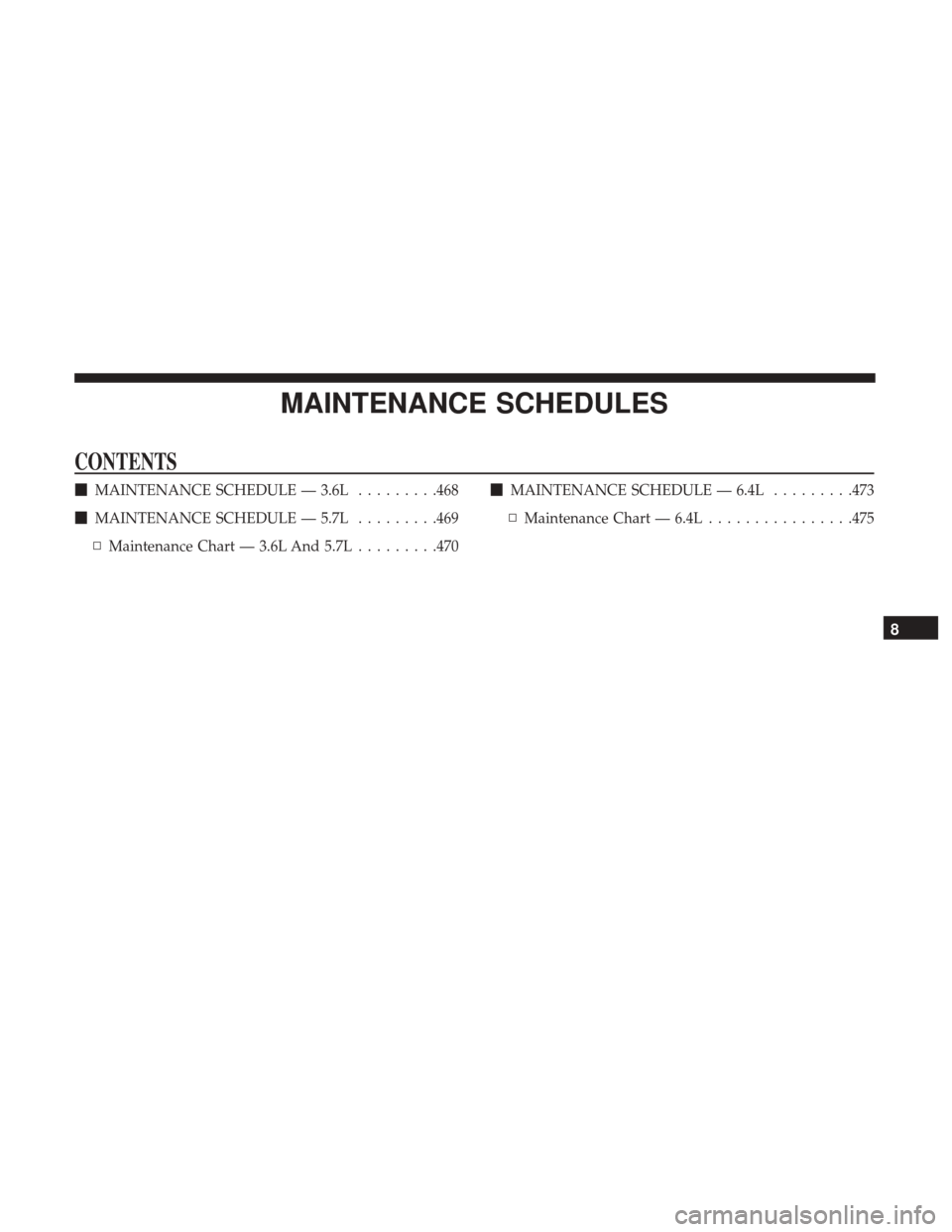

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE — 3.6L .........468
 MAINTENANCE SCHEDULE — 5.7L .........469
▫ Maintenance Chart — 3.6L And 5.7L .........470
MAINTENANCE SCHEDULE — 6.4L .........473
▫ Maintenance Chart — 6.4L ................475
8

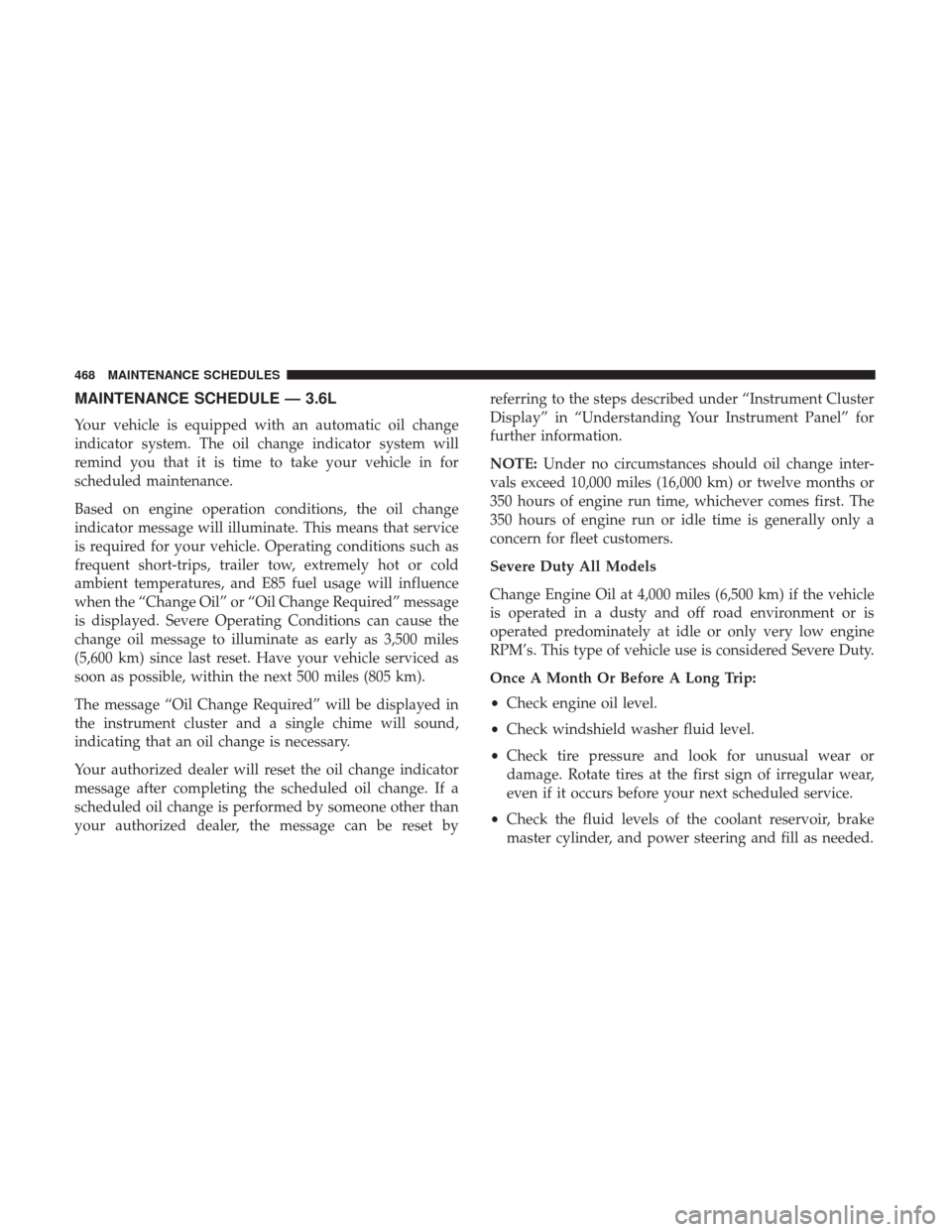

MAINTENANCE SCHEDULE — 3.6L
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will influence
when the “Change Oil” or “Oil Change Required” message
is displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
The message “Oil Change Required” will be displayed in
the instrument cluster and a single chime will sound,
indicating that an oil change is necessary.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset byreferring to the steps described under “Instrument Cluster
Display” in “Understanding Your Instrument Panel” for
further information.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before your next scheduled service.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering and fill as needed.
