Page 41 of 316
REPAIRS - WHEREVER POSSIBLE, SEE YOUR BFGOODRICH®
TIRE RETAILER AT ONCE
If any BFGoodrich® tire sustains a puncture, have the tire demounted
and thoroughly inspected by any BFGoodrich® tire retailer for possible
damage that may have occurred.
A tread area puncture in any BFGoodrich® passenger or light truck tire
can be repaired provided that the puncture hole is not more than 1/4” in
diameter, not more than one radial cable per casing ply is damaged, and
the tire has not been damaged further by the puncturing object or by
running underinflated. Tire punctures consistent with these guidelines
can be repaired by following the Rubber Manufacturers Association
(RMA) recommended repair procedures.
TIRE REPAIRS
Repairs of all tires must be of the combined plug and inside patch type.
Plug only repairs are improper.A tire should be removed from the rim
and inspected prior to repair. Any tire repair done without removing the
tire from the rim is improper. An improperly repaired tire will cause
further damage to the tire by either leaking air or allowing air, moisture
and contaminants to enter the structure of the tire. An improperly
repaired tire can fail suddenly at a later date.
Never repair a tire with less than 2/32 nds of an inch tread remaining. At
this tread depth, the tire is worn out and must be replaced.
TEMPORARY SPARE TIRES
When using any temporary spare tire, be sure to follow the vehicle
manufacturer ’s instructions.
READING THE DOT
DOT XXXX XXXX XXX (prior to August 2000)
DOT XXXX XXXX XXX (1990-1999)
DOT XXXX XXXX XXXX (after July 2000)
THE DOT
The “DOT” symbol certifies tire manufacturer ’s compliance with U.S.
Department of Transportation tire safety standards. Next to the symbol is
the tire identification or “serial number”. The first two characters identify
the plant where the tire was manufactured. The next two characters
BFGOODRICH TIRES
40
Page 42 of 316

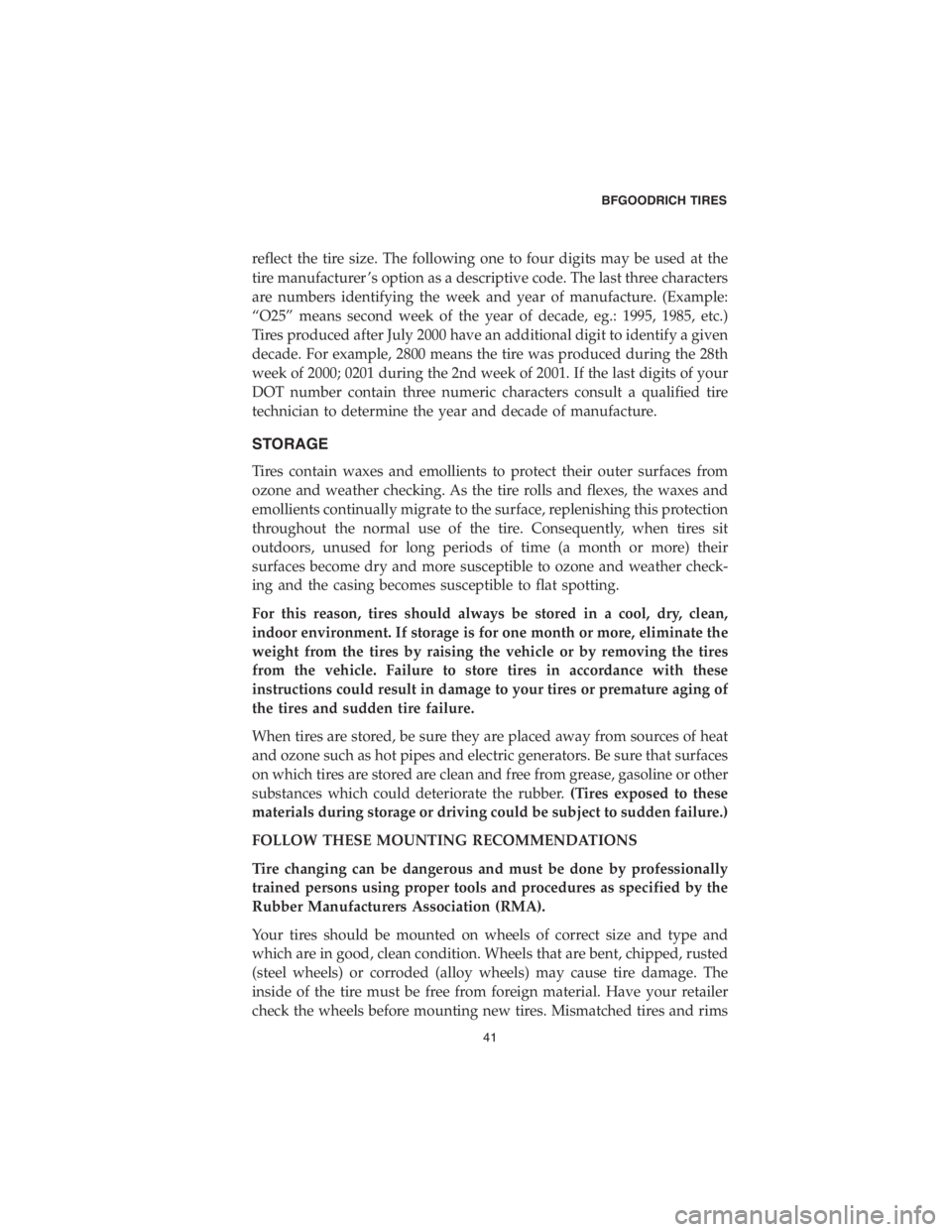

reflect the tire size. The following one to four digits may be used at the
tire manufacturer ’s option as a descriptive code. The last three characters
are numbers identifying the week and year of manufacture. (Example:
“O25” means second week of the year of decade, eg.: 1995, 1985, etc.)
Tires produced after July 2000 have an additional digit to identify a given
decade. For example, 2800 means the tire was produced during the 28th
week of 2000; 0201 during the 2nd week of 2001. If the last digits of your
DOT number contain three numeric characters consult a qualified tire
technician to determine the year and decade of manufacture.
STORAGE
Tires contain waxes and emollients to protect their outer surfaces from
ozone and weather checking. As the tire rolls and flexes, the waxes and
emollients continually migrate to the surface, replenishing this protection
throughout the normal use of the tire. Consequently, when tires sit
outdoors, unused for long periods of time (a month or more) their
surfaces become dry and more susceptible to ozone and weather check-
ing and the casing becomes susceptible to flat spotting.
For this reason, tires should always be stored in a cool, dry, clean,
indoor environment. If storage is for one month or more, eliminate the
weight from the tires by raising the vehicle or by removing the tires
from the vehicle. Failure to store tires in accordance with these
instructions could result in damage to your tires or premature aging of
the tires and sudden tire failure.
When tires are stored, be sure they are placed away from sources of heat
and ozone such as hot pipes and electric generators. Be sure that surfaces
on which tires are stored are clean and free from grease, gasoline or other
substances which could deteriorate the rubber.(Tires exposed to these
materials during storage or driving could be subject to sudden failure.)
FOLLOW THESE MOUNTING RECOMMENDATIONS
Tire changing can be dangerous and must be done by professionally
trained persons using proper tools and procedures as specified by the
Rubber Manufacturers Association (RMA).
Your tires should be mounted on wheels of correct size and type and
which are in good, clean condition. Wheels that are bent, chipped, rusted
(steel wheels) or corroded (alloy wheels) may cause tire damage. The
inside of the tire must be free from foreign material. Have your retailer
check the wheels before mounting new tires. Mismatched tires and rims
BFGOODRICH TIRES
41
Page 43 of 316

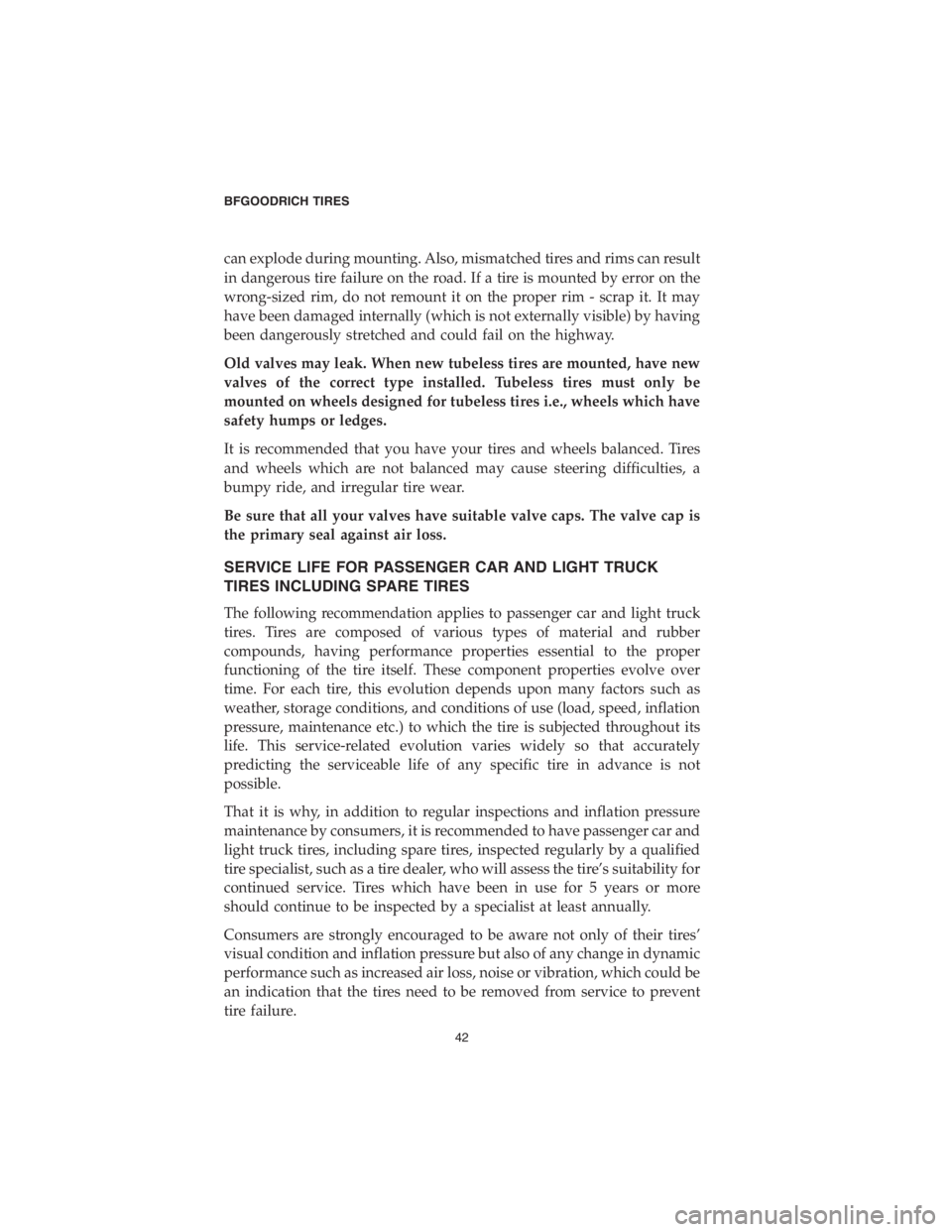

can explode during mounting. Also, mismatched tires and rims can result
in dangerous tire failure on the road. If a tire is mounted by error on the
wrong-sized rim, do not remount it on the proper rim - scrap it. It may
have been damaged internally (which is not externally visible) by having
been dangerously stretched and could fail on the highway.
Old valves may leak. When new tubeless tires are mounted, have new
valves of the correct type installed. Tubeless tires must only be
mounted on wheels designed for tubeless tires i.e., wheels which have
safety humps or ledges.
It is recommended that you have your tires and wheels balanced. Tires
and wheels which are not balanced may cause steering difficulties, a
bumpy ride, and irregular tire wear.
Be sure that all your valves have suitable valve caps. The valve cap is
the primary seal against air loss.
SERVICE LIFE FOR PASSENGER CAR AND LIGHT TRUCK
TIRES INCLUDING SPARE TIRES
The following recommendation applies to passenger car and light truck
tires. Tires are composed of various types of material and rubber
compounds, having performance properties essential to the proper
functioning of the tire itself. These component properties evolve over
time. For each tire, this evolution depends upon many factors such as
weather, storage conditions, and conditions of use (load, speed, inflation
pressure, maintenance etc.) to which the tire is subjected throughout its
life. This service-related evolution varies widely so that accurately
predicting the serviceable life of any specific tire in advance is not
possible.
That it is why, in addition to regular inspections and inflation pressure
maintenance by consumers, it is recommended to have passenger car and
light truck tires, including spare tires, inspected regularly by a qualified
tire specialist, such as a tire dealer, who will assess the tire’s suitability for
continued service. Tires which have been in use for 5 years or more
should continue to be inspected by a specialist at least annually.
Consumers are strongly encouraged to be aware not only of their tires’
visual condition and inflation pressure but also of any change in dynamic
performance such as increased air loss, noise or vibration, which could be
an indication that the tires need to be removed from service to prevent
tire failure.
BFGOODRICH TIRES
42
Page 44 of 316

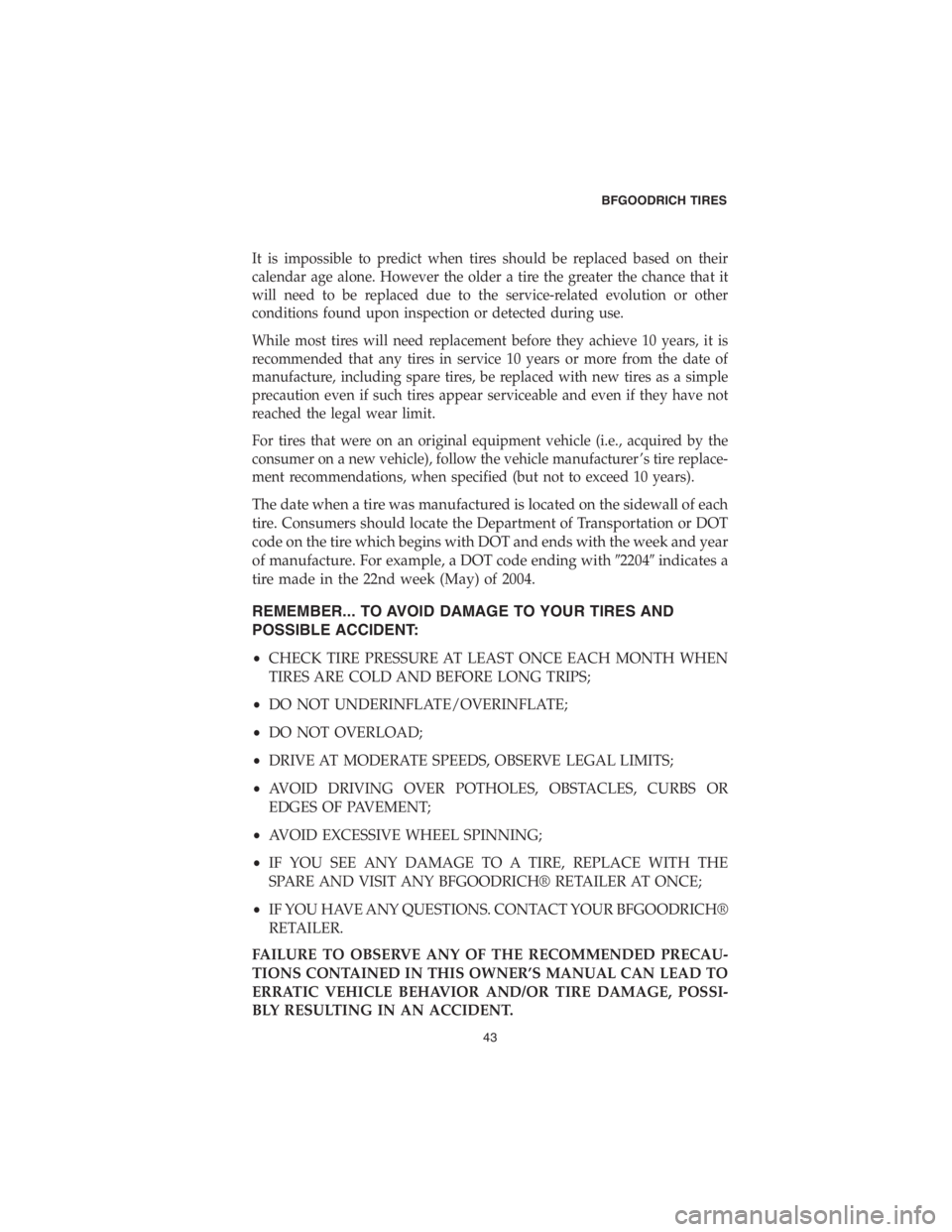

It is impossible to predict when tires should be replaced based on their
calendar age alone. However the older a tire the greater the chance that it
will need to be replaced due to the service-related evolution or other
conditions found upon inspection or detected during use.
While most tires will need replacement before they achieve 10 years, it is
recommended that any tires in service 10 years or more from the date of
manufacture, including spare tires, be replaced with new tires as a simple
precaution even if such tires appear serviceable and even if they have not
reached the legal wear limit.
For tires that were on an original equipment vehicle (i.e., acquired by the
consumer on a new vehicle), follow the vehicle manufacturer ’s tire replace-
ment recommendations, when specified (but not to exceed 10 years).
The date when a tire was manufactured is located on the sidewall of each
tire. Consumers should locate the Department of Transportation or DOT
code on the tire which begins with DOT and ends with the week and year
of manufacture. For example, a DOT code ending with2204indicates a
tire made in the 22nd week (May) of 2004.
REMEMBER... TO AVOID DAMAGE TO YOUR TIRES AND
POSSIBLE ACCIDENT:
•CHECK TIRE PRESSURE AT LEAST ONCE EACH MONTH WHEN
TIRES ARE COLD AND BEFORE LONG TRIPS;
•DO NOT UNDERINFLATE/OVERINFLATE;
•DO NOT OVERLOAD;
•DRIVE AT MODERATE SPEEDS, OBSERVE LEGAL LIMITS;
•AVOID DRIVING OVER POTHOLES, OBSTACLES, CURBS OR
EDGES OF PAVEMENT;
•AVOID EXCESSIVE WHEEL SPINNING;
•IF YOU SEE ANY DAMAGE TO A TIRE, REPLACE WITH THE
SPARE AND VISIT ANY BFGOODRICH® RETAILER AT ONCE;
•IF YOU HAVE ANY QUESTIONS. CONTACT YOUR BFGOODRICH®
RETAILER.
FAILURE TO OBSERVE ANY OF THE RECOMMENDED PRECAU-
TIONS CONTAINED IN THIS OWNER’S MANUAL CAN LEAD TO
ERRATIC VEHICLE BEHAVIOR AND/OR TIRE DAMAGE, POSSI-
BLY RESULTING IN AN ACCIDENT.
BFGOODRICH TIRES
43
Page 45 of 316

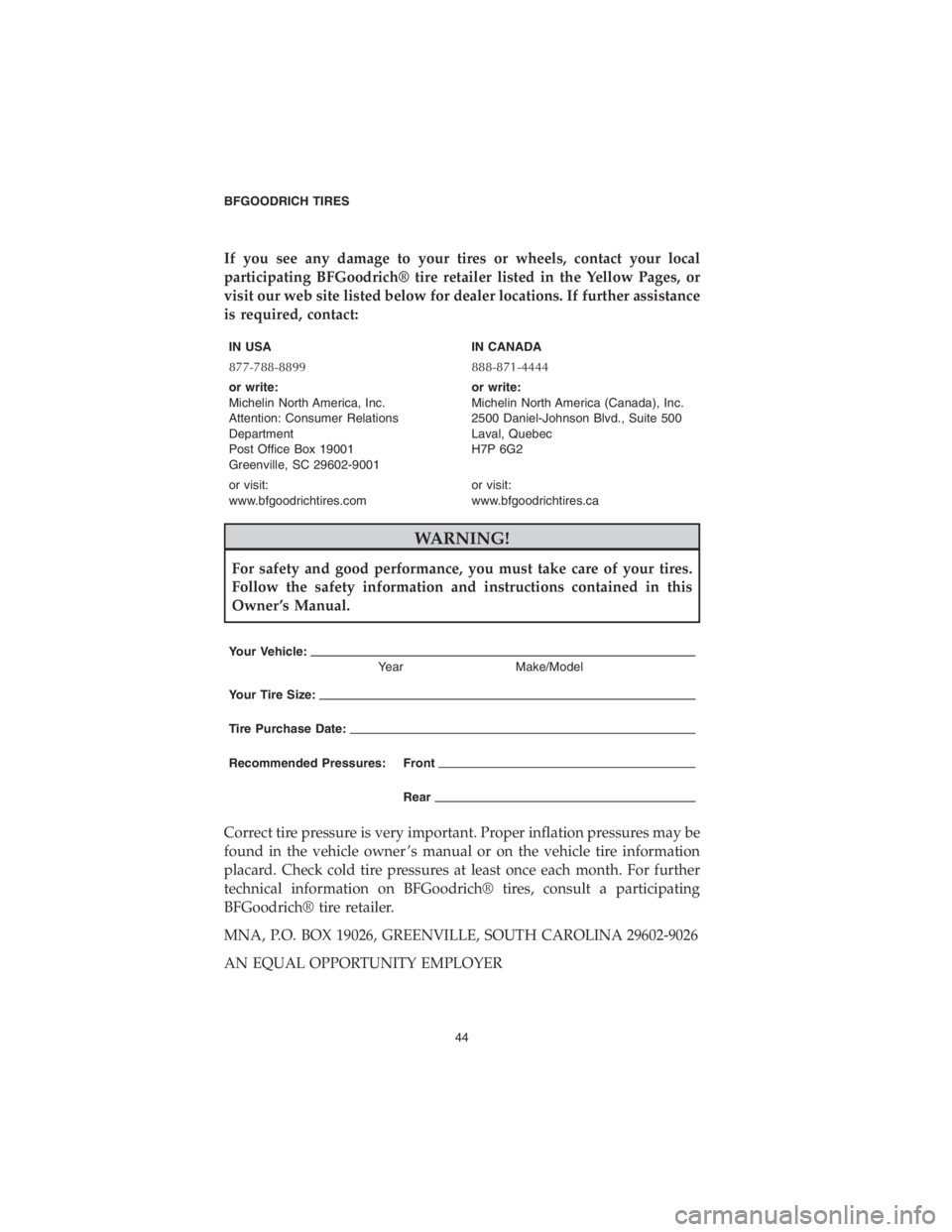

If you see any damage to your tires or wheels, contact your local
participating BFGoodrich® tire retailer listed in the Yellow Pages, or
visit our web site listed below for dealer locations. If further assistance
is required, contact:
IN USA IN CANADA
877-788-8899 888-871-4444
or write:
Michelin North America, Inc.
Attention: Consumer Relations
Department
Post Office Box 19001
Greenville, SC 29602-9001or write:
Michelin North America (Canada), Inc.
2500 Daniel-Johnson Blvd., Suite 500
Laval, Quebec
H7P 6G2
or visit:
www.bfgoodrichtires.comor visit:
www.bfgoodrichtires.ca
WARNING!
For safety and good performance, you must take care of your tires.
Follow the safety information and instructions contained in this
Owner ’s Manual.
Your Vehicle:Year Make/Model
Your Tire Size:
Tire Purchase Date:
Recommended Pressures: Front
Rear
Correct tire pressure is very important. Proper inflation pressures may be
found in the vehicle owner ’s manual or on the vehicle tire information
placard. Check cold tire pressures at least once each month. For further
technical information on BFGoodrich® tires, consult a participating
BFGoodrich® tire retailer.
MNA, P.O. BOX 19026, GREENVILLE, SOUTH CAROLINA 29602-9026
AN EQUAL OPPORTUNITY EMPLOYER
BFGOODRICH TIRES
44
Page 46 of 316
BRIDGESTONE® - FIRESTONE®
TIRE MAINTENANCE, SAFETY and WARRANTY MANUAL ORIGI-
NAL EQUIPMENT PASSENGER and LIGHT TRUCK TIRES Includ-
ing RFT Tires with Run-Flat Technology
Congratulations!
Your new vehicle comes equipped with quality BRIDGESTONE or
FIRESTONE brand tires.
To ensure optimum tire performance and reduce the risk of a tire failure,
Bridgestone Firestone North American Tire, LLC strongly recommends
you read and follow all maintenance and safety information contained in
this manual. In addition, we recommend periodic inspection and main-
tenance, if necessary, by a qualified tire service professional.
Inflate.
Check your tire pressure monthly.
Rotate.
Rotate your tires as recommended by the vehicle manufacturer or every
5,000 miles.
Evaluate.
Routinely look for signs of tread wear or damage.
TIRE CARE BASICS
Quick Reference Guide to Maintenance for All Tires, Including the
Spare.
BRIDGESTONE® - FIRESTONE®
45
Page 47 of 316

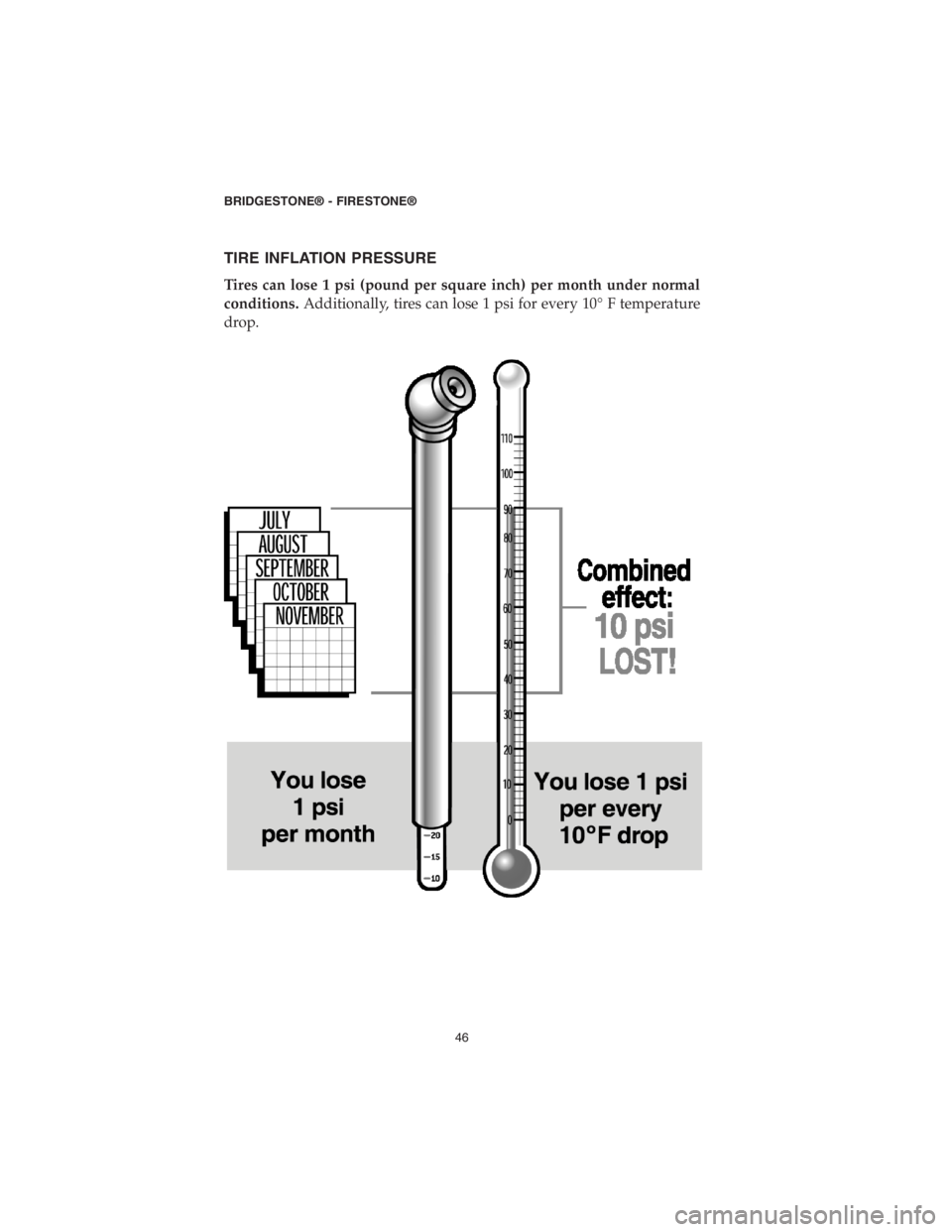

TIRE INFLATION PRESSURE
Tires can lose 1 psi (pound per square inch) per month under normal
conditions.Additionally, tires can lose 1 psi for every 10° F temperature
drop.
BRIDGESTONE® - FIRESTONE®
46
Page 48 of 316
Just a look won’t do it.One of these tires is actually 10 psi under-inflated.
Your eyes can deceive you, so rely on a good tire gauge for an accurate
reading.
Look for the manufacturer ’s recommended tire pressure listed on the
sticker usually located on the driver ’s-side door edge or door jamb area.
Example:
BRIDGESTONE® - FIRESTONE®
47
Page 49 of 316

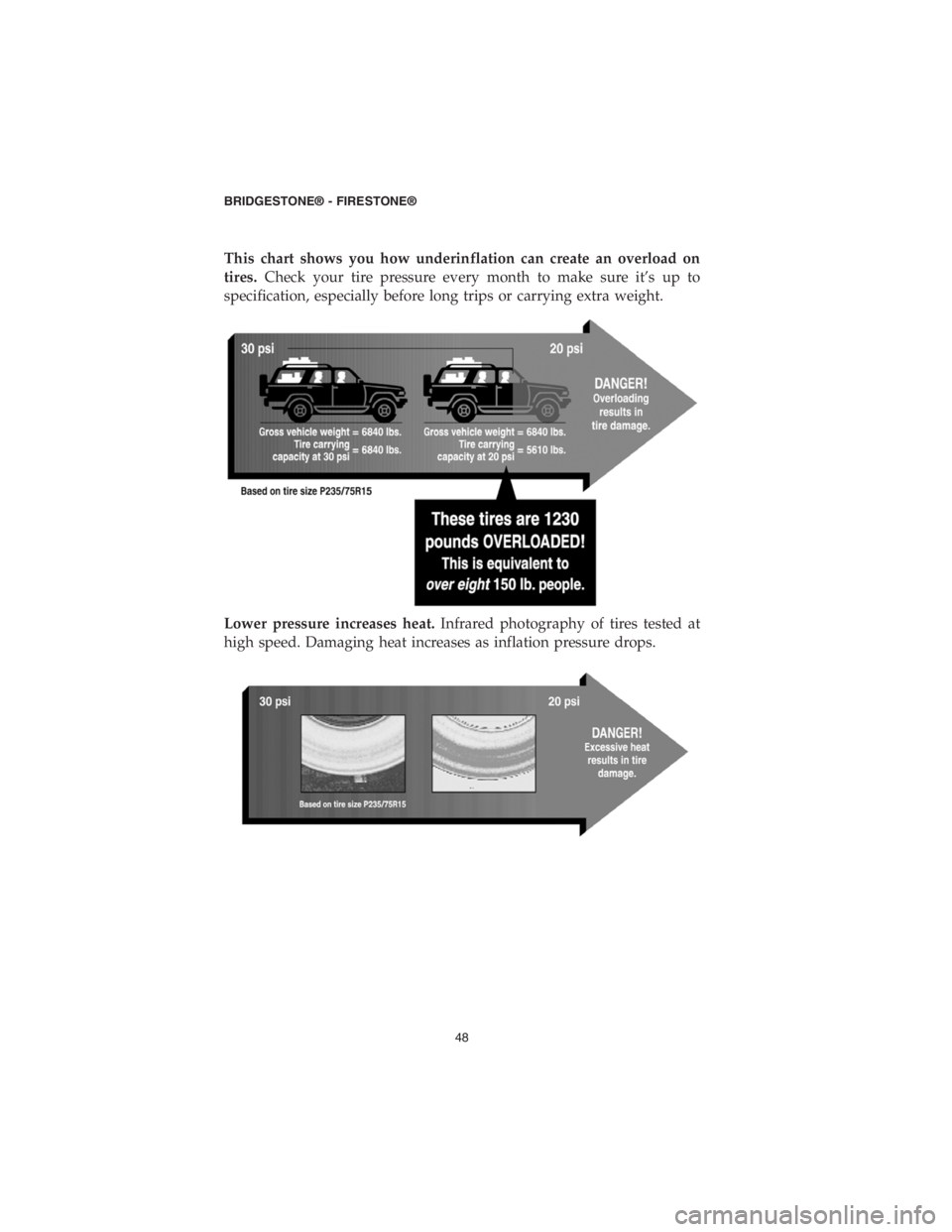

This chart shows you how underinflation can create an overload on
tires.Check your tire pressure every month to make sure it’s up to
specification, especially before long trips or carrying extra weight.
Lower pressure increases heat.Infrared photography of tires tested at
high speed. Damaging heat increases as inflation pressure drops.
BRIDGESTONE® - FIRESTONE®
48
Page 50 of 316

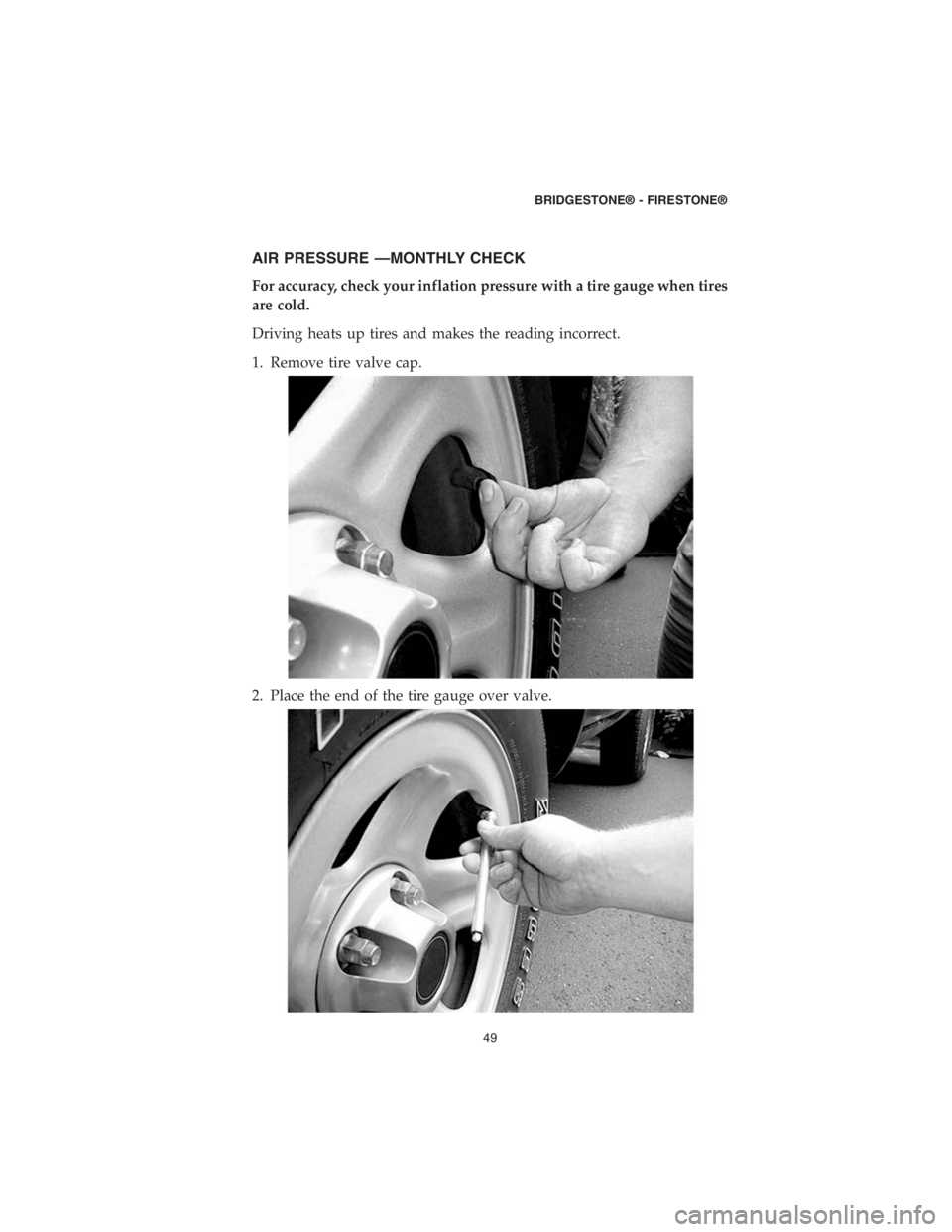

AIR PRESSURE —MONTHLY CHECK
For accuracy, check your inflation pressure with a tire gauge when tires
are cold.
Driving heats up tires and makes the reading incorrect.
1. Remove tire valve cap.
2. Place the end of the tire gauge over valve.
BRIDGESTONE® - FIRESTONE®
49
