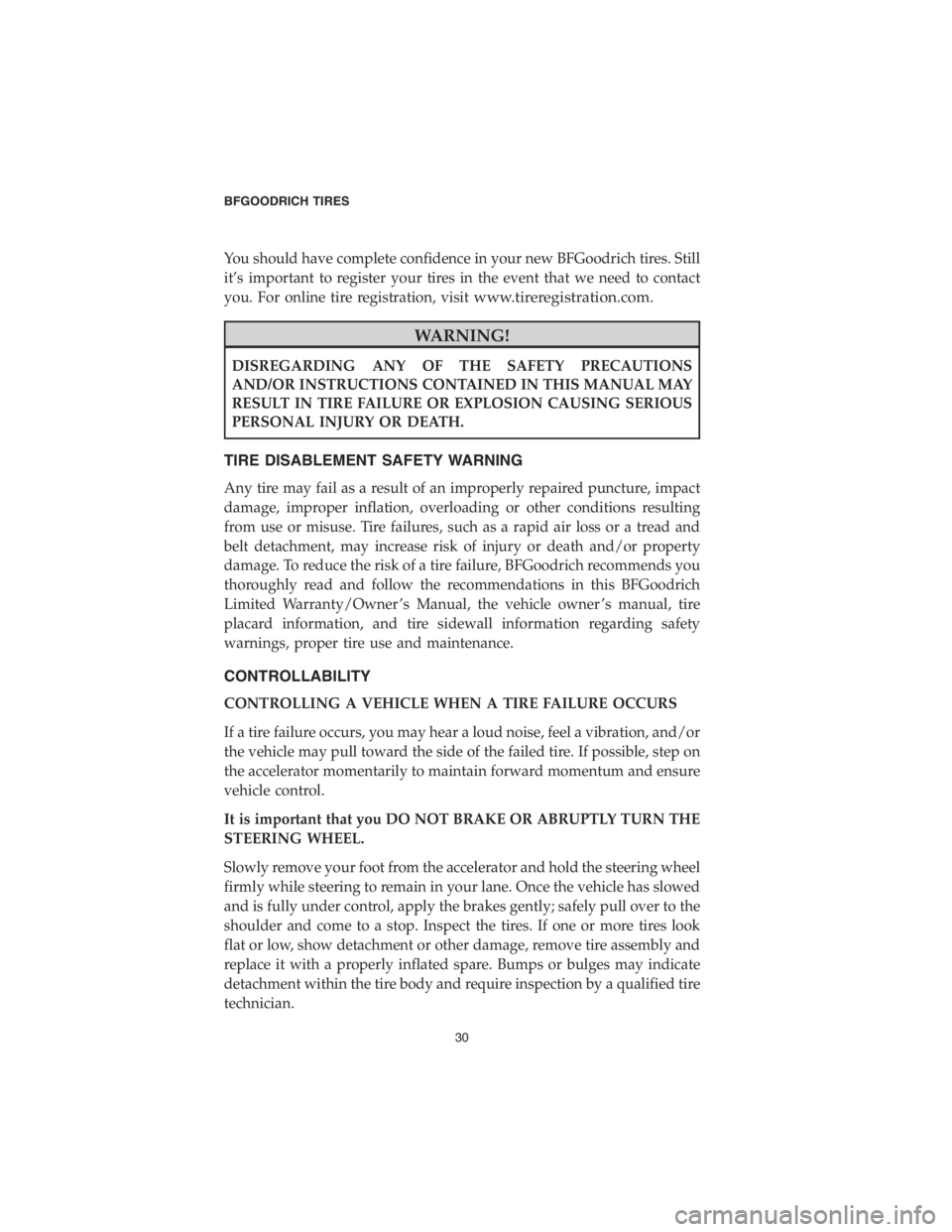

You should have complete confidence in your new BFGoodrich tires. Still
it’s important to register your tires in the event that we need to contact
you. For online tire registration, visit
www.tireregistration.com.
WARNING!
DISREGARDING ANY OF THE SAFETY PRECAUTIONS
AND/OR INSTRUCTIONS CONTAINED IN THIS MANUAL MAY
RESULT IN TIRE FAILURE OR EXPLOSION CAUSING SERIOUS
PERSONAL INJURY OR DEATH.
TIRE DISABLEMENT SAFETY WARNING
Any tire may fail as a result of an improperly repaired puncture, impact
damage, improper inflation, overloading or other conditions resulting
from use or misuse. Tire failures, such as a rapid air loss or a tread and
belt detachment, may increase risk of injury or death and/or property
damage. To reduce the risk of a tire failure, BFGoodrich recommends you
thoroughly read and follow the recommendations in this BFGoodrich
Limited Warranty/Owner ’s Manual, the vehicle owner ’s manual, tire
placard information, and tire sidewall information regarding safety
warnings, proper tire use and maintenance.
CONTROLLABILITY
CONTROLLING A VEHICLE WHEN A TIRE FAILURE OCCURS
If a tire failure occurs, you may hear a loud noise, feel a vibration, and/or
the vehicle may pull toward the side of the failed tire. If possible, step on
the accelerator momentarily to maintain forward momentum and ensure
vehicle control.
It is important that you DO NOT BRAKE OR ABRUPTLY TURN THE
STEERING WHEEL.
Slowly remove your foot from the accelerator and hold the steering wheel
firmly while steering to remain in your lane. Once the vehicle has slowed
and is fully under control, apply the brakes gently; safely pull over to the
shoulder and come to a stop. Inspect the tires. If one or more tires look
flat or low, show detachment or other damage, remove tire assembly and
replace it with a properly inflated spare. Bumps or bulges may indicate
detachment within the tire body and require inspection by a qualified tire
technician.
BFGOODRICH TIRES
30
Page 32 of 316
DRIVING ON ANY TIRE THAT DOES NOT HAVE THE CORRECT
INFLATION PRESSURE IS DANGEROUS
Any underinflated tire builds up excessive heat that may result in sudden
tire destruction. If tires are supplied as original equipment, refer to the
tire decal on the vehicle (check vehicle and/or vehicle owner ’s manual
for decal location) for the recommended operating pressures. For replace-
ment tires, the correct inflation pressure will be provided by your tire
retailer; if not, refer to the vehicle decal.
These inflation pressures must be maintained as a minimum. However,
do not exceed the maximum pressure rating indicated on the tire
sidewall.
CHECK THE COLD INFLATION PRESSURES IN ALL YOUR TIRES,
INCLUDING THE SPARE, AT LEAST ONCE EACH MONTH
Failure to maintain correct inflation may result in improper vehicle
handling and may cause rapid and irregular tire wear, sudden tire
destruction, loss of vehicle control and serious personal injury. Therefore,
inflation pressures should be checked at least once each month and
always prior to long distance trips. This applies to all tires, including
sealant types, and Self-Supporting tires which are as susceptible to losing
air pressure as any other type of tire if not properly maintained.
UNDERINFLATION
It is impossible to determine whether tires are properly inflated by
simply looking at them. It is almost impossible to “feel or hear” when a
tire is being run underinflated or nearly flat. Tires must be checked
monthly with a tire pressure gauge.
Pressures should be checked when tires are cold, in other words, before
they have been driven on. Driving, even for a short distance, causes tires
to heat up and air pressure to increase.
Checking pressure when tires are hot:
If pressures are checked after tires have been driven for more than three
minutes or more than one mile, (1.6 km) the tires become hot and the
pressures will increase by approximately 4 psi. Therefore when the tire
pressure is adjusted under these conditions, it should be increased to a
gauge reading of 4 psi greater than the recommended cold inflation
pressure.
BFGOODRICH TIRES
31
Page 33 of 316

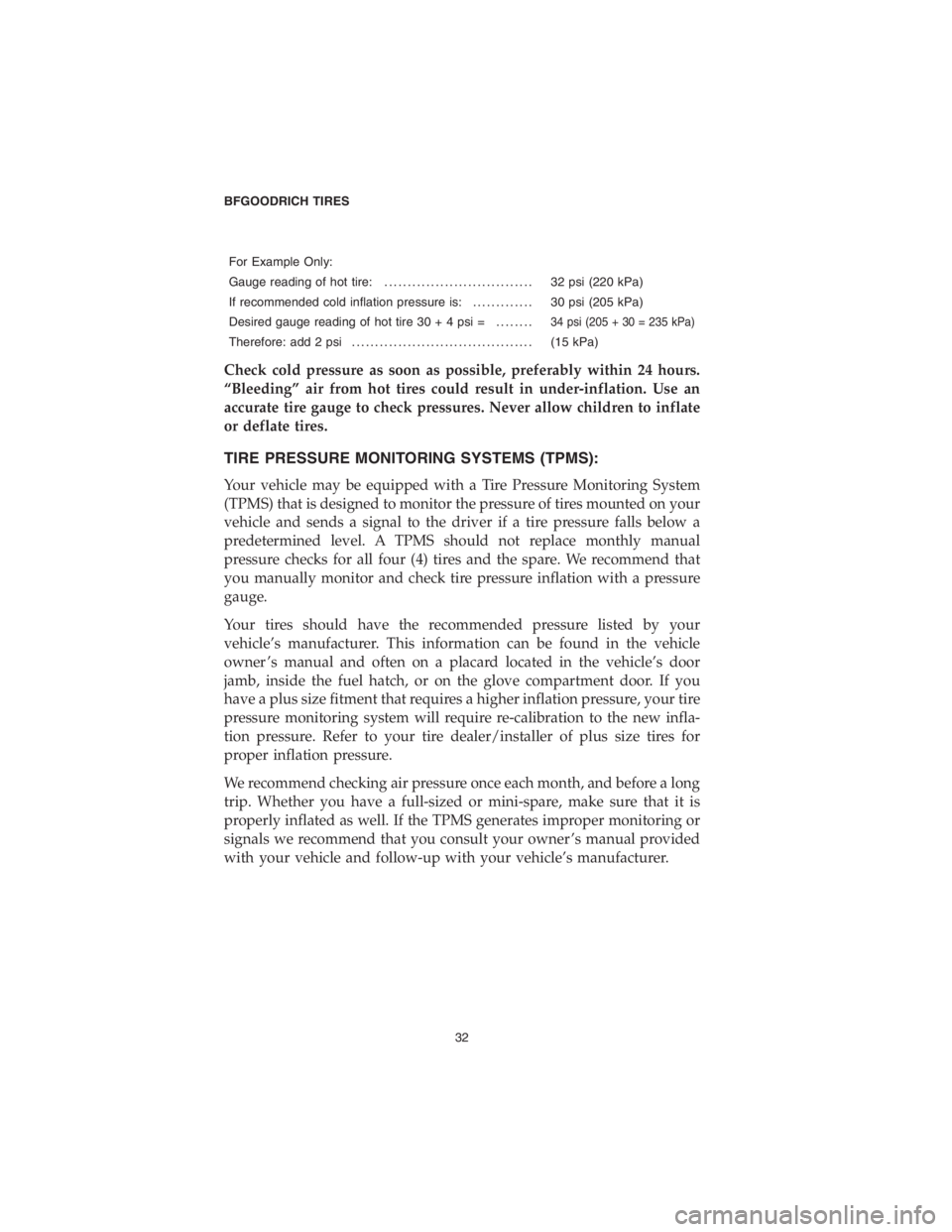

For Example Only:
Gauge reading of hot tire:................................ 32 psi (220 kPa)
If recommended cold inflation pressure is:............. 30 psi (205 kPa)
Desired gauge reading of hot tire 30+4psi=........
34 psi (205 + 30 = 235 kPa)
Therefore: add 2 psi....................................... (15 kPa)
Check cold pressure as soon as possible, preferably within 24 hours.
“Bleeding” air from hot tires could result in under-inflation. Use an
accurate tire gauge to check pressures. Never allow children to inflate
or deflate tires.
TIRE PRESSURE MONITORING SYSTEMS (TPMS):
Your vehicle may be equipped with a Tire Pressure Monitoring System
(TPMS) that is designed to monitor the pressure of tires mounted on your
vehicle and sends a signal to the driver if a tire pressure falls below a
predetermined level. A TPMS should not replace monthly manual
pressure checks for all four (4) tires and the spare. We recommend that
you manually monitor and check tire pressure inflation with a pressure
gauge.
Your tires should have the recommended pressure listed by your
vehicle’s manufacturer. This information can be found in the vehicle
owner ’s manual and often on a placard located in the vehicle’s door
jamb, inside the fuel hatch, or on the glove compartment door. If you
have a plus size fitment that requires a higher inflation pressure, your tire
pressure monitoring system will require re-calibration to the new infla-
tion pressure. Refer to your tire dealer/installer of plus size tires for
proper inflation pressure.
We recommend checking air pressure once each month, and before a long
trip. Whether you have a full-sized or mini-spare, make sure that it is
properly inflated as well. If the TPMS generates improper monitoring or
signals we recommend that you consult your owner ’s manual provided
with your vehicle and follow-up with your vehicle’s manufacturer.
BFGOODRICH TIRES
32
Page 34 of 316
TIRE SPINNING
Do not spin wheels in excess of 35 mph (55 km/h) as indicated on the
speedometer. Excessive speed in a free-running, unloaded tire can cause
it to “explode” from centrifugal force. The energy released by such an
explosion is sufficient to cause serious physical injury or death. Never
allow anyone to stand near or behind the spinning tire.
When in mud, sand, snow, ice or other slippery conditions, do not engage
in excessive wheel spin. Accelerating the motor excessively, particularly
with automatic transmission vehicles, may cause a drive tire that has lost
traction to spin beyond its speed capability. This is also true when
balancing a drive tire/wheel assembly on the vehicle using the vehicle
engine to spin the tire/wheel assembly.
HIGH SPEED DRIVING CAN BE DANGEROUS
Correct inflation pressure is especially important.However, at high
speeds, even with the correct inflation pressure, a road hazard, for
example is more difficult to avoid and if contact is made, has a greater
chance of causing tire damage than at a lower speed. Moreover, driving
at high speed reduces the reaction time available to avoid accidents and
bring your vehicle to a safe stop.
If you see any damage to a tire or wheel, replace it with the spare at
once and visit a participating BFGoodrich Tire Retailer.
Exceeding the maximum speeds shown on the following page for each
type of BFGoodrich tire will cause the tire to build up excessive heat
which can cause tire damage that could result in sudden tire destruction
and rapid air loss. Failure to control a vehicle when one or more tires
experience a sudden air loss can lead to an accident.
In any case, you should not exceed reasonable speeds as indicated by
the legal limits and driving conditions.
BFGOODRICH TIRES
33
Page 35 of 316

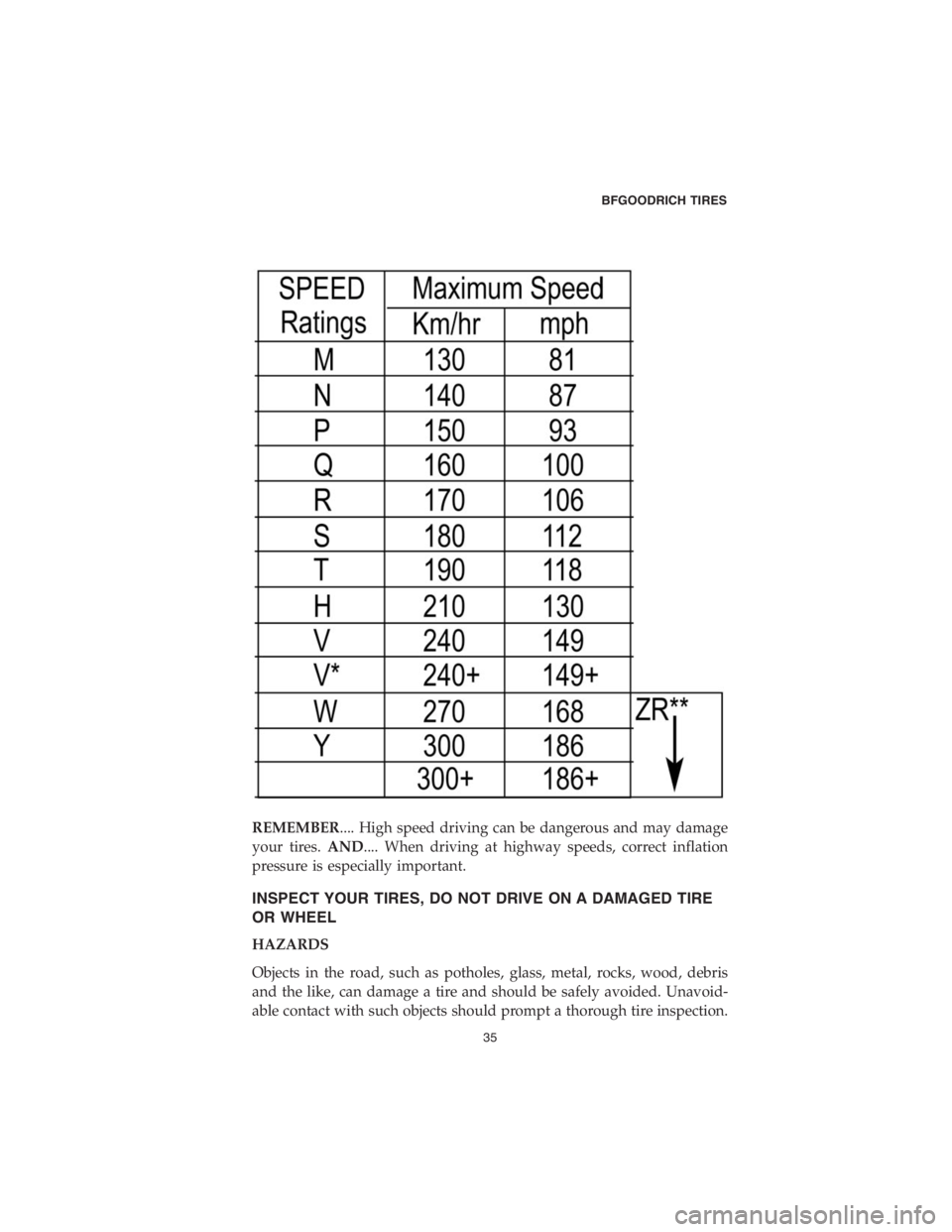

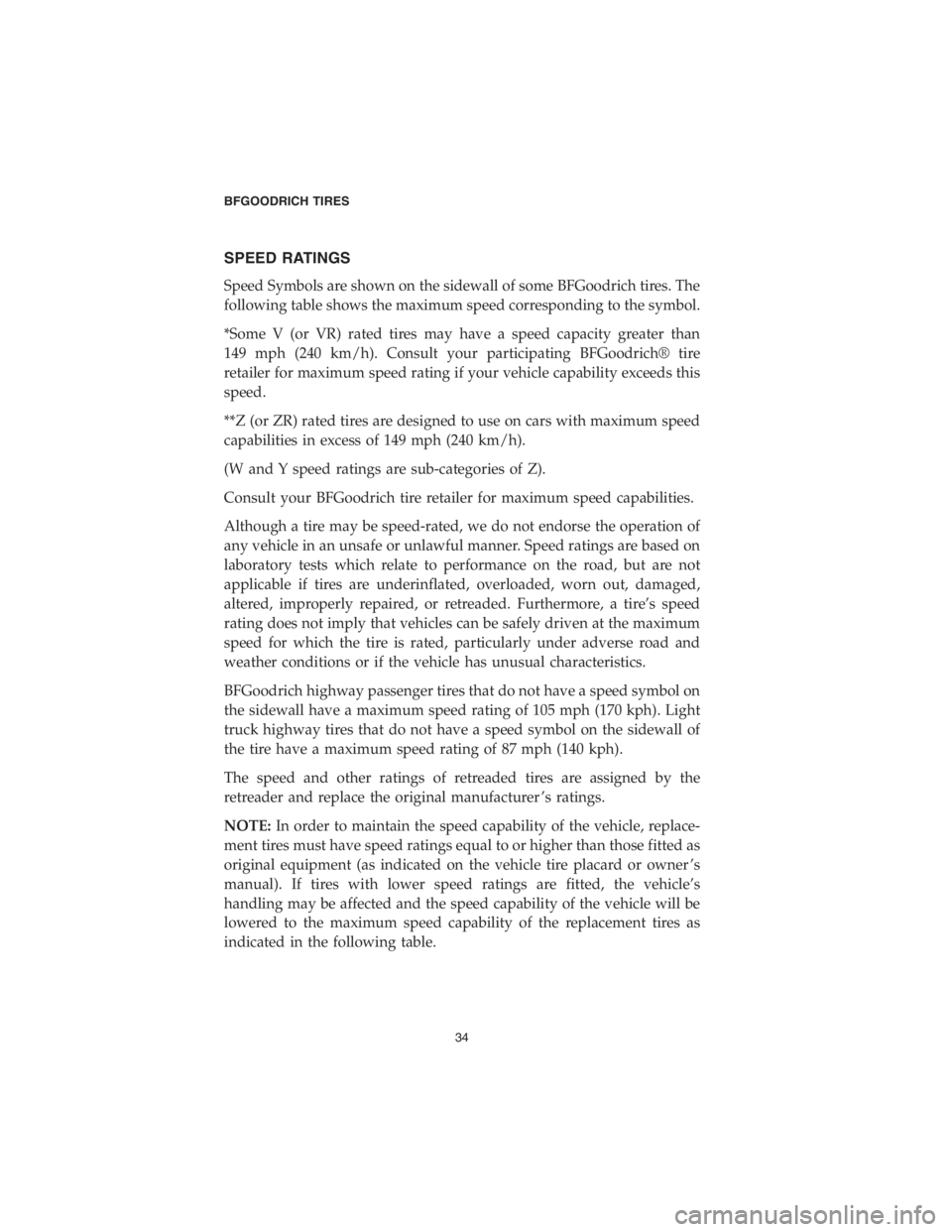

SPEED RATINGS
Speed Symbols are shown on the sidewall of some BFGoodrich tires. The
following table shows the maximum speed corresponding to the symbol.
*Some V (or VR) rated tires may have a speed capacity greater than
149 mph (240 km/h). Consult your participating BFGoodrich® tire
retailer for maximum speed rating if your vehicle capability exceeds this
speed.
**Z (or ZR) rated tires are designed to use on cars with maximum speed
capabilities in excess of 149 mph (240 km/h).
(W and Y speed ratings are sub-categories of Z).
Consult your BFGoodrich tire retailer for maximum speed capabilities.
Although a tire may be speed-rated, we do not endorse the operation of
any vehicle in an unsafe or unlawful manner. Speed ratings are based on
laboratory tests which relate to performance on the road, but are not
applicable if tires are underinflated, overloaded, worn out, damaged,
altered, improperly repaired, or retreaded. Furthermore, a tire’s speed
rating does not imply that vehicles can be safely driven at the maximum
speed for which the tire is rated, particularly under adverse road and
weather conditions or if the vehicle has unusual characteristics.
BFGoodrich highway passenger tires that do not have a speed symbol on
the sidewall have a maximum speed rating of 105 mph (170 kph). Light
truck highway tires that do not have a speed symbol on the sidewall of
the tire have a maximum speed rating of 87 mph (140 kph).
The speed and other ratings of retreaded tires are assigned by the
retreader and replace the original manufacturer ’s ratings.
NOTE:In order to maintain the speed capability of the vehicle, replace-
ment tires must have speed ratings equal to or higher than those fitted as
original equipment (as indicated on the vehicle tire placard or owner ’s
manual). If tires with lower speed ratings are fitted, the vehicle’s
handling may be affected and the speed capability of the vehicle will be
lowered to the maximum speed capability of the replacement tires as
indicated in the following table.
BFGOODRICH TIRES
34
Page 36 of 316
REMEMBER.... High speed driving can be dangerous and may damage
your tires.AND.... When driving at highway speeds, correct inflation
pressure is especially important.
INSPECT YOUR TIRES, DO NOT DRIVE ON A DAMAGED TIRE
OR WHEEL
HAZARDS
Objects in the road, such as potholes, glass, metal, rocks, wood, debris
and the like, can damage a tire and should be safely avoided. Unavoid-
able contact with such objects should prompt a thorough tire inspection.
BFGOODRICH TIRES
35
Page 37 of 316

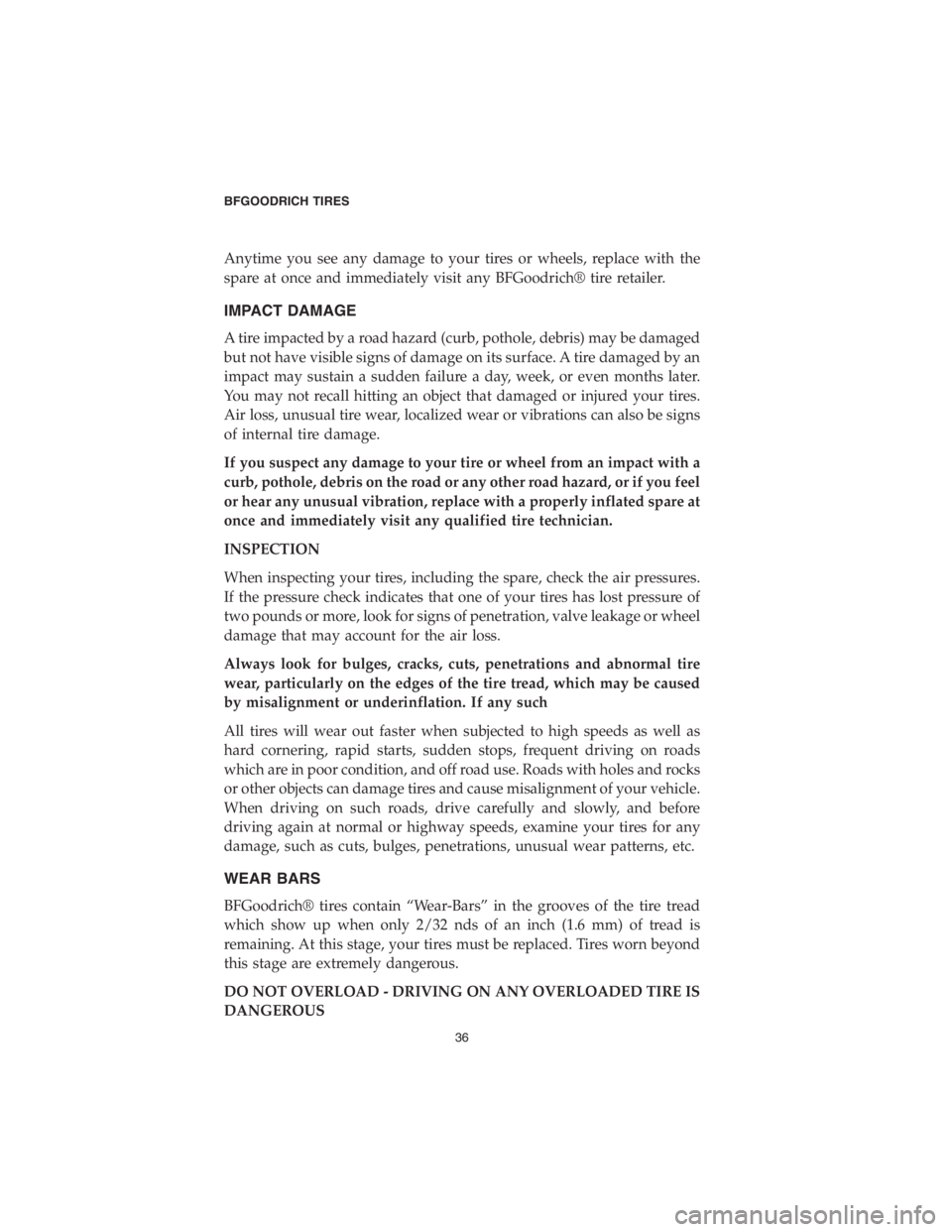

Anytime you see any damage to your tires or wheels, replace with the
spare at once and immediately visit any BFGoodrich® tire retailer.
IMPACT DAMAGE
A tire impacted by a road hazard (curb, pothole, debris) may be damaged
but not have visible signs of damage on its surface. A tire damaged by an
impact may sustain a sudden failure a day, week, or even months later.
You may not recall hitting an object that damaged or injured your tires.
Air loss, unusual tire wear, localized wear or vibrations can also be signs
of internal tire damage.
If you suspect any damage to your tire or wheel from an impact with a
curb, pothole, debris on the road or any other road hazard, or if you feel
or hear any unusual vibration, replace with a properly inflated spare at
once and immediately visit any qualified tire technician.
INSPECTION
When inspecting your tires, including the spare, check the air pressures.
If the pressure check indicates that one of your tires has lost pressure of
two pounds or more, look for signs of penetration, valve leakage or wheel
damage that may account for the air loss.
Always look for bulges, cracks, cuts, penetrations and abnormal tire
wear, particularly on the edges of the tire tread, which may be caused
by misalignment or underinflation. If any such
All tires will wear out faster when subjected to high speeds as well as
hard cornering, rapid starts, sudden stops, frequent driving on roads
which are in poor condition, and off road use. Roads with holes and rocks
or other objects can damage tires and cause misalignment of your vehicle.
When driving on such roads, drive carefully and slowly, and before
driving again at normal or highway speeds, examine your tires for any
damage, such as cuts, bulges, penetrations, unusual wear patterns, etc.
WEAR BARS
BFGoodrich® tires contain “Wear-Bars” in the grooves of the tire tread
which show up when only 2/32 nds of an inch (1.6 mm) of tread is
remaining. At this stage, your tires must be replaced. Tires worn beyond
this stage are extremely dangerous.
DO NOT OVERLOAD - DRIVING ON ANY OVERLOADED TIRE IS
DANGEROUS
BFGOODRICH TIRES
36
Page 38 of 316
The maximum load rating of your tires is molded on the tire sidewall. Do
not exceed this rating. Follow the loading instructions of the manufac-
turer of your vehicle and this will ensure that your tires are not
overloaded. Tires which are loaded beyond their maximum allowable
loads for the particular application will build up excessive heat that may
result in sudden tire destruction.
Do not exceed the gross axle weight rating for any axle on your vehicle.
TRAILER TOWING
If you anticipate towing a trailer, you should visit any BFGoodrich® tire
retailer for advice concerning the correct size tire and pressures. Tire size
and pressures will depend upon the type and size of trailer and hitch
utilized, but in no case must the maximum cold inflation pressure or tire
load rating be exceeded. Check the tire decal and the owner ’s manual
supplied by the manufacturer of your vehicle for further recommenda-
tions on trailer towing.
WHEEL ALIGNMENT AND BALANCING ARE IMPORTANT FOR
SAFETY AND MAXIMUM MILEAGE FROM YOUR TIRES CHECK
HOW YOUR TIRES ARE WEARING AT LEAST ONCE EACH
MONTH
If your tires are wearing unevenly, such as the inside shoulder of the tire
wearing faster than the rest of the tread, or if you detect excessive
vibration, your vehicle may be out of alignment or balance. These
conditions not only shorten the life of your tires but adversely affect the
handling characteristics of your vehicle, which could be dangerous. If
you detect irregular wear or vibration, have your alignment and balance
checked immediately. Tires which have been run underinflated will show
more wear on the shoulders than in the center of the tread.
TIRE MIXING
BFGoodrich® tires are radial tires and for best performance it is recom-
mended that the same size and type of tire be used on all four wheel
positions. Before mixing tires of different types in any configuration on
any vehicle, be sure to check the vehicle manufacturer ’s Owner‘s Manual
for its recommendations.
It is especially important to check the vehicle manufacturer ’s owner ’s
manual when mixing, matching or replacing tires on 4-wheel drive
vehicles, as this may require special precautions.
BFGOODRICH TIRES
37
Page 39 of 316
BFGOODRICH® DOES NOT RECOMMEND MIXING SELF SUPPORT-
ING STRUCTURE (SSS) TIRES WITH NON-SSS TIRES OTHER THAN
THE TEMPORARY USE OF THE SPARE TIRE.
WINTER DRIVING
Tires which meet the Rubber manufactures Association (RMA) definition
of snow tires are marked M/S, M&S. On such tires, this designation is
molded into the sidewall. Tires without this notation are not recom-
mended for winter driving.
While All-Season tires are designed to provide reliable
performance in some winter conditions, the use of four
(4) winter tires is recommended for optimum perfor-
mance. Tires designated for use in severe winter condi-
tions are marked on at least one sidewall with the letter
“M” and “S” plus a pictograph of a mountain with a snowflake on it.
TIRE ROTATION AND REPLACEMENT
To obtain maximum tire wear, it may be necessary to rotate your tires. Refer
to your vehicle owner ’s manual for instructions on tire rotation. If you do
not have an owner‘s manual for your vehicle, BFGoodrich® recommends
rotating your tires every 6,000 to 8,000 miles (10,000 to 12,000 km).
Monthly inspection for tire wear is recommended. Your tires should be
rotated at the first sign of irregular wear, even if it occurs before 6,000
miles (10,000 km). This is true for all vehicles.
When rotating tires with a directional tread pattern, observe the arrows
molded on the sidewall which show the direction the tire should turn.
Care must be taken to maintain the proper turning direction.
Some Tire Pressure Monitoring systems (TPMS) may not recognize that a
tire has been moved to a different position on your vehicle. Make certain
that your TPMS system is reset, if necessary, so as to correctly identify the
location of each tire on your vehicle. Refer to your vehicle owner ’s
manual or your vehicle dealer.
Determine whether rotated tires require tire inflation adjustment as front and
rear position tire pressure may vary according to the vehicle manufacturer ’s
specification due to the actual load on that wheel position. Some vehicles may
have different sized tires mounted on the front and rear axles, and these
different sized tires have rotation restrictions. Always check the vehicle
owner ’s manual for the proper rotation recommendations.
BFGOODRICH TIRES
38
Page 40 of 316

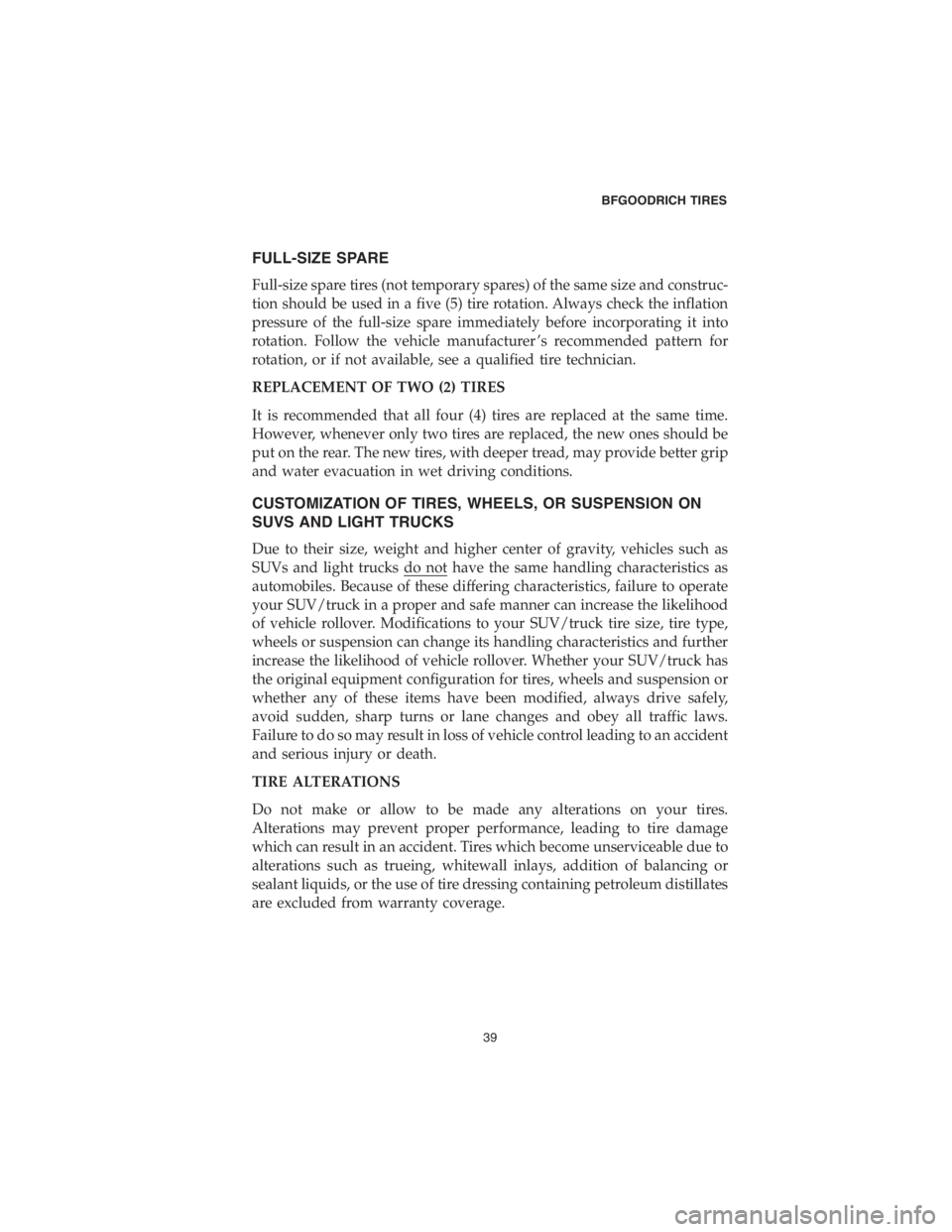

FULL-SIZE SPARE
Full-size spare tires (not temporary spares) of the same size and construc-
tion should be used in a five (5) tire rotation. Always check the inflation
pressure of the full-size spare immediately before incorporating it into
rotation. Follow the vehicle manufacturer ’s recommended pattern for
rotation, or if not available, see a qualified tire technician.
REPLACEMENT OF TWO (2) TIRES
It is recommended that all four (4) tires are replaced at the same time.
However, whenever only two tires are replaced, the new ones should be
put on the rear. The new tires, with deeper tread, may provide better grip
and water evacuation in wet driving conditions.
CUSTOMIZATION OF TIRES, WHEELS, OR SUSPENSION ON
SUVS AND LIGHT TRUCKS
Due to their size, weight and higher center of gravity, vehicles such as
SUVs and light trucks do not have the same handling characteristics as
automobiles. Because of these differing characteristics, failure to operate
your SUV/truck in a proper and safe manner can increase the likelihood
of vehicle rollover. Modifications to your SUV/truck tire size, tire type,
wheels or suspension can change its handling characteristics and further
increase the likelihood of vehicle rollover. Whether your SUV/truck has
the original equipment configuration for tires, wheels and suspension or
whether any of these items have been modified, always drive safely,
avoid sudden, sharp turns or lane changes and obey all traffic laws.
Failure to do so may result in loss of vehicle control leading to an accident
and serious injury or death.
TIRE ALTERATIONS
Do not make or allow to be made any alterations on your tires.
Alterations may prevent proper performance, leading to tire damage
which can result in an accident. Tires which become unserviceable due to
alterations such as trueing, whitewall inlays, addition of balancing or
sealant liquids, or the use of tire dressing containing petroleum distillates
are excluded from warranty coverage.
BFGOODRICH TIRES
39
