power steering fluid DODGE CHALLENGER 2022 Owners Manual

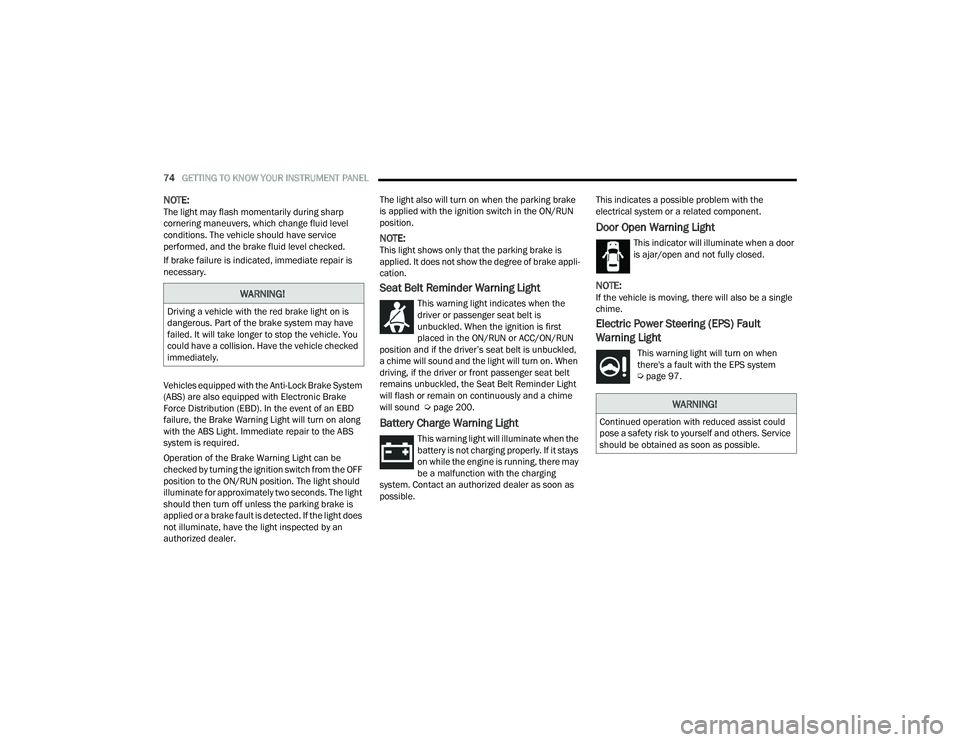

74GETTING TO KNOW YOUR INSTRUMENT PANEL
NOTE:The light may flash momentarily during sharp
cornering maneuvers, which change fluid level
conditions. The vehicle should have service
performed, and the brake fluid level checked.
If brake failure is indicated, immediate repair is
necessary.
Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake
Force Distribution (EBD). In the event of an EBD
failure, the Brake Warning Light will turn on along
with the ABS Light. Immediate repair to the ABS
system is required.
Operation of the Brake Warning Light can be
checked by turning the ignition switch from the OFF
position to the ON/RUN position. The light should
illuminate for approximately two seconds. The light
should then turn off unless the parking brake is
applied or a brake fault is detected. If the light does
not illuminate, have the light inspected by an
authorized dealer. The light also will turn on when the parking brake
is applied with the ignition switch in the ON/RUN
position.
NOTE:This light shows only that the parking brake is
applied. It does not show the degree of brake appli
-
cation.
Seat Belt Reminder Warning Light
This warning light indicates when the
driver or passenger seat belt is
unbuckled. When the ignition is first
placed in the ON/RUN or ACC/ON/RUN
position and if the driver’s seat belt is unbuckled,
a chime will sound and the light will turn on. When
driving, if the driver or front passenger seat belt
remains unbuckled, the Seat Belt Reminder Light
will flash or remain on continuously and a chime
will sound Ú page 200.
Battery Charge Warning Light
This warning light will illuminate when the
battery is not charging properly. If it stays
on while the engine is running, there may
be a malfunction with the charging
system. Contact an authorized dealer as soon as
possible. This indicates a possible problem with the
electrical system or a related component.
Door Open Warning Light
This indicator will illuminate when a door
is ajar/open and not fully closed.
NOTE:If the vehicle is moving, there will also be a single
chime.
Electric Power Steering (EPS) Fault
Warning Light
This warning light will turn on when
there's a fault with the EPS system
Ú
page 97.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
WARNING!
Continued operation with reduced assist could
pose a safety risk to yourself and others. Service
should be obtained as soon as possible.

22_LA_OM_EN_USC_t.book Page 74

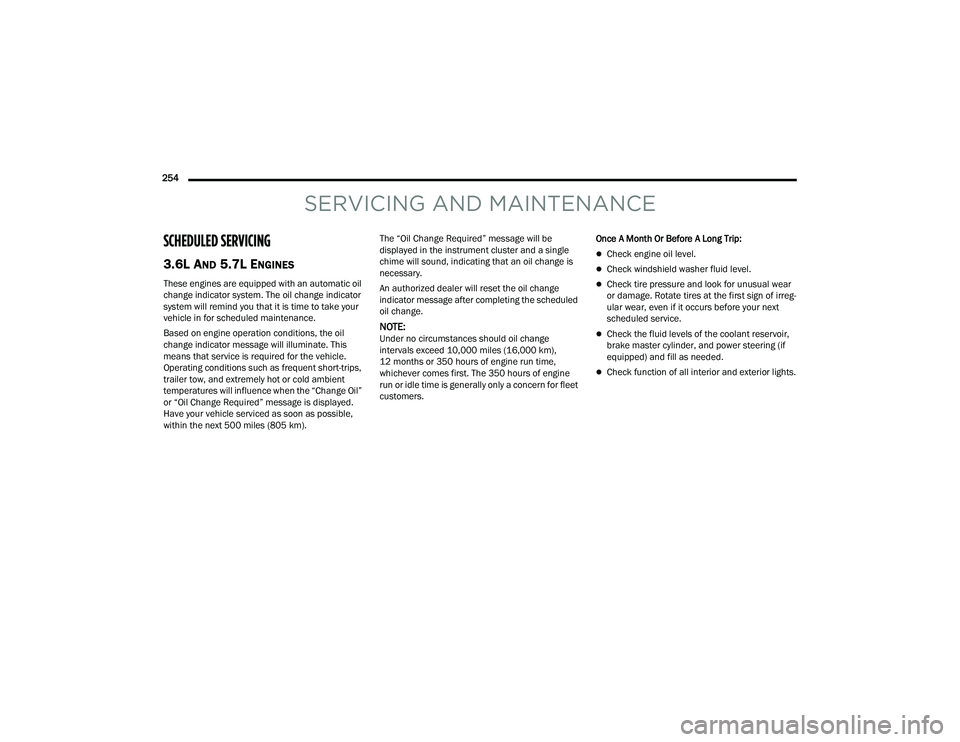

254
SERVICING AND MAINTENANCE
SCHEDULED SERVICING
3.6L AND 5.7L ENGINES
These engines are equipped with an automatic oil
change indicator system. The oil change indicator
system will remind you that it is time to take your
vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate. This
means that service is required for the vehicle.
Operating conditions such as frequent short-trips,
trailer tow, and extremely hot or cold ambient
temperatures will influence when the “Change Oil”
or “Oil Change Required” message is displayed.
Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).The “Oil Change Required” message will be
displayed in the instrument cluster and a single
chime will sound, indicating that an oil change is
necessary.
An authorized dealer will reset the oil change
indicator message after completing the scheduled
oil change.
NOTE:Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 km),
12 months or 350 hours of engine run time,
whichever comes first. The 350 hours of engine
run or idle time is generally only a concern for fleet
customers.
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check tire pressure and look for unusual wear
or damage. Rotate tires at the first sign of irreg
-
ular wear, even if it occurs before your next
scheduled service.
Check the fluid levels of the coolant reservoir,
brake master cylinder, and power steering (if
equipped) and fill as needed.
Check function of all interior and exterior lights.

22_LA_OM_EN_USC_t.book Page 254

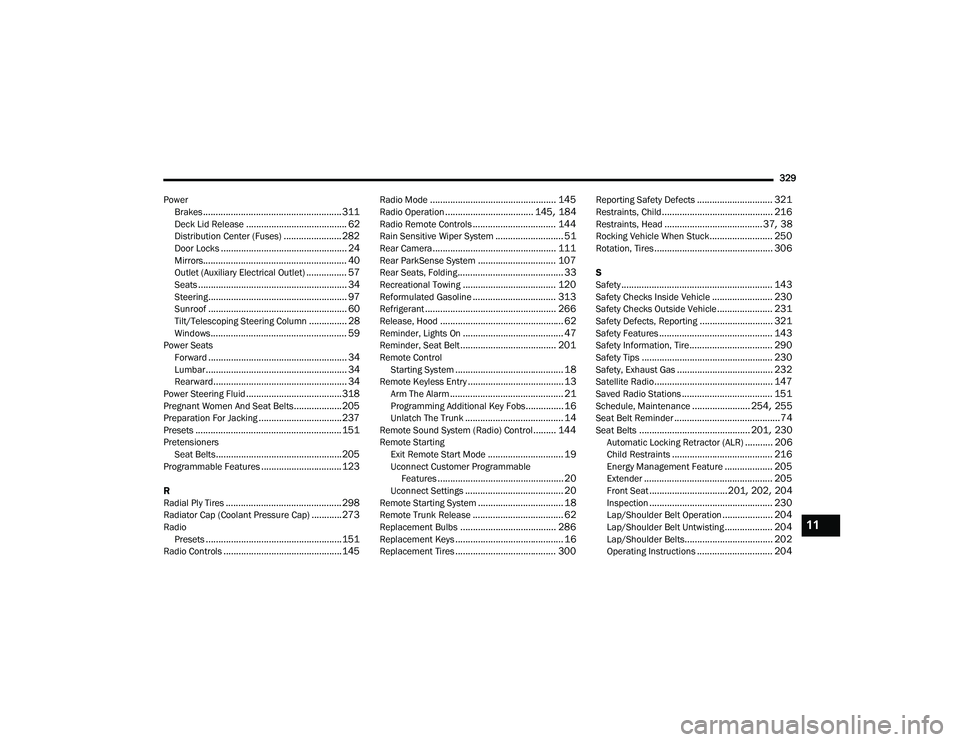

329
Power Brakes
....................................................... 311Deck Lid Release........................................ 62Distribution Center (Fuses)....................... 282Door Locks.................................................. 24Mirrors......................................................... 40Outlet (Auxiliary Electrical Outlet)................ 57Seats........................................................... 34Steering....................................................... 97Sunroof....................................................... 60Tilt/Telescoping Steering Column............... 28Windows...................................................... 59Power SeatsForward....................................................... 34Lumbar........................................................ 34Rearward..................................................... 34Power Steering Fluid...................................... 318Pregnant Women And Seat Belts...................205Preparation For Jacking................................. 237Presets.......................................................... 151PretensionersSeat Belts.................................................. 205Programmable Features................................ 123
R
Radial Ply Tires.............................................. 298Radiator Cap (Coolant Pressure Cap)............ 273RadioPresets...................................................... 151Radio Controls............................................... 145
Radio Mode.................................................. 145Radio Operation................................... 145, 184Radio Remote Controls................................. 144Rain Sensitive Wiper System........................... 51Rear Camera................................................. 111Rear ParkSense System............................... 107Rear Seats, Folding.......................................... 33Recreational Towing..................................... 120Reformulated Gasoline................................. 313Refrigerant.................................................... 266Release, Hood................................................. 62Reminder, Lights On........................................ 47Reminder, Seat Belt...................................... 201Remote ControlStarting System........................................... 18Remote Keyless Entry...................................... 13Arm The Alarm............................................. 21Programming Additional Key Fobs............... 16Unlatch The Trunk....................................... 14Remote Sound System (Radio) Control......... 144Remote StartingExit Remote Start Mode.............................. 19Uconnect Customer ProgrammableFeatures.................................................. 20Uconnect Settings....................................... 20Remote Starting System.................................. 18Remote Trunk Release.................................... 62Replacement Bulbs...................................... 286Replacement Keys........................................... 16Replacement Tires........................................ 300
Reporting Safety Defects.............................. 321Restraints, Child............................................ 216Restraints, Head.......................................37, 38Rocking Vehicle When Stuck......................... 250Rotation, Tires............................................... 306
S
Safety............................................................ 143Safety Checks Inside Vehicle........................ 230Safety Checks Outside Vehicle...................... 231Safety Defects, Reporting............................. 321Safety Features............................................. 143Safety Information, Tire................................. 290Safety Tips.................................................... 230Safety, Exhaust Gas...................................... 232Satellite Radio............................................... 147Saved Radio Stations.................................... 151Schedule, Maintenance....................... 254, 255Seat Belt Reminder..........................................74Seat Belts............................................ 201, 230Automatic Locking Retractor (ALR)........... 206Child Restraints........................................ 216Energy Management Feature................... 205Extender................................................... 205Front Seat............................... 201, 202, 204Inspection................................................. 230Lap/Shoulder Belt Operation.................... 204Lap/Shoulder Belt Untwisting................... 204Lap/Shoulder Belts................................... 202Operating Instructions.............................. 204
11

22_LA_OM_EN_USC_t.book Page 329
