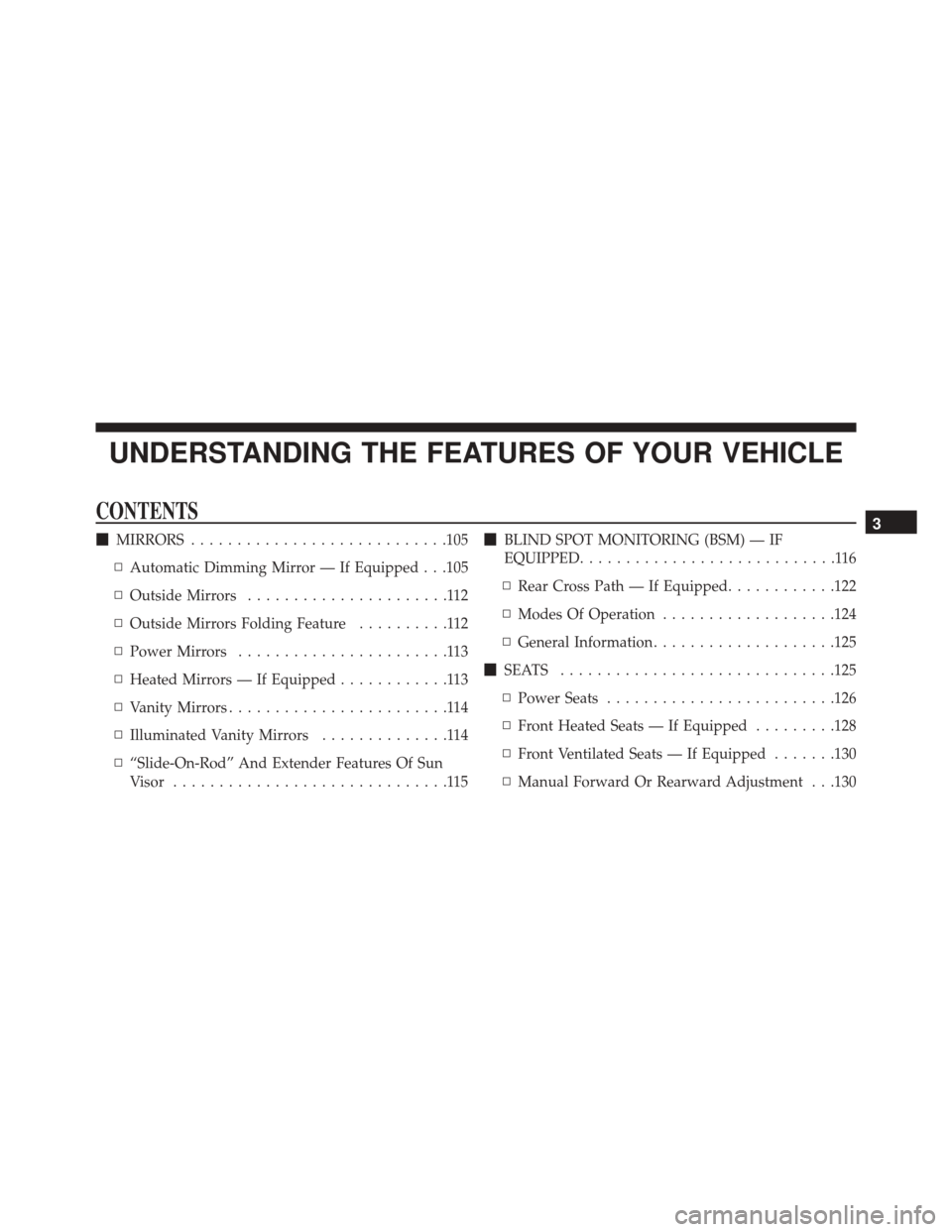

DODGE CHALLENGER SRT 2016 3.G Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .105
▫ Automatic Dimming Mirror — If Equipped . . .105
▫ Outside Mirrors ......................112
▫ Outside Mirrors Folding Feature ..........112
▫ Power Mirrors .......................113
▫ Heated Mirrors — If Equipped ............113
▫ Vanity Mirrors ........................114
▫ Illuminated Vanity Mirrors ..............114
▫ “Slide-On-Rod” And Extender Features Of Sun
Visor ..............................115
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED ............................116
▫ Rear Cross Path — If Equipped ............122
▫ Modes Of Operation ...................124
▫ General Information ....................125
 SEATS ............................. .125
▫ Power Seats ........................ .126
▫ Front Heated Seats — If Equipped .........128
▫ Front Ventilated Seats — If Equipped .......130
▫ Manual Forward Or Rearward Adjustment . . .1303

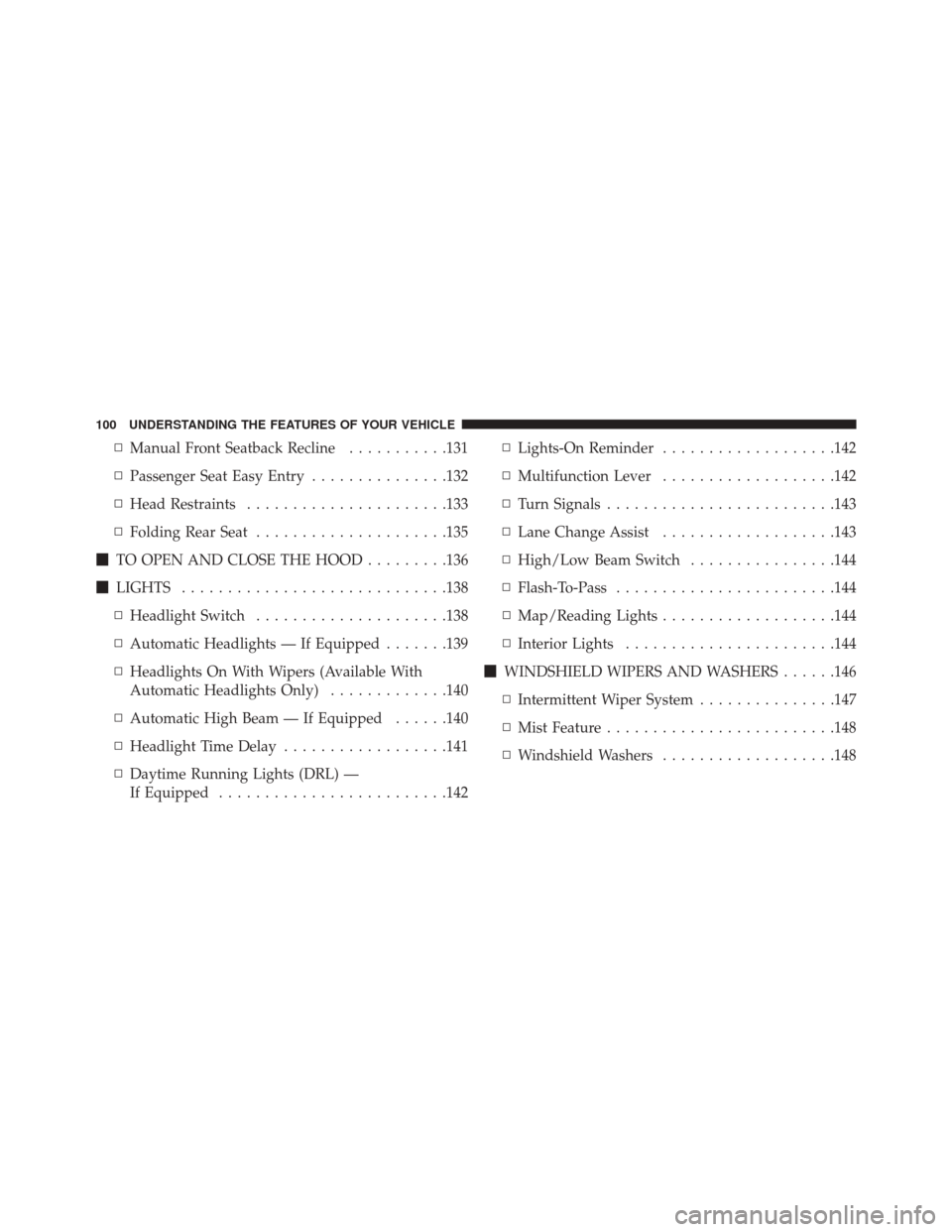

▫Manual Front Seatback Recline ...........131
▫ Passenger Seat Easy Entry ...............132
▫ Head Restraints ..................... .133
▫ Folding Rear Seat .....................135
 TO OPEN AND CLOSE THE HOOD .........136
 LIGHTS ............................ .138
▫ Headlight Switch .....................138
▫ Automatic Headlights — If Equipped .......139
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............140
▫ Automatic High Beam — If Equipped ......140
▫ Headlight Time Delay ..................141
▫ Daytime Running Lights (DRL) —
If Equipped ........................ .142▫
Lights-On Reminder ...................142
▫ Multifunction Lever ...................142
▫ Turn Signals ........................ .143
▫ Lane Change Assist ...................143
▫ High/Low Beam Switch ................144
▫ Flash-To-Pass ....................... .144
▫ Map/Reading Lights ...................144
▫ Interior Lights ...................... .144
 WINDSHIELD WIPERS AND WASHERS ......146
▫ Intermittent Wiper System ...............147
▫ Mist Feature ........................ .148
▫ Windshield Washers ...................148

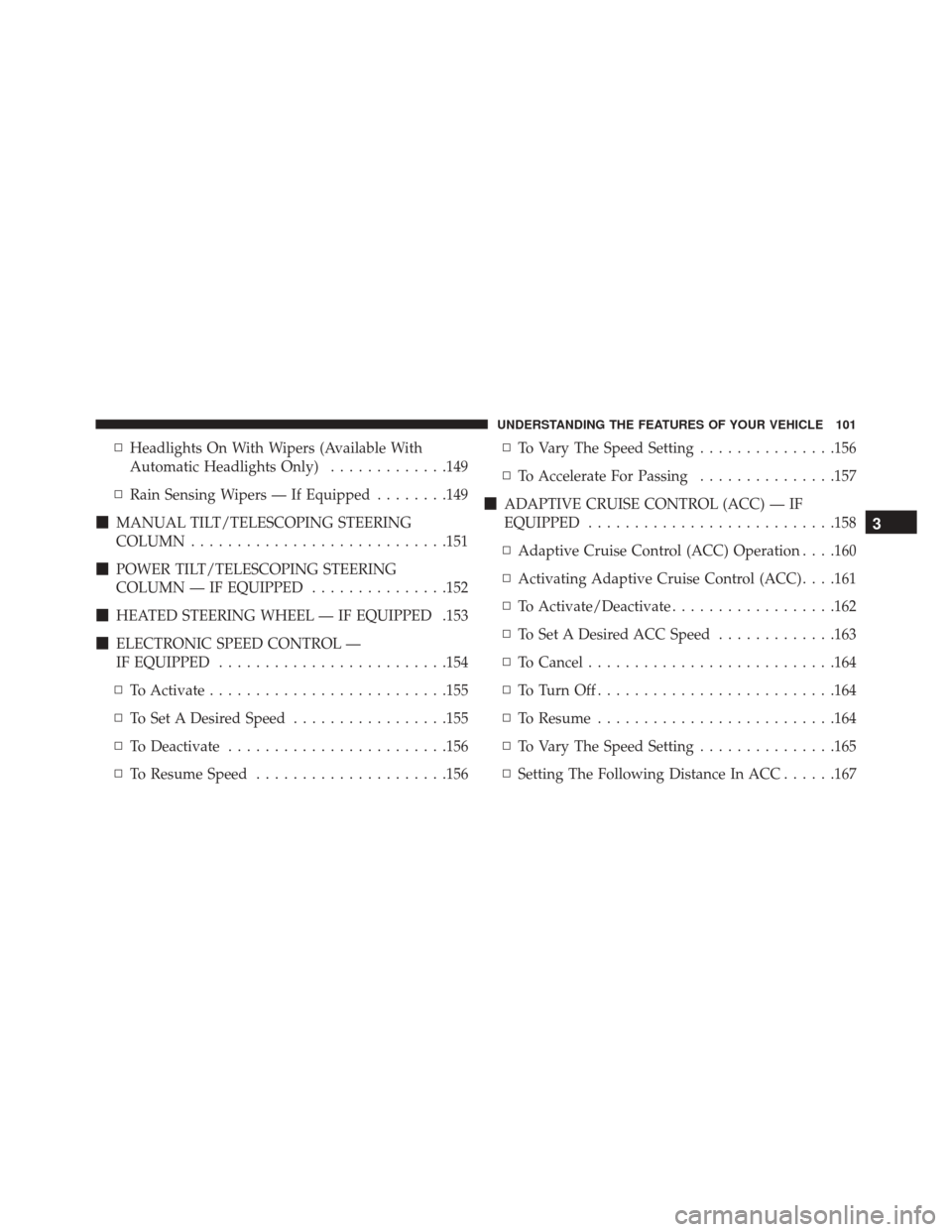

100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Headlights On With Wipers (Available With
Automatic Headlights Only) .............149
▫ Rain Sensing Wipers — If Equipped ........149
 MANUAL TILT/TELESCOPING STEERING
COLUMN ........................... .151
 POWER TILT/TELESCOPING STEERING
COLUMN — IF EQUIPPED ...............152
 HEATED STEERING WHEEL — IF EQUIPPED .153
 ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .154
▫ To Activate ......................... .155
▫ To Set A Desired Speed .................155
▫ To Deactivate ....................... .156
▫ To Resume Speed .....................156 ▫
To Vary The Speed Setting ...............156
▫ To Accelerate For Passing ...............157
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED .......................... .158
▫ Adaptive Cruise Control (ACC) Operation . . . .160
▫ Activating Adaptive Cruise Control (ACC) . . . .161
▫ To Activate/Deactivate ..................162
▫ To Set A Desired ACC Speed .............163
▫ To Cancel .......................... .164
▫ ToTurnOff......................... .164
▫ To Resume ......................... .164
▫ To Vary The Speed Setting ...............165
▫ Setting The Following Distance In ACC ......167
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

▫Overtake Aid ....................... .171
▫ Adaptive Cruise Control (ACC) Menu .......171
▫ Display Warnings And Maintenance ........172
▫ Precautions While Driving With ACC .......174
▫ General Information ....................178
▫ Normal (Fixed Speed) Electronic Speed Control
Mode ............................. .178
 FORWARD COLLISION WARNING (FCW) — IF
EQUIPPED .......................... .182
▫ Forward Collision Warning (FCW) Operation .182
▫ Turning FCW ON Or OFF ...............184
▫ Changing FCW Status ..................184
▫ Service FCW Warning ..................185
PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ........................ .185
▫ ParkSense Sensors .....................186
▫ ParkSense Warning Display ..............186
▫ ParkSense Display .....................187
▫ Enabling And Disabling ParkSense .........192
▫ Service The ParkSense Rear Park Assist
System ............................ .193
▫ Cleaning The ParkSense System ...........193
▫ ParkSense System Usage Precautions ........194
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .195
 OVERHEAD CONSOLE ..................198
▫ Courtesy/Reading Lights ...............199
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

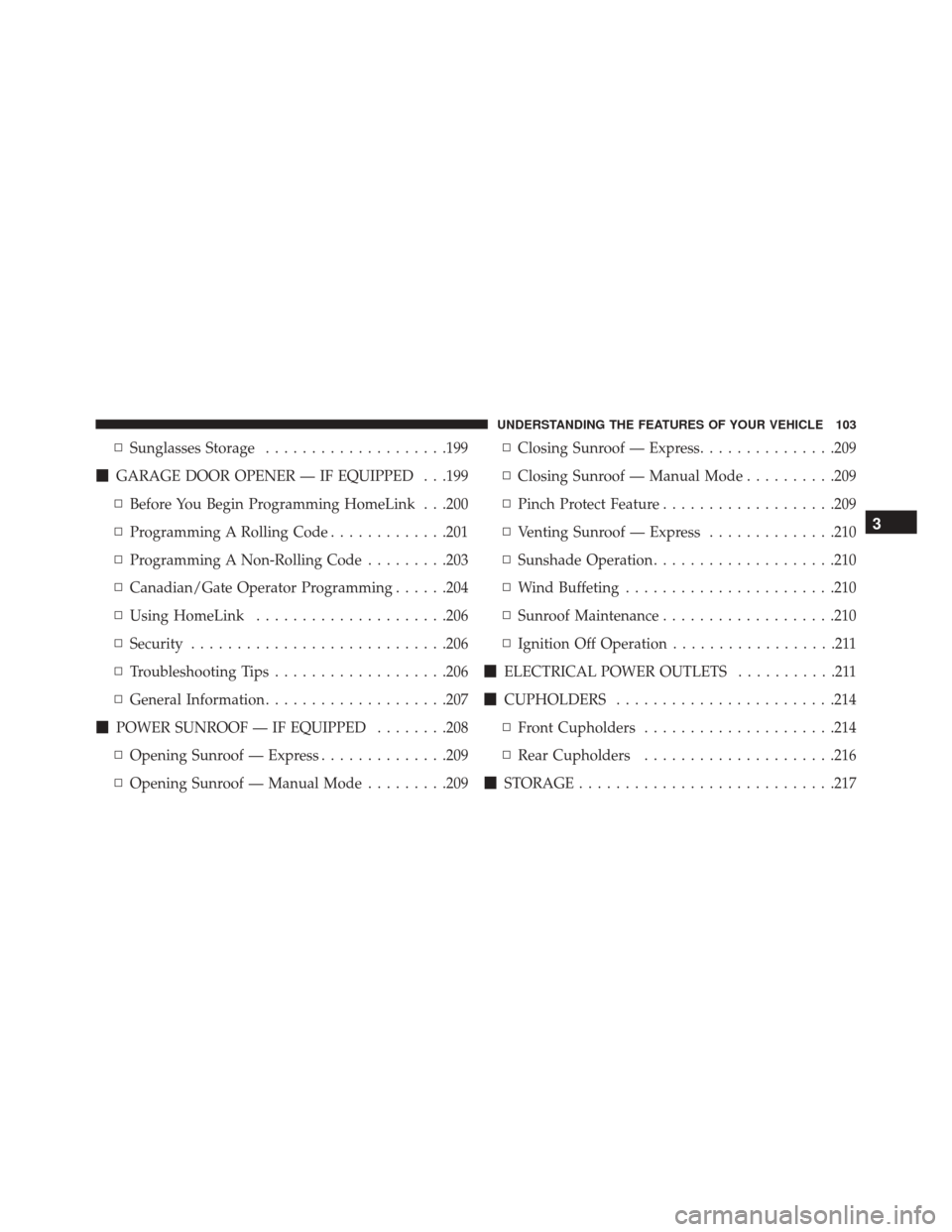

▫Sunglasses Storage ....................199
 GARAGE DOOR OPENER — IF EQUIPPED . . .199
▫ Before You Begin Programming HomeLink . . .200
▫ Programming A Rolling Code .............201
▫ Programming A Non-Rolling Code .........203
▫ Canadian/Gate Operator Programming ......204
▫ Using HomeLink .....................206
▫ Security ........................... .206
▫ Troubleshooting Tips ...................206
▫ General Information ....................207
 POWER SUNROOF — IF EQUIPPED ........208
▫ Opening Sunroof — Express ..............209
▫ Opening Sunroof — Manual Mode .........209▫
Closing Sunroof — Express ...............209
▫ Closing Sunroof — Manual Mode ..........209
▫ Pinch Protect Feature ...................209
▫ Venting Sunroof — Express ..............210
▫ Sunshade Operation ....................210
▫ Wind Buffeting ...................... .210
▫ Sunroof Maintenance ...................210
▫ Ignition Off Operation ..................211
 ELECTRICAL POWER OUTLETS ...........211
 CUPHOLDERS ....................... .214
▫ Front Cupholders .....................214
▫ Rear Cupholders .....................216
 STORAGE ........................... .217
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

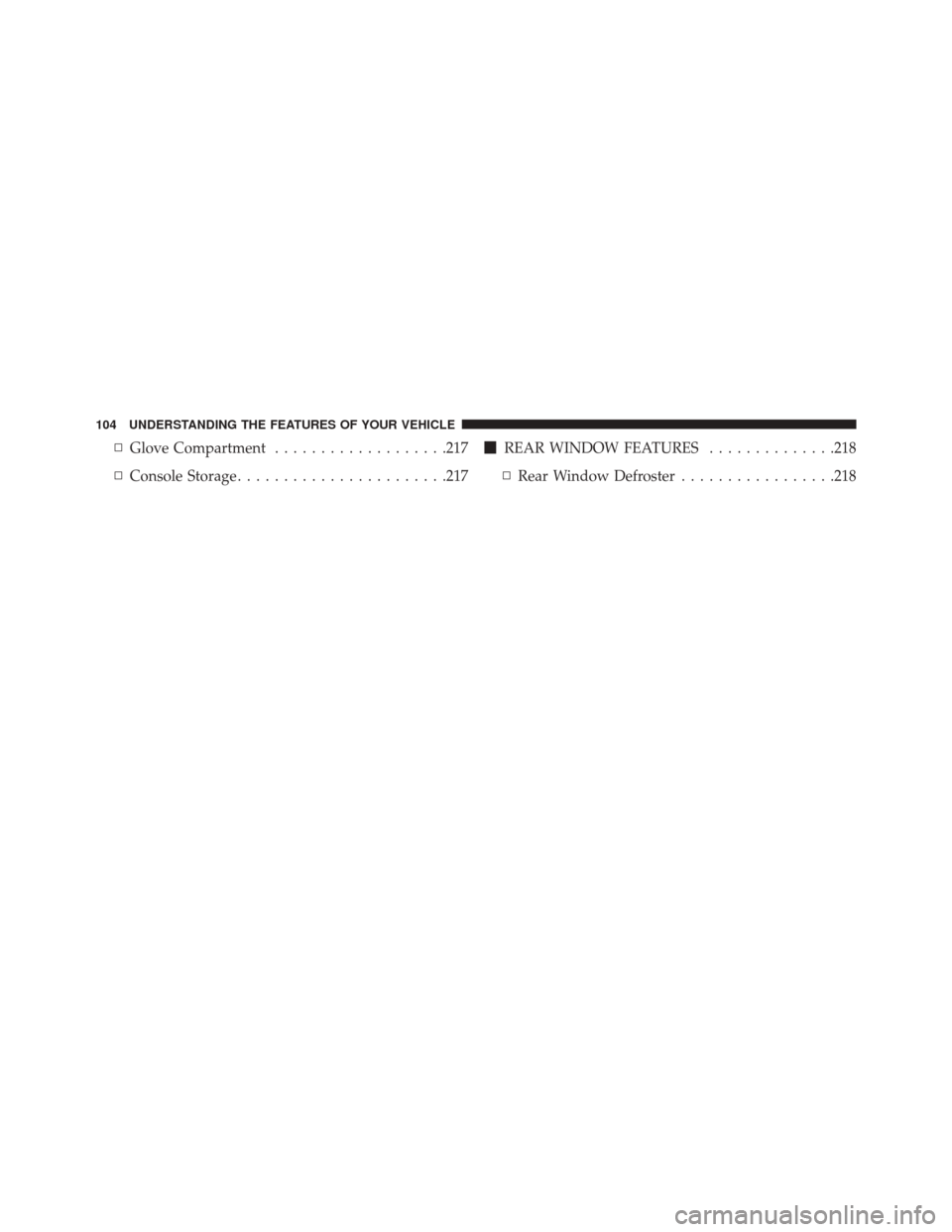

▫Glove Compartment ...................217
▫ Console Storage ...................... .217
REAR WINDOW FEATURES ..............218
▫ Rear Window Defroster .................218
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Automatic Dimming Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to
center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:The Automatic Dimming Mirror feature is dis-
abled when the vehicle is in reverse gear to improve rear
view viewing.
The Automatic Dimming Mirror feature can be turned
On or Off through the touchscreen.
• Push the Mirror Dimmer button once to turn the
feature On.
• Push the Mirror Dimmer button a second time to turn
the feature Off. If equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

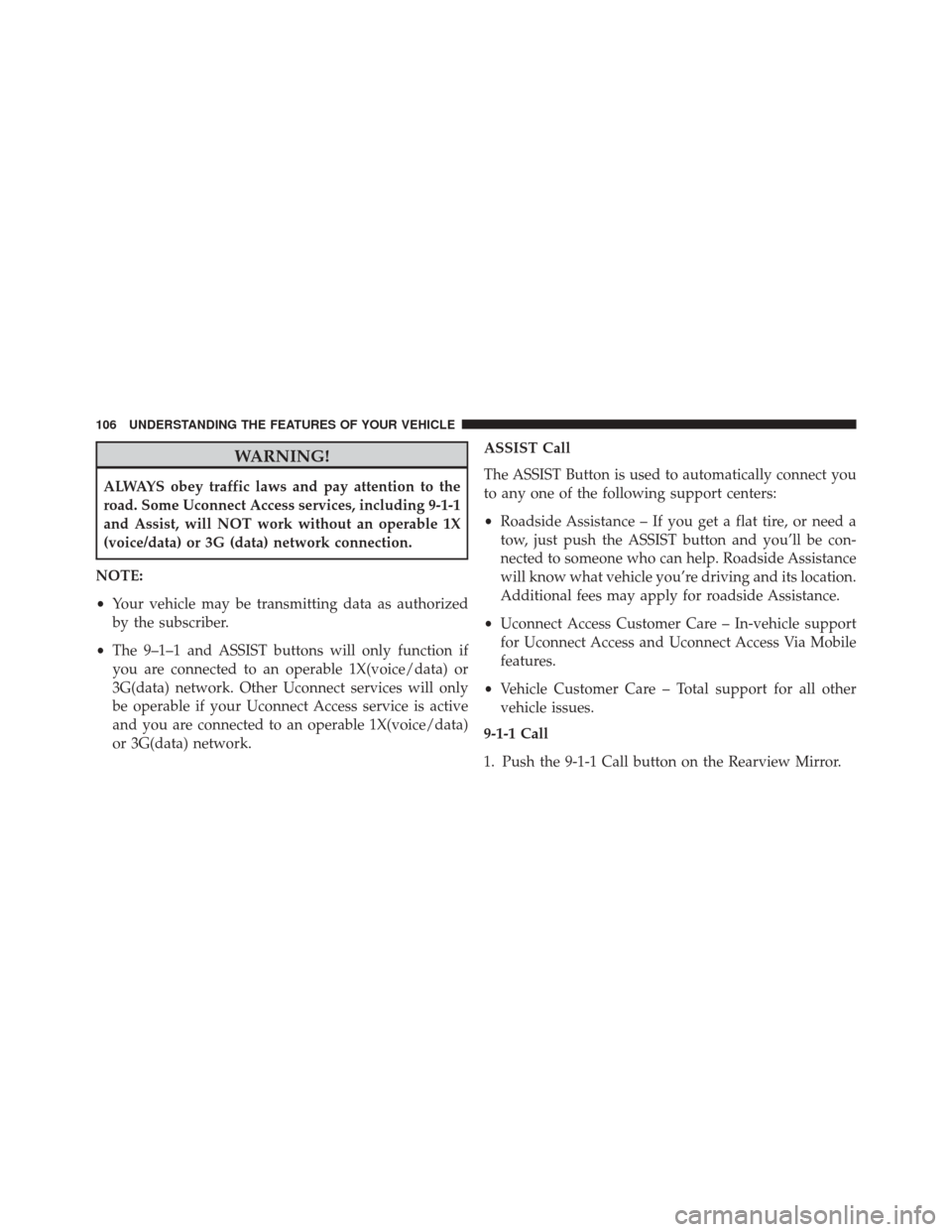

WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• The 9–1–1 and ASSIST buttons will only function if
you are connected to an operable 1X(voice/data) or
3G(data) network. Other Uconnect services will only
be operable if your Uconnect Access service is active
and you are connected to an operable 1X(voice/data)
or 3G(data) network. ASSIST Call
The ASSIST Button is used to automatically connect you
to any one of the following support centers:
•
Roadside Assistance – If you get a flat tire, or need a
tow, just push the ASSIST button and you’ll be con-
nected to someone who can help. Roadside Assistance
will know what vehicle you’re driving and its location.
Additional fees may apply for roadside Assistance.
• Uconnect Access Customer Care – In-vehicle support
for Uconnect Access and Uconnect Access Via Mobile
features.
• Vehicle Customer Care – Total support for all other
vehicle issues.
9-1-1 Call
1. Push the 9-1-1 Call button on the Rearview Mirror.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, push the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Device Screen. Termination of the 9-1-1 Call will turn off
the green LED light on the Rearview Mirror.
2. The LED light located between the ASSIST and 9-1-1 buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made.
3. Once a connection between the vehicle and a 9-1-1 operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
• Indication that the occupant placed a 9-1-1 Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle. 4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE: •Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1
operator may be able to open a voice connection with
the vehicle to determine if additional help is needed.
Once the 9-1-1 operator opens a voice connection
with the vehicle’s 9-1-1 Call system, the operator
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

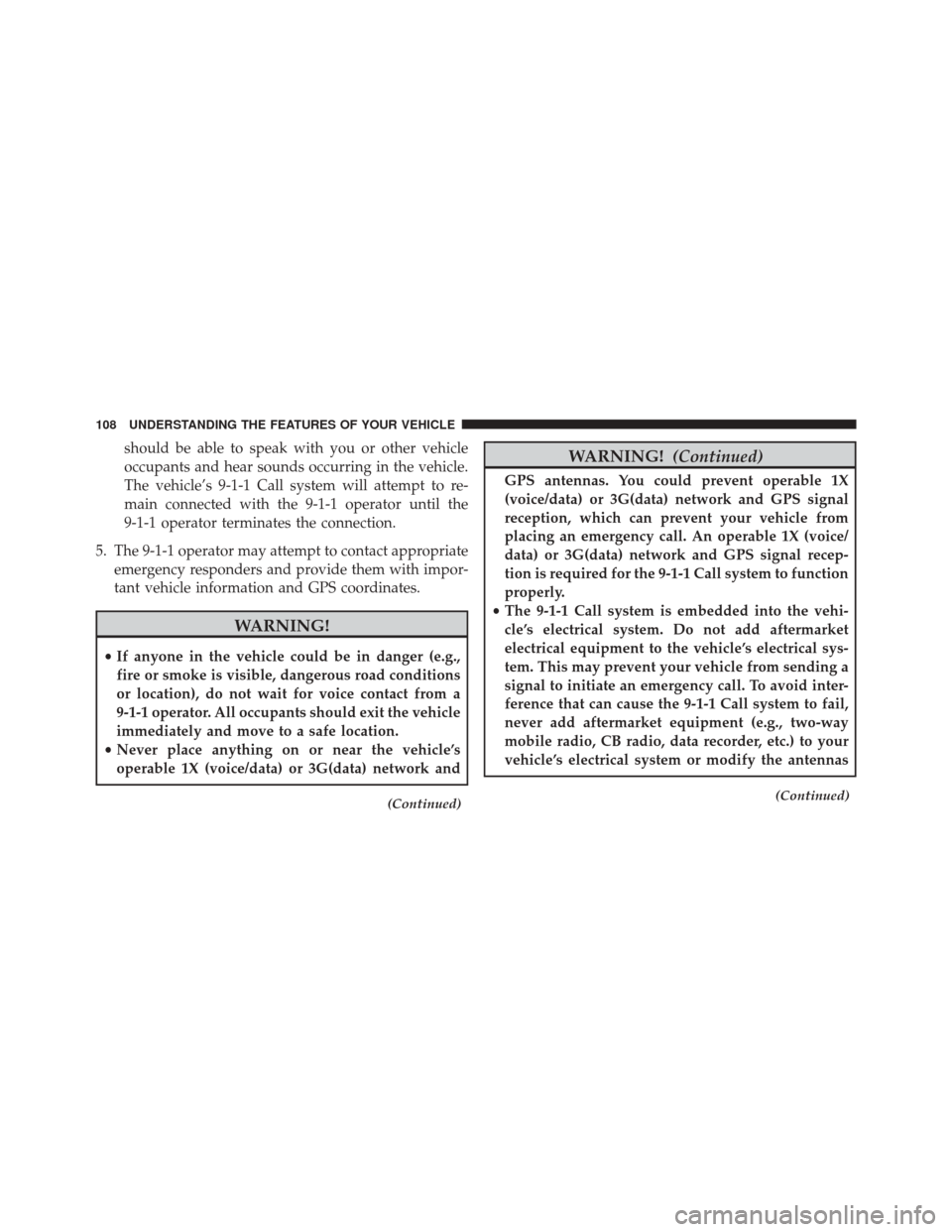

should be able to speak with you or other vehicle
occupants and hear sounds occurring in the vehicle.
The vehicle’s 9-1-1 Call system will attempt to re-
main connected with the 9-1-1 operator until the
9-1-1 operator terminates the connection.
5. The 9-1-1 operator may attempt to contact appropriate emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
WARNING!
•If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
• Never place anything on or near the vehicle’s
operable 1X (voice/data) or 3G(data) network and
(Continued)
WARNING! (Continued)
GPS antennas. You could prevent operable 1X
(voice/data) or 3G(data) network and GPS signal
reception, which can prevent your vehicle from
placing an emergency call. An operable 1X (voice/
data) or 3G(data) network and GPS signal recep-
tion is required for the 9-1-1 Call system to function
properly.
• The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
(Continued)
