DODGE CHALLENGER SRT 2016 3.G Owners Manual

Cavity Cartridge Fuse Mini-FuseDescription
1 – – Fuse – Spare
2 40 Amp Green –Radiator Fan #1 – (Non 6.2L Supercharged)
3 50 Amp Red –Electric Power Steering #1 – If Equipped / Radia-
tor Fan (6.2L Supercharged) – If Equipped
4 30 Amp Pink – Starter
5 40 Amp Green –Electronic Stability Control
6 30 Amp Pink –Electronic Stability Control
7 20 Amp Blue –Police Ignition Run / ACC #1
8 20 Amp Blue –Police Ignition Run / ACC # 2
9 –20 Amp Yellow All-Wheel Drive Module – If Equipped
10 –10 Amp Red Security – If Equipped / Under hood Lamp – Po-
lice
11 –20 Amp Yellow Horns
12 –10 Amp Red Air Conditioning Clutch
13 – – Fuse – Spare
7
MAINTAINING YOUR VEHICLE 549

Cavity Cartridge Fuse Mini-FuseDescription
14 – – Fuse – Spare
15 –20 Amp Yellow Left HID – If Equipped
16 –20 Amp Yellow Right HID – If Equipped
18 50 Amp Red –Radiator Fan #2 – (Non 6.2L Supercharged)
19 50 Amp Red –Electric Power Steering #2 – If Equipped / Radia-
tor Fan (6.2L Supercharged)
20 30 Amp Pink –Wiper Motor
21 30 Amp Pink 20 Amp Blue – Po-lice –
Headlamp Washers – If Equipped
Police Bat Feed #2
22 40 Amp Green / 20 Amp Blue – Police –
Engine Cooling Pump (6.2L Supercharged) / Po-
lice Bat Feed # 3
23 20 Amp Blue –Police Bat Feed # 1
24 20 Amp Blue –Police Ignition Run/ACC Feed # 3
28 – – Fuse – Spare
550 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
29 –15 Amp Blue Transmission Control Module (Challenger/
Charger Police) / Electronic Shift Module (Chal-lenger)
30 – – Fuse – Spare
31 –25 Amp Clear Engine Module
32 – – Fuse – Spare
33 – – Fuse – Spare
34 –25 Amp Clear Powertrain #1
35 –20 Amp Yellow Powertrain #2
36 –10 Amp Red Anti-Lock Brake Module
37 –10 Amp Red Engine Controller / Rad Fan Relays (Charger/300)
/ Electric Power Steering Module (Charger/300) /Fuel Pump Relay (Charger/300) / 5–Speed
38 –10 Amp Red Airbag Module
7
MAINTAINING YOUR VEHICLE 551

Cavity Cartridge Fuse Mini-FuseDescription
39 –10 Amp Red EPS (Challenger) / EHPS (Police)/AC Clutch Re-
lay / Vacuum Pump Relay / Fuel Pump Relay(Challenger) / Rad Fan Relays (Challenger)
48 –10 Amp Red AWD Module (Charger/300) / Front Axle Discon-
nect (Charger/300) / Adaptive Cruise (Challenger)– If Equipped
49 – – Fuse – Spare
50 – – Fuse – Spare
51 –20 Amp Yellow Vacuum Pump
52 –5 Amp Tan Adaptive Cruise (Charger/300) – If Equipped
53 – – Fuse – Spare
552 MAINTAINING YOUR VEHICLE

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays. Fuse cavity location and de-
scriptions are printed on the inside of the power distri-
bution center cover.CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 553

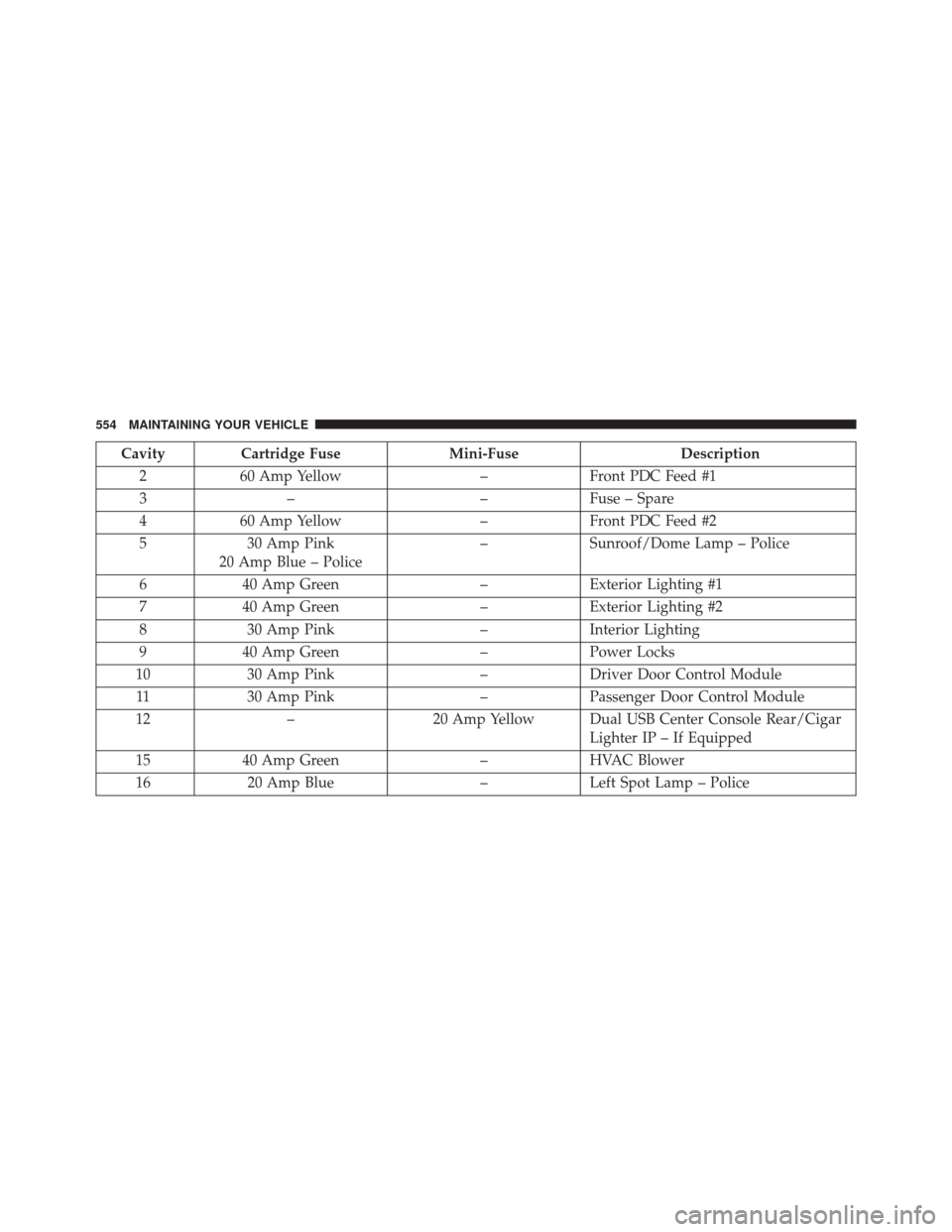

CavityCartridge Fuse Mini-Fuse Description
2 60 Amp Yellow –Front PDC Feed #1
3 – –Fuse – Spare
4 60 Amp Yellow –Front PDC Feed #2
5 30 Amp Pink
20 Amp Blue – Police –
Sunroof/Dome Lamp – Police
6 40 Amp Green –Exterior Lighting #1
7 40 Amp Green –Exterior Lighting #2
8 30 Amp Pink –Interior Lighting
9 40 Amp Green –Power Locks
10 30 Amp Pink –Driver Door Control Module
11 30 Amp Pink –Passenger Door Control Module
12 –20 Amp Yellow Dual USB Center Console Rear/Cigar
Lighter IP – If Equipped
15 40 Amp Green –HVAC Blower
16 20 Amp Blue –Left Spot Lamp – Police
554 MAINTAINING YOUR VEHICLE

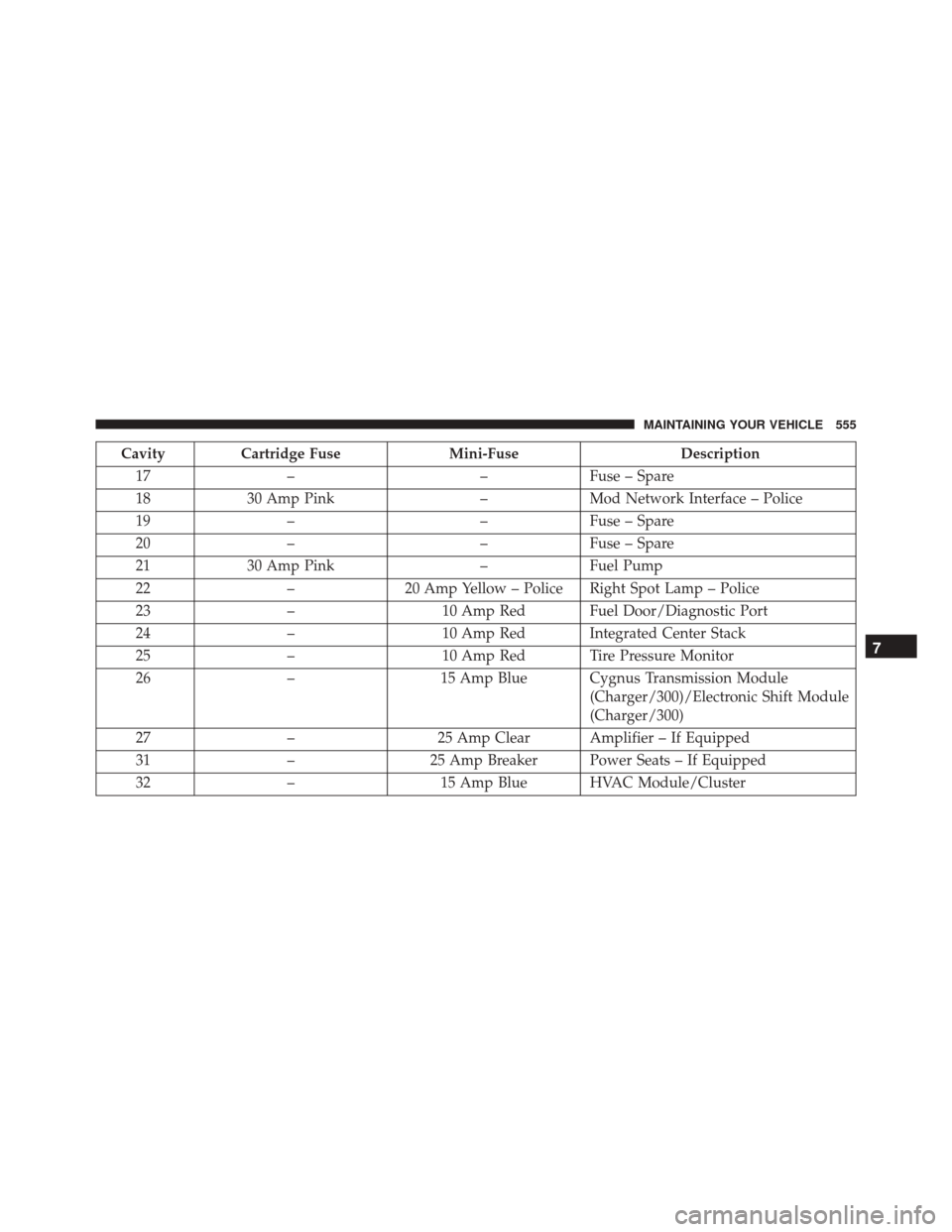

CavityCartridge Fuse Mini-Fuse Description
17 – –Fuse – Spare
18 30 Amp Pink –Mod Network Interface – Police
19 – –Fuse – Spare
20 – –Fuse – Spare
21 30 Amp Pink –Fuel Pump
22 –20 Amp Yellow – Police Right Spot Lamp – Police
23 – 10 Amp Red Fuel Door/Diagnostic Port
24 – 10 Amp Red Integrated Center Stack
25 – 10 Amp Red Tire Pressure Monitor
26 – 15 Amp Blue Cygnus Transmission Module
(Charger/300)/Electronic Shift Module
(Charger/300)
27 –25 Amp Clear Amplifier – If Equipped
31 –25 Amp Breaker Power Seats – If Equipped
32 – 15 Amp Blue HVAC Module/Cluster
7
MAINTAINING YOUR VEHICLE 555

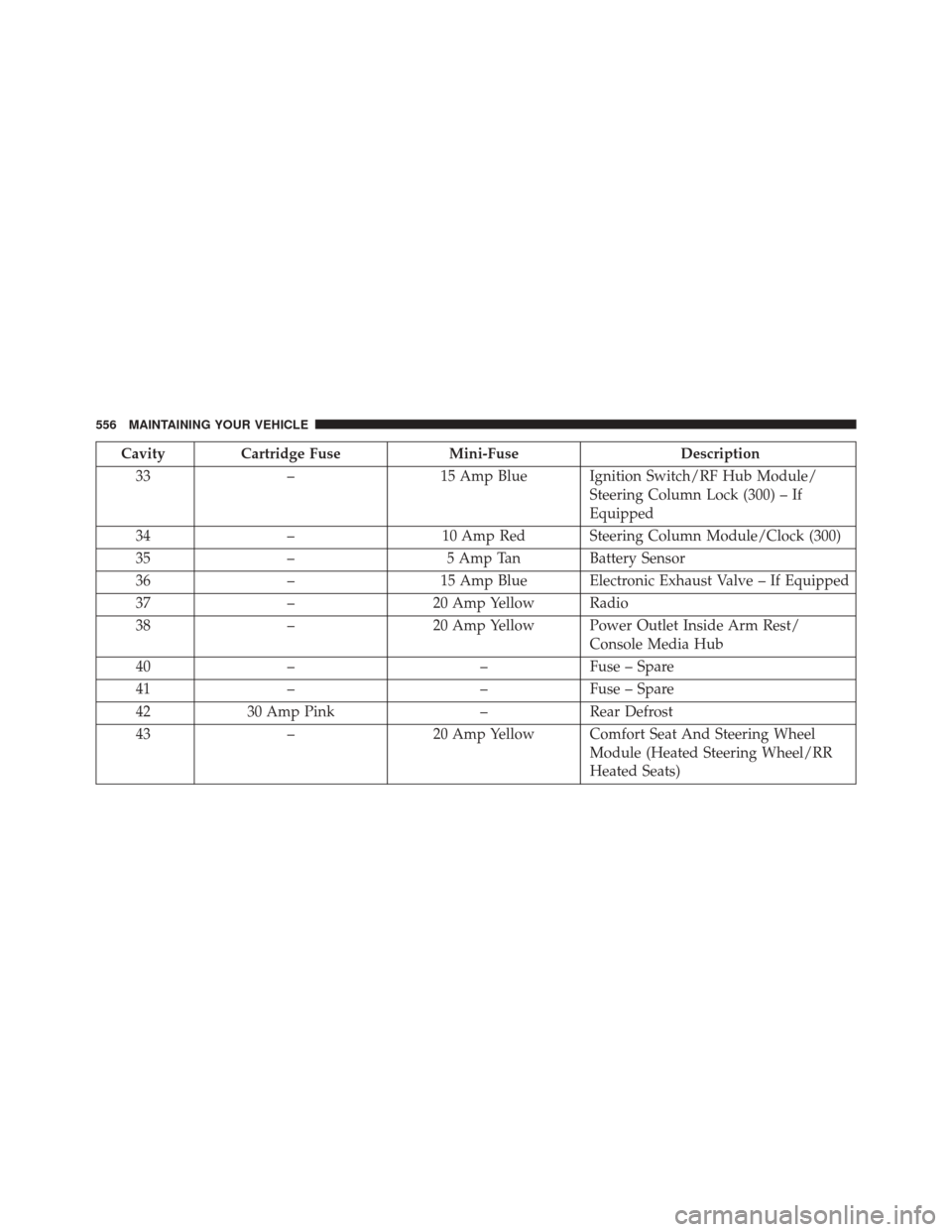

CavityCartridge Fuse Mini-Fuse Description
33 – 15 Amp Blue Ignition Switch/RF Hub Module/
Steering Column Lock (300) – If
Equipped
34 – 10 Amp Red Steering Column Module/Clock (300)
35 – 5 Amp Tan Battery Sensor
36 – 15 Amp Blue Electronic Exhaust Valve – If Equipped
37 –20 Amp Yellow Radio
38 –20 Amp Yellow Power Outlet Inside Arm Rest/
Console Media Hub
40 – –Fuse – Spare
41 – –Fuse – Spare
42 30 Amp Pink –Rear Defrost
43 –20 Amp Yellow Comfort Seat And Steering Wheel
Module (Heated Steering Wheel/RR
Heated Seats)
556 MAINTAINING YOUR VEHICLE

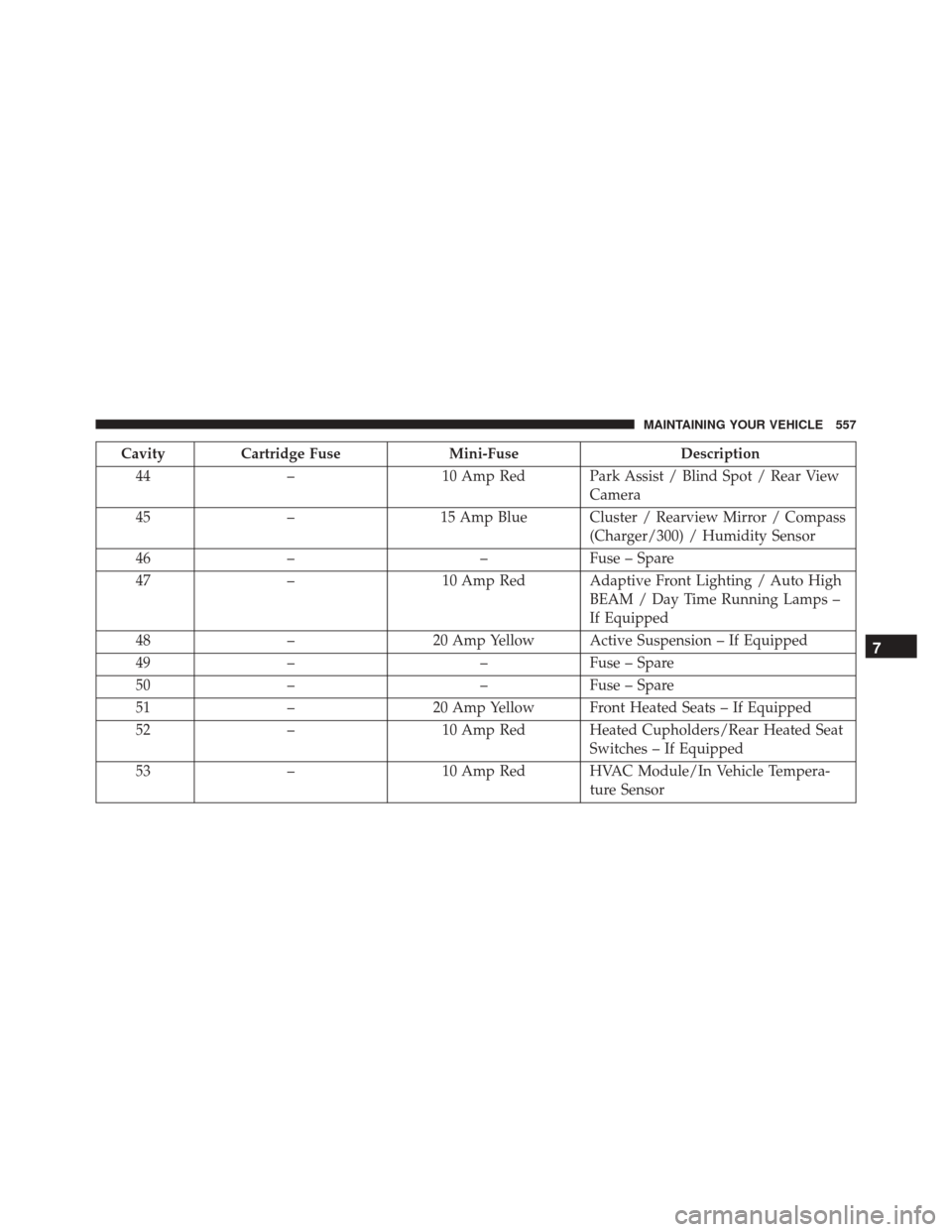

CavityCartridge Fuse Mini-Fuse Description
44 – 10 Amp Red Park Assist / Blind Spot / Rear View
Camera
45 – 15 Amp Blue Cluster / Rearview Mirror / Compass
(Charger/300) / Humidity Sensor
46 – –Fuse – Spare
47 – 10 Amp Red Adaptive Front Lighting / Auto High
BEAM / Day Time Running Lamps –
If Equipped
48 –20 Amp Yellow Active Suspension – If Equipped
49 – –Fuse – Spare
50 – –Fuse – Spare
51 –20 Amp Yellow Front Heated Seats – If Equipped
52 – 10 Amp Red Heated Cupholders/Rear Heated Seat
Switches – If Equipped
53 – 10 Amp Red HVAC Module/In Vehicle Tempera-
ture Sensor
7
MAINTAINING YOUR VEHICLE 557

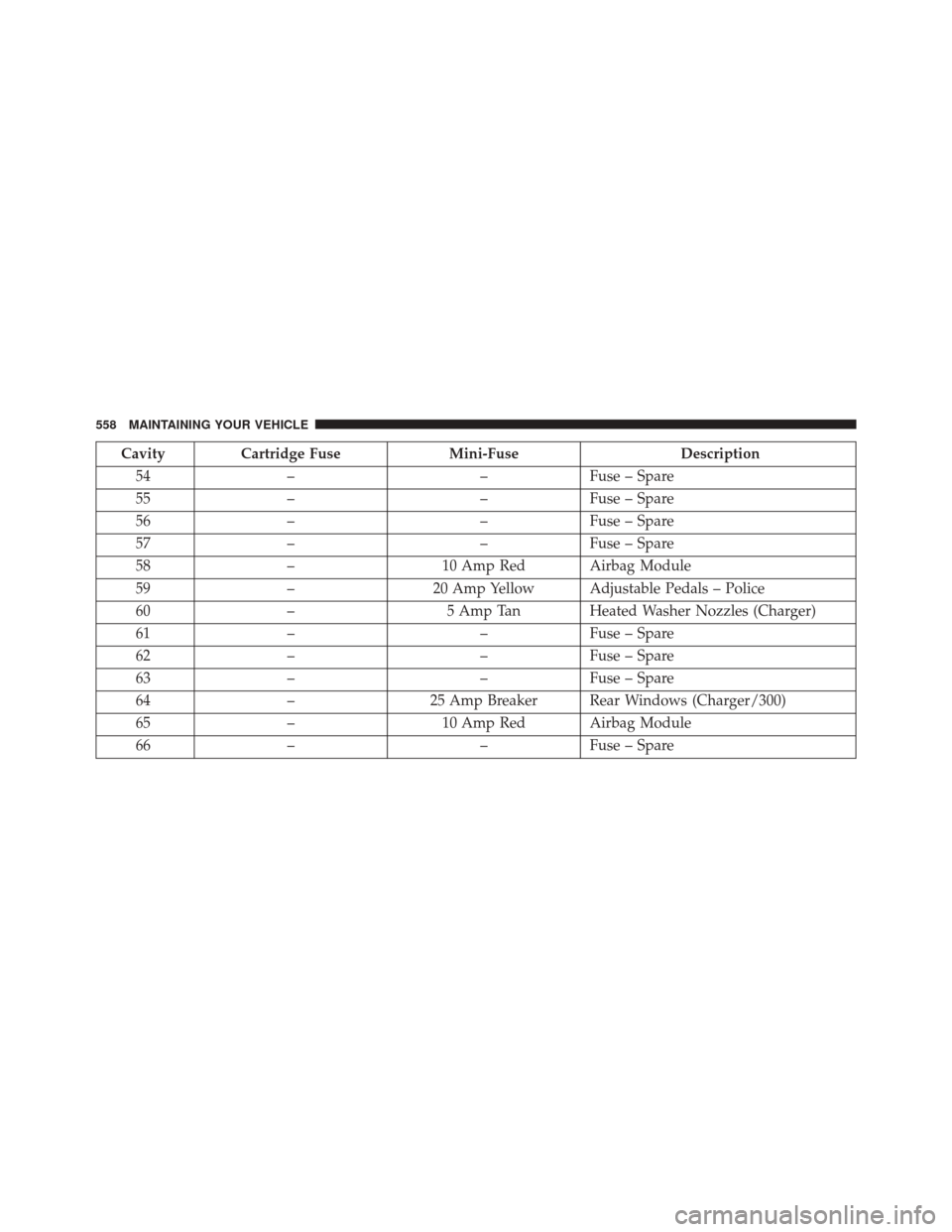

CavityCartridge Fuse Mini-Fuse Description
54 – –Fuse – Spare
55 – –Fuse – Spare
56 – –Fuse – Spare
57 – –Fuse – Spare
58 – 10 Amp Red Airbag Module
59 –20 Amp Yellow Adjustable Pedals – Police
60 – 5 Amp Tan Heated Washer Nozzles (Charger)
61 – –Fuse – Spare
62 – –Fuse – Spare
63 – –Fuse – Spare
64 –25 Amp Breaker Rear Windows (Charger/300)
65 – 10 Amp Red Airbag Module
66 – –Fuse – Spare
558 MAINTAINING YOUR VEHICLE
