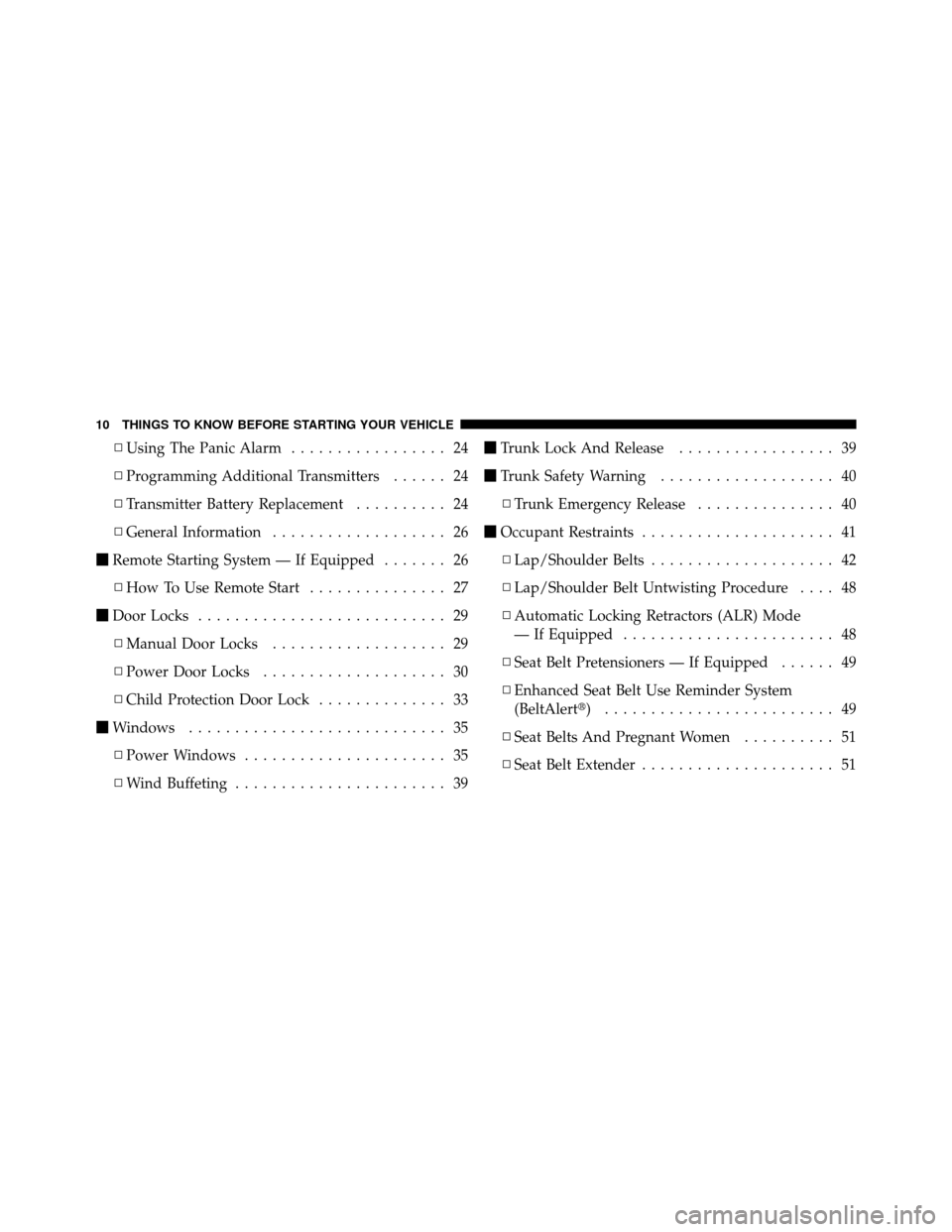

▫Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 26
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
▫ Child Protection Door Lock .............. 33
 Windows ............................ 35
▫ Power Windows ...................... 35
▫ Wind Buffeting ....................... 39
Trunk Lock And Release ................. 39
 Trunk Safety Warning ................... 40
▫ Trunk Emergency Release ............... 40
 Occupant Restraints ..................... 41
▫ Lap/Shoulder Belts .................... 42
▫ Lap/Shoulder Belt Untwisting Procedure .... 48
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 48
▫ Seat Belt Pretensioners — If Equipped ...... 49
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 49
▫ Seat Belts And Pregnant Women .......... 51
▫ Seat Belt Extender ..................... 51
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

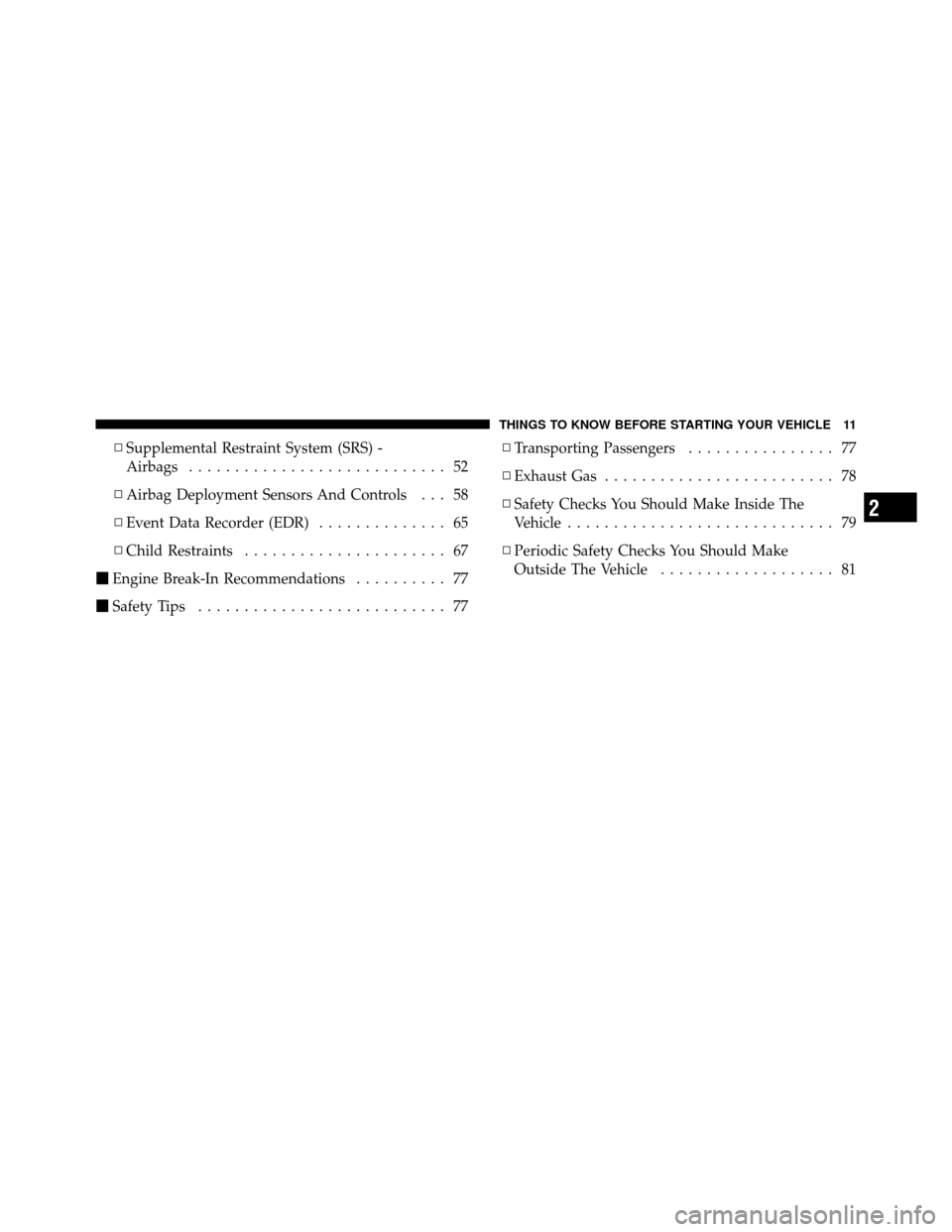

▫Supplemental Restraint System (SRS) -
Airbags ............................ 52
▫ Airbag Deployment Sensors And Controls . . . 58
▫ Event Data Recorder (EDR) .............. 65
▫ Child Restraints ...................... 67
 Engine Break-In Recommendations .......... 77
 Safety Tips ........................... 77 ▫
Transporting Passengers ................ 77
▫ Exhaust Gas ......................... 78
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 79
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 81
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

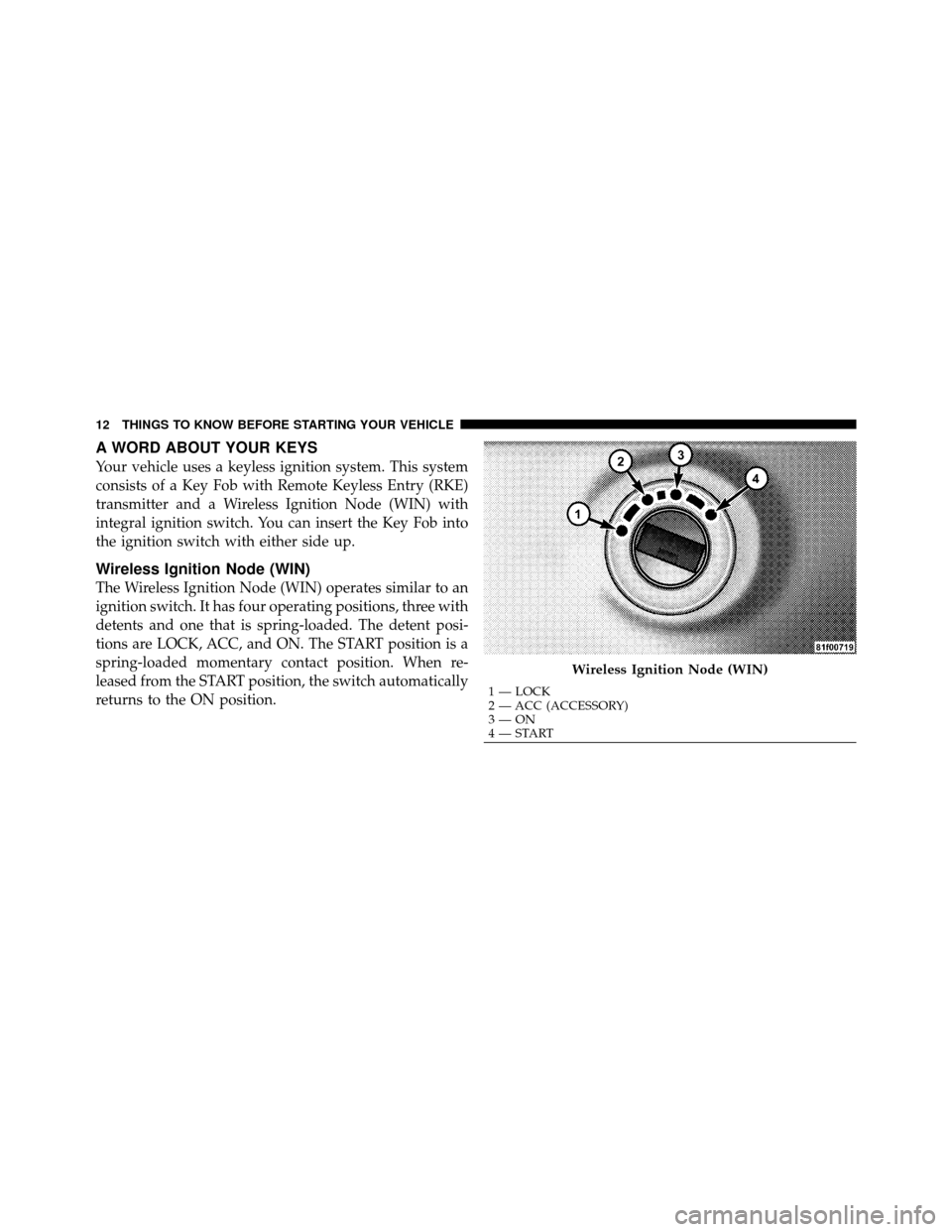

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are LOCK, ACC, and ON. The START position is a
spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.
Wireless Ignition Node (WIN)
1 — LOCK
2 — ACC (ACCESSORY)
3—ON
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

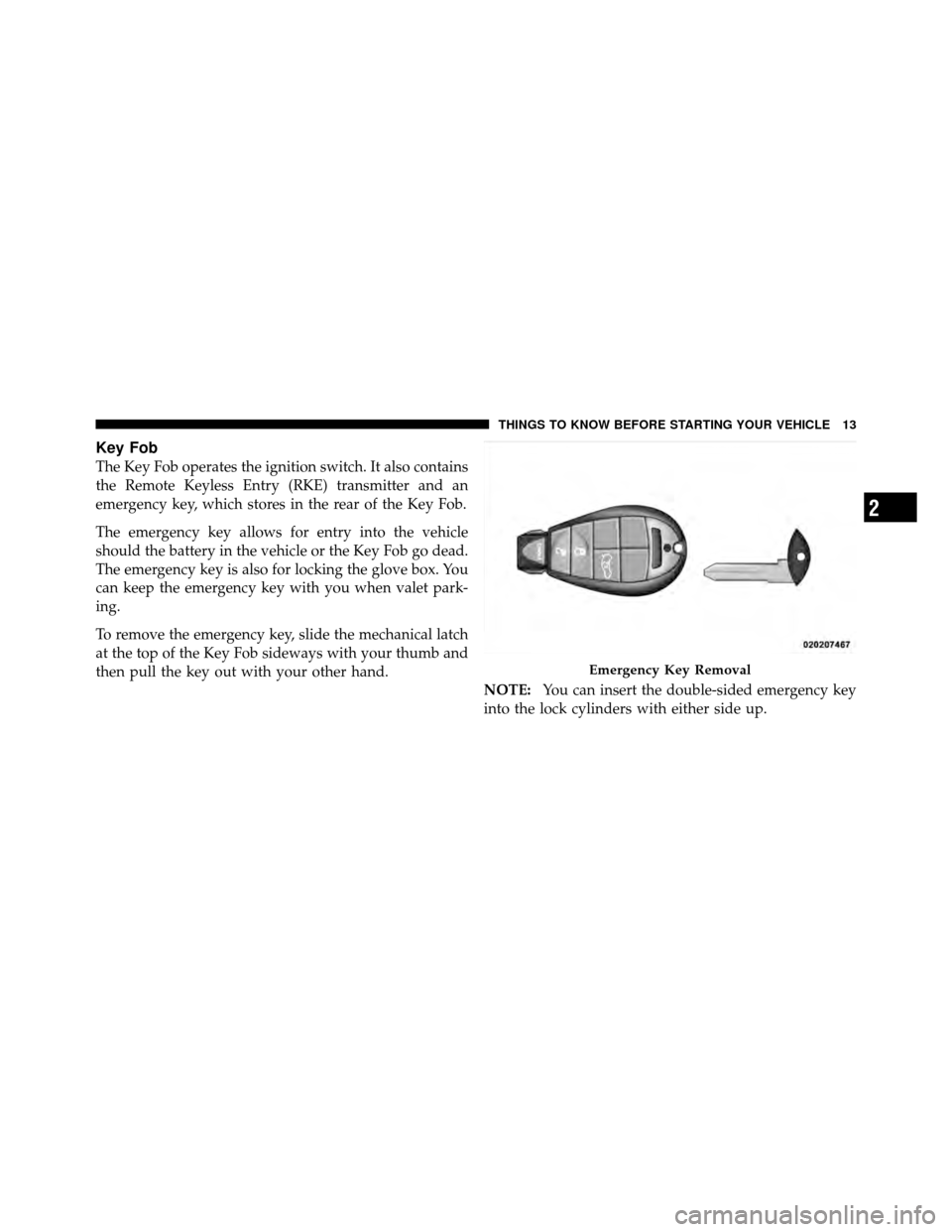

Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

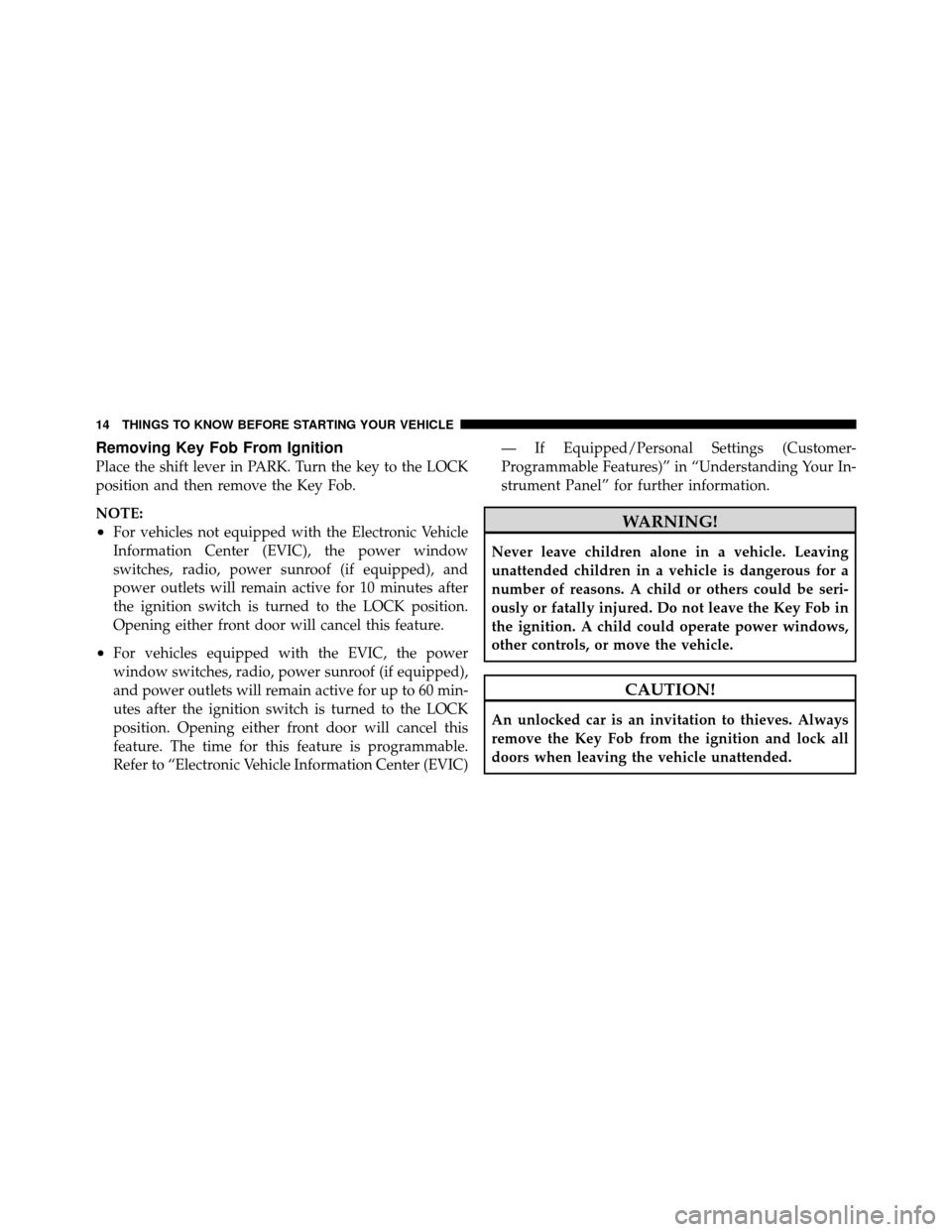

Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the Key Fob.
NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the LOCK position.
Opening either front door will cancel this feature.
•For vehicles equipped with the EVIC, the power
window switches, radio, power sunroof (if equipped),
and power outlets will remain active for up to 60 min-
utes after the ignition switch is turned to the LOCK
position. Opening either front door will cancel this
feature. The time for this feature is programmable.
Refer to “Electronic Vehicle Information Center (EVIC)— If Equipped/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the Key Fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from the ignition and lock all
doors when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

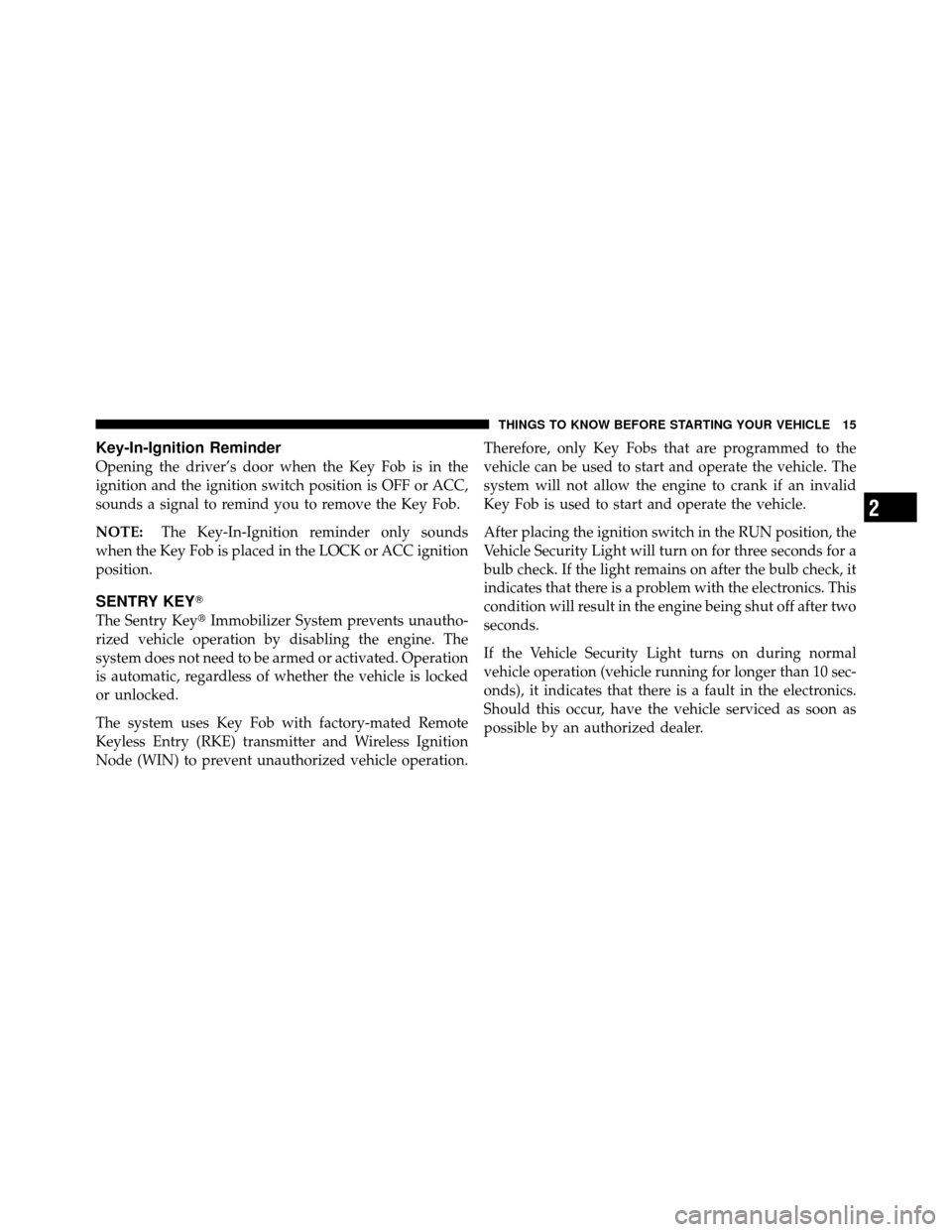

Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the LOCK or ACC ignition
position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation. Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will not allow the engine to crank if an invalid
Key Fob is used to start and operate the vehicle.
After placing the ignition switch in the RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

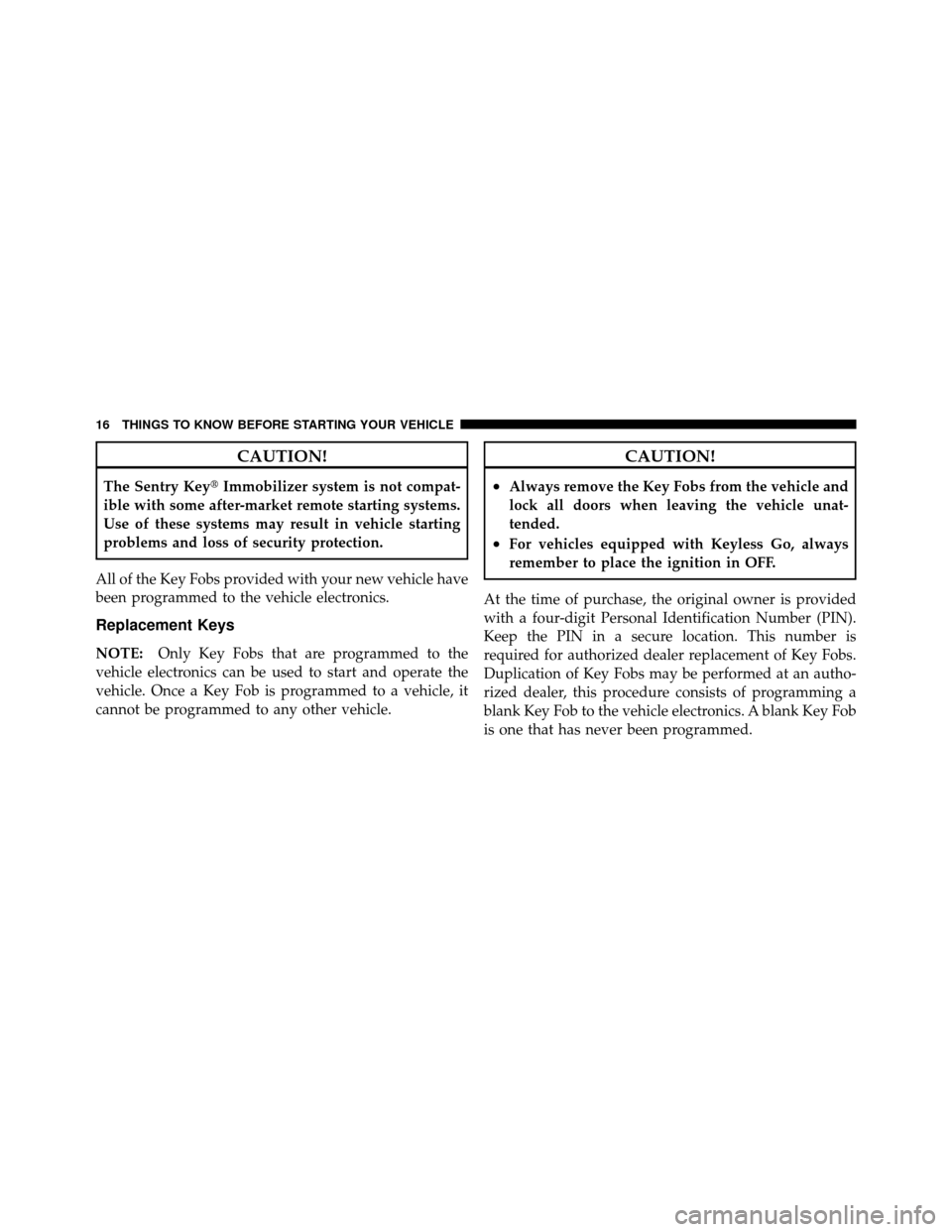

CAUTION!
The Sentry KeyImmobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
•For vehicles equipped with Keyless Go, always
remember to place the ignition in OFF.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

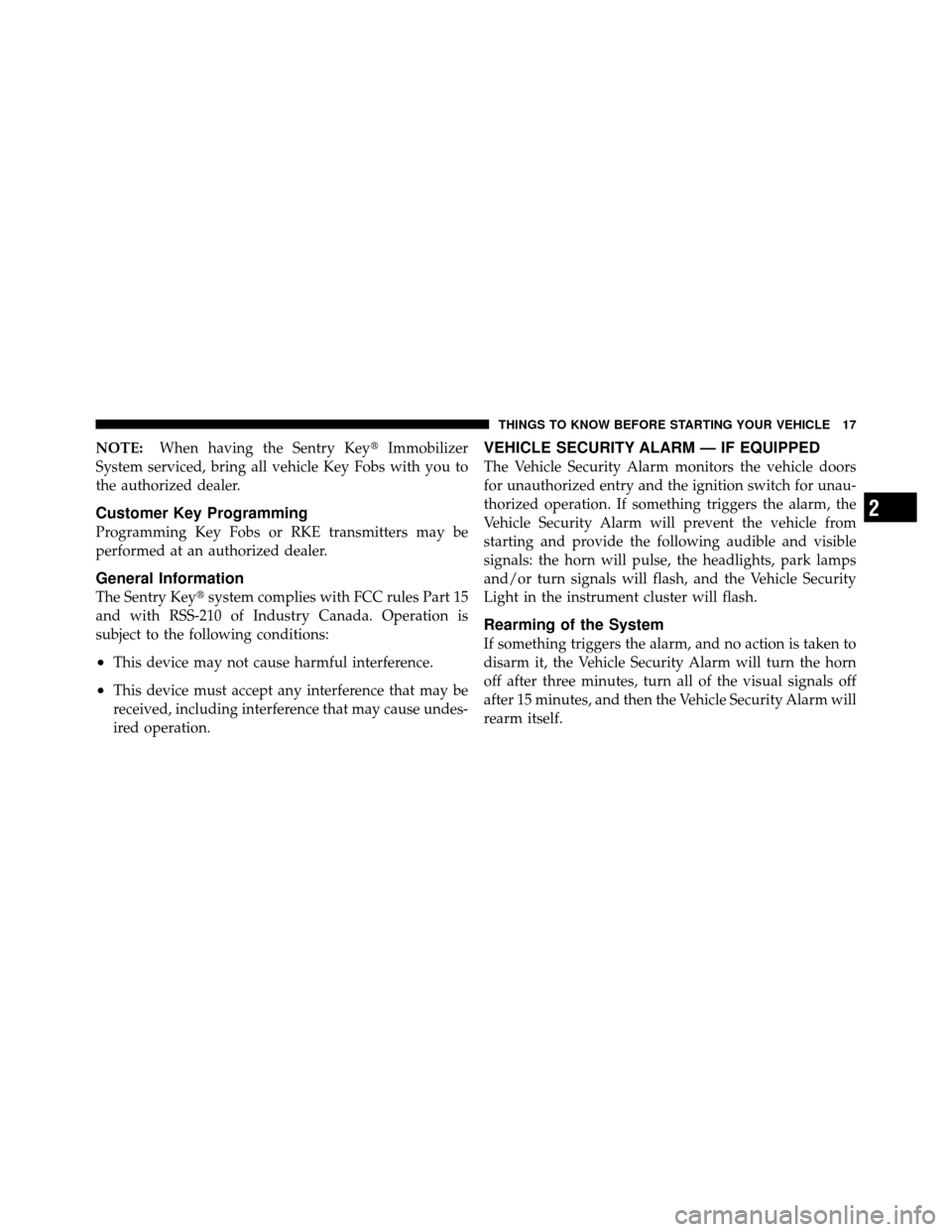

NOTE:When having the Sentry Key Immobilizer
System serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will prevent the vehicle from
starting and provide the following audible and visible
signals: the horn will pulse, the headlights, park lamps
and/or turn signals will flash, and the Vehicle Security
Light in the instrument cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the TRUNK button will not
disarm the Vehicle Security Alarm. If someone enters
the vehicle through the trunk, and opens any door, the
alarm will sound.
•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously-described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, the horn will sound, and the
ignition will not start the vehicle. If this occurs, disarm
the Vehicle Security Alarm.

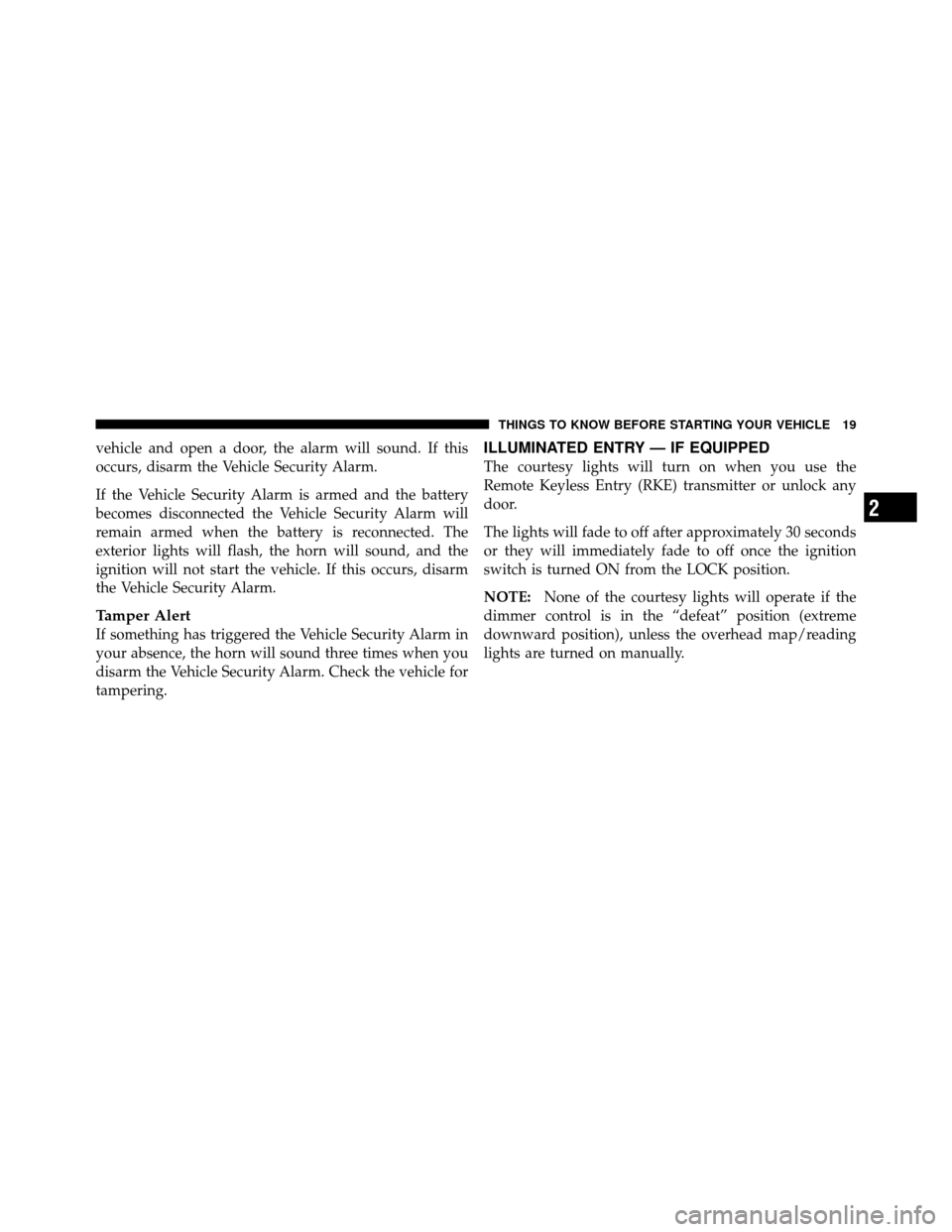

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
disarm the Vehicle Security Alarm. Check the vehicle for
tampering.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or unlock any
door.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON from the LOCK position.
NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
