DODGE CHARGER 2012 7.G Owners Manual

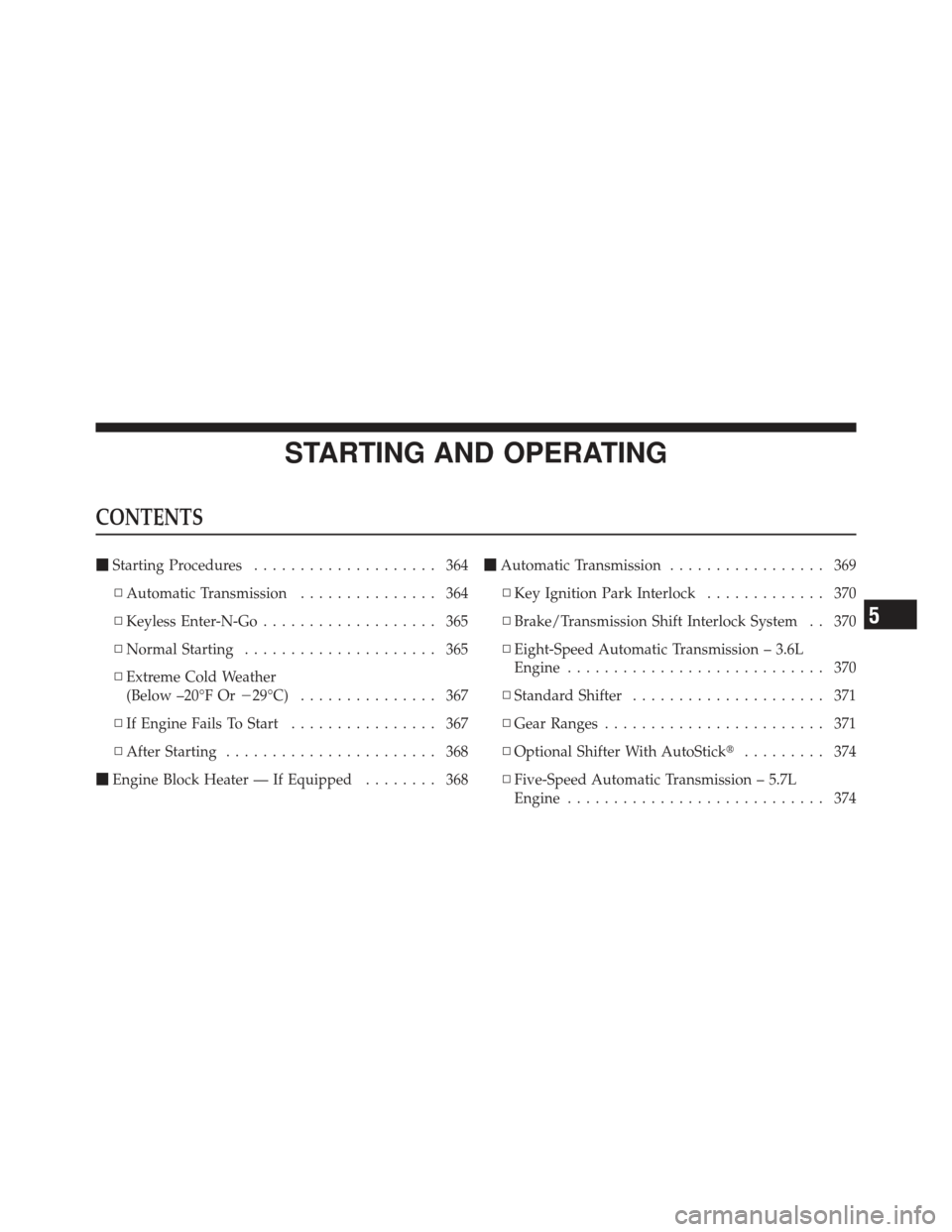

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 364
▫ Automatic Transmission ............... 364
▫ Keyless Enter-N-Go ................... 365
▫ Normal Starting ..................... 365
▫ Extreme Cold Weather
(Below –20°F Or 29°C)............... 367
▫ If Engine Fails To Start ................ 367
▫ After Starting ....................... 368
 Engine Block Heater — If Equipped ........ 368
Automatic Transmission ................. 369
▫ Key Ignition Park Interlock ............. 370
▫ Brake/Transmission Shift Interlock System . . 370
▫ Eight-Speed Automatic Transmission – 3.6L
Engine ............................ 370
▫ Standard Shifter ..................... 371
▫ Gear Ranges ........................ 371
▫ Optional Shifter With AutoStick ......... 374
▫ Five-Speed Automatic Transmission – 5.7L
Engine ............................ 374
5

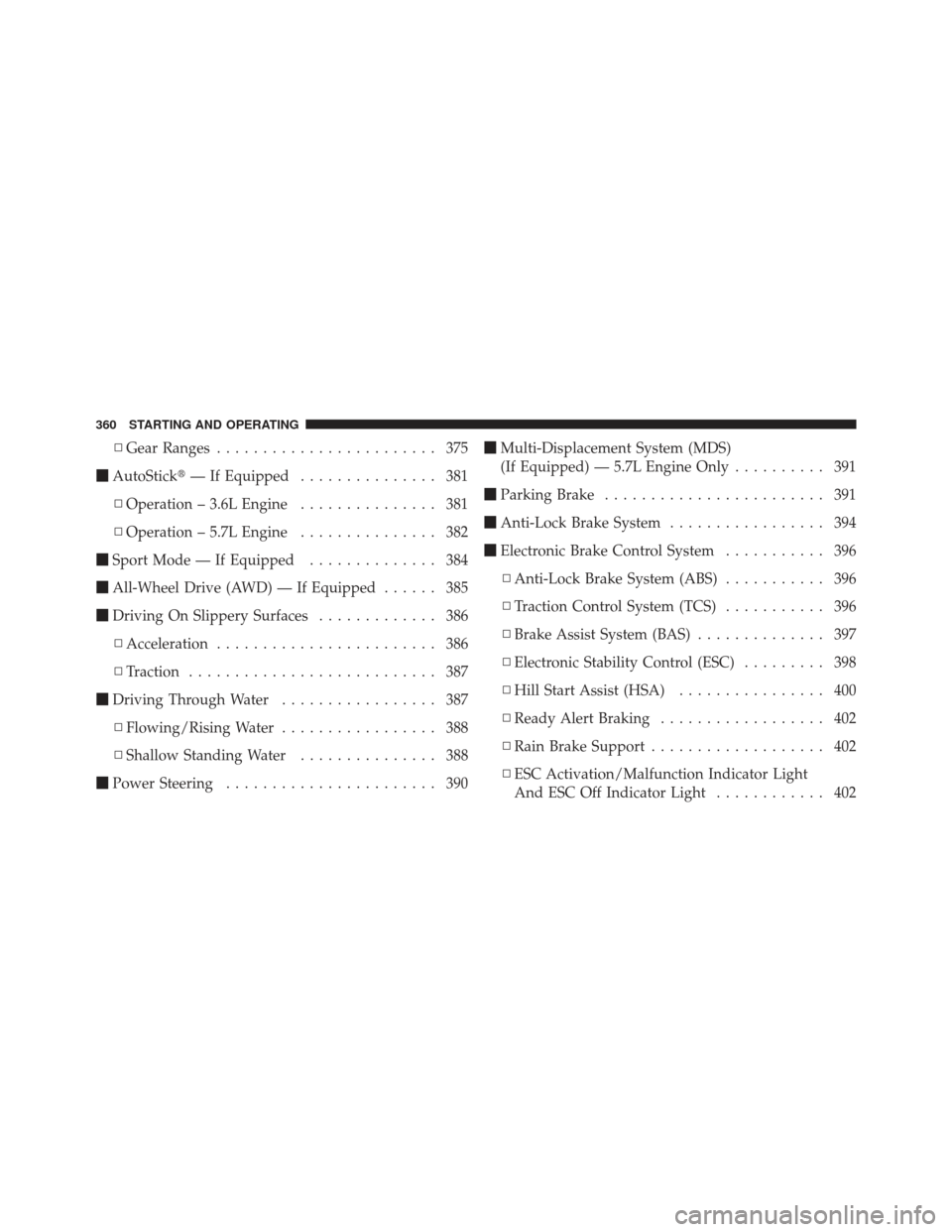

▫Gear Ranges ........................ 375
 AutoStick — If Equipped ............... 381
▫ Operation – 3.6L Engine ............... 381
▫ Operation – 5.7L Engine ............... 382
 Sport Mode — If Equipped .............. 384
 All-Wheel Drive (AWD) — If Equipped ...... 385
 Driving On Slippery Surfaces ............. 386
▫ Acceleration ........................ 386
▫ Traction ........................... 387
 Driving Through Water ................. 387
▫ Flowing/Rising Water ................. 388
▫ Shallow Standing Water ............... 388
 Power Steering ....................... 390
Multi-Displacement System (MDS)
(If Equipped) — 5.7L Engine Only .......... 391
 Parking Brake ........................ 391
 Anti-Lock Brake System ................. 394
 Electronic Brake Control System ........... 396
▫ Anti-Lock Brake System (ABS) ........... 396
▫ Traction Control System (TCS) ........... 396
▫ Brake Assist System (BAS) .............. 397
▫ Electronic Stability Control (ESC) ......... 398
▫ Hill Start Assist (HSA) ................ 400
▫ Ready Alert Braking .................. 402
▫ Rain Brake Support ................... 402
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 402
360 STARTING AND OPERATING

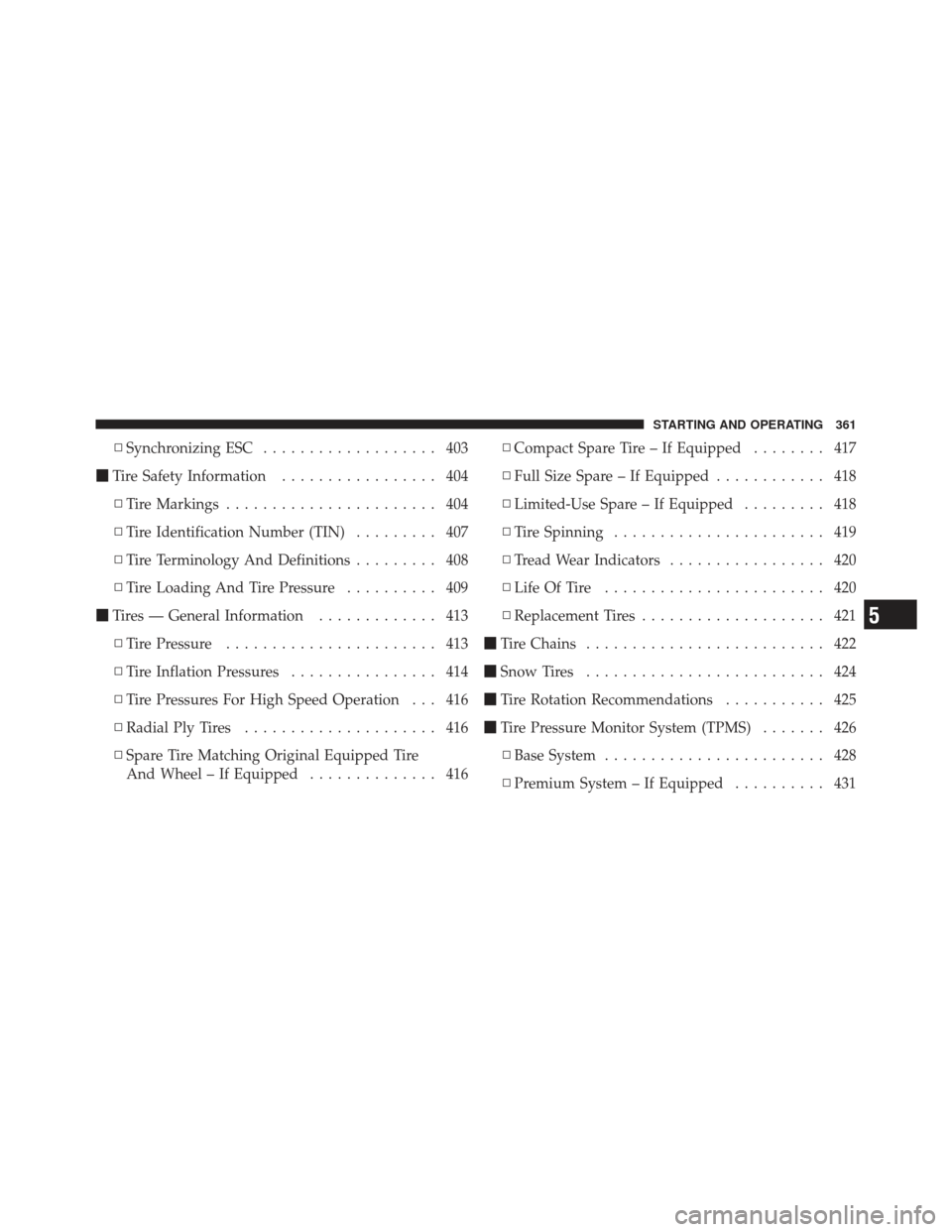

▫Synchronizing ESC ................... 403
 Tire Safety Information ................. 404
▫ Tire Markings ....................... 404
▫ Tire Identification Number (TIN) ......... 407
▫ Tire Terminology And Definitions ......... 408
▫ Tire Loading And Tire Pressure .......... 409
 Tires — General Information ............. 413
▫ Tire Pressure ....................... 413
▫ Tire Inflation Pressures ................ 414
▫ Tire Pressures For High Speed Operation . . . 416
▫ Radial Ply Tires ..................... 416
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped .............. 416 ▫
Compact Spare Tire – If Equipped ........ 417
▫ Full Size Spare – If Equipped ............ 418
▫ Limited-Use Spare – If Equipped ......... 418
▫ Tire Spinning ....................... 419
▫ Tread Wear Indicators ................. 420
▫ Life Of Tire ........................ 420
▫ Replacement Tires .................... 421
 Tire Chains .......................... 422
 Snow Tires .......................... 424
 Tire Rotation Recommendations ........... 425
 Tire Pressure Monitor System (TPMS) ....... 426
▫ Base System ........................ 428
▫ Premium System – If Equipped .......... 431
5
STARTING AND OPERATING 361

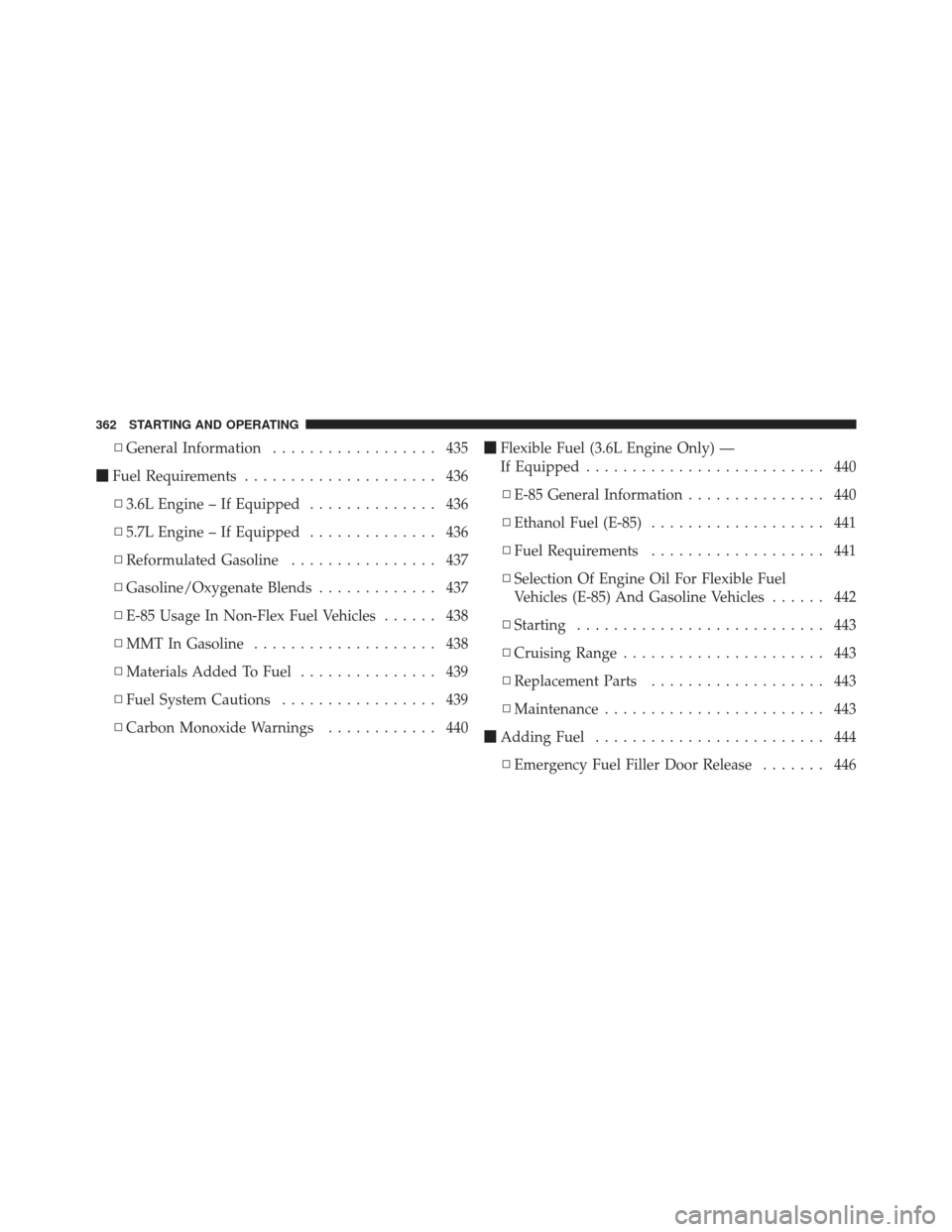

▫General Information .................. 435
 Fuel Requirements ..................... 436
▫ 3.6L Engine – If Equipped .............. 436
▫ 5.7L Engine – If Equipped .............. 436
▫ Reformulated Gasoline ................ 437
▫ Gasoline/Oxygenate Blends ............. 437
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 438
▫ MMT In Gasoline .................... 438
▫ Materials Added To Fuel ............... 439
▫ Fuel System Cautions ................. 439
▫ Carbon Monoxide Warnings ............ 440
Flexible Fuel (3.6L Engine Only) —
If Equipped .......................... 440
▫ E-85 General Information ............... 440
▫ Ethanol Fuel (E-85) ................... 441
▫ Fuel Requirements ................... 441
▫ Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 442
▫ Starting ........................... 443
▫ Cruising Range ...................... 443
▫ Replacement Parts ................... 443
▫ Maintenance ........................ 443
 Adding Fuel ......................... 444
▫ Emergency Fuel Filler Door Release ....... 446
362 STARTING AND OPERATING

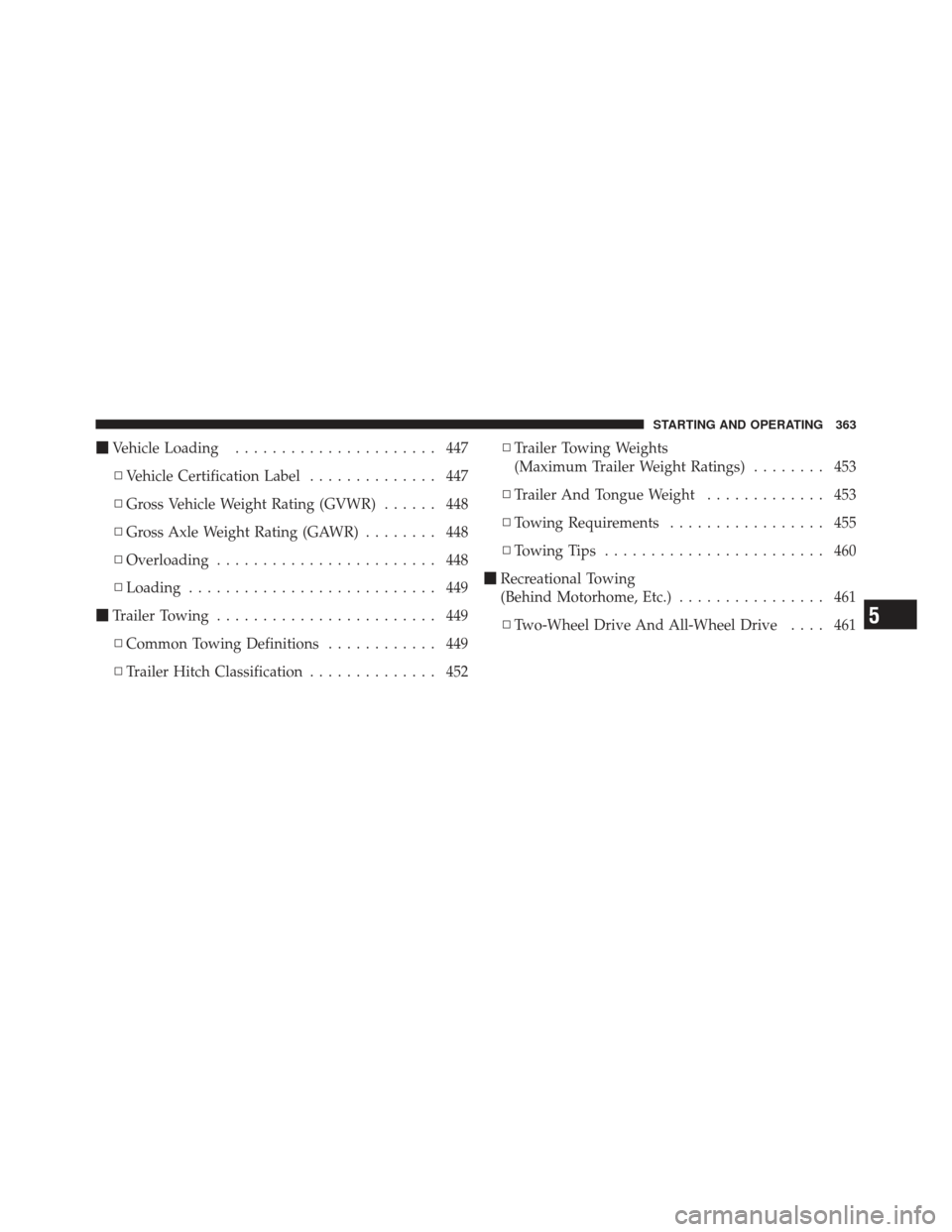

Vehicle Loading ...................... 447
▫ Vehicle Certification Label .............. 447
▫ Gross Vehicle Weight Rating (GVWR) ...... 448
▫ Gross Axle Weight Rating (GAWR) ........ 448
▫ Overloading ........................ 448
▫ Loading ........................... 449
 Trailer Towing ........................ 449
▫ Common Towing Definitions ............ 449
▫ Trailer Hitch Classification .............. 452 ▫
Trailer Towing Weights
(Maximum Trailer Weight Ratings) ........ 453
▫ Trailer And Tongue Weight ............. 453
▫ Towing Requirements ................. 455
▫ Towing Tips ........................ 460
 Recreational Towing
(Behind Motorhome, Etc.) ................ 461
▫ Two-Wheel Drive And All-Wheel Drive .... 461
5
STARTING AND OPERATING 363

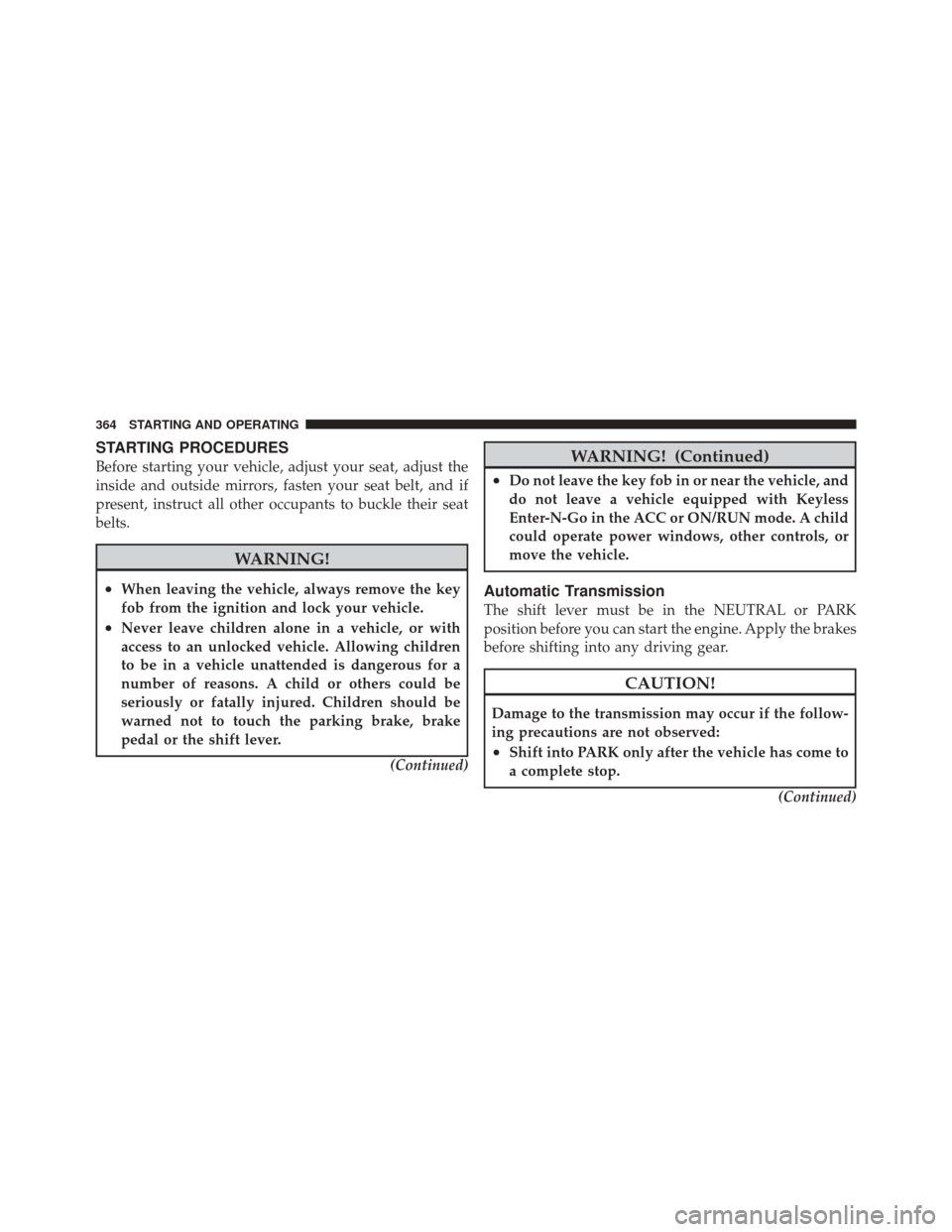

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the shift lever.(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, and
do not leave a vehicle equipped with Keyless
Enter-N-Go in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.(Continued)
364 STARTING AND OPERATING

CAUTION! (Continued)
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Keyless Enter-N-Go
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in
the passenger compartment.
Normal Starting
Using The ENGINE START/STOP Button
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
To start the engine, the transmission must be in PARK or
NEUTRAL. Press and hold the brake pedal while press-
ing the ENGINE START/STOP button once. The system
takes over and attempts to start the vehicle. If the vehicle
fails to start, the starter will disengage automatically after
10 seconds. If you wish to stop the cranking of the engine
prior to the engine starting, press the button again.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the shift lever in PARK, then press and release
the ENGINE START/STOP button.
5
STARTING AND OPERATING 365

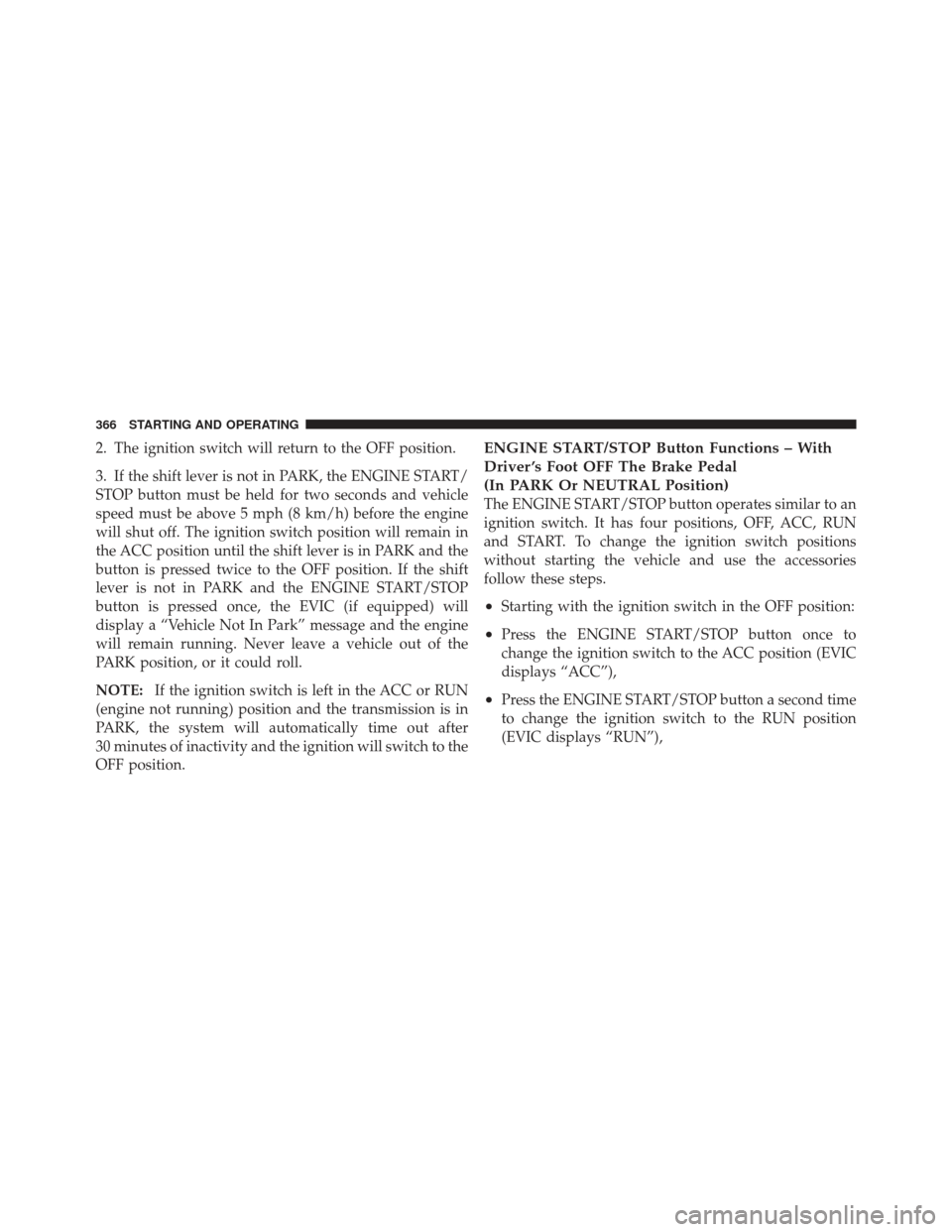

2. The ignition switch will return to the OFF position.
3. If the shift lever is not in PARK, the ENGINE START/
STOP button must be held for two seconds and vehicle
speed must be above 5 mph (8 km/h) before the engine
will shut off. The ignition switch position will remain in
the ACC position until the shift lever is in PARK and the
button is pressed twice to the OFF position. If the shift
lever is not in PARK and the ENGINE START/STOP
button is pressed once, the EVIC (if equipped) will
display a “Vehicle Not In Park” message and the engine
will remain running. Never leave a vehicle out of the
PARK position, or it could roll.
NOTE:If the ignition switch is left in the ACC or RUN
(engine not running) position and the transmission is in
PARK, the system will automatically time out after
30 minutes of inactivity and the ignition will switch to the
OFF position.ENGINE START/STOP Button Functions – With
Driver ’s Foot OFF The Brake Pedal
(In PARK Or NEUTRAL Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has four positions, OFF, ACC, RUN
and START. To change the ignition switch positions
without starting the vehicle and use the accessories
follow these steps.
•Starting with the ignition switch in the OFF position:
•Press the ENGINE START/STOP button once to
change the ignition switch to the ACC position (EVIC
displays “ACC”),
•Press the ENGINE START/STOP button a second time
to change the ignition switch to the RUN position
(EVIC displays “RUN”),
366 STARTING AND OPERATING

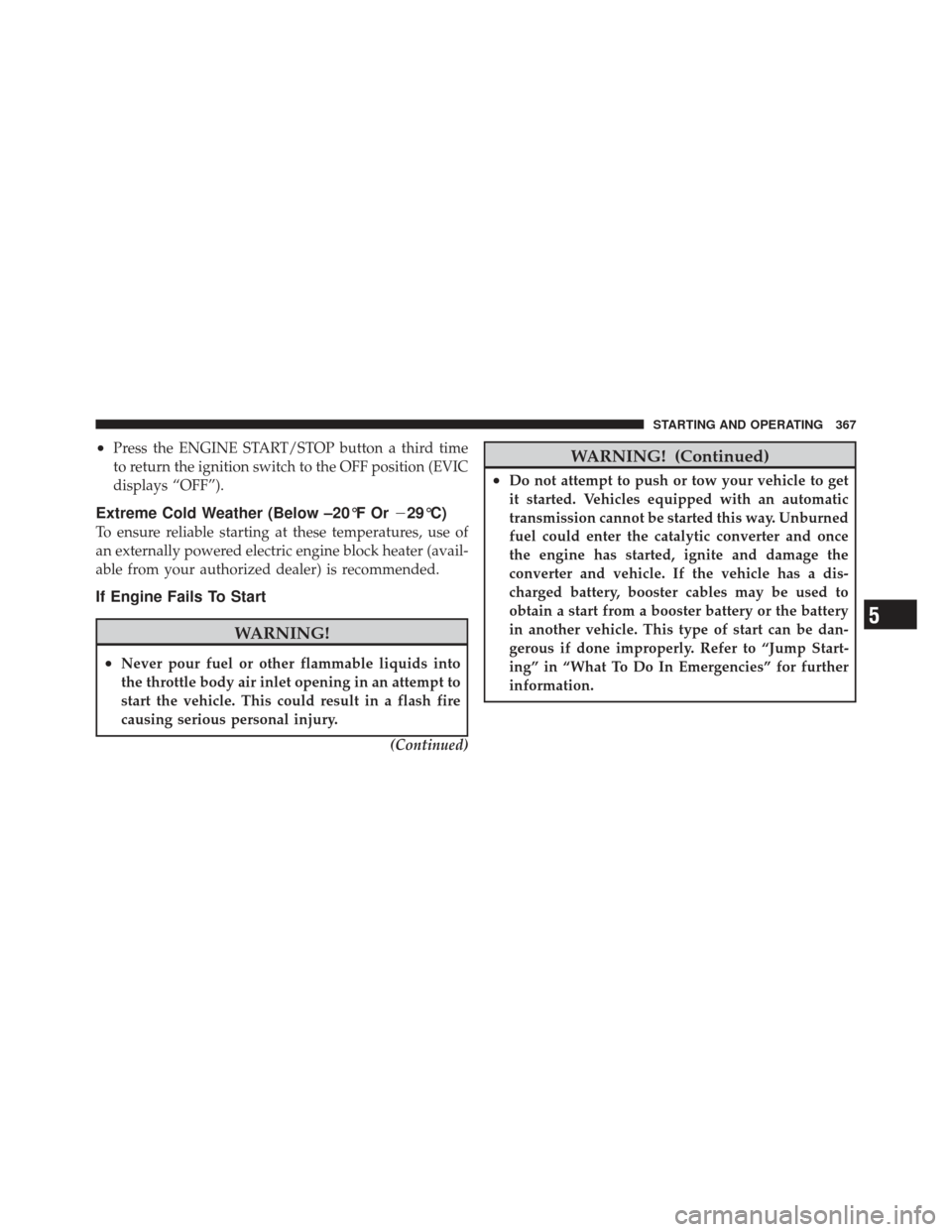

•Press the ENGINE START/STOP button a third time
to return the ignition switch to the OFF position (EVIC
displays “OFF”).
Extreme Cold Weather (Below –20°F Or29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquids into
the throttle body air inlet opening in an attempt to
start the vehicle. This could result in a flash fire
causing serious personal injury.
(Continued)
WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from a booster battery or the battery
in another vehicle. This type of start can be dan-
gerous if done improperly. Refer to “Jump Start-
ing” in “What To Do In Emergencies” for further
information.
5
STARTING AND OPERATING 367

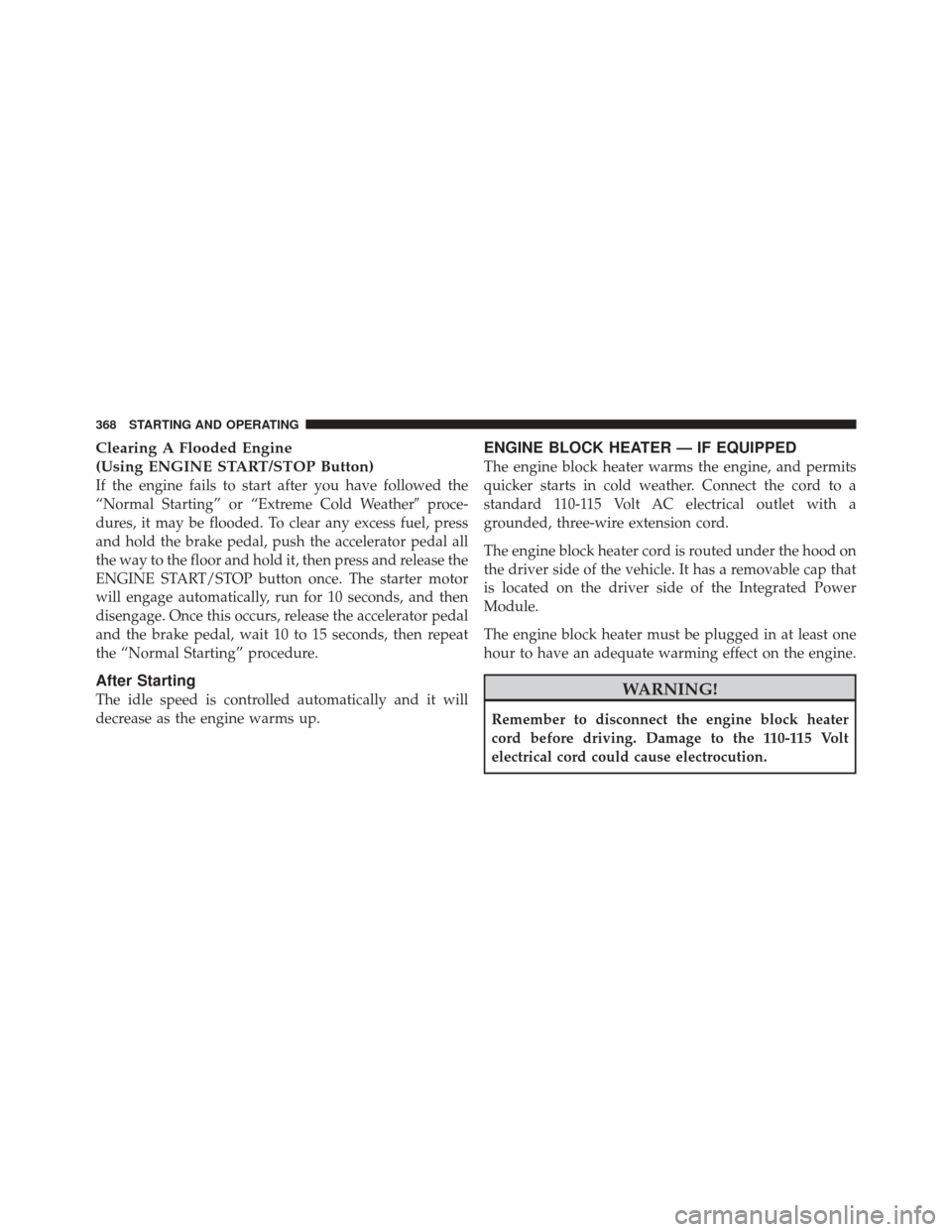

Clearing A Flooded Engine
(Using ENGINE START/STOP Button)
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weatherproce-
dures, it may be flooded. To clear any excess fuel, press
and hold the brake pedal, push the accelerator pedal all
the way to the floor and hold it, then press and release the
ENGINE START/STOP button once. The starter motor
will engage automatically, run for 10 seconds, and then
disengage. Once this occurs, release the accelerator pedal
and the brake pedal, wait 10 to 15 seconds, then repeat
the “Normal Starting” procedure.
After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.
The engine block heater cord is routed under the hood on
the driver side of the vehicle. It has a removable cap that
is located on the driver side of the Integrated Power
Module.
The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.
WARNING!
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt
electrical cord could cause electrocution.
368 STARTING AND OPERATING
