check engine DODGE CHARGER 2016 7.G Drive Modes Manual

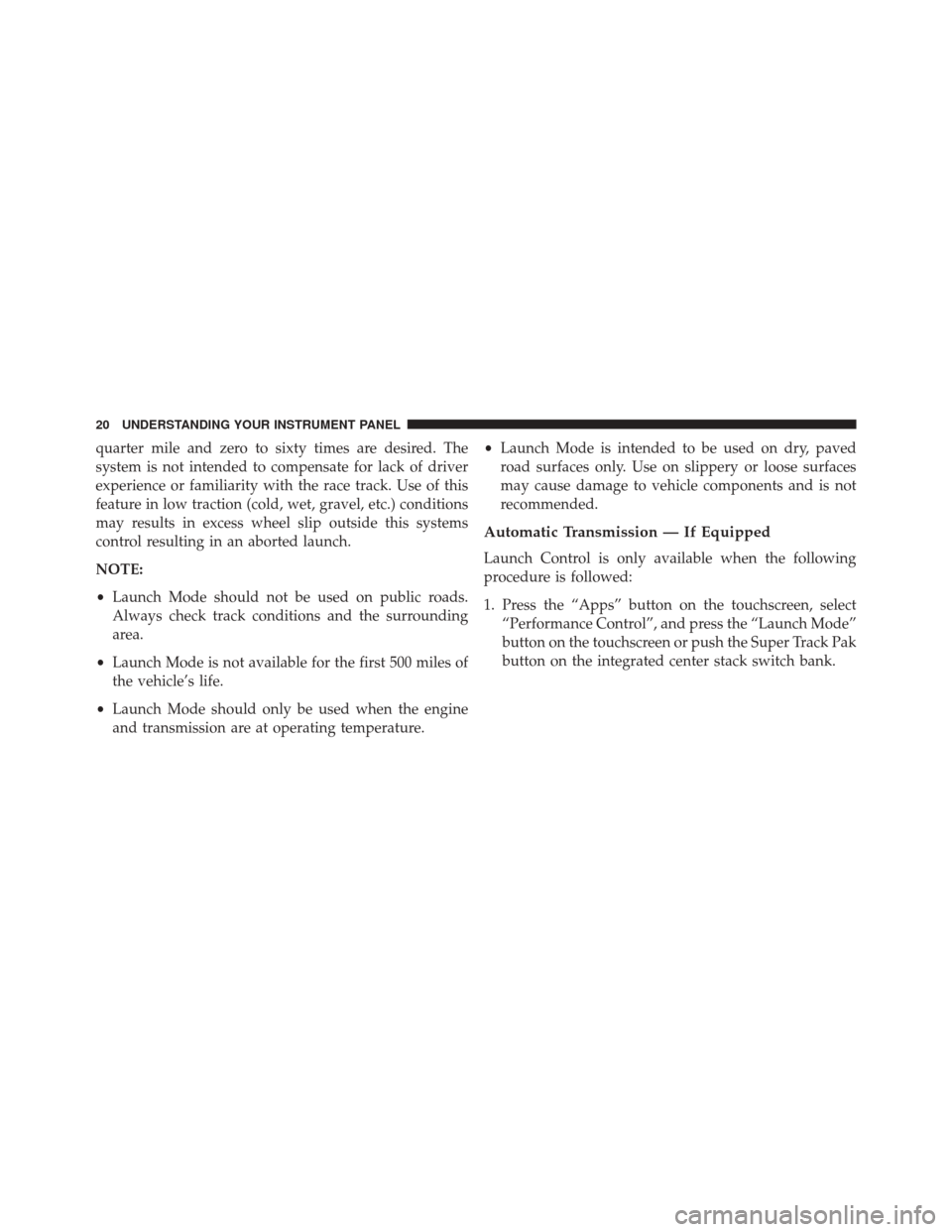

quarter mile and zero to sixty times are desired. The
system is not intended to compensate for lack of driver
experience or familiarity with the race track. Use of this
feature in low traction (cold, wet, gravel, etc.) conditions
may results in excess wheel slip outside this systems
control resulting in an aborted launch.
NOTE:
•Launch Mode should not be used on public roads.
Always check track conditions and the surrounding
area.
• Launch Mode is not available for the first 500 miles of
the vehicle’s life.
• Launch Mode should only be used when the engine
and transmission are at operating temperature. •
Launch Mode is intended to be used on dry, paved
road surfaces only. Use on slippery or loose surfaces
may cause damage to vehicle components and is not
recommended.
Automatic Transmission — If Equipped
Launch Control is only available when the following
procedure is followed:
1. Press the “Apps” button on the touchscreen, select “Performance Control”, and press the “Launch Mode”
button on the touchscreen or push the Super Track Pak
button on the integrated center stack switch bank.
20 UNDERSTANDING YOUR INSTRUMENT PANEL

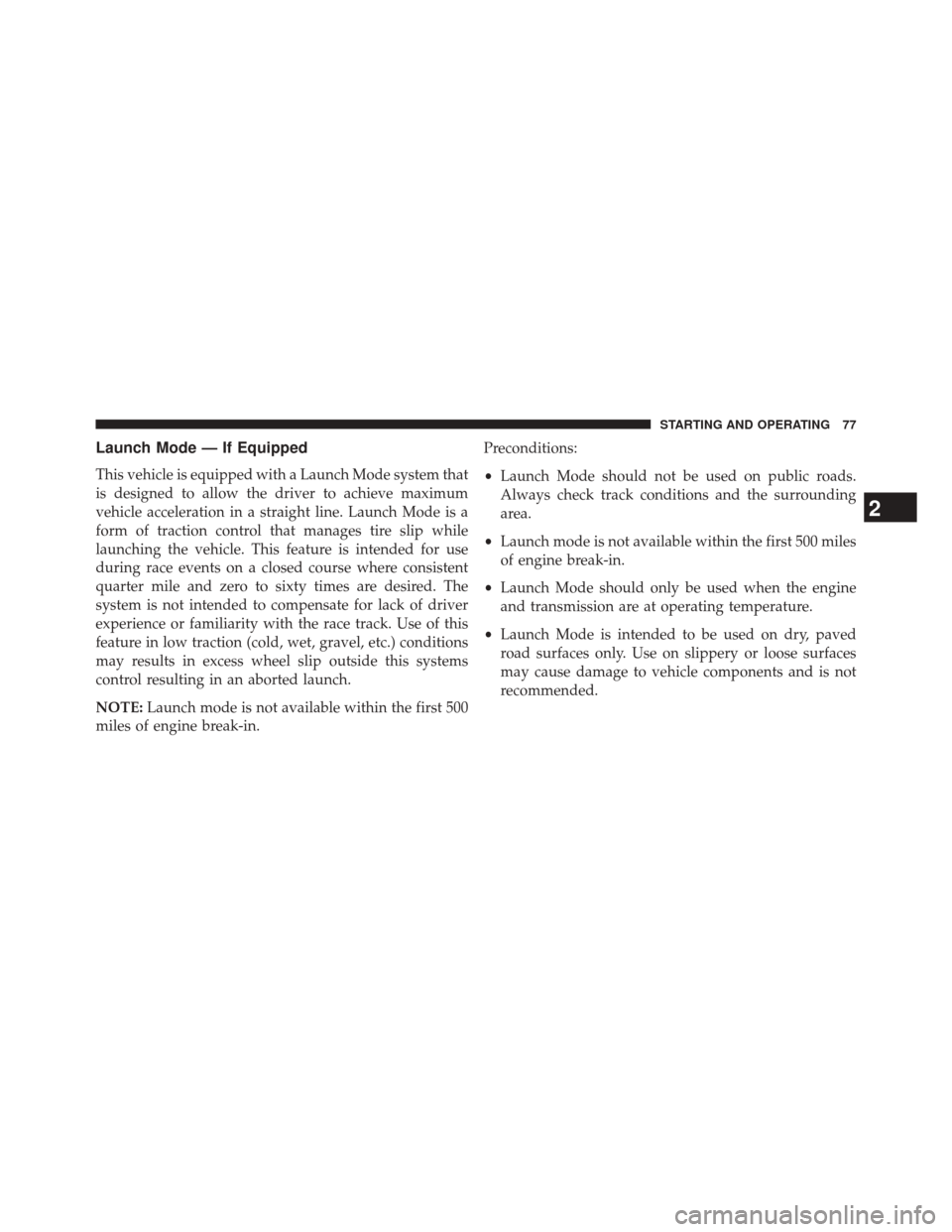

Launch Mode — If Equipped
This vehicle is equipped with a Launch Mode system that
is designed to allow the driver to achieve maximum
vehicle acceleration in a straight line. Launch Mode is a
form of traction control that manages tire slip while
launching the vehicle. This feature is intended for use
during race events on a closed course where consistent
quarter mile and zero to sixty times are desired. The
system is not intended to compensate for lack of driver
experience or familiarity with the race track. Use of this
feature in low traction (cold, wet, gravel, etc.) conditions
may results in excess wheel slip outside this systems
control resulting in an aborted launch.
NOTE:Launch mode is not available within the first 500
miles of engine break-in. Preconditions:
•
Launch Mode should not be used on public roads.
Always check track conditions and the surrounding
area.
• Launch mode is not available within the first 500 miles
of engine break-in.
• Launch Mode should only be used when the engine
and transmission are at operating temperature.
• Launch Mode is intended to be used on dry, paved
road surfaces only. Use on slippery or loose surfaces
may cause damage to vehicle components and is not
recommended.
2
STARTING AND OPERATING 77

•It is recommended that each track outing should end
with a minimum of 1 cool down lap using minimal
braking.
• If equipped with a removable lower front fascia grille,
it is recommended to remove it for track use during
warm/hot weather to improve cooling airflow to
critical powertrain and cooling system components.
• All SRT vehicles are track tested for 24 hours of
endurance. However, it is recommended that suspen-
sion system, brake system, prop shaft, and ½ shaft
boots should be checked for wear or damage after
every track event. •
Track usage results in increased operating tempera-
tures of the engine, transmission, clutch – if equipped,
driveline and brake system. This may affect noise
(NVH) countermeasures designed into your vehicle.
New components may need to be installed to return
the system to the original NVH performance.
• Tire pressure:
• 40psi (276kpa) hot, recommend 32psi (221kpa) front,
30psi (207 kpa) rear cold
NOTE: It is recommended that you target 40psi (276kpa)
Hot Tire Pressure at the conclusion of each track session.
Starting at 32psi (221kpa) Front & 30psi (207 kpa) Rear
Cold and adjusting based on ambient & track conditions
is recommended. Tire pressure can be monitored via the
Driver Information Display (DID) and can assist with
adjustments.
82 STARTING AND OPERATING
