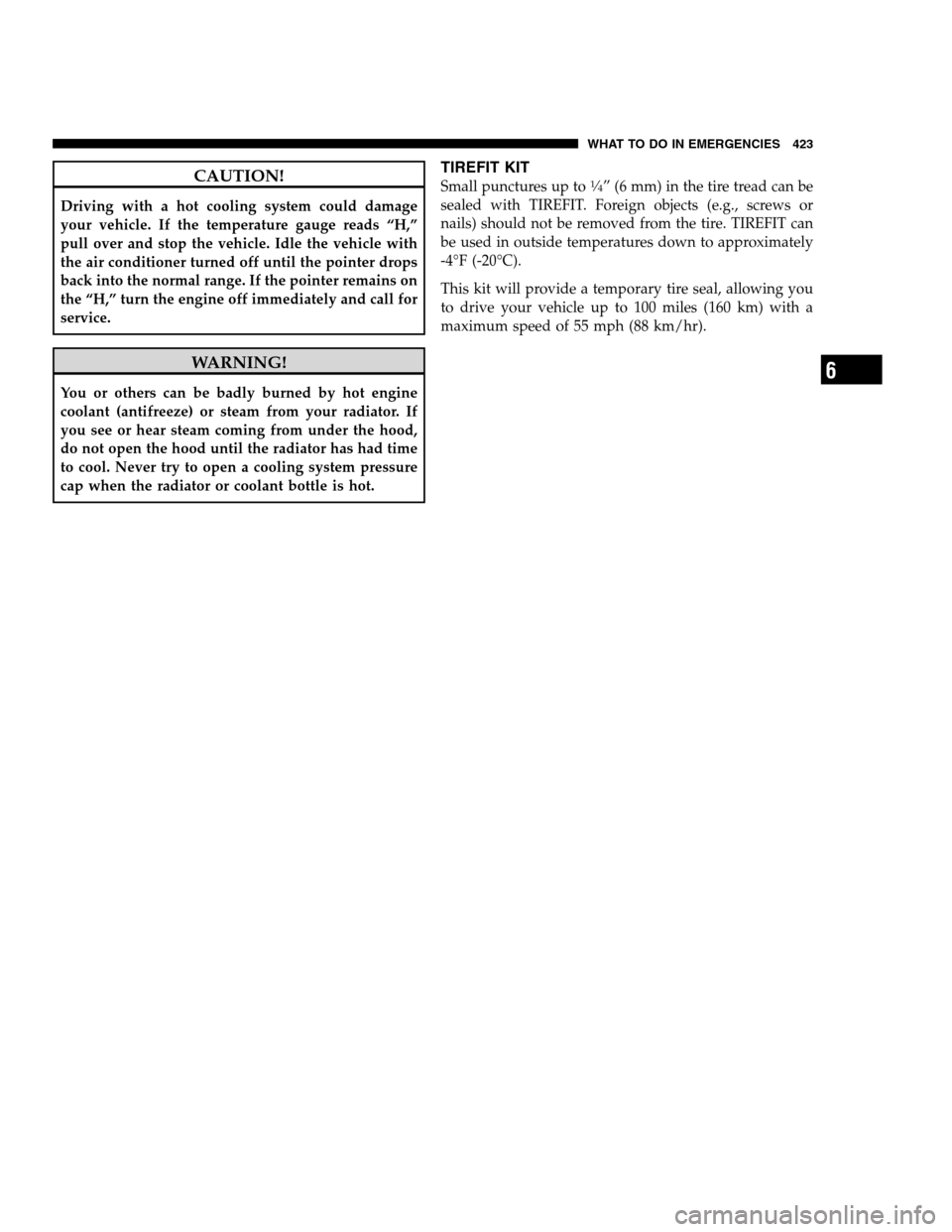

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
TIREFIT KIT
Small punctures up to14” (6 mm) in the tire tread can be
sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (88 km/hr).
6
WHAT TO DO IN EMERGENCIES 423
PAGE POSITION:423JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
TIREFIT KIT
Small punctures up to14” (6 mm) in the tire tread can be
sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to 100 miles (160 km) with a
maximum speed of 55 mph (88 km/hr).
6
WHAT TO DO IN EMERGENCIES 423
PAGE POSITION:423JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

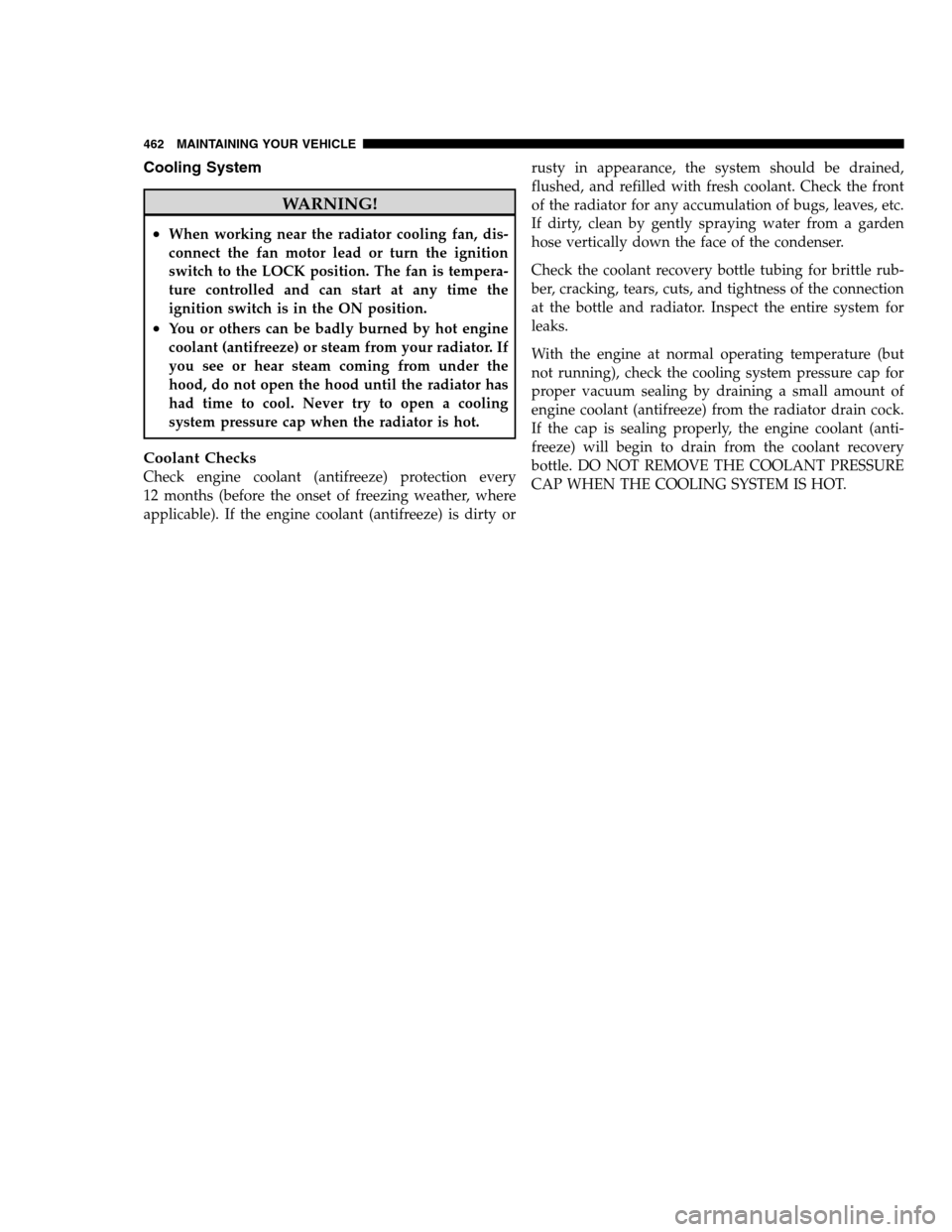

Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition
switch to the LOCK position. The fan is tempera-
ture controlled and can start at any time the
ignition switch is in the ON position.
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.
Coolant Checks
Check engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty orrusty in appearance, the system should be drained,
flushed, and refilled with fresh coolant. Check the front
of the radiator for any accumulation of bugs, leaves, etc.
If dirty, clean by gently spraying water from a garden
hose vertically down the face of the condenser.
Check the coolant recovery bottle tubing for brittle rub-
ber, cracking, tears, cuts, and tightness of the connection
at the bottle and radiator. Inspect the entire system for
leaks.
With the engine at normal operating temperature (but
not running), check the cooling system pressure cap for
proper vacuum sealing by draining a small amount of
engine coolant (antifreeze) from the radiator drain cock.
If the cap is sealing properly, the engine coolant (anti-
freeze) will begin to drain from the coolant recovery
bottle. DO NOT REMOVE THE COOLANT PRESSURE
CAP WHEN THE COOLING SYSTEM IS HOT.
462 MAINTAINING YOUR VEHICLE
PAGE POSITION:462JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition
switch to the LOCK position. The fan is tempera-
ture controlled and can start at any time the
ignition switch is in the ON position.
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.
Coolant Checks
Check engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty orrusty in appearance, the system should be drained,
flushed, and refilled with fresh coolant. Check the front
of the radiator for any accumulation of bugs, leaves, etc.
If dirty, clean by gently spraying water from a garden
hose vertically down the face of the condenser.
Check the coolant recovery bottle tubing for brittle rub-
ber, cracking, tears, cuts, and tightness of the connection
at the bottle and radiator. Inspect the entire system for
leaks.
With the engine at normal operating temperature (but
not running), check the cooling system pressure cap for
proper vacuum sealing by draining a small amount of
engine coolant (antifreeze) from the radiator drain cock.
If the cap is sealing properly, the engine coolant (anti-
freeze) will begin to drain from the coolant recovery
bottle. DO NOT REMOVE THE COOLANT PRESSURE
CAP WHEN THE COOLING SYSTEM IS HOT.
462 MAINTAINING YOUR VEHICLE
PAGE POSITION:462JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

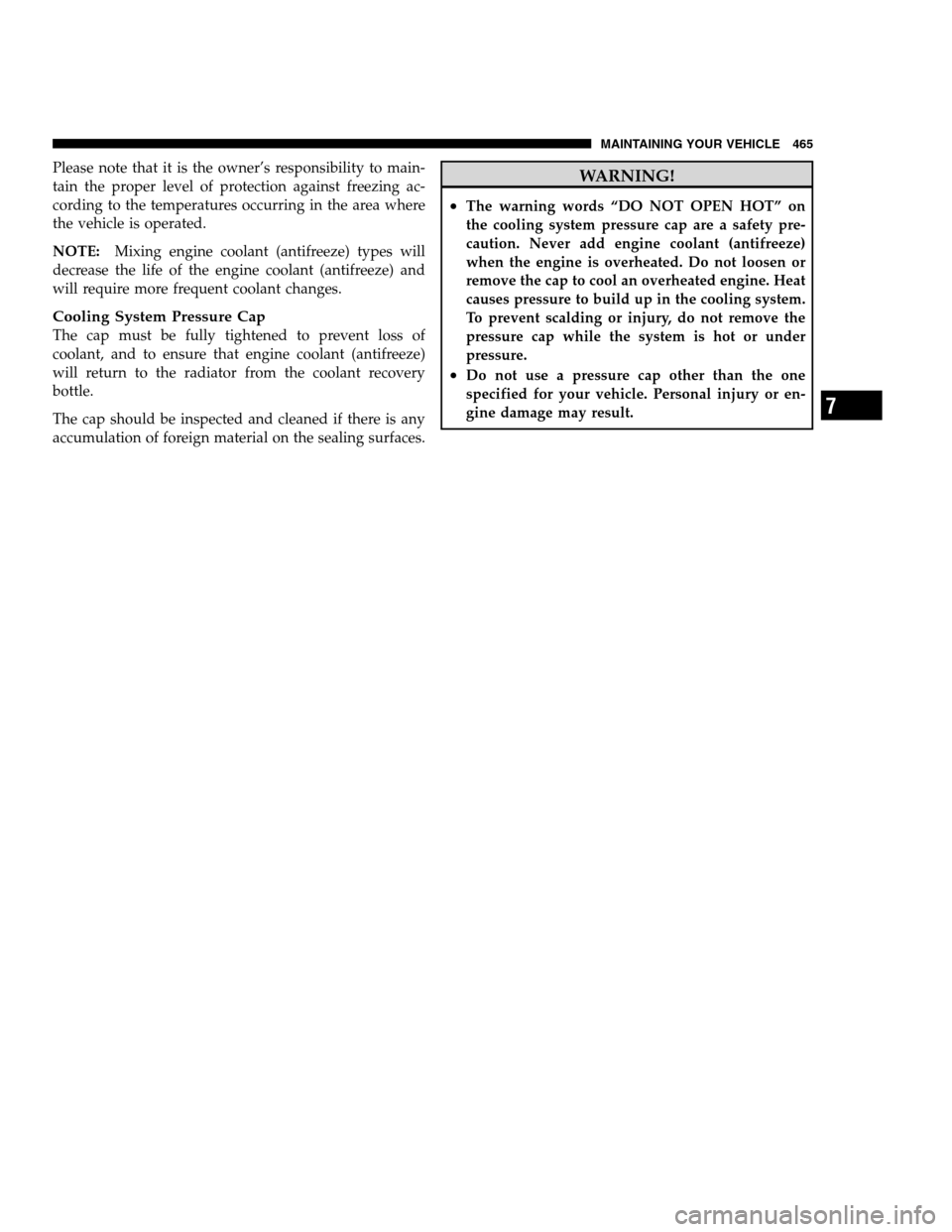

Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.
NOTE:Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (antifreeze) and
will require more frequent coolant changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of
coolant, and to ensure that engine coolant (antifreeze)
will return to the radiator from the coolant recovery
bottle.
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
WARNING!
•The warning words “DO NOT OPEN HOT” on
the cooling system pressure cap are a safety pre-
caution. Never add engine coolant (antifreeze)
when the engine is overheated. Do not loosen or
remove the cap to cool an overheated engine. Heat
causes pressure to build up in the cooling system.
To prevent scalding or injury, do not remove the
pressure cap while the system is hot or under
pressure.
•Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or en-
gine damage may result.
7
MAINTAINING YOUR VEHICLE 465
PAGE POSITION:465JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.
NOTE:Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (antifreeze) and
will require more frequent coolant changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of
coolant, and to ensure that engine coolant (antifreeze)
will return to the radiator from the coolant recovery
bottle.
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
WARNING!
•The warning words “DO NOT OPEN HOT” on
the cooling system pressure cap are a safety pre-
caution. Never add engine coolant (antifreeze)
when the engine is overheated. Do not loosen or
remove the cap to cool an overheated engine. Heat
causes pressure to build up in the cooling system.
To prevent scalding or injury, do not remove the
pressure cap while the system is hot or under
pressure.
•Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or en-
gine damage may result.
7
MAINTAINING YOUR VEHICLE 465
PAGE POSITION:465JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

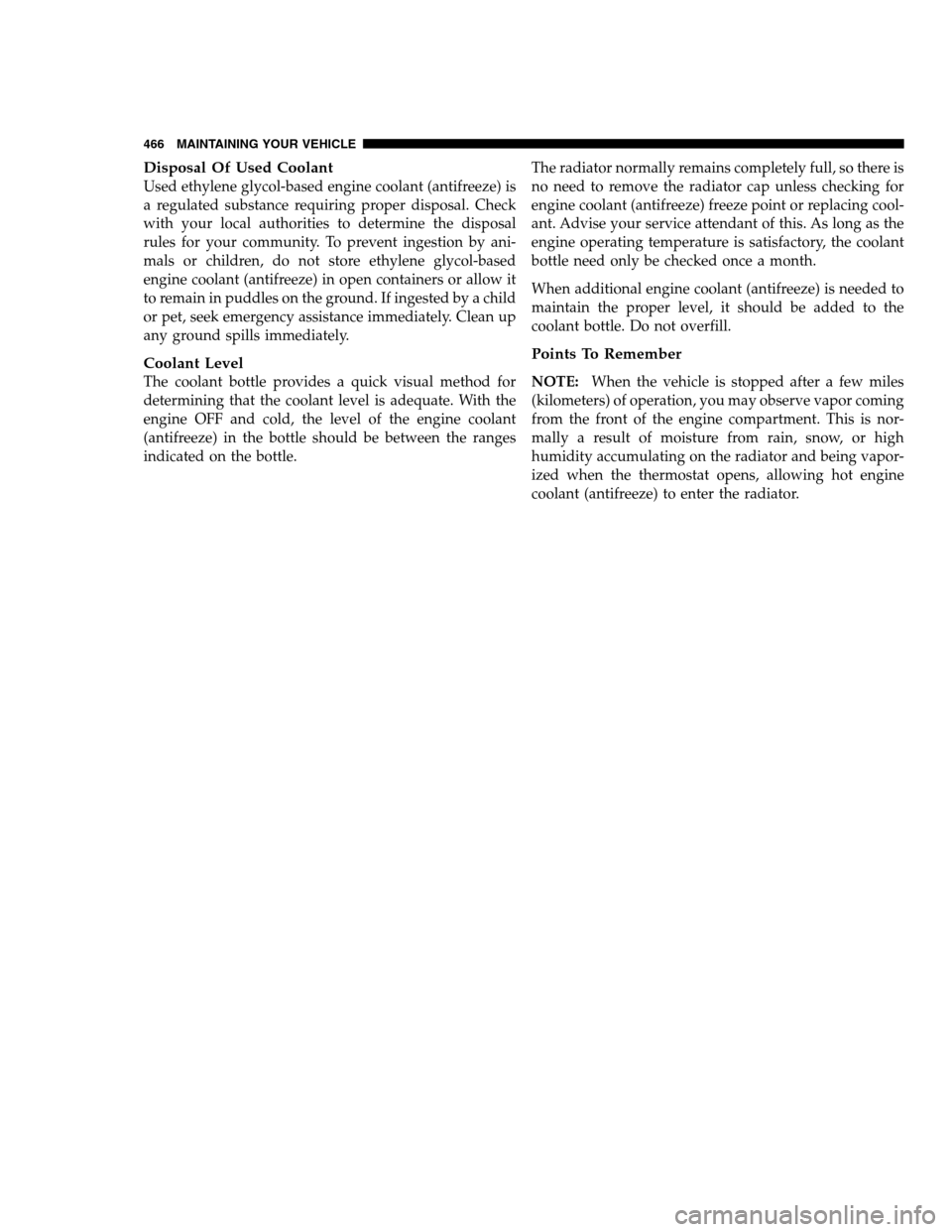

Disposal Of Used Coolant
Used ethylene glycol-based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol-based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the ranges
indicated on the bottle.The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
engine coolant (antifreeze) freeze point or replacing cool-
ant. Advise your service attendant of this. As long as the
engine operating temperature is satisfactory, the coolant
bottle need only be checked once a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the
coolant bottle. Do not overfill.
Points To Remember
NOTE:When the vehicle is stopped after a few miles
(kilometers) of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot engine
coolant (antifreeze) to enter the radiator.
466 MAINTAINING YOUR VEHICLE
PAGE POSITION:466JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Disposal Of Used Coolant
Used ethylene glycol-based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol-based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the ranges
indicated on the bottle.The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
engine coolant (antifreeze) freeze point or replacing cool-
ant. Advise your service attendant of this. As long as the
engine operating temperature is satisfactory, the coolant
bottle need only be checked once a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the
coolant bottle. Do not overfill.
Points To Remember
NOTE:When the vehicle is stopped after a few miles
(kilometers) of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot engine
coolant (antifreeze) to enter the radiator.
466 MAINTAINING YOUR VEHICLE
PAGE POSITION:466JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

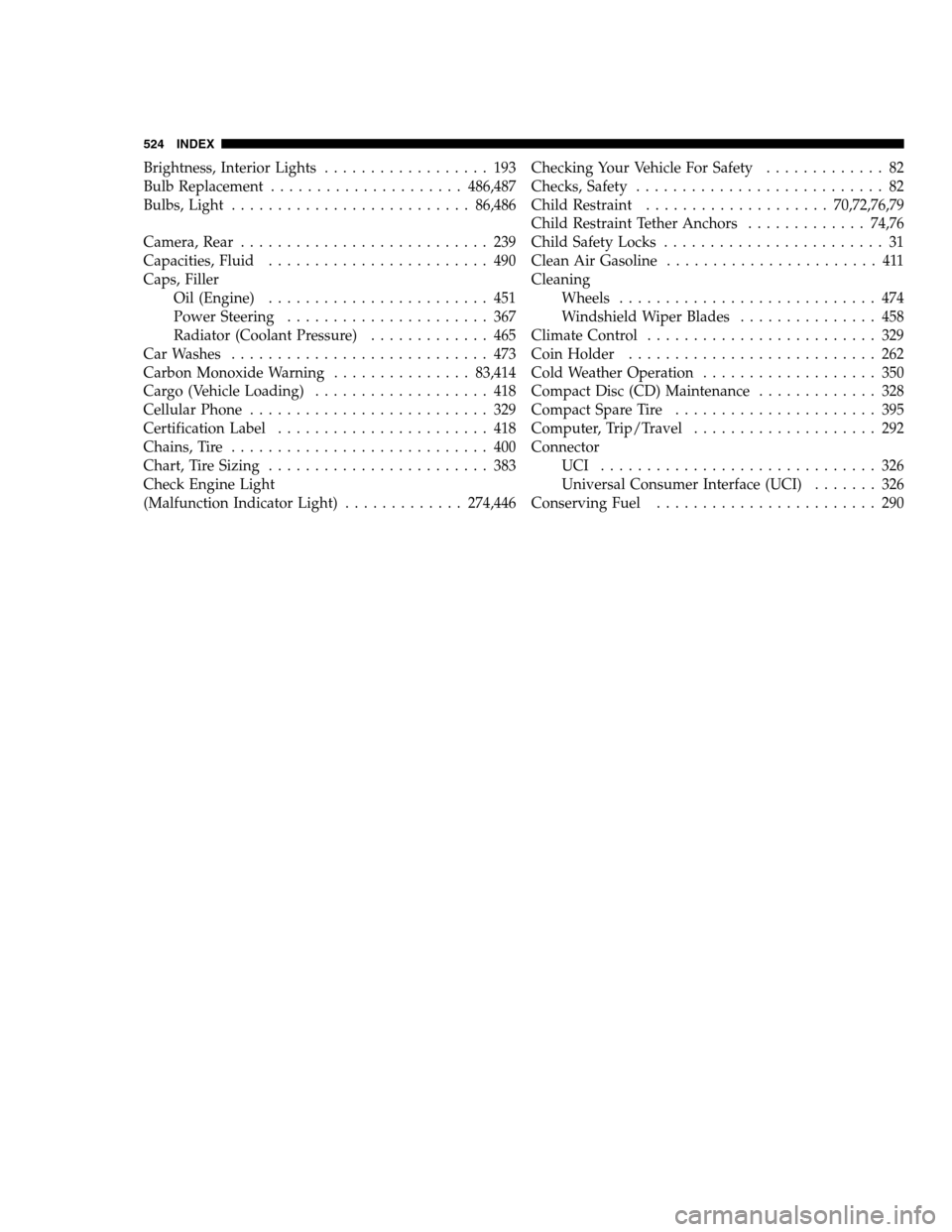

Brightness, Interior Lights.................. 193
Bulb Replacement.....................486,487
Bulbs, Light..........................86,486
Camera, Rear........................... 239
Capacities, Fluid........................ 490
Caps, Filler
Oil (Engine)........................ 451
Power Steering...................... 367
Radiator (Coolant Pressure)............. 465
Car Washes............................ 473
Carbon Monoxide Warning...............83,414
Cargo (Vehicle Loading)................... 418
Cellular Phone.......................... 329
Certification Label....................... 418
Chains, Tire............................ 400
Chart, Tire Sizing........................ 383
Check Engine Light
(Malfunction Indicator Light).............274,446Checking Your Vehicle For Safety............. 82
Checks, Safety........................... 82
Child Restraint....................70,72,76,79
Child Restraint Tether Anchors.............74,76
Child Safety Locks........................ 31
Clean Air Gasoline....................... 411
Cleaning
Wheels............................ 474
Windshield Wiper Blades............... 458
Climate Control......................... 329
Coin Holder........................... 262
Cold Weather Operation................... 350
Compact Disc (CD) Maintenance............. 328
Compact Spare Tire...................... 395
Computer, Trip/Travel.................... 292
Connector
UCI .............................. 326
Universal Consumer Interface (UCI)....... 326
Conserving Fuel........................ 290
524 INDEX
PAGE POSITION:524JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Brightness, Interior Lights.................. 193
Bulb Replacement.....................486,487
Bulbs, Light..........................86,486
Camera, Rear........................... 239
Capacities, Fluid........................ 490
Caps, Filler
Oil (Engine)........................ 451
Power Steering...................... 367
Radiator (Coolant Pressure)............. 465
Car Washes............................ 473
Carbon Monoxide Warning...............83,414
Cargo (Vehicle Loading)................... 418
Cellular Phone.......................... 329
Certification Label....................... 418
Chains, Tire............................ 400
Chart, Tire Sizing........................ 383
Check Engine Light
(Malfunction Indicator Light).............274,446Checking Your Vehicle For Safety............. 82
Checks, Safety........................... 82
Child Restraint....................70,72,76,79
Child Restraint Tether Anchors.............74,76
Child Safety Locks........................ 31
Clean Air Gasoline....................... 411
Cleaning
Wheels............................ 474
Windshield Wiper Blades............... 458
Climate Control......................... 329
Coin Holder........................... 262
Cold Weather Operation................... 350
Compact Disc (CD) Maintenance............. 328
Compact Spare Tire...................... 395
Computer, Trip/Travel.................... 292
Connector
UCI .............................. 326
Universal Consumer Interface (UCI)....... 326
Conserving Fuel........................ 290
524 INDEX
PAGE POSITION:524JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

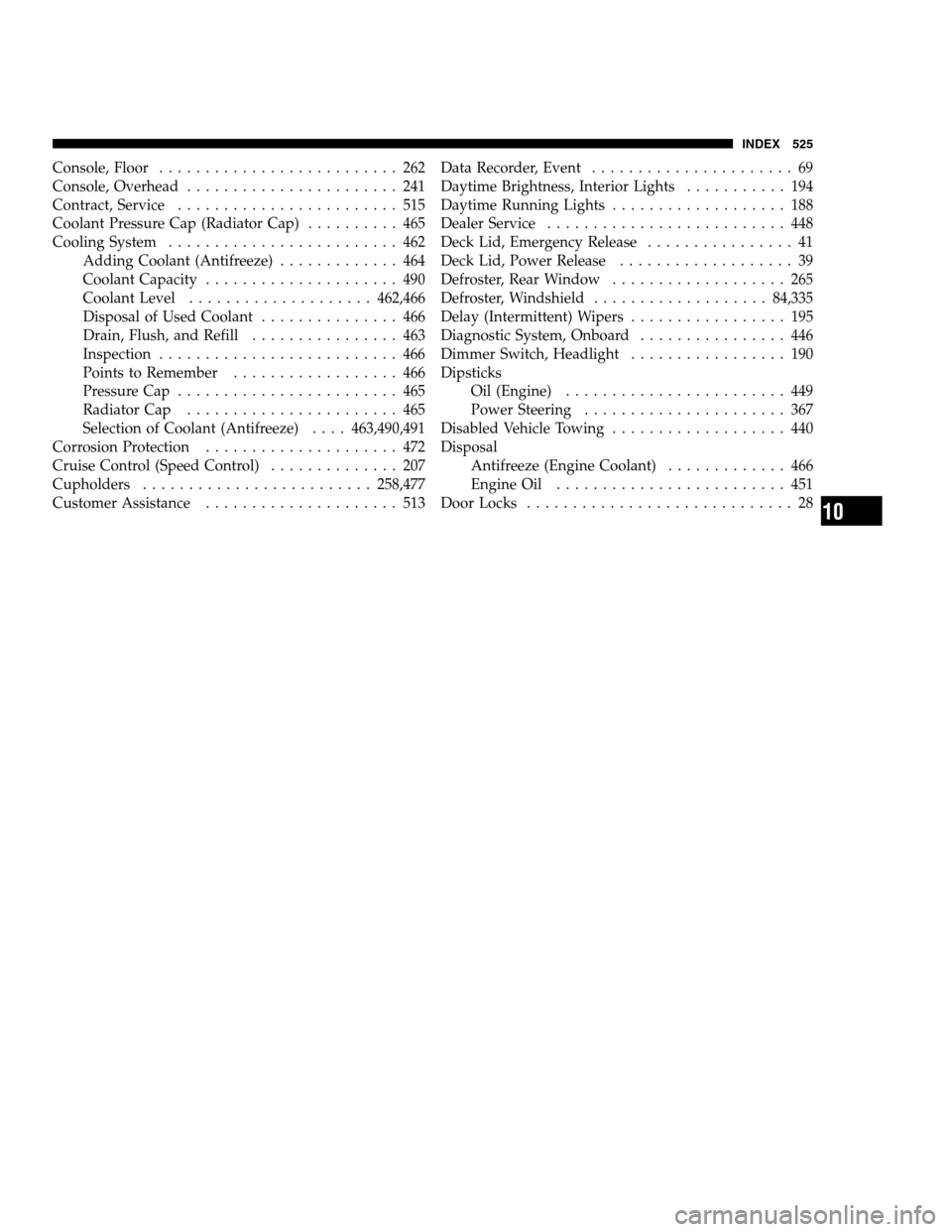

Console, Floor.......................... 262
Console, Overhead....................... 241
Contract, Service........................ 515
Coolant Pressure Cap (Radiator Cap).......... 465
Cooling System......................... 462
Adding Coolant (Antifreeze)............. 464
Coolant Capacity..................... 490
Coolant Level....................462,466
Disposal of Used Coolant............... 466
Drain, Flush, and Refill................ 463
Inspection.......................... 466
Points to Remember.................. 466
Pressure Cap........................ 465
Radiator Cap....................... 465
Selection of Coolant (Antifreeze)....463,490,491
Corrosion Protection..................... 472
Cruise Control (Speed Control).............. 207
Cupholders.........................258,477
Customer Assistance..................... 513Data Recorder, Event...................... 69
Daytime Brightness, Interior Lights........... 194
Daytime Running Lights................... 188
Dealer Service.......................... 448
Deck Lid, Emergency Release................ 41
Deck Lid, Power Release................... 39
Defroster, Rear Window................... 265
Defroster, Windshield...................84,335
Delay (Intermittent) Wipers................. 195
Diagnostic System, Onboard................ 446
Dimmer Switch, Headlight................. 190
Dipsticks
Oil (Engine)........................ 449
Power Steering...................... 367
Disabled Vehicle Towing................... 440
Disposal
Antifreeze (Engine Coolant)............. 466
Engine Oil......................... 451
Door Locks............................. 28
10
INDEX 525
PAGE POSITION:525JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Console, Floor.......................... 262
Console, Overhead....................... 241
Contract, Service........................ 515
Coolant Pressure Cap (Radiator Cap).......... 465
Cooling System......................... 462
Adding Coolant (Antifreeze)............. 464
Coolant Capacity..................... 490
Coolant Level....................462,466
Disposal of Used Coolant............... 466
Drain, Flush, and Refill................ 463
Inspection.......................... 466
Points to Remember.................. 466
Pressure Cap........................ 465
Radiator Cap....................... 465
Selection of Coolant (Antifreeze)....463,490,491
Corrosion Protection..................... 472
Cruise Control (Speed Control).............. 207
Cupholders.........................258,477
Customer Assistance..................... 513Data Recorder, Event...................... 69
Daytime Brightness, Interior Lights........... 194
Daytime Running Lights................... 188
Dealer Service.......................... 448
Deck Lid, Emergency Release................ 41
Deck Lid, Power Release................... 39
Defroster, Rear Window................... 265
Defroster, Windshield...................84,335
Delay (Intermittent) Wipers................. 195
Diagnostic System, Onboard................ 446
Dimmer Switch, Headlight................. 190
Dipsticks
Oil (Engine)........................ 449
Power Steering...................... 367
Disabled Vehicle Towing................... 440
Disposal
Antifreeze (Engine Coolant)............. 466
Engine Oil......................... 451
Door Locks............................. 28
10
INDEX 525
PAGE POSITION:525JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

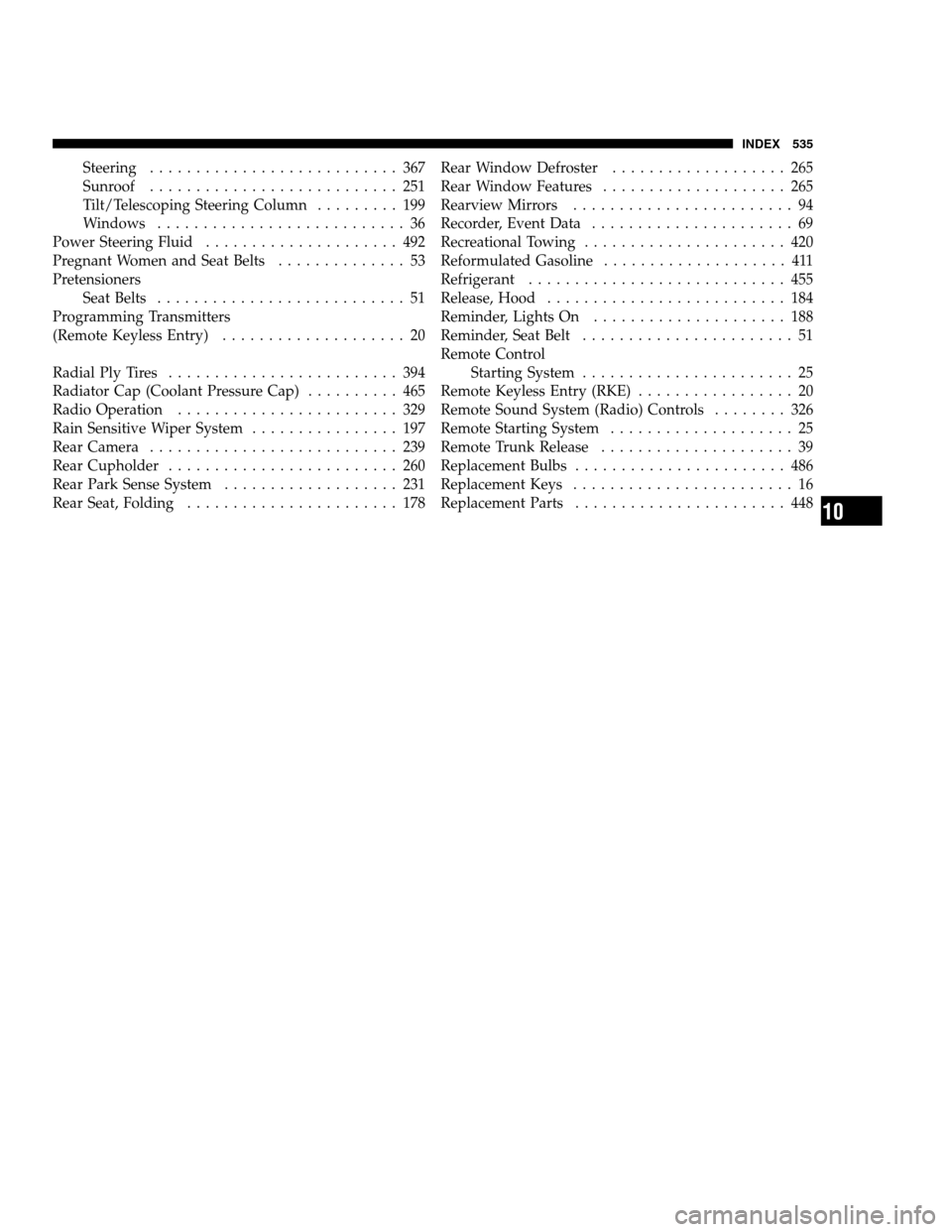

Steering........................... 367
Sunroof........................... 251
Tilt/Telescoping Steering Column......... 199
Windows........................... 36
Power Steering Fluid..................... 492
Pregnant Women and Seat Belts.............. 53
Pretensioners
Seat Belts........................... 51
Programming Transmitters
(Remote Keyless Entry).................... 20
Radial Ply Tires......................... 394
Radiator Cap (Coolant Pressure Cap).......... 465
Radio Operation........................ 329
Rain Sensitive Wiper System................ 197
Rear Camera........................... 239
Rear Cupholder......................... 260
Rear Park Sense System................... 231
Rear Seat, Folding....................... 178Rear Window Defroster................... 265
Rear Window Features.................... 265
Rearview Mirrors........................ 94
Recorder, Event Data...................... 69
Recreational Towing...................... 420
Reformulated Gasoline.................... 411
Refrigerant............................ 455
Release, Hood.......................... 184
Reminder, Lights On..................... 188
Reminder, Seat Belt....................... 51
Remote Control
Starting System....................... 25
Remote Keyless Entry (RKE)................. 20
Remote Sound System (Radio) Controls........ 326
Remote Starting System.................... 25
Remote Trunk Release..................... 39
Replacement Bulbs....................... 486
Replacement Keys........................ 16
Replacement Parts....................... 448
10
INDEX 535
PAGE POSITION:535JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Steering........................... 367
Sunroof........................... 251
Tilt/Telescoping Steering Column......... 199
Windows........................... 36
Power Steering Fluid..................... 492
Pregnant Women and Seat Belts.............. 53
Pretensioners
Seat Belts........................... 51
Programming Transmitters
(Remote Keyless Entry).................... 20
Radial Ply Tires......................... 394
Radiator Cap (Coolant Pressure Cap).......... 465
Radio Operation........................ 329
Rain Sensitive Wiper System................ 197
Rear Camera........................... 239
Rear Cupholder......................... 260
Rear Park Sense System................... 231
Rear Seat, Folding....................... 178Rear Window Defroster................... 265
Rear Window Features.................... 265
Rearview Mirrors........................ 94
Recorder, Event Data...................... 69
Recreational Towing...................... 420
Reformulated Gasoline.................... 411
Refrigerant............................ 455
Release, Hood.......................... 184
Reminder, Lights On..................... 188
Reminder, Seat Belt....................... 51
Remote Control
Starting System....................... 25
Remote Keyless Entry (RKE)................. 20
Remote Sound System (Radio) Controls........ 326
Remote Starting System.................... 25
Remote Trunk Release..................... 39
Replacement Bulbs....................... 486
Replacement Keys........................ 16
Replacement Parts....................... 448
10
INDEX 535
PAGE POSITION:535JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
