Page 531 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description

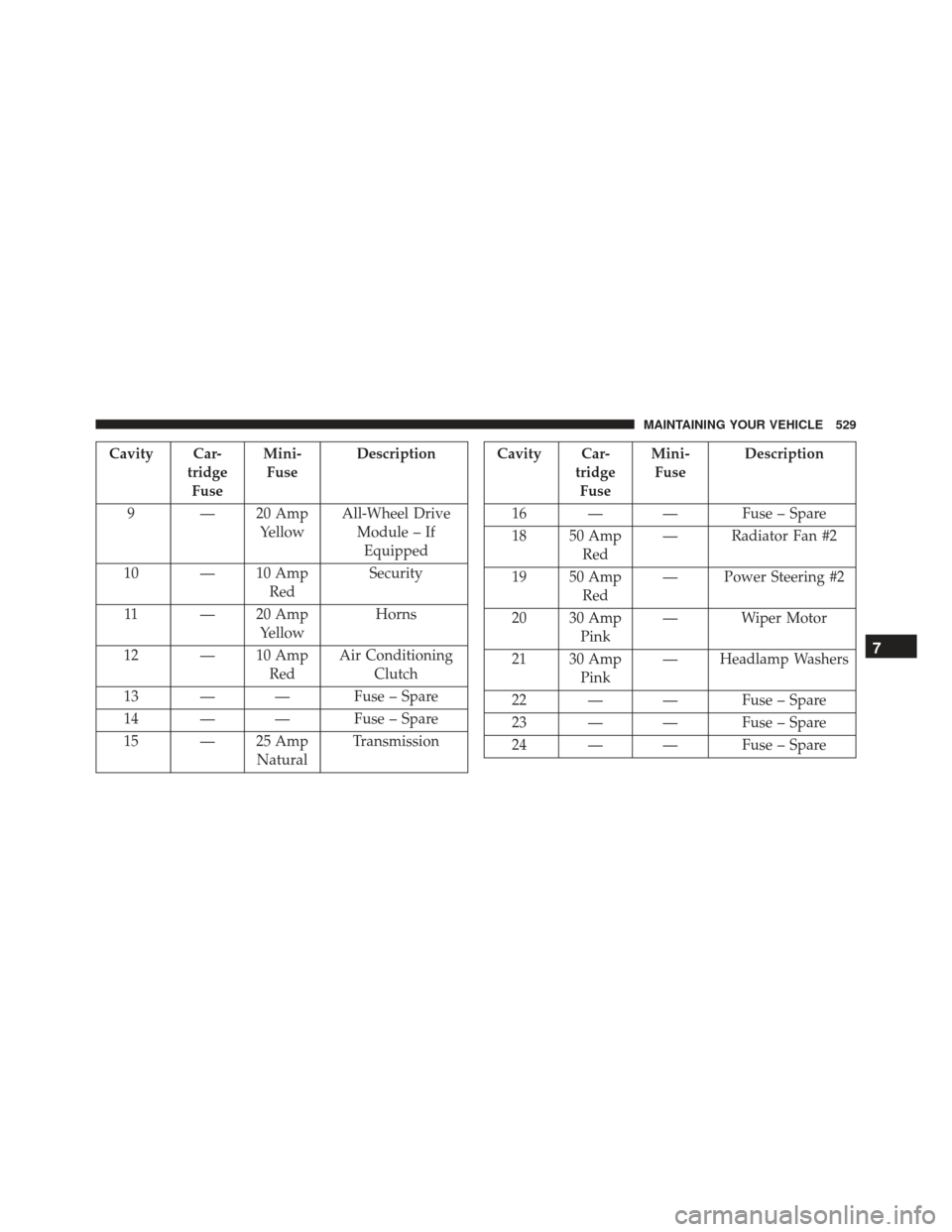

9 — 20 Amp YellowAll-Wheel Drive
Module – IfEquipped
10 — 10 Amp RedSecurity
11 — 20 Amp YellowHorns
12 — 10 Amp RedAir Conditioning
Clutch
13 â€

Page 532 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description

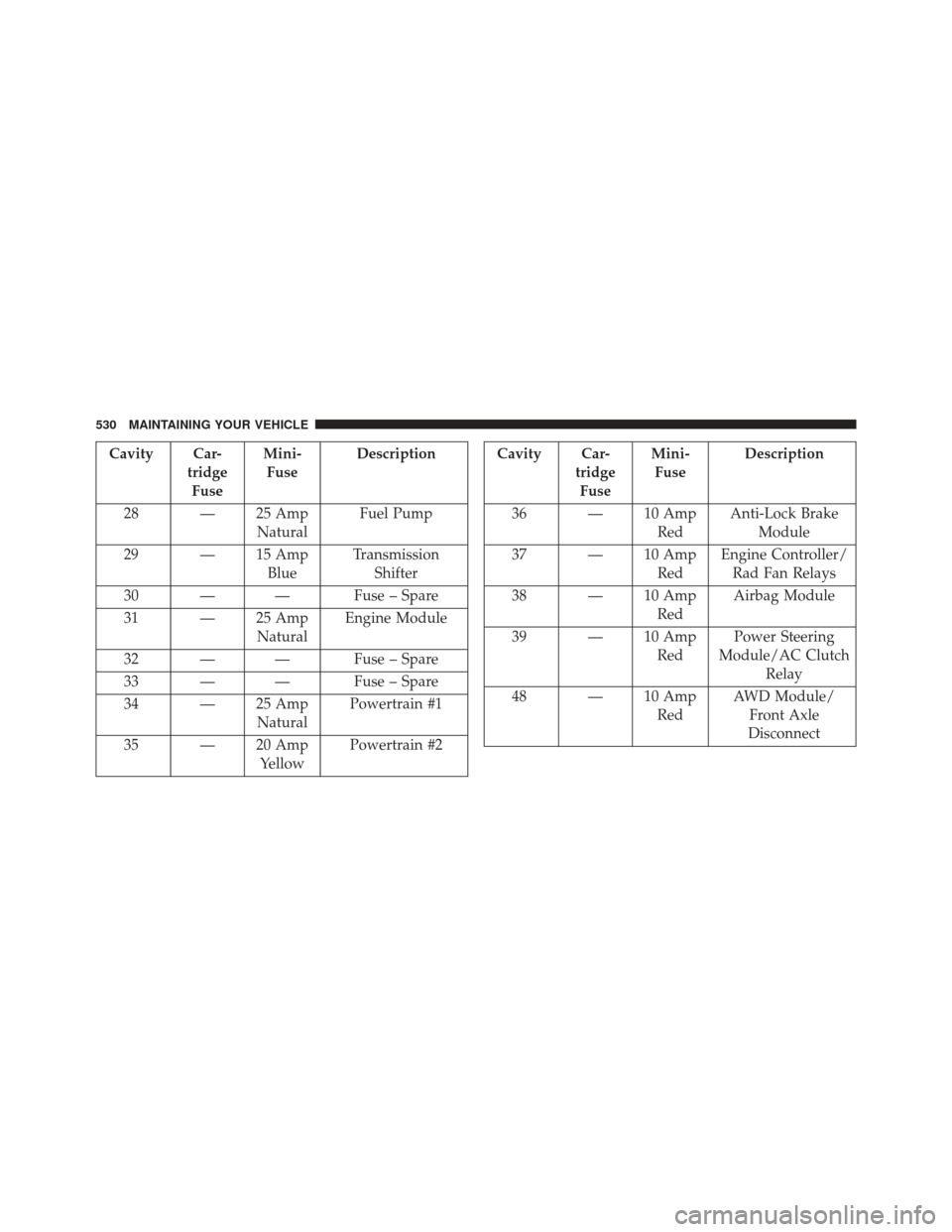

28 — 25 Amp NaturalFuel Pump
29 — 15 Amp BlueTransmission
Shifter
30 — — Fuse – Spare
31 — 25 Amp NaturalEngine Module
32 — — Fuse – Spar

Page 533 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description
49 — — Fuse – Spare
50 — — Fuse – Spare

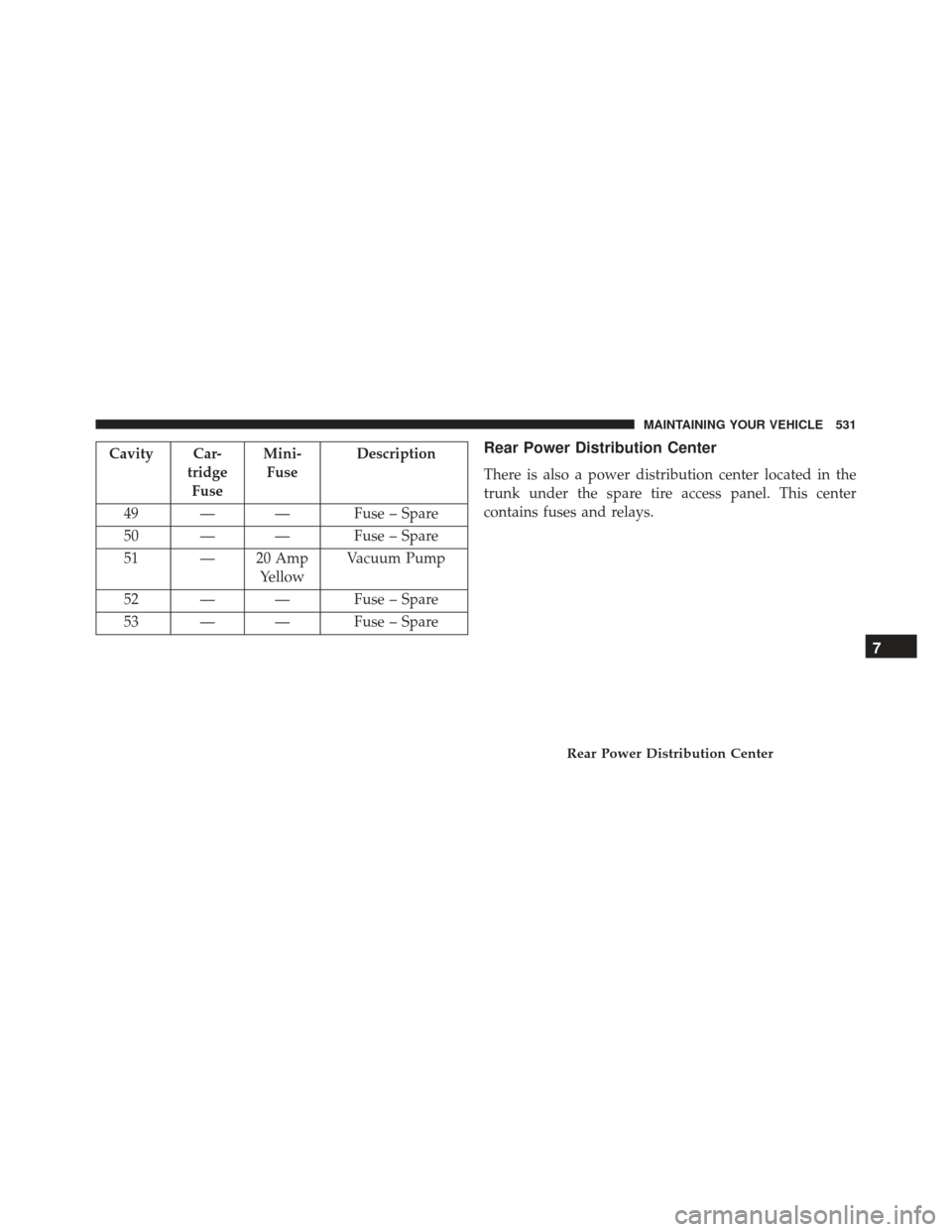

51 — 20 Amp YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – SpareRear Power Distribut

Page 534 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual CAUTION!

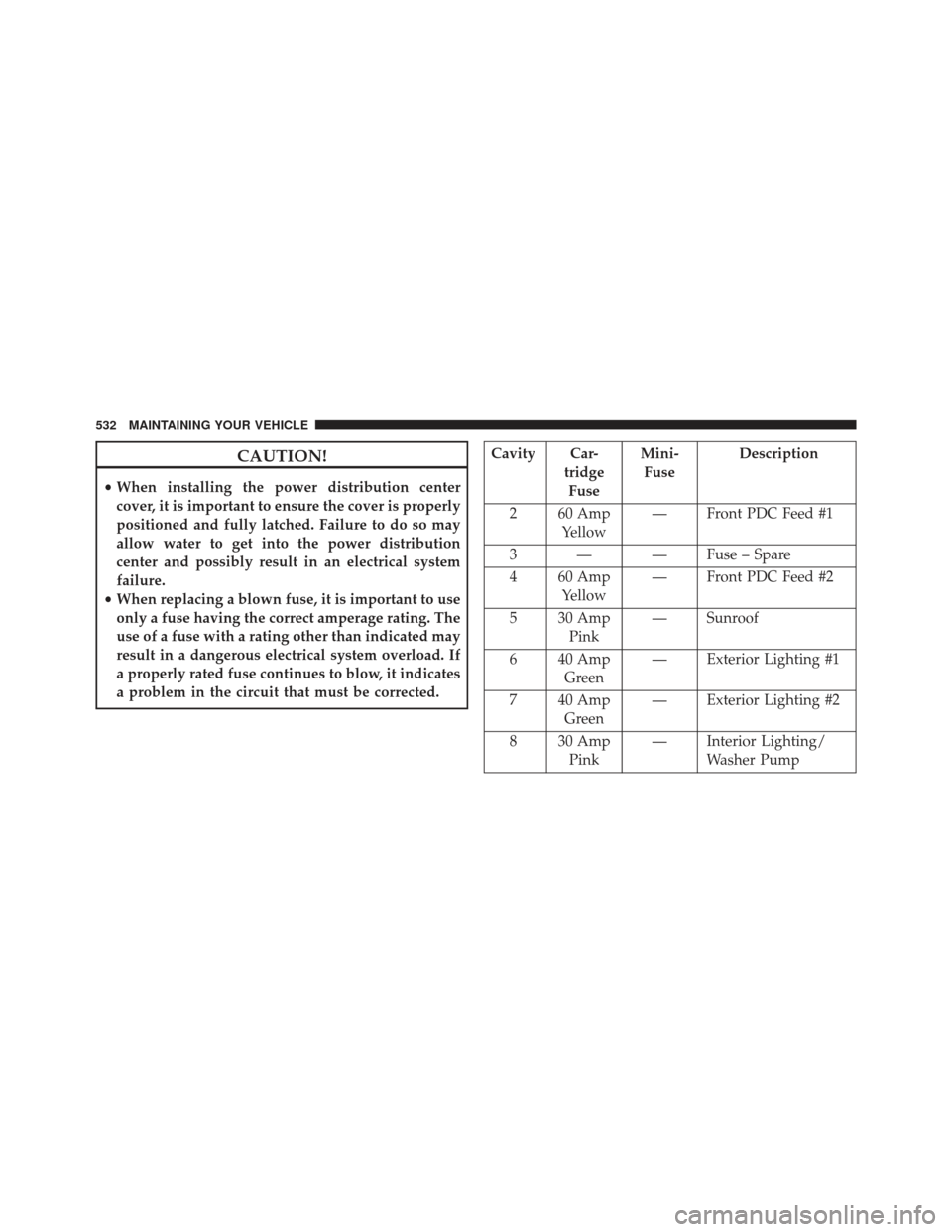

•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power di

Page 535 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description
9 30 Amp Pink — Power Locks
10 30 Amp Pink — Driver Door
11 30 Amp Pink — Passenger Door
12 — 20 Amp YellowCigar Lighters,
Instrument Panel &
Power

Page 536 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description
27 — 25 Amp NaturalAmplifier
31 — 25 Amp NaturalPower Seats
32 — 15 Amp BlueHVAC Module/
Cluster
33 — 15 Amp BlueIgnition Switch/
Wireless Module
3

Page 537 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description

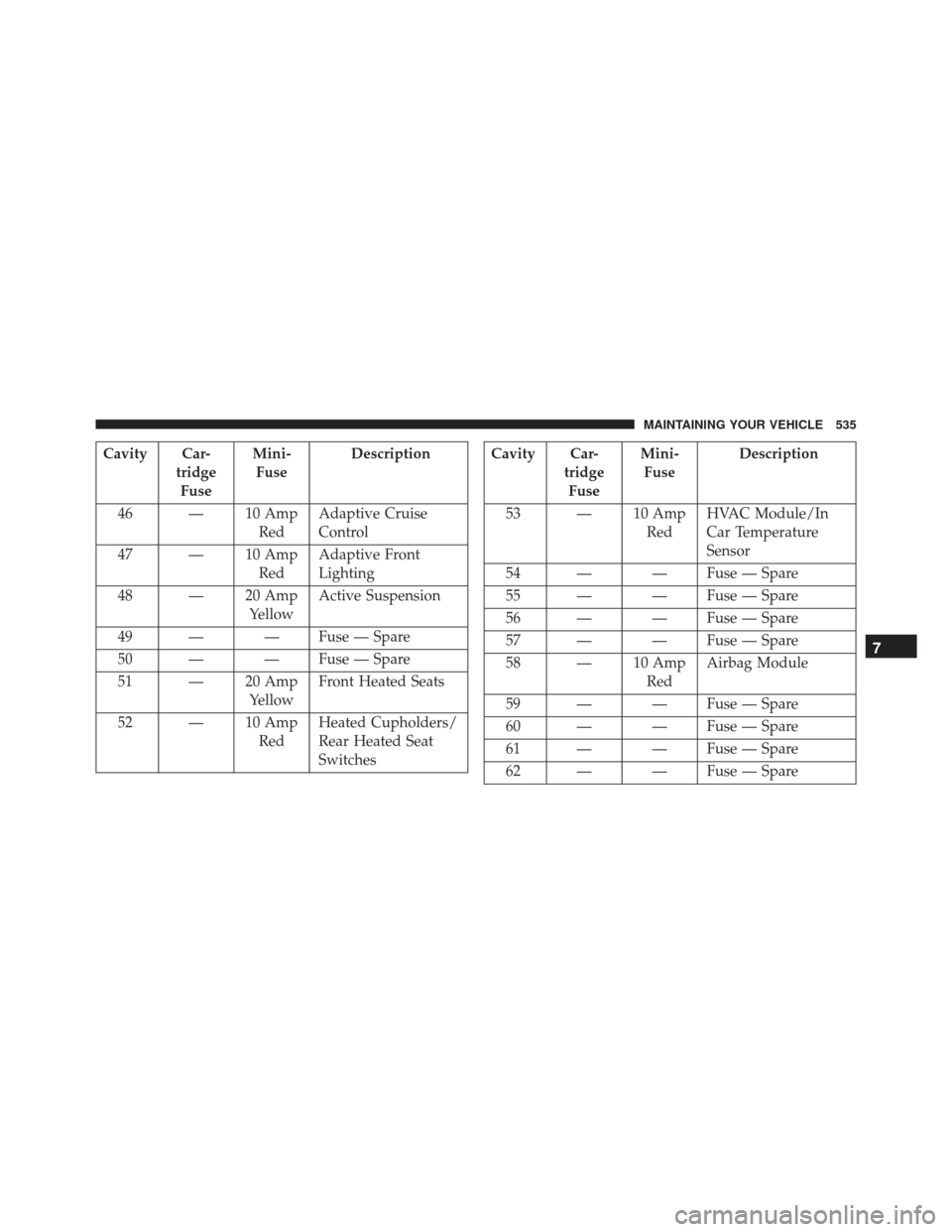

46 — 10 Amp RedAdaptive Cruise
Control
47 — 10 Amp RedAdaptive Front
Lighting
48 — 20 Amp YellowActive Suspension
49 — — Fuse — Spare
50 — â€

Page 538 of 599

DODGE CHARGER SRT 2013 7.G Owners Manual Cavity Car-tridgeFuse Mini-
Fuse Description

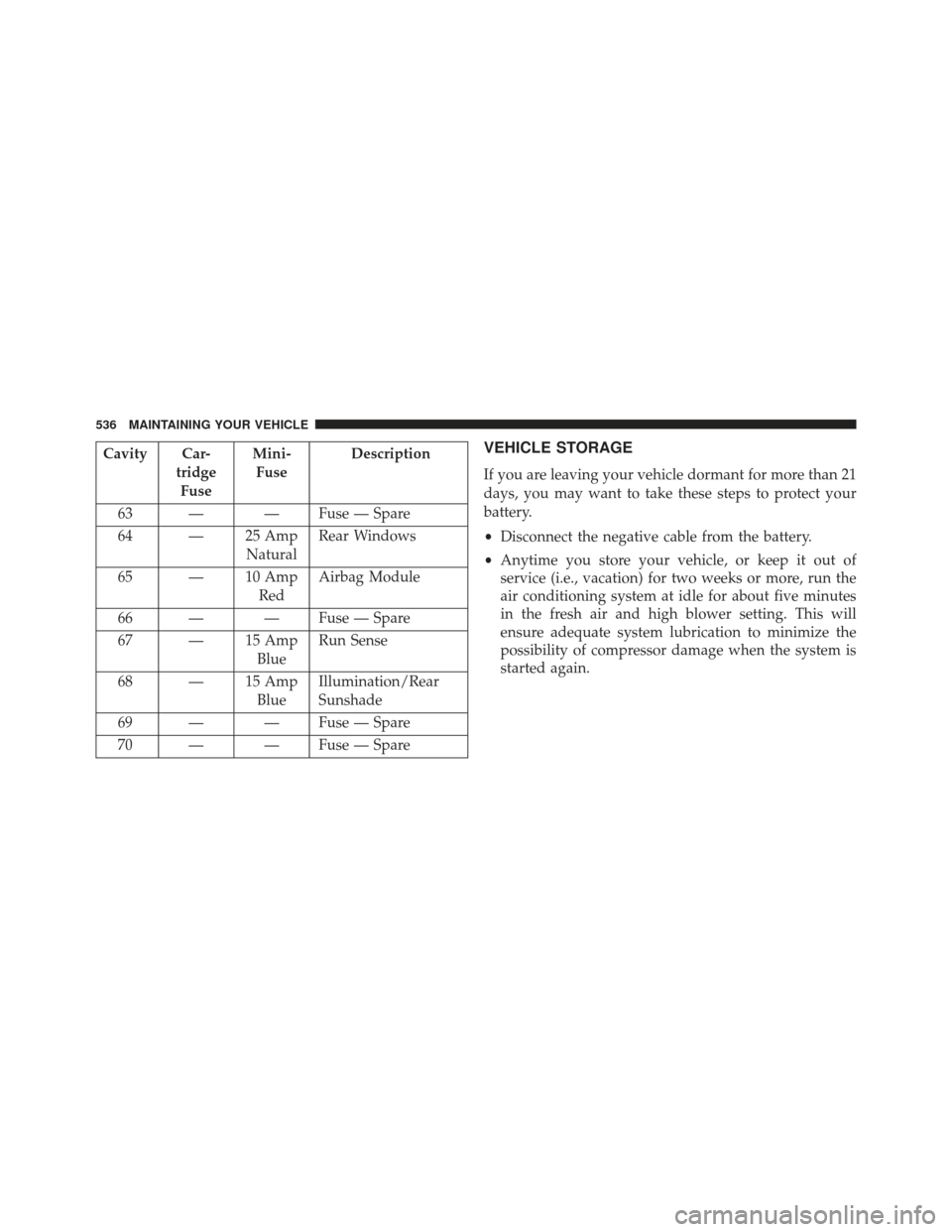

63 — — Fuse — Spare
64 — 25 Amp NaturalRear Windows
65 — 10 Amp RedAirbag Module
66 — — Fuse — Spare
67 — 15 Amp BlueRun Sense
68 — 15

Page 539 of 599

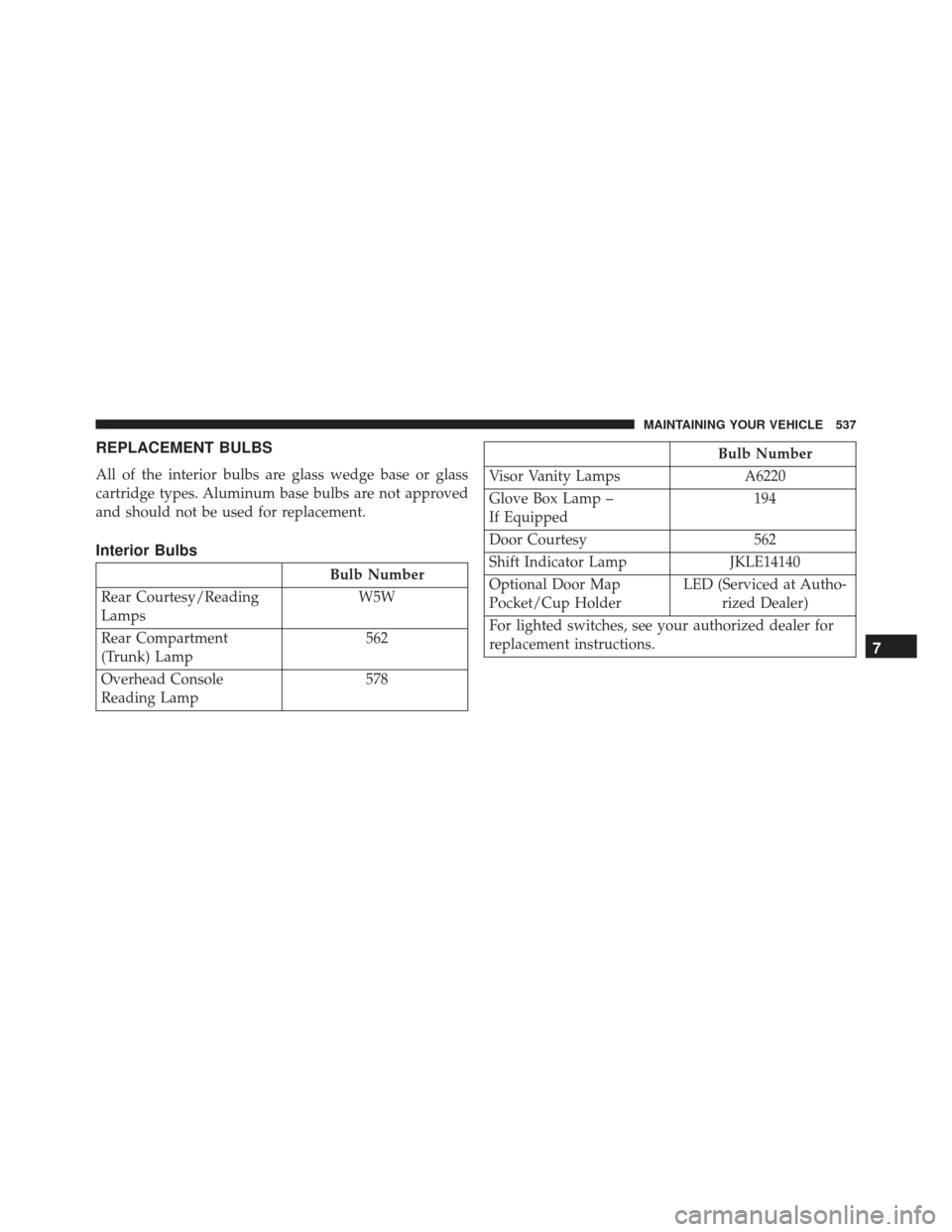

DODGE CHARGER SRT 2013 7.G Owners Manual REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear

Page 540 of 599

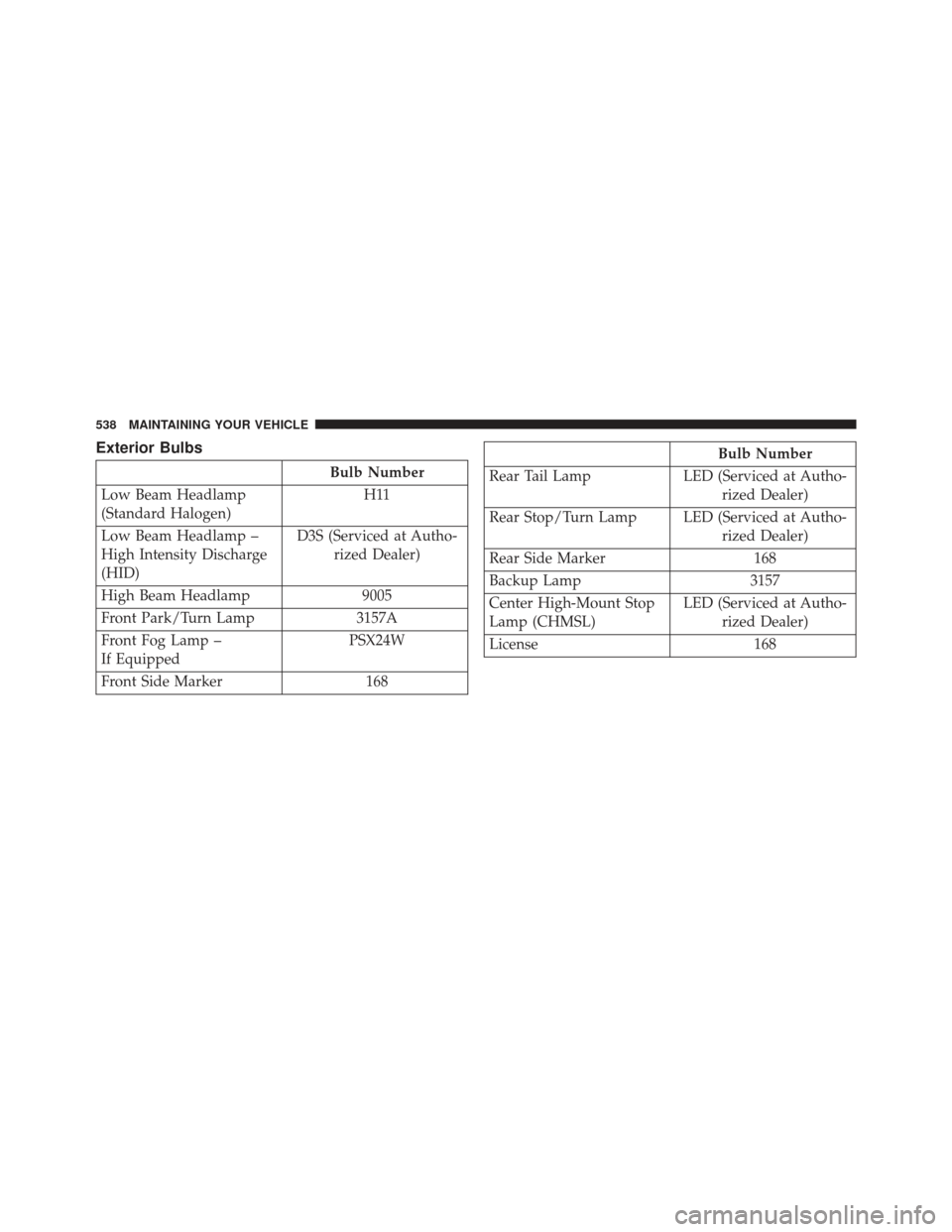

DODGE CHARGER SRT 2013 7.G Owners Manual Exterior Bulbs
Bulb Number
Low Beam Headlamp
(Standard Halogen) H11
Low Beam Headlamp –
High Intensity Discharge
(HID) D3S (Serviced at Autho-
rized Dealer)
High Beam Headlamp 9005
Front Park/Turn L
