DODGE CHARGER SRT 2013 7.G Owners Manual

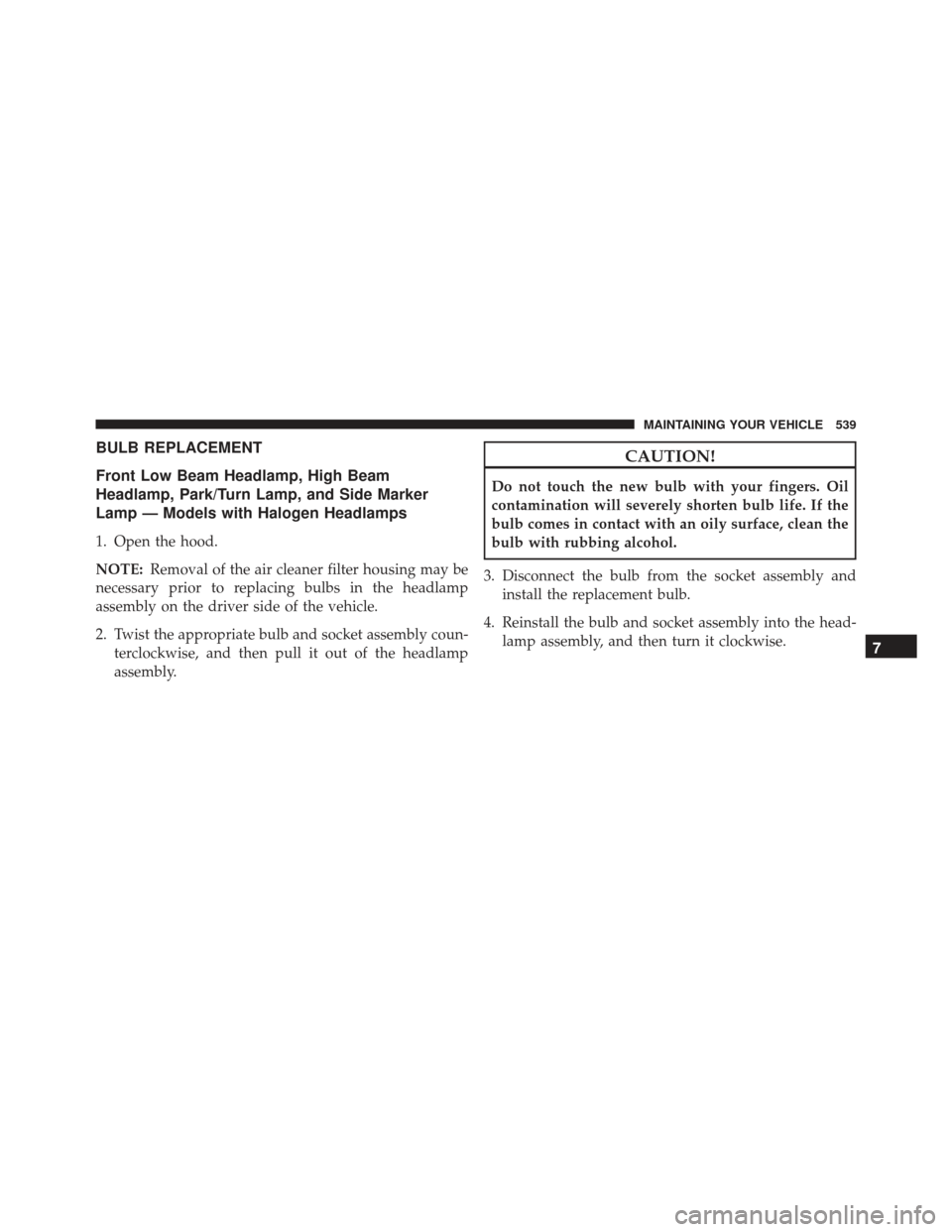

BULB REPLACEMENT
Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, and Side Marker
Lamp — Models with Halogen Headlamps
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun- terclockwise, and then pull it out of the headlamp
assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head- lamp assembly, and then turn it clockwise.
7
MAINTAINING YOUR VEHICLE 539

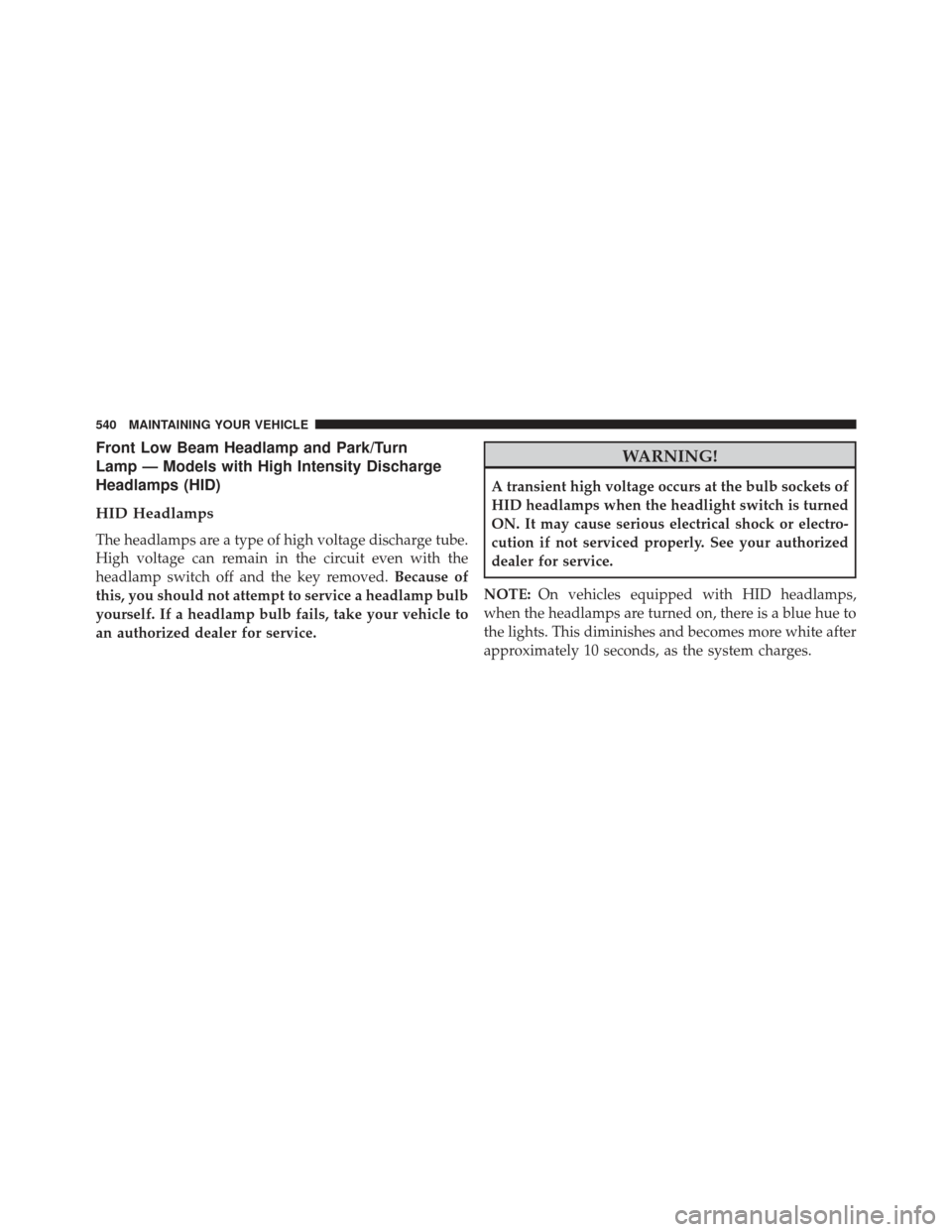

Front Low Beam Headlamp and Park/Turn
Lamp — Models with High Intensity Discharge
Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
540 MAINTAINING YOUR VEHICLE

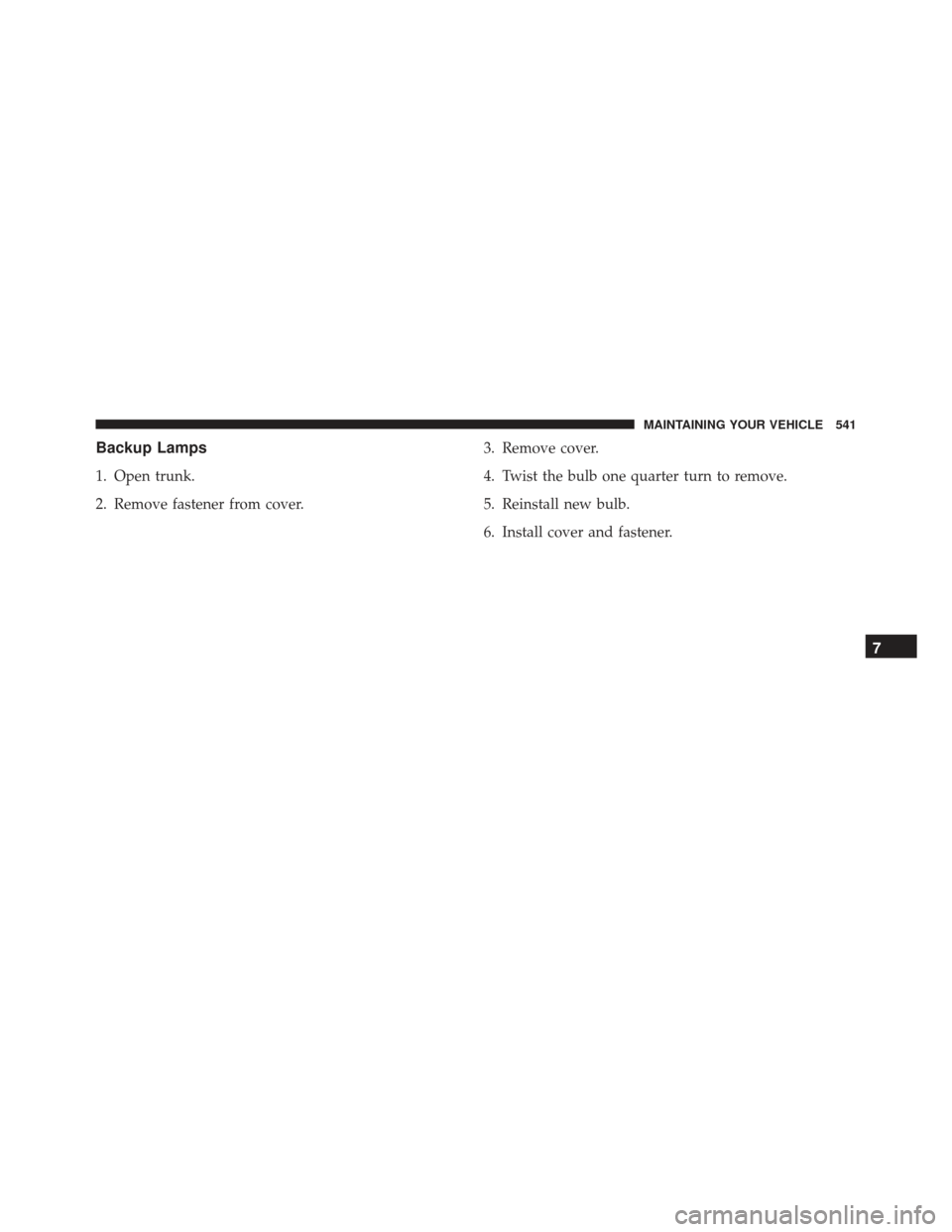

Backup Lamps
1. Open trunk.
2. Remove fastener from cover.3. Remove cover.
4. Twist the bulb one quarter turn to remove.
5. Reinstall new bulb.
6. Install cover and fastener.
7
MAINTAINING YOUR VEHICLE 541

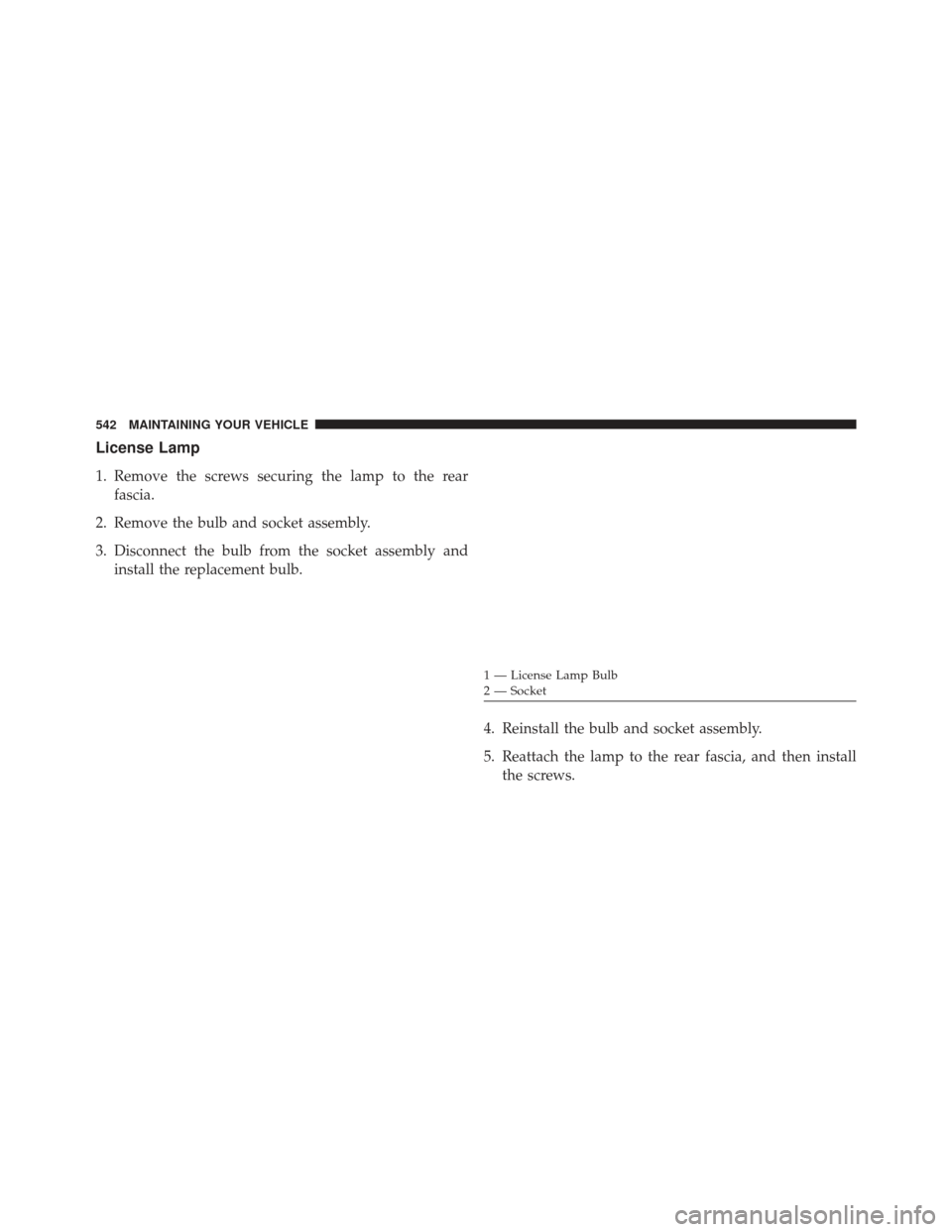

License Lamp
1. Remove the screws securing the lamp to the rearfascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then installthe screws.
1 — License Lamp Bulb
2 — Socket
542 MAINTAINING YOUR VEHICLE

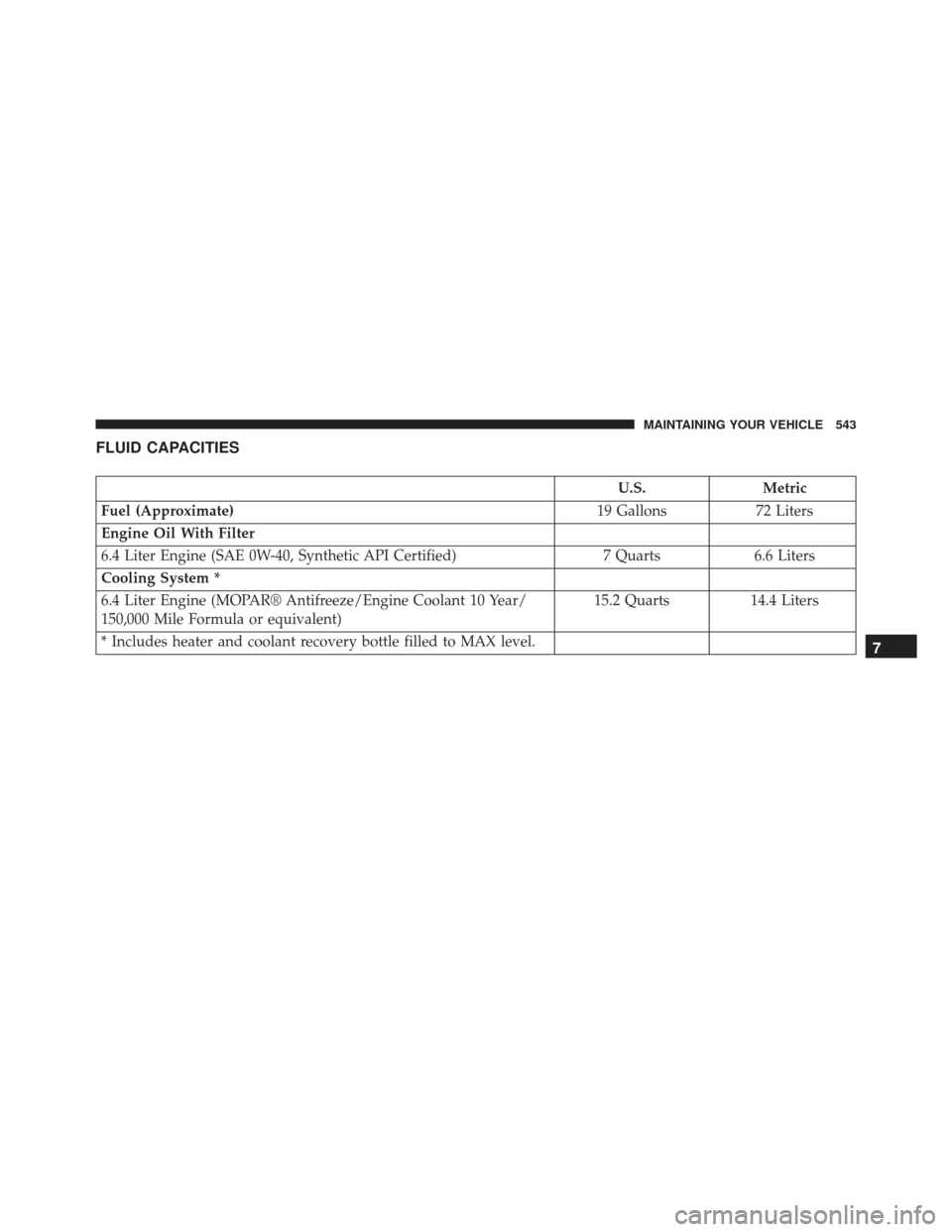

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 19 Gallons72 Liters
Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certified) 7 Quarts6.6 Liters
Cooling System *
6.4 Liter Engine (MOPAR® Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula or equivalent) 15.2 Quarts
14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 543

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil For best performance and maximum protection under all types of operat-
ing conditions, We recommend you use full synthetic engine oils that meet
the American Petroleum Institute (API) categories of SM or SM/CF.
We recommend you use full synthetic SAE 0W-40 engine oil.
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filter.
Spark Plugs We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Fuel Selection Premium Unleaded 91 Octane Only or higher.
544 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission We recommend youONLYuse MOPAR® ATF+4® Automatic Transmis-
sion Fluid. Failure to use ATF+4 fluid may affect the function or perfor-
mance of your transmission.
Brake Master Cylinder We recommend you use MOPAR® DOT 3 brake fluid. If DOT 3 brake fluid
is not available, then DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR® Power Steering Fluid + 4, or MOPAR®
ATF+4® Automatic Transmission Fluid.
Rear Axle We recommend you use MOPAR® Synthetic Gear Lubricant SAE 75W–90
(API GL-5) in addition to MOPAR® Friction Modifier — Hypoid Gear
Additive).
7
MAINTAINING YOUR VEHICLE 545

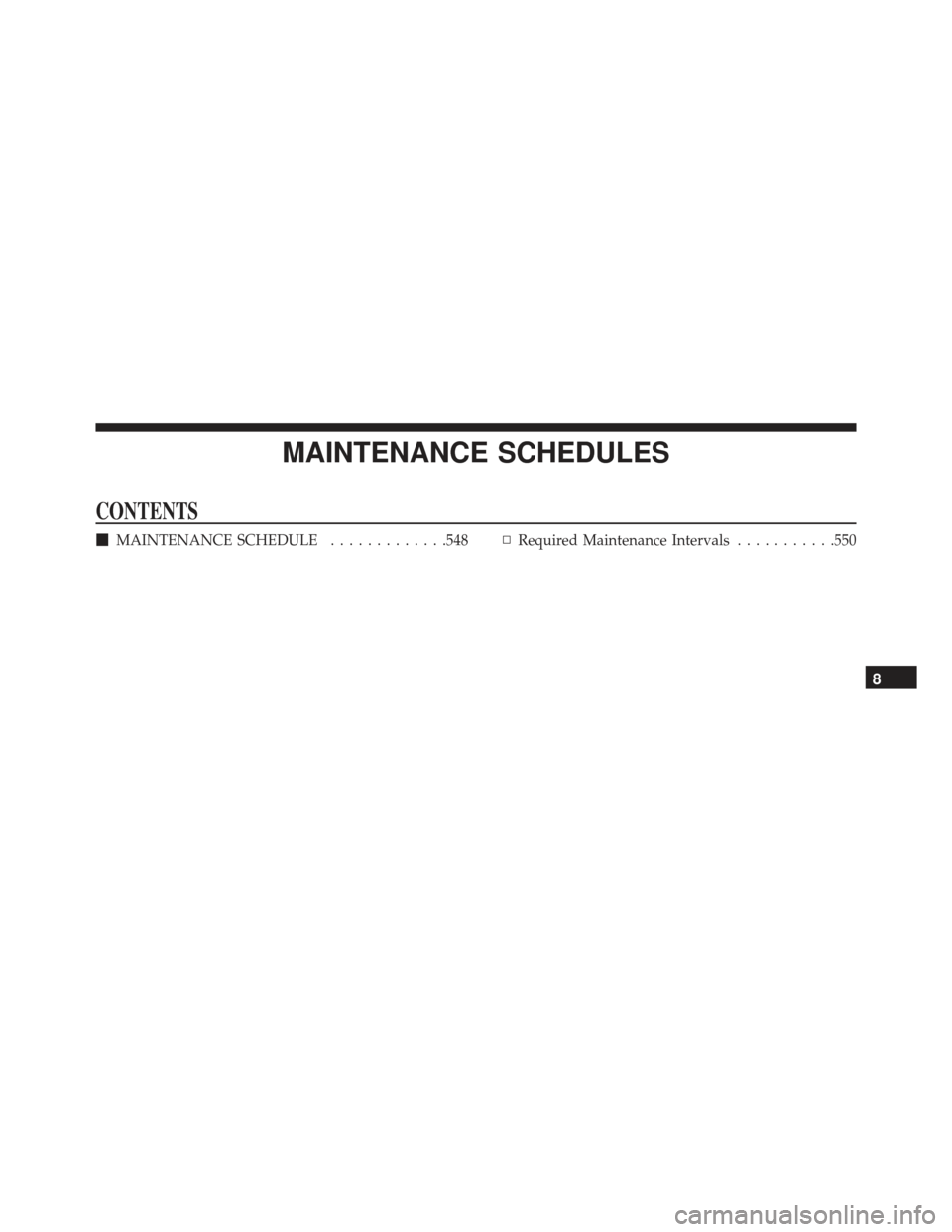

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............548▫Required Maintenance Intervals ...........550
8

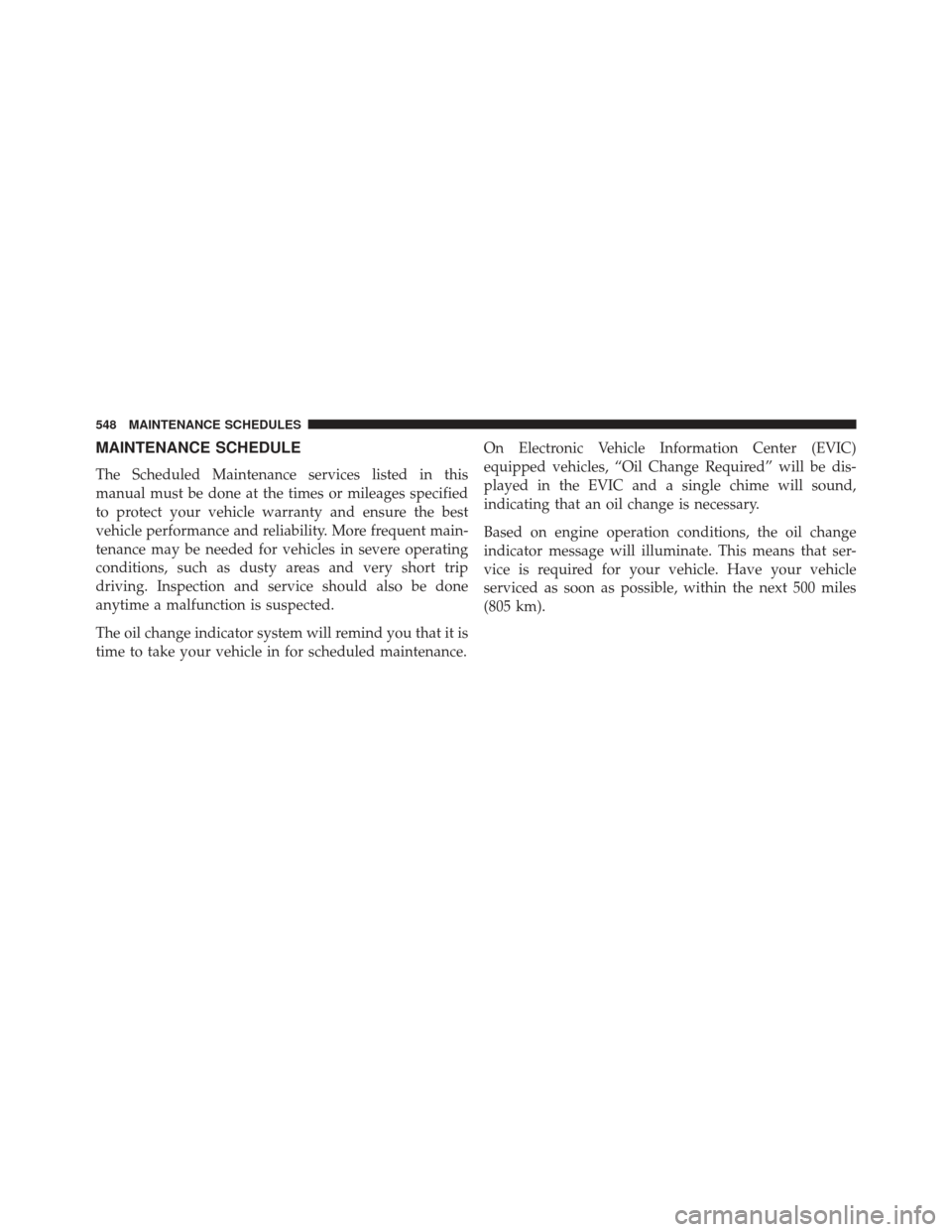

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
548 MAINTENANCE SCHEDULES
