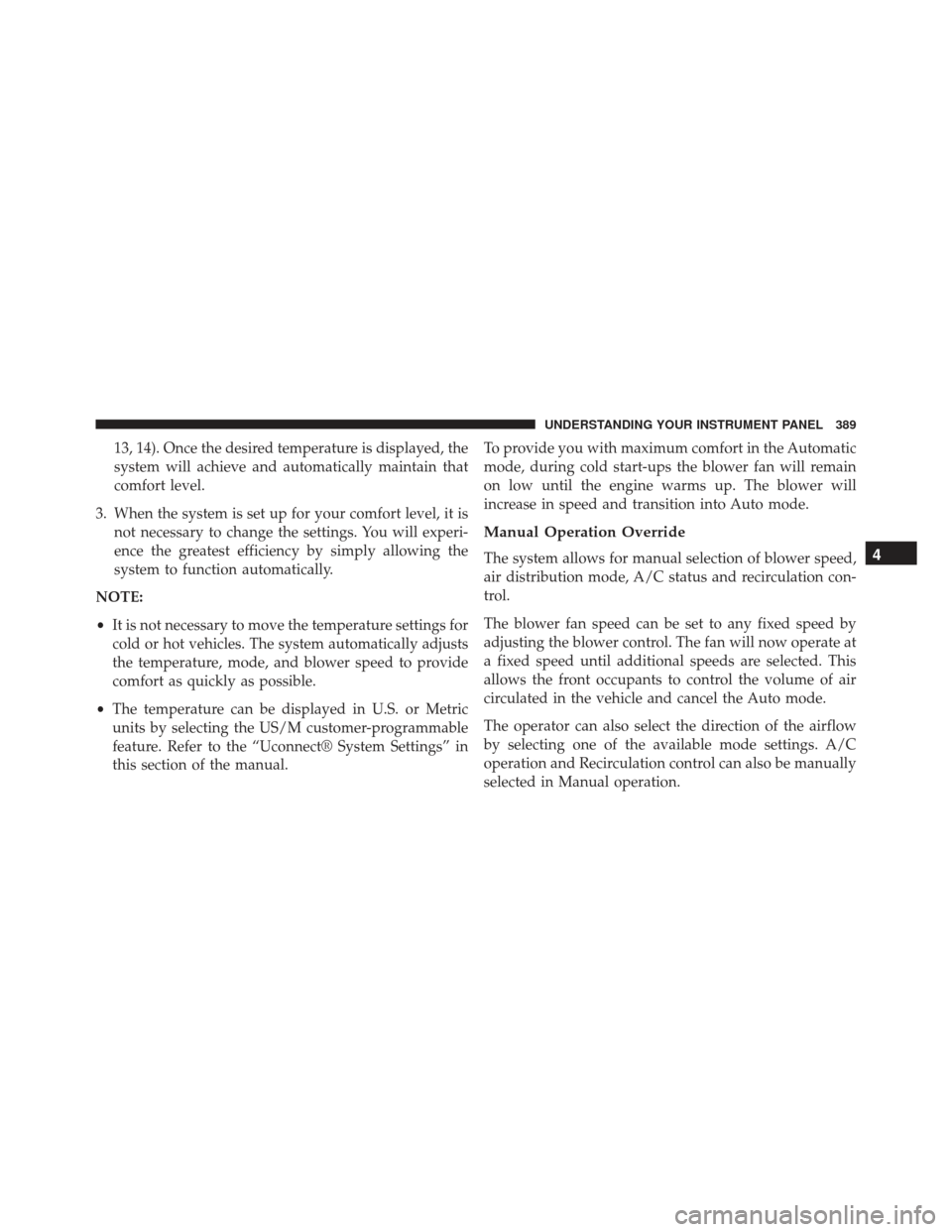

13, 14). Once the desired temperature is displayed, the
system will achieve and automatically maintain that
comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.
• The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Uconnect® System Settings” in
this section of the manual. To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.
Manual Operation Override
The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation con-
trol.
The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.
The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.4
UNDERSTANDING YOUR INSTRUMENT PANEL 389

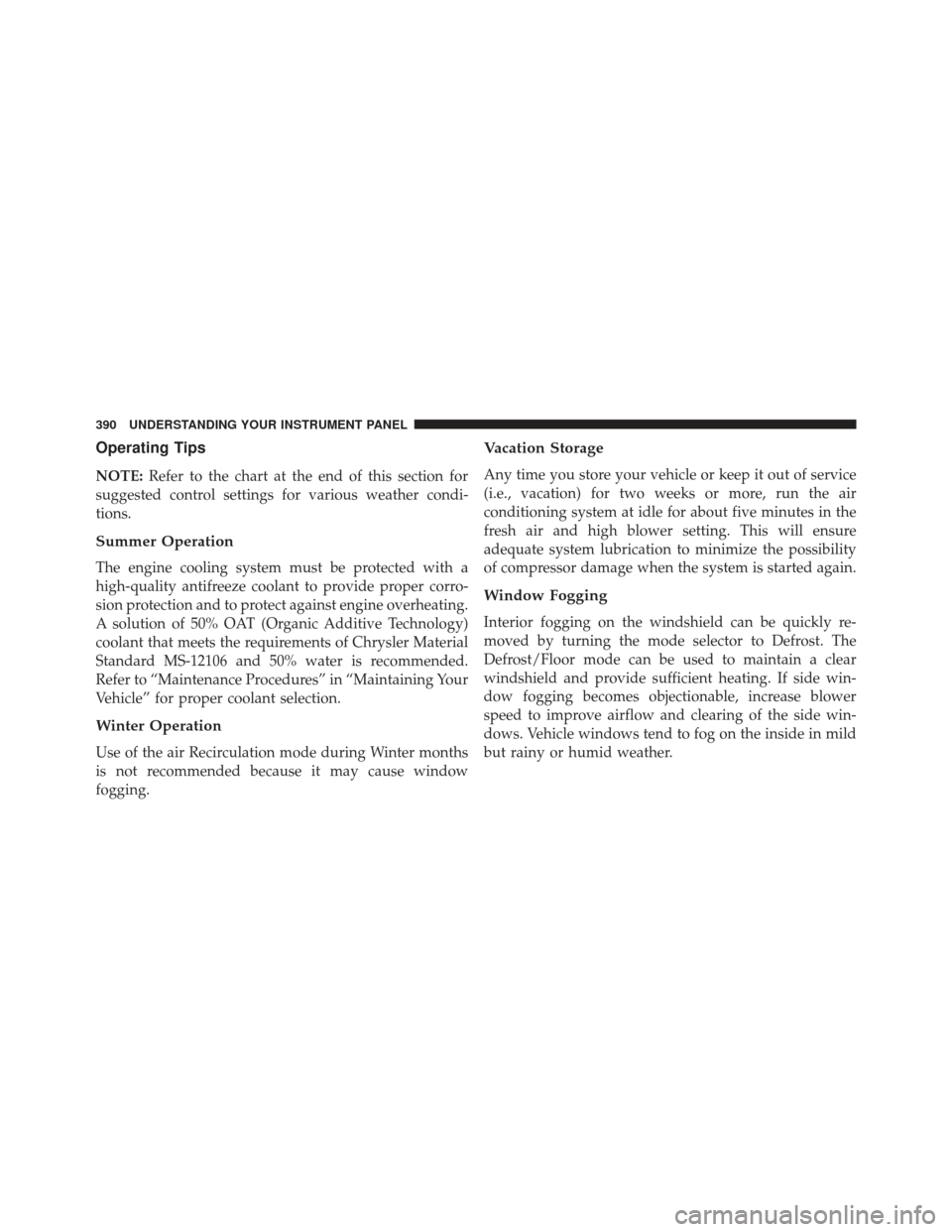

Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheating.
A solution of 50% OAT (Organic Additive Technology)
coolant that meets the requirements of Chrysler Material
Standard MS-12106 and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation mode during Winter months
is not recommended because it may cause window
fogging.
Vacation Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes objectionable, increase blower
speed to improve airflow and clearing of the side win-
dows. Vehicle windows tend to fog on the inside in mild
but rainy or humid weather.
390 UNDERSTANDING YOUR INSTRUMENT PANEL

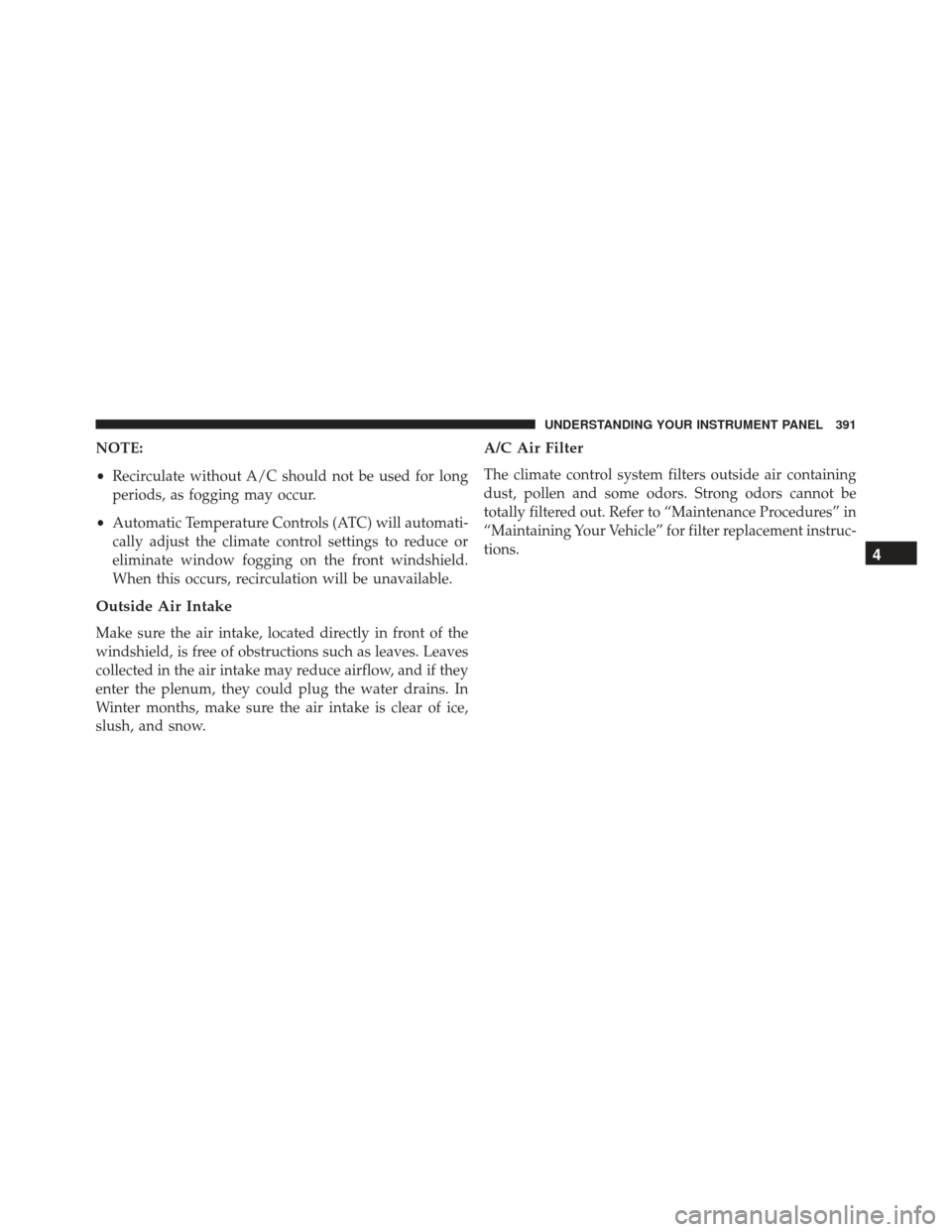

NOTE:
•Recirculate without A/C should not be used for long
periods, as fogging may occur.
• Automatic Temperature Controls (ATC) will automati-
cally adjust the climate control settings to reduce or
eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
Winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be
totally filtered out. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for filter replacement instruc-
tions.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 391

Manual Control Setting Suggestions for Various Weather Conditions
392 UNDERSTANDING YOUR INSTRUMENT PANEL

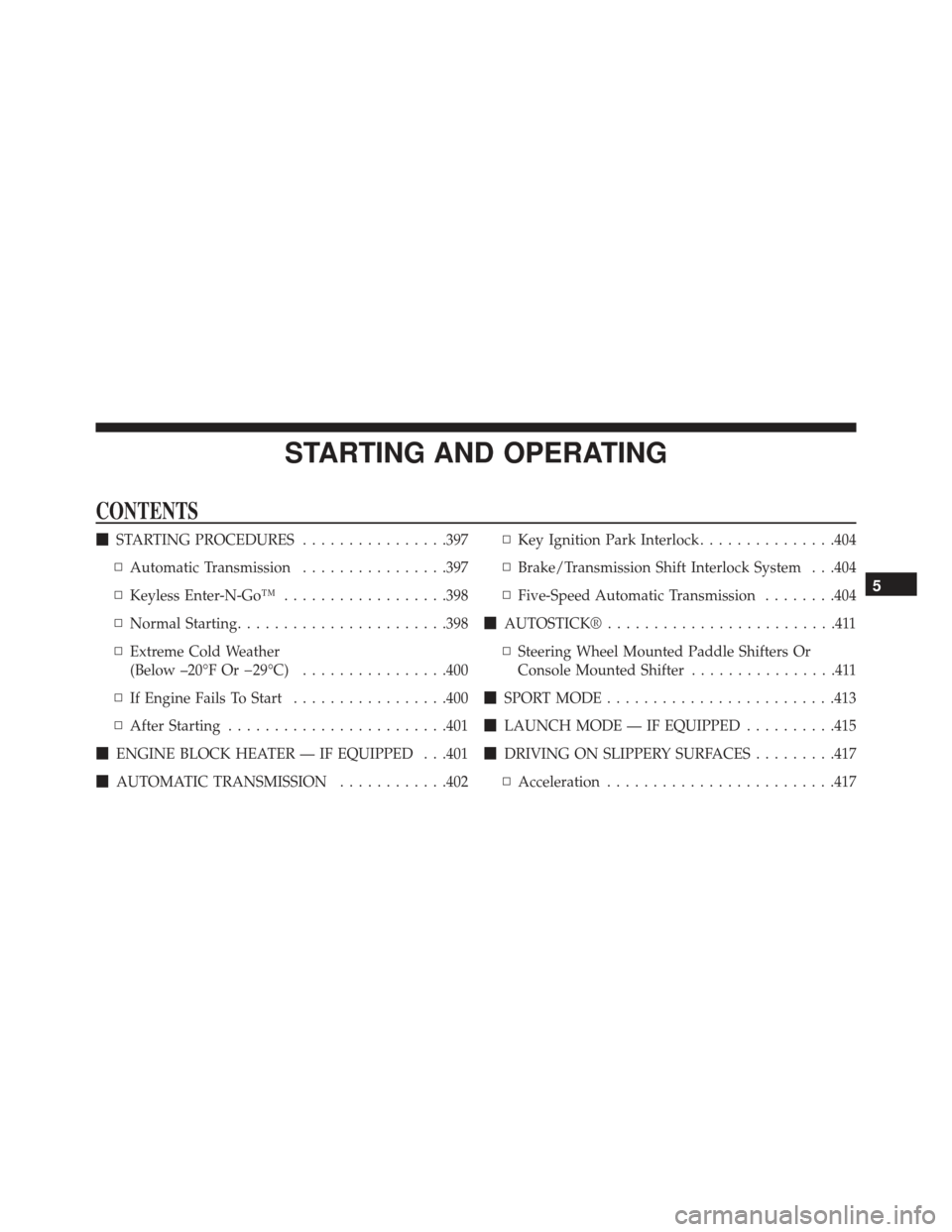

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................397
▫ Automatic Transmission ................397
▫ Keyless Enter-N-Go™ ..................398
▫ Normal Starting ...................... .398
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................400
▫ If Engine Fails To Start .................400
▫ After Starting ....................... .401
 ENGINE BLOCK HEATER — IF EQUIPPED . . .401
 AUTOMATIC TRANSMISSION ............402▫
Key Ignition Park Interlock ...............404
▫ Brake/Transmission Shift Interlock System . . .404
▫ Five-Speed Automatic Transmission ........404
 AUTOSTICK® .........................411
▫ Steering Wheel Mounted Paddle Shifters Or
Console Mounted Shifter ................411
 SPORT MODE ........................ .413
 LAUNCH MODE — IF EQUIPPED ..........415
 DRIVING ON SLIPPERY SURFACES .........417
▫ Acceleration ........................ .417
5

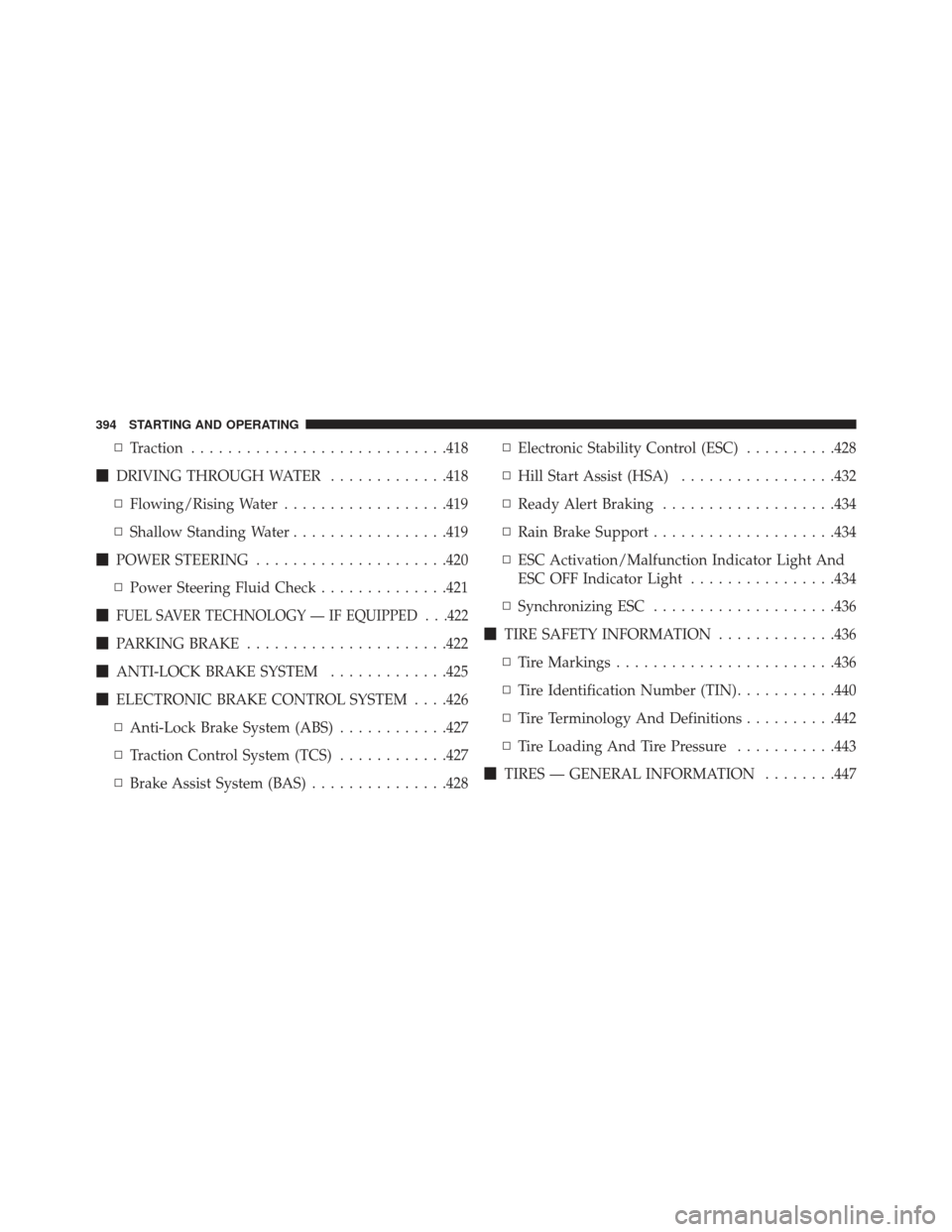

▫Traction ........................... .418
 DRIVING THROUGH WATER .............418
▫ Flowing/Rising Water ..................419
▫ Shallow Standing Water .................419
 POWER STEERING .....................420
▫ Power Steering Fluid Check ..............421

FUEL SAVER TECHNOLOGY — IF EQUIPPED . . .422
 PARKING BRAKE ..................... .422
 ANTI-LOCK BRAKE SYSTEM .............425
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .426
▫ Anti-Lock Brake System (ABS) ............427
▫ Traction Control System (TCS) ............427
▫ Brake Assist System (BAS) ...............428 ▫
Electronic Stability Control (ESC) ..........428
▫ Hill Start Assist (HSA) .................432
▫ Ready Alert Braking ...................434
▫ Rain Brake Support ....................434
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................434
▫ Synchronizing ESC ....................436
 TIRE SAFETY INFORMATION .............436
▫ Tire Markings ....................... .436
▫ Tire Identification Number (TIN) ...........440
▫ Tire Terminology And Definitions ..........442
▫ Tire Loading And Tire Pressure ...........443
 TIRES — GENERAL INFORMATION ........447
394 STARTING AND OPERATING

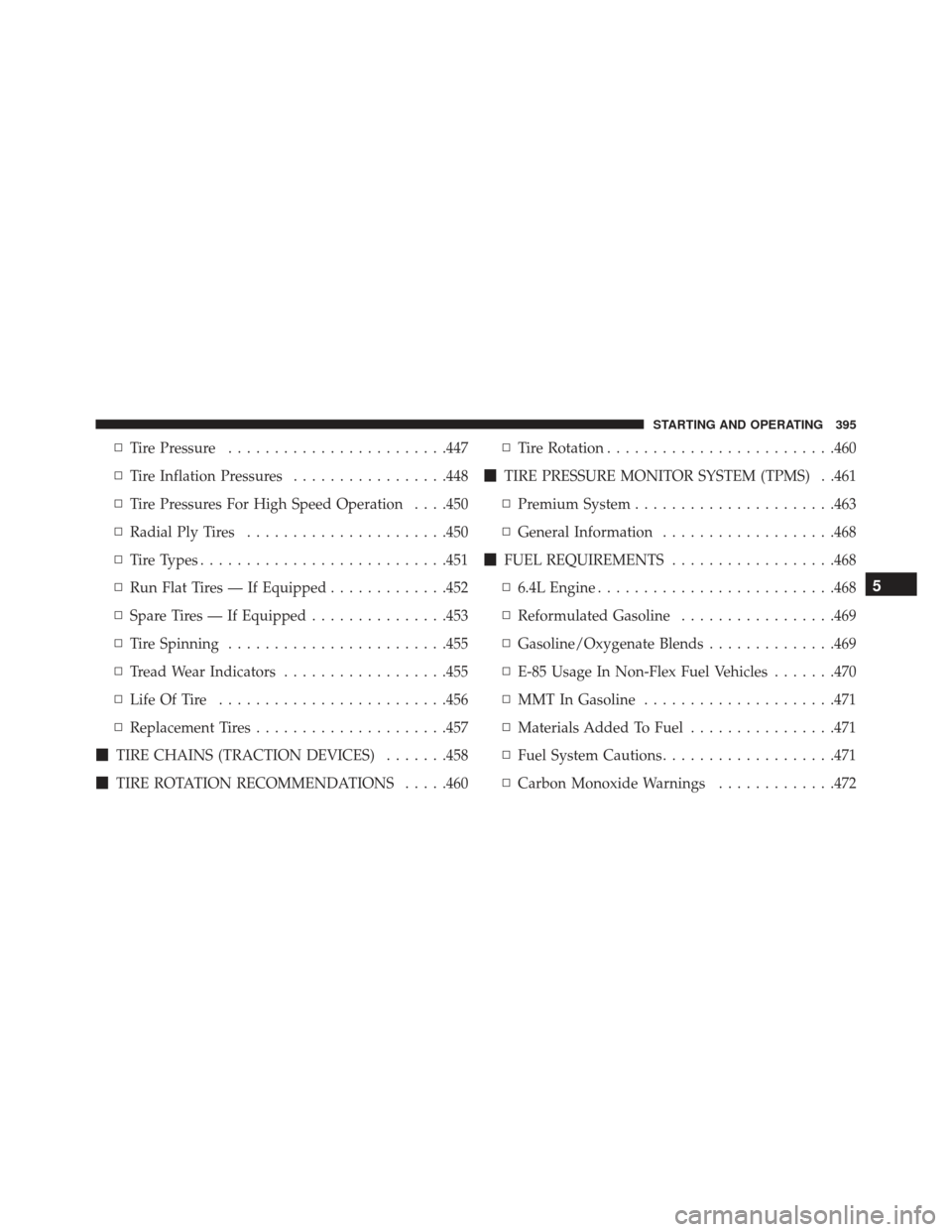

▫Tire Pressure ....................... .447
▫ Tire Inflation Pressures .................448
▫ Tire Pressures For High Speed Operation . . . .450
▫ Radial Ply Tires ..................... .450
▫ Tire Types .......................... .451
▫ Run Flat Tires — If Equipped .............452
▫ Spare Tires — If Equipped ...............453
▫ Tire Spinning ....................... .455
▫ Tread Wear Indicators ..................455
▫ Life Of Tire ........................ .456
▫ Replacement Tires .....................457
 TIRE CHAINS (TRACTION DEVICES) .......458
 TIRE ROTATION RECOMMENDATIONS .....460▫
Tire Rotation ........................ .460
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .461
▫ Premium System ..................... .463
▫ General Information ...................468
 FUEL REQUIREMENTS ..................468
▫ 6.4L Engine ......................... .468
▫ Reformulated Gasoline .................469
▫ Gasoline/Oxygenate Blends ..............469
▫ E-85 Usage In Non-Flex Fuel Vehicles .......470
▫ MMT In Gasoline .....................471
▫ Materials Added To Fuel ................471
▫ Fuel System Cautions ...................471
▫ Carbon Monoxide Warnings .............472
5
STARTING AND OPERATING 395

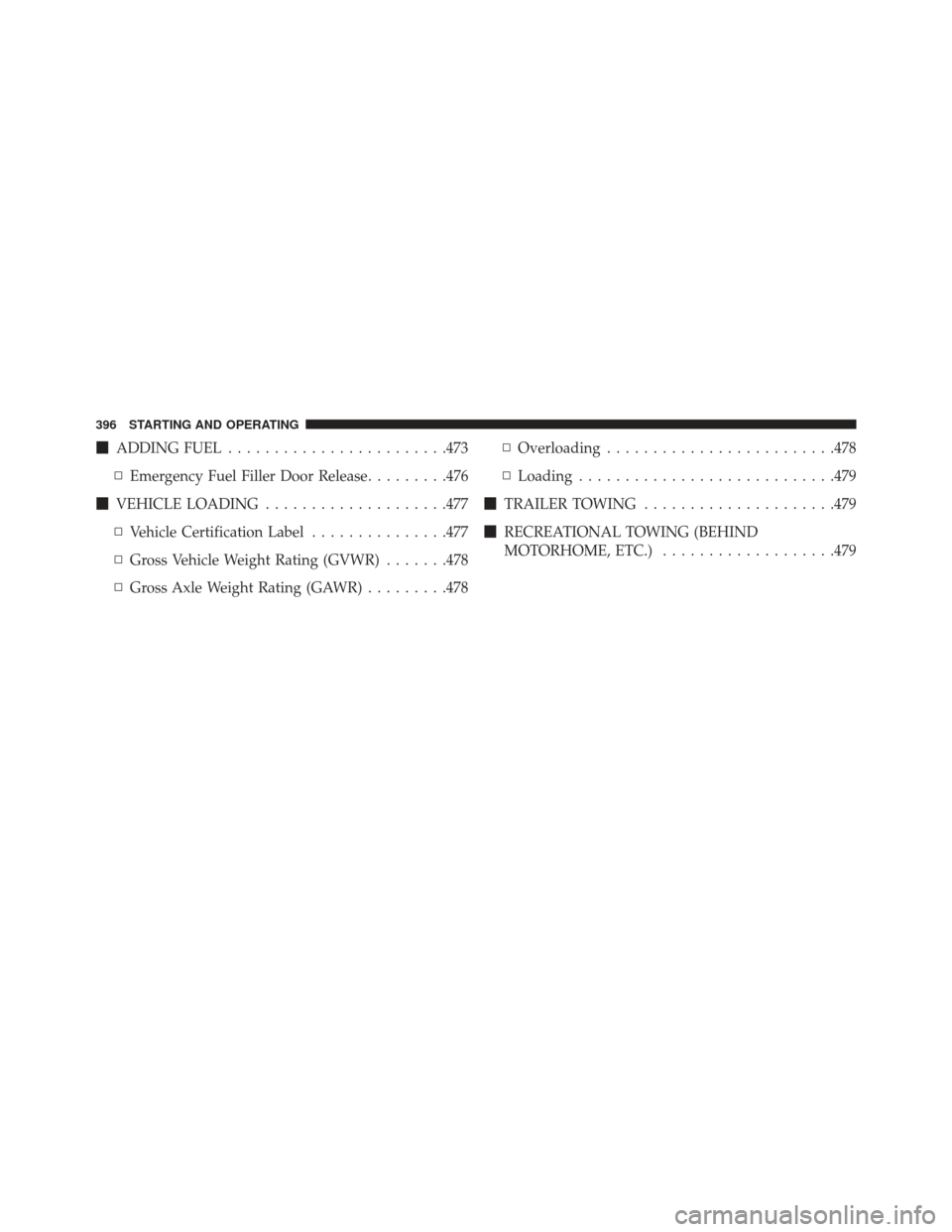

ADDING FUEL ....................... .473
▫ Emergency Fuel Filler Door Release .........476
 VEHICLE LOADING ....................477
▫ Vehicle Certification Label ...............477
▫ Gross Vehicle Weight Rating (GVWR) .......478
▫ Gross Axle Weight Rating (GAWR) .........478▫
Overloading ........................ .478
▫ Loading ........................... .479
 TRAILER TOWING .....................479
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................479
396 STARTING AND OPERATING

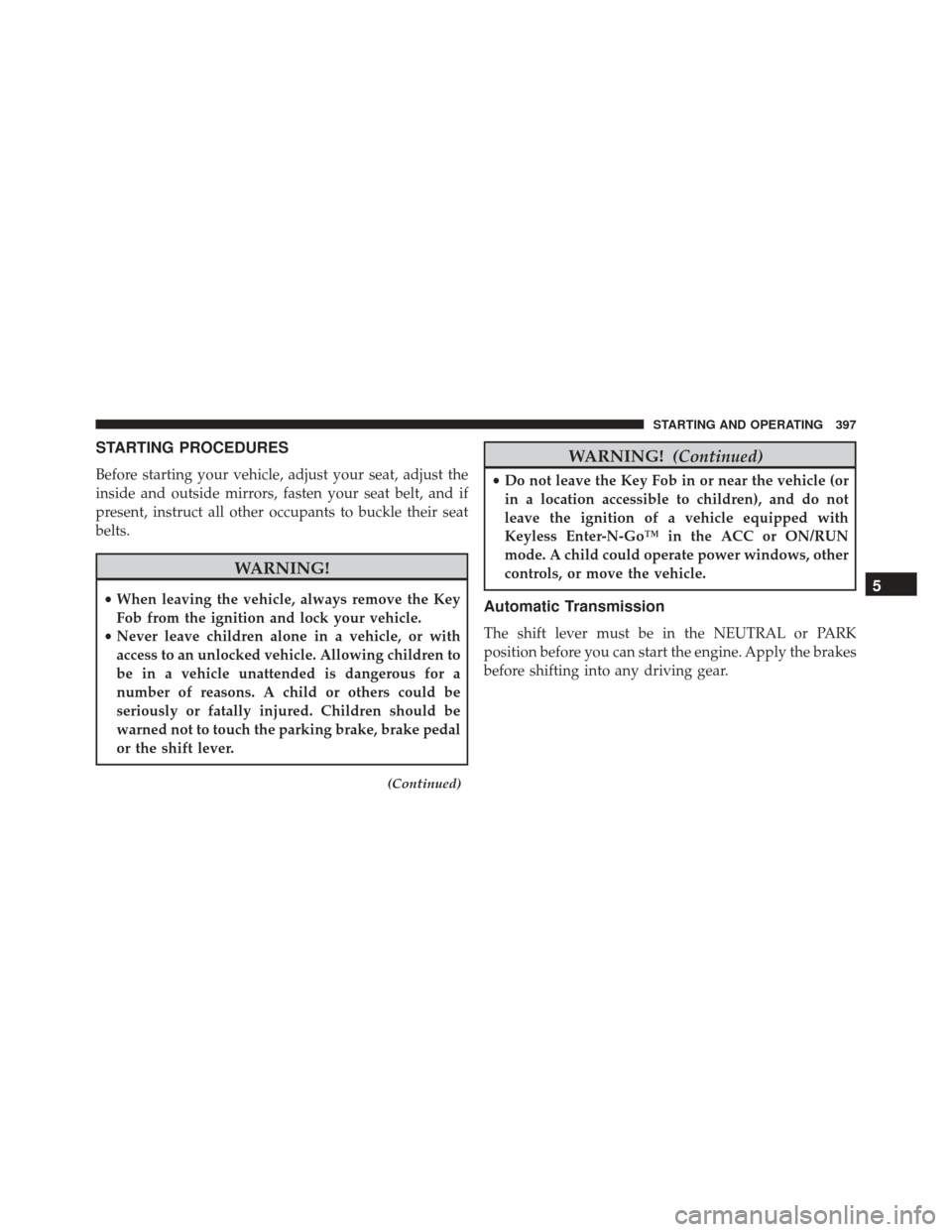

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
5
STARTING AND OPERATING 397

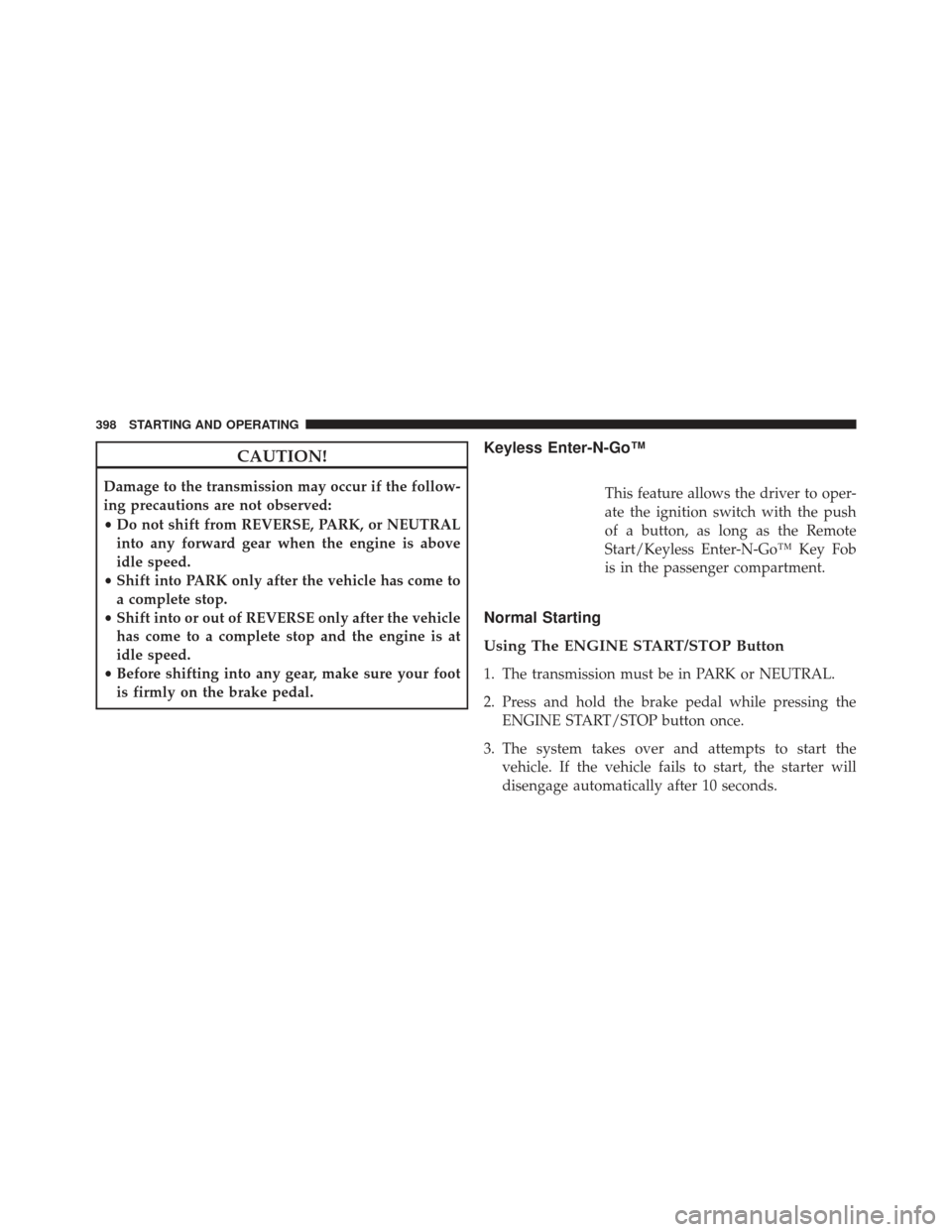

CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
• Shift into PARK only after the vehicle has come to
a complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at
idle speed.
• Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Keyless Enter-N-Go™
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the Remote
Start/Keyless Enter-N-Go™ Key Fob
is in the passenger compartment.
Normal Starting
Using The ENGINE START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pressing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds.
