DODGE CHARGER SRT 2015 7.G Owners Manual

Front Power Distribution Center (Fuses)
The Front Power Distribution Center is located in the
engine compartment. This module contains fuses and
relays.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Front Power Distribution Center
7
MAINTAINING YOUR VEHICLE 529

CavityCartridge Fuse Mini-FuseDescription
1––Fuse – Spare
240 Amp Green–Radiator Fan #1 – If Equipped
350 Amp Red–Power Steering #1 / Radiator Fan
(6.2L Supercharged) – If Equipped
430 Amp Pink–Starter
540 Amp Green–Electronic Stability Control
630 Amp Pink–Electronic Stability Control
7––Fuse – Spare
820 Amp Blue–Police Ignition Run / ACC # 2
9–20 Amp Yellow All-Wheel Drive Module – If Equipped
10–10 Amp Red Security – If Equipped / Under hood Lamp
– Police
11–20 Amp YellowHorns
12–10 Amp RedAir Conditioning Clutch
13––Fuse – Spare
530 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
14––Fuse – Spare
15–20 Amp YellowLeft HID – If Equipped
16–20 Amp YellowRight HID – If Equipped
1840 Amp Green–Radiator Fan #2 – If Equipped
1950 Amp Red–Power Steering #2 / Radiator Fan
(6.2L Supercharged)
2030 Amp Pink–Wiper Motor
2120 Amp Blue–Headlamp Washers – If Equipped / Police
Feed
2240 Amp Green /
20 Amp Blue – Po-
lice
–Engine Cooling Pump (6.2L Supercharged)
/ Police Bat Feed#3–IfEquipped
2320 Amp Blue–Police Bat Feed#1–IfEquipped
2420 Amp Blue–Police Bat Feed#3–IfEquipped
28––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 531

CavityCartridge Fuse Mini-FuseDescription
29–15 Amp BlueTransmission Control Module
(LA/LD Police)
30––Fuse – Spare
31–25 Amp ClearEngine Module
32––Fuse – Spare
33––Fuse – Spare
34–25 Amp ClearPowertrain #1
35–20 Amp YellowPowertrain #2
36–10 Amp RedAnti-Lock Brake Module
37–10 Amp Red Engine Controller/Rad Fan Relays – If
Equipped
38–10 Amp RedAirbag Module
39–10 Amp Red Power Steering Module/AC Clutch Relay
48–10 Amp Red AWD Module/Front Axle Disconnect (LX) /
Adaptive Cruise (LA) – If Equipped
532 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
49––Fuse – Spare
50––Fuse – Spare
51–20 Amp YellowVacuum Pump
52–10 Amp Red Adaptive Cruise (LD/LX) – If Equipped
53––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 533

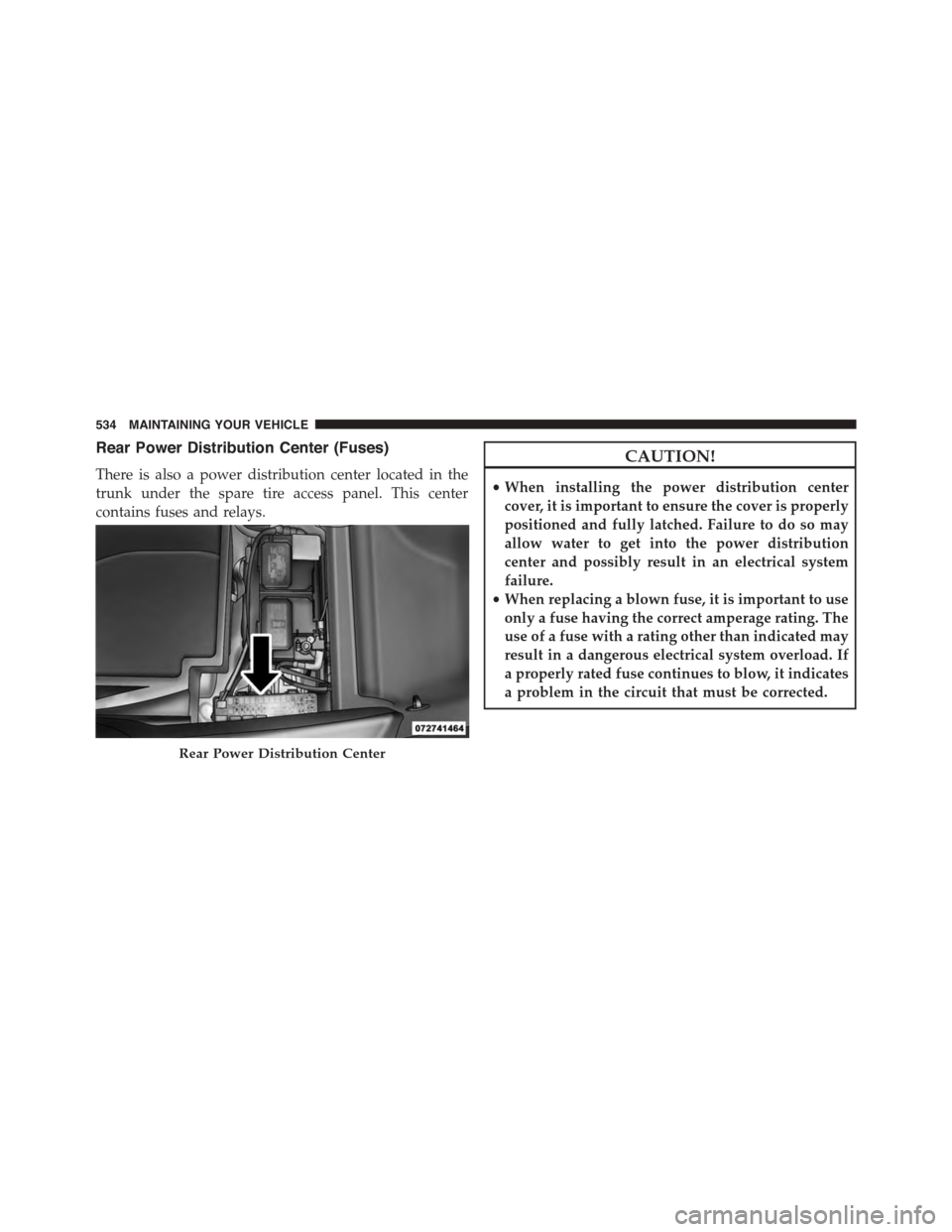

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Rear Power Distribution Center
534 MAINTAINING YOUR VEHICLE

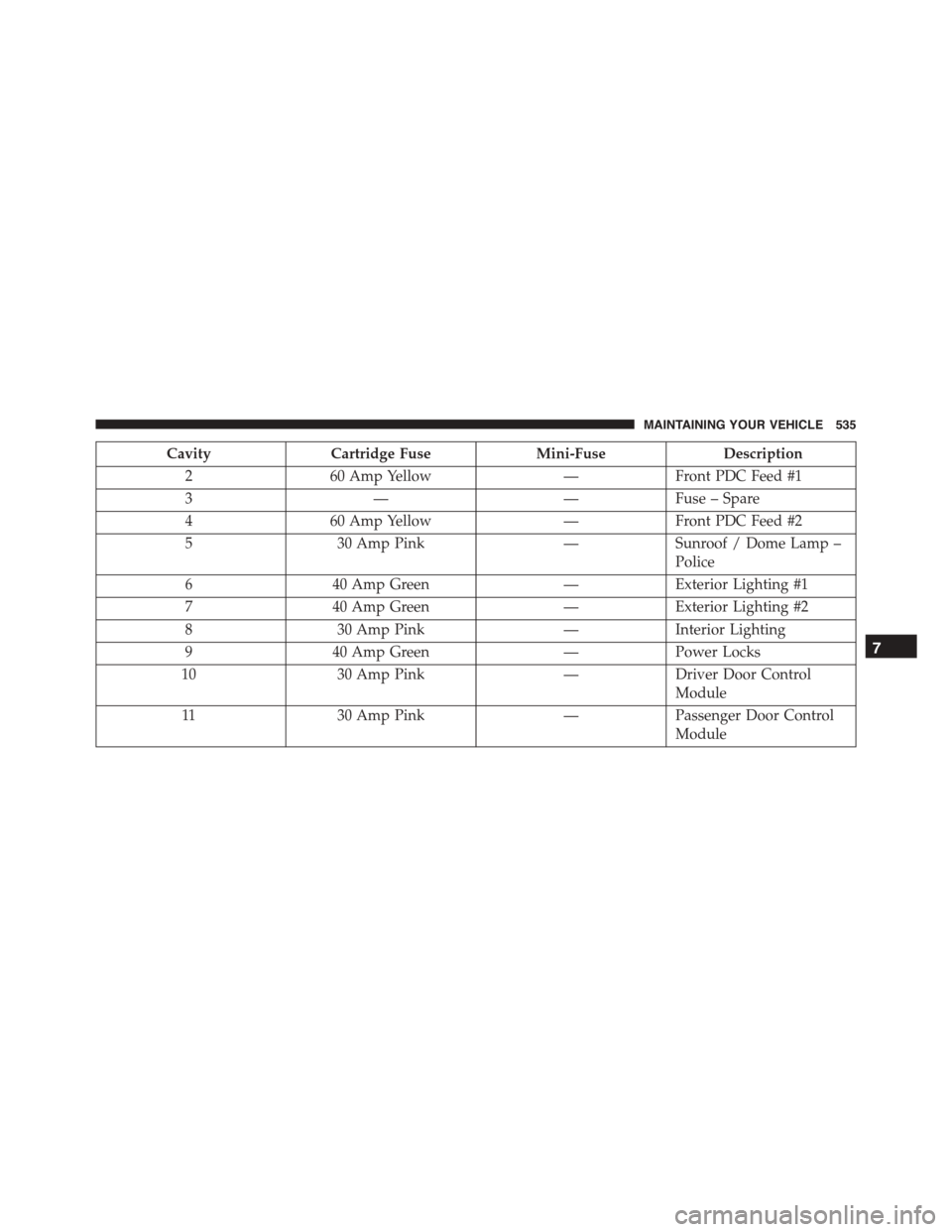

CavityCartridge FuseMini-FuseDescription
260 Amp Yellow—Front PDC Feed #1
3——Fuse – Spare
460 Amp Yellow—Front PDC Feed #2
530 Amp Pink—Sunroof / Dome Lamp –
Police
640 Amp Green—Exterior Lighting #1
740 Amp Green—Exterior Lighting #2
830 Amp Pink—Interior Lighting
940 Amp Green—Power Locks
1030 Amp Pink—Driver Door Control
Module
1130 Amp Pink—Passenger Door Control
Module
7
MAINTAINING YOUR VEHICLE 535

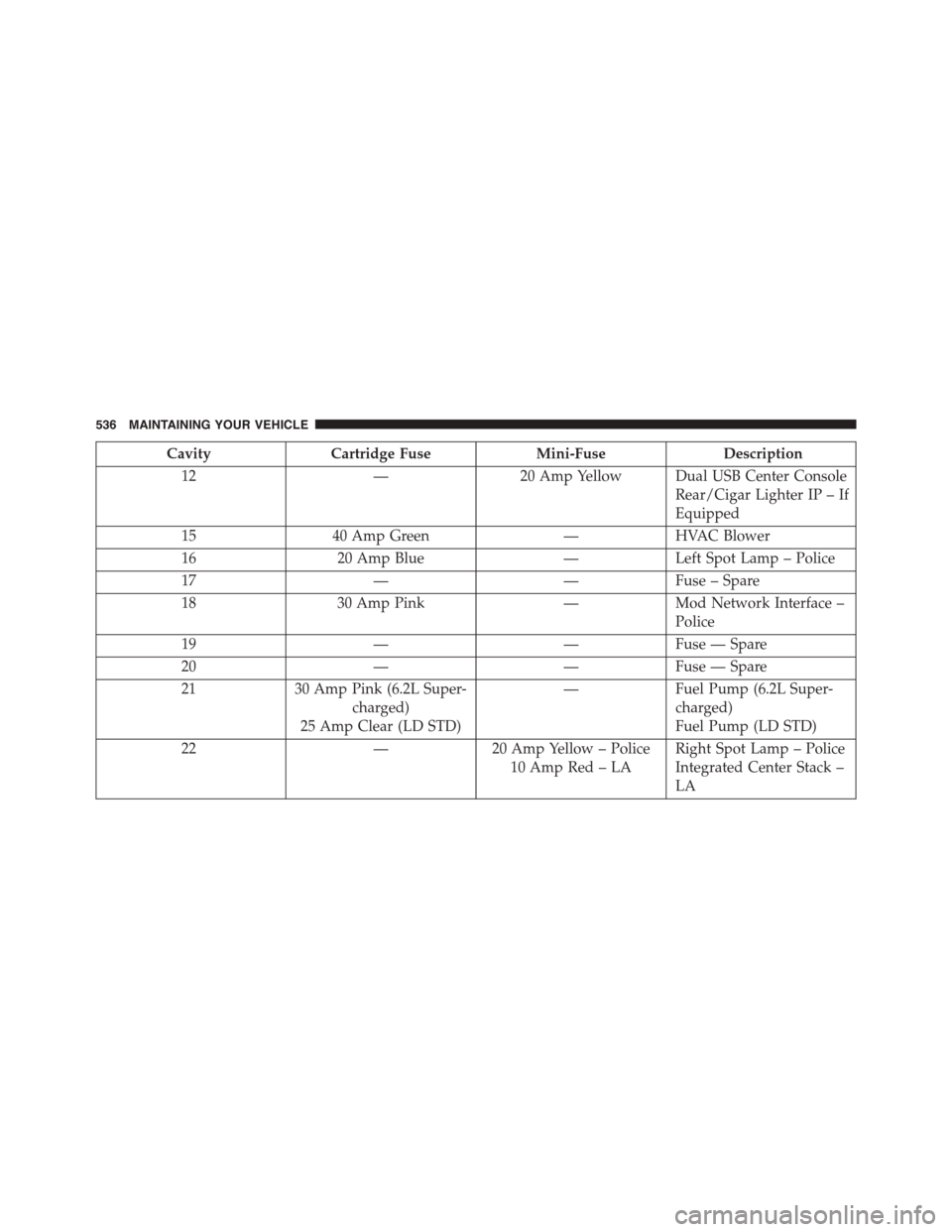

CavityCartridge FuseMini-FuseDescription
12—20 Amp Yellow Dual USB Center Console
Rear/Cigar Lighter IP – If
Equipped
1540 Amp Green—HVAC Blower
1620 Amp Blue—Left Spot Lamp – Police
17——Fuse – Spare
1830 Amp Pink—Mod Network Interface –
Police
19——Fuse — Spare
20——Fuse — Spare
2130 Amp Pink (6.2L Super-
charged)
25 Amp Clear (LD STD)
—Fuel Pump (6.2L Super-
charged)
Fuel Pump (LD STD)
22—20 Amp Yellow – Police
10 Amp Red – LA
Right Spot Lamp – Police
Integrated Center Stack –
LA
536 MAINTAINING YOUR VEHICLE

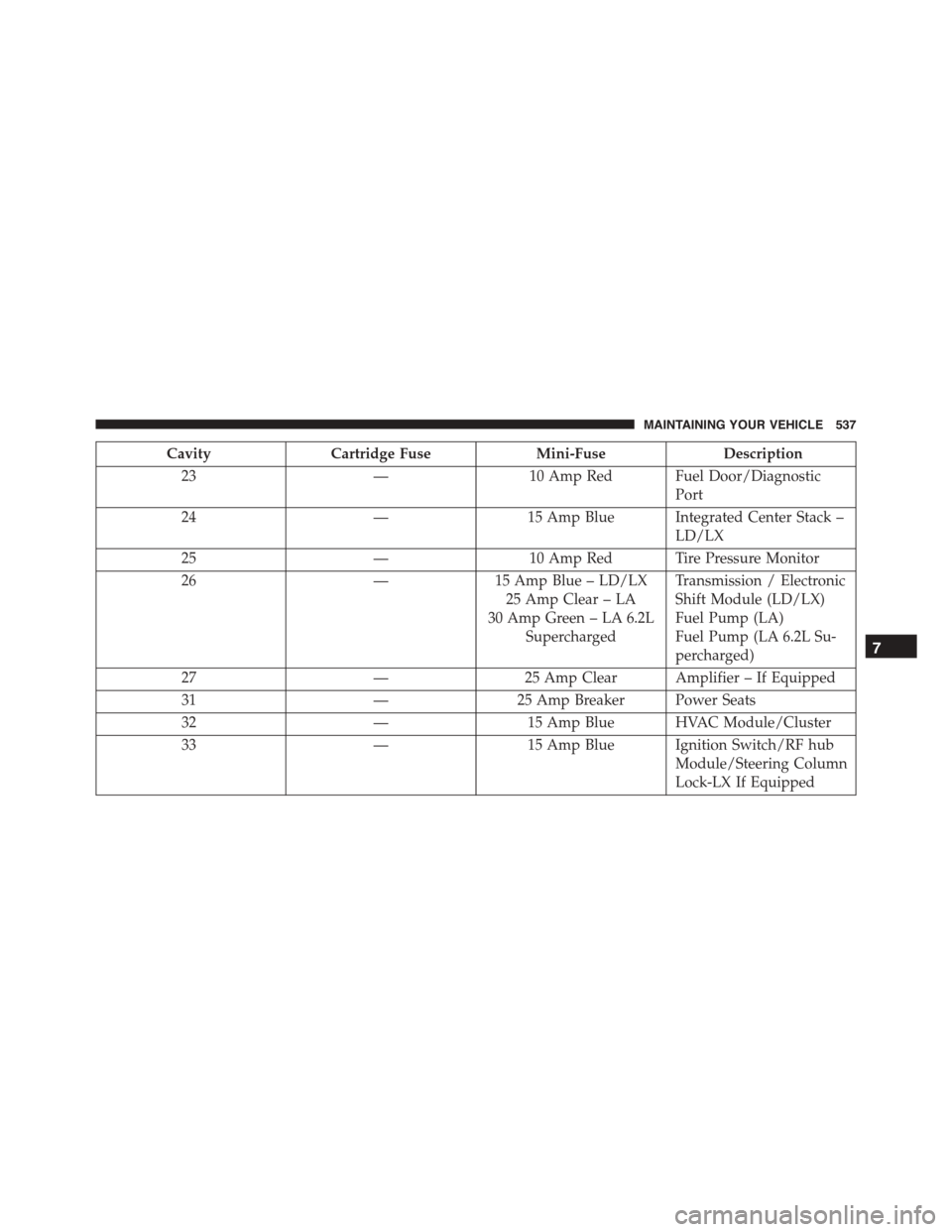

CavityCartridge FuseMini-FuseDescription
23—10 Amp Red Fuel Door/Diagnostic
Port
24—15 Amp Blue Integrated Center Stack –
LD/LX
25—10 Amp Red Tire Pressure Monitor
26—15 Amp Blue – LD/LX
25 Amp Clear – LA
30 Amp Green – LA 6.2L
Supercharged
Transmission / Electronic
Shift Module (LD/LX)
Fuel Pump (LA)
Fuel Pump (LA 6.2L Su-
percharged)
27—25 Amp Clear Amplifier – If Equipped
31—25 Amp Breaker Power Seats
32—15 Amp Blue HVAC Module/Cluster
33—15 Amp Blue Ignition Switch/RF hub
Module/Steering Column
Lock-LX If Equipped
7
MAINTAINING YOUR VEHICLE 537

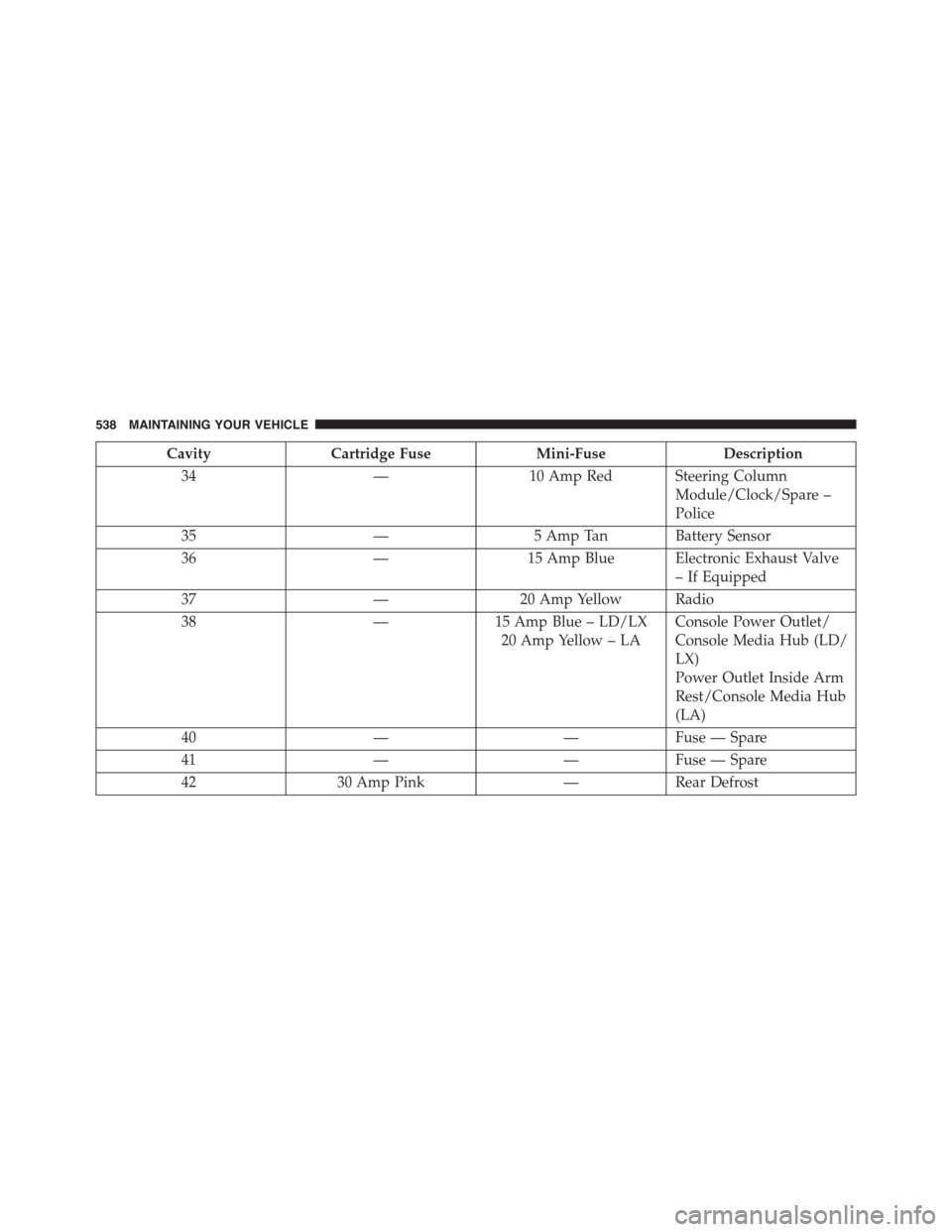

CavityCartridge FuseMini-FuseDescription
34—10 Amp Red Steering Column
Module/Clock/Spare –
Police
35—5 Amp Tan Battery Sensor
36—15 Amp Blue Electronic Exhaust Valve
– If Equipped
37—20 Amp Yellow Radio
38—15 Amp Blue – LD/LX
20 Amp Yellow – LA
Console Power Outlet/
Console Media Hub (LD/
LX)
Power Outlet Inside Arm
Rest/Console Media Hub
(LA)
40——Fuse — Spare
41——Fuse — Spare
4230 Amp Pink—Rear Defrost
538 MAINTAINING YOUR VEHICLE
