DODGE CHARGER SRT 2015 7.G Uconnect 5
Manufacturer: DODGE, Model Year: 2015, Model line: CHARGER SRT, Model: DODGE CHARGER SRT 2015 7.GPages: 56, PDF Size: 1.09 MB
Page 1 of 56
Owner’s Manual Supplement
Uconnect® 5.0
Second EditionUconnect® 5.0
Chrysler Group LLCPrinted in the USA
15UC5-526-AB
Page 2 of 56

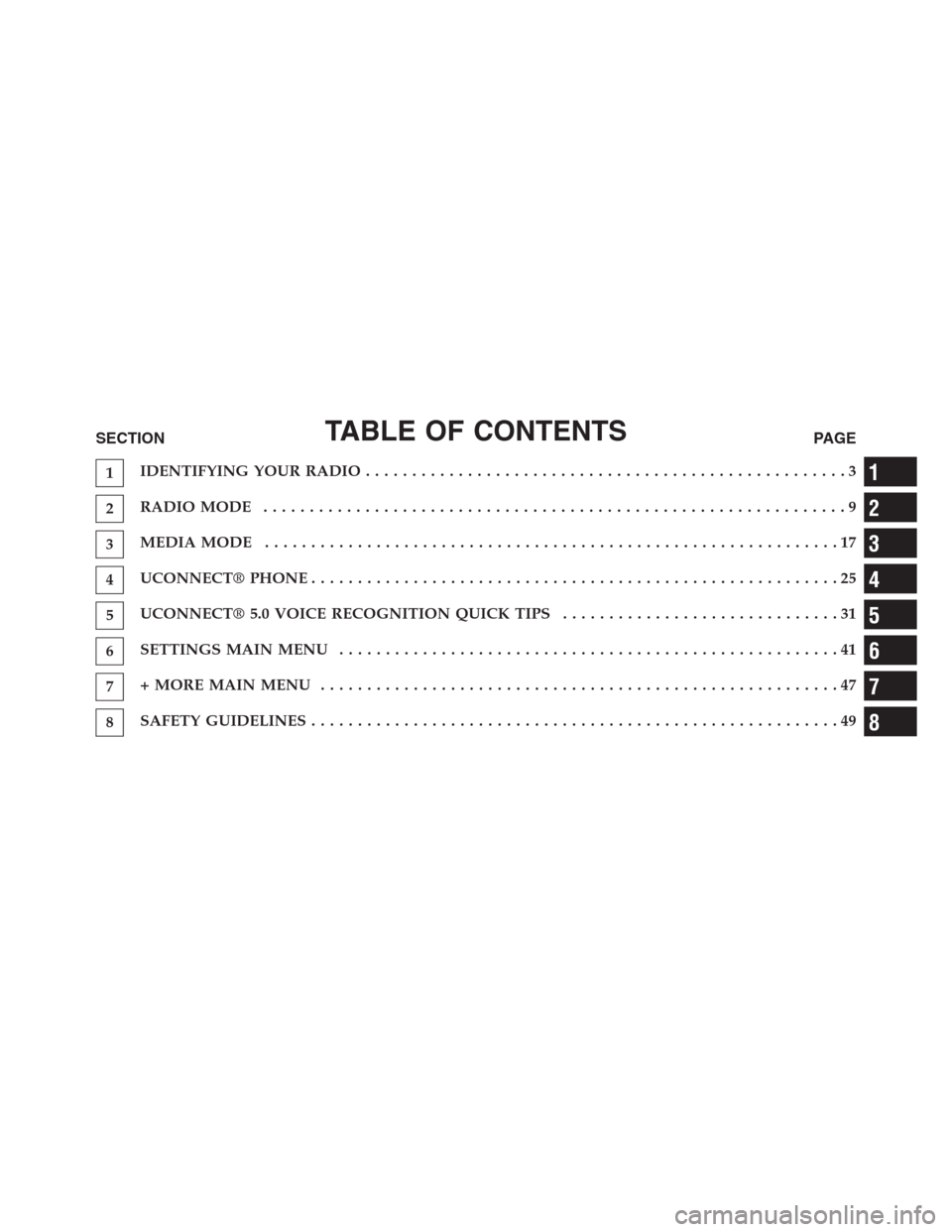

TABLE OF CONTENTSSECTIONPAGE
1IDENTIFYING YOUR RADIO....................................................3
2RADIO MODE...............................................................9
3MEDIA MODE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4UCONNECT® PHONE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5UCONNECT® 5.0 VOICE RECOGNITION QUICK TIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6SETTINGS MAIN MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7+ MORE MAIN MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8SAFETY GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
1
2
3
4
5
6
7
8
Page 3 of 56
Page 4 of 56

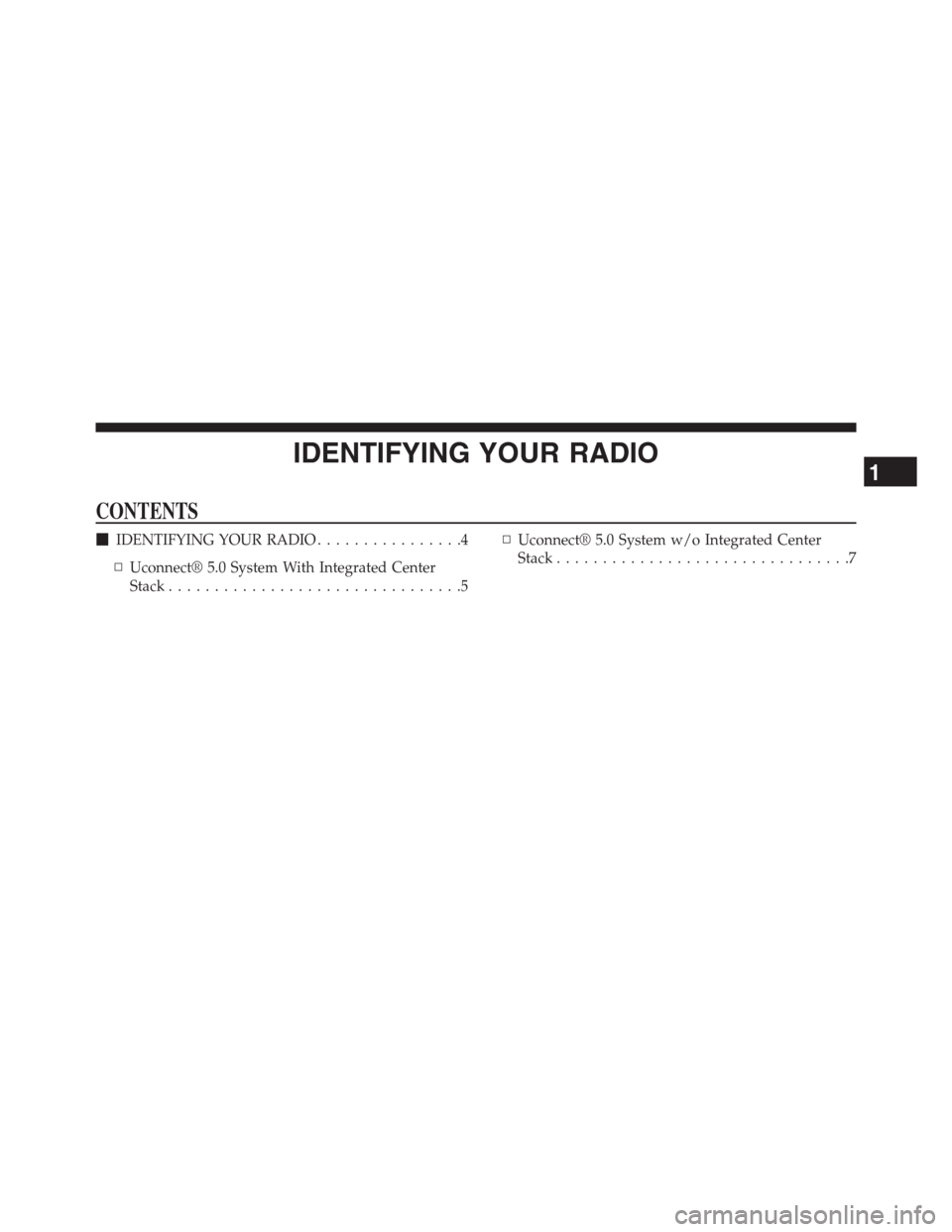

IDENTIFYING YOUR RADIO
CONTENTS
!IDENTIFYING YOUR RADIO. . . . . . . . . . . . . . . .4
▫Uconnect® 5.0 System With Integrated Center
Stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
▫Uconnect® 5.0 System w/o Integrated Center
Stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1
Page 5 of 56

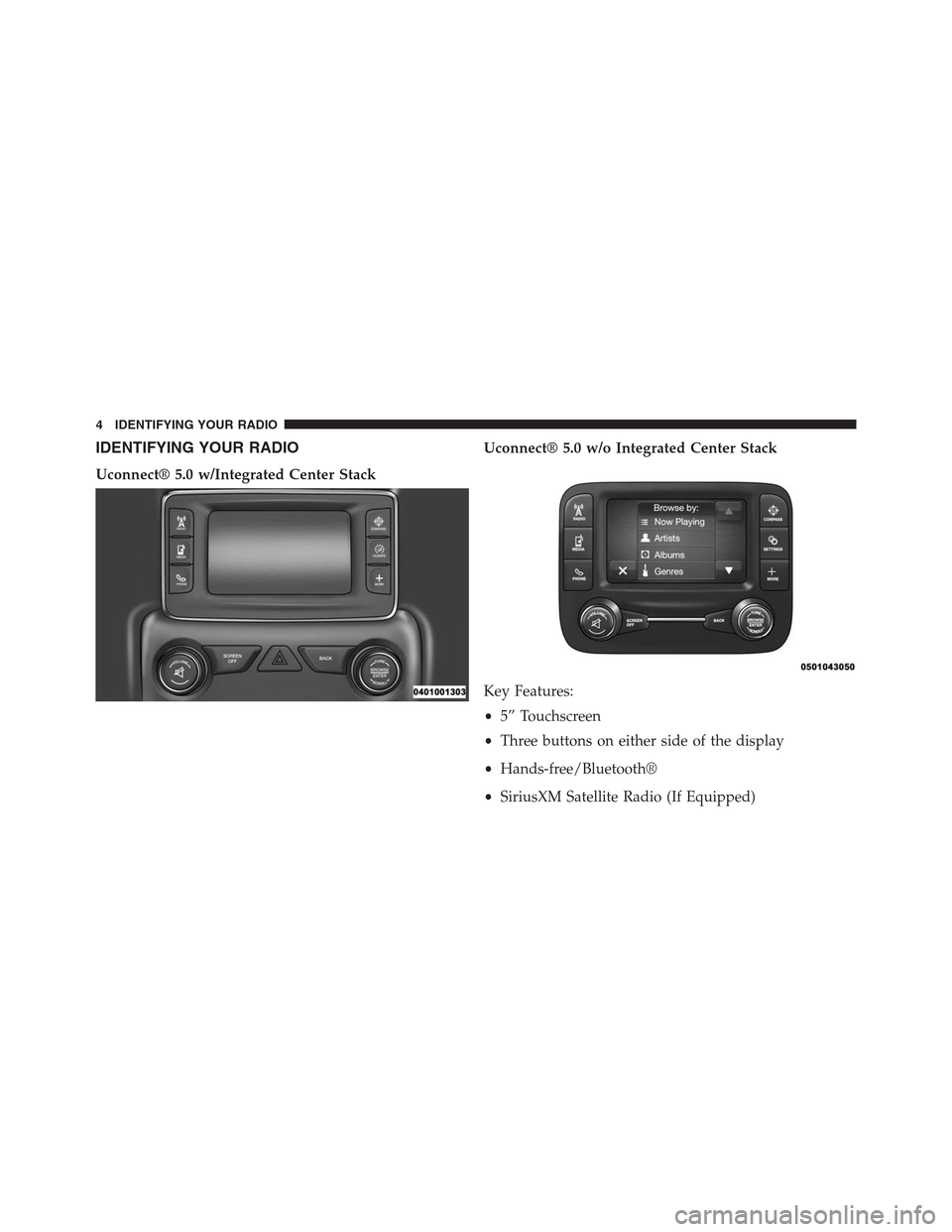

IDENTIFYING YOUR RADIO
Uconnect® 5.0 w/Integrated Center Stack
Uconnect® 5.0 w/o Integrated Center Stack
Key Features:
•5” Touchscreen
•Three buttons on either side of the display
•Hands-free/Bluetooth®
•SiriusXM Satellite Radio (If Equipped)
4 IDENTIFYING YOUR RADIO
Page 6 of 56

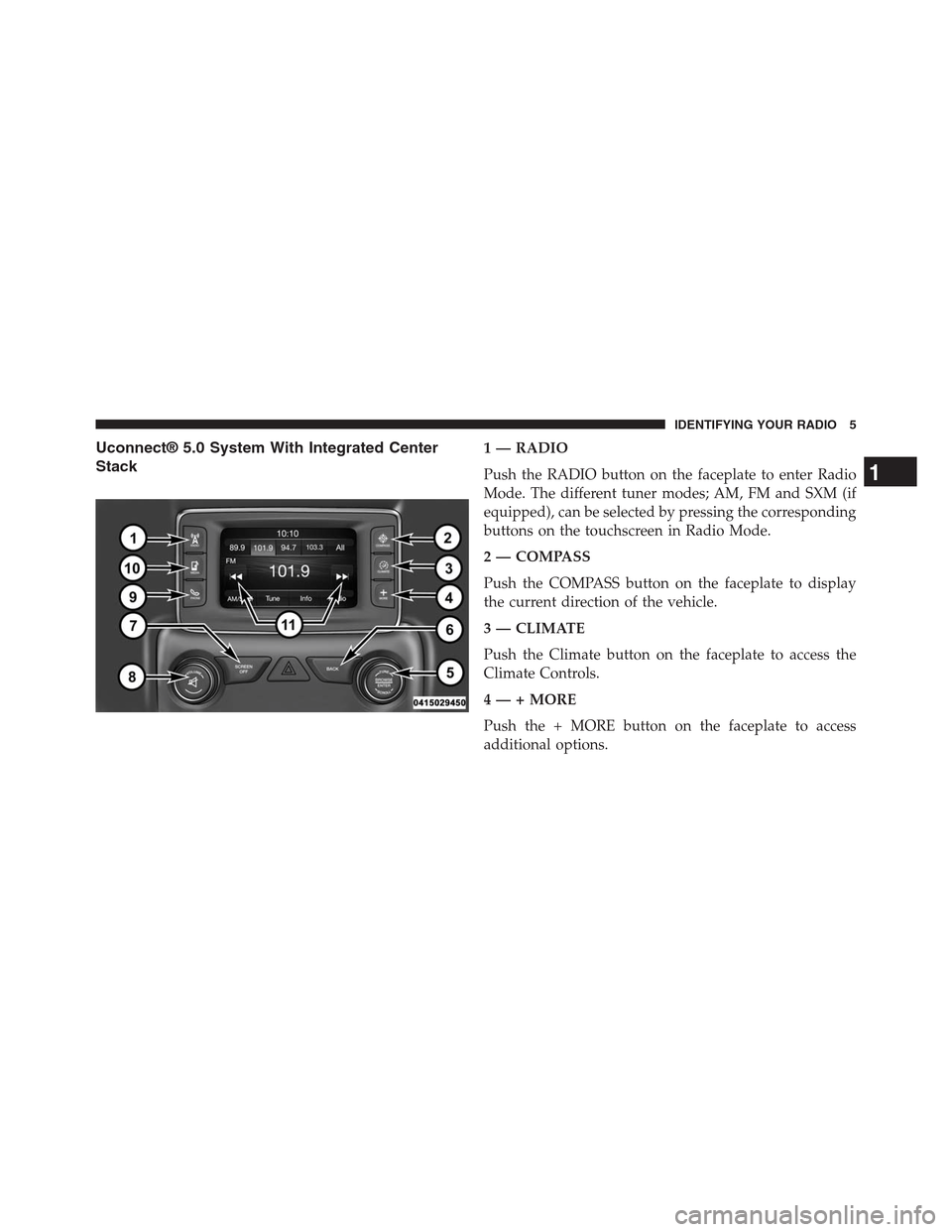

Uconnect® 5.0 System With Integrated Center
Stack
1 — RADIO
Push the RADIO button on the faceplate to enter Radio
Mode. The different tuner modes; AM, FM and SXM (if
equipped), can be selected by pressing the corresponding
buttons on the touchscreen in Radio Mode.
2 — COMPASS
Push the COMPASS button on the faceplate to display
the current direction of the vehicle.
3 — CLIMATE
Push the Climate button on the faceplate to access the
Climate Controls.
4 — + MORE
Push the + MORE button on the faceplate to access
additional options.
1
IDENTIFYING YOUR RADIO 5
Page 7 of 56

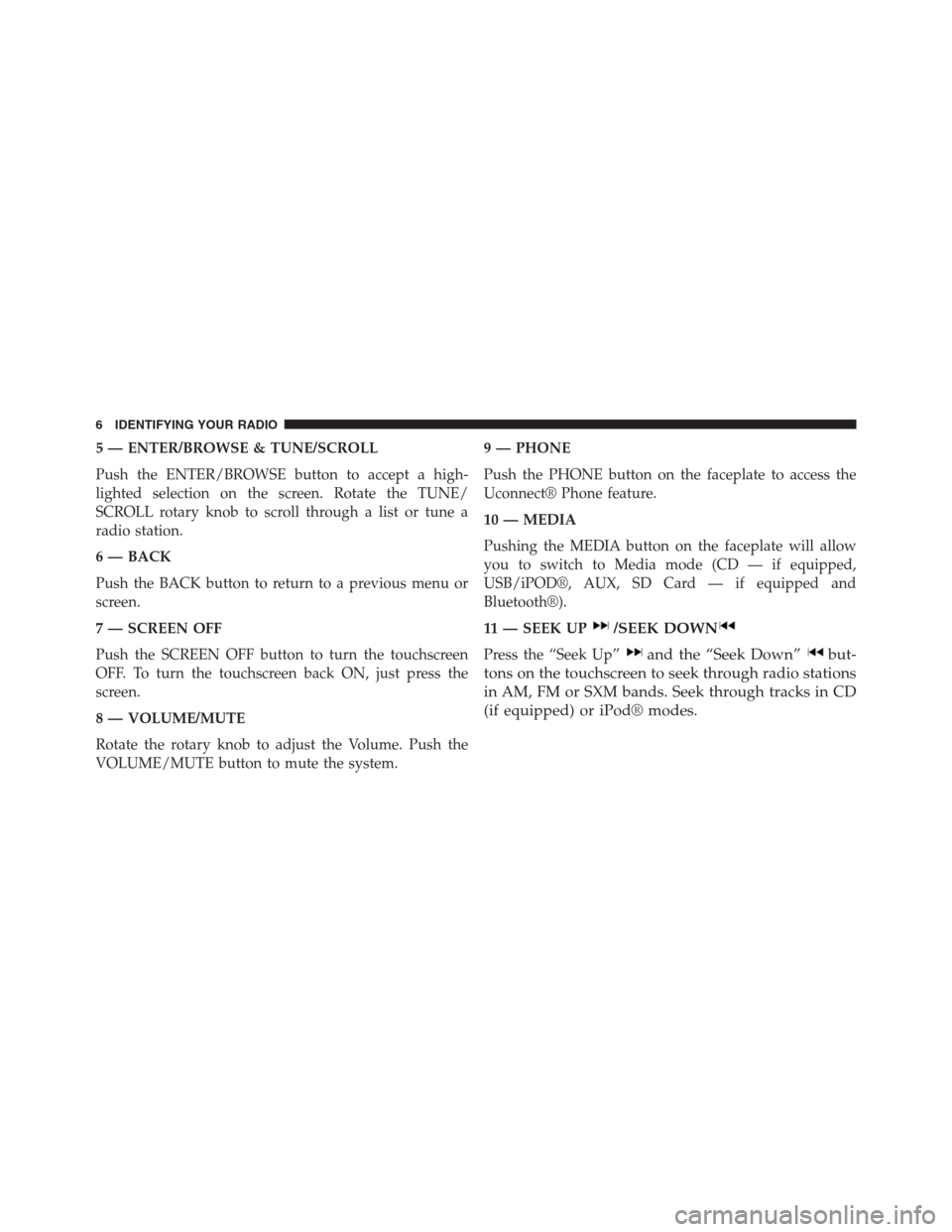

5 — ENTER/BROWSE & TUNE/SCROLL
Push the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
6 — BACK
Push the BACK button to return to a previous menu or
screen.
7 — SCREEN OFF
Push the SCREEN OFF button to turn the touchscreen
OFF. To turn the touchscreen back ON, just press the
screen.
8 — VOLUME/MUTE
Rotate the rotary knob to adjust the Volume. Push the
VOLUME/MUTE button to mute the system.
9 — PHONE
Push the PHONE button on the faceplate to access the
Uconnect® Phone feature.
10 — MEDIA
Pushing the MEDIA button on the faceplate will allow
you to switch to Media mode (CD — if equipped,
USB/iPOD®, AUX, SD Card — if equipped and
Bluetooth®).
11 — SEEK UP/SEEK DOWN
Press the “Seek Up”and the “Seek Down”but-
tons on the touchscreen to seek through radio stations
in AM, FM or SXM bands. Seek through tracks in CD
(if equipped) or iPod® modes.
6 IDENTIFYING YOUR RADIO
Page 8 of 56

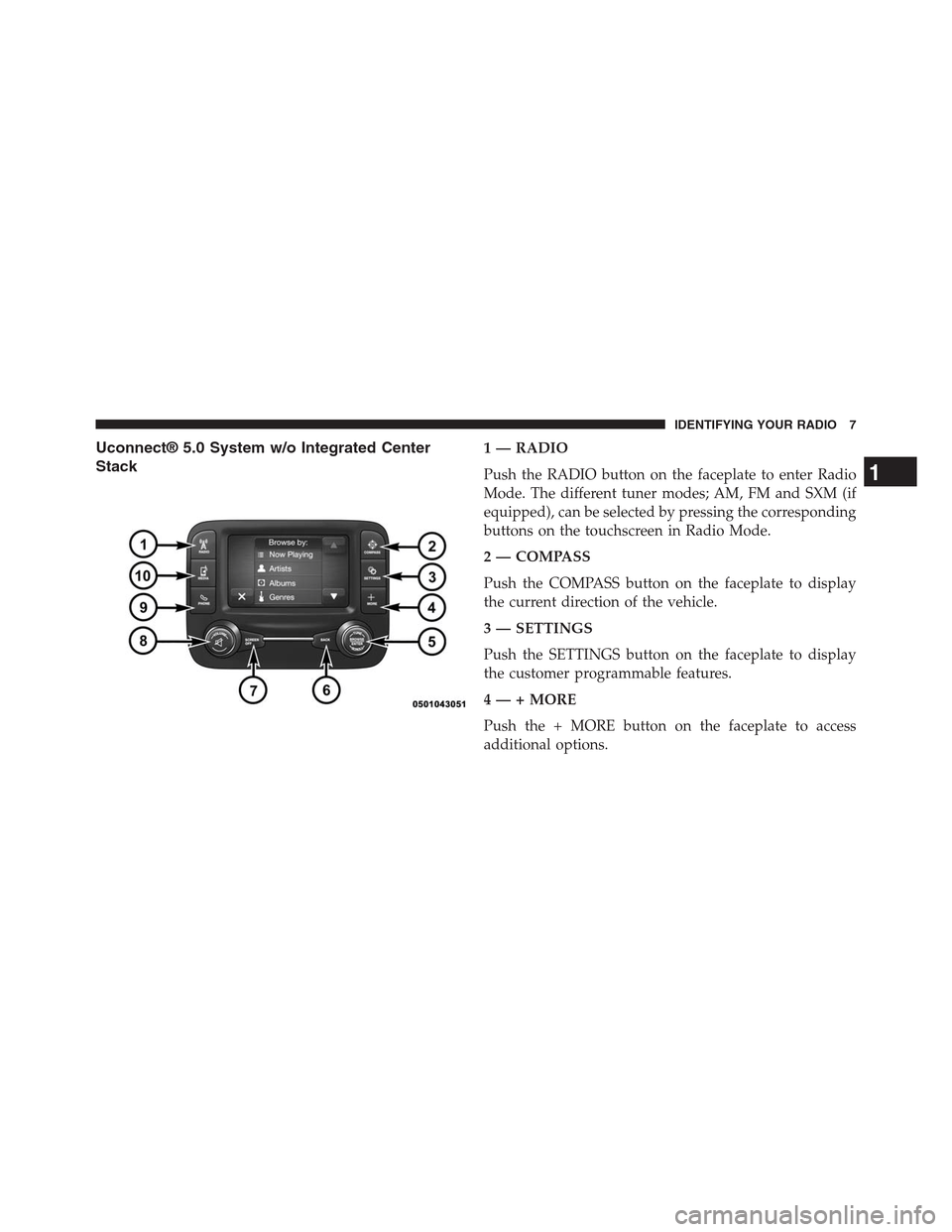

Uconnect® 5.0 System w/o Integrated Center
Stack
1 — RADIO
Push the RADIO button on the faceplate to enter Radio
Mode. The different tuner modes; AM, FM and SXM (if
equipped), can be selected by pressing the corresponding
buttons on the touchscreen in Radio Mode.
2 — COMPASS
Push the COMPASS button on the faceplate to display
the current direction of the vehicle.
3 — SETTINGS
Push the SETTINGS button on the faceplate to display
the customer programmable features.
4 — + MORE
Push the + MORE button on the faceplate to access
additional options.
1
IDENTIFYING YOUR RADIO 7
Page 9 of 56

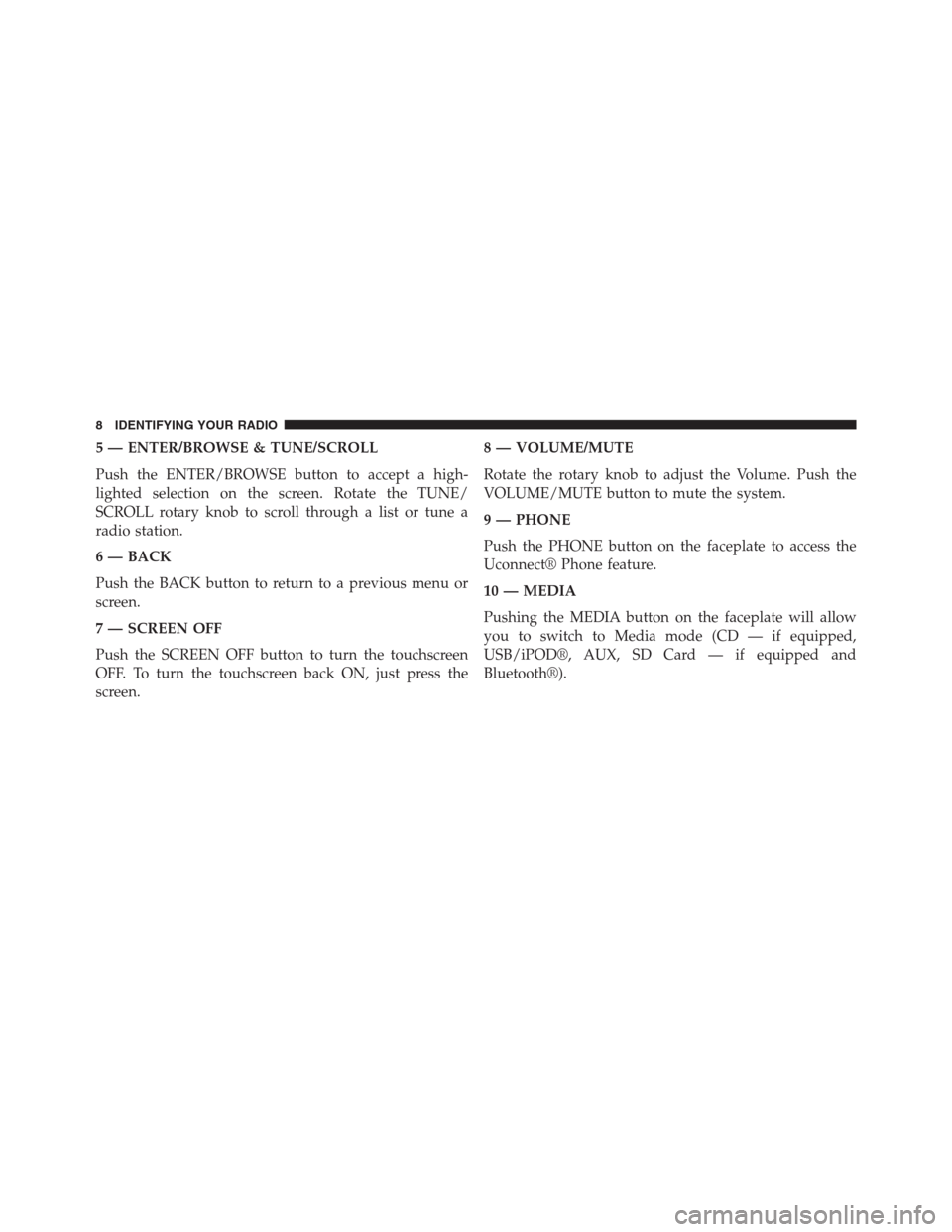

5 — ENTER/BROWSE & TUNE/SCROLL
Push the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
6 — BACK
Push the BACK button to return to a previous menu or
screen.
7 — SCREEN OFF
Push the SCREEN OFF button to turn the touchscreen
OFF. To turn the touchscreen back ON, just press the
screen.
8 — VOLUME/MUTE
Rotate the rotary knob to adjust the Volume. Push the
VOLUME/MUTE button to mute the system.
9 — PHONE
Push the PHONE button on the faceplate to access the
Uconnect® Phone feature.
10 — MEDIA
Pushing the MEDIA button on the faceplate will allow
you to switch to Media mode (CD — if equipped,
USB/iPOD®, AUX, SD Card — if equipped and
Bluetooth®).
8 IDENTIFYING YOUR RADIO
Page 10 of 56

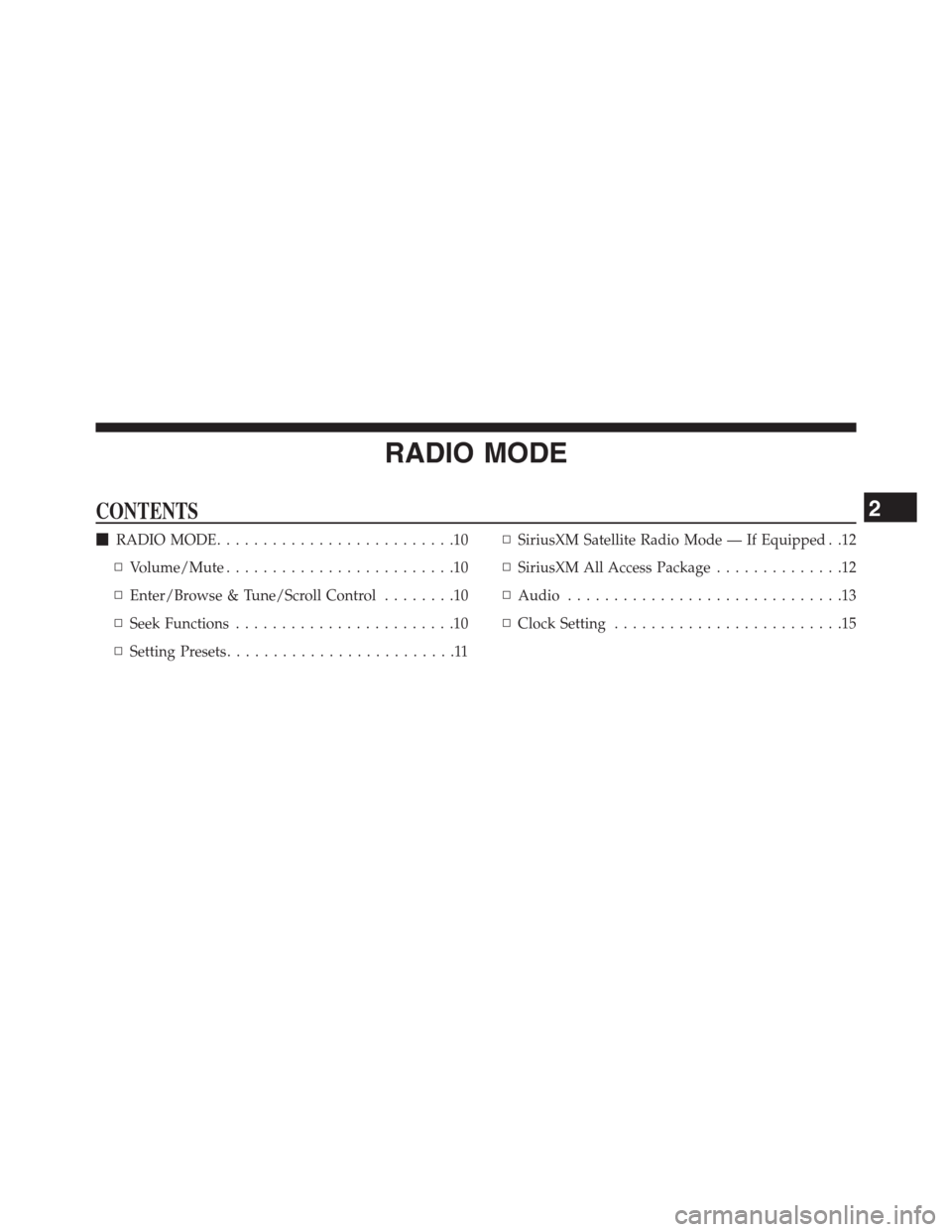

RADIO MODE
CONTENTS
!RADIO MODE. . . . . . . . . . . . . . . . . . . . . . . . . .10
▫Volume/Mute. . . . . . . . . . . . . . . . . . . . . . . . .10
▫Enter/Browse & Tune/Scroll Control. . . . . . . .10
▫Seek Functions. . . . . . . . . . . . . . . . . . . . . . . .10
▫Setting Presets. . . . . . . . . . . . . . . . . . . . . . . . .11
▫SiriusXM Satellite Radio Mode — If Equipped . .12
▫SiriusXM All Access Package. . . . . . . . . . . . . .12
▫Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
▫Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . .15
2
