•Ignition in STOP/OFF position
• Fuel level meets minimum requirement
• Vehicle Security Alarm is not signaling an intrusion
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message On The Instrument
Cluster Display — If Equipped
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low •
Remote Start Aborted — Trunk Open
• Remote Start Disabled — Start Vehicle To Reset
The message will stay active until the ignition is turned to
the ON/RUN position.
To Enter Remote Start Mode
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash, and the horn will chirp twice (if
programmed). Then, the engine will start, and the vehicle
will remain in the Remote Start mode for a 15-minute cycle.
NOTE:
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
• The engine can be started two consecutive times with
the key fob. However, the ignition must be cycled by
pushing the START/STOP button twice (or the ignition
switch must be cycled to the ON/RUN position) before
you can repeat the start sequence for a third cycle.
3
GETTING TO KNOW YOUR VEHICLE 31

To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shutdowns, the system will
disable with a one time push of the remote start button for
two seconds after receiving a valid remote start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of 15-minute cycle, push and release the
unlock button on the key fob to unlock the doors and
disarm the vehicle security alarm (if equipped). Then, prior
to the end of the 15-minute cycle, push and release the
START/STOP button. If the START/STOP button is not
present, insert the key fob into the ignition switch and turn
the switch to the ON/RUN position.
NOTE:
• For vehicles not equipped with the Keyless Enter-N-Go
— Passive Entry feature, the ignition switch must be in
the ON/RUN position in order to drive the vehicle. •
For vehicles not equipped with the Keyless Enter-N-Go
— Passive Entry feature, the message “Remote Start
Active — Insert Key and Turn To Run” will show in the
instrument cluster display until you insert the key.
• For vehicles equipped with the Keyless Enter-N-Go —
Passive Entry feature, the message “Remote Start Active
— Push Start Button” will show in the instrument
cluster display until you push the START button.
To Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
• The engine stalls or engine speed exceeds 2500 rpm.
• Any engine warning lights come on.
• Low Fuel Light turns on.
• The hood is opened.
• The hazard switch is pushed.
• The gear selector is moved out of PARK.
• The brake pedal is pushed.
32 GETTING TO KNOW YOUR VEHICLE

3. With sunroof in closed position, push and hold the closeswitch.
4. After 10 seconds of holding switch, the sunroof glass will cycle into the vent position and stop.
5. Release the close switch, then within 5 seconds push and hold the close switch again. The sunroof will cycle open
and back to closed as the switch is held.
6. Once the sunroof has stopped in the full closed position, release the close switch. The sunroof is now reset and
ready to use.

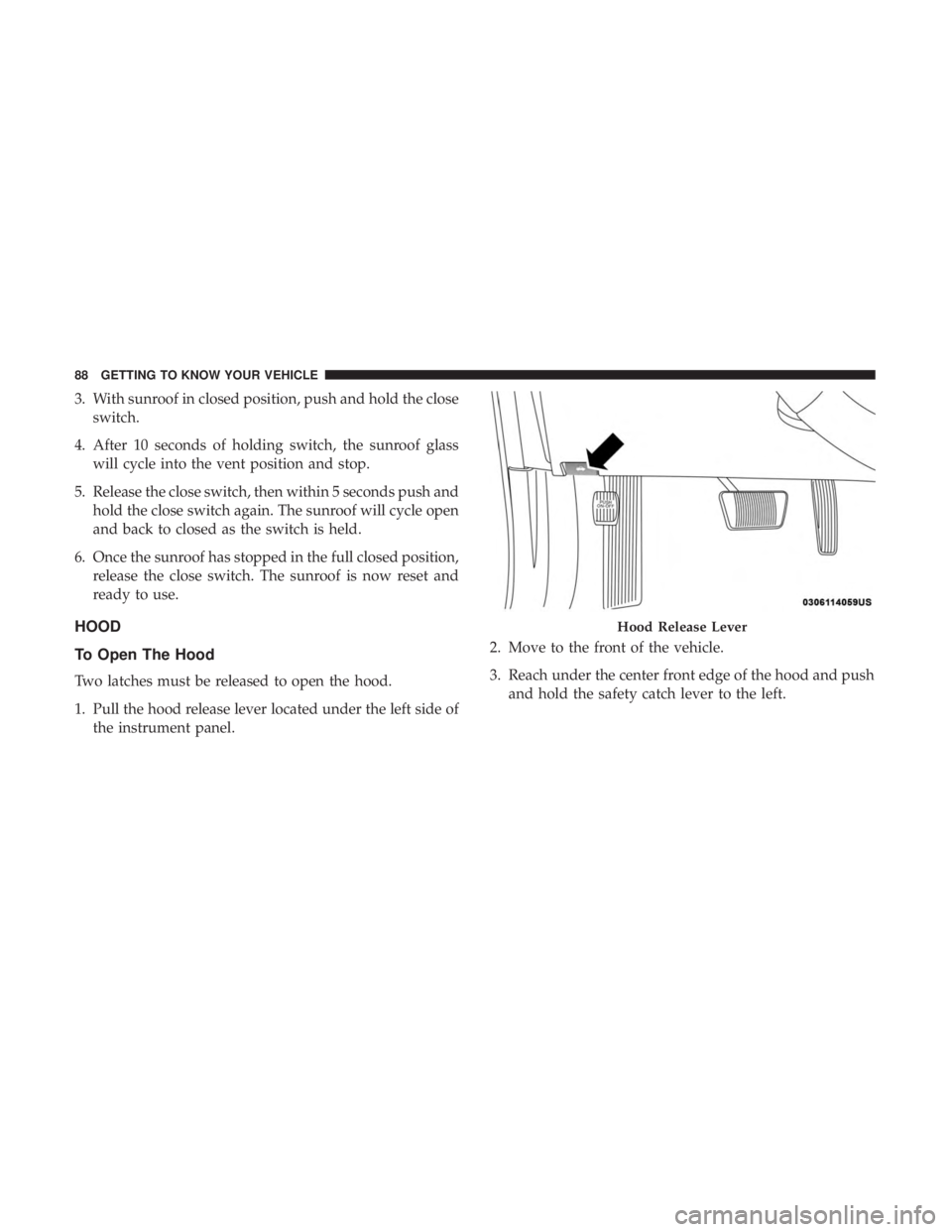

HOOD
To Open The Hood
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side ofthe instrument panel. 2. Move to the front of the vehicle.
3. Reach under the center front edge of the hood and push
and hold the safety catch lever to the left.
Hood Release Lever
88 GETTING TO KNOW YOUR VEHICLE

4. Lift the hood upward to the open position.
To Close The Hood
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower hood to approximately 12 inches (30 cm)
and drop the hood to close. Make sure hood is fully
closed for both latches. Never drive vehicle unless
hood is fully closed, with both latches engaged.
TRUNK
Opening
The trunk can be opened from inside the vehicle using the
power trunk button located on the instrument panel to the
left of the steering wheel.
The trunk lid can be released from outside the vehicle by
pushing the trunk button on the key fob twice within five
seconds or by using the external release switch located on
the underside of the decklid overhang. The release feature
will function only when the vehicle is in the unlock
condition.
With the ignition in the ON/RUN position, the trunk open
symbol will display in the instrument cluster indicating
that the trunk is open. The odometer display will reappear
once the trunk is closed.
Safety Catch Lever Location
3
GETTING TO KNOW YOUR VEHICLE 89

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............283
 ASSIST AND SOS MIRROR — IF EQUIPPED . . . .283
 BULB REPLACEMENT ....................289
▫ Replacement Bulbs .....................289
▫ Replacing Exterior Bulbs ..................291
 FUSES ............................... .292
▫ General Information .....................293
▫ Underhood Fuses ..................... .293
▫ Rear Interior Fuses .....................297
 TIRE SERVICE KIT — IF EQUIPPED ..........301
▫ Tire Service Kit Storage ...................302
▫ Tire Service Kit Components And Operation . . .302
▫ Tire Service Kit Usage Precautions ..........303
▫ Sealing A Tire With Tire Service Kit .........305
TIRE SERVICE KIT — IF EQUIPPED ..........309
▫ Tire Service Kit Storage ...................310
▫ Tire Service Kit Components And Operation . . .310
▫ Tire Service Kit Usage Precautions ..........311
▫ Sealing A Tire With Tire Service Kit .........313
 JUMP STARTING ....................... .317
▫ Preparations For Jump Start ...............318
▫ Jump Starting Procedure .................319
 IF YOUR ENGINE OVERHEATS .............320
 MANUAL PARK RELEASE — 8–SPEED
TRANSMISSION ....................... .321
 FREEING A STUCK VEHICLE ..............323
 TOWING A DISABLED VEHICLE ............325
7

WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
CAUTION!
Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads 240°F (116°C) or
greater pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range 200–230°F (93–110°C).
If the pointer remains at 240°F (116°C) or greater and
you hear a chime, turn the engine off immediately and
call for service.
MANUAL PARK RELEASE — 8–SPEED
TRANSMISSION
WARNING!
Always secure your vehicle by fully applying the
parking brake before activating the Manual Park Re-
lease. In addition, you should be seated in the driver’s
seat with your foot firmly on the brake pedal when
activating the Manual Park Release. Activating the
Manual Park Release will allow your vehicle to roll
away if it is not secured by the parking brake, or by
proper connection to a tow vehicle. Activating the
Manual Park Release on an unsecured vehicle could
lead to serious injury or death for those in or around
the vehicle.
In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery), a
Manual Park Release is available.
7
IN CASE OF EMERGENCY 321

•Noise (objectionable squeal, squeak, or rumble is heard
or felt while drive belt is in operation)
Some conditions can be caused by a faulty component such
as a belt pulley. Belt pulleys should be carefully inspected
for damage and proper alignment.
Belt replacement on some models requires the use of
special tools, we recommend having your vehicle serviced
at an authorized dealer.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
8
SERVICING AND MAINTENANCE 343

Hood Prop................................88
Hood Release ..............................88
Ignition ..................................27
Switch .................................27
Information Center, Vehicle ....................110
Inside Rearview Mirror ....................59, 283
Instrument Cluster ......................... .108
Descriptions ........................... .132
Display ............................110,113
Instrument Panel Lens Cleaning ................382
Interior Appearance Care .....................381
Interior Lights ..............................67
Intermittent Wipers (Delay Wipers) ...............72
Introduction ................................4
In Vehicle Help Vehicle User Guide ........................17
Jack Operation ........................... .356
Jump Starting ......................... .317, 319
Key Fob Arm The System ..........................35
Panic Alarm .............................22
Programming Additional Key Fobs ..........26, 34Unlatch The Trunk
........................22
Key Fob Battery Service (Remote Keyless Entry) .....23
Key Fob Programming (Remote Keyless Entry) ......26
Key-In Reminder ............................29
Keyless Enter-N-Go ..................... .38, 216
Enter The Trunk ..........................22
Passive Entry ............................38
Passive Entry Programming ..................38
Keys ....................................19
Replacement ......................... .26, 34
Lane Change And Turn Signals .................67
Lane Change Assist ..........................67
LaneSense ............................... .266
Lap/Shoulder Belts ........................ .167
Latches ................................. .207
Hood ..................................88
Lead Free Gasoline ........................ .388
Leaks, Fluid ............................. .208
Life Of Tires ............................. .369
Light Bulbs .......................... .207, 289
Lights .................................. .207
A

irBag .........................122, 176, 205
Automatic Headlights ......................65
Brake Assist Warning ..................... .144
484 INDEX

Paint Care............................... .379
Panic Alarm ...............................22
Parking Brake ............................ .218
ParkSense System, Rear ..................... .259
Passing Light ..............................65
Passive Entry ..............................38
Performance ..............................114
Personalized Main Menu .....................399
Pets ................................... .204
Pinch Protection ............................87
Placard, Tire And Loading Information ...........361
Power Brakes ............................... .386
Deck Lid Release .........................89
Distribution Center (Fuses) ..................297
Door Locks ..............................37
Mirrors ................................61
Outlet (Auxiliary Electrical Outlet) ............102
Seats ..................................46
Steering .............................. .235
Sunroof ................................85
Tilt/Telescoping Steering Column ..............57
Windows ...............................82
Power Seats Forward ................................46 Lumbar
................................47
Rearward ...............................46
Recline .................................46
Power Steering Fluid .....................393, 395
Pregnant Women And Seat Belts ................173
Pretensioners Seat Belts ............................. .173
Radial Ply Tires ........................... .367
Radiator Cap (Coolant Pressure Cap) .............351
Radio Frequency General Information ................27, 33, 34, 42
Radio Operation .......................... .454
Rain Sensitive Wiper System ...................73
Rear Axle (Differential) ..................... .355
Rear Camera ............................. .271
Rear Cross Path ........................... .153
Rear ParkSense System ..................... .259
Rear Seats, Folding ..........................
44
Recreational Towing ........................ .277
Reformulated Gasoline ...................... .389
Refrigerant ........................... .339, 340
Release, Hood ..............................88
Reminder, Lights On .........................66
Reminder, Seat Belt ........................ .166
12
INDEX 487

Wheel Nut Torque....................... .387
Tire Safety Information ...................... .356
Tire Service Kit......301, 302, 303, 305, 309, 310, 311, 313, 316, 317
To Open Hood .............................88
Towing ................................. .277
Behind A Motorhome ..................... .277
Recreational ........................... .277
Traction ............................. .277, 278
Traction Control .......................... .147
Trailer Towing ............................ .277
Transfer Case Fluid ................................ .393
Transmission Automatic ......................... .222, 354
Fluid ............................. .393, 395
Maintenance ........................... .354
Shifting .............................. .220
Transporting Pets ......................... .204
Tread Wear Indicators ...................... .368
Trunk Lid (Deck Lid) .........................89
Trunk Release Remote Control ..................89
Turn Signals ........................... .67, 132Uconnect
Uconnect Settings .................21, 22, 33, 401
Uconnect 4C/4C Nav With 8.4-Inch Display ........402
Uconnect Settings Customer Programmable Features ........33, 38, 401
Passive Entry Programming ..................38
Uniform Tire Quality Grades ..................377
Universal Garage Door Opener (HomeLink) ........92
Universal Transmitter ........................92
Unleaded Gasoline ........................ .388
Untwisting Procedure, Seat Belt ................171
USB................................... .454
Vanity Mirrors .............................62
Vehicle Certification Label ....................276
Vehicle Identification Number (VIN) .............386
Vehicle Loading .....................275, 277, 362
Vehicle Modifications/Alterations .................5
Vehicle Security Alarm ........................35
V

ehicle Storage ......................... .81, 378
Vehicle User Guide In Vehicle Help ...........................17
Navigation ..............................17
Operating Instructions ......................17
Searching User Guide ......................17
12
INDEX 491
