DODGE DAKOTA 2009 3.G Owner's Manual

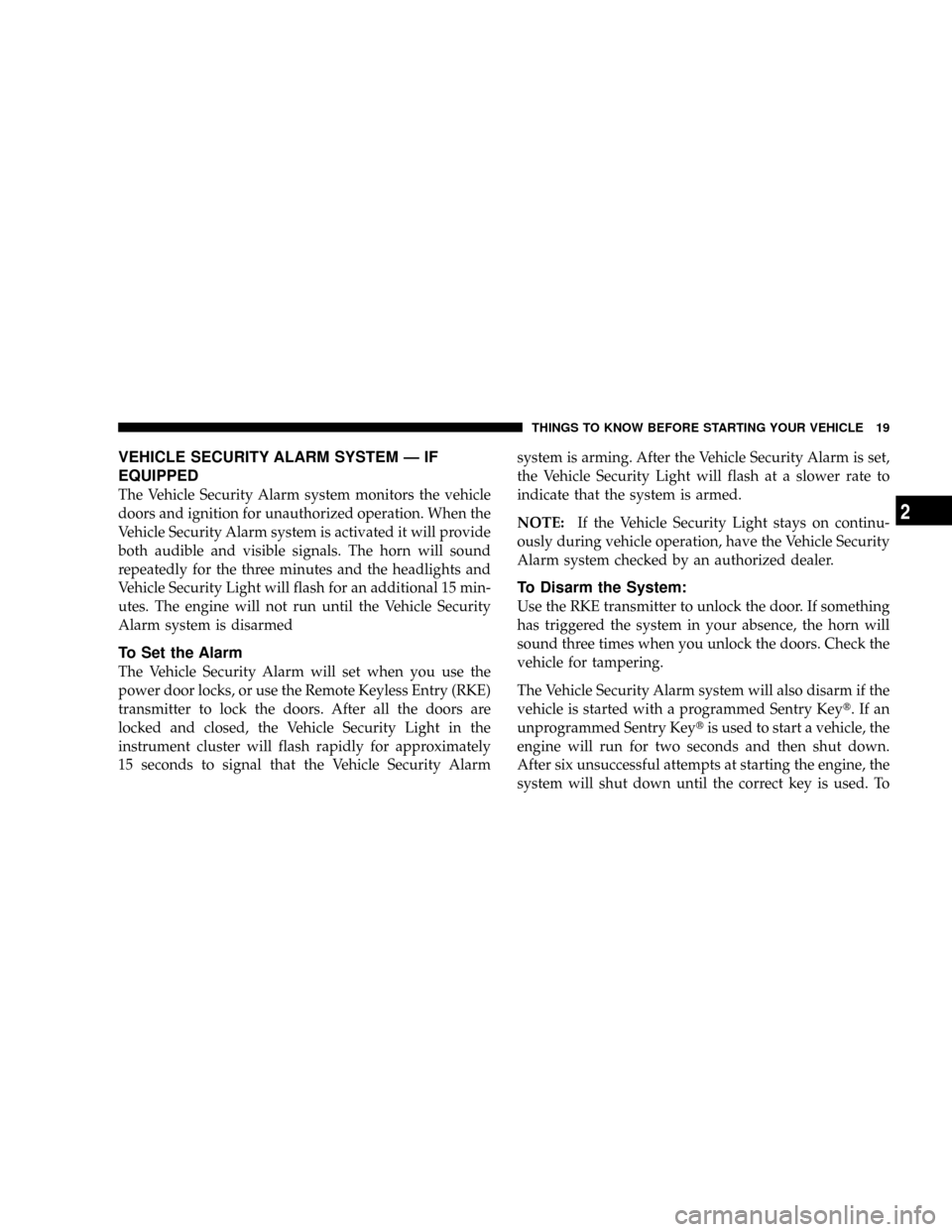

VEHICLE SECURITY ALARM SYSTEM Ð IF
EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors and ignition for unauthorized operation. When the
Vehicle Security Alarm system is activated it will provide
both audible and visible signals. The horn will sound
repeatedly for the three minutes and the headlights and
Vehicle Security Light will flash for an additional 15 min-
utes. The engine will not run until the Vehicle Security
Alarm system is disarmed
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly for approximately
15 seconds to signal that the Vehicle Security Alarmsystem is arming. After the Vehicle Security Alarm is set,
the Vehicle Security Light will flash at a slower rate to
indicate that the system is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm system checked by an authorized dealer.
To Disarm the System:
Use the RKE transmitter to unlock the door. If something
has triggered the system in your absence, the horn will
sound three times when you unlock the doors. Check the
vehicle for tampering.
The Vehicle Security Alarm system will also disarm if the
vehicle is started with a programmed Sentry Keyt.Ifan
unprogrammed Sentry Keytis used to start a vehicle, the
engine will run for two seconds and then shut down.
After six unsuccessful attempts at starting the engine, the
system will shut down until the correct key is used. To
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

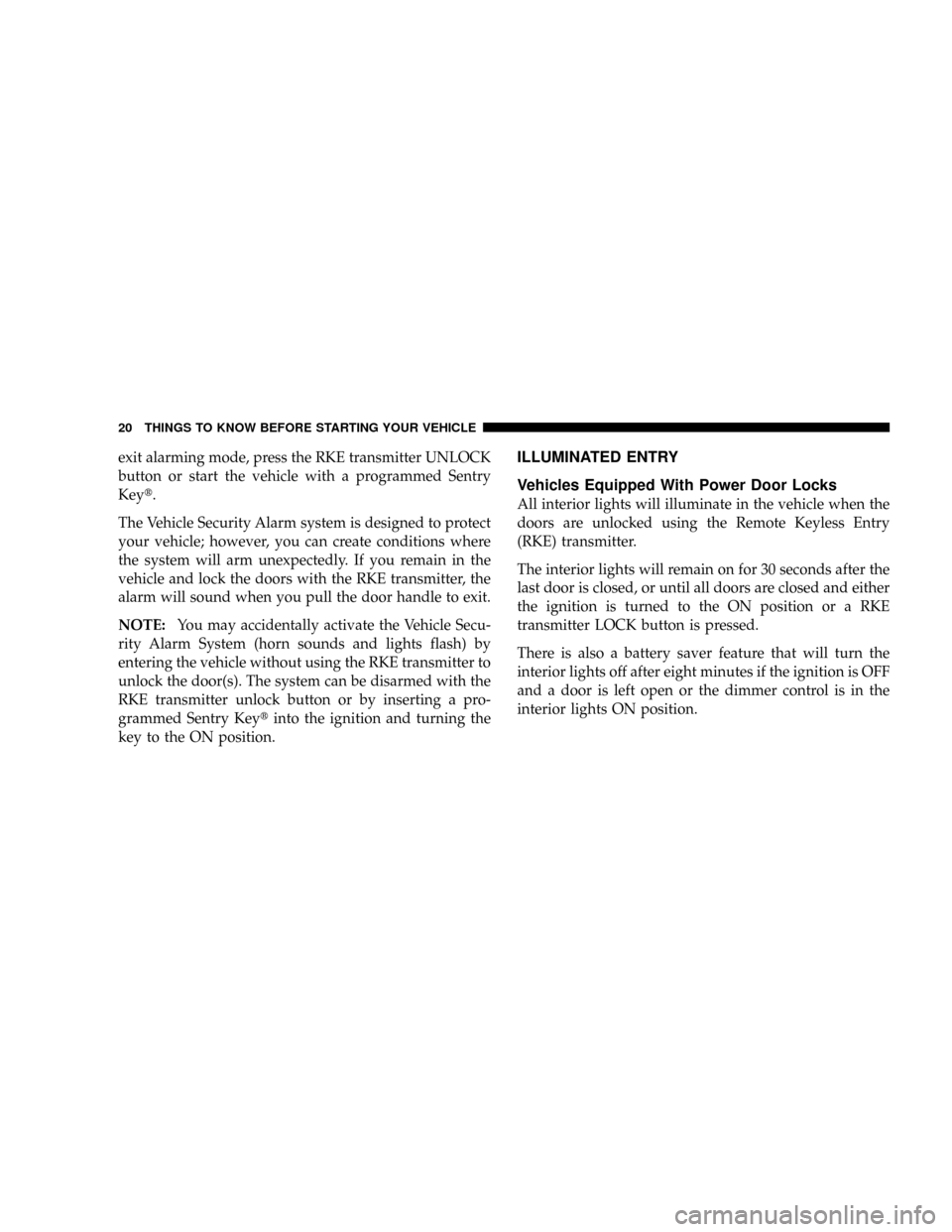

exit alarming mode, press the RKE transmitter UNLOCK
button or start the vehicle with a programmed Sentry
Keyt.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the RKE transmitter, the
alarm will sound when you pull the door handle to exit.
NOTE:You may accidentally activate the Vehicle Secu-
rity Alarm System (horn sounds and lights flash) by
entering the vehicle without using the RKE transmitter to
unlock the door(s). The system can be disarmed with the
RKE transmitter unlock button or by inserting a pro-
grammed Sentry Keytinto the ignition and turning the
key to the ON position.ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a RKE
transmitter LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after eight minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

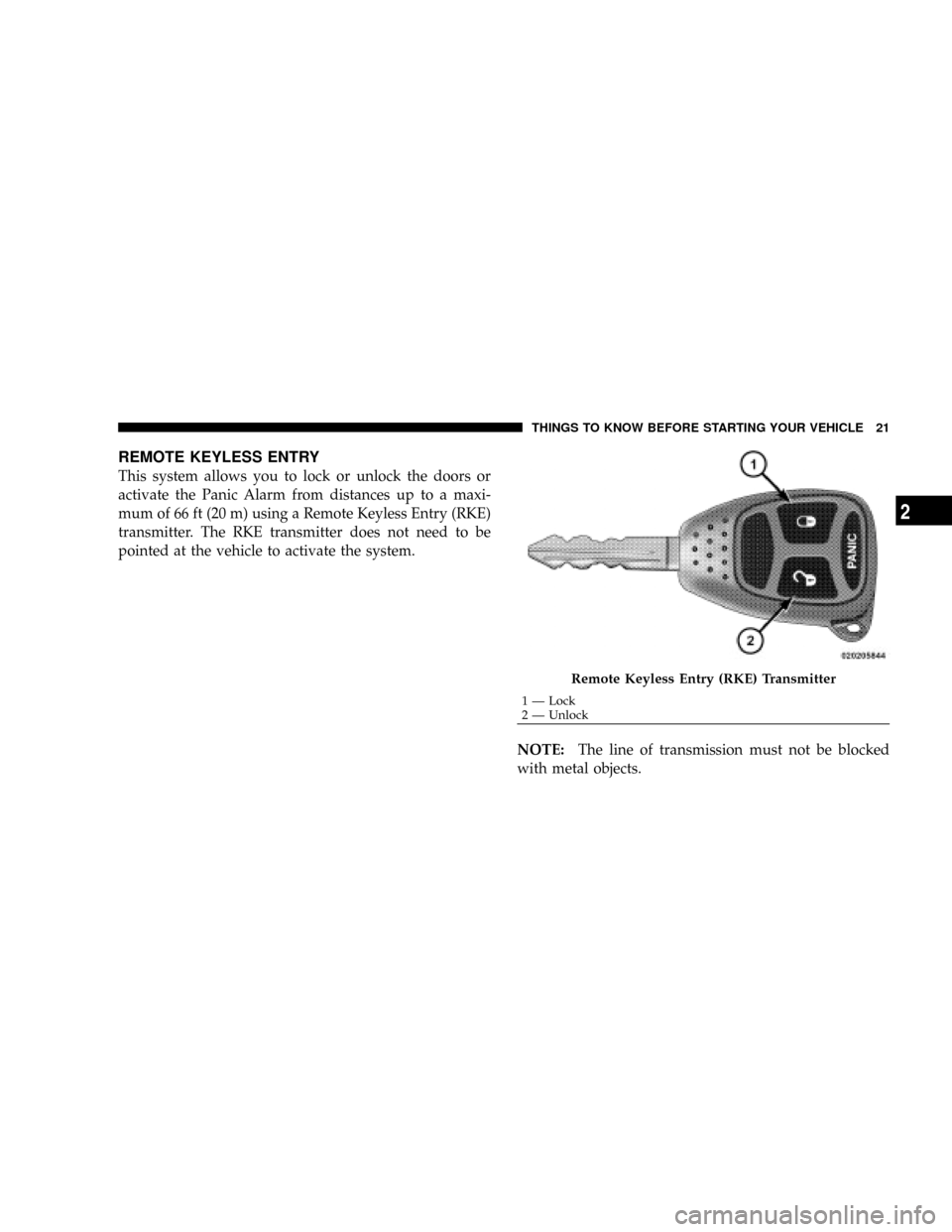

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors or
activate the Panic Alarm from distances up to a maxi-
mum of 66 ft (20 m) using a Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
Remote Keyless Entry (RKE) Transmitter
1 Ð Lock
2 Ð UnlockTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

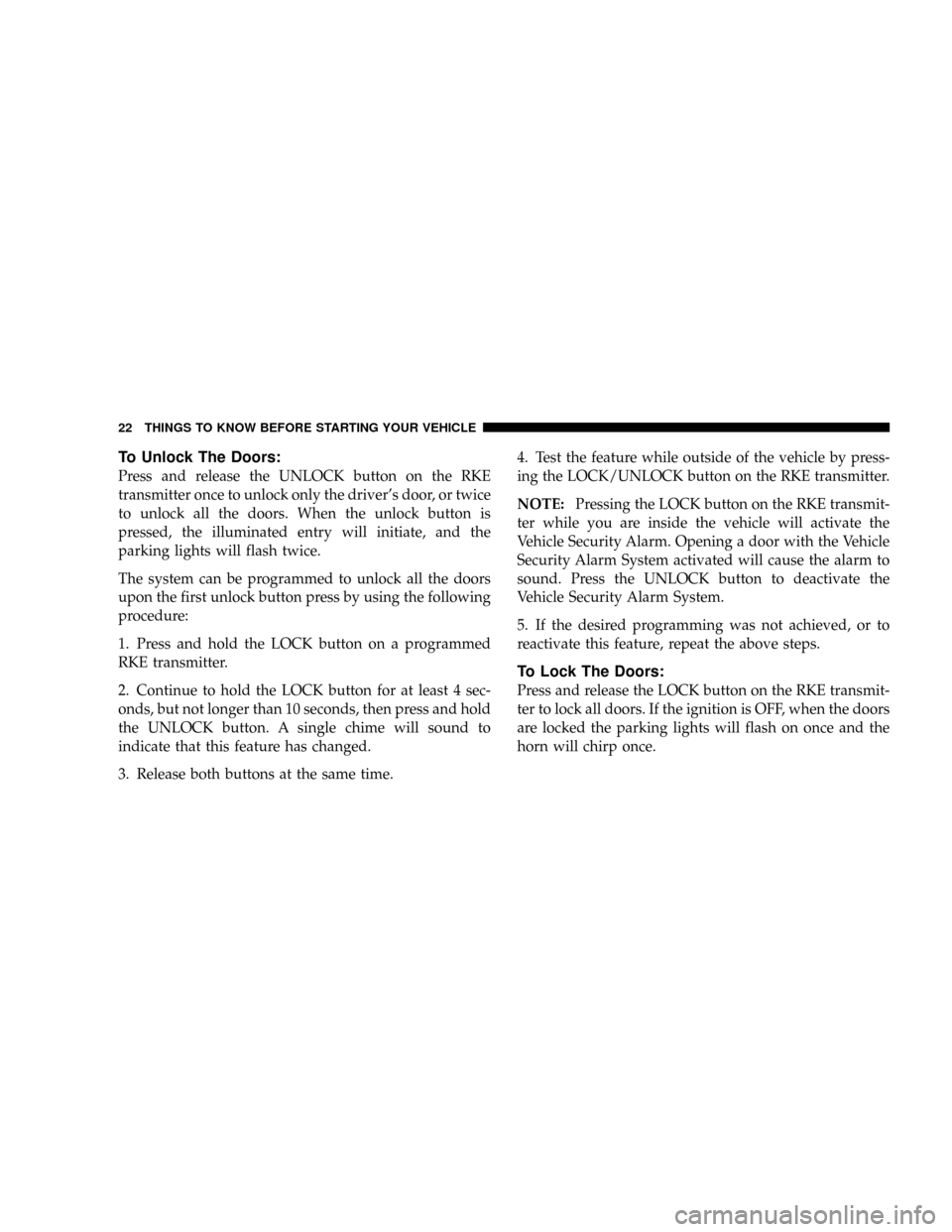

To Unlock The Doors:
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver's door, or twice
to unlock all the doors. When the unlock button is
pressed, the illuminated entry will initiate, and the
parking lights will flash twice.
The system can be programmed to unlock all the doors
upon the first unlock button press by using the following
procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the LOCK button for at least 4 sec-
onds, but not longer than 10 seconds, then press and hold
the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.4. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK button on the RKE transmitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
5. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
To Lock The Doors:
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. If the ignition is OFF, when the doors
are locked the parking lights will flash on once and the
horn will chirp once.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

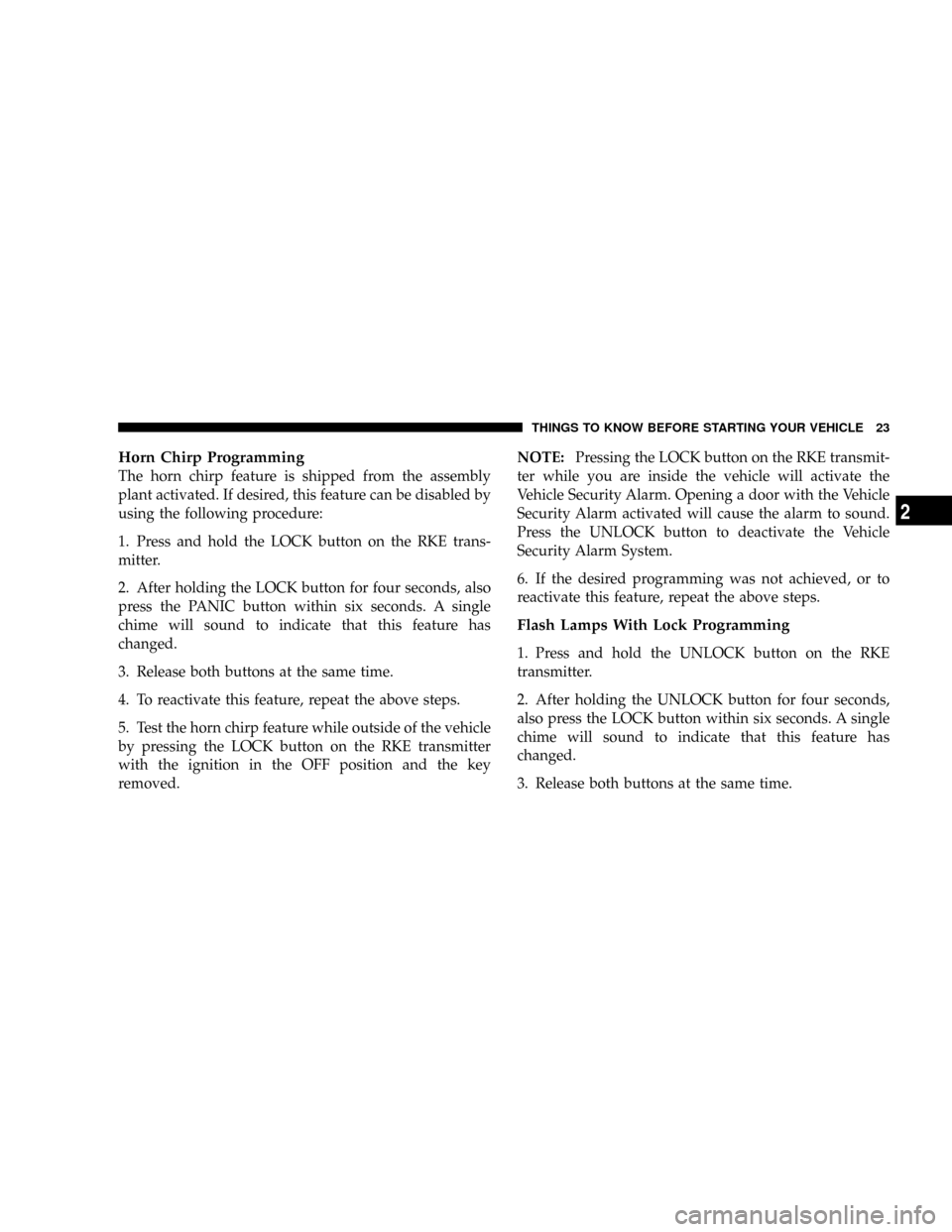

Horn Chirp Programming
The horn chirp feature is shipped from the assembly
plant activated. If desired, this feature can be disabled by
using the following procedure:
1. Press and hold the LOCK button on the RKE trans-
mitter.
2. After holding the LOCK button for four seconds, also
press the PANIC button within six seconds. A single
chime will sound to indicate that this feature has
changed.
3. Release both buttons at the same time.
4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm System.
6. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
Flash Lamps With Lock Programming
1. Press and hold the UNLOCK button on the RKE
transmitter.
2. After holding the UNLOCK button for four seconds,
also press the LOCK button within six seconds. A single
chime will sound to indicate that this feature has
changed.
3. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

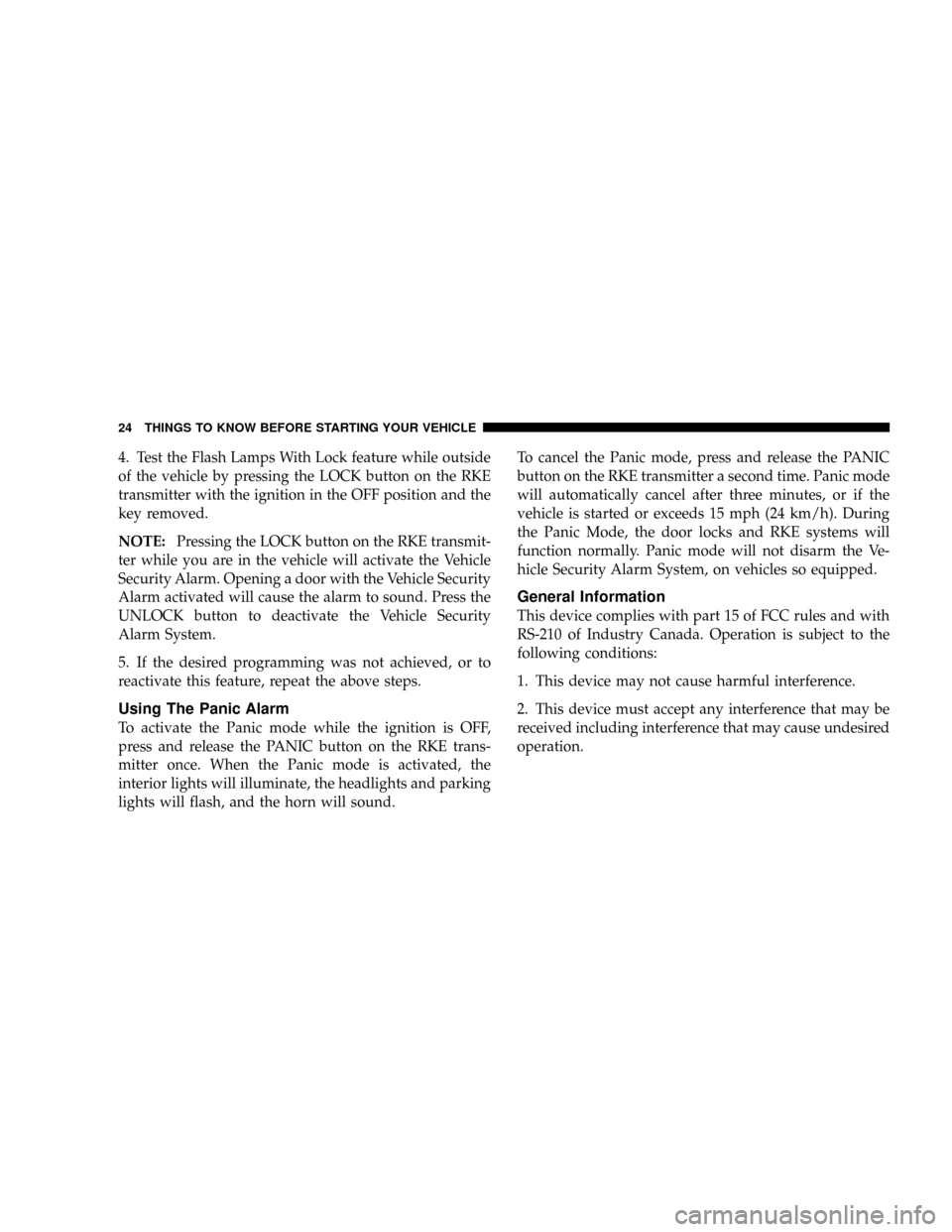

4. Test the Flash Lamps With Lock feature while outside
of the vehicle by pressing the LOCK button on the RKE
transmitter with the ignition in the OFF position and the
key removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
5. If the desired programming was not achieved, or to
reactivate this feature, repeat the above steps.
Using The Panic Alarm
To activate the Panic mode while the ignition is OFF,
press and release the PANIC button on the RKE trans-
mitter once. When the Panic mode is activated, the
interior lights will illuminate, the headlights and parking
lights will flash, and the horn will sound.To cancel the Panic mode, press and release the PANIC
button on the RKE transmitter a second time. Panic mode
will automatically cancel after three minutes, or if the
vehicle is started or exceeds 15 mph (24 km/h). During
the Panic Mode, the door locks and RKE systems will
function normally. Panic mode will not disarm the Ve-
hicle Security Alarm System, on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user's authority to operate the equipment.
If your RKE Transmitter fails to operate from a normal
distance, check for these two conditions.
1. Weak batteries in the RKE transmitter. The expected
life of batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Programming Additional Transmitters
This vehicle is shipped from the assembly plant with two
RKE transmitters programmed for this vehicle only. A
total of eight RKE transmitters can be programmed for
your vehicle. Additional RKE transmitters can be pro-
grammed to your vehicle through the use of currently
programmed RKE transmitters.NOTE:When entering program mode using that cur-
rently programmed RKE transmitter, all other pro-
grammed RKE transmitters will be erased and you will
have to reprogram them for your vehicle.
Use the following procedure to program additional RKE
transmitters if the vehicle is not equipped with a Sentry
Keyt:
1. Enter your vehicle and close all the doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.
4. Turn the ignition to the ON position.(Do not start the
engine.)
5. Press and hold the UNLOCK button on the RKE
transmitter.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

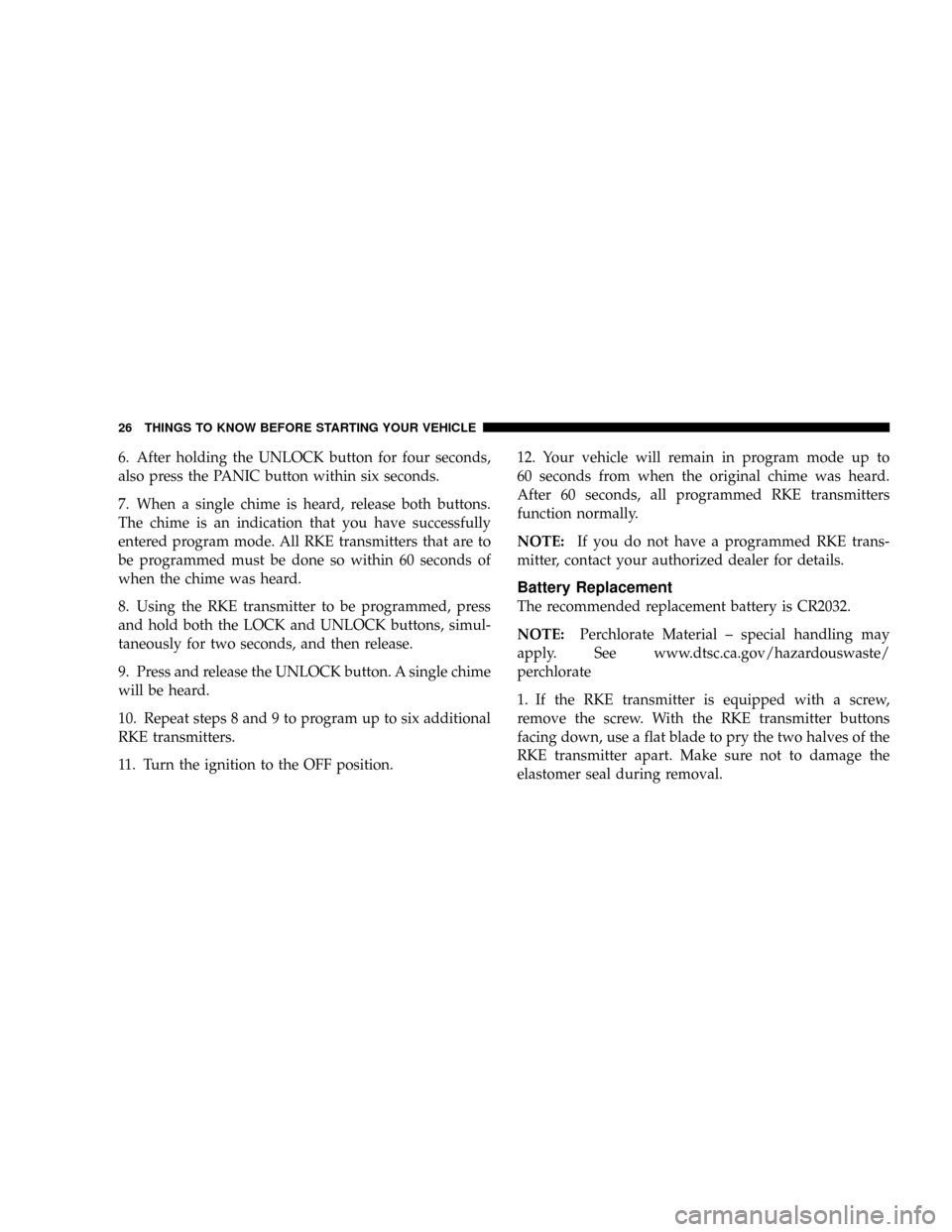

6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard, release both buttons.
The chime is an indication that you have successfully
entered program mode. All RKE transmitters that are to
be programmed must be done so within 60 seconds of
when the chime was heard.
8. Using the RKE transmitter to be programmed, press
and hold both the LOCK and UNLOCK buttons, simul-
taneously for two seconds, and then release.
9. Press and release the UNLOCK button. A single chime
will be heard.
10. Repeat steps 8 and 9 to program up to six additional
RKE transmitters.
11. Turn the ignition to the OFF position.12. Your vehicle will remain in program mode up to
60 seconds from when the original chime was heard.
After 60 seconds, all programmed RKE transmitters
function normally.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:Perchlorate Material ± special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on the back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol.3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
ªgapº between the two halves. If equipped, install and
tighten the screw until snug. Test the RKE transmitter
operation.
REMOTE STARTING SYSTEM Ð IF EQUIPPED
Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 ft (91 m) away from
the vehicle using the Remote Keyless Entry (RKE) trans-
mitter, which is part of your ignition key.
In order to remote start your vehicle, the hood and all the
doors must be closed.
To remote start your vehicle, press the REMOTE START
button on the RKE transmitter twice within five seconds.
To indicate that the vehicle is about to start, the parking
lights will flash and the horn will sound briefly (if
programmed).
Battery Access Door
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

Once the vehicle has started, the engine will run for
15 minutes. To cancel remote start, press the REMOTE
START button once.
The parking lights will remain illuminated to indicate
that the vehicle has remote started and the engine isrunning. The lights will turn off when the ignition is
turned to RUN or the remote start is cancelled.
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the RKE transmitter. Then, prior to
the end of the 15-minute cycle, insert the key into the
ignition switch and turn the switch to the ON position,
otherwise the engine will cancel remote start and auto-
matically turn off.
Remote start will also cancel if any of the following occur:
²If the engine stalls or the RPM exceeds 2500
²Any engine warning light come on
²The hood is opened
²The Hazard switch is pressed
²The transmission is moved out of PARK

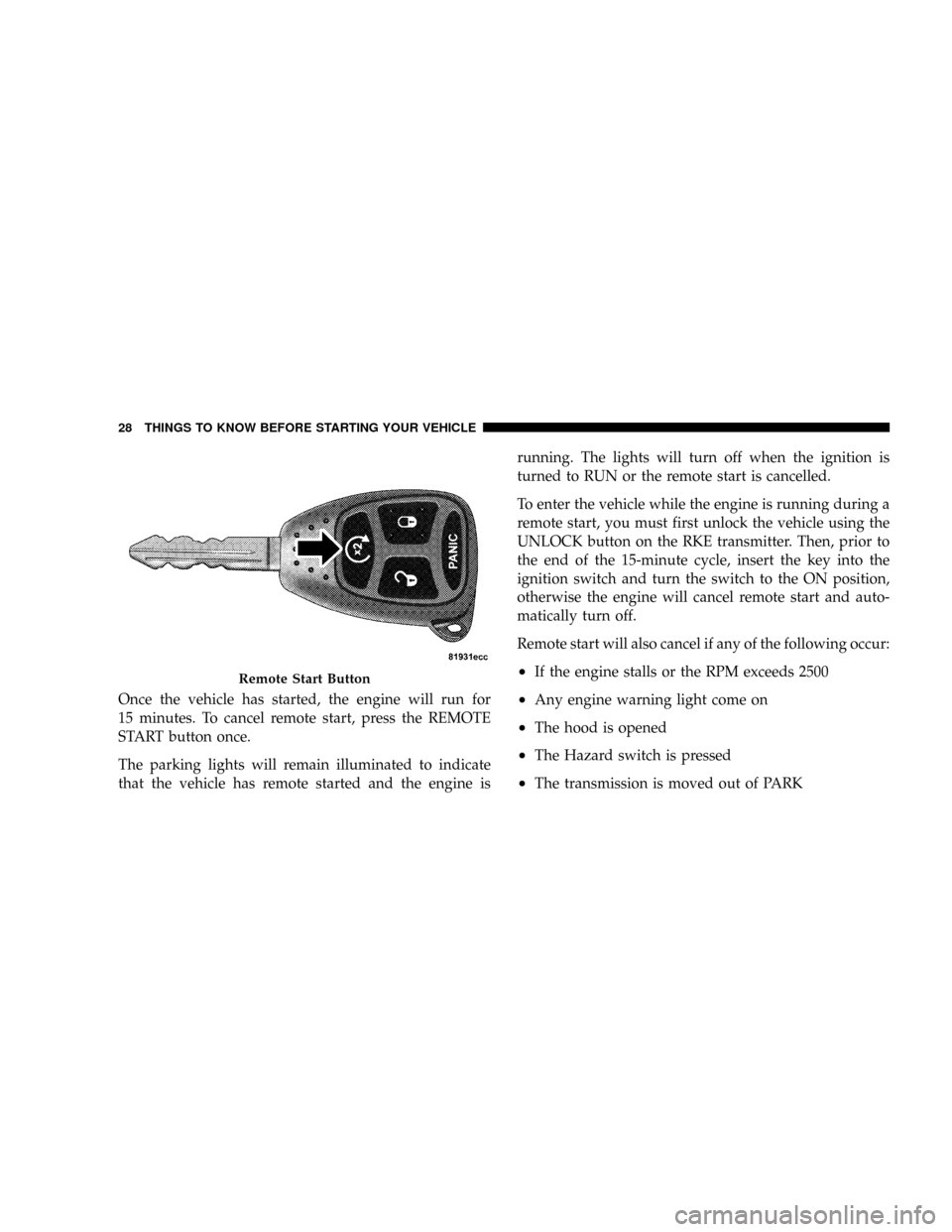

Remote Start Button
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
