DODGE DAKOTA 2009 3.G Owners Manual

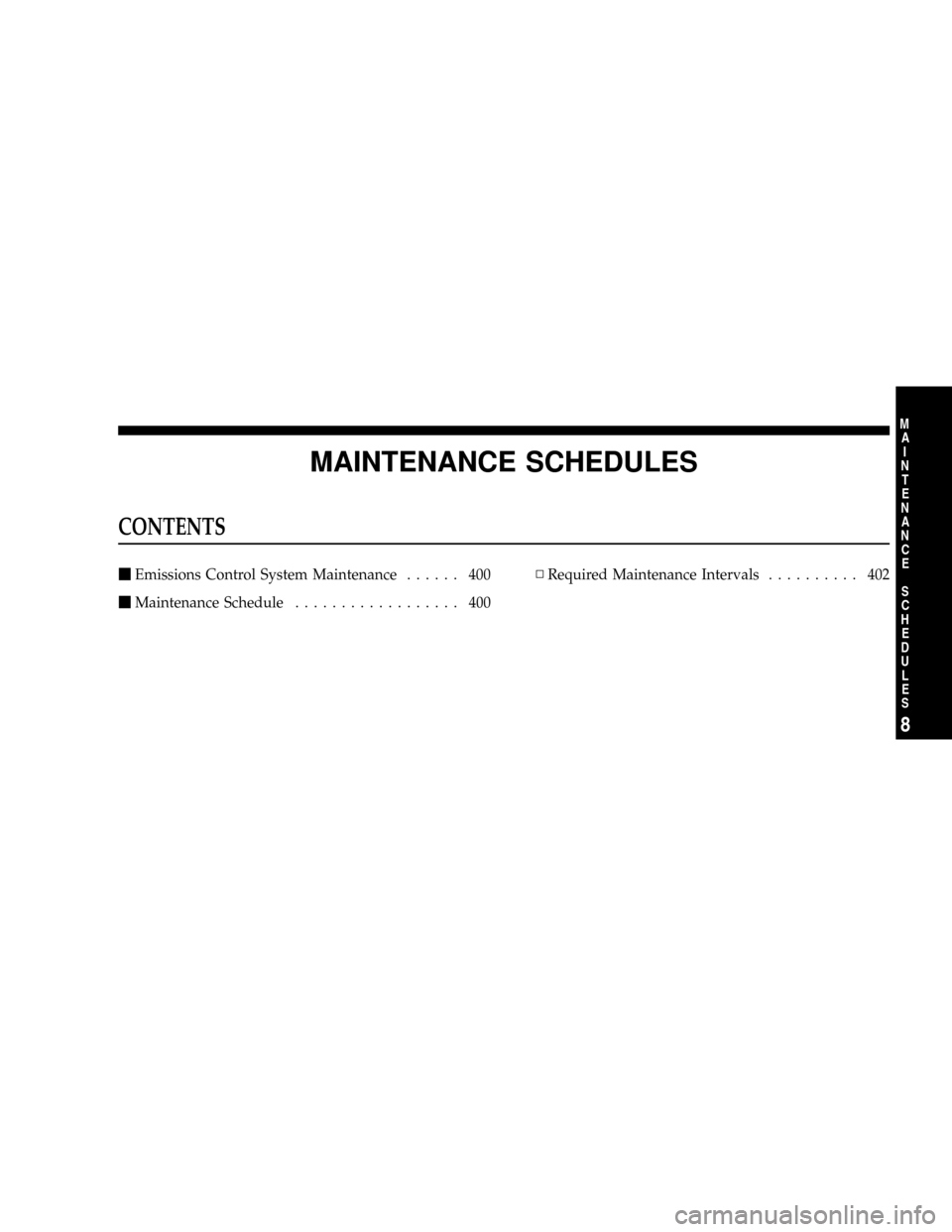

MAINTENANCE SCHEDULES
CONTENTS
mEmissions Control System Maintenance...... 400
mMaintenance Schedule.................. 400NRequired Maintenance Intervals.......... 402
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

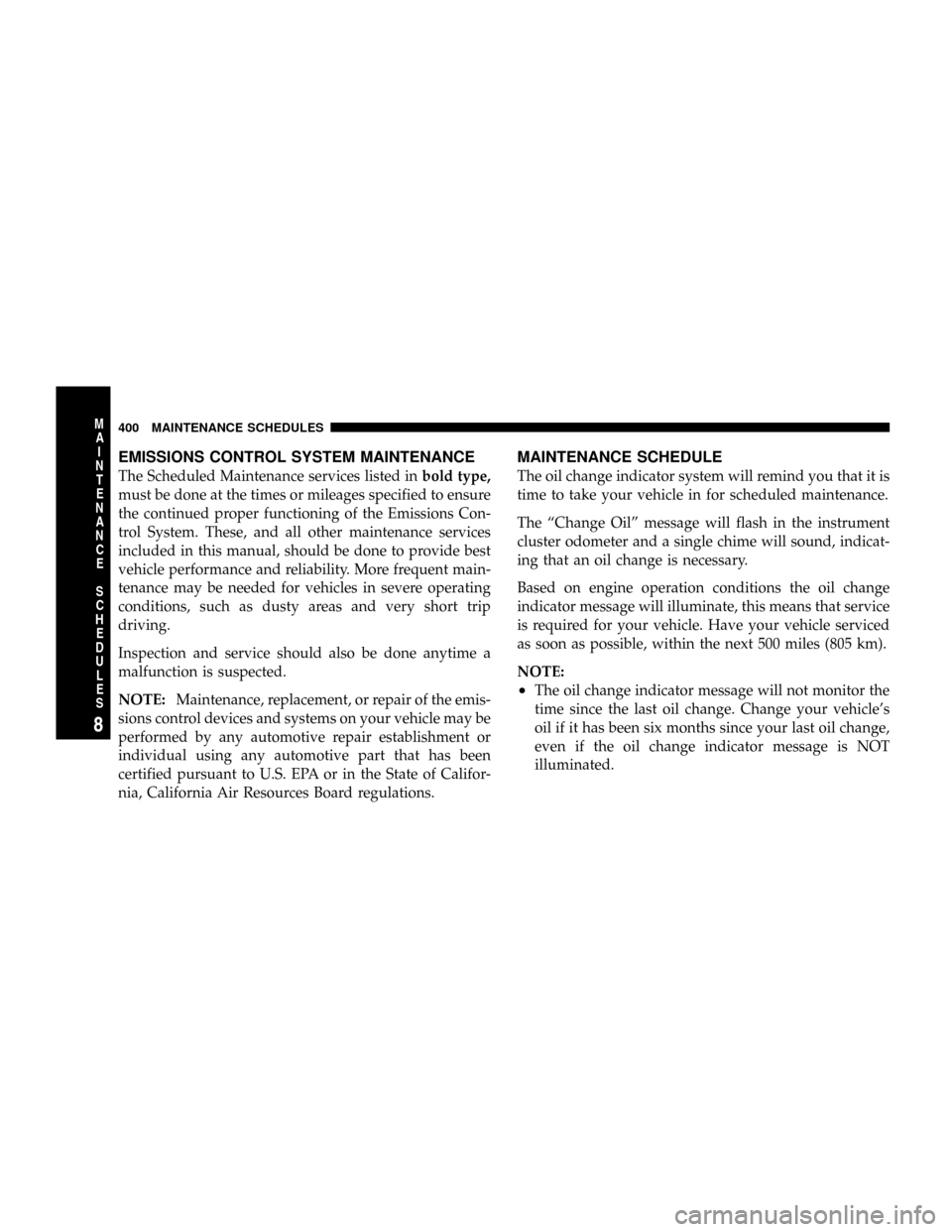

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE:Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
The ªChange Oilº message will flash in the instrument
cluster odometer and a single chime will sound, indicat-
ing that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
²The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle's
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
400 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

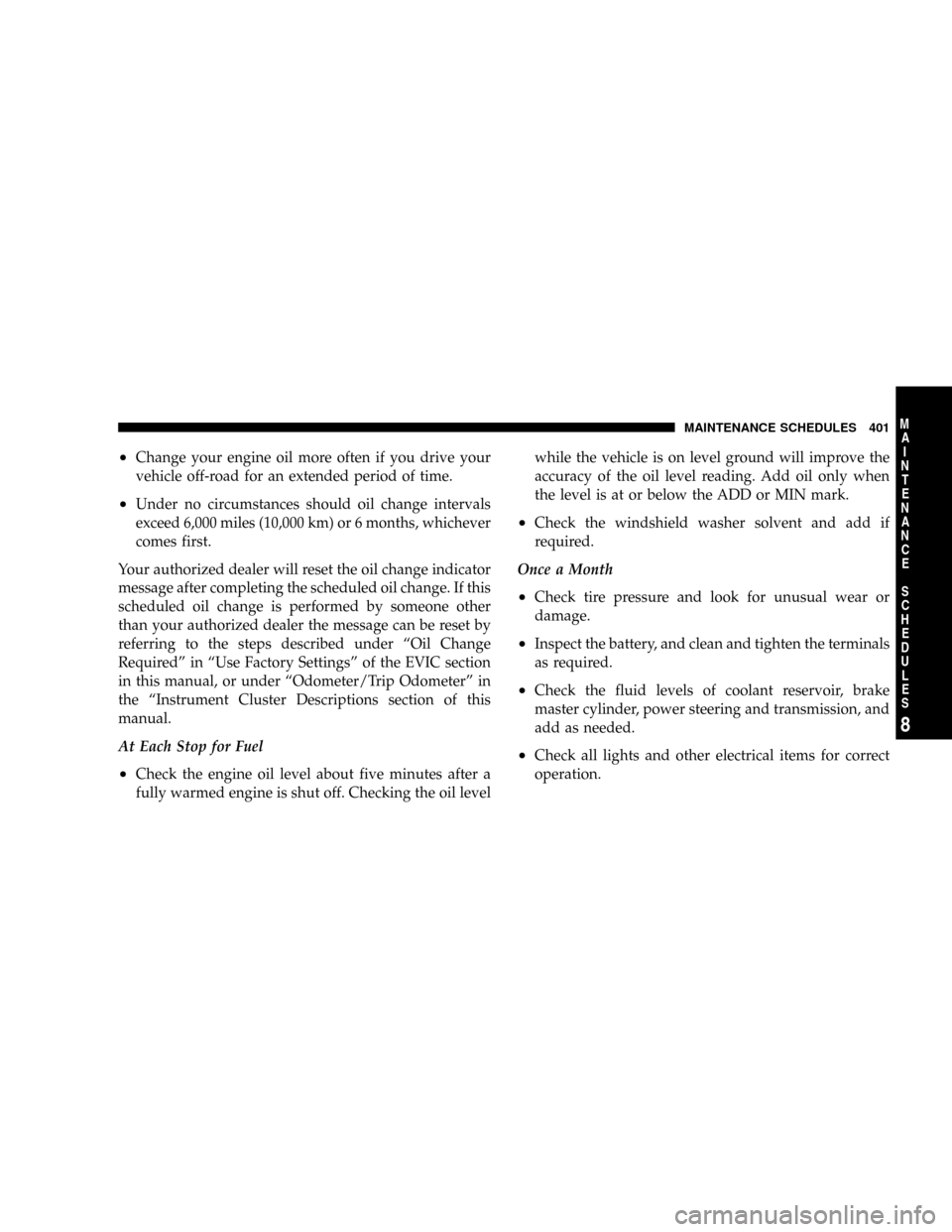

²Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
²Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or 6 months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone other
than your authorized dealer the message can be reset by
referring to the steps described under ªOil Change
Requiredº in ªUse Factory Settingsº of the EVIC section
in this manual, or under ªOdometer/Trip Odometerº in
the ªInstrument Cluster Descriptions section of this
manual.
At Each Stop for Fuel
²Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil levelwhile the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
²Check the windshield washer solvent and add if
required.
Once a Month
²Check tire pressure and look for unusual wear or
damage.
²Inspect the battery, and clean and tighten the terminals
as required.
²Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission, and
add as needed.
²Check all lights and other electrical items for correct
operation.
MAINTENANCE SCHEDULES 401
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

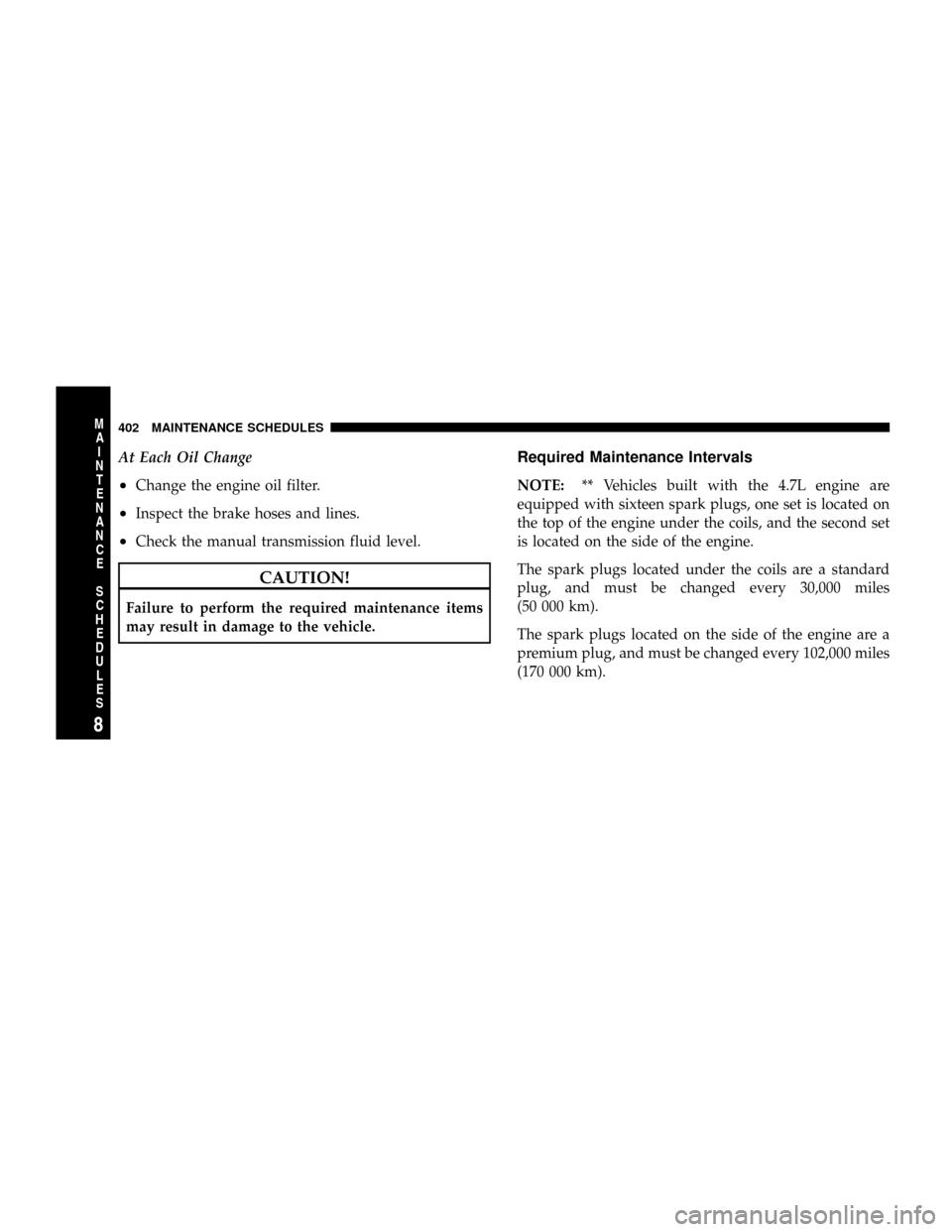

At Each Oil Change
²Change the engine oil filter.
²Inspect the brake hoses and lines.
²Check the manual transmission fluid level.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
NOTE:** Vehicles built with the 4.7L engine are
equipped with sixteen spark plugs, one set is located on
the top of the engine under the coils, and the second set
is located on the side of the engine.
The spark plugs located under the coils are a standard
plug, and must be changed every 30,000 miles
(50 000 km).
The spark plugs located on the side of the engine are a
premium plug, and must be changed every 102,000 miles
(170 000 km).
402 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

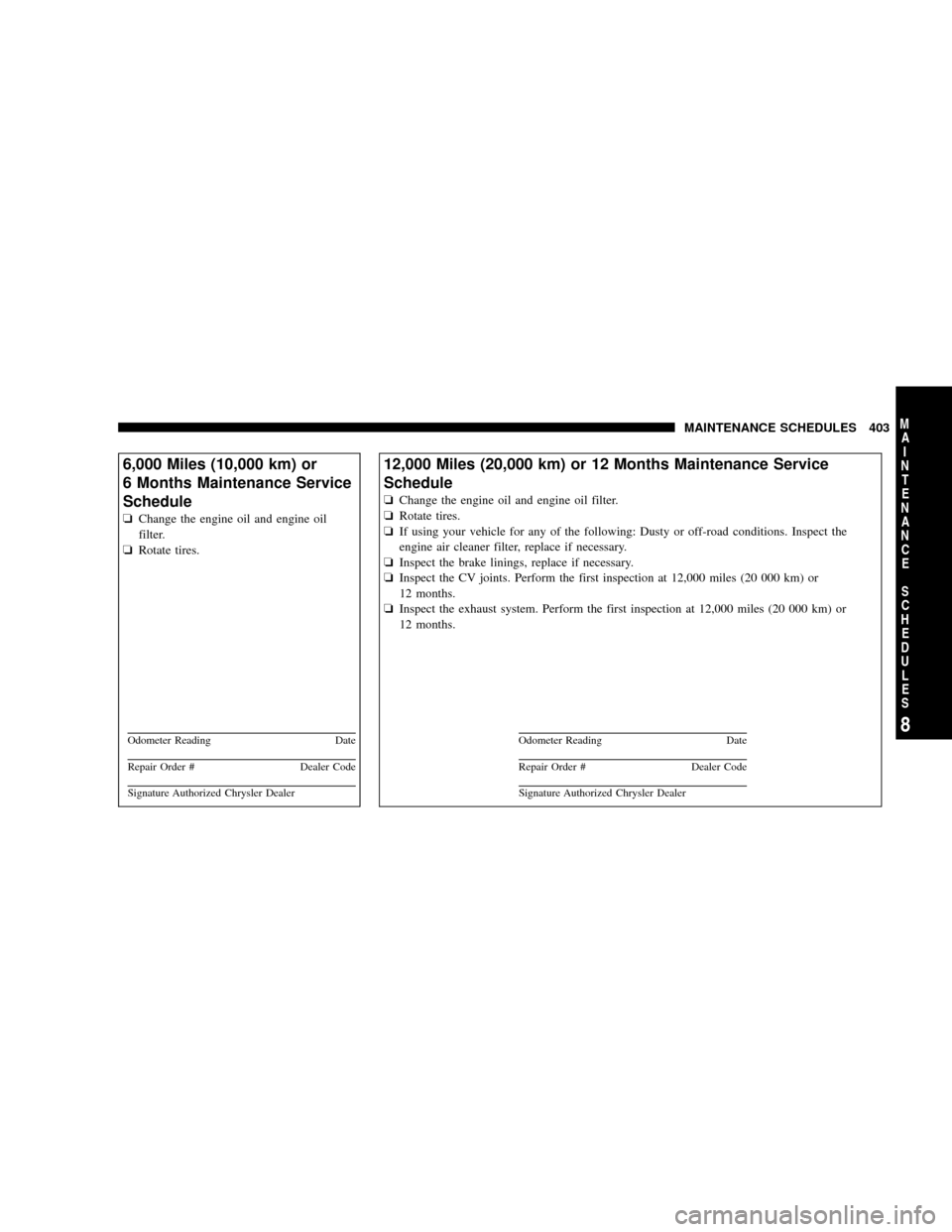

6,000 Miles (10,000 km) or
6 Months Maintenance Service
Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
12,000 Miles (20,000 km) or 12 Months Maintenance Service
Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oIf using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
oInspect the brake linings, replace if necessary.
oInspect the CV joints. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
oInspect the exhaust system. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 403
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

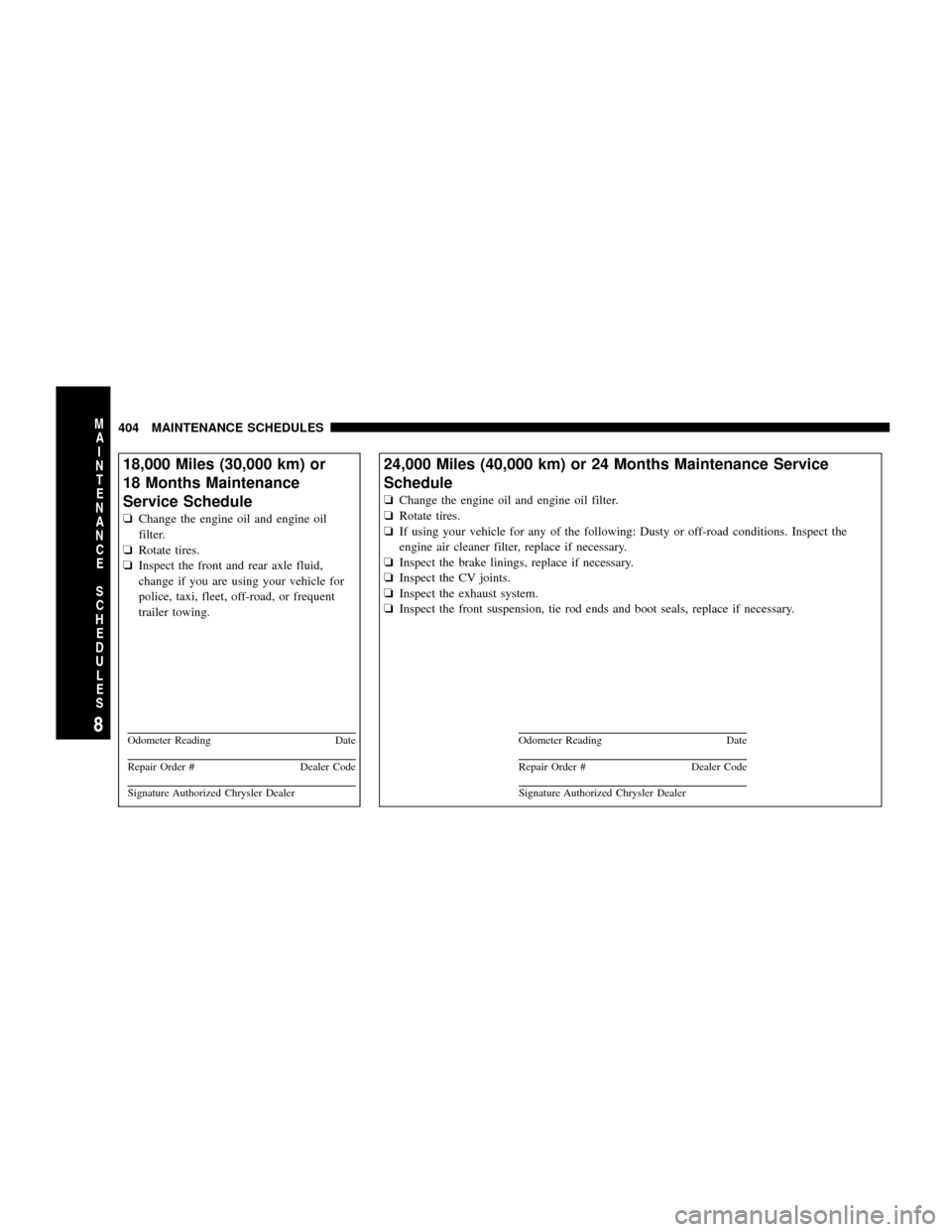

18,000 Miles (30,000 km) or
18 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
oInspect the front and rear axle fluid,
change if you are using your vehicle for
police, taxi, fleet, off-road, or frequent
trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
24,000 Miles (40,000 km) or 24 Months Maintenance Service
Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oIf using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
oInspect the brake linings, replace if necessary.
oInspect the CV joints.
oInspect the exhaust system.
oInspect the front suspension, tie rod ends and boot seals, replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
404 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

30,000 Miles (50,000 km) or
30 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
oReplace the engine air cleaner filter.
oReplace the spark plugs (3.7L engines).
oReplace the top row of spark plugs
(4.7L engines). **
oInspect the transfer case fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
36,000 Miles (60,000 km) or
36 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
oIf using your vehicle for any of the
following: Dusty or off-road conditions.
Inspect the engine air cleaner filter,
replace if necessary.
oInspect the brake linings, replace if
necessary.
oInspect the front and rear axle fluid,
change if you are using your vehicle for
police, taxi, fleet, off-road, or frequent
trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
42,000 Miles (70,000 km) or
42 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 405
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

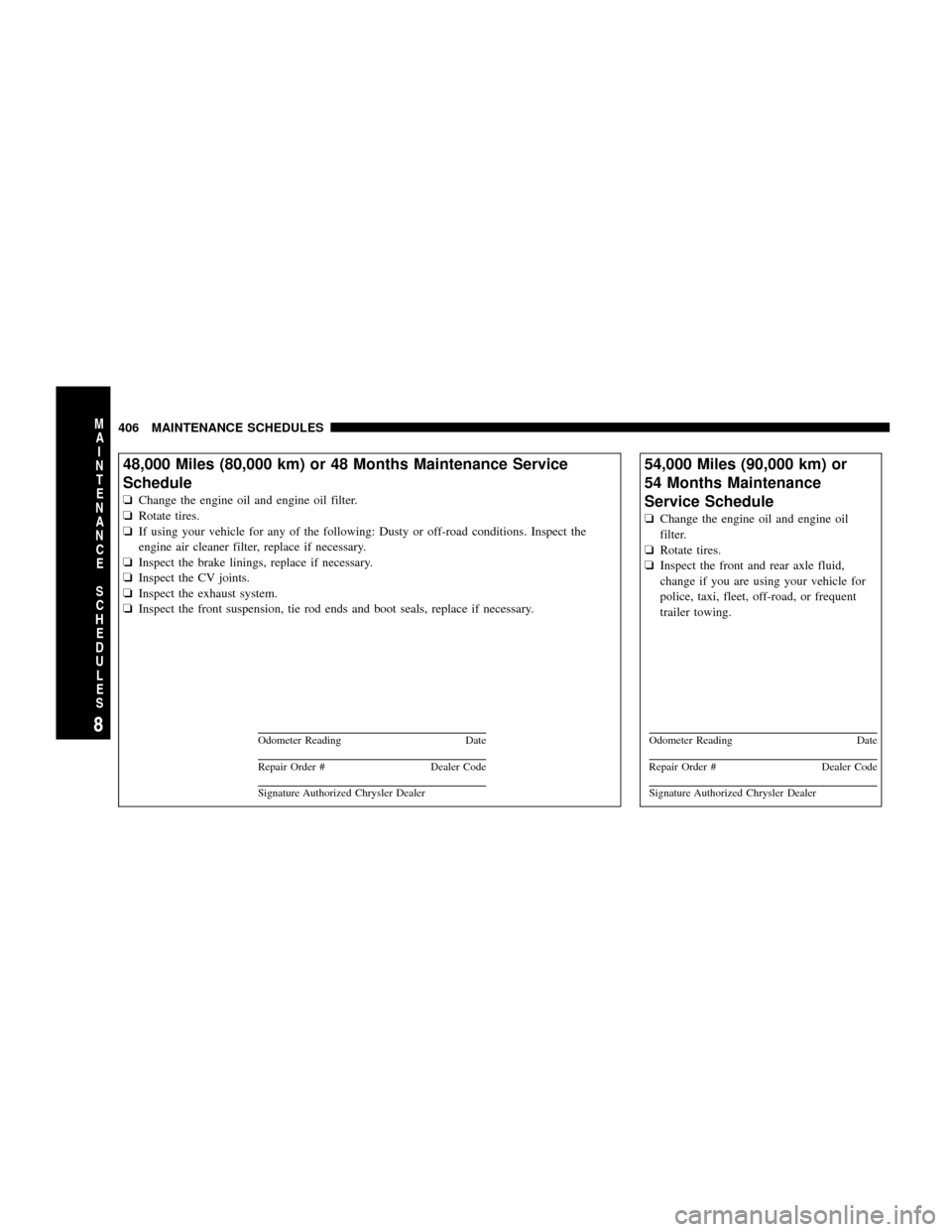

48,000 Miles (80,000 km) or 48 Months Maintenance Service
Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oIf using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
oInspect the brake linings, replace if necessary.
oInspect the CV joints.
oInspect the exhaust system.
oInspect the front suspension, tie rod ends and boot seals, replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
oInspect the front and rear axle fluid,
change if you are using your vehicle for
police, taxi, fleet, off-road, or frequent
trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
406 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

60,000 Miles (100,000 km) or 60 Months Maintenance Service Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oReplace the engine air cleaner filter.
oReplace the ignition cables (3.7L engine).
oReplace the spark plugs (3.7L engines).
oReplace the top row of spark plugs (4.7L engines). **
oInspect the brake linings, replace if necessary.
oChange the manual transmission fluid if using your vehicle for any of the following: trailer towing, snow plowing, heavy loading, taxi, police,
delivery service (commercial service), off-road, desert operation or more than 50% of your driving is at sustained high speeds during hot
weather, above 90ÉF (32ÉC).
oChange the automatic transmission fluid & filter if using your vehicle for any of the following: police, taxi, fleet, or frequent trailer towing.
oChange the transfer case fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 407
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

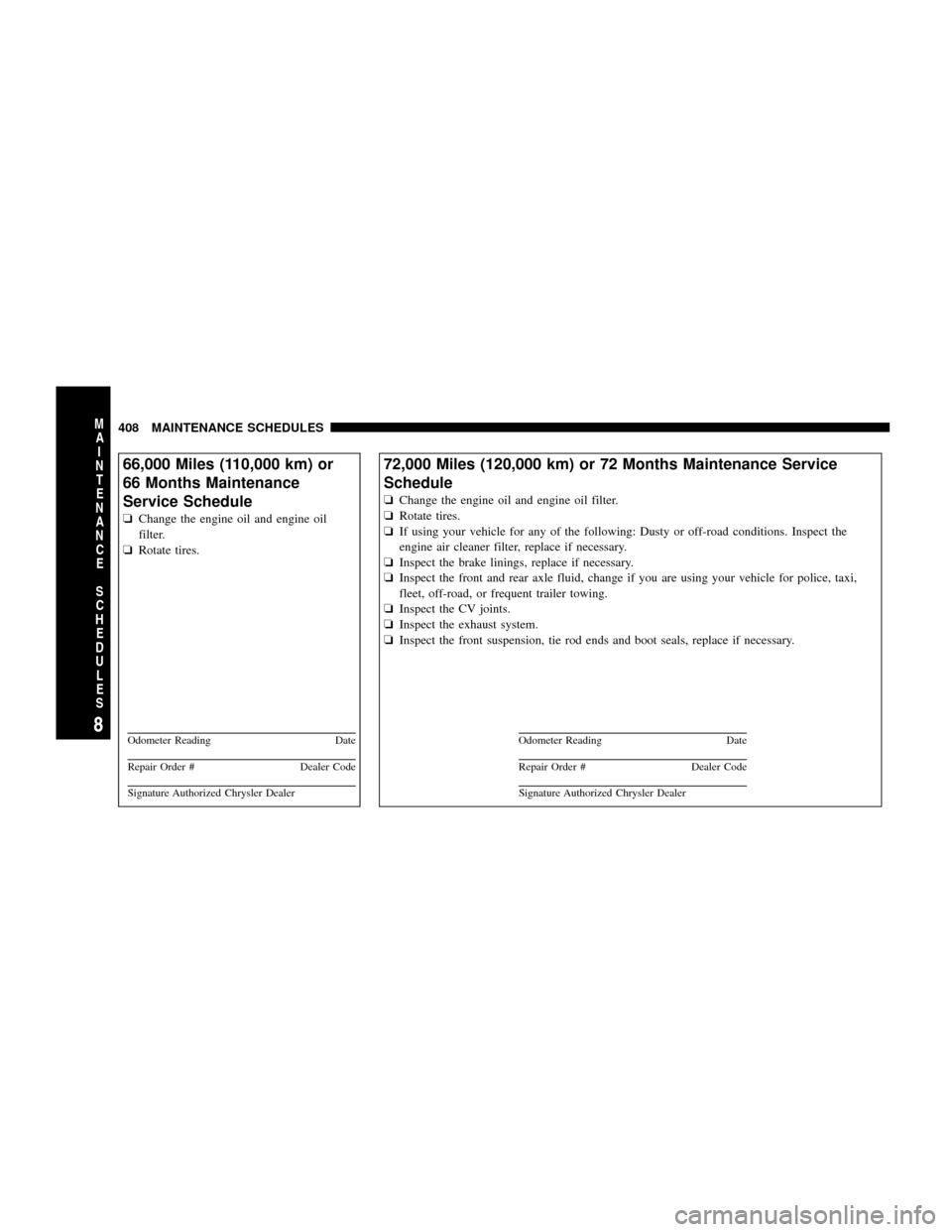

66,000 Miles (110,000 km) or
66 Months Maintenance
Service Schedule
oChange the engine oil and engine oil
filter.
oRotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
72,000 Miles (120,000 km) or 72 Months Maintenance Service
Schedule
oChange the engine oil and engine oil filter.
oRotate tires.
oIf using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
oInspect the brake linings, replace if necessary.
oInspect the front and rear axle fluid, change if you are using your vehicle for police, taxi,
fleet, off-road, or frequent trailer towing.
oInspect the CV joints.
oInspect the exhaust system.
oInspect the front suspension, tie rod ends and boot seals, replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
