clock setting DODGE DAKOTA 2011 3.G User Guide

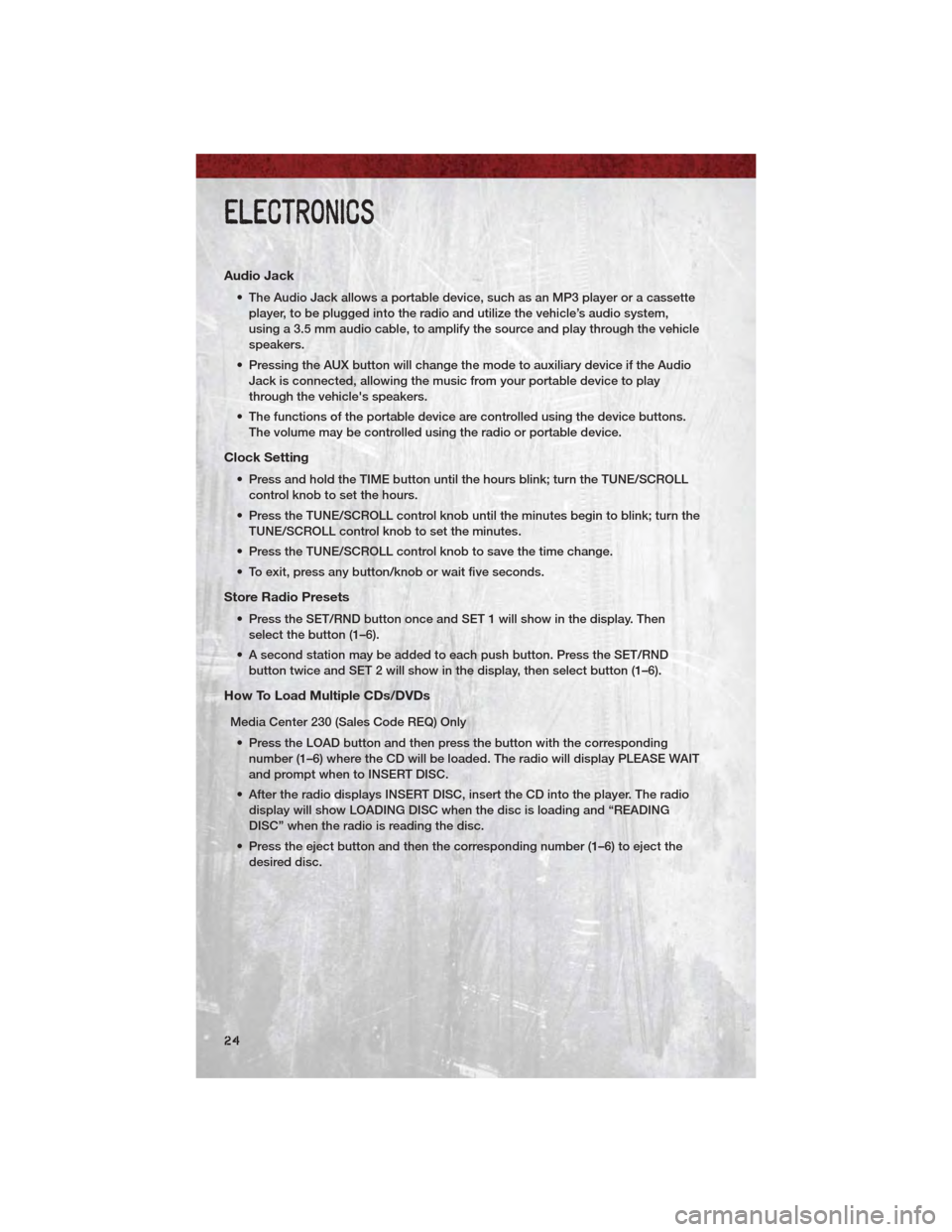

Audio Jack
• The Audio Jack allows a portable device, such as an MP3 player or a cassetteplayer, to be plugged into the radio and utilize the vehicle’s audio system,
using a 3.5 mm audio cable, to amplify the source and play through the vehicle
speakers.
• Pressing the AUX button will change the mode to auxiliary device if the Audio Jack is connected, allowing the music from your portable device to play
through the vehicle's speakers.
• The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device.
Clock Setting
• Press and hold the TIME button until the hours blink; turn the TUNE/SCROLLcontrol knob to set the hours.
• Press the TUNE/SCROLL control knob until the minutes begin to blink; turn the TUNE/SCROLL control knob to set the minutes.
• Press the TUNE/SCROLL control knob to save the time change.
• To exit, press any button/knob or wait five seconds.
Store Radio Presets
• Press the SET/RND button once and SET 1 will show in the display. Then select the button (1–6).
• A second station may be added to each push button. Press the SET/RND button twice and SET 2 will show in the display, then select button (1–6).
How To Load Multiple CDs/DVDs
Media Center 230 (Sales Code REQ) Only
• Press the LOAD button and then press the button with the corresponding number (1–6) where the CD will be loaded. The radio will display PLEASE WAIT
and prompt when to INSERT DISC.
• After the radio displays INSERT DISC, insert the CD into the player. The radio display will show LOADING DISC when the disc is loading and “READING
DISC” when the radio is reading the disc.
• Press the eject button and then the corresponding number (1–6) to eject the desired disc.
ELECTRONICS
24

Air Conditioning............21
Airbag ..................10
Alarm, Panic ...............8
Anti-Lock Brake System (ABS) . 39,40
Arming Theft System (Security
Alarm) ...................9
Audio Settings ...........23,24
Automatic Headlights .........19
Automatic Transmission FluidType ..............56
AxleFluid ................56
Battery Charging System Light .......39
Belts, Seat ................9
BrakeFluid ...............56
Brake System WarningLight ............38
Brake/Transmission Interlock ....36
Bulb Replacement ...........65
Cargo Compartment .........33
CargoLight ...............19
Change Oil Indicator .........40
Charging System Light ........39
Check Engine Light (Malfunction
IndicatorLight) .............39
ChildRestraint .............11
Child Restraint Tether Anchors . . . 11
Climate Control ............21
Clock Setting ..............24
Cooling System Coolant Capacity ..........56
Crates Rear Convenience Storage ....33
Cruise Control (Speed Control) . . . 20
CruiseLight ..............20
Customer Assistance .........66
Defects, Reporting ..........67
Defroster, Rear Window .......21
Defroster, Windshield .........21
Dimmer Control ............19
Dimmer Switch, Headlight ......19
Disarming, Theft System ........9
Driver Cockpit ..............4 Electronic Speed Control (Cruise
Control)
.................20
Electronic Throttle Control Warning
Light ...................39
Engine Compartment ............54
Malfunction Indicator (Check
Engine) ................39
OilSelection .............56
Overheating .............40
Event Data Recorder .........52
ExteriorLights .............65
Fluid Capacities ............56
Fluids ..................56
FogLights ...............19
Four Wheel Drive Operation .....32
FreeingAStuckVehicle .......51
Front Heated Seats ..........16
Fuel Filler Cap (Gas Cap) ........40
Specifications ............56
Fuses ..................61
Garage Door Opener (HomeLink
®).29
Gas Cap (Fuel Filler Cap) .......40
Headlights Automatic ..............19
Dimmer Switch ...........19
High Beam ..............18
Heated Seats ..............16
High Beam/Low Beam Select
(Dimmer) Switch ............18
HomeLink
®(Garage Door Opener)
Transmitter ...............29
Hood Release .............53
Instrument Cluster ...........6
Indicators ...............7
Instrument Cluster Warning
Lights .................6,37
Intermittent Wipers (Delay Wipers) . 18
Introduction ...............2
Jack Location .............42
Jump Starting .............47
INDEX
69

KeyFob..................8
Key Fob Programmable Features . . 28
Lane Change Assist..........18
LATCH (Lower Anchors and Tether for
CHildren) ................11
Lights Engine Temperature Warning . . . 38
Four-Wheel Drive Indicator ....40
Transmission Warning .......40
Turn Signal ..............18
Warning (Instrument Cluster
Description) ..............6
Maintenance Record .........60
Maintenance Schedule ........58
Malfunction Indicator Light (Check
Engine) .................39
Media Center Radio ........22,23
MOPAR
®Accessories ........68
Non-Touch-Screen Radio ......22
Oil Change Indicator .........40
Oil Change Indicator, Reset .....40
Oil Pressure Light ...........39
Oil, Engine Capacity ...............56
Outlet Power .................31
Overheating, Engine .........40
Panic Alarm ...............8
Phone (Pairing) .............25
Phone (Uconnect) ...........25
Power Outlet (Auxiliary Electrical
Outlet) ................31
Seats .................14
Steering ...............56
Preparation for Jacking ........43
Programmable Electronic Features . 28
Radio Non-Touch-Screen .........22
Radio Operation ............22
Rain Sensitive Wiper System ....18Recreational Towing
.........34
Remote Starting System ........8
Replacement Bulbs ..........65
Reporting Safety Defects ......67
Restraints,Child ............11
SeatBelts ................9
Seats ..................14 Adjustment ..............15
Heated ................16
Power .................14
SeekButton ..............23
Setting the Clock ...........24
Shift Lock Manual Override .....36
Signals, Turn ..............18
SpareTire ................42
SparkPlugs ..............56
Speed Control (Cruise Control) . . . 20
Starting Remote ................8
Steering TiltColumn..............17
Steering Wheel Audio Controls . . . 25
Store Radio Presets ..........24
Supplemental Restraint System -
Airbag ..................10
Tailgate .................33
Theft Alarm (Security Alarm) .....9
Theft System Arming ..........9
Theft System Disarming ........9
TiltSteeringColumn .........17
Tires Air Pressure .............64
Changing ...............43
Flat Changing ............43
Jacking ................43
Pressure Warning Light ......37
Tow Hooks, Emergency .......49
Towing..................34 24-Hour Towing Assistance ....37
DisabledVehicle ..........50
Recreational .............34
Towing Vehicle Behind a
Motorhome ...............34
Trailer Towing Trailer and Tongue Weight .....34
TrailerWeight .............34
INDEX
70
