DODGE DART 2013 PF / 1.G Owners Manual

5.Twist the bulb socket one quarter turn clockwise to install.
6. Install trim cover.
License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
7
MAINTAINING YOUR VEHICLE 559

FLUID CAPACITIES
U.S.Metric
Fuel (1.4L Aero Model Only) 13.2 Gallons50 Liters
Fuel (All Others) 15.8 Gallons59.8 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4 Quarts3.8 Liters
2.0L Engine (SAE 0W-20, API Certified) 5 Quarts4.7 Liters
2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR OAT Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
2.0L and 2.4L Engine (MOPAR OAT Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
560 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Technology) meet-
ing the requirements of Chrysler Material Standard MS-12106.
Engine Oil – 1.4L Turbo Engine We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the requirements of Chrysler Material Standard MS-12991. Re-
fer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.0L and 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to your
engine oil filler cap for correct SAE grade. If 0W-20 engine oil is not
available, SAE 5W-20 API Certified may be used as a temporary suit-
able alternative.
Engine Oil Filter We recommend you use a MOPAREngine Oil Filter.
Spark Plugs – 1.4L Turbo Engine We recommend you use MOPAR Spark Plugs (Gap 0.025 in [0.65 mm])
Spark Plugs – 2.0L Engine We recommend you use MOPARSpark Plugs (Gap 0.043 in [1.1 mm])
Spark Plugs – 2.4L Engine We recommend you use MOPARSpark Plugs (Gap 0.047 in [1.2 mm])
Fuel Selection – 1.4L Turbo Engine 87 Octane Acceptable – 91 Octane Recommended
Fuel Selection – 2.0L and 2.4L Engine 87 Octane
7
MAINTAINING YOUR VEHICLE 561

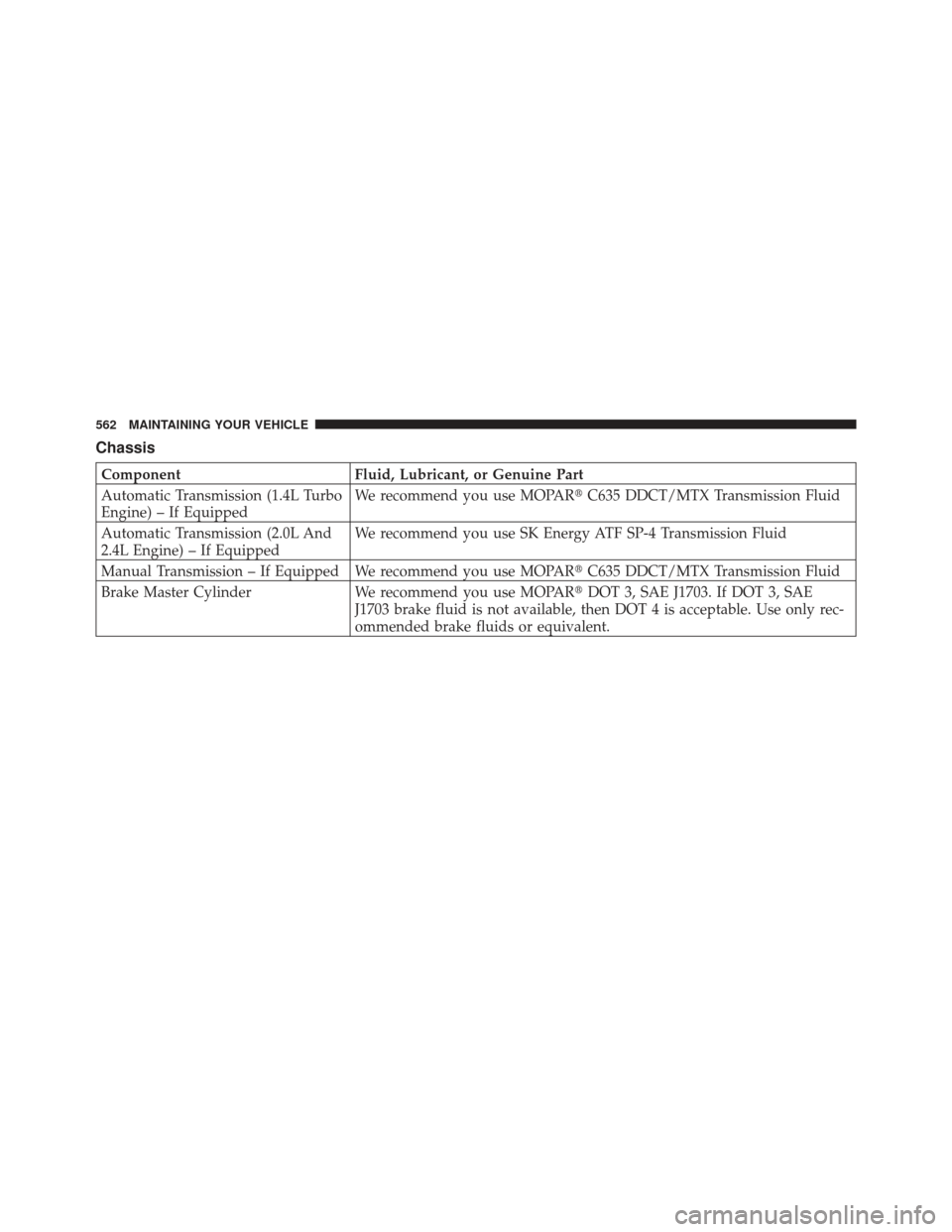

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (1.4L Turbo
Engine) – If Equipped We recommend you use MOPAR
C635 DDCT/MTX Transmission Fluid
Automatic Transmission (2.0L And
2.4L Engine) – If Equipped We recommend you use SK Energy ATF SP-4 Transmission Fluid
Manual Transmission – If Equipped We recommend you use MOPAR C635 DDCT/MTX Transmission Fluid
Brake Master Cylinder We recommend you use MOPARDOT 3, SAE J1703. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids or equivalent.
562 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 564
▫ Required Maintenance ................. 564 ▫
Maintenance Chart ................... 566
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
NOTE:Under no circumstances should oil change in-
tervals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first. Once A Month Or Before A Long Trip:•Check engine oil level.
•Check windshield washer fluid level.
•Check the tire inflation pressures and look for unusual
wear or damage.
•Check the fluid levels of the coolant reservoir, and
brake master cylinder as needed.
•Check function of all interior and exterior lights.
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S564 MAINTENANCE SCHEDULES

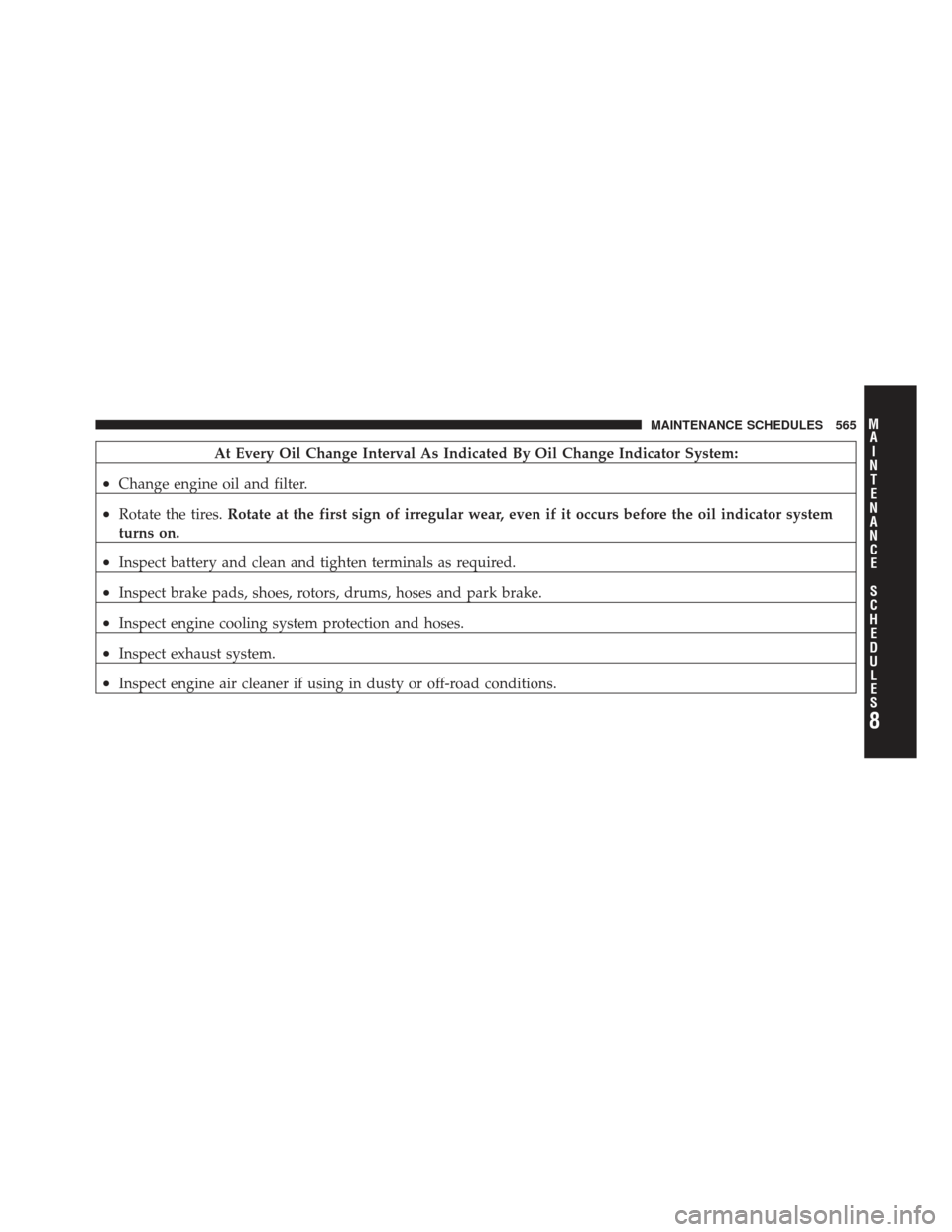

At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change engine oil and filter.
•Rotate the tires.Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system
turns on.
•Inspect battery and clean and tighten terminals as required.
•Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•Inspect engine cooling system protection and hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or off-road conditions.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 565

Maintenance Chart
Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Additional Inspections
Inspect CV joint boots. XX X XX
Inspect front suspension, tie
rod ends and replace as nec-
essary. XXXXXXX
Inspect brake linings, parking
brake function. XXXXXXX
Additional Maintenance
Replace the cabin/air condi-
tioning filter. XXXXXXX
Replace the engine air
cleaner filter. XX X X X
Replace the spark plugs (1.4L
Turbo Engine).** XX X X X
Replace the spark plugs (2.0L
and 2.4L Engine).** X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S566 MAINTENANCE SCHEDULES

Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Flush and replace the engine
coolant at 10 years or
150,000 miles (240,000 km)
whichever comes first. XX
Change the transmission fluid
(manual or automatic 1.4L
turbo engine only) if using
your vehicle for any of the
following: trailer towing, heavy
loading, taxi, police, delivery
service (commercial service),
off-road, desert operation or
more than 50% of your driving
is at sustained speeds during
hot weather, above 90°F
(32°C). XXX
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 567

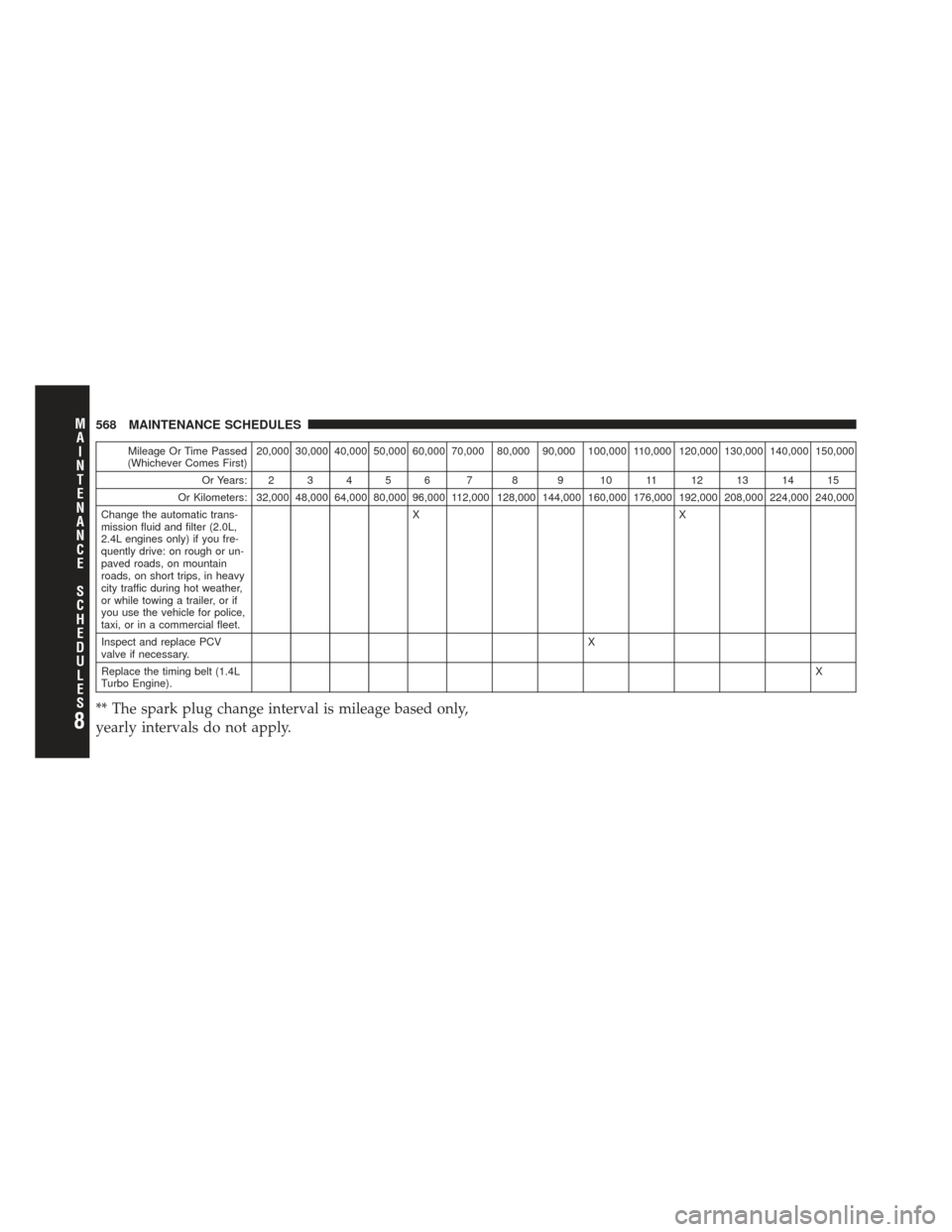

Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Change the automatic trans-
mission fluid and filter (2.0L,
2.4L engines only) if you fre-
quently drive: on rough or un-
paved roads, on mountain
roads, on short trips, in heavy
city traffic during hot weather,
or while towing a trailer, or if
you use the vehicle for police,
taxi, or in a commercial fleet. XX
Inspect and replace PCV
valve if necessary. X
Replace the timing belt (1.4L
Turbo Engine). X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.8
