key DODGE DART 2013 PF / 1.G Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Node Module (IGNM) — If
Equipped ........................... 12
▫ Keyless Ignition Node (KIN) — If Equipped . . 13
▫ Standard Blade Ignition Key — If Equipped . . 15
▫ Key Fob — If Equipped ................. 16
▫ Ignition Or Accessory On Message ......... 17
 Sentry Key .......................... 19
▫ Replacement Keys ..................... 20 ▫
Customer Key Programming ............. 20
▫ General Information ................... 20
 Vehicle Security Alarm — If Equipped ........ 21
▫ Rearming Of The System ................ 21
▫ To Arm The System ................... 21
▫ To Disarm The System ................. 22
 Illuminated Entry ...................... 23
 Remote Keyless Entry (RKE) .............. 24
▫ To Unlock The Doors .................. 25
2

▫To Lock The Doors .................... 26
▫ To Unlatch The Trunk .................. 26
▫ Using The Panic Alarm ................. 26
▫ Programming Additional Transmitters ...... 27
▫ Transmitter Battery Replacement .......... 27
▫ General Information ................... 28
 Remote Starting System — If Equipped ....... 28
▫ How To Use Remote Start ............... 29
 Door Locks ........................... 32
▫ Manual Door Locks ................... 32
▫ Power Door Locks .................... 33
▫ Child-Protection Door Lock System — Rear
Doors ............................. 35
Keyless Enter-N-Go™ ................... 36
 Windows ............................ 41
▫ Power Windows ...................... 41
▫ Wind Buffeting ....................... 45
 Trunk Lock And Release ................. 45
 Trunk Safety Warning ................... 46
▫ Trunk Emergency Release ............... 46
 Occupant Restraints ..................... 47
▫ Lap/Shoulder Belts .................... 50
▫ Lap/Shoulder Belt Untwisting Procedure .... 55
▫ Seat Belts In Passenger Seating Positions ..... 56
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 56
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a either a bladed key with an immobilizer chip
in it, or a Key Fob with Remote Keyless Entry (RKE)
transmitter and an Ignition Node Module (IGNM). The
keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Ignition Node (KIN).
Ignition Node Module (IGNM) — If Equipped
The Ignition Node Module (IGNM) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
NOTE:If your vehicle is equipped with Keyless Enter-
N-Go, the Electronic Vehicle Information Center (EVIC)
will display the ignition switch position (OFF/ACC/
RUN). Refer to “Electronic Vehicle Information Center
(EVIC) — If Equipped” in “Understanding Your Instru-
ment Panel” for further information.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Keyless Ignition Node (KIN) — If Equipped
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in the passenger
compartment.
The Keyless Ignition Node (KIN) has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE:In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
Keyless Enter-N-Go™ Feature
If your vehicle is equipped with the Keyless Enter-N-
Go™ feature, refer to “Starting Procedure” in “Starting
And Operating” for further information.
Keyless Ignition Node (KIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Standard Blade Ignition Key — If Equipped
Your vehicle may use a standard blade key ignition
system. The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place. You can insert the
double-sided standard blade key into the ignition switch
or lock cylinders with either side up.
Standard Blade Ignition Key
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

Key Fob — If Equipped
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the face of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
Emergency Key Removal (WIN)
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE: With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Settings”
in “Understanding Your Instrument Panel” for further
information.
Emergency Key Removal (KIN)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

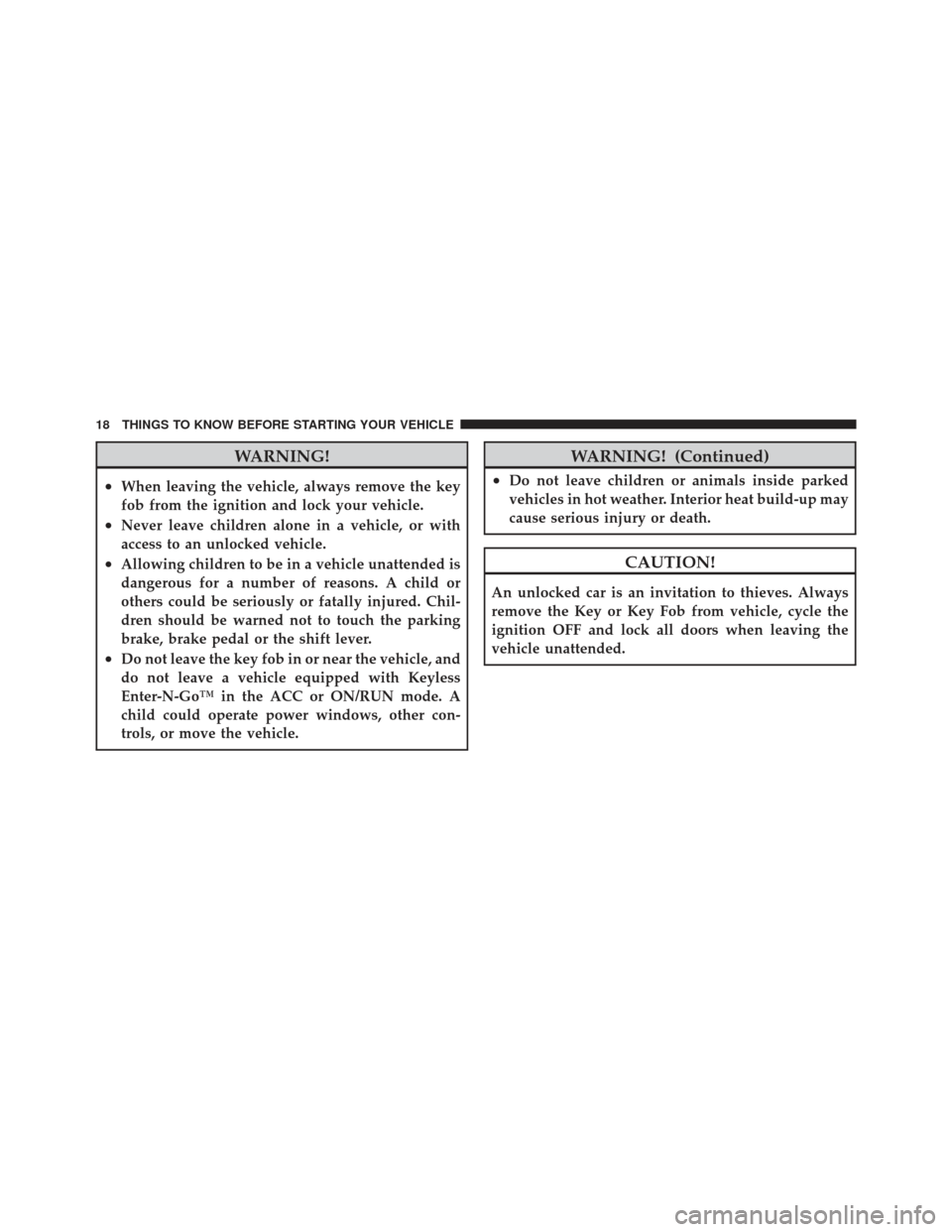

WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave a vehicle equipped with Keyless
Enter-N-Go™ in the ACC or ON/RUN mode. A
child could operate power windows, other con-
trols, or move the vehicle.
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key or Key Fob from vehicle, cycle the
ignition OFF and lock all doors when leaving the
vehicle unattended.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY
The Sentry KeyImmobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key or Key Fob with Remote Keyless
Entry (RKE) transmitter, an RF receiver, and either an
Ignition Node Module (IGNM) or a Keyless Ignition
Node (KIN) to prevent unauthorized vehicle operation.
Therefore, only Keys or Key Fobs that are programmed to
the vehicle can be used to start and operate the vehicle.
After cycling the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check, it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry Key
Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
2
